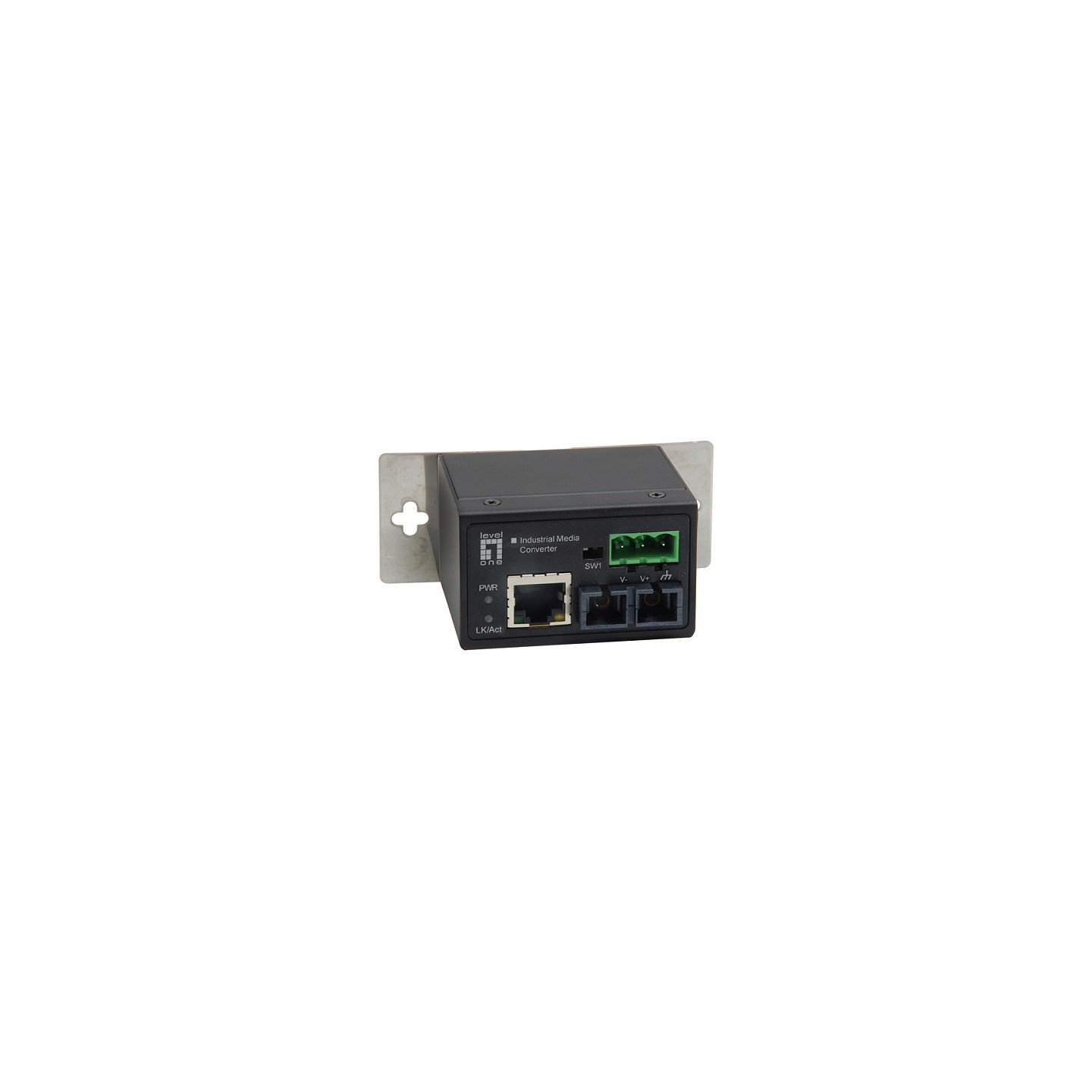

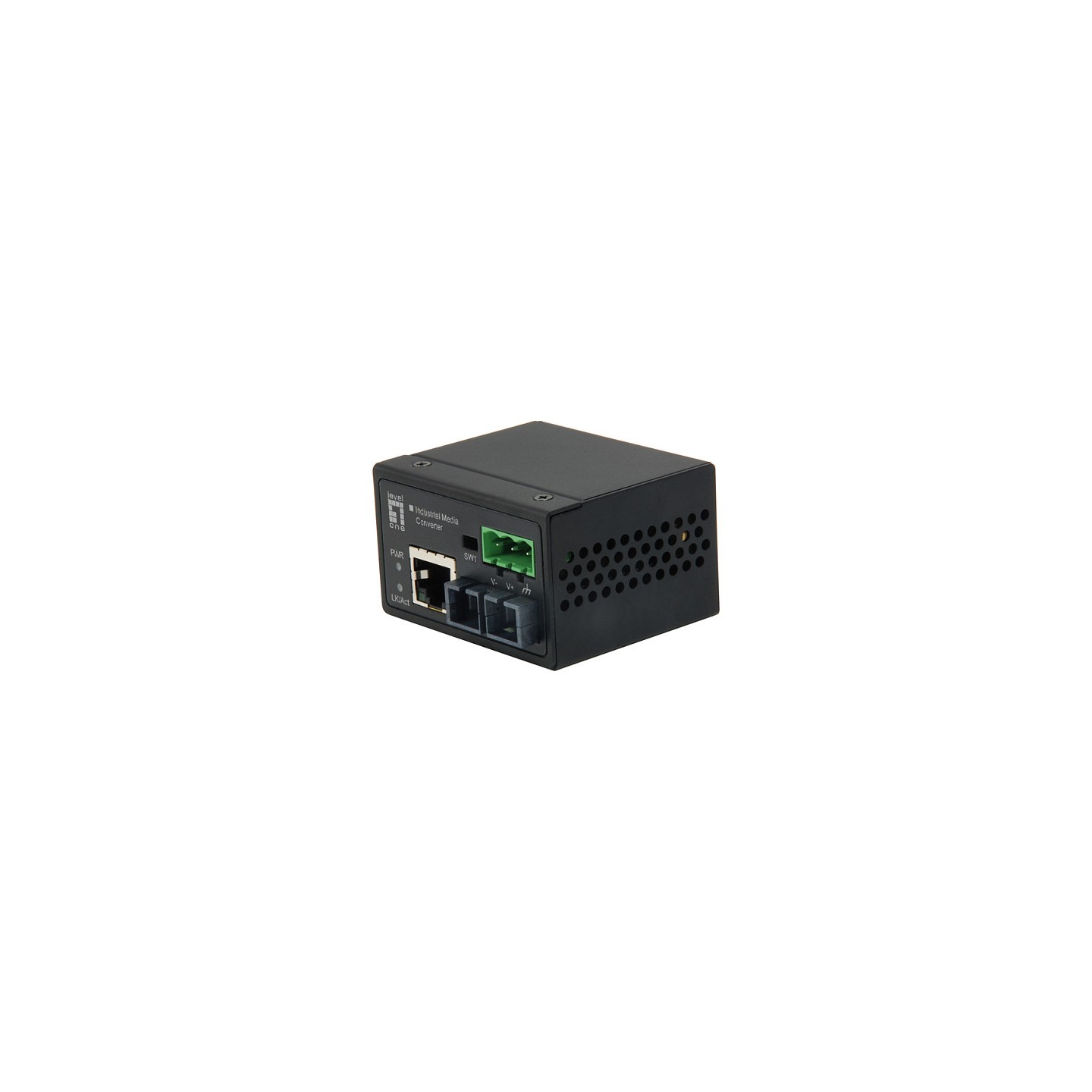

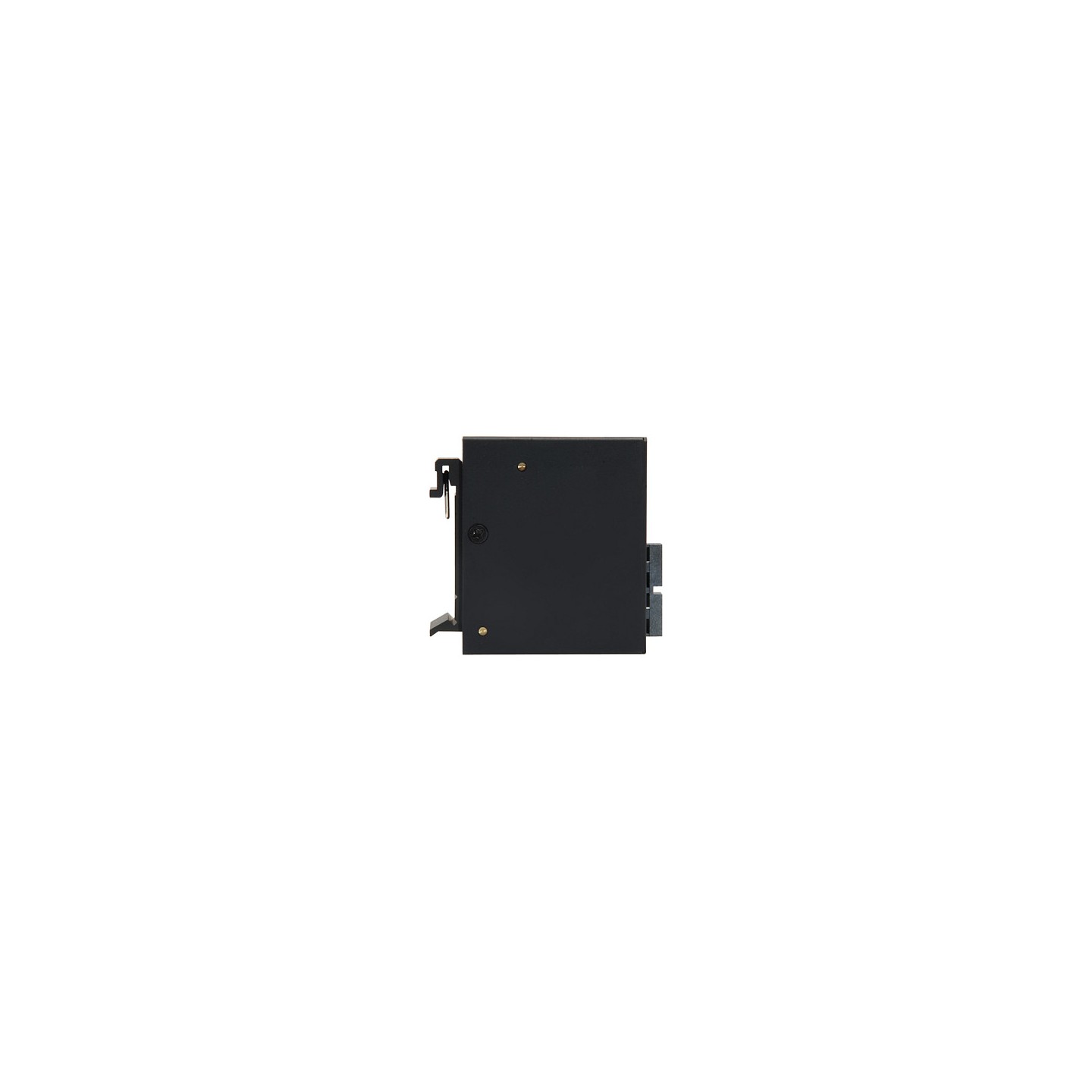

Konverter IEC-4301 10 100TX to 100FX SC SM 30km
LevelOne IEC-4301. 100 Mbit/s. 10Base-T. 100Base-TX. 100Base-FX. IEEE 802.3. IEEE 802.3u. IEEE 802.3x. Schnelles Ethernet. 10.100 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne IEC-4301. Maximale Datenübertragungsrate: 100 Mbit/s. Converter Eingangsschnittstelle: 10Base-T. 100Base-TX. Converter output Oberfläche: 100Base-FX. Maximal mögliche Übertragungsstrecke: 30000 m. Kabel mode struktur: Einzelmodus. LED-Anzeigen: Aktivität. Link. Leistung. Produktfarbe: Schwarz. Gehäusematerial: Aluminium. Optischer Kabelverbinder: SC. Übertragungstechnik: Kabelgebunden. Eingangsspannung: 12 - 60 V. Stromverbrauch (Standardbetrieb): 1.44 W
| Maximale Datenübertragungsrate | 100 Mbit/s |
| Converter Eingangsschnittstelle | 10Base-T. 100Base-TX |
| Converter output Oberfläche | 100Base-FX |
| Netzstandard | IEEE 802.3. IEEE 802.3u. IEEE 802.3x |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Ethernet LAN Datentransferraten | 10.100 Mbit/s |
| Feature | Schnellinstallationsanleitung |
| Duplex-System | Voll. Halb |
| Maximal mögliche Übertragungsstrecke | 30000 m |
| Kabel mode struktur | Einzelmodus |
| LED-Anzeigen | Aktivität. Link. Leistung |
| Produktfarbe | Schwarz |
| Gehäusematerial | Aluminium |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl Faseranschlüsse | 1 |
| Optischer Kabelverbinder | SC |
| Eingangsspannung | 12 - 60 V |
| Stromverbrauch (Standardbetrieb) | 1.44 W |
| Breite | 59 mm |
| Tiefe | 49 mm |
| Höhe | 36 mm |
| Gewicht | 90 g |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Verpackungsbreite | 160 mm |
| Verpackungstiefe | 105 mm |
| Verpackungshöhe | 65 mm |
| Paketgewicht | 260 g |
| Verpackungsart | Box |
| Konformitätsbescheinigungen | RoHS |
| Ursprungsland | Taiwan |
| Warentarifnummer (HS) | 85176990 |
