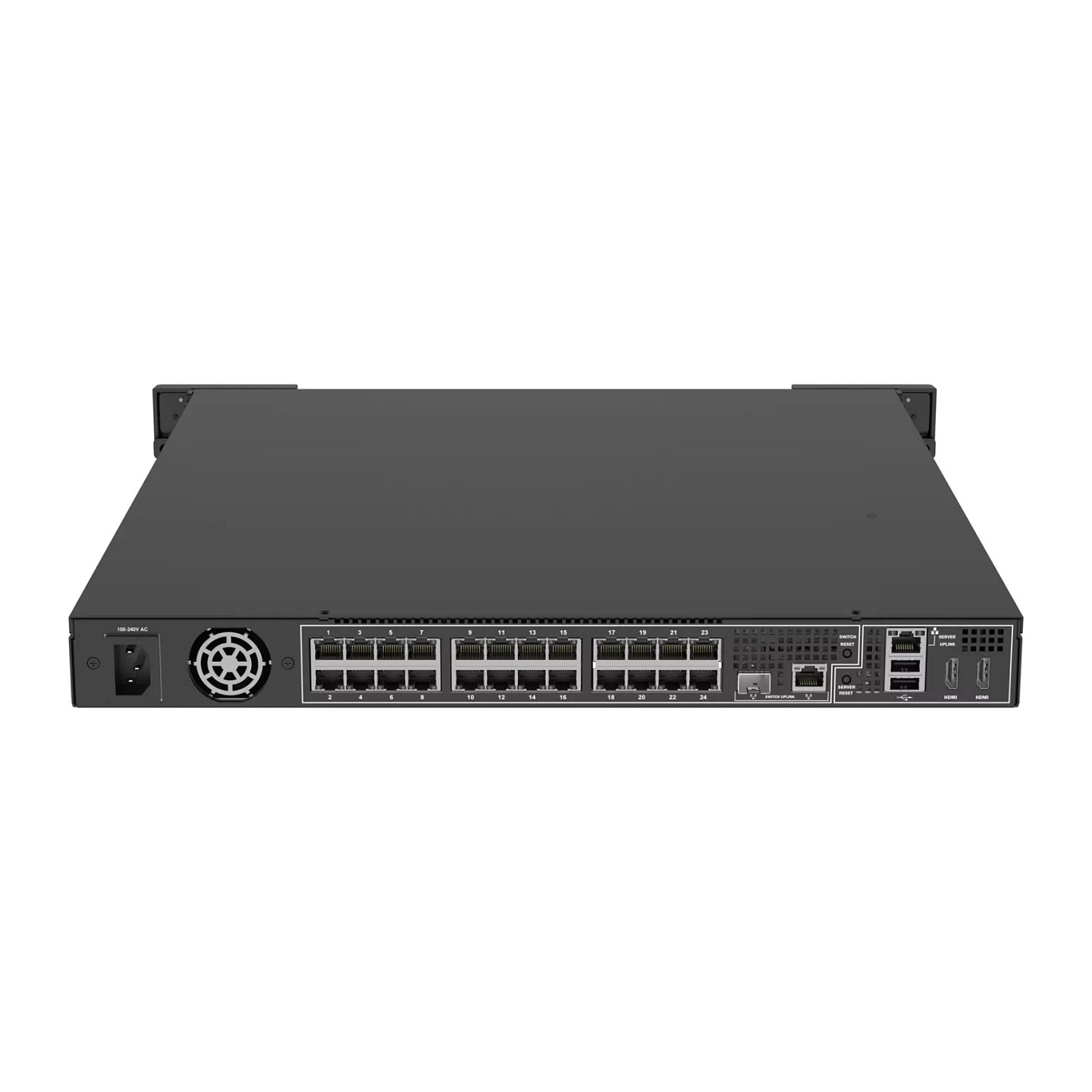

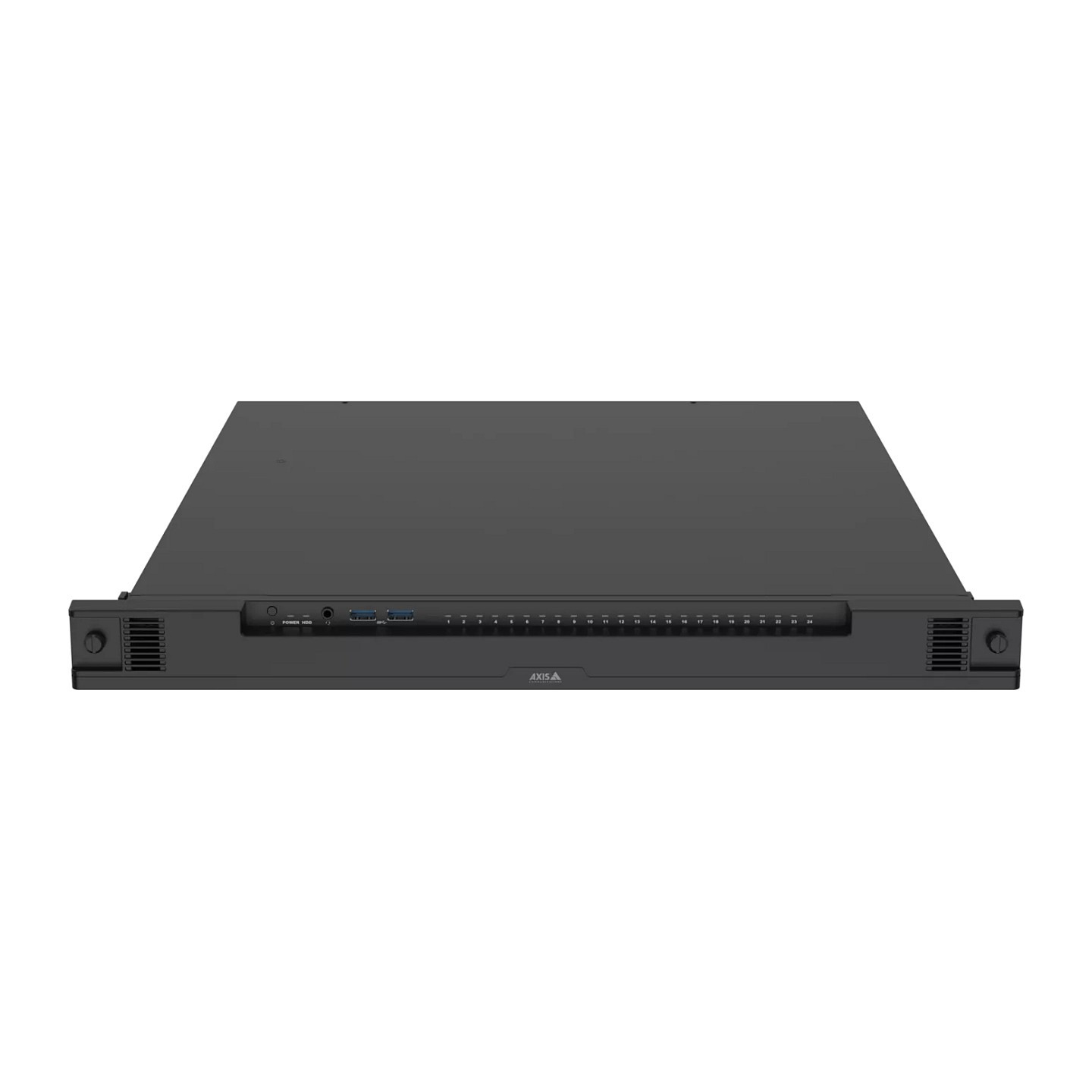

AXIS S2224 MK II 12 TB UK
Axis S2224 Mk II. 24 Kanäle. 7680 x 4320 Pixel. 48 Kanäle. 7680 x 4320. 3840 x 2160. 1920 x 1080. 1280 x 720. 16000 MB. DDR5
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis S2224 Mk II. Video-Eingangskanäle: 24 Kanäle. Maximale Auflösung: 7680 x 4320 Pixel. Anzahl der gleichzeitig abgespielten Kanäle: 48 Kanäle. HDD Kapazität: 6 TB. Insgesamt installierte Speicherkapazität: 2 GB. RAID Level: 0. 1. 10. SSD Speicherkapazität: 256 GB. Netzstandard: IEEE 802.3at. Rack-Kapazität: 1U. Produktfarbe: Schwarz. Zertifizierung: FIPS 140–2 Level 2. EN 55035. EN 55032 Class A EN 61000-3-2. EN 61000-3-3. RCM AS/NZS CISPR 32...
| Video-Eingangskanäle | 24 Kanäle |
| Anzahl der gleichzeitig abgespielten Kanäle | 48 Kanäle |
| Maximale Auflösung | 7680 x 4320 Pixel |
| Unterstütze Auflösung | 7680 x 4320. 3840 x 2160. 1920 x 1080. 1280 x 720 |
| Speicherkapazität | 16000 MB |
| Interner Speichertyp | DDR5 |
| Maximale Framerate | 30 fps |
| Anzahl der installierten HDDs | 2 |
| HDD Kapazität | 6 TB |
| Maximale unterstützte Anzahl der HDD | 4 |
| Insgesamt installierte Speicherkapazität | 2 GB |
| Feature | Eingebauter Prozessor |
| RAID Level | 0. 1. 10 |
| Anzahl SSD installiert | 1 |
| SSD Speicherkapazität | 256 GB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 24 |
| Anzahl HDMI-Anschlüsse | 2 |
| Anzahl USB 2.0 Anschlüsse | 2 |
| Anzahl Faseranschlüsse | 1 |
| Netzstandard | IEEE 802.3at |
| Rack-Kapazität | 1U |
| Produktfarbe | Schwarz |
| Stromverbrauch (max.) | 130 W |
| Stromverbrauch (Standardbetrieb) | 110 W |
| AC Eingangsspannung | 100-240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Gesamtleistung Power over Ethernet (PoE) | 260 W |
| Unterstützt Windows-Betriebssysteme | Windows 11 |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Luftfeuchtigkeit bei Lagerung | 10 - 90% |
| Breite | 476 mm |
| Tiefe | 440 mm |
| Höhe | 45 mm |
| Gewicht | 11 kg |
| Mitgelieferte Kabel | AC |
