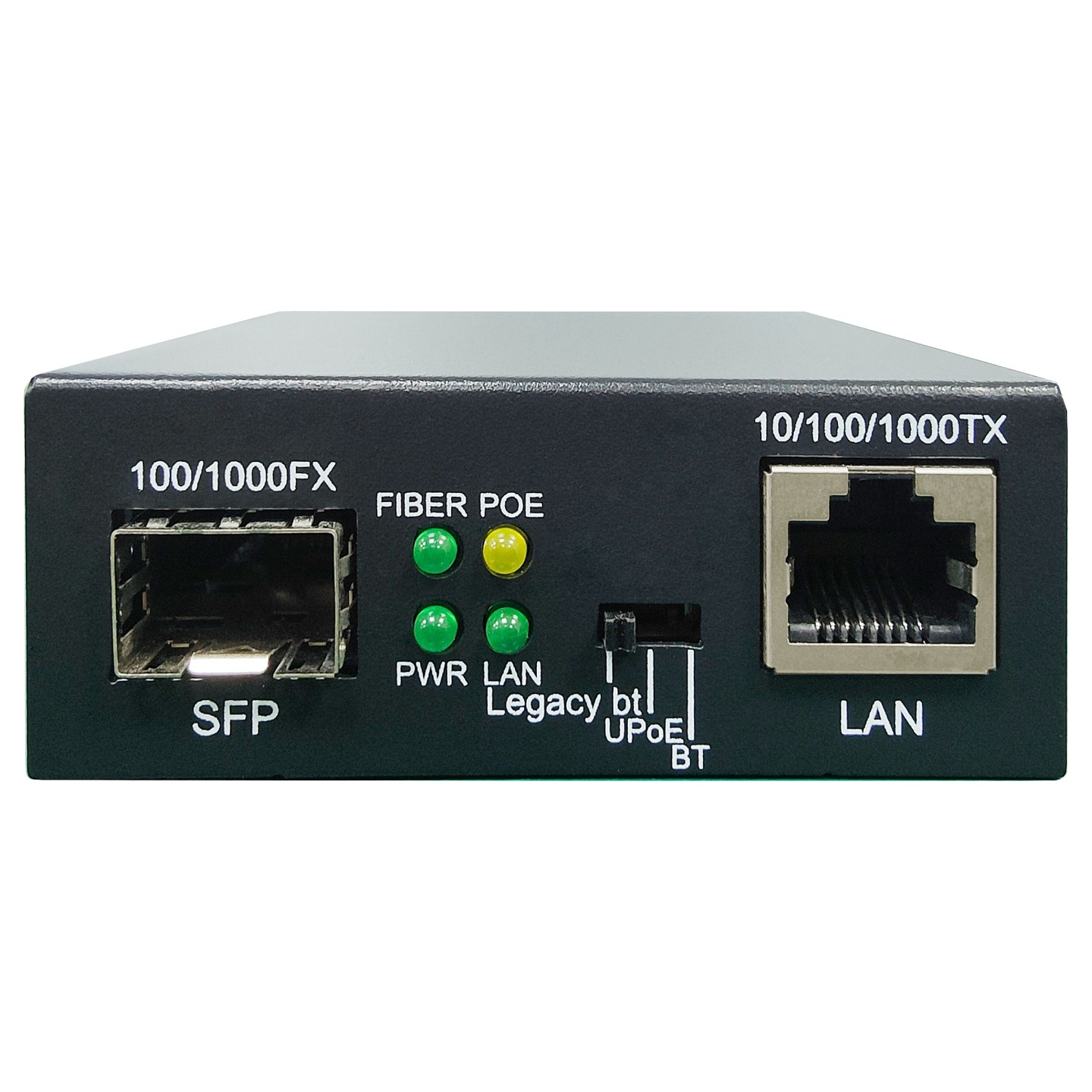

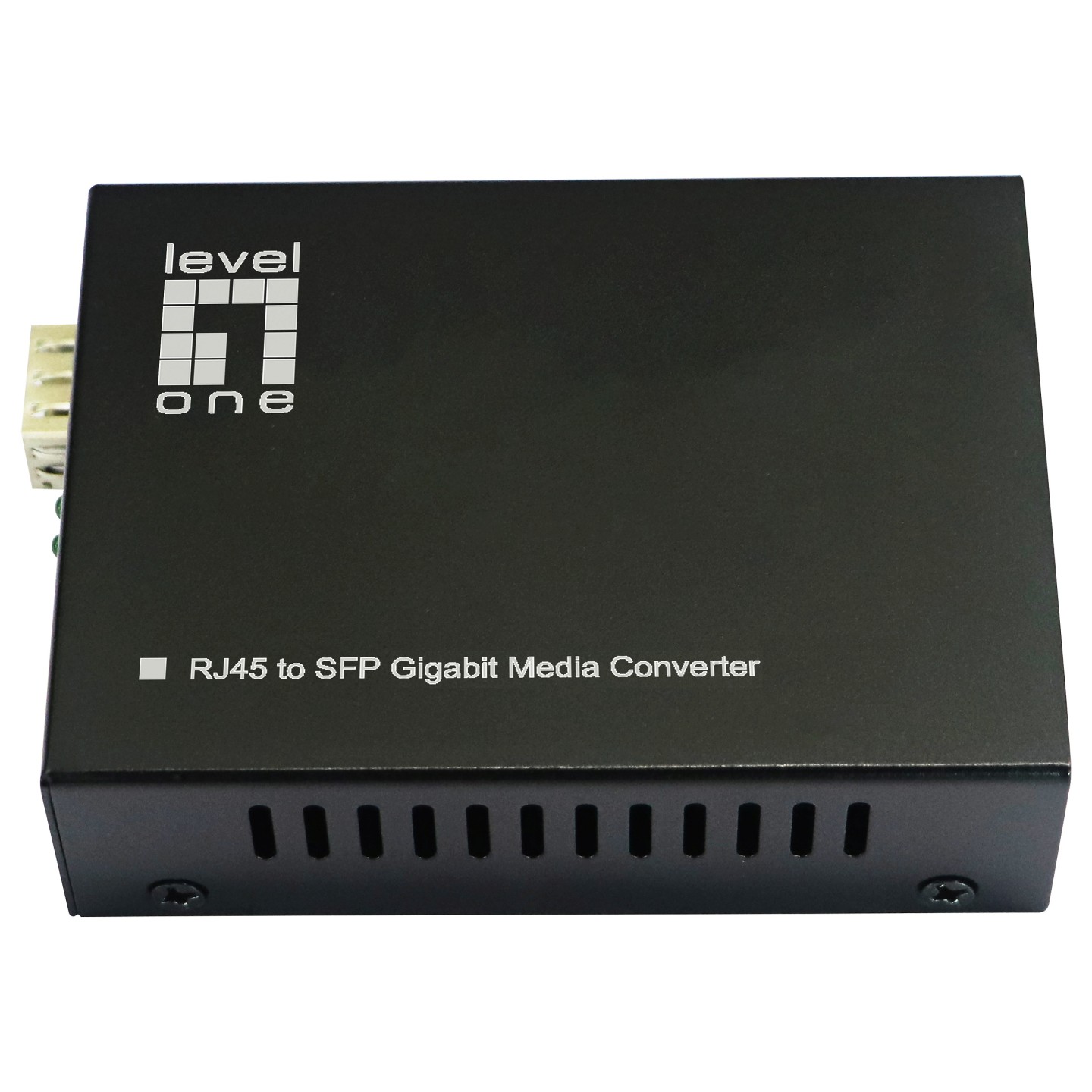

Konverter GVT-2016 10 100 1000T to RJ45 to SFP 90W sw
LevelOne RJ45-zu-SFP-Gigabit-Medienkonverter. 802.3bt 90W PoE PSE. 1000 Mbit/s. IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt. IEEE 802.3u. IEEE 802.3x. IEEE.... Schnelles Ethernet. Gigabit Ethernet. 10.100.1000 Mbit/s. 10BASE-T. 100BASE-TX. 1000BASE-T. 1000BASE-X. Multi-Modus. Einzelmodus
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne RJ45-zu-SFP-Gigabit-Medienkonverter. 802.3bt 90W PoE PSE. Maximale Datenübertragungsrate: 1000 Mbit/s. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt. IEEE 802.3u. IEEE 802.3x. IEEE.... Ethernet Schnittstellen Typ: Schnelles Ethernet. Gigabit Ethernet. Kabel mode struktur: Multi-Modus. Einzelmodus. LED-Anzeigen: LAN. PoE. Leistung. Produktfarbe: Schwarz. Optischer Kabelverbinder: SFP. Übertragungstechnik: Kabelgebunden. Eingangsspannung: 100 - 240 V. AC Eingangsfrequenz: 50 - 60 Hz. Eingangsstrom: 2 A
| Maximale Datenübertragungsrate | 1000 Mbit/s |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Ethernet Schnittstellen Typ | Schnelles Ethernet. Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T. 1000BASE-X |
| Feature | Schnellinstallationsanleitung |
| Jumbo-Frames | 9000 |
| Kabel mode struktur | Multi-Modus. Einzelmodus |
| LED-Anzeigen | LAN. PoE. Leistung |
| Produktfarbe | Schwarz |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl Faseranschlüsse | 1 |
| Optischer Kabelverbinder | SFP |
| Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Eingangsstrom | 2 A |

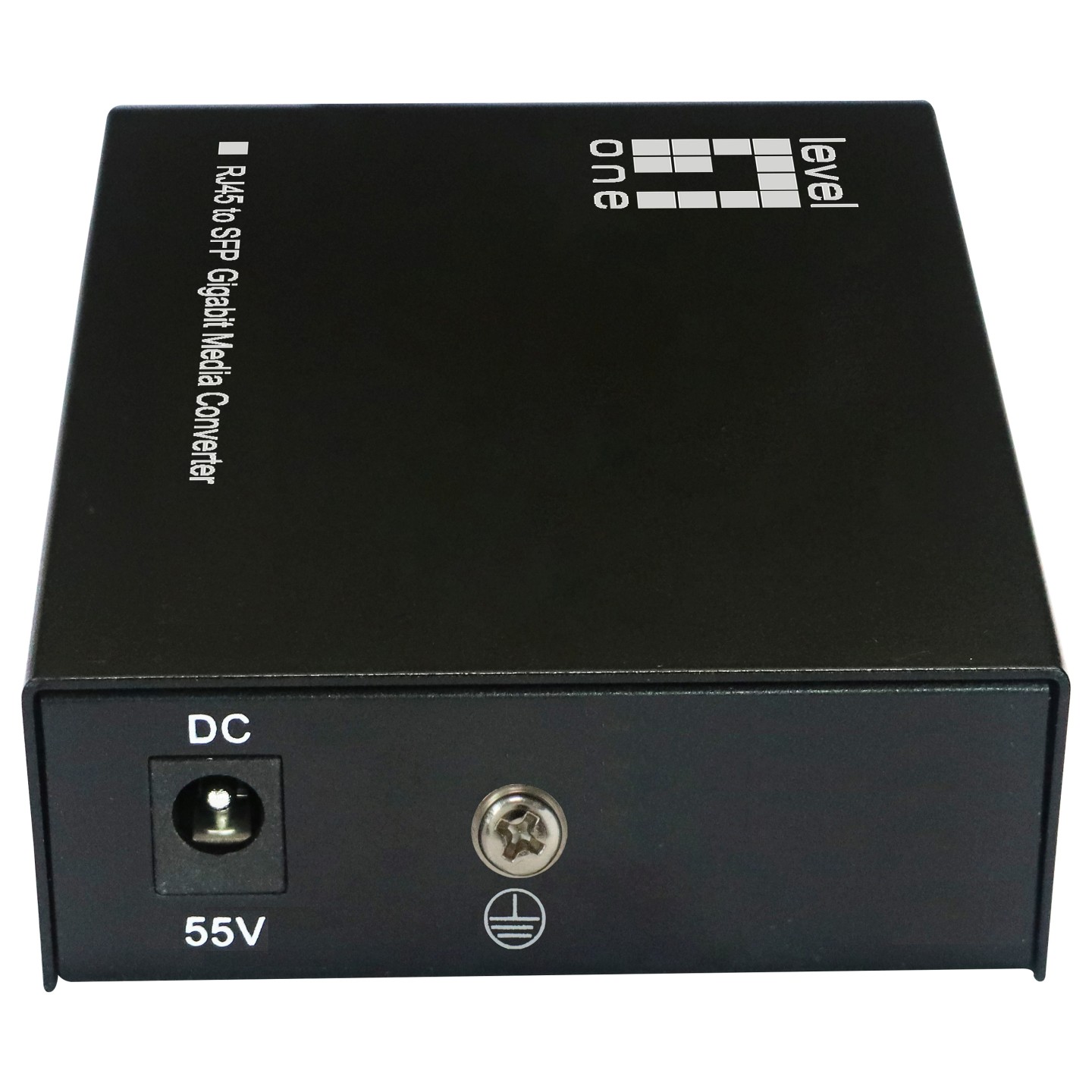

| Ausgangsspannung | 55 V |
| Ausgangsstrom | 2.3 A |
| Stromverbrauch (Standardbetrieb) | 2.42 W |
| Stromverbrauch (max.) | 105.4 W |
| Gesamtleistung Power over Ethernet (PoE) | 90 W |
| Breite | 93.5 mm |
| Tiefe | 70 mm |
| Höhe | 26 mm |
| Gewicht | 351 g |
| Betriebstemperatur | 0 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 80 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Verpackungsbreite | 240 mm |
| Verpackungstiefe | 186 mm |
| Verpackungshöhe | 84 mm |
| Paketgewicht | 937 g |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC). Niederspannungsrichtlinie (LVD). RCM. RoHS. UKCA |
| Ursprungsland | China |
| Anzahl der Kartons pro Palette (Luft) | 32 Stück(e) |
| Palettenlänge (brutto) | 100 cm |
| Palettenbreite (brutto) | 120 cm |
| Palettenhöhe (Luft) | 171 cm |
| Warentarifnummer (HS) | 851762 |
| Breite des Versandkartons | 450 mm |
| Länge des Versandkartons | 264 mm |
| Höhe des Versandkartons | 390 mm |
| Gewicht Versandkarton | 8.62 kg |
| Anzahl Produkte pro Versandkarton | 10 Stück(e) |
