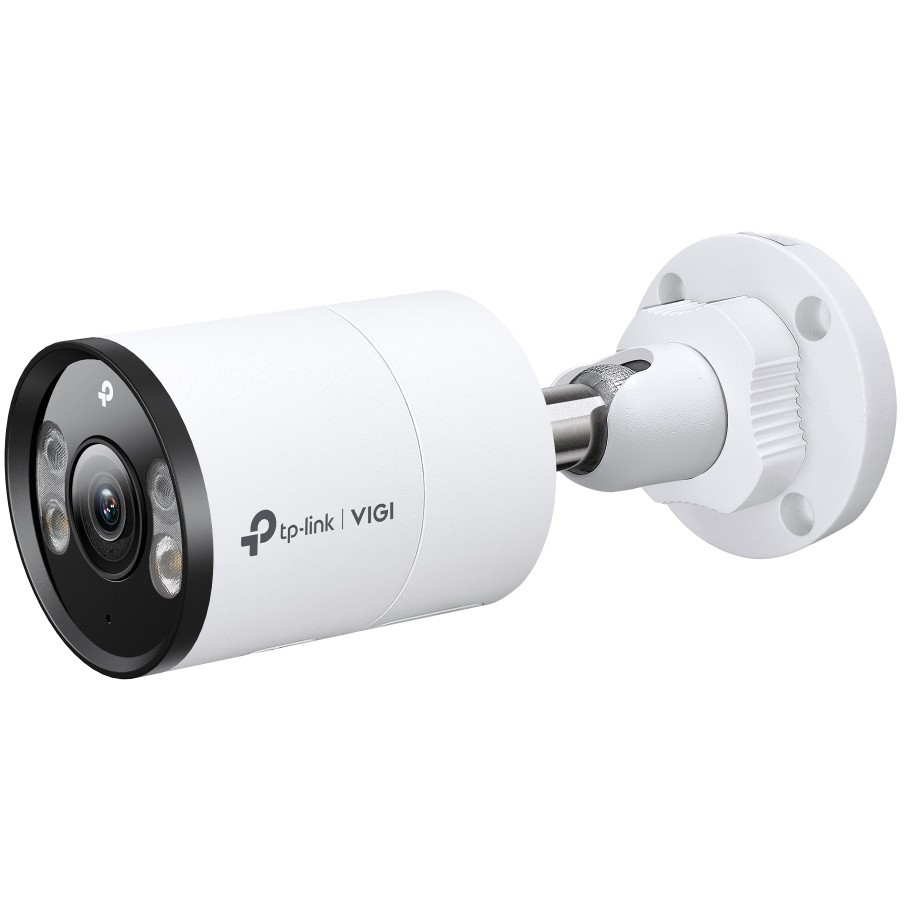

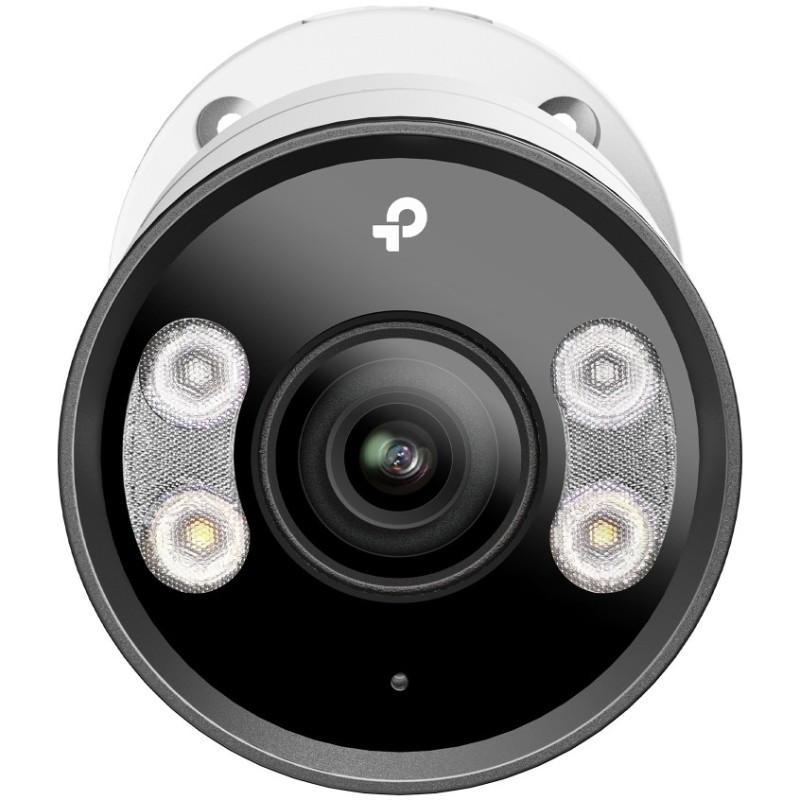

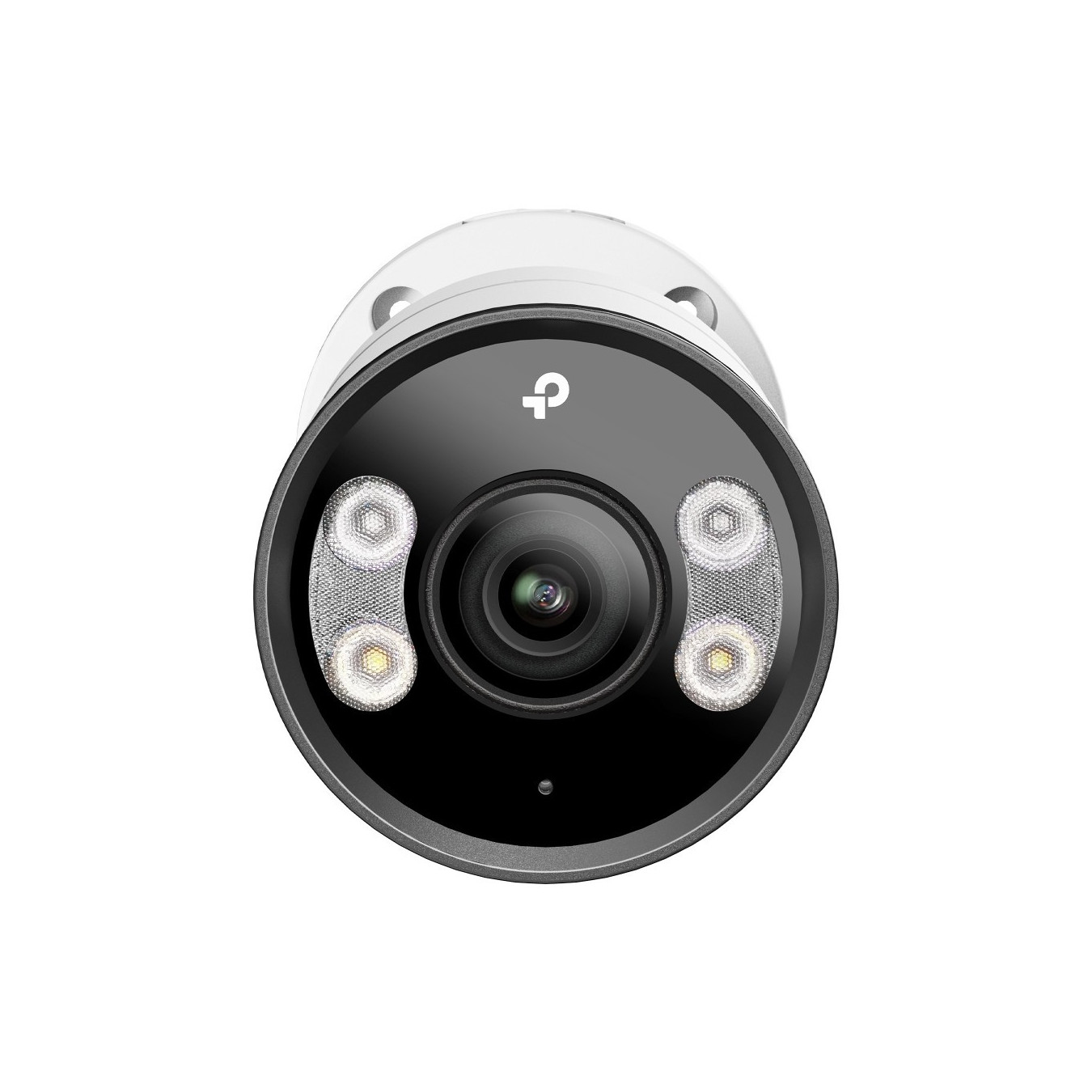

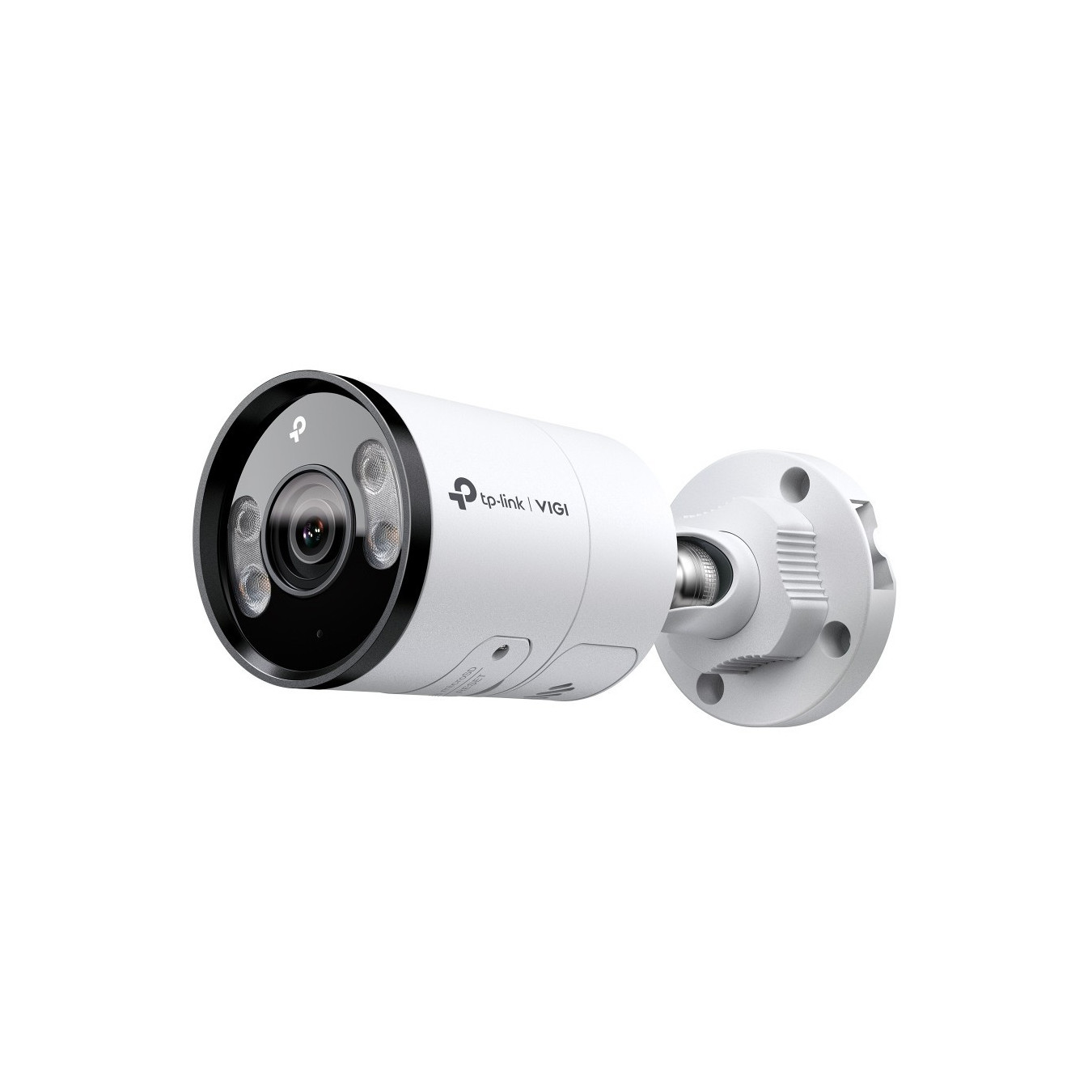

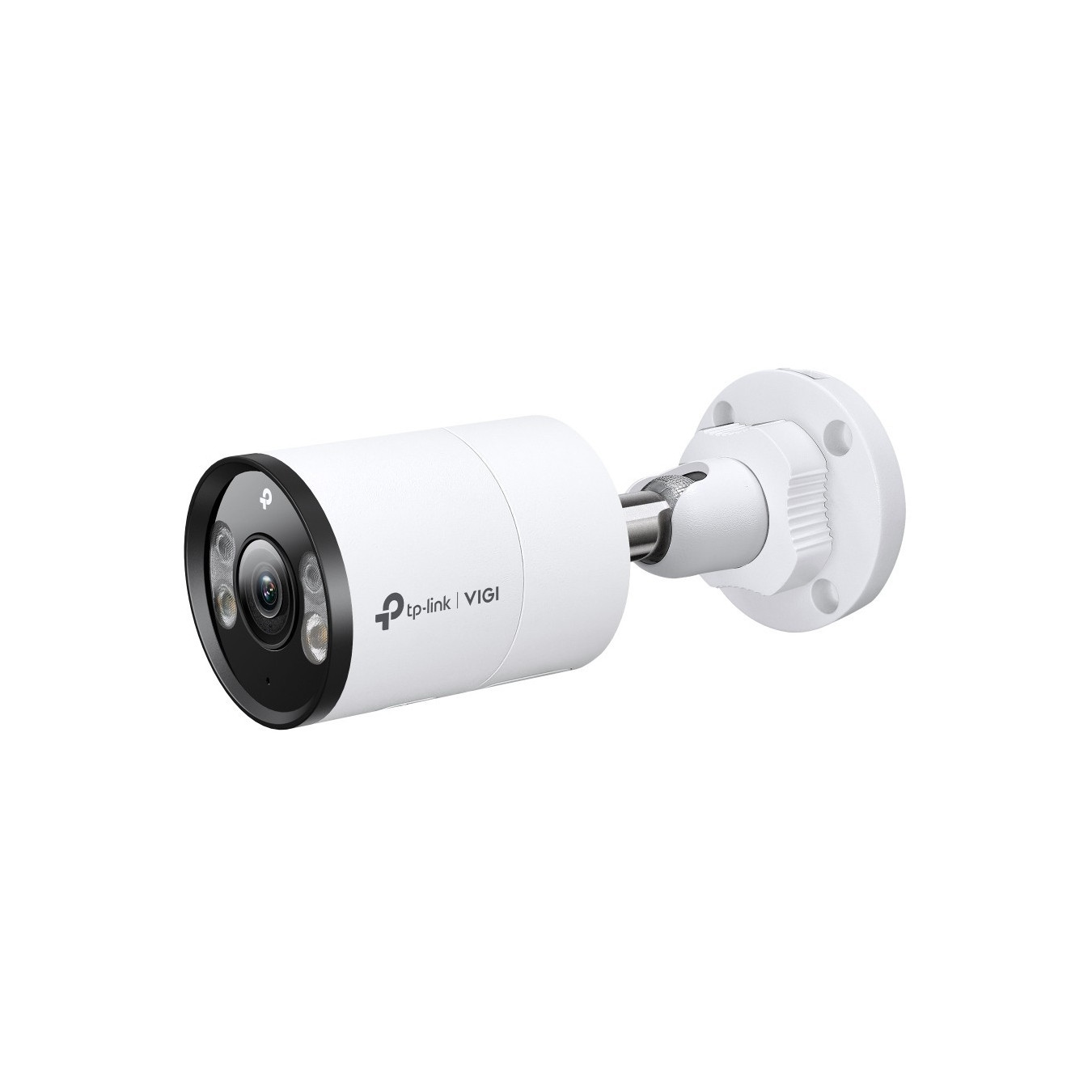

TP-Link Omada InSight S345 - 4MP (2.8mm) Outdoor White Bullet Camera - IP67, Wired
4MP outdoor wired bullet camera with 2.8mm lens and 100° FOV, IP67 metal housing, 120 dB WDR, up to 64 m detection range, wall-mountable, white.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| IP Cameras - Form Factor | Bullet |
|---|---|
| IP Cameras - Resolution | 4 MP (2K) |
| IP Cameras - Weather Rating | IP67 |
TP-Link INSIGHT S345. Type: IP security camera. Placement supported: Outdoor. Connectivity technology: Wired. Mounting type: Wall. Product colour: White. Form factor: Bullet. Lens viewing angle. horizontal: 100°. Lens viewing angle. vertical: 54°. Lens viewing angle. diagonal: 118°. Sensor type: CMOS. Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 64 m. Observe distance: 27 m. Recognize distance: 13 m
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 64 m |
| Feature | Manual |
| Dynamic range | 120 dB |
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| Minimum illumination | 0 lx |
| Lens viewing angle. horizontal | 100° |
| Lens viewing angle. vertical | 54° |
| Lens viewing angle. diagonal | 118° |
| Tilt angle range | 0 - 90° |
| Camera shutter speed | 1/3 to 1/10000 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Detect distance | 64 m |
| Observe distance | 27 m |
| Recognize distance | 13 m |
| Maximum aperture number | 1.6 |
| Identify distance | 6 m |
| Fixed focal length | 2.8 mm |
| LED type | IR/White |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264. H.264+. H.265. H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720). 1920 x 1080 (HD 1080). 2048 x 1280. 2304 x 1296. 2560 x 1440. 2688 x 1520 |
| Image quality adjustment | Brightness. Contrast. Mirror. Saturation. Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 6 Mbps. Sub-Stream: 64 Kbps to 512 Kbps |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Networking standards | IEEE 802.3af. IEEE 802.3at |
| Supported network protocols | TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. DNS. RTSP. NTP. UPnP UDP. SSL/TLS. FTP/SFTP. RTP. IPv4. IPv6. ARP |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alert notification type | Push notification |
| Power source type | DC. PoE |
| Power consumption (Power over Ethernet (PoE)) | 10.7 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 74 mm |
| Height | 74 mm |
| Length | 184 mm |
| Weight | 525 g |
| Number of cameras | 1 |
