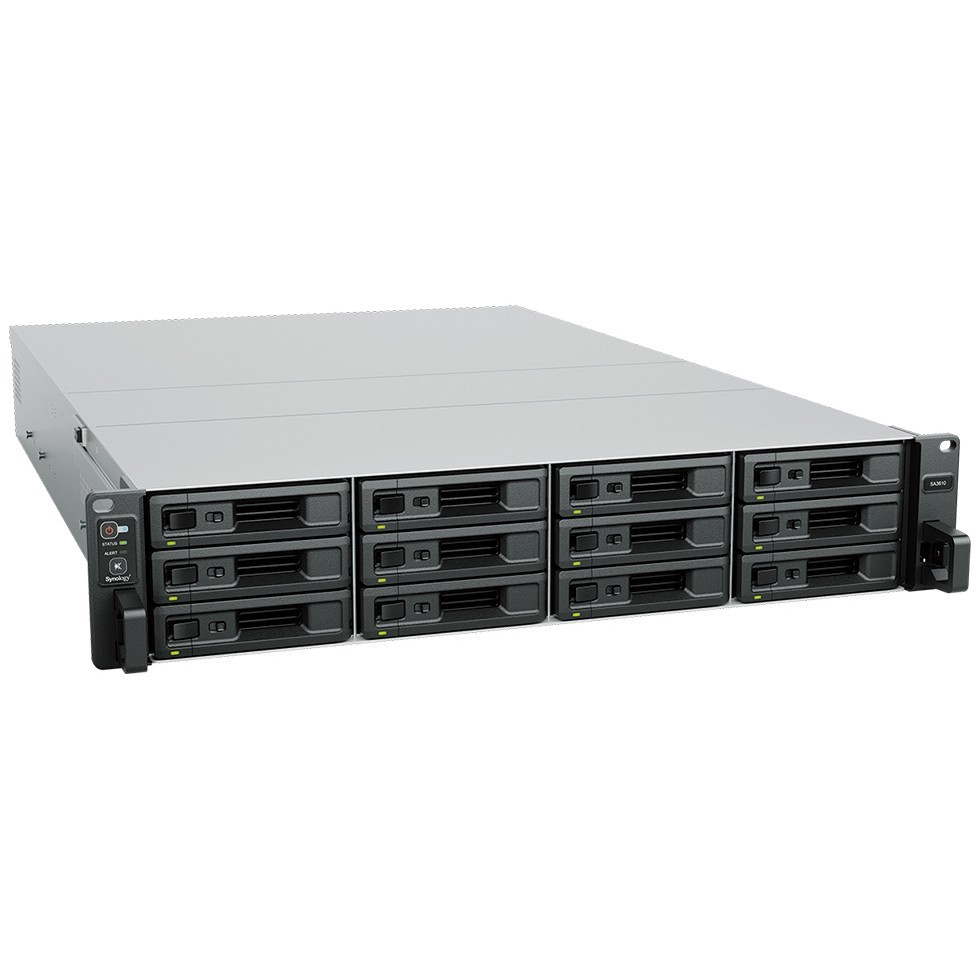

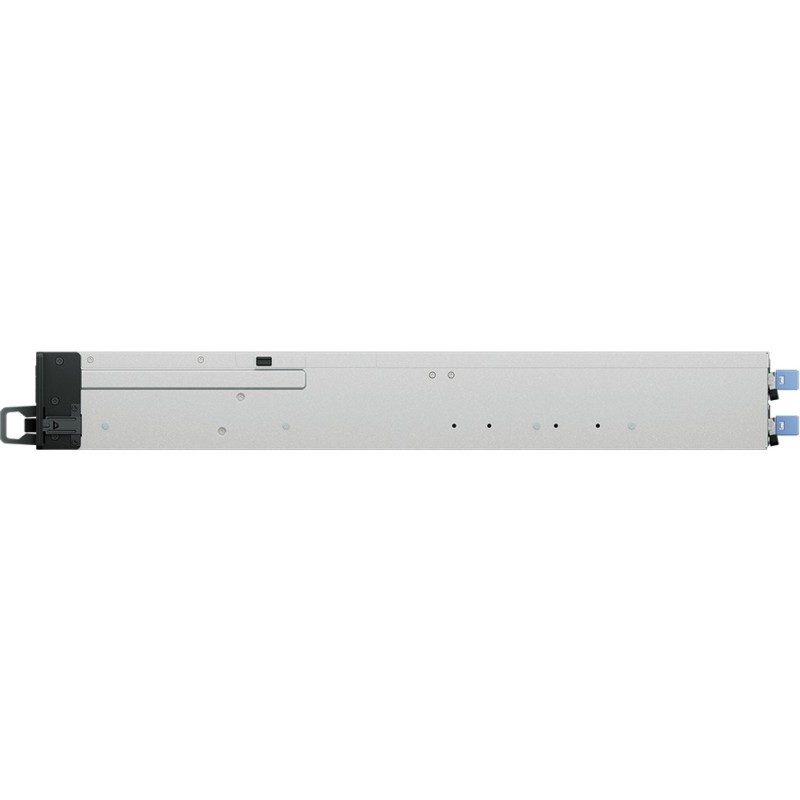

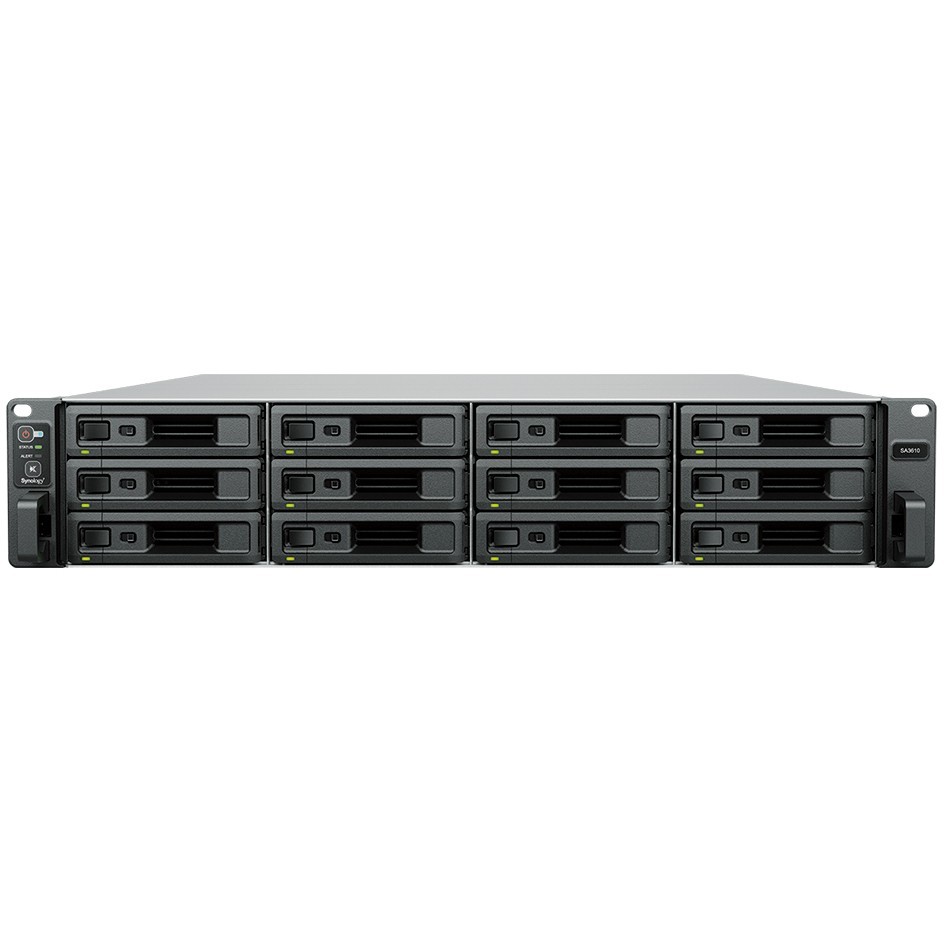

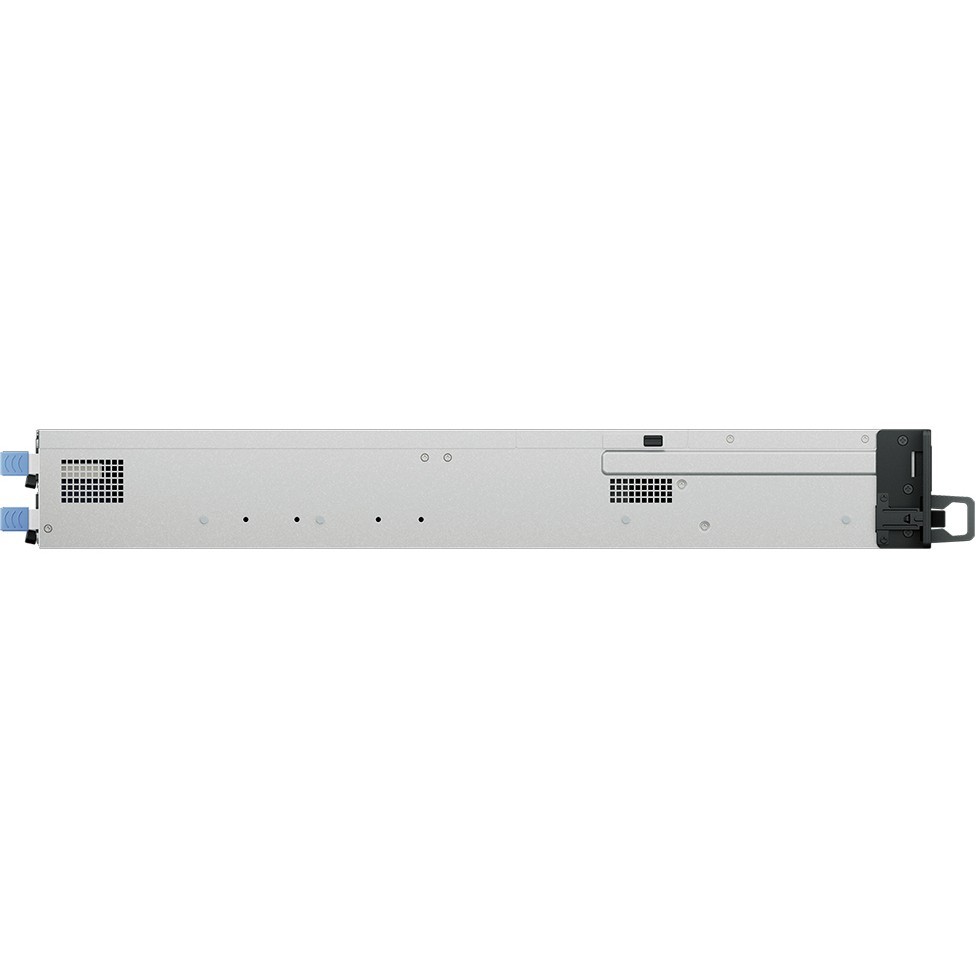

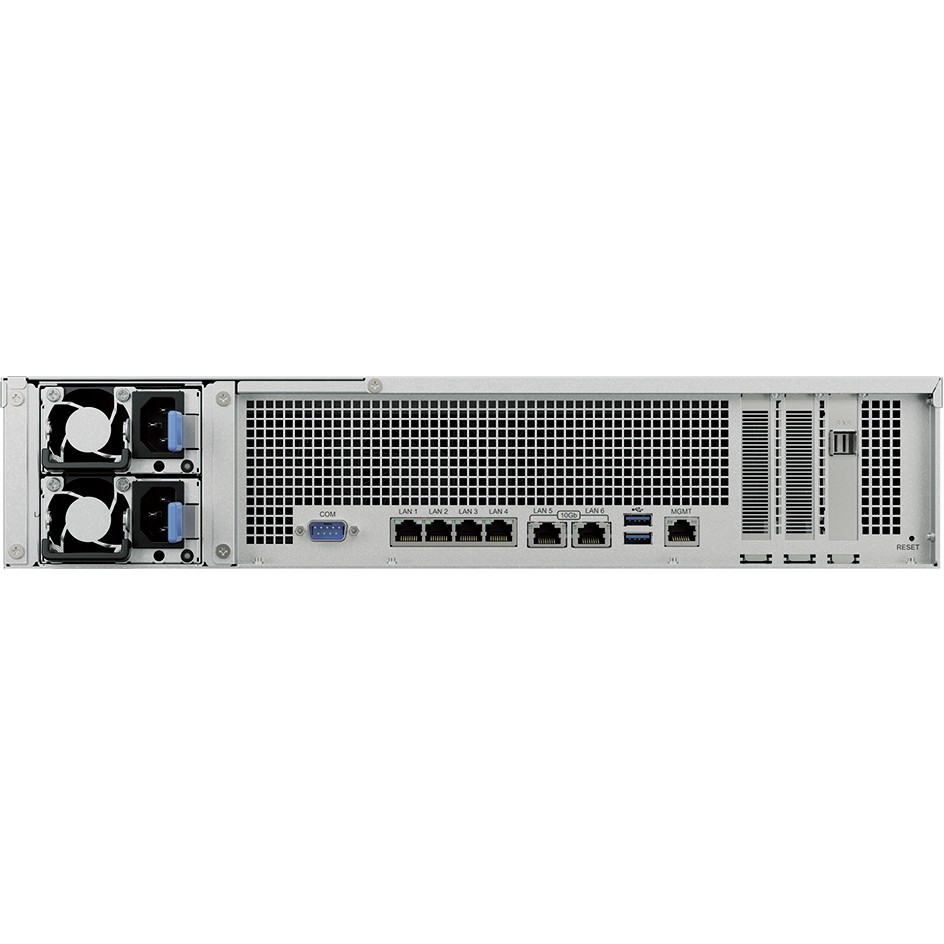

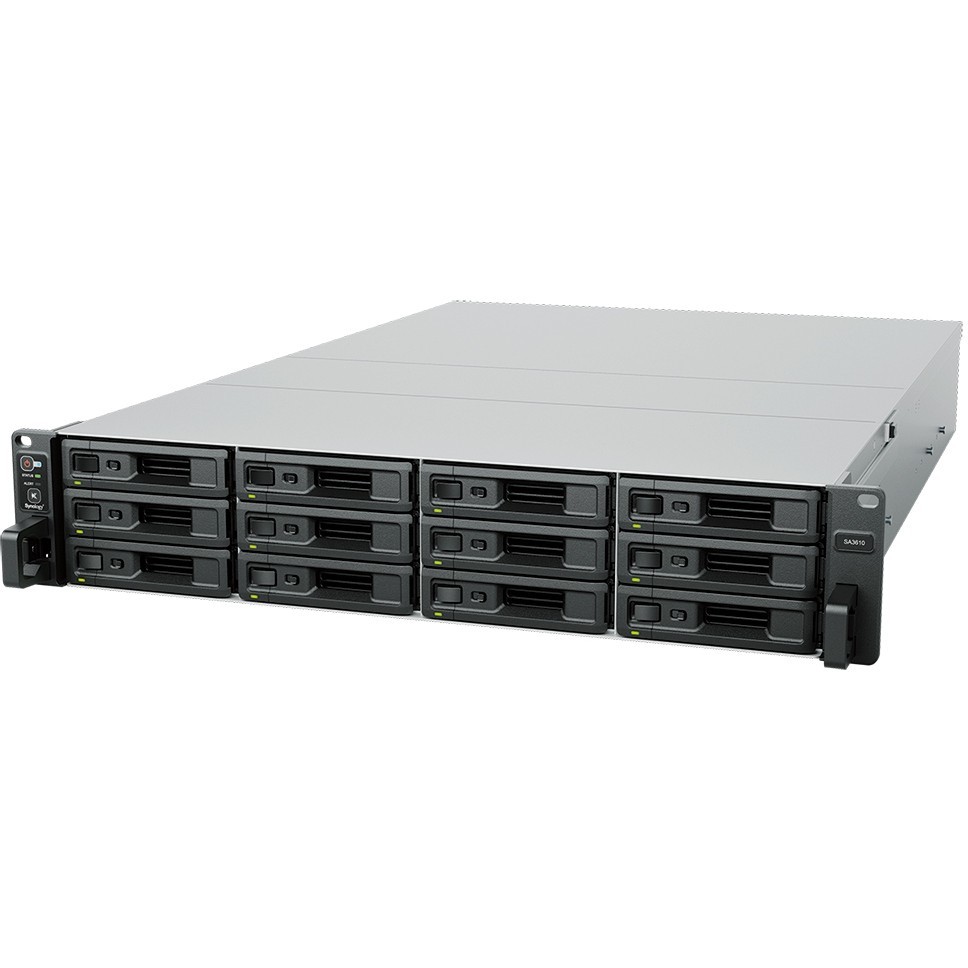

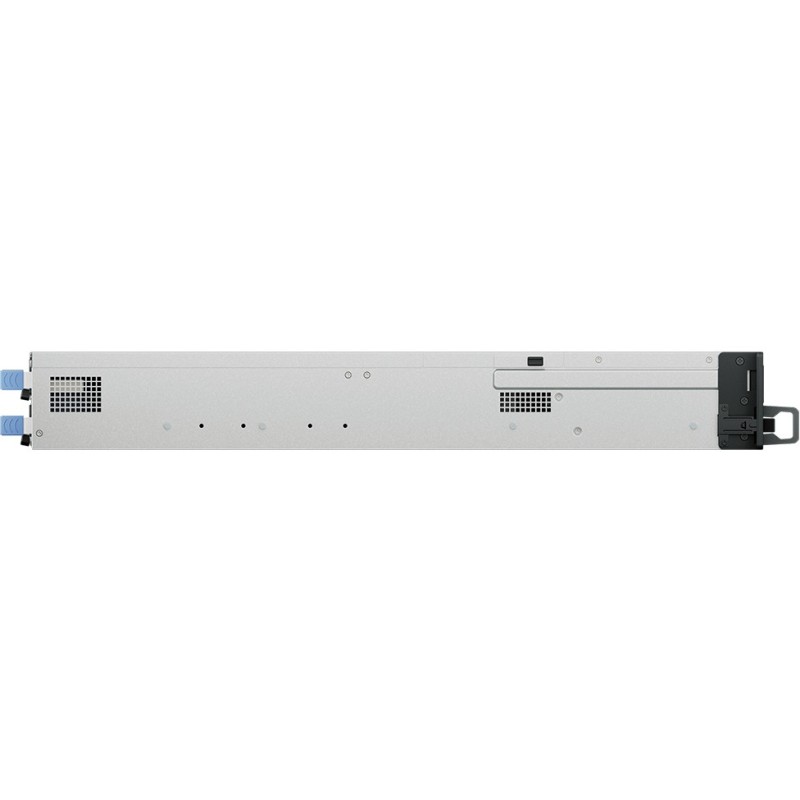

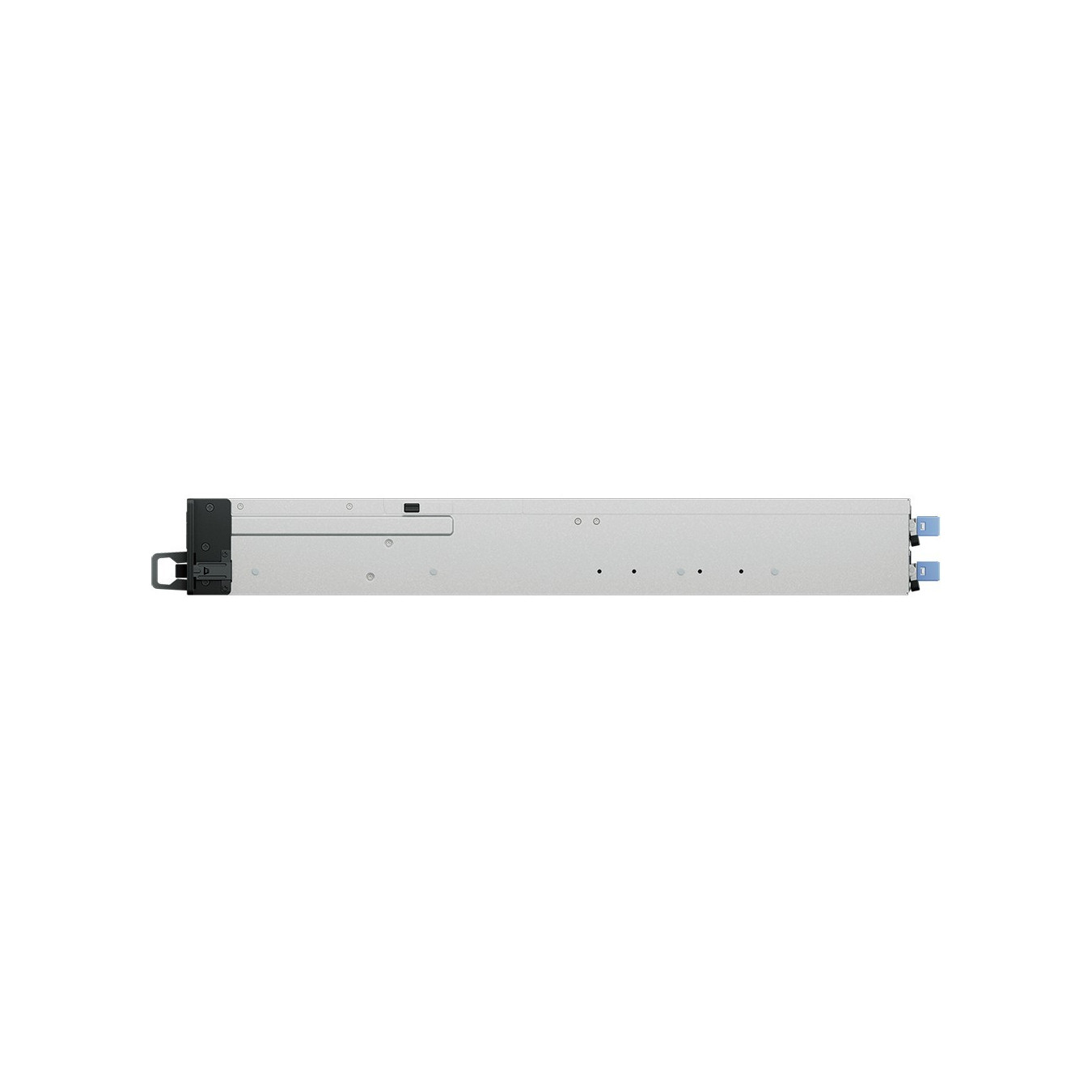

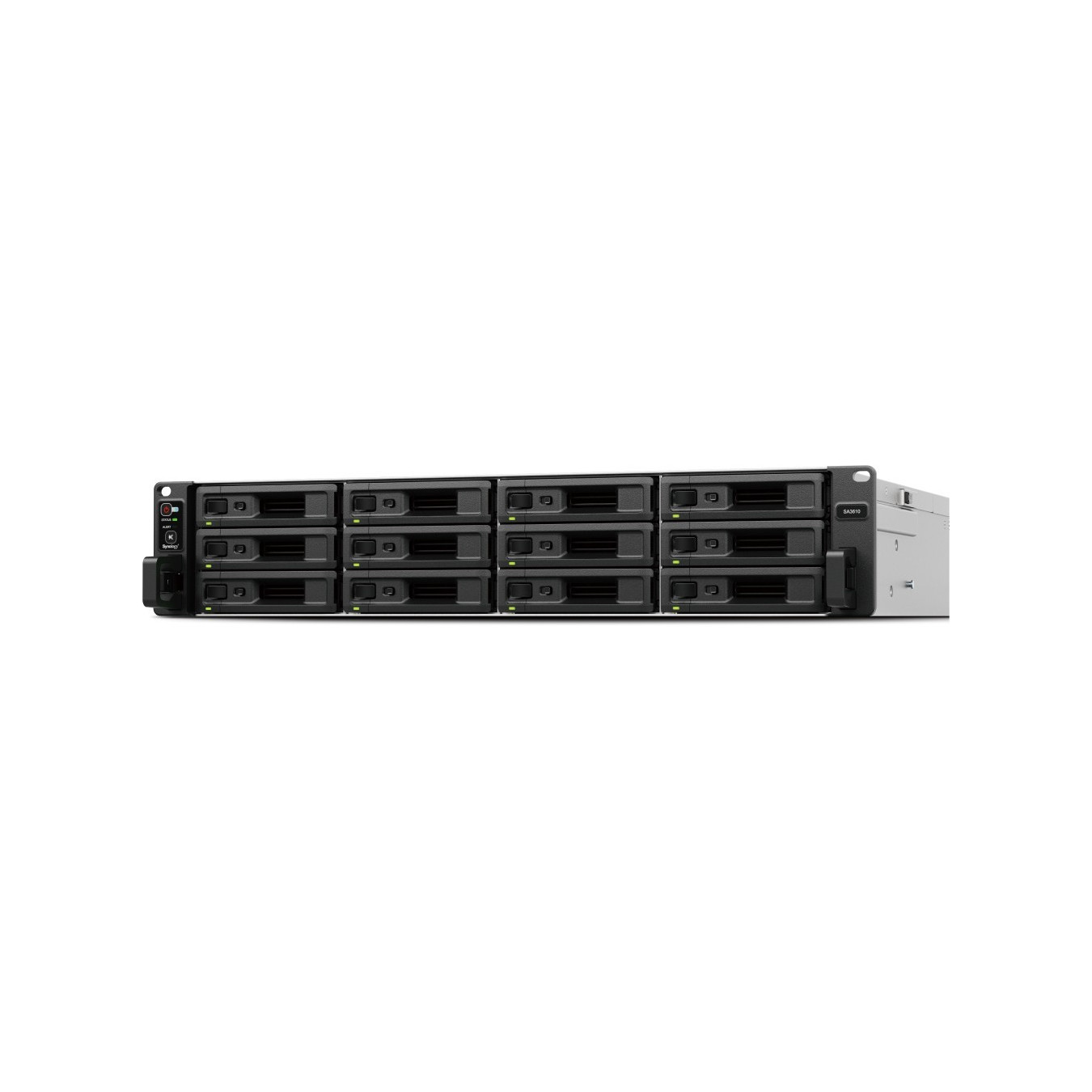

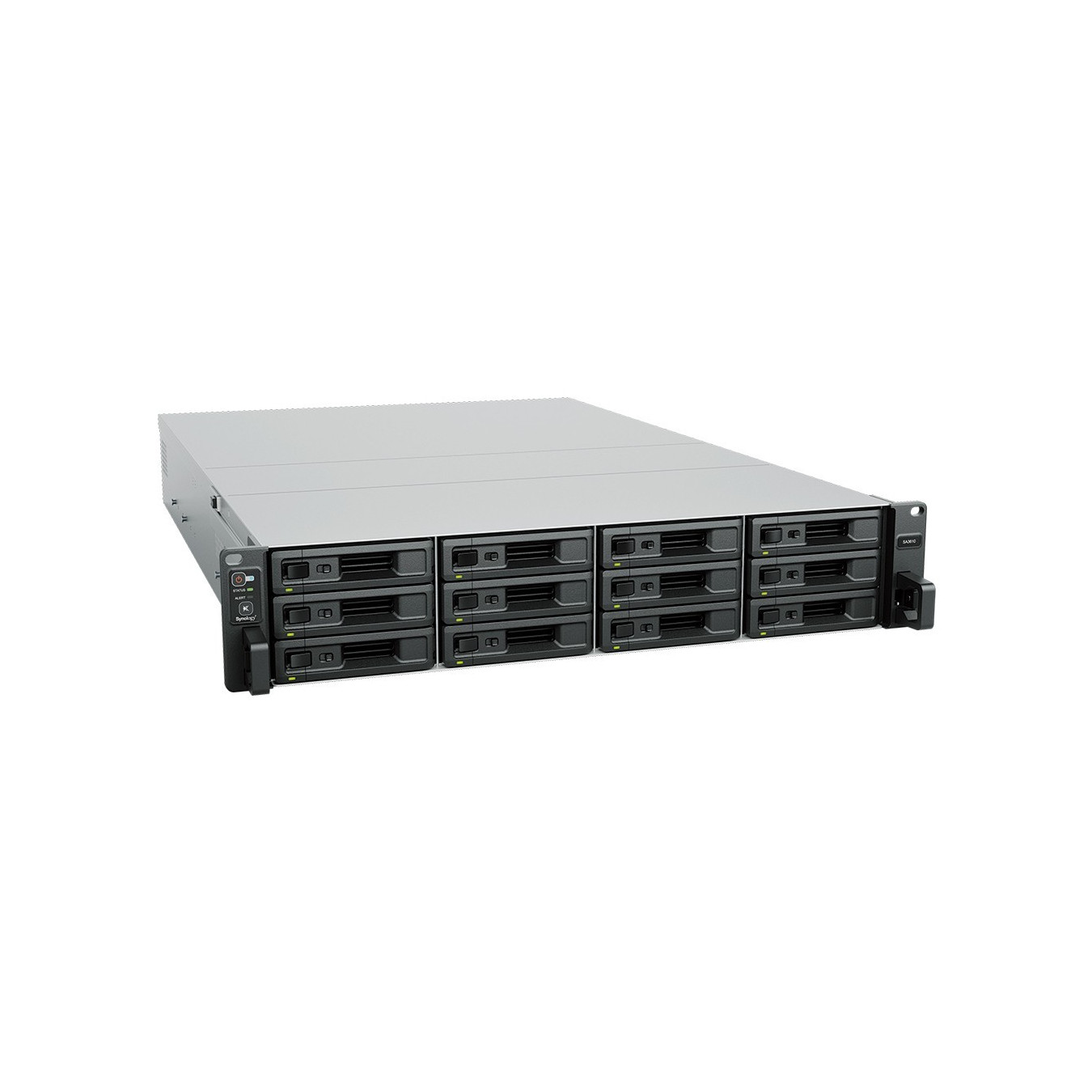

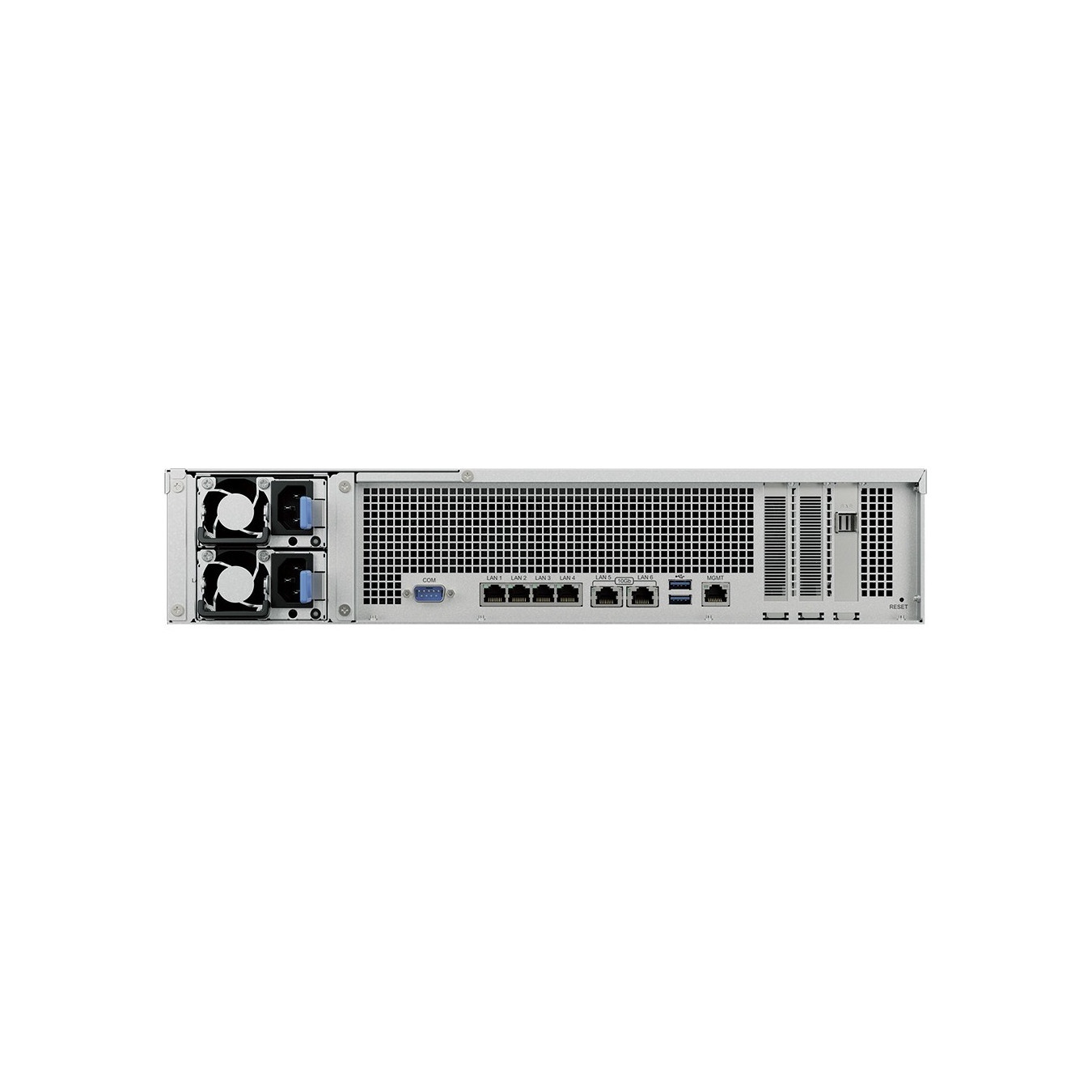

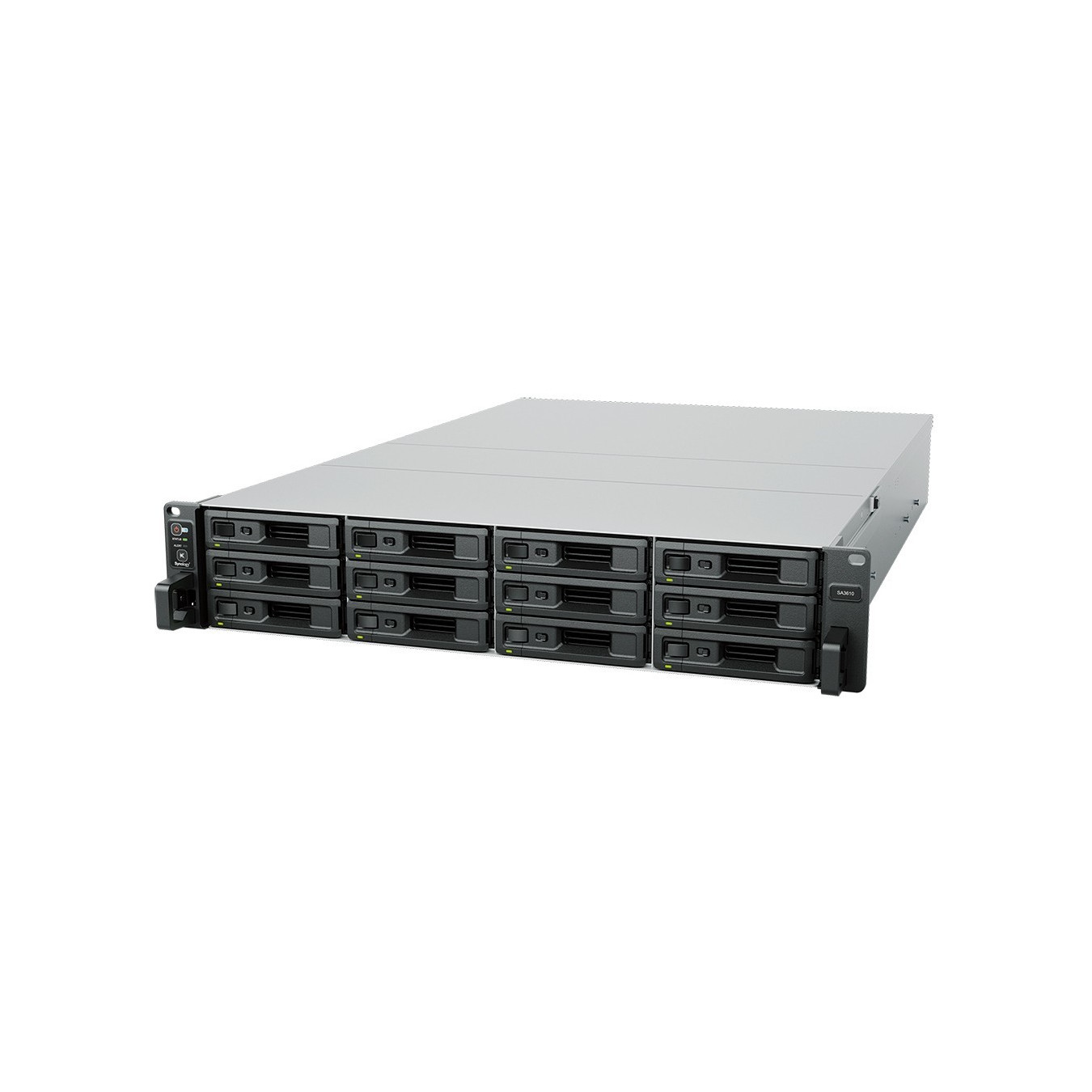

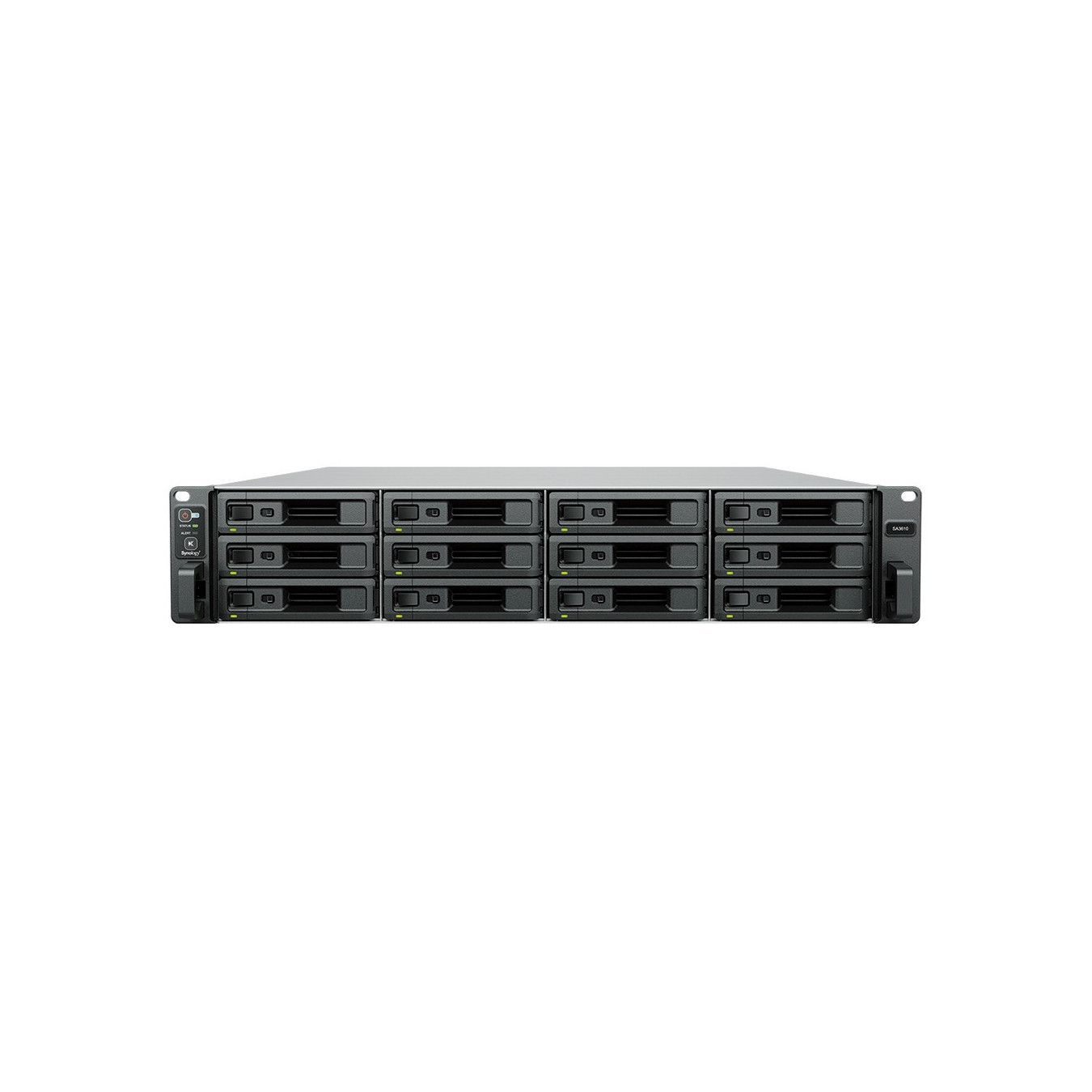

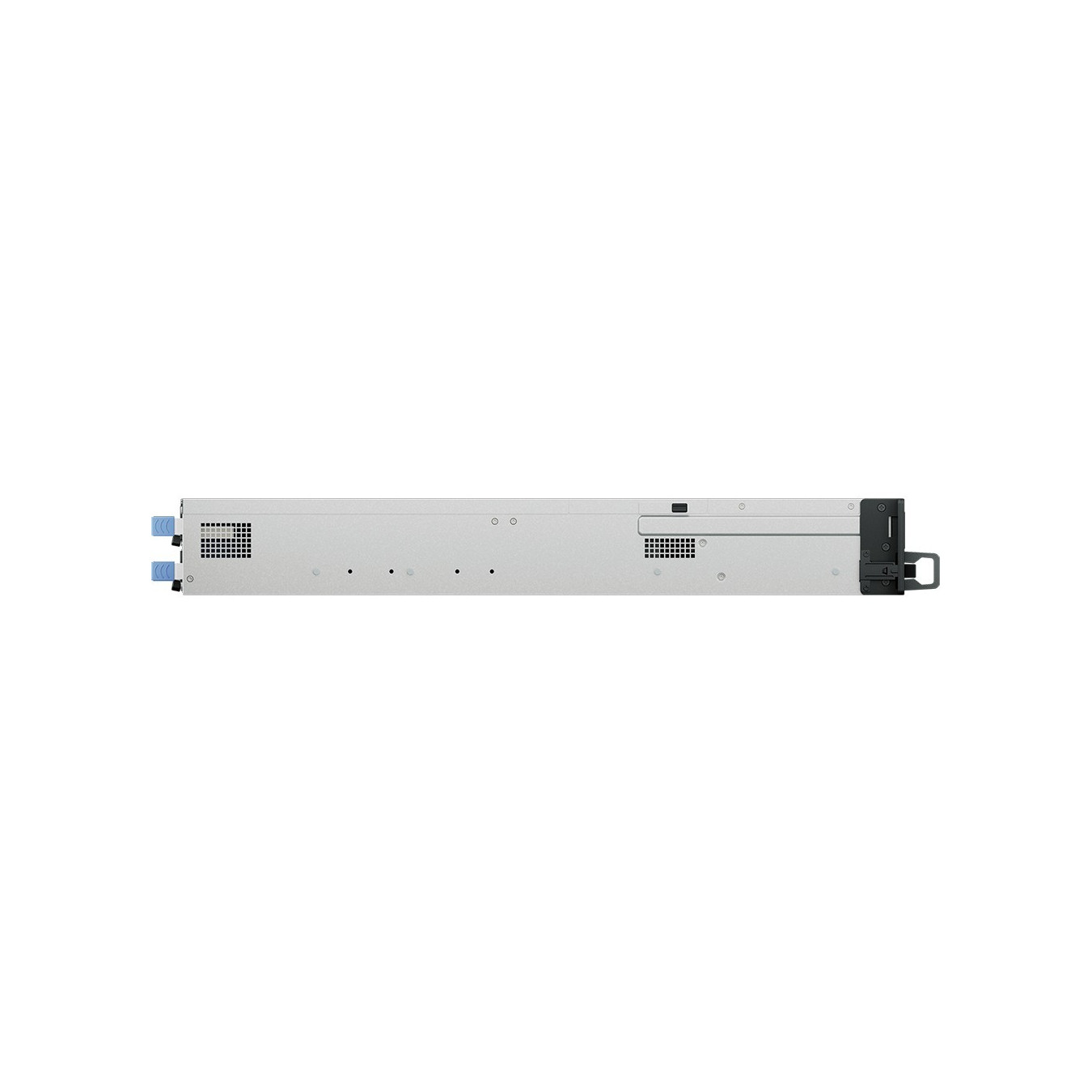

Synology SA3610 - 12-Bay 2U Rack NAS - Intel Xeon D-1567 2.1GHz (2.7GHz boost), 16GB DDR4, SAS/SATA
Synology SA3610 12-bay 2U rack NAS with Intel Xeon D-1567 (2.1/2.7GHz), 16GB DDR4 RAM; supports 3.5"/2.5" HDD & SSD, SAS/SATA for SMB/Enterprise storage.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NAS (Network Attached Storage) - Bays | 12+ |
|---|---|
| NAS (Network Attached Storage) - Memory (Installed) | 16 GB |
| NAS (Network Attached Storage) - Hot-swap | Yes |
Synology SA SA3610. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon®. Processor model: D-1567. Processor frequency: 2.1 GHz. Internal memory: 16 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager
| Supported storage drive interfaces | Serial ATA. Serial Attached SCSI (SAS) |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | Sustainability compliance |
| RAID levels | 0. 1. 5. 6. 10. F1. JBOD |
| Supported file systems | BTRFS. Fat. HFS+. NTFS. exFAT. ext3. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | D-1567 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 12 |
| CPU configuration (max) | 1 |
| Number of processors supported | 1 |
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Memory form factor | RDIMM |
| Ethernet LAN data rates | 10.100.1000.10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T. 10GBASE-T. 100BASE-TX. 1000BASE-T |
| Supported network protocols | SMB1 (CIFS). SMB2. SMB3. NFSv3. NFSv4. NFSv4.1. NFS Kerberized sessions. iSCSI. Fibre Channel. HTTP. HTTPs. FTP. SNMP. LDAP. CalDAV |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 7 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black. Grey |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup features | Cloud. iSCSI LUN |
| Noise level | 49.8 dB |
| Management protocols | SNMP |
| Security algorithms | AES |
| Browser supported | Google Chrome Firefox Microsoft Edge Safari |
| Operating system installed | DiskStation Manager |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 137.54 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Width | 482 mm |
| Depth | 724 mm |
| Height | 88 mm |
| Weight | 14.5 kg |
| Cables included | AC |
| Power cables quantity | 1 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CE. RoHS |
| Certification | FCCCEBSMIVCCIRCMUKCAEACCCCKCUL |
