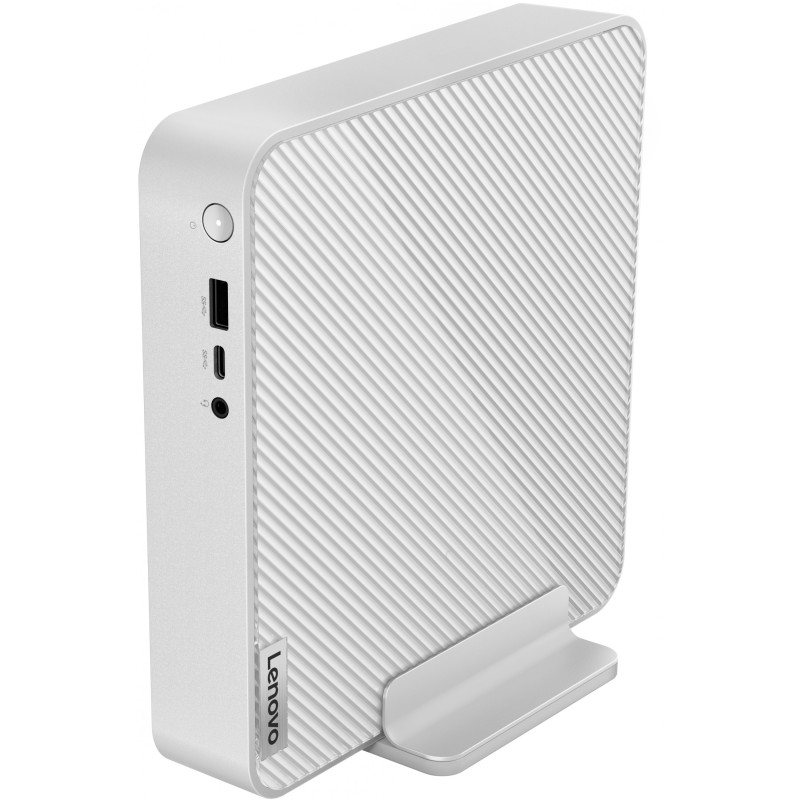

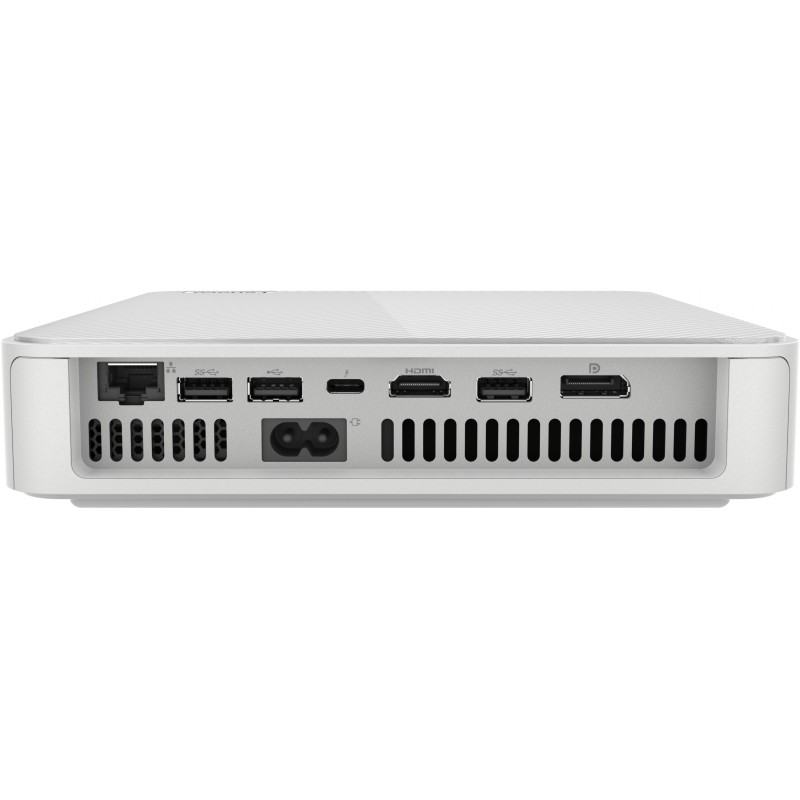

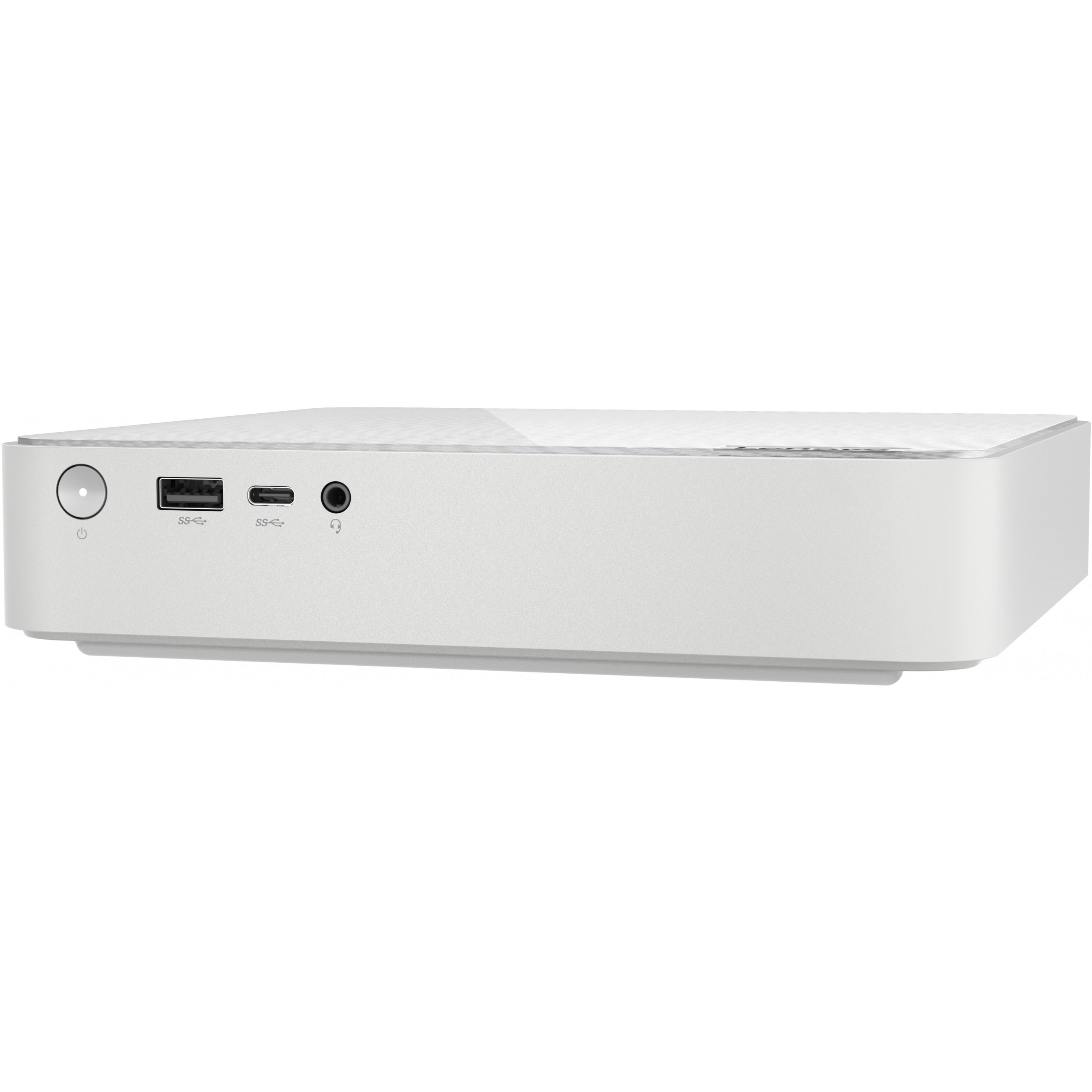

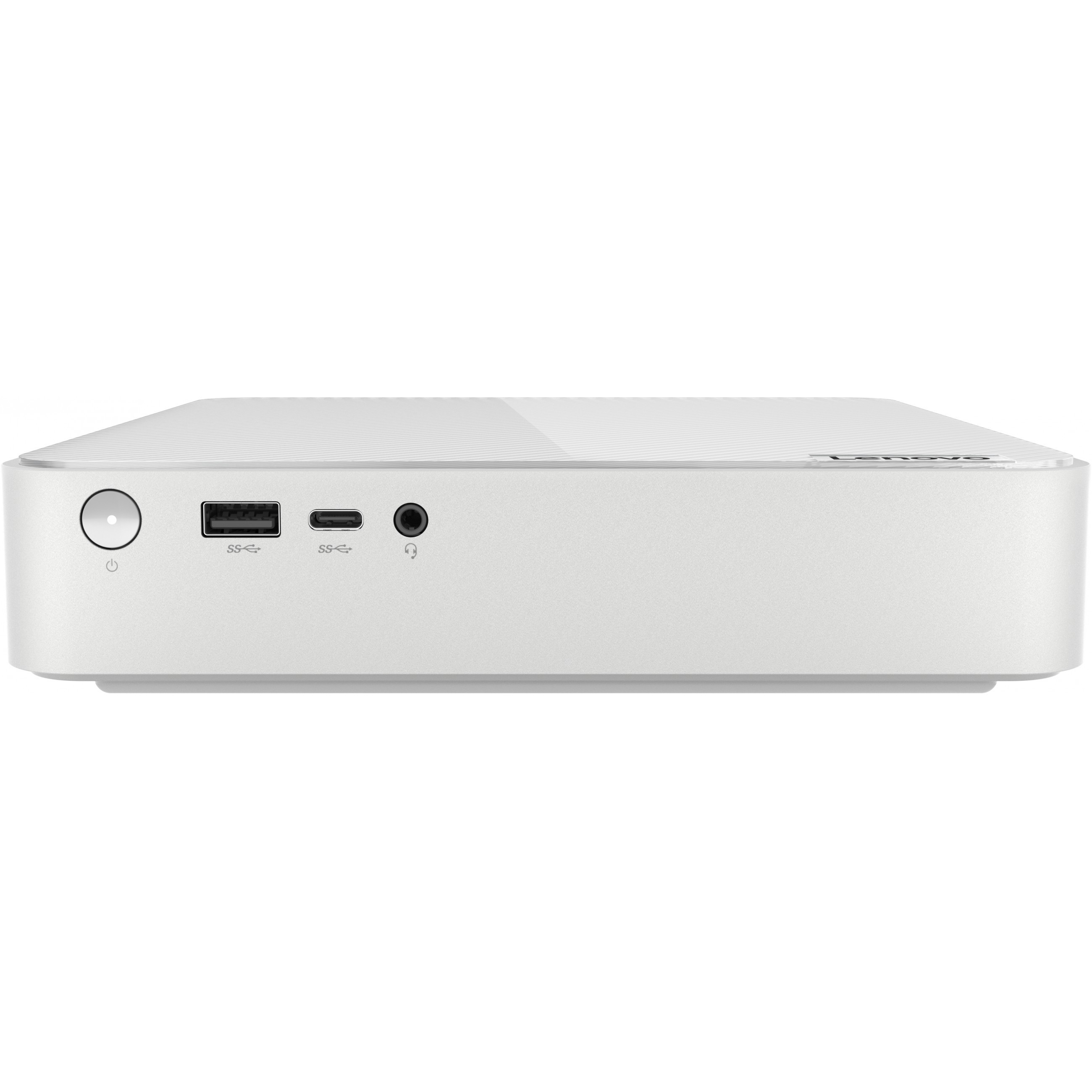

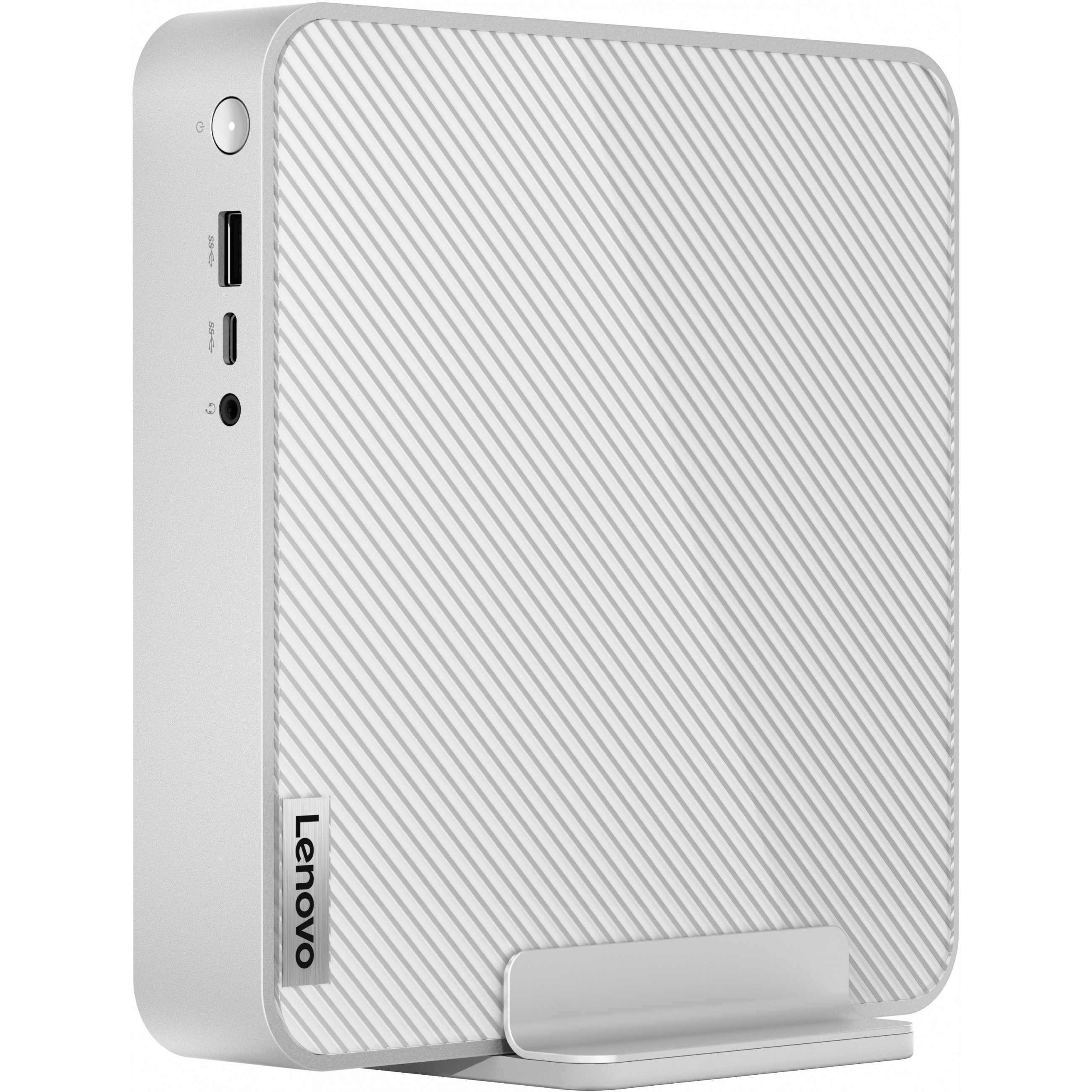

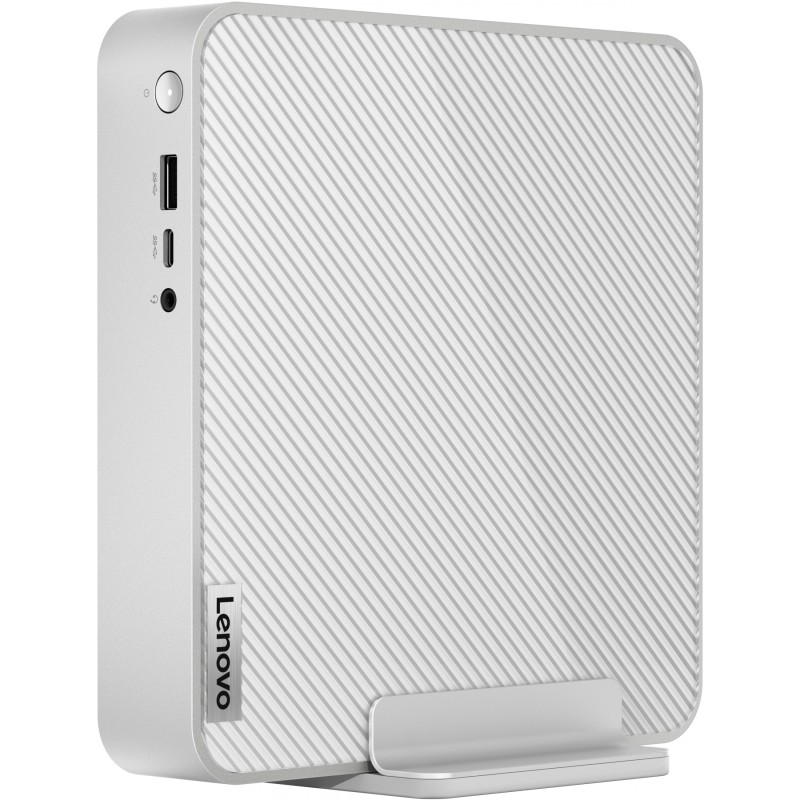

Lenovo IdeaCentre Mini 01IRH8 - i5-13420H, 16GB DDR4, 512GB SSD, Grey, No OS
Compact Lenovo IdeaCentre Mini 01IRH8 with Intel Core i5-13420H, 16GB DDR4-3200, 512GB SSD, Intel UHD Graphics, Wi-Fi, 150W PSU, No OS
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Barebone & Mini PCs - Type | Mini PC (Ready-to-Use) |
|---|---|
| Barebone & Mini PCs - CPU Series | Intel Core i5 |
| Barebone & Mini PCs - Memory Type | DDR4 SO-DIMM |
| Barebone & Mini PCs - Memory Slots | 2 |
| Barebone & Mini PCs - Max Memory | 32 GB |
| Barebone & Mini PCs - Graphics | Integrated |
| Barebone & Mini PCs - OS | No OS |
Lenovo IdeaCentre Mini 01IRH8. Processor family: Intel® Core™ i5. Processor model: i5-13420H. Internal memory: 16 GB. Internal memory type: DDR4-SDRAM. Memory clock speed: 3200 MHz. Total storage capacity: 512 GB. Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Wi-Fi. Power supply: 150 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.8 kg. Product colour: Grey
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor model | i5-13420H |
| Processor cores | 8 |
| Processor threads | 12 |
| Processor boost frequency | 4.6 GHz |
| Performance cores | 4 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 45 W |
| Maximum turbo power | 95 W |
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| Feature | Trusted Platform Module (TPM) |
| SSD form factor | M.2 |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth version | 5.2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 4 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Chassis type | Mini PC |
| Colour name | Cloud Grey |
| Volume | 1 L |
| Product colour | Grey |
| Motherboard chipset | Intel SoC |
| Audio chip | Realtek ALC256 |
| Audio system | High Definition Audio |
| Product type | Mini PC |
| Power supply | 150 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Certification | ENERGY STAR.RoHS |
| Width | 191.4 mm |
| Depth | 195 mm |
| Height | 39 mm |
| Weight | 1.8 kg |
