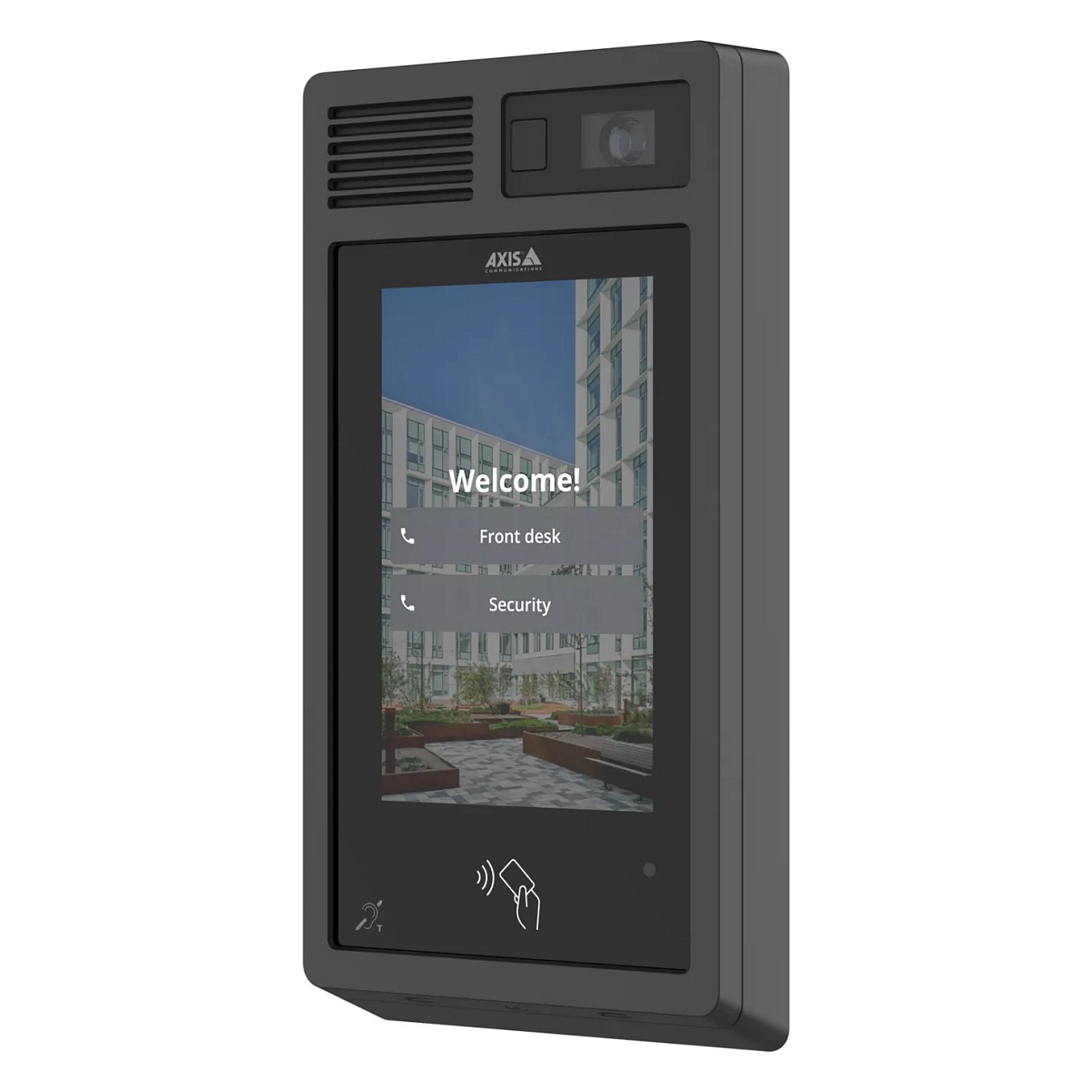

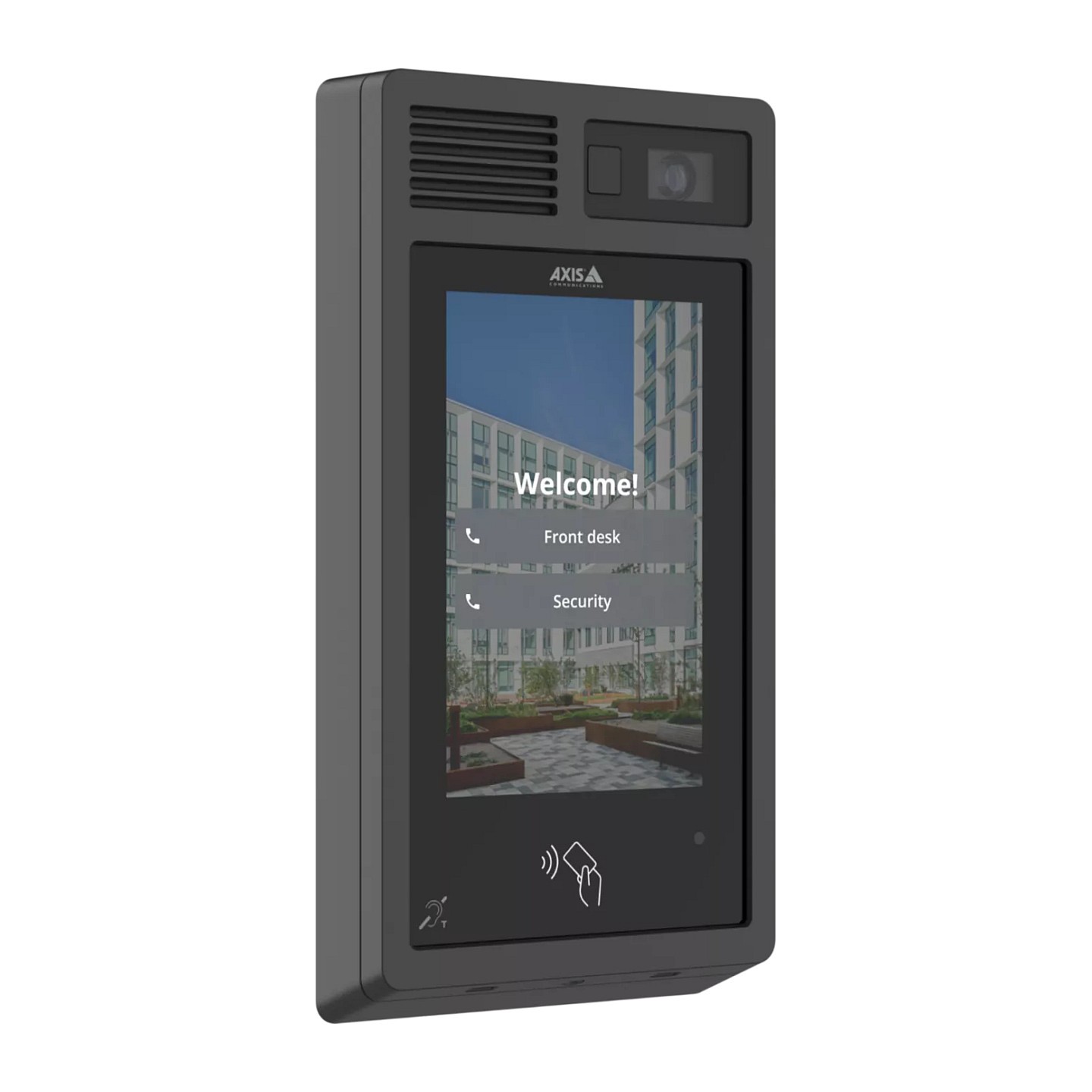

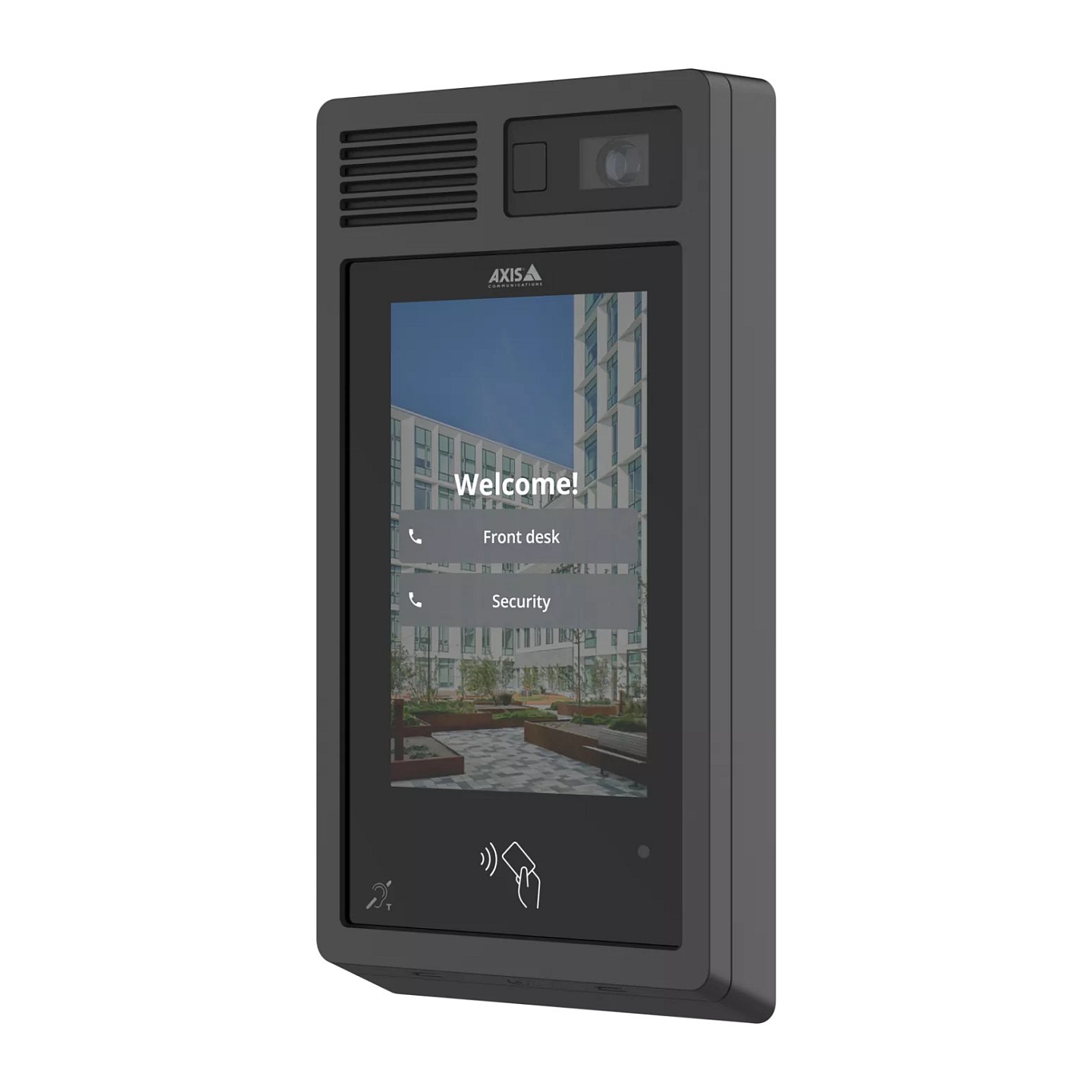

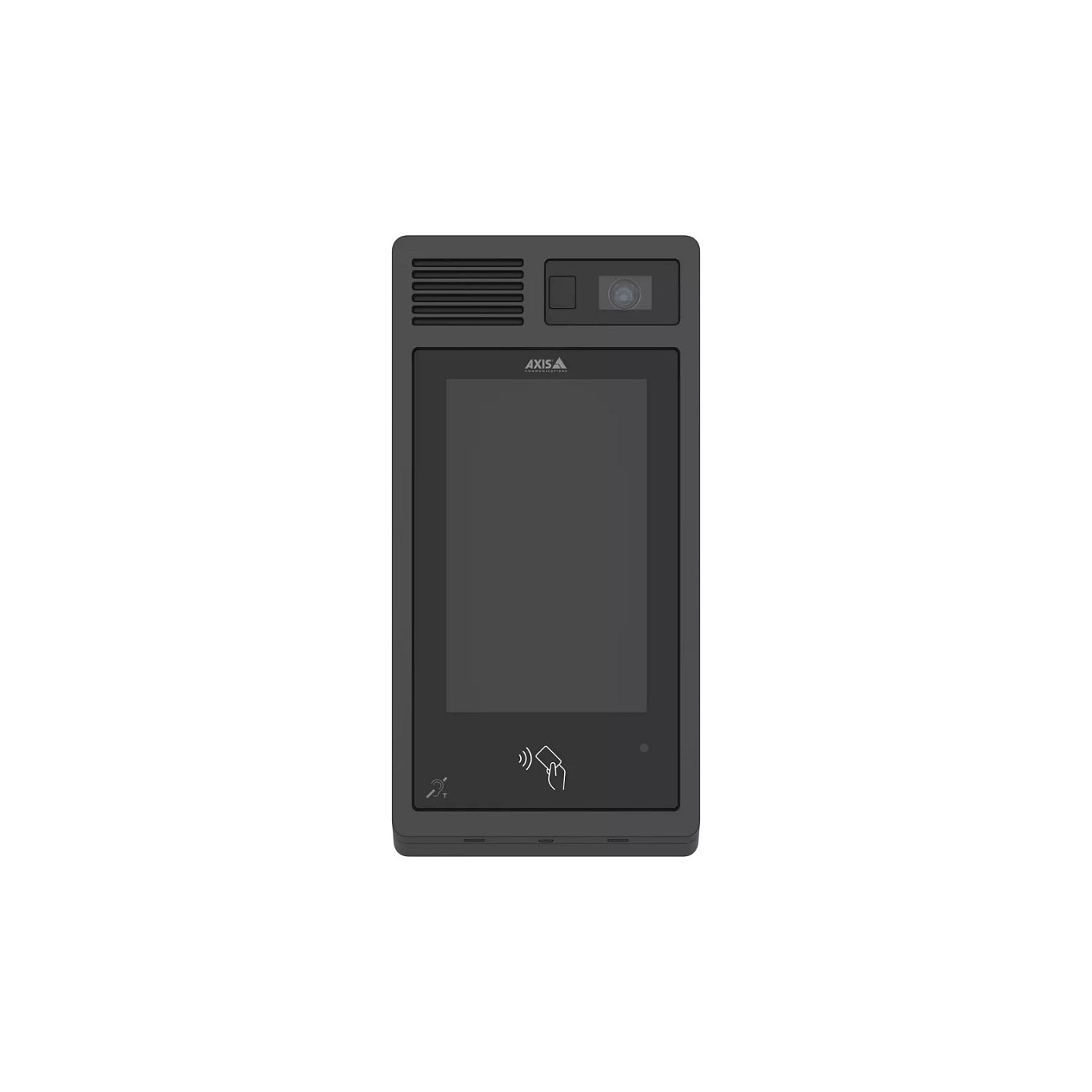

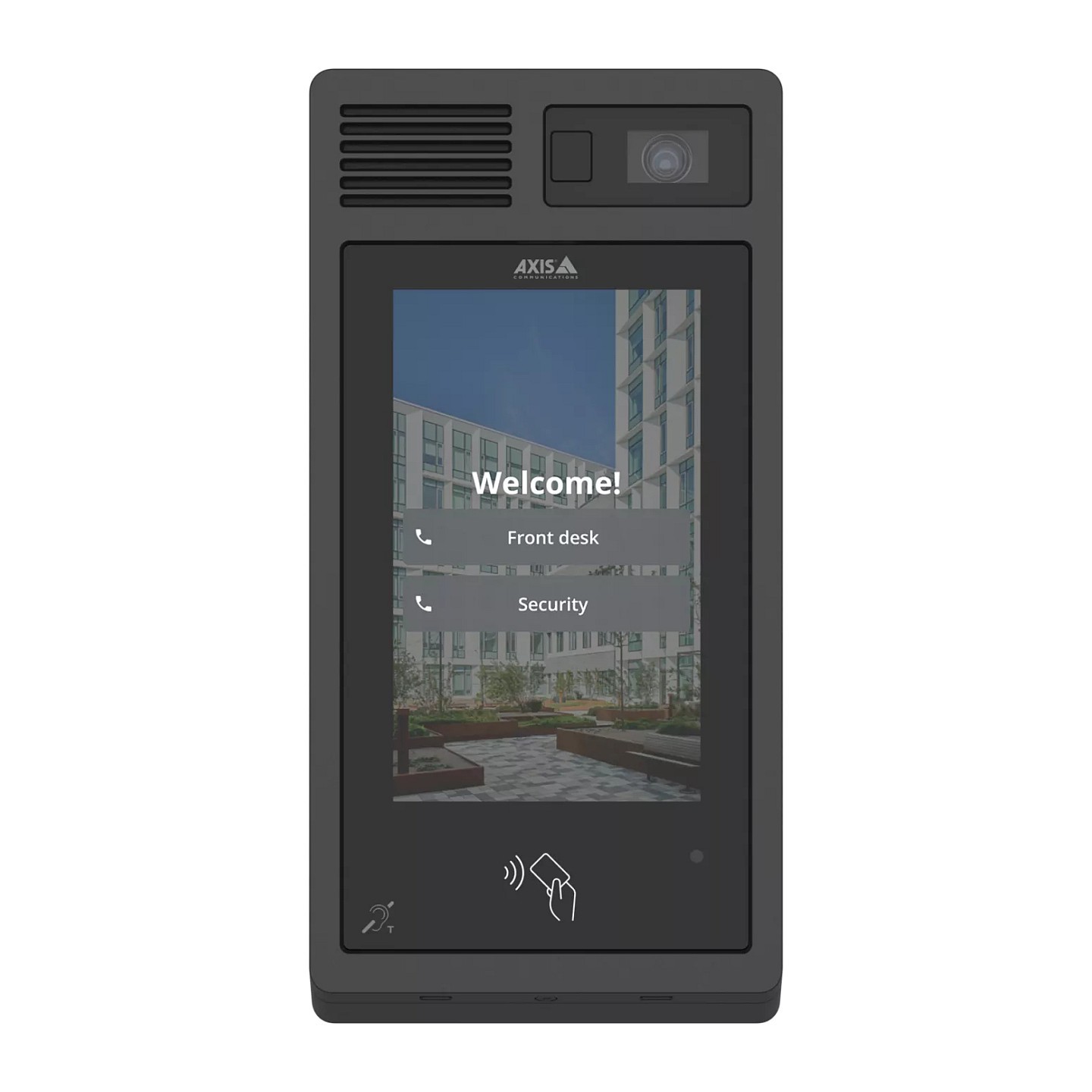

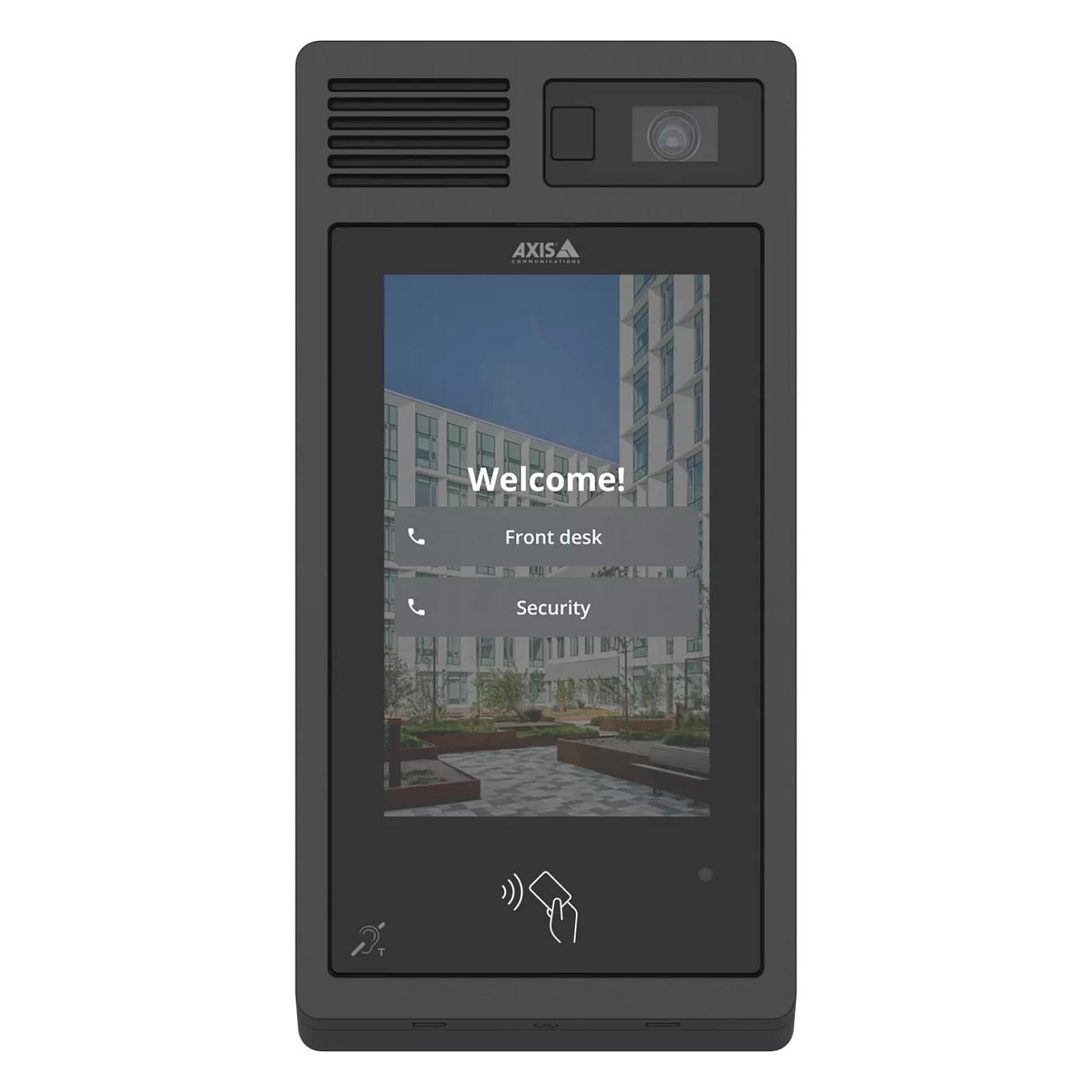

AXIS I8307-VE
Axis I8307-VE. 17.8 cm (7"). 800 x 480 Pixel. Kapazitiv. H.264. H.265. MPEG4. 3840 x 2160 Pixel. Helligkeit. Kontrast. Spiegel. Farbsättigung. Schärfe. Weißabgleich
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis I8307-VE. Bildschirmdiagonale: 17.8 cm (7"). Display-Auflösung: 800 x 480 Pixel. Art des Touchscreens: Kapazitiv. Maximale Video-Auflösung: 3840 x 2160 Pixel. Bildqualitätsanpassung: Helligkeit. Kontrast. Spiegel. Farbsättigung. Schärfe. Weißabgleich. Sensor-Typ: CMOS. Sprachcodec: G.711. G.726. PCM. Produktfarbe: Schwarz. Menüsprachen: Multi. Internationale Schutzart (IP-Code): IP66. Kompatible Speicherkarten: MicroSD (TransFlash). MicroSDHC. MicroSDXC
| Übertragungstechnik | Kabelgebunden |
| Feature | Schnellstartübersicht |
| Anzahl der Display unterstützt | 1 |
| Maximum Anzahl der unterstützten kameras | 1 |
| Bildschirmdiagonale | 17.8 cm (7") |
| Display-Auflösung | 800 x 480 Pixel |
| Art des Touchscreens | Kapazitiv |
| Unterstützte Videoformate | H.264. H.265. MPEG4 |
| Maximale Video-Auflösung | 3840 x 2160 Pixel |
| Bildqualitätsanpassung | Helligkeit. Kontrast. Spiegel. Farbsättigung. Schärfe. Weißabgleich |
| Sensor-Typ | CMOS |
| Größe des Bildsensors | 25.4 / 1.8 mm (1 / 1.8") |
| Maximale Framerate | 60 fps |
| Mindestbeleuchtung | 0.04 Lux |
| Bildwinkel. horizontal | 150° |
| Bildwinkel. vertikal | 112° |
| Bewegungssensortechnologie | Passiver Infrarot-Sensor (PIR) |
| Feste Brennweite | 2.2 mm |
| Maximale Blendenzahl | 1.8 |
| Sprachcodec | G.711. G.726. PCM |
| Produktfarbe | Schwarz |
| Menüsprachen | Multi |
| Internationale Schutzart (IP-Code) | IP66 |
| IK-Kodex | IK08 |
| Gehäusematerial | Aluminium |
| Steuerung | Berührung |
| Unterstützte Positionierung | Senkrecht |
| Kompatible Speicherkarten | MicroSD (TransFlash). MicroSDHC. MicroSDXC |
| Flash-Speicher (Sender) | 8 MB |
| Interner Speicher (Sender) | 4000 MB |
| Alarm-Eingangskanäle (Sender) | 4 |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Ethernet LAN Datentransferraten | 10.100 Mbit/s |
| Verkabelungstechnologie | 10/100Base-T(X) |
| Netzstandard | IEEE 802.3af. IEEE 802.3at |
| Außengerät Stromversorgung | DC/PoE |
| Stromverbrauch (Standardbetrieb) | 7 W |
| Stromverbrauch (max.) | 25 W |
| Betriebstemperatur | -30 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 144 mm |
| Tiefe | 44 mm |
| Höhe | 290 mm |
| Gewicht | 2.07 kg |
| Menge pro Packung | 1 Stück(e) |
