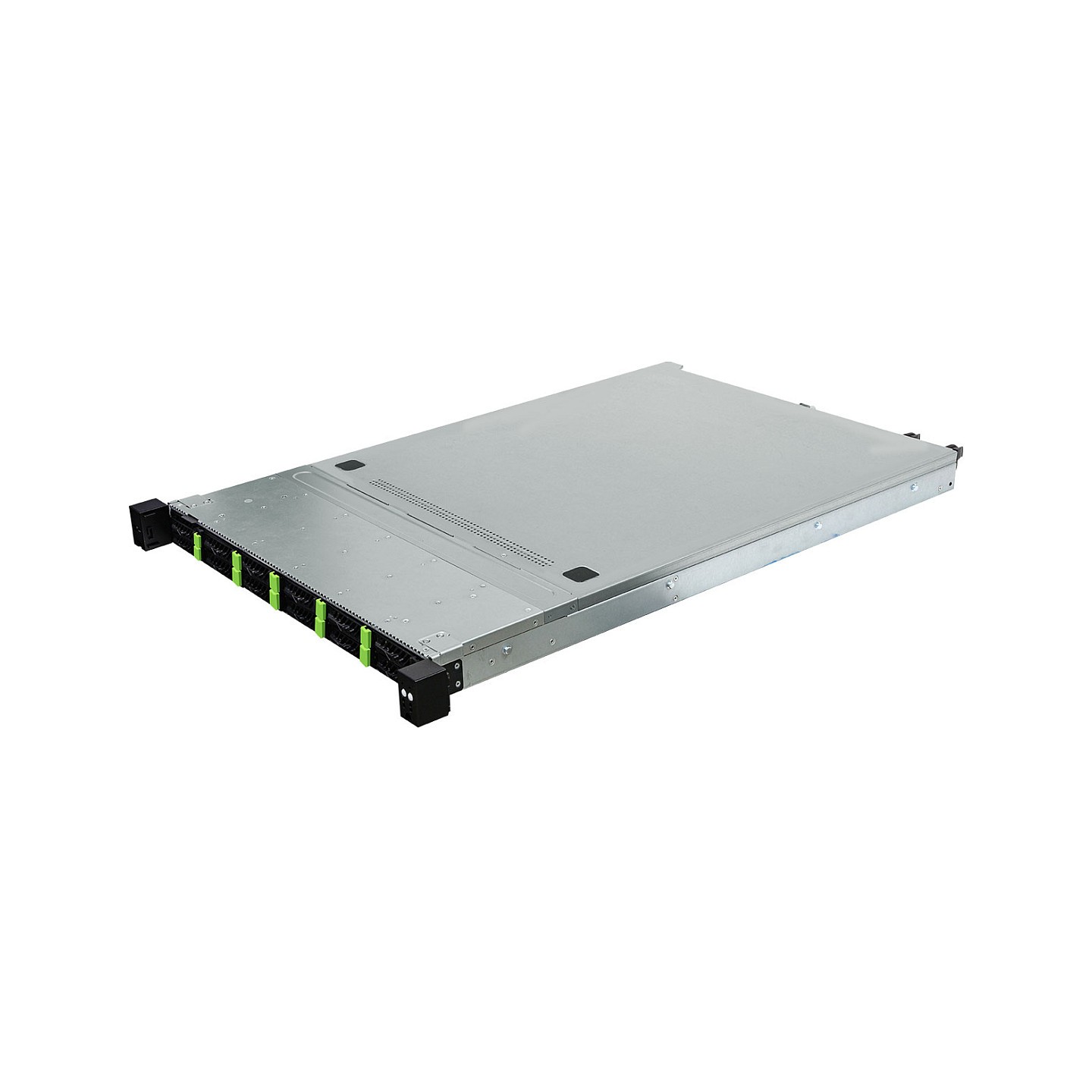

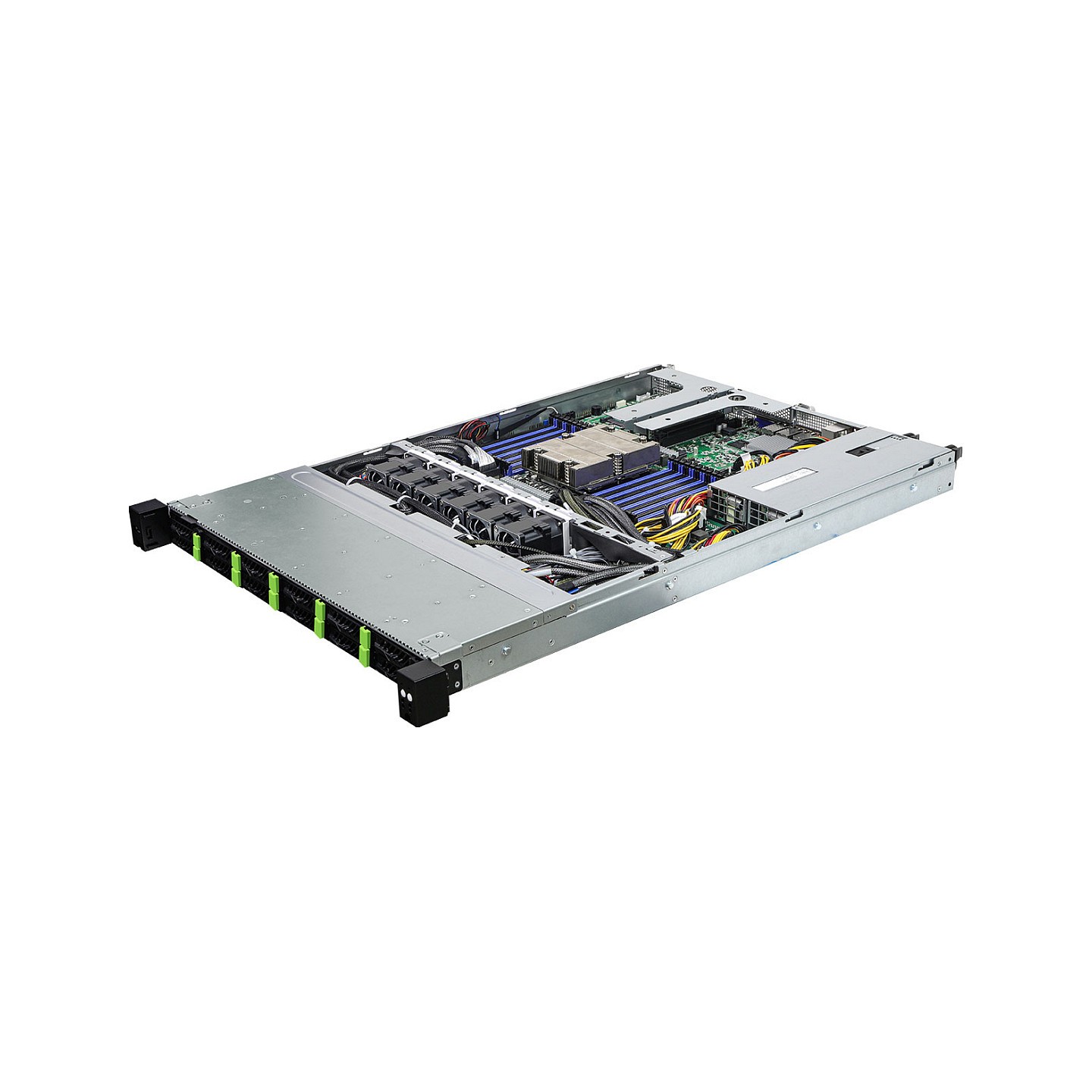

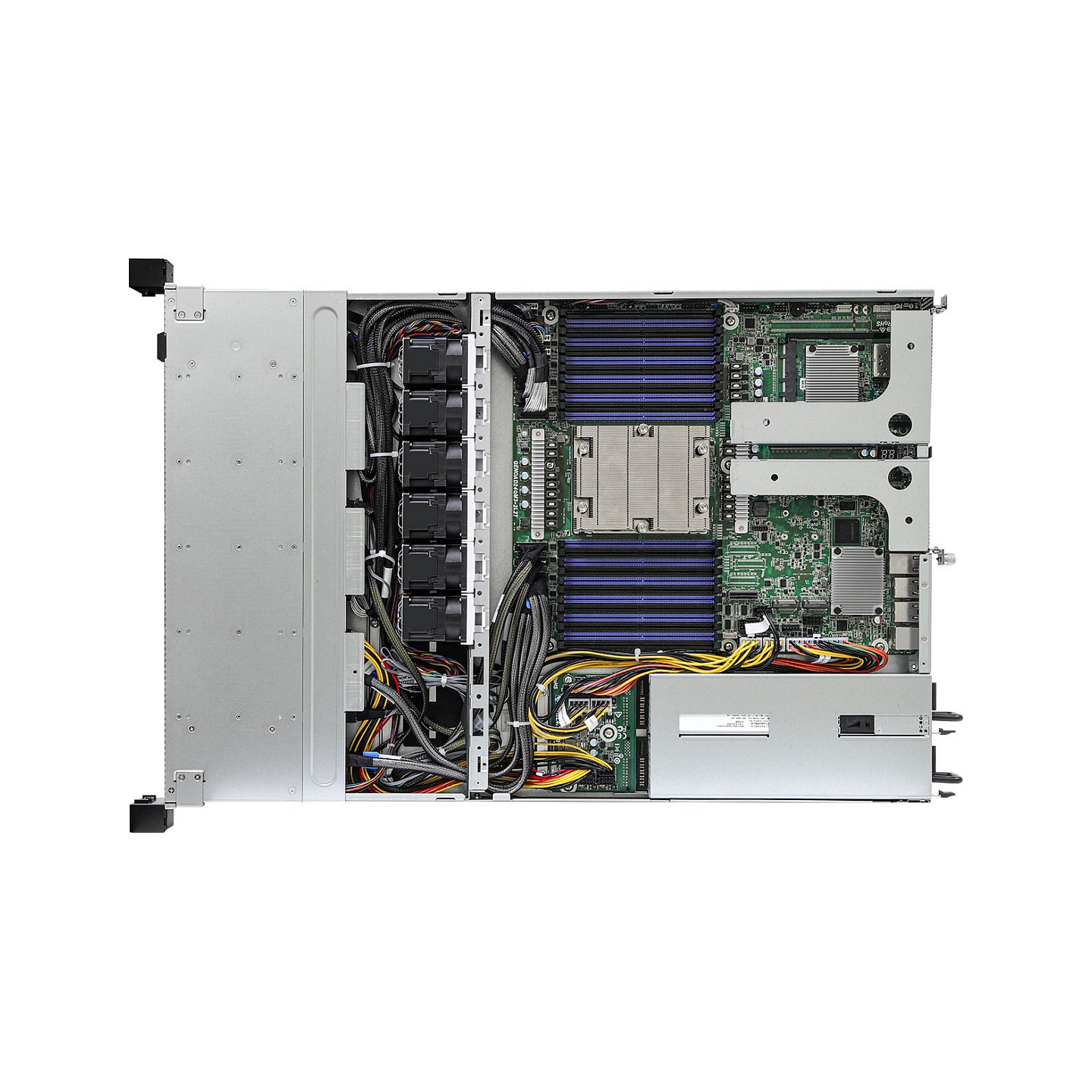

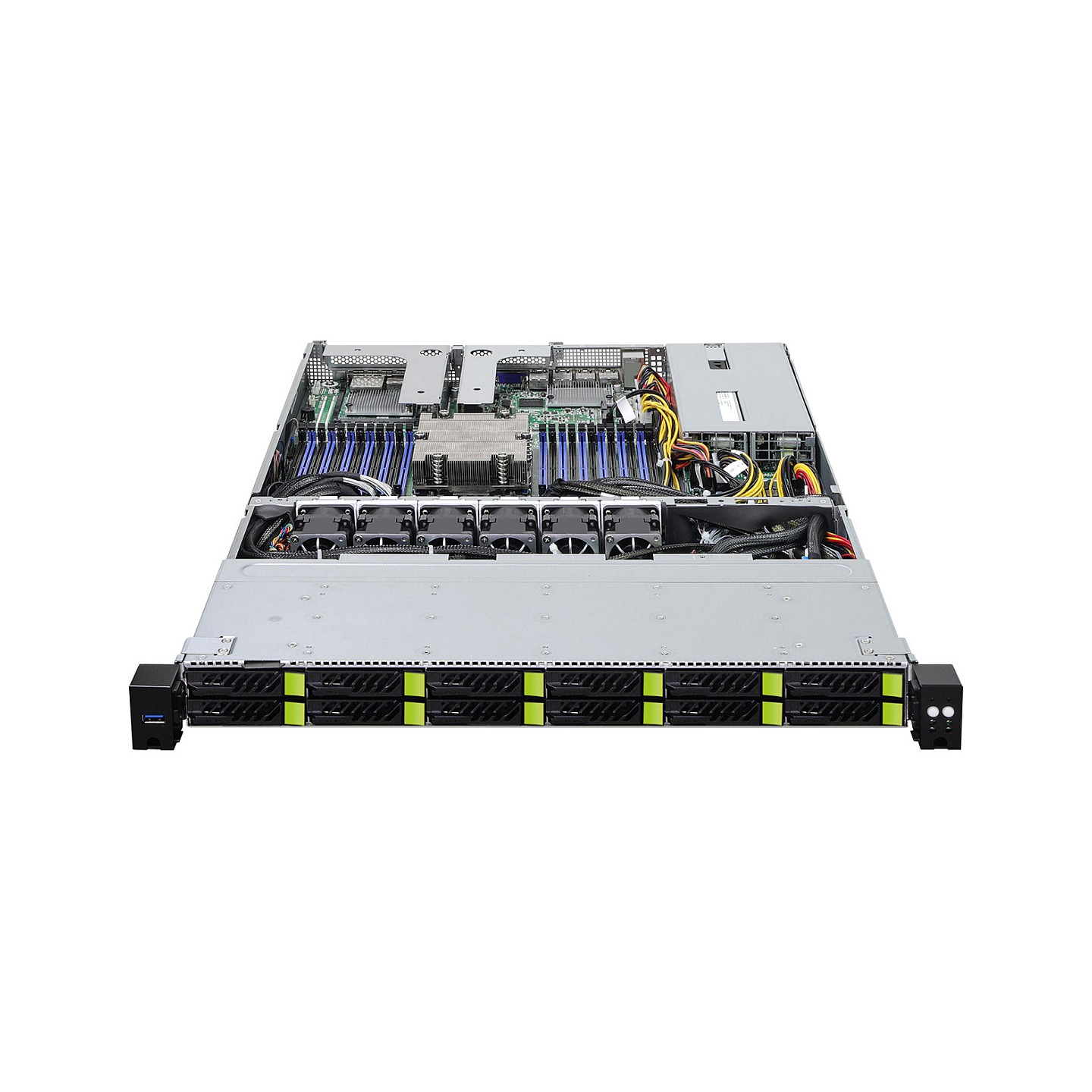

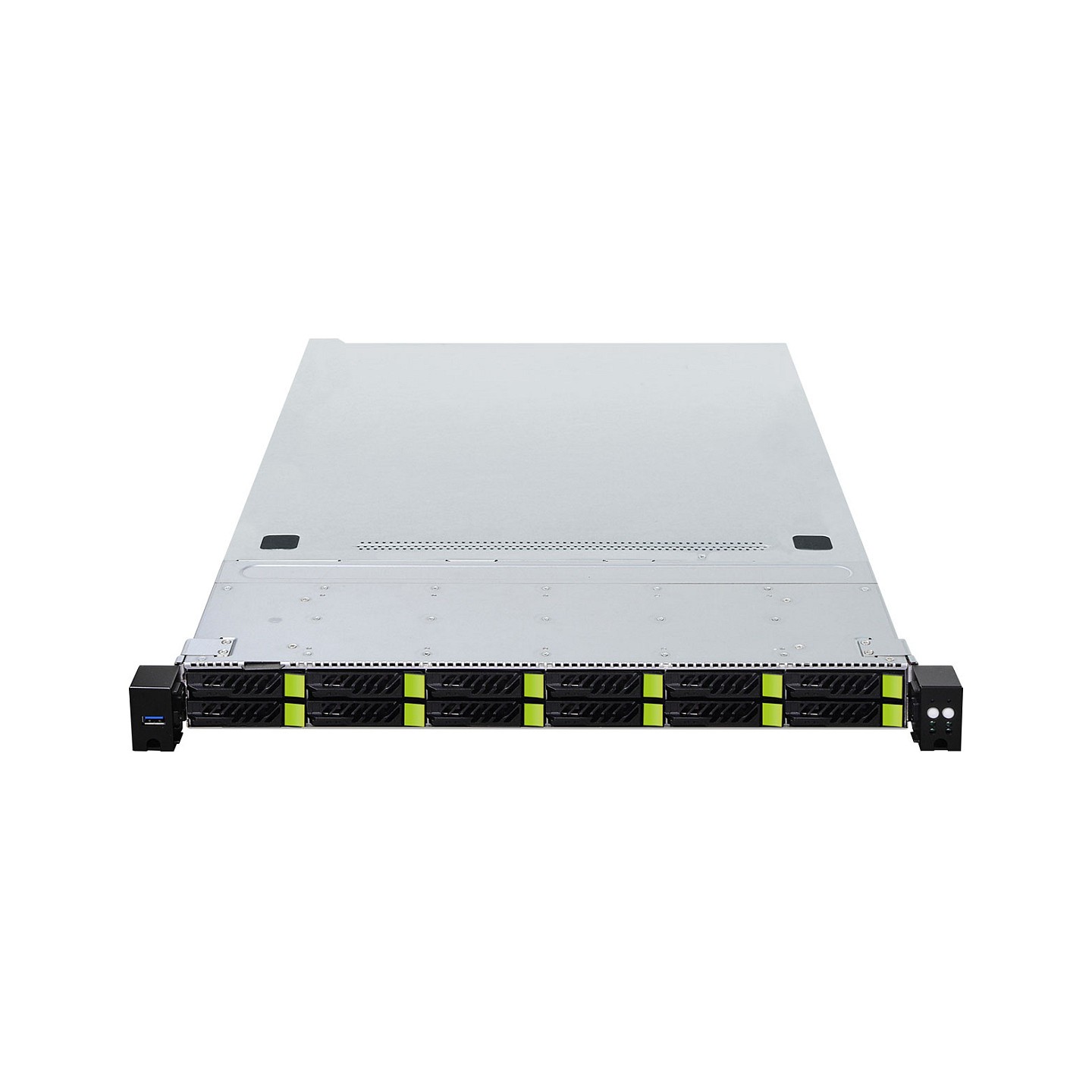

ASRock Barebone 1U Single Sockel SP5 1U12E-GENOA 2L2T
Asrock 1U12E-GENOA/2L2T. AMD SoC. LGA 6096. AMD EPYC 9004. DDR5-SDRAM. 3600.4000.4800 MHz. 288-pin DIMM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Asrock 1U12E-GENOA/2L2T. Motherboard Chipsatz: AMD SoC. Prozessorsockel: LGA 6096. Kompatible Prozessoren: AMD EPYC 9004. Unterstützte Arbeitsspeicher: DDR5-SDRAM. Unterstützte RDIMM Taktraten: 3600.4000.4800 MHz. Memory Formfaktor: 288-pin DIMM. Unterstützte Speicherlaufwerke: HDD & SSD. Unterstützte Speicherlaufwerk-Schnittstellen: PCI Express. Serial ATA III. Eingebautes Grafikkartenmodell: Aspeed AST2600. Ethernet Schnittstellen Typ: 10 Gigabit Ethernet. Gigabit Ethernet. LAN-Controller: Broadcom BCM57416. Intel I210
| Motherboard Chipsatz | AMD SoC |
| Prozessorsockel | LGA 6096 |
| Anzahl unterstützter Prozessoren | 1 |
| Kompatible Prozessoren | AMD EPYC 9004 |
| Zahl der DIMM Slots | 24 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Unterstützte RDIMM Taktraten | 3600.4000.4800 MHz |
| Memory Formfaktor | 288-pin DIMM |
| Speicherspannung | 1.1 V |
| Anzahl der unterstützten Speicherlaufwerke | 14 |
| Feature | Hot-Swap-Lüftermodul |
| Anzahl der 2.5" Erweiterungseinschübe | 12 |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | PCI Express. Serial ATA III |
| Eingebautes Grafikkartenmodell | Aspeed AST2600 |
| Ethernet Schnittstellen Typ | 10 Gigabit Ethernet. Gigabit Ethernet |
| LAN-Controller | Broadcom BCM57416. Intel I210 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 3 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 4 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 2 |
| PC Gesundheitsüberwachung | Spannung. Ventilator. Temperatur |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 6.4 |
| Systemverwaltung BIOS (SMBIOS) Version | 3.5 |
| Gehäusetyp | Rack (1U) |
| Produktfarbe | Grau |
| LED-Anzeigen | LAN. Leistung. System |
| Kühlung | Aktiv |
| Anzahl Lüfter | 6 Lüfter |
| Stromversorgung | 1000 W |
| Anzahl der Haupt-Netzteile | 2 |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| 80 Plus Zertifizierung | 80 PLUS Platinum |
| Betriebstemperatur | 10 - 35 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Luftfeuchtigkeit bei Lagerung | 20 - 90% |
| Breite | 676.5 mm |
| Tiefe | 438 mm |
| Höhe | 43.4 mm |
