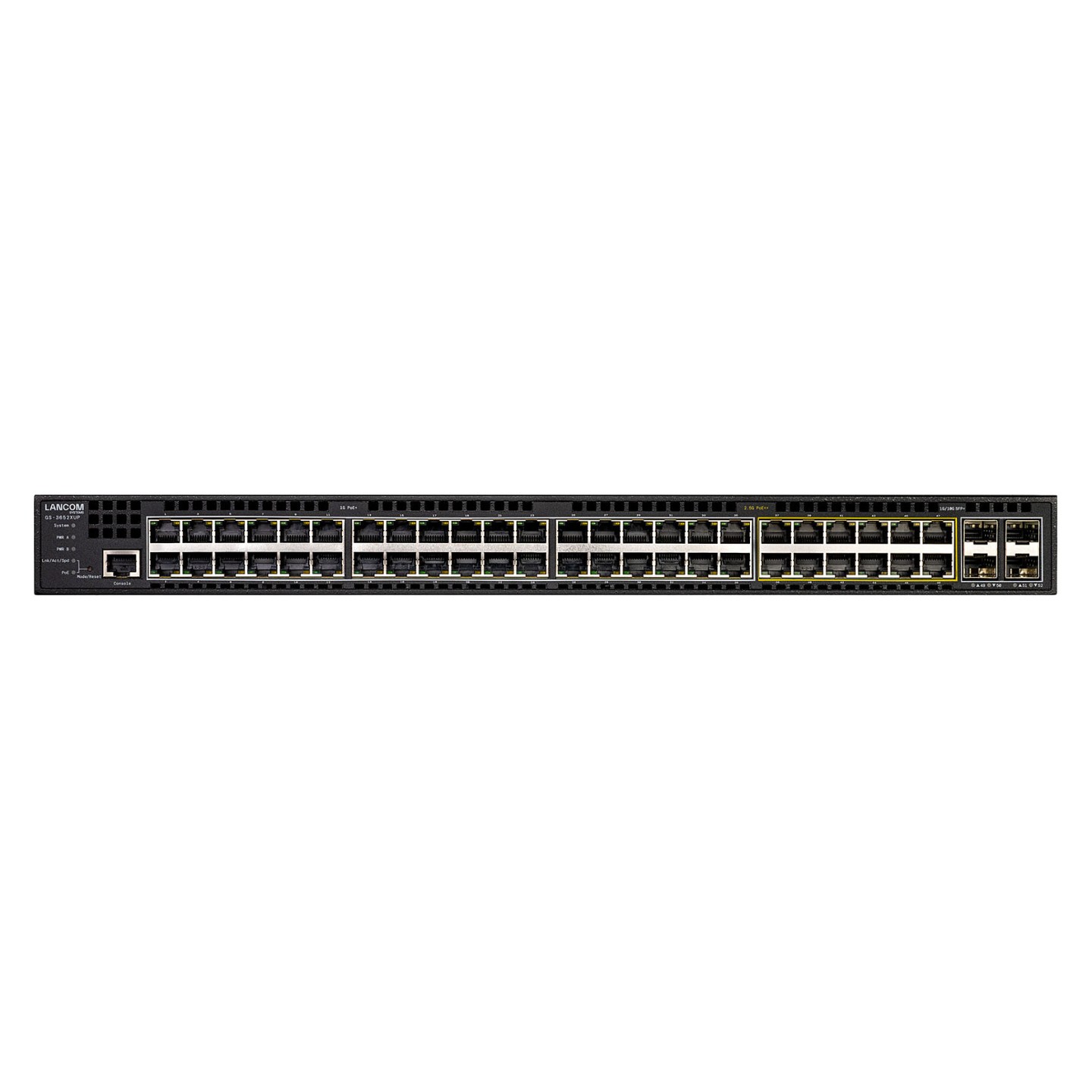

GS-3652XUP
LANCOM GS-3652XUP. Managed. L3. 2.5G Ethernet (100/1000/2500). Power over Ethernet (PoE). Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LANCOM GS-3652XUP. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: 2.5G Ethernet (100/1000/2500). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 48. Konsolen-Port: RJ-45. MAC-Adressentabelle: 32000 Eintragungen. Routing-/Switching-Kapazität: 212 Gbit/s. Netzstandard: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ad. IEEE 802.1ak. IEEE 802.1p..... Netzstecker: AC-Eingangsbuchse. Power over Ethernet (PoE). Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Montageblöcke enthalten |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 48 |
| Basic Switching RJ-45 Ethernet Ports-Typ | 2.5G Ethernet (100/1000/2500) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 36 |
| Anzahl 2.5G Ethernet (Kupfer)-Ports | 12 |
| Menge Modul-Steckplätze SFP+ | 4 |
| Konsolen-Port | RJ-45 |
| Netzstecker | AC-Eingangsbuchse |
| Virtuelle LAN-Funktionen | IP subnet–based VLAN. MAC address-based VLAN. MVRP. Port-based VLAN. Private VLAN. Tagged VLAN. Voice VLAN |
| Anzahl der VLANs | 4093 |
| Routing-/Switching-Kapazität | 212 Gbit/s |
| Durchgang | 157 Mpps |
| MAC-Adressentabelle | 32000 Eintragungen |
| Anzahl der statischen Routen | 128 |
| Jumbo-Frames | 10240 |
| Datenpaket-Pufferspeicher | 4 MB |
| DHCP-Funktionen | DHCP Option 66. DHCP Option 67. DHCP Option 82. DHCP client. DHCP relay. DHCP server. DHCP snooping |
| Authentifizierung | Gast VLAN |
| Autentifizierungstyp | RADIUS. TACACS+ |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| Anzahl Lüfter | 3 Lüfter |
| Geräuschpegel | 62 dB |
| Energiequelle | AC/PoE |
| Anzahl von Stromversorgungseinheiten | 1 |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Stromverbrauch (max.) | 1600 W |
| Power over Ethernet (PoE) Leistung pro Anschluss | 90 W |
| Gesamtleistung Power over Ethernet (PoE) | 720 W |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Wärmeableitung | 683 BTU/h |
| Breite | 442 mm |
| Tiefe | 440 mm |
| Höhe | 44 mm |
| Gewicht | 6.3 kg |
| Mitgelieferte Kabel | AC. Seriell |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC) |
| Zolltarifnummer (TARIC) | 85176200 |
| Ursprungsland | Taiwan |
