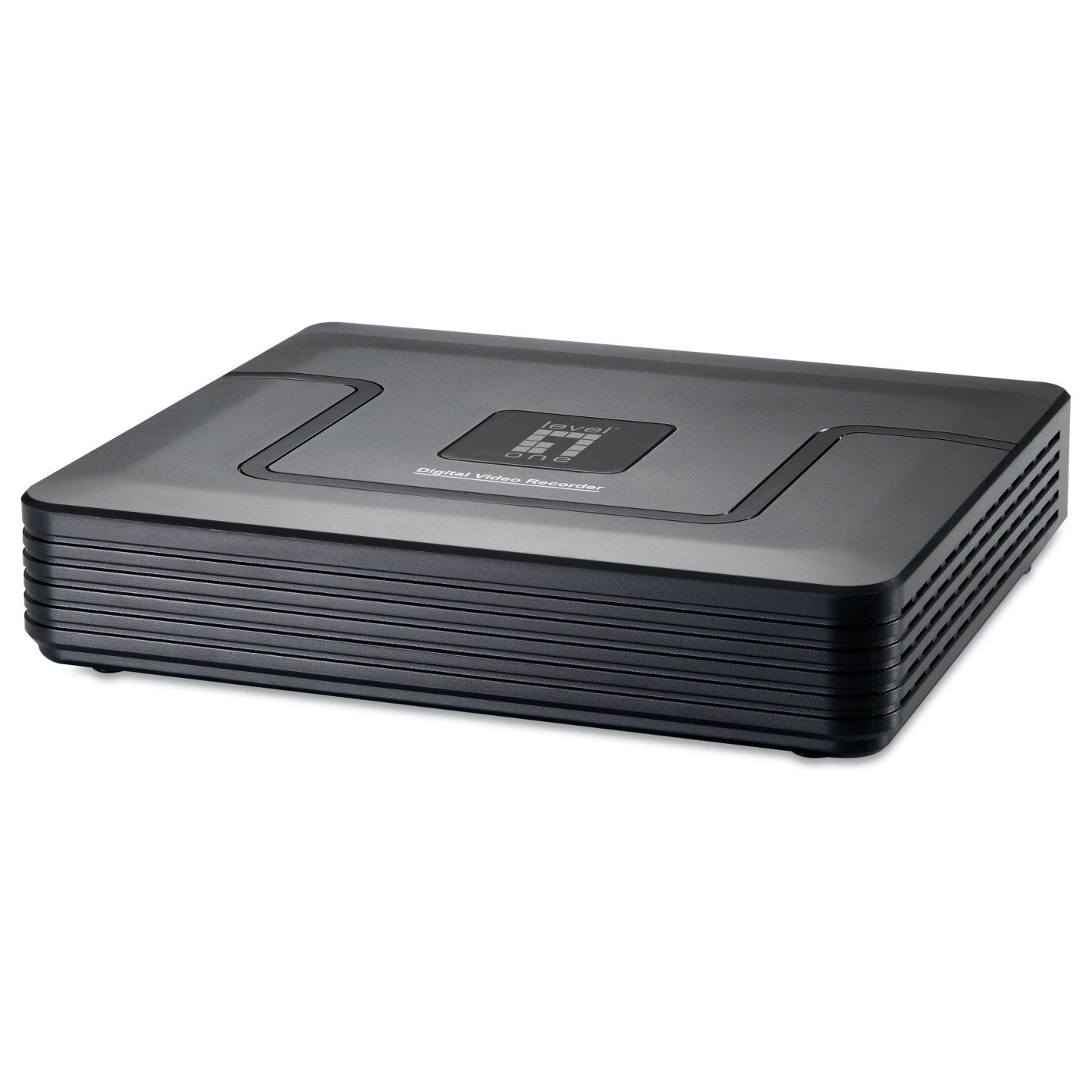

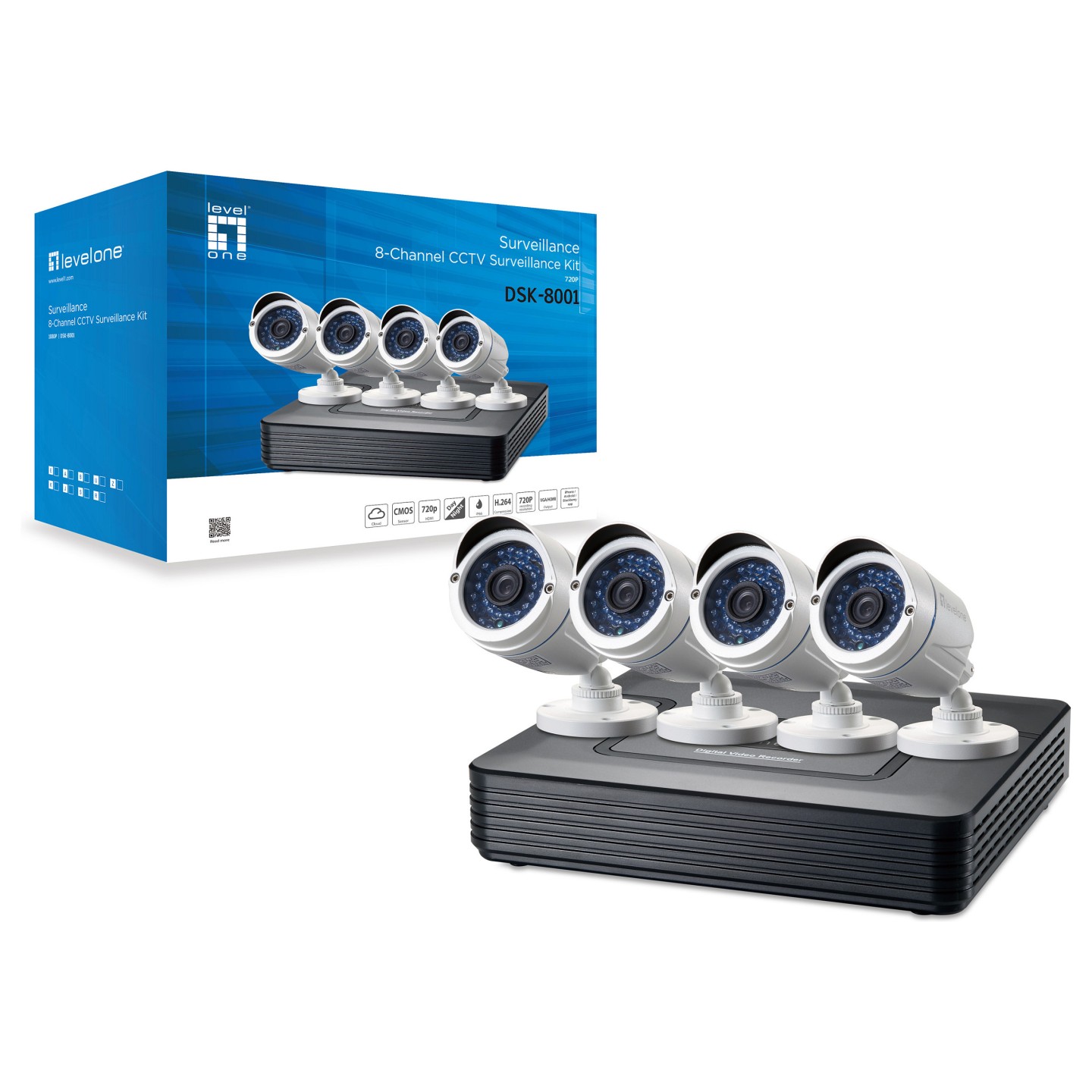

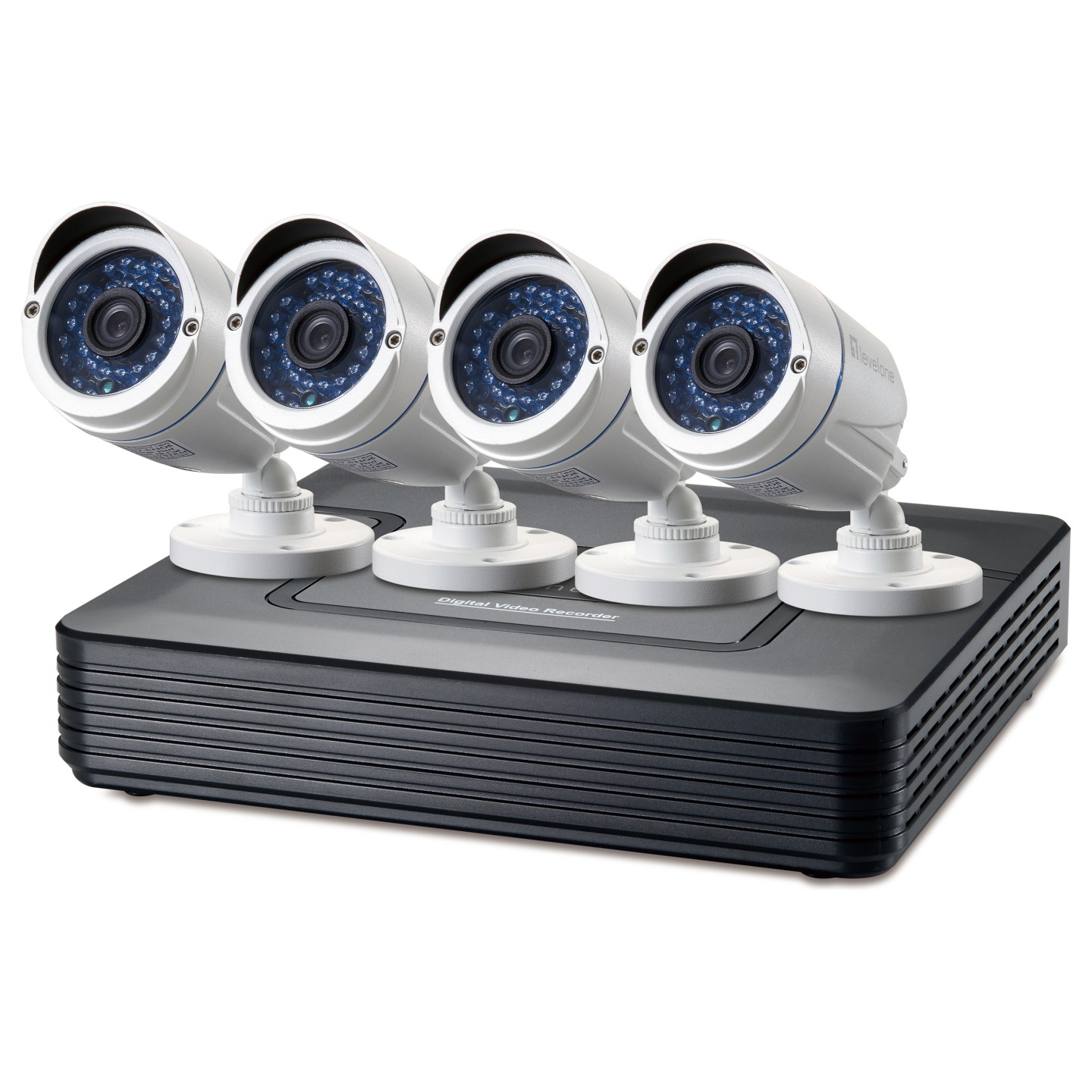

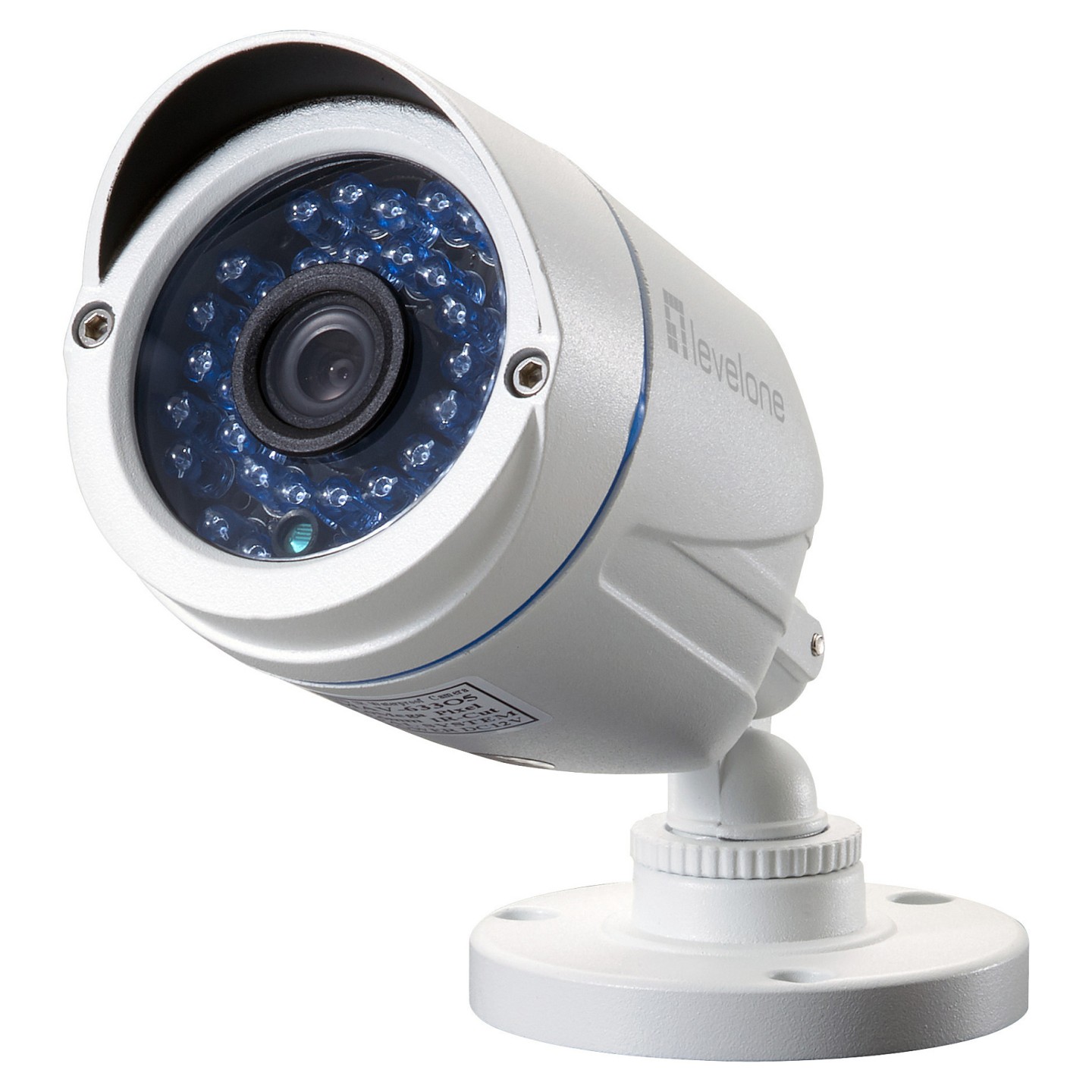

CCTV 8-Kanal Fix Out H.264 IR 4xCam inkl.
LevelOne DSK-8001. Kabelgebunden. Patrone (Form). BNC. Drinnen/Draußen. 18 m. 30 m
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne DSK-8001. Übertragungstechnik: Kabelgebunden. Überwachungskamera Formfaktor: Patrone (Form). Kamera Oberfläche: BNC. Anzahl Kanäle: 8 Kanäle. Speichermedien Typ: HDD. Installiertes Betriebssystem: Linux Embedded. Ethernet Schnittstellen Typ: Schnelles Ethernet. Energiequelle: Gleichstrom. Kameraleistungsverbrauch (standby): 4 W. Stromverbrauch des Rekorders (typisch): 8 W. Unterstützte Audioformate: G.711 A-law
| Übertragungstechnik | Kabelgebunden |
| Feature | Software-CD |
| Überwachungskamera Formfaktor | Patrone (Form) |
| Kamera Oberfläche | BNC |
| Kamerkabel Länge | 18 m |
| Unterstützte Positionierung | Drinnen/Draußen |
| Anzahl der Kameras | 4 |
| Nachtsichtdistanz | 30 m |
| Sensor-Typ | CMOS |
| Größe des Bildsensors | 25.4 / 4 mm (1 / 4") |
| LED Typ | IR |
| Betrachtungswinkel | 65° |
| Kamera Verschlusszeit | 1/50 - 1/100000 s |
| Internationale Schutzart (IP-Code) | IP66 |
| Anzahl Kanäle | 8 Kanäle |
| Speichermedien Typ | HDD |
| Installiertes Betriebssystem | Linux Embedded |
| BNC Eingänge | 8 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl USB 2.0 Anschlüsse | 2 |
| HDD Größe | 3.5" |
| Maximale unterstützte Anzahl der HDD | 1 |
| HDD Kapazität | 6 TB |
| Unterstützte Netzwerkprotokolle | TCP/IP. PPPoE. DHCP. DNS. DDNS. NTP. SADP. SMTP. NFS. UPnP. HTTPS |
| LED-Anzeigen | HDD. LAN. Leistung |
| Line-Eingänge (RCA) | 1 |
| Line-Ausgänge (RCA) | 1 |
| Maximaler HDD Speicher | 6 TB |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Playback Lösungen supported | 1920 × 1080/60Hz. 1280 × 1024/60Hz. 1280 × 720/60Hz. 1024 × 768/60Hz |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Energiequelle | Gleichstrom |
| DC-Ausgang Volt | 12 |
| Kameraleistungsverbrauch (standby) | 4 W |
| Stromverbrauch des Rekorders (typisch) | 8 W |
| Unterstützte Audioformate | G.711 A-law |
| Unterstützte mobile Betriebssysteme | Android. iOS |
| Betriebstemperatur | -40 - 80 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Videokompressionsformate | H.264. MP4 |
| Unterstützte Video-Modi | 720p |
| Ursprungsland | China |
| Produktfarbe | Schwarz. Weiß |
| Palettenhöhe netto | 120 cm |
| Pallettenlänge netto | 80 cm |
| Pallettenbreite netto | 140 cm |
| Zertifizierung | CE |
| Camera Weite | 6.4 cm |
| Camera Tiefe | 16.5 cm |
| Camera Höhe | 6.4 cm |
| Recorder Weite | 22 cm |
| Recorder Tiefe | 22.2 cm |
| Recorder Höhe | 4.5 cm |
| Breite | 225 mm |
| Tiefe | 430 mm |
| Höhe | 221 mm |
| Verpackungsbreite | 374 mm |
| Verpackungstiefe | 154 mm |
| Verpackungshöhe | 308 mm |
| Paketgewicht | 4 kg |
| Mitgelieferte Kabel | Gleichstrom |
| Verpackungsart | Box |
