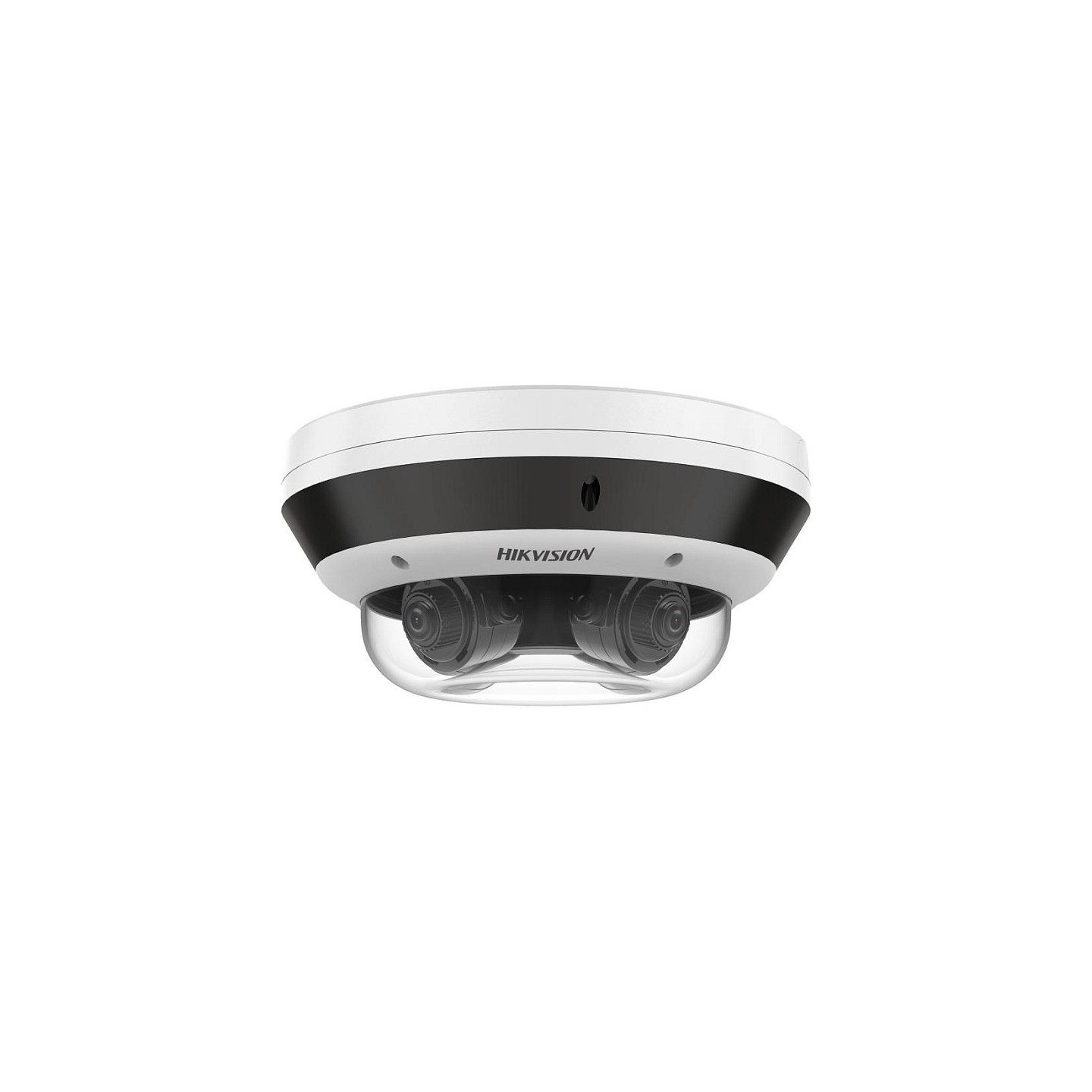

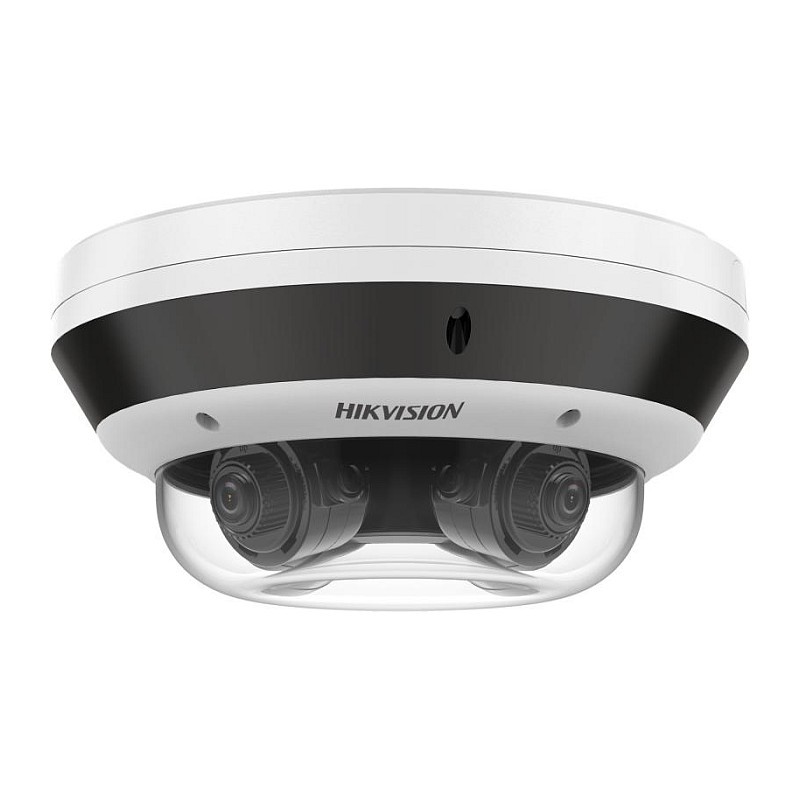

HIK 4MP Panorama Multisensor Netzwerkkamera
Hikvision Panoramic Series DS-2CD6D44G1H-IZS(2.8-12MM). IP-Sicherheitskamera. Innen & Außen. Kabelgebunden. Zimmerdecke. Weiß. Schwarz. Dome
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Hikvision Panoramic Series DS-2CD6D44G1H-IZS(2.8-12MM). Typ: IP-Sicherheitskamera. Unterstützte Positionierung: Innen & Außen. Übertragungstechnik: Kabelgebunden. Befestigungstyp: Zimmerdecke. Produktfarbe: Weiß. Schwarz. Formfaktor: Dome. Drehungswinkel: 360°. Betrachtungswinkel (horizontal): 31.2 - 102.4°. Betrachtungswinkel (vertikal): 17.6 - 54.7°. Sensor-Typ: CMOS. Größe des Bildsensors: 25.4 / 3 mm (1 / 3"). Brennweitenbereich: 2.8 - 12 mm. Fokus: Mit Motor/von Hand
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Innen & Außen |
| Übertragungstechnik | Kabelgebunden |
| Feature | Betriebsanleitung |
| Anzahl der Sprachen | 33 |
| Formfaktor | Dome |
| Befestigungstyp | Zimmerdecke |
| Produktfarbe | Weiß. Schwarz |
| Internationale Schutzart (IP-Code) | IP67 |
| IK-Kodex | IK10 |
| Mindestbeleuchtung | 0 Lux |
| Drehungswinkel | 360° |
| Betrachtungswinkel (horizontal) | 31.2 - 102.4° |
| Betrachtungswinkel (vertikal) | 17.6 - 54.7° |
| Betrachtungswinkel des Objektivs. diagonal | 35.8 - 122.1° |
| Neigungswinkelbereich | 10 - 90° |
| Schwenkbereich | -60 - 60° |
| Kamera Verschlusszeit | 1/100000 - 1 s |
| Anzahl der Sensoren | 4 |
| Größe des Bildsensors | 25.4 / 3 mm (1 / 3") |
| Sensor-Typ | CMOS |
| Anzahl der Linsen | 4 |
| Brennweitenbereich | 2.8 - 12 mm |
| Fokus | Mit Motor/von Hand |
| Maximale Blendenzahl | 1.6 |
| Nachtsichtdistanz | 30 m |
| LED Typ | IR |
| Infrarot-Wellenlänge | 850 nm |
| Maximale Auflösung | 2688 x 1520 Pixel |
| Megapixel insgesamt | 4 MP |
| Unterstützte Videoformate | H.264. H.264+. H.265. H.265+ |
| Videokompressionsformate | H.264. H.264+. H.265. H.265+ |
| Unterstützte Grafik-Auflösungen | 640 x 480 (VGA). 704 x 480. 704 x 576. 1280 x 720 (HD 720). 1920 x 1080 (HD 1080). 2560 x 1440. 2688 x 1520 |
| Unterstützte Video-Modi | 720p. 1080p. 1440p. 1520p |
| Bis zu 30 Frames pro Sekunde | 25 fps |
| Unterstützte Audioformate | AAC-LC. G.711. G.722.1. G.726. MP2L2. MP3. PCM |
| Rauschverhältnis (SNR) | 62 dB |
| Bereich der Bitrate | 16 - 192 Kbit/s |
| Abtastraten | 8 - 48 kHz |
| Unterstützte Netzwerkprotokolle | TCP/IP. ICMP. HTTP. HTTPS. FTP. DHCP. DNS. DDNS. RTP. RTSP. RTCP. PPPoE. NTP. UPnP. SMTP. SNMP. IGMP. 802.1X. QoS. IPv6. UDP. Bonjour |
| Zahl der Benutzer | 32 Benutzer |
| Benutzer-Zugriffsebene | Administrator. Operator. Benutzer |
| Anzahl der gleichzeitigen Live-View-Kanäle | 20 Kanäle |
| Kompatible Speicherkarten | MicroSD (TransFlash). MicroSDHC. MicroSDXC |
| Max. Speicherkartengröße | 1 TB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| RS-485-Anschlüsse | 1 |
| Alarm-Eingangskanäle | 2 |
| Alarm-Ausgangskanäle | 2 |
| Energiequelle | Gleichstrom. PoE |
| Stromverbrauch (max.) | 20 W |
| Stromverbrauch (Power over Ethernet (PoE)) | 23.4 W |
| DC-Ausgang Volt | 12 |
| DC Ausgangssstrom | 1.67 A |
| Betriebstemperatur | -30 - 60 °C |
| Temperaturbereich bei Lagerung | -40 - 60 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Luftfeuchtigkeit bei Lagerung | 0 - 95% |
| Höhe | 148 mm |
| Durchmesser | 29 cm |
| Gewicht | 4.7 kg |
| Verpackungsbreite | 453 mm |
| Verpackungstiefe | 393 mm |
| Verpackungshöhe | 385 mm |
| Paketgewicht | 7.7 kg |
| Anzahl der Kameras | 1 |
