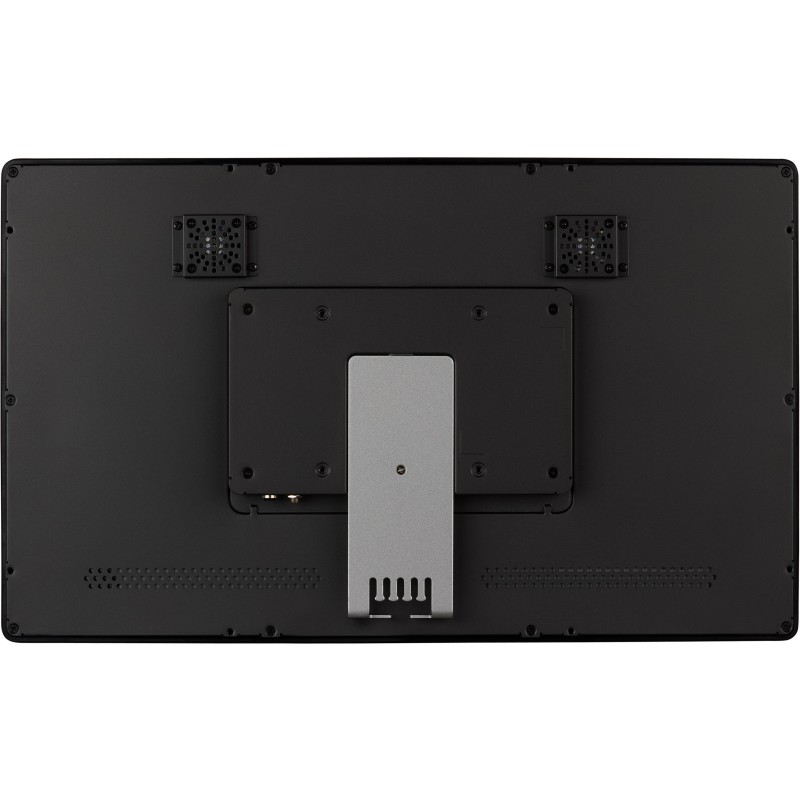

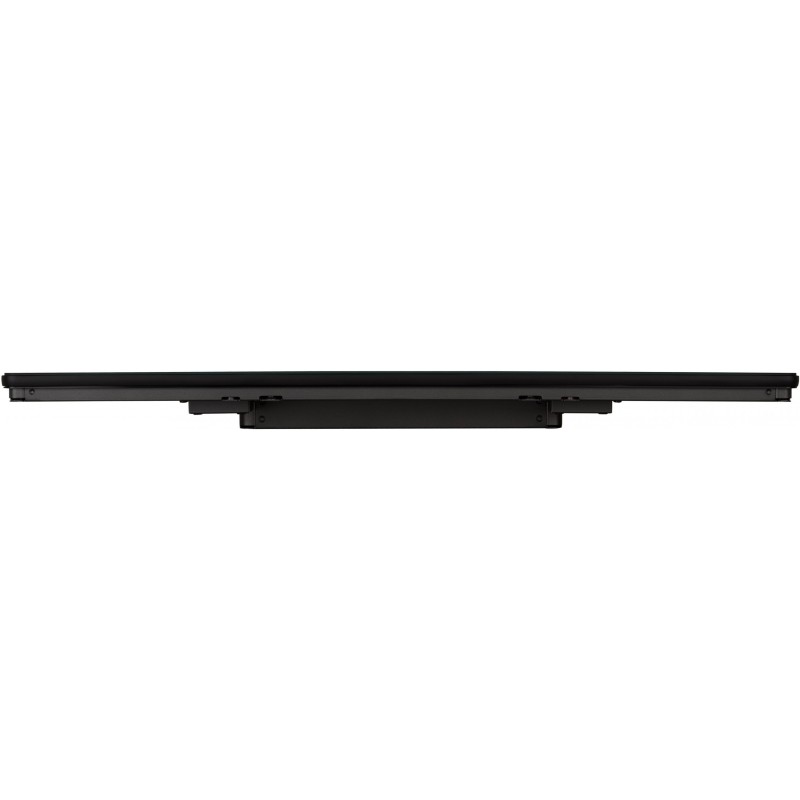

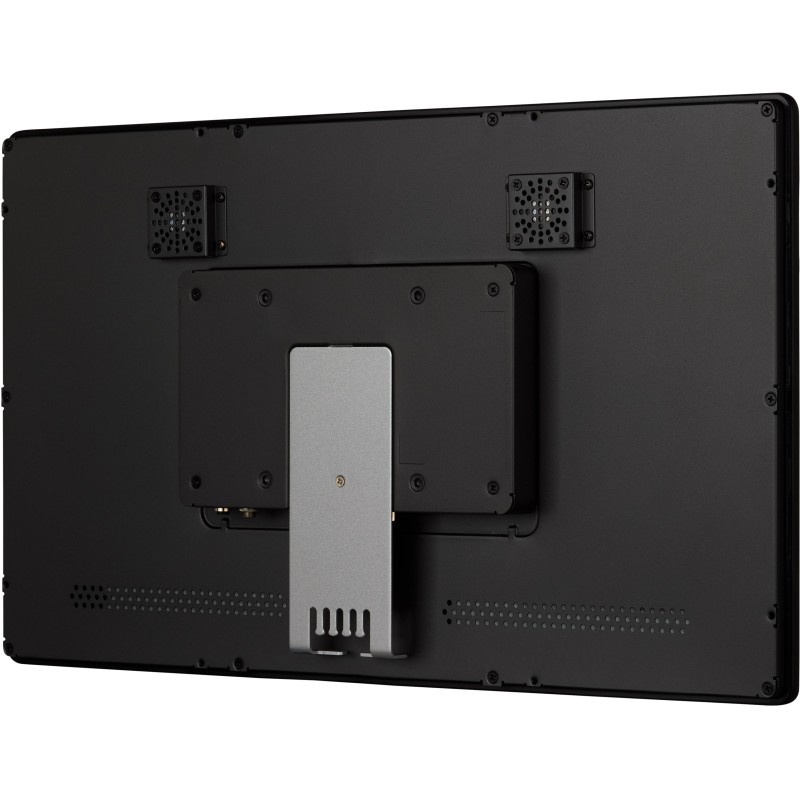

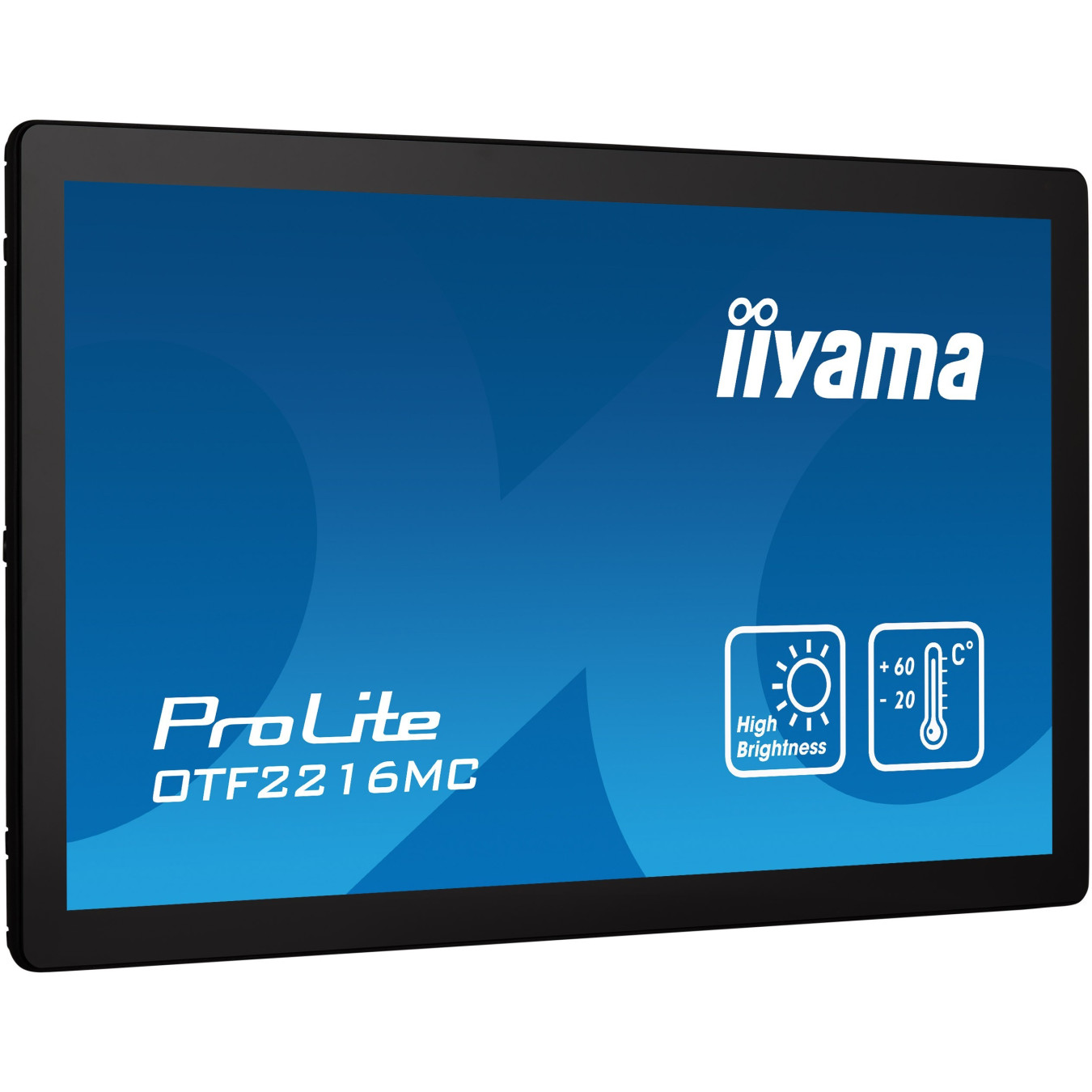

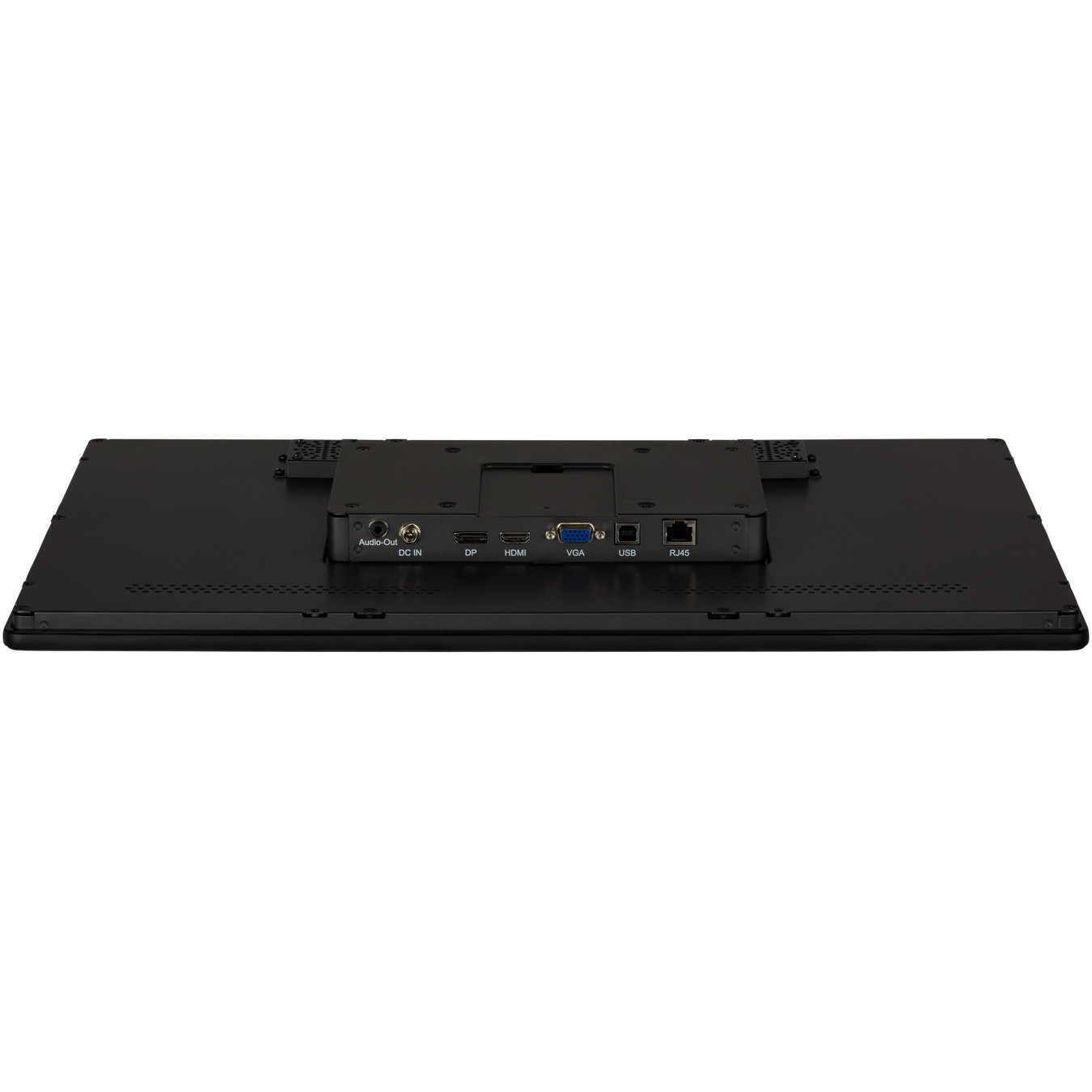

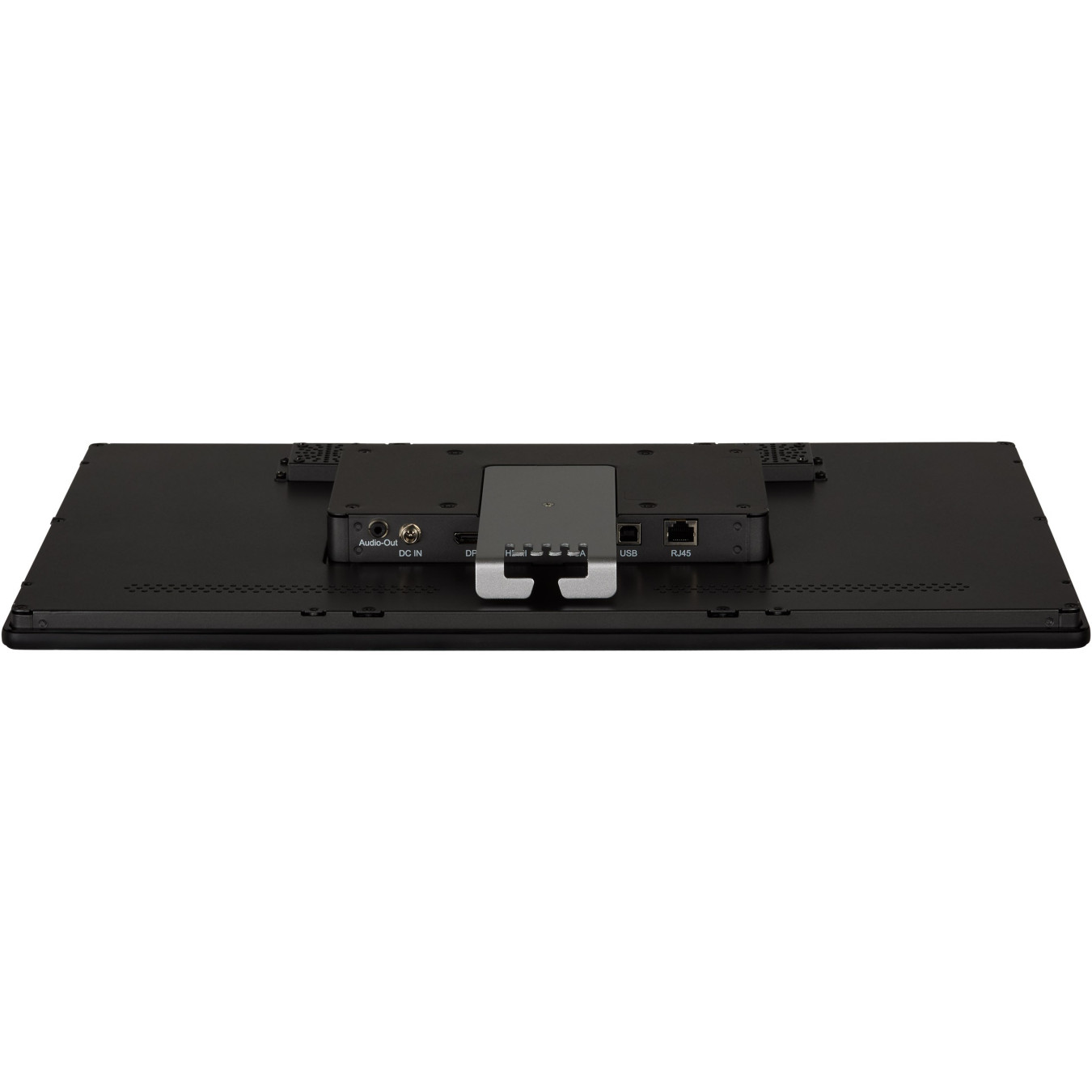

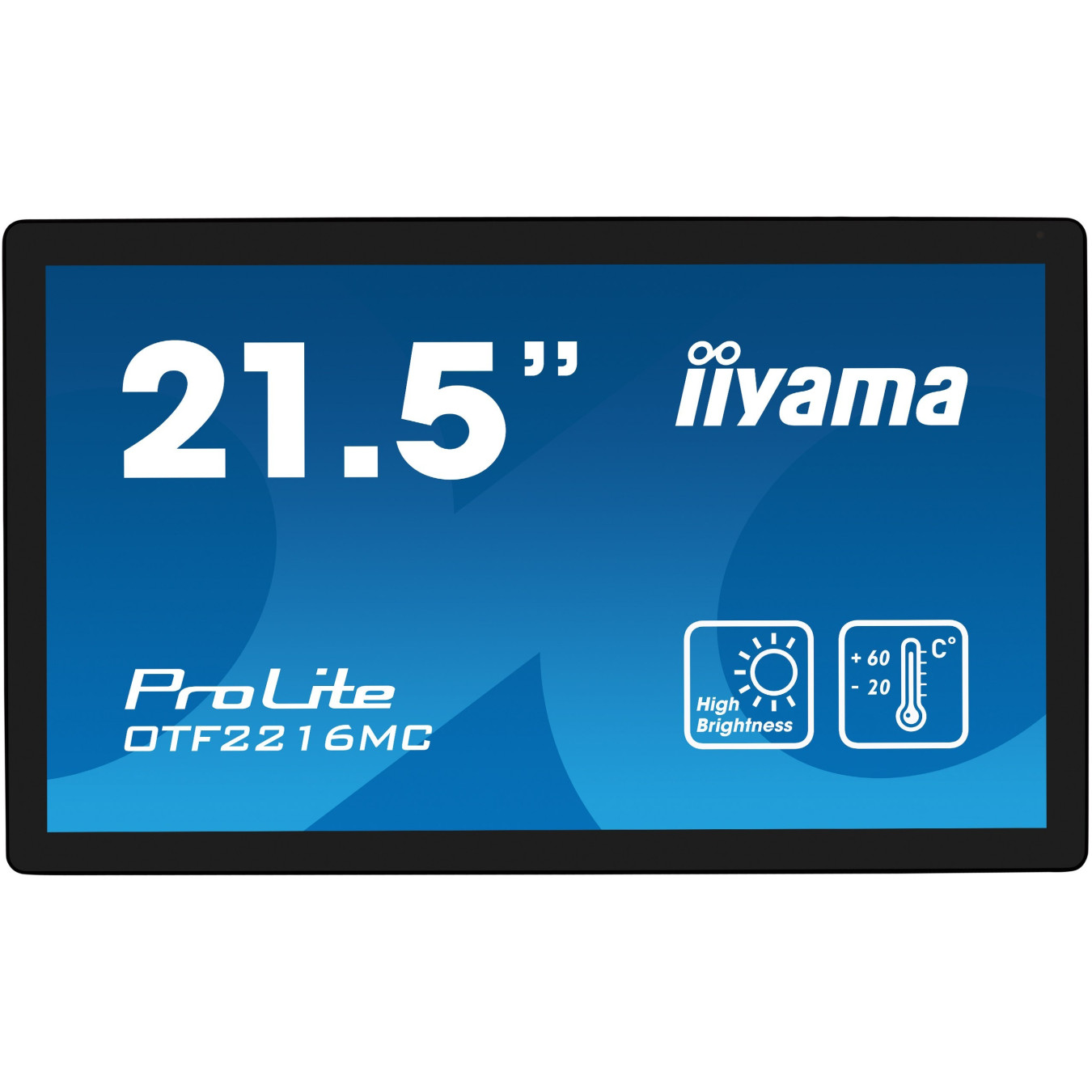

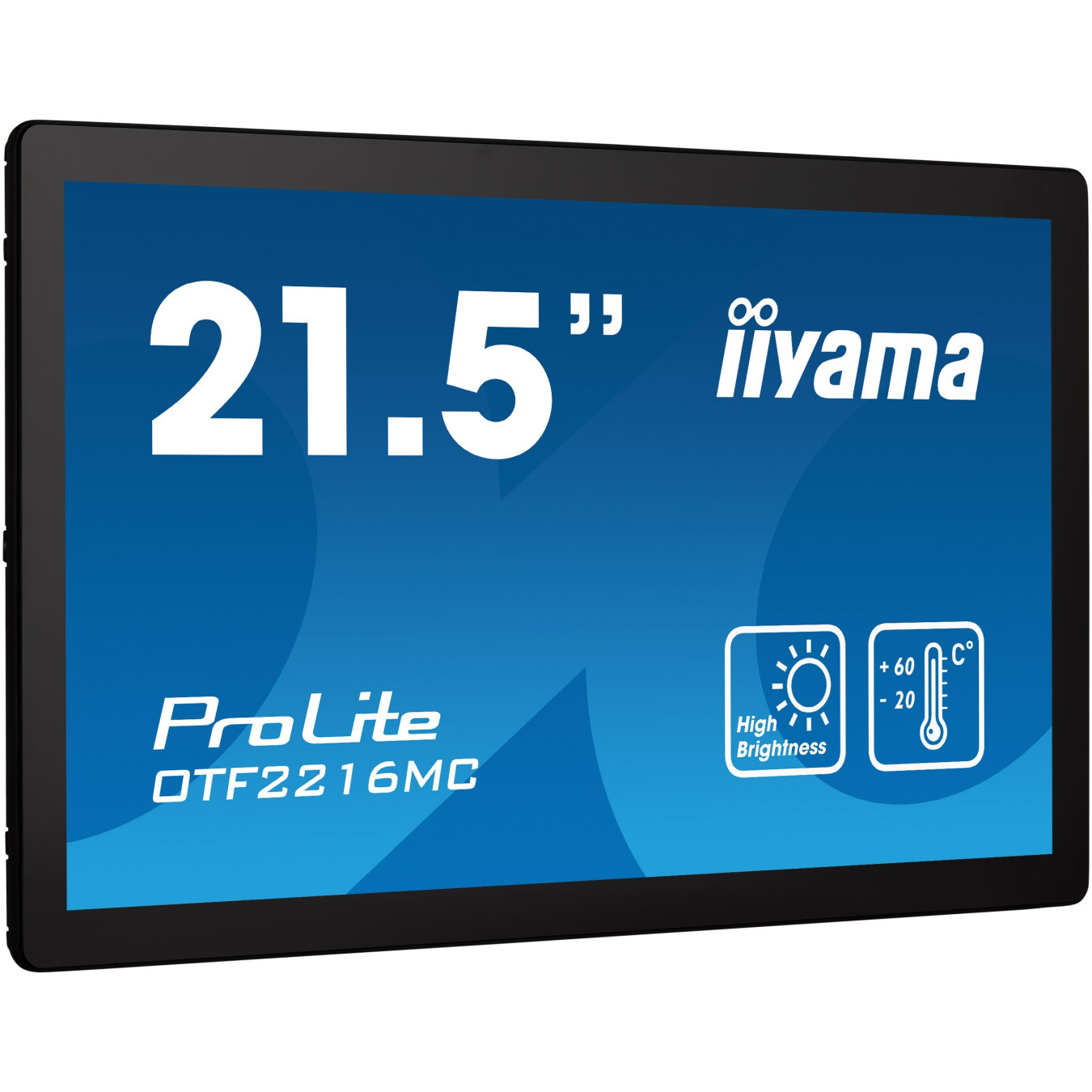

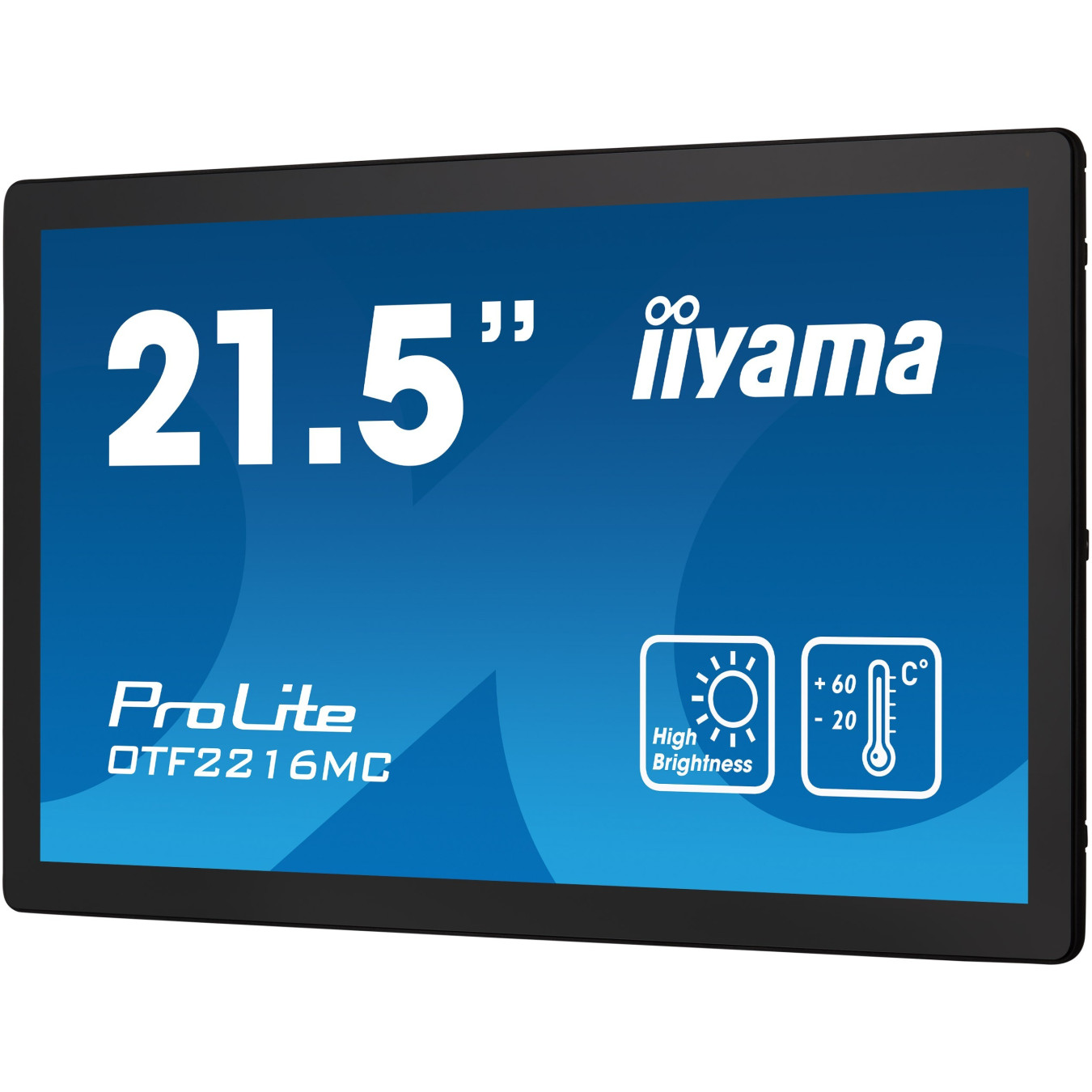

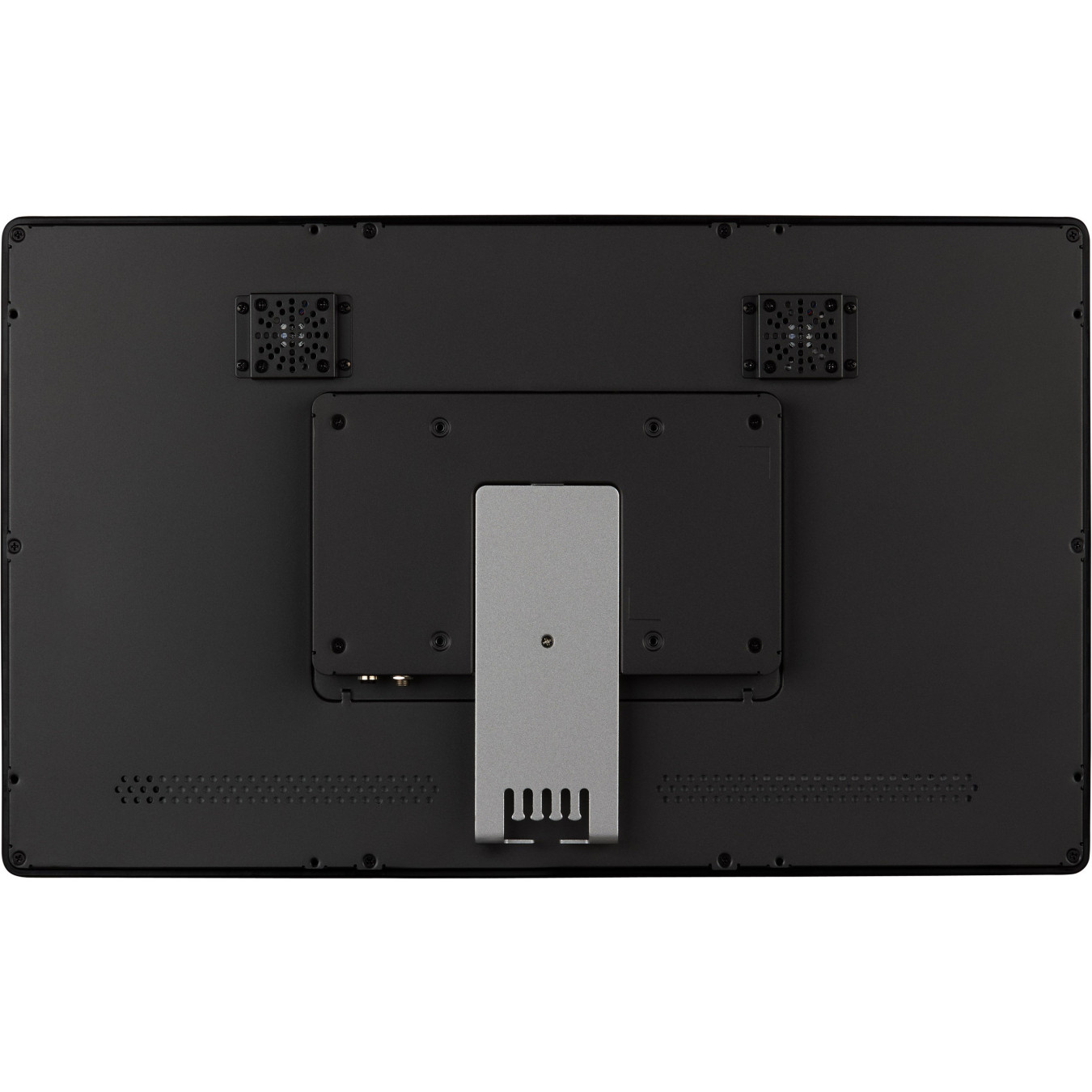

iiyama OTF2216MC-B1 - 21.5" Full HD High-Brightness PCAP Touchscreen (Black) - HDMI, DisplayPort, USB
21.5" (55.9 cm) Full HD (1920x1080) high-brightness 1100 cd/m² 10-point PCAP touchscreen for outdoor digital signage. HDMI, DisplayPort and USB connectivity. Black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Monitors - Screen Size | 22inch |
|---|---|
| Monitors - Resolution | 1920x1080 (FHD) |
| Monitors - Panel Type | VA |
| Monitors - Refresh Rate | 60 Hz |
| Monitors - Curvature | Flat |
iiyama 21.5" high-brightness touchscreen with 10 touch points PCAP touch technology for outdoor applications. Product design: Digital signage flat panel. Display diagonal: 55.9 cm (22"). Display technology: LCD. Display resolution: 1920 x 1080 pixels. Display brightness: 1100 cd/m². HD type: Full HD. Touchscreen. Product colour: Black
| Panel type | VA |
| Display diagonal | 55.9 cm (22") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 1100 cd/m² |
| HD type | Full HD |

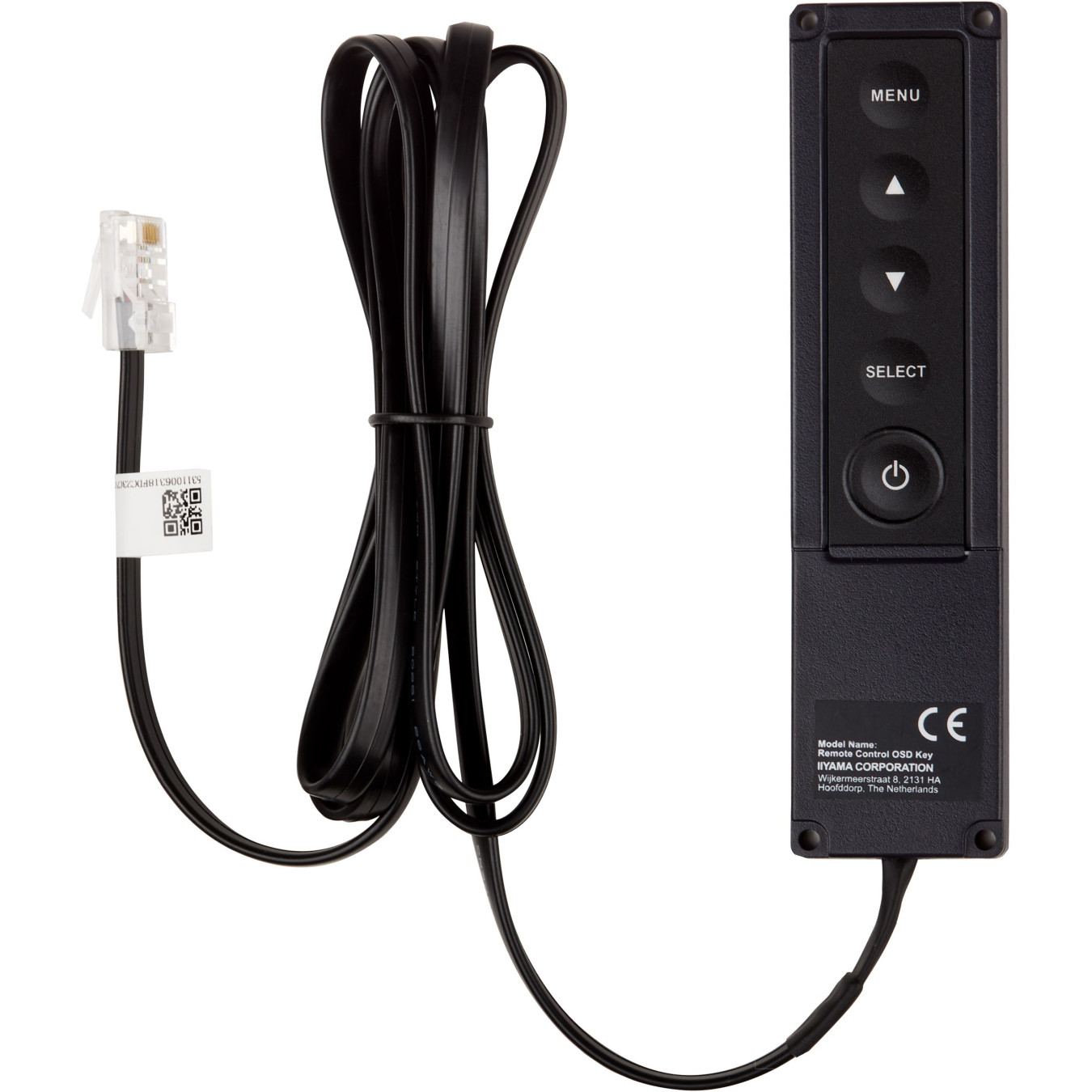

| Feature | Remote control included |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 25 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.248 x 0.248 mm |
| Active display area (W x H) | 477 x 269 mm |
| Display diagonal (metric) | 54.6 cm |
| Horizontal scan range | 31.4 - 82 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Glass thickness | 3.5 mm |

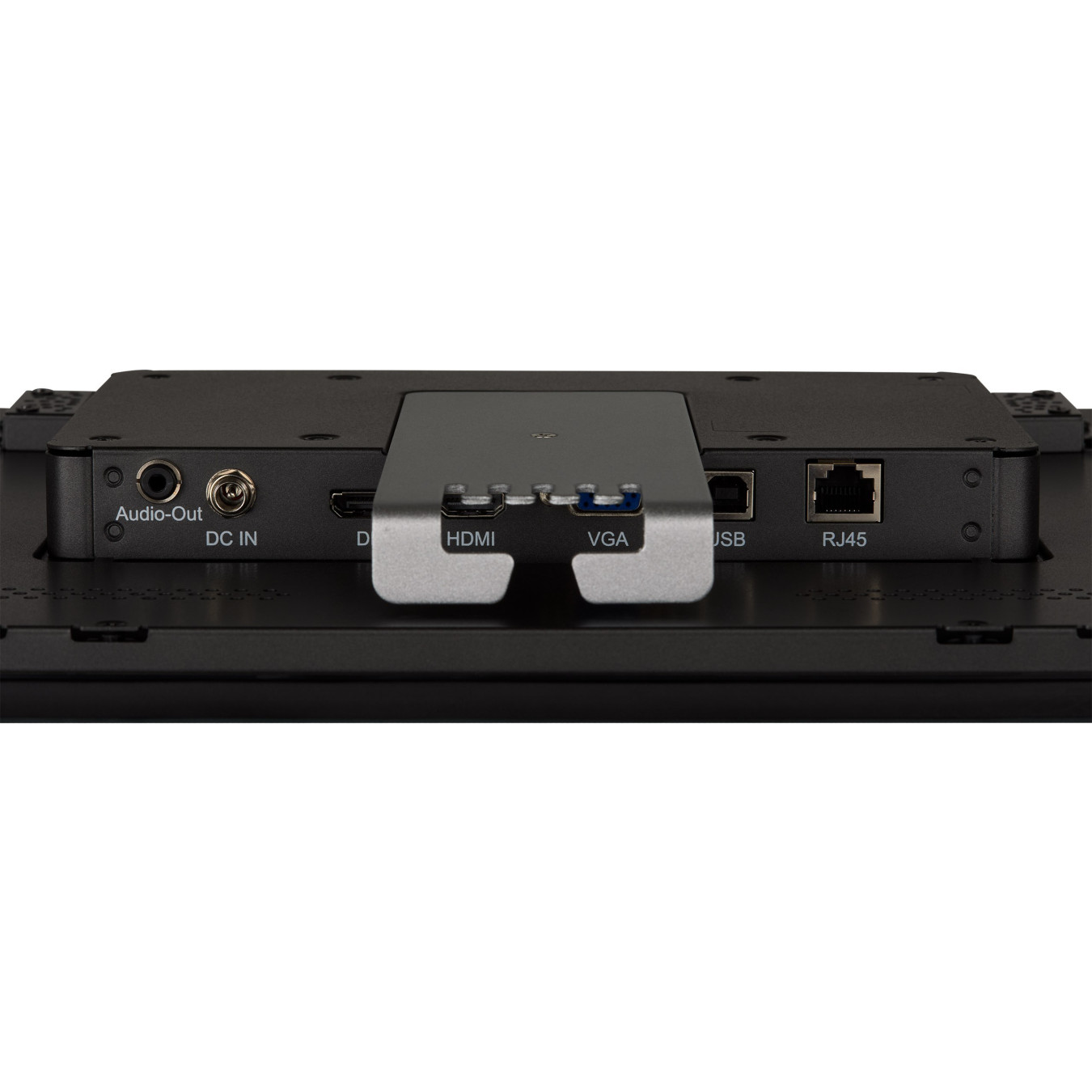

| HDMI ports quantity | 1 |
| HDMI input ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| Panel mounting interface | 100 x 100 mm |
| Purpose | Universal |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese. Traditional Chinese. German. English. Spanish. French. Italian. Japanese |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 60000 h |
| Power consumption (typical) | 43 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 16 kWh |
| Energy efficiency scale | A to G |
| Display width | 520 mm |
| Display depth | 42.5 mm |
| Display height | 315 mm |
| Display weight | 4.6 kg |
| Package width | 608 mm |
| Package depth | 150 mm |
| Package height | 400 mm |
| Package weight | 4.5 kg |
| Cables included | AC. DisplayPort. HDMI. USB |
| Operating temperature (T-T) | -20 - 60 °C |
| Certification | CE. EAC. RoHS support. ErP. WEEE. cULus. REACH. UKCA |
