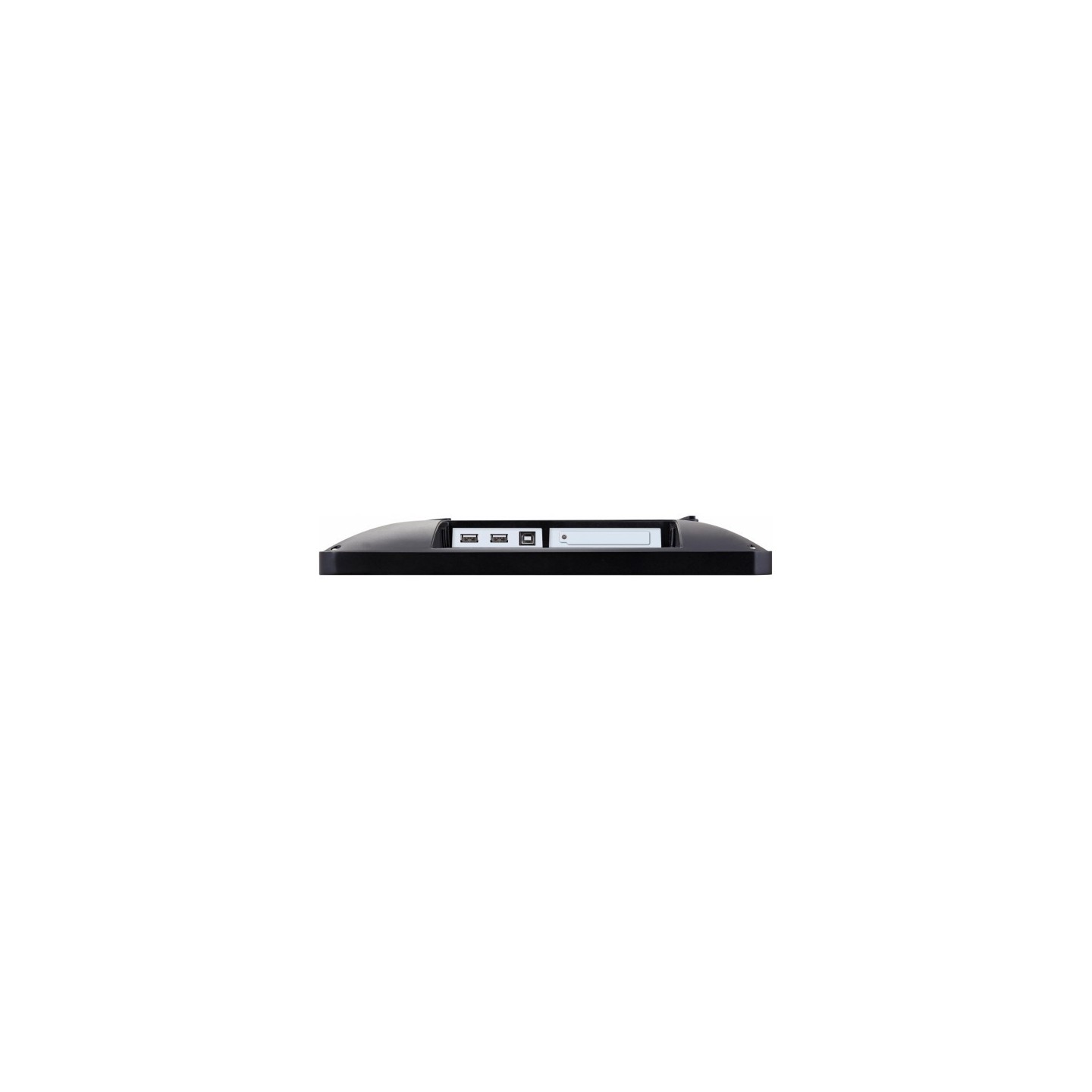

ViewSonic TD2430 24" FHD Touchscreen VA Monitor (1920x1080) 10pt - HDMI/DP/VGA (Boxed)
ViewSonic TD2430 23.6in FHD VA touchscreen monitor w/10-point multi-touch, 5ms, 200 cd/m², 3000:1 contrast, built-in 2x2W speakers, USB 3.2 hub, HDMI/DP/VGA, VESA, black. Frameless, 7H glass.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Screen Size | 23 - 25 inches |
|---|---|
| Monitors - Resolution | Full HD (1080p) |
| Monitors - Panel Type | VA |
| Monitors - Response Time (GtG) | 5 ms |
| Monitors - Form Factor | Flat |
| Monitors - Refresh Rate | 60Hz |
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | DisplayPort 1.2 HDMI 1.4 |
| Monitors - Sync Technology | None |
| Monitors - Special Features | Speakers USB Hub VESA Mount |

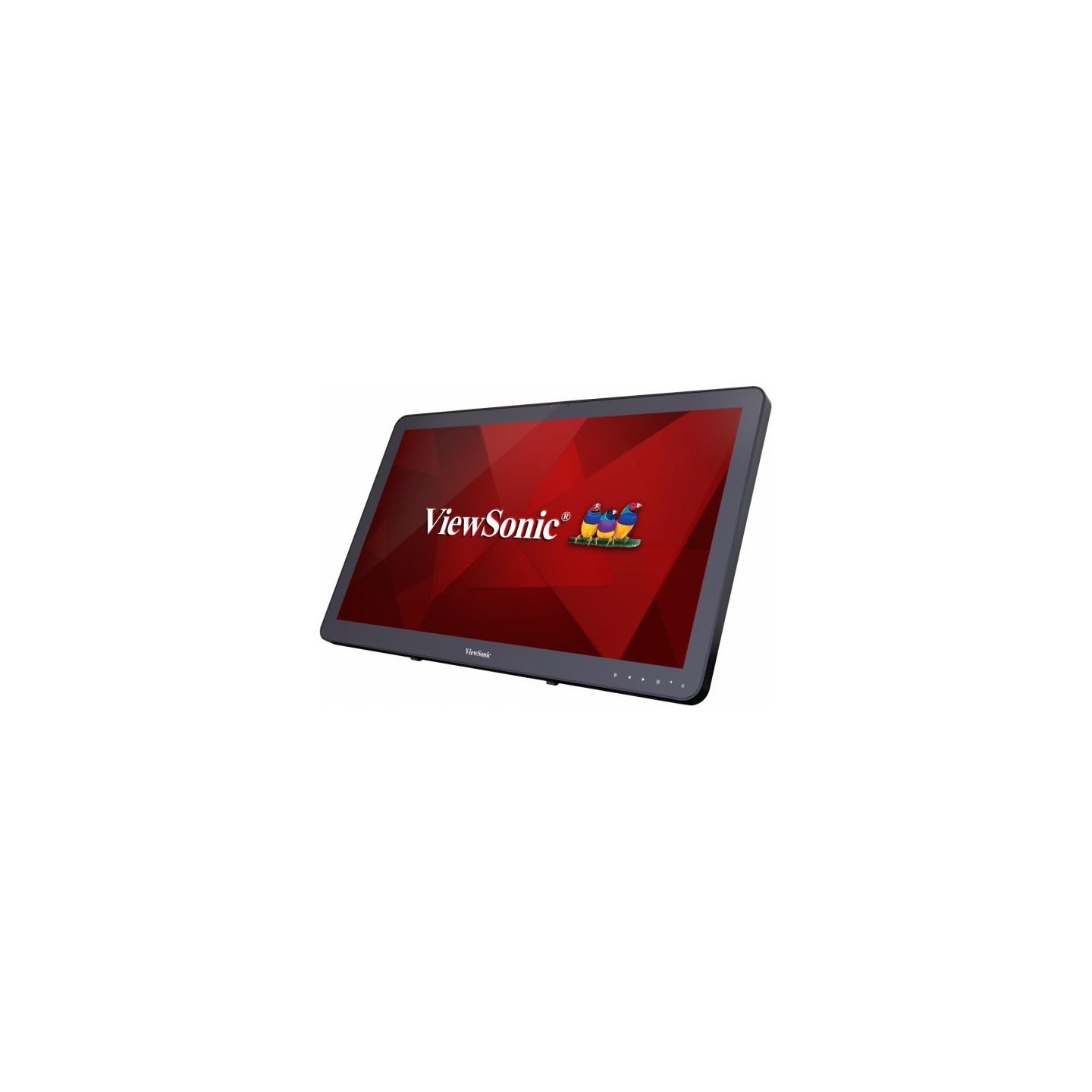

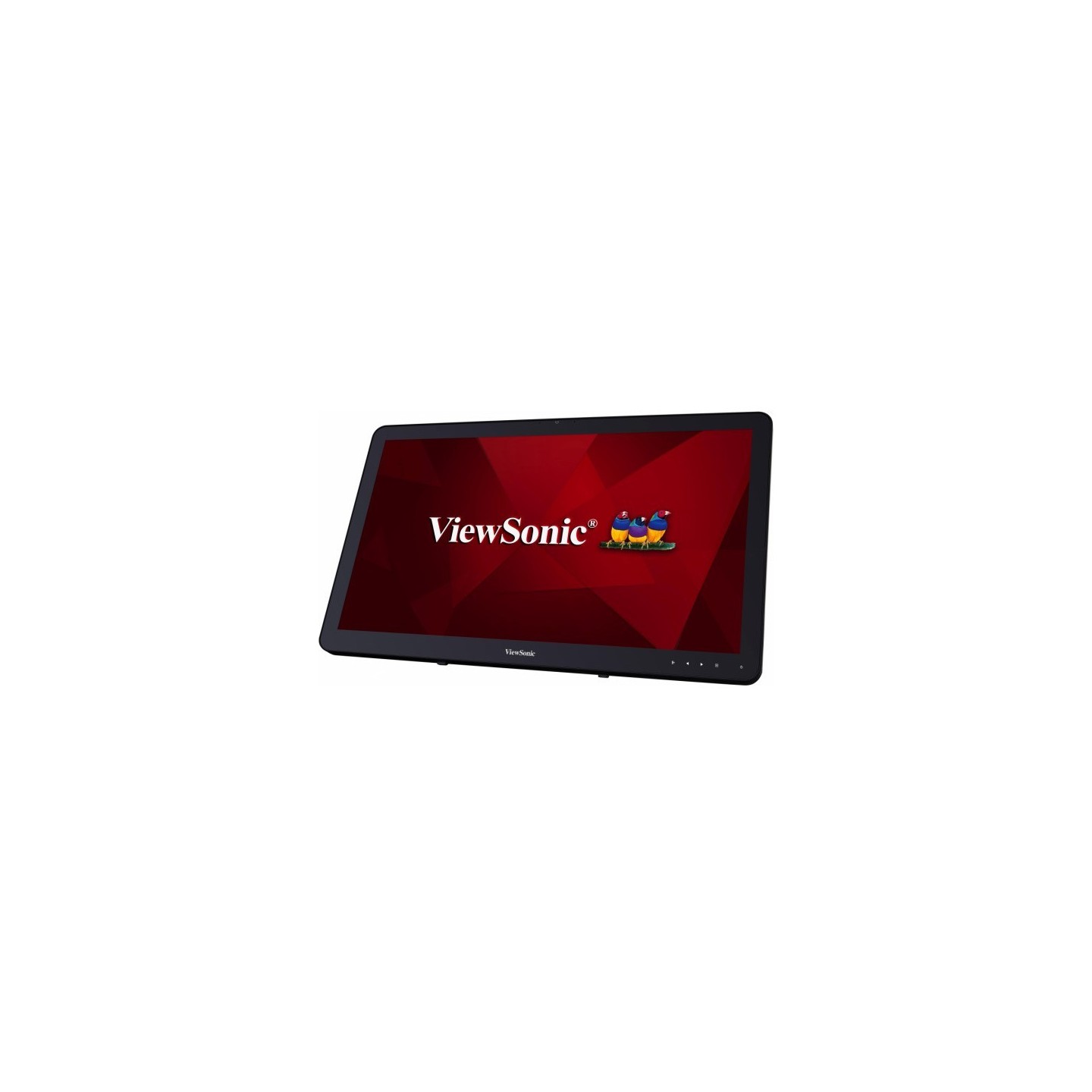

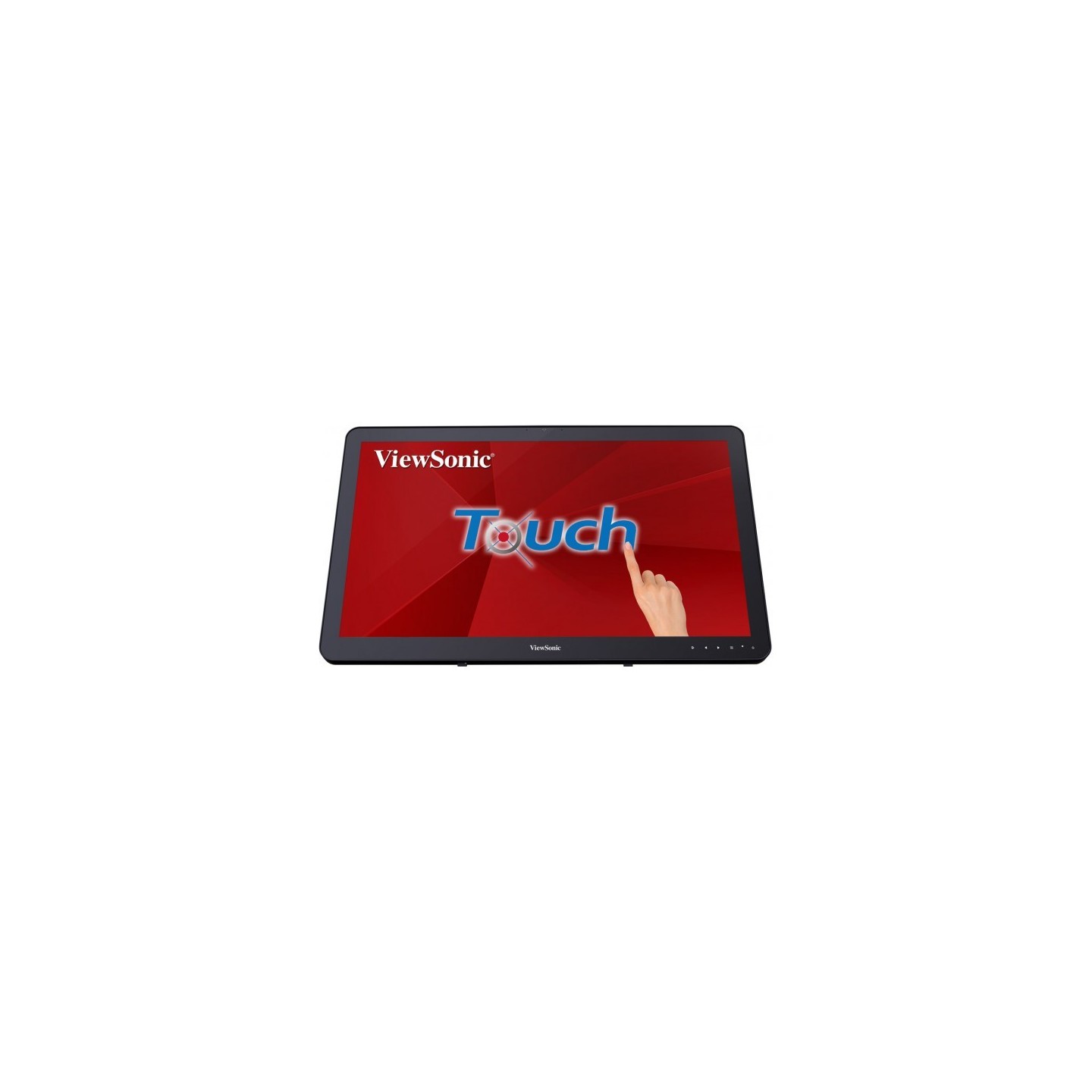

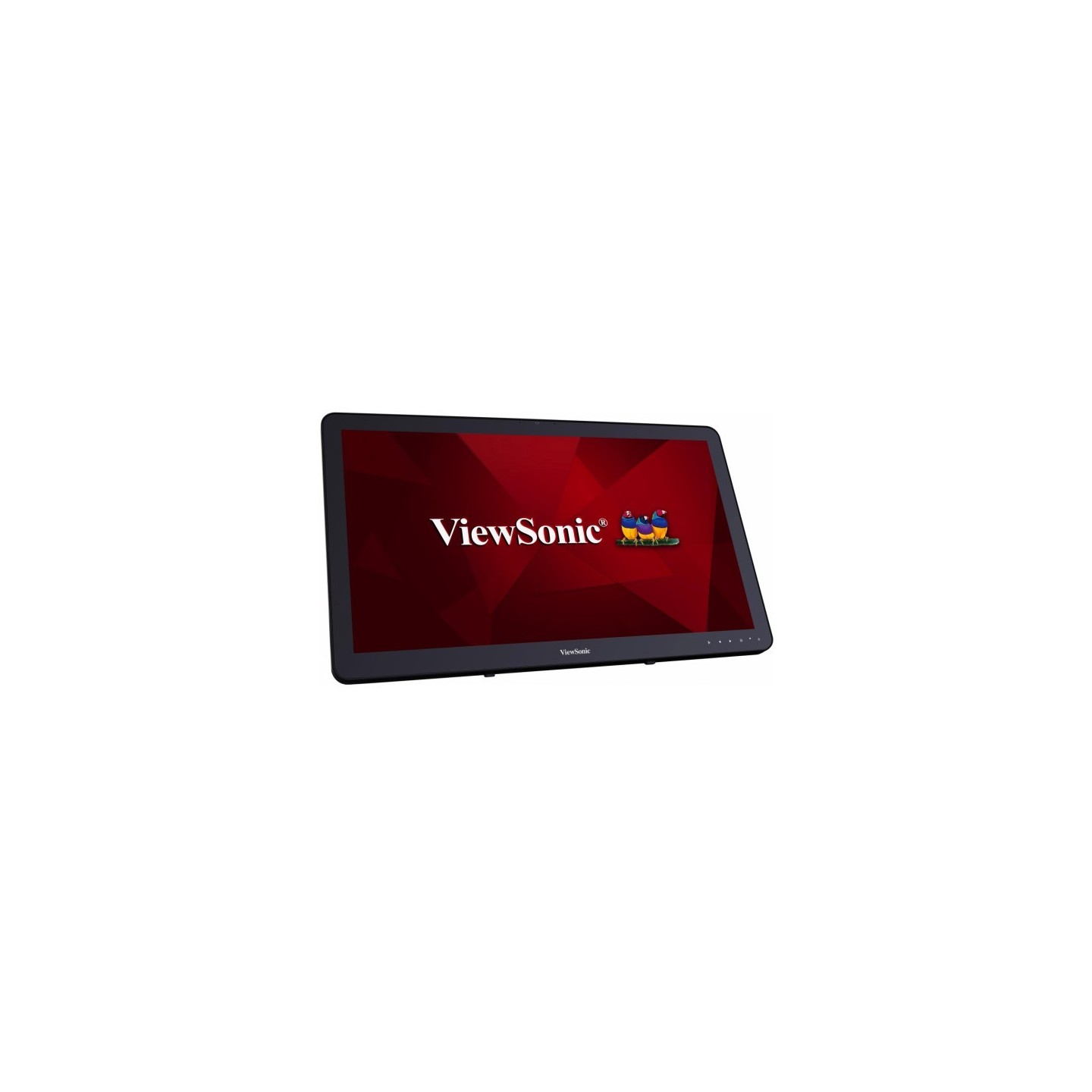

The ViewSonic TD2430 is a versatile 24-inch (23.6" viewable) Full HD touchscreen monitor designed for retail, education, and business environments. Featuring a frameless edge-to-edge glass design with 7H surface hardness for scratch and moisture resistance, it supports smooth 10-point projected capacitive multi-touch functionality compatible with Windows 7/8/10/11, select Android, Linux, and Mac via vTouch driver.

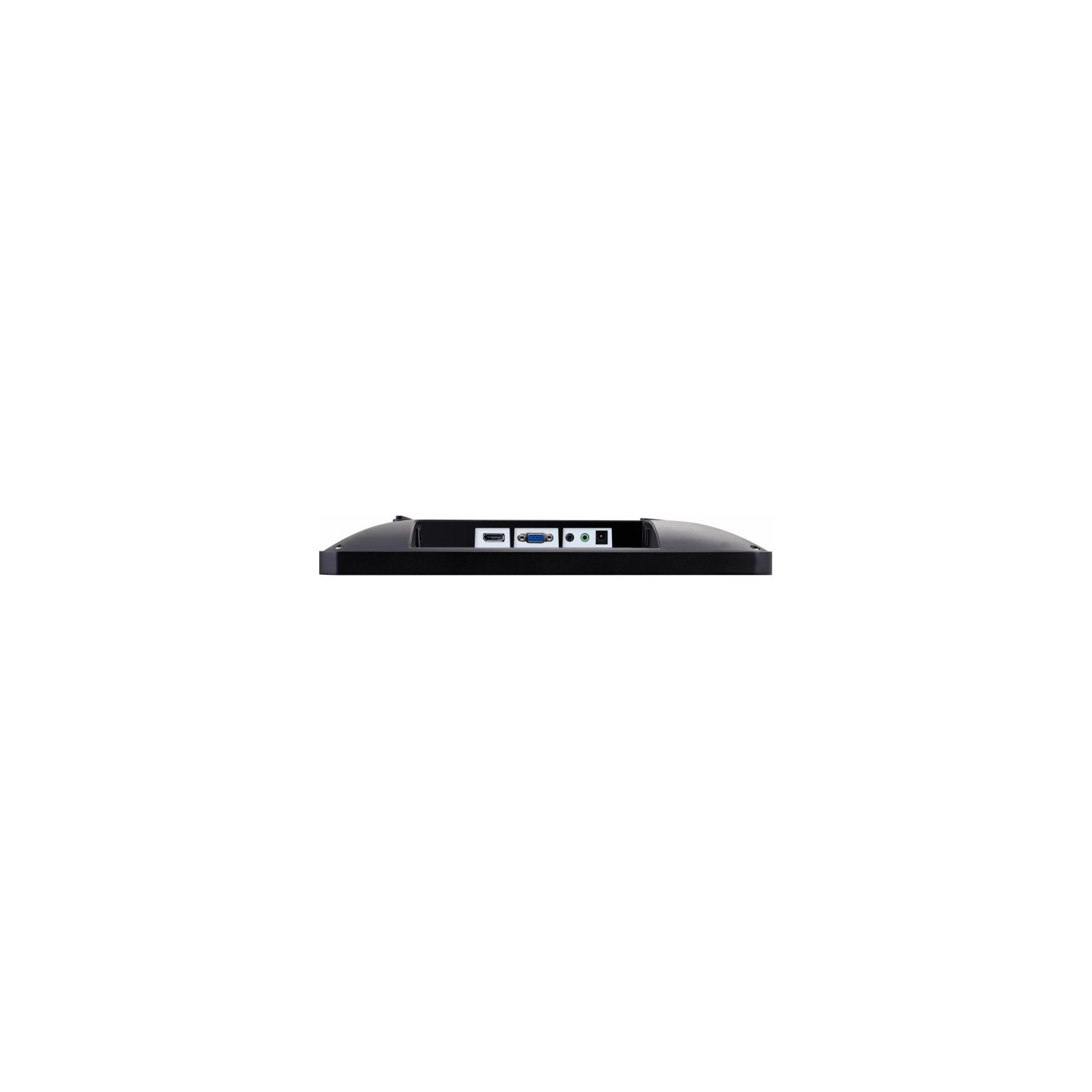

Equipped with VA panel technology delivering 1920x1080 resolution, 178° viewing angles, 3000:1 static contrast, and SuperClear® for vibrant colors (NTSC 72%). It includes 2x2W built-in speakers, USB 3.2 Gen1 hub (1x Type-B upstream, 2x Type-A downstream), and versatile connectivity: HDMI 1.4, DisplayPort 1.2, VGA, headphone out. Adjustable tilt (20-53°) and 100x100mm VESA mounting enhance flexibility.
- ✅ 10-point P-CAP touch with 5ms response
- ✅ Full HD VA panel, 60Hz refresh, flicker-free
- ✅ Built-in speakers & USB hub
- ✅ ENERGY STAR, ErP certified, E-class efficiency
- ✅ Robust 7H glass, frameless design
| Display diagonal | 59.9 cm (23.6 |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | VA |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 200 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 50,000,000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2715 x 0.2715 mm |
| Horizontal scan range | 24 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 11 |
| Other operating systems supported | Android, Linux |
| Number of speakers | 2 |
| RMS rated power | 2 W (x2) |
| Product colour | Black |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |

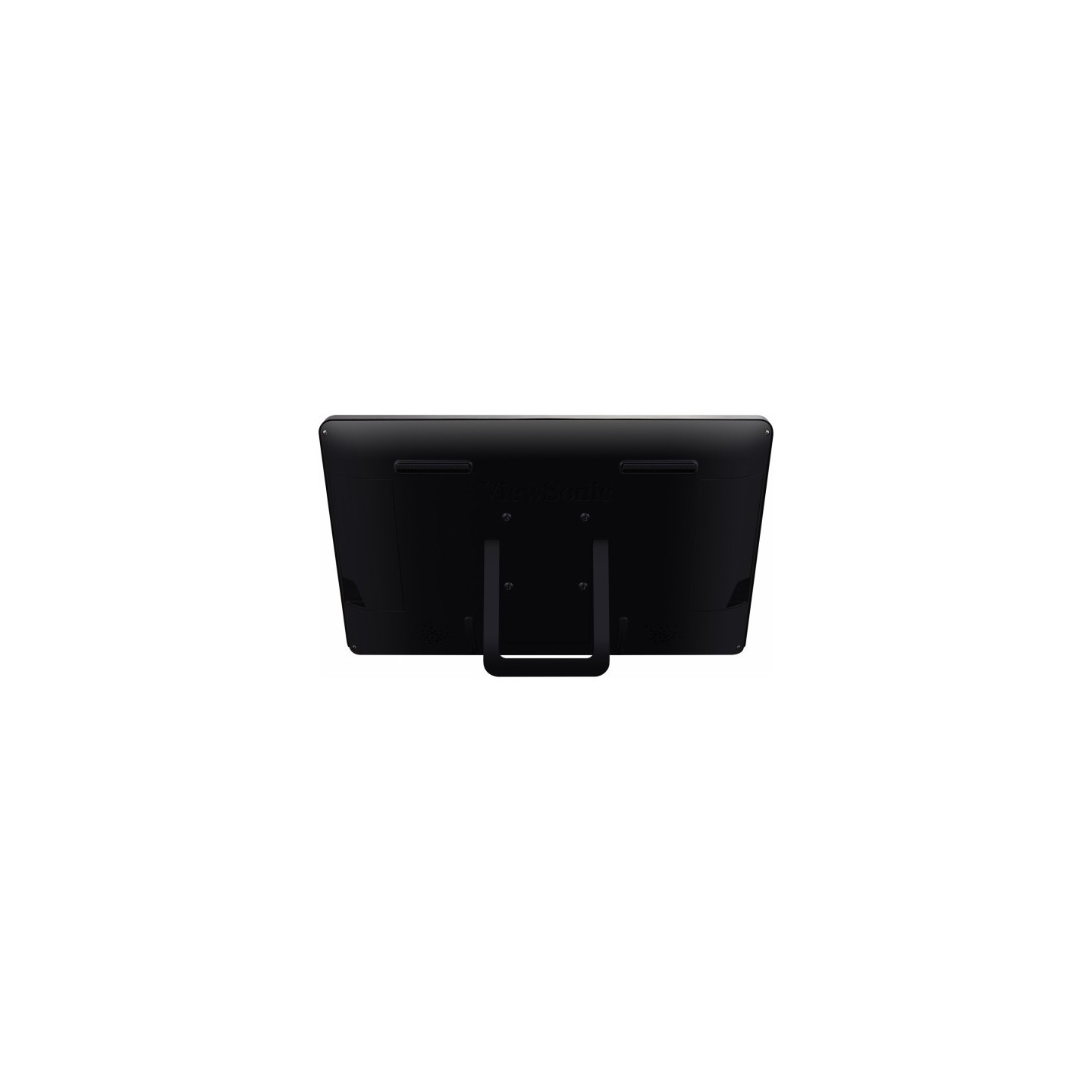

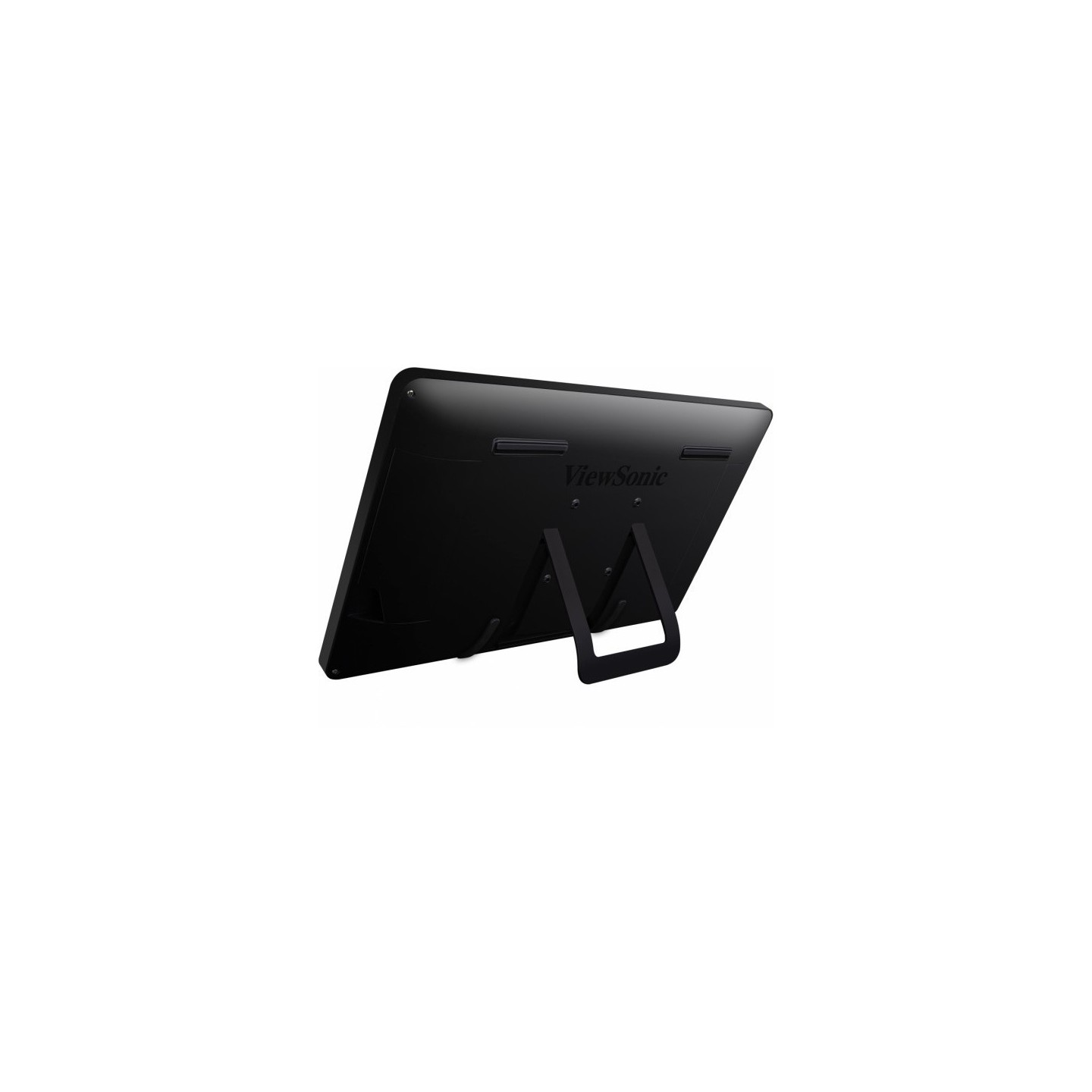

| Panel mounting interface | 100 x 100 mm |

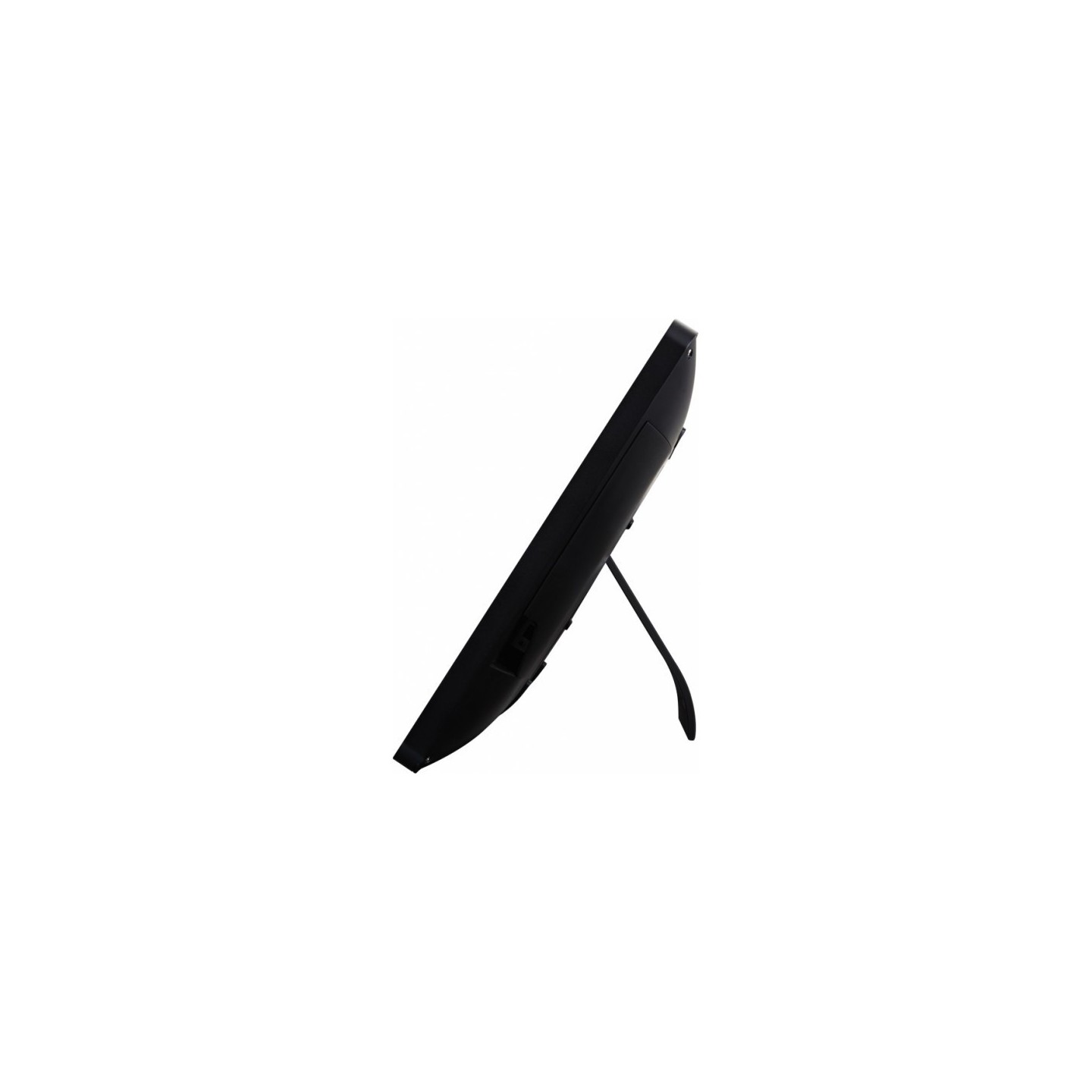

| Tilt angle range | 20 - 53° |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Power consumption (typical) | 25 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| VESA mounting | Yes |
| Screen hardness | 7H |
| Color Gamut | NTSC: 72% |
| Flicker-Free | Yes |
