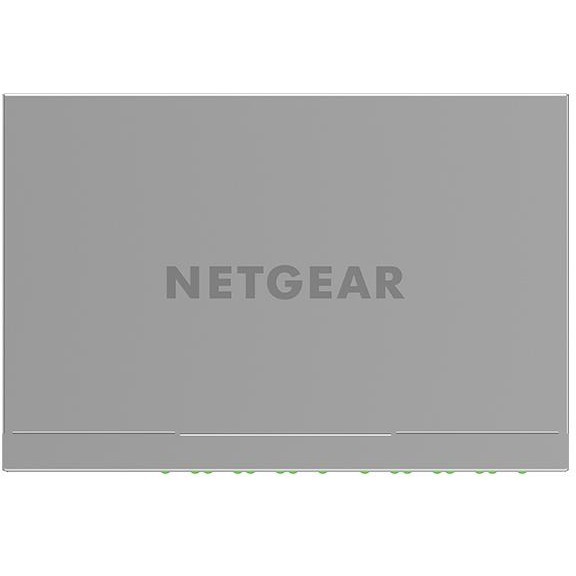

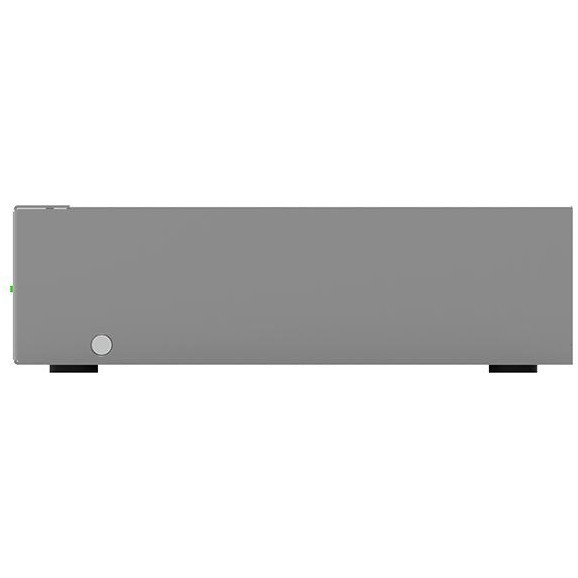

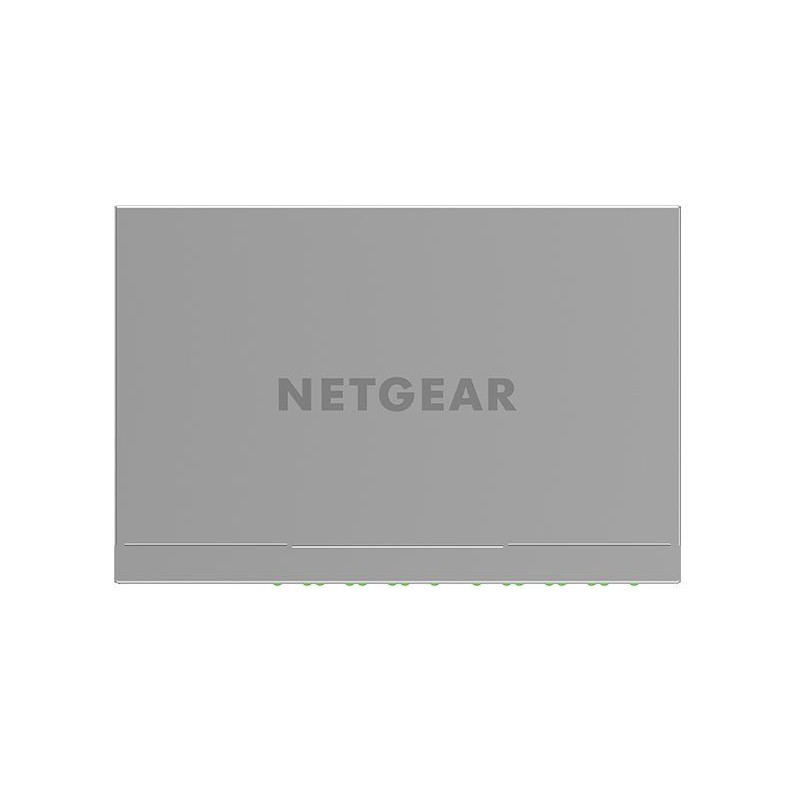

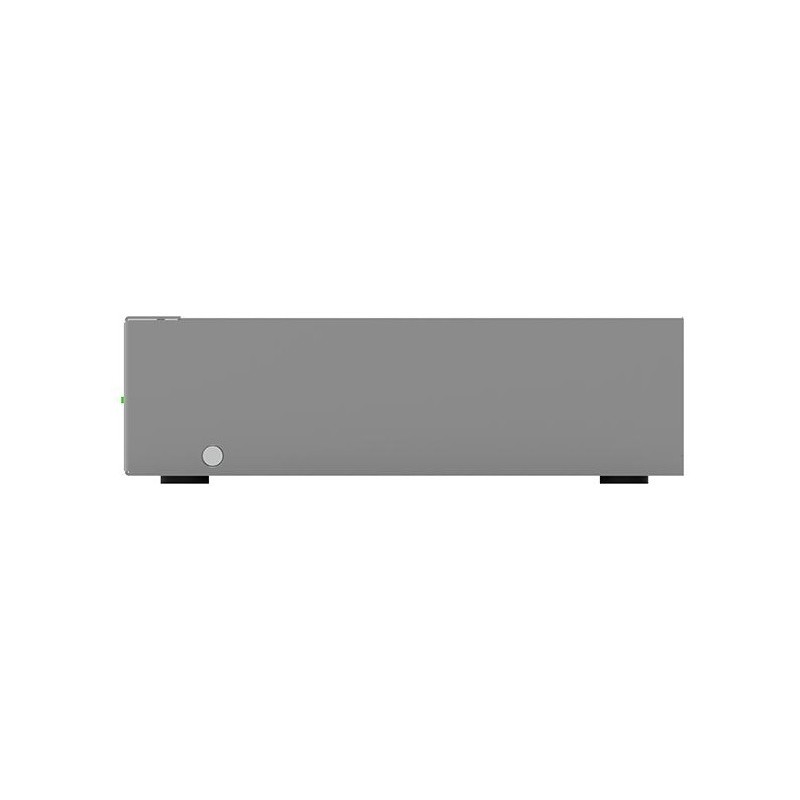

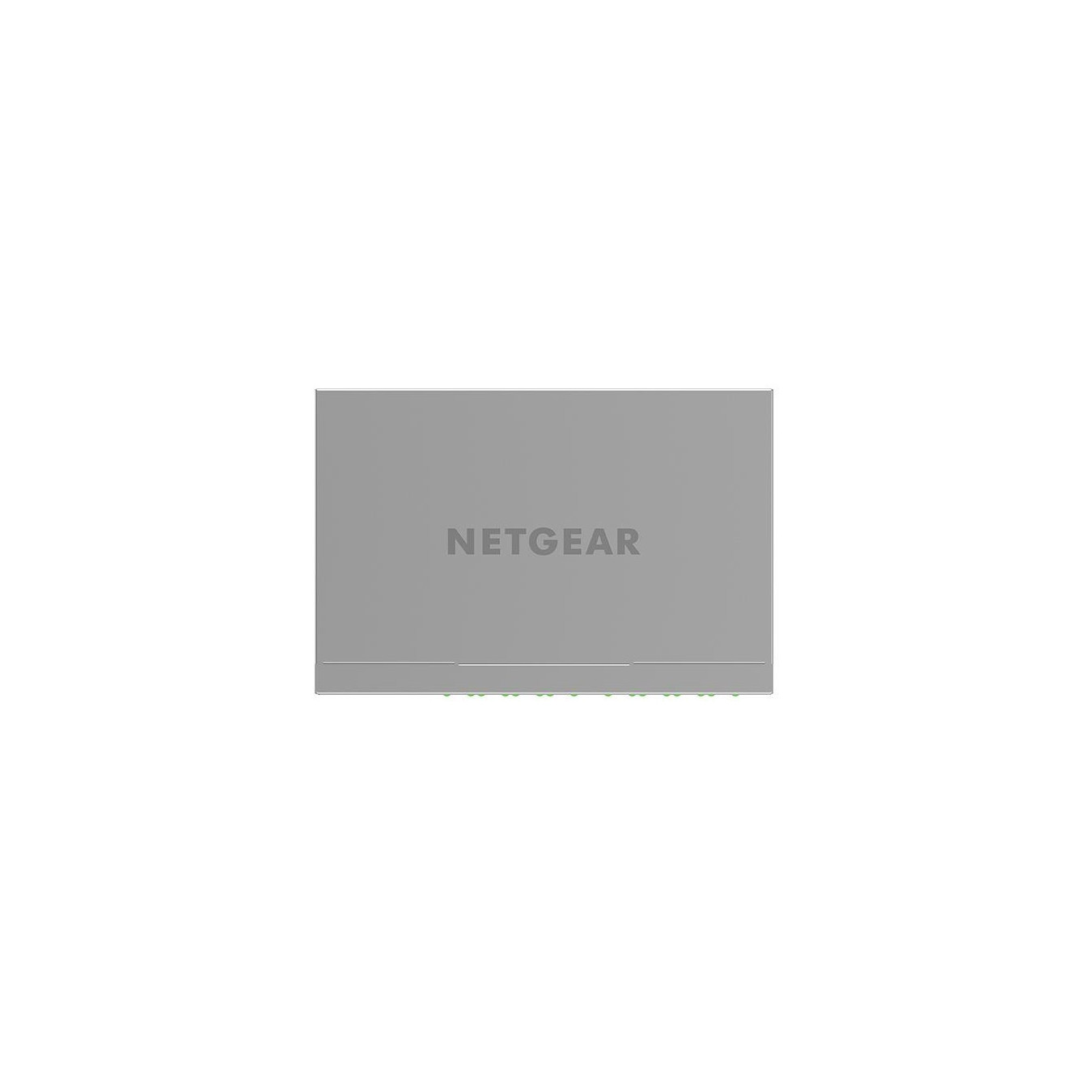

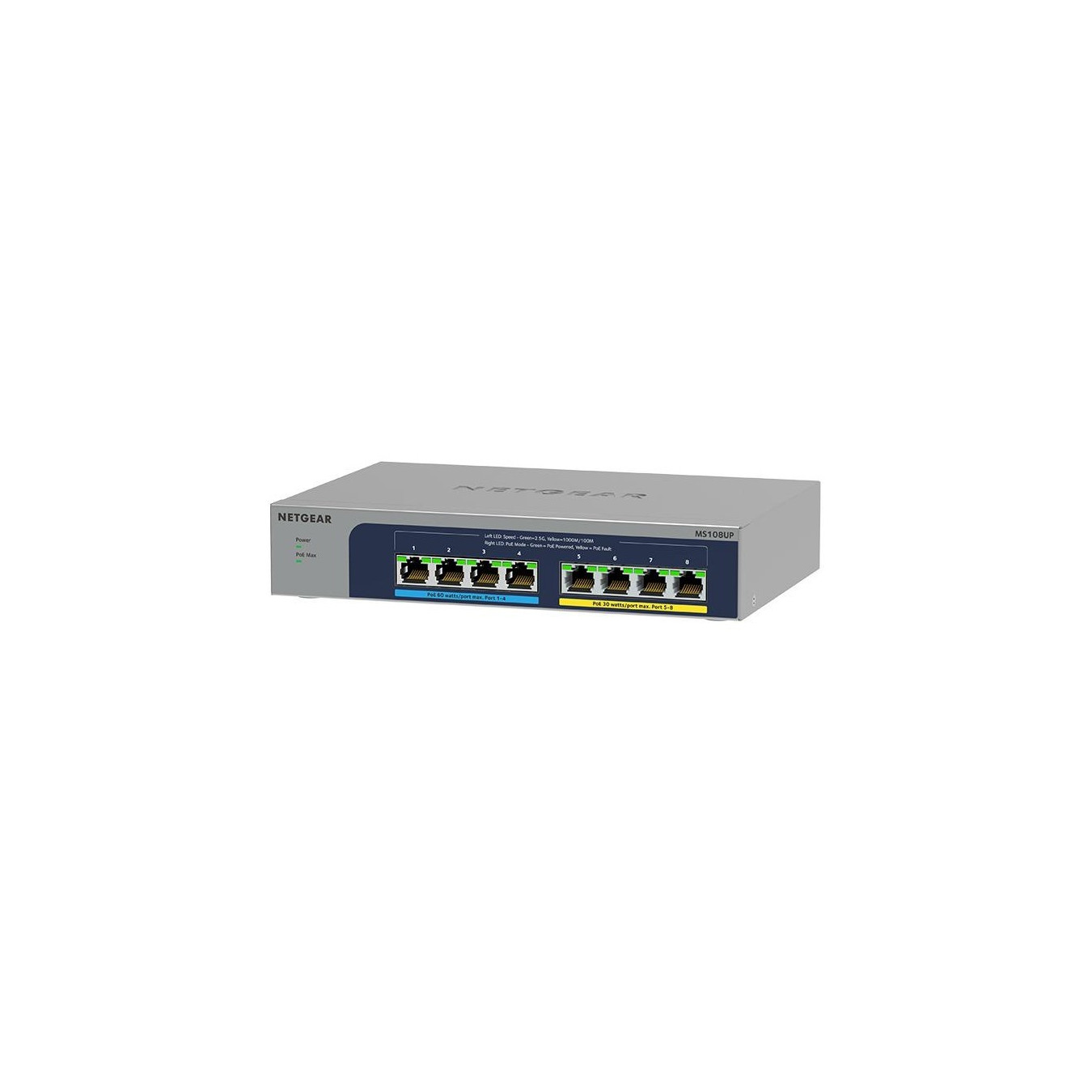

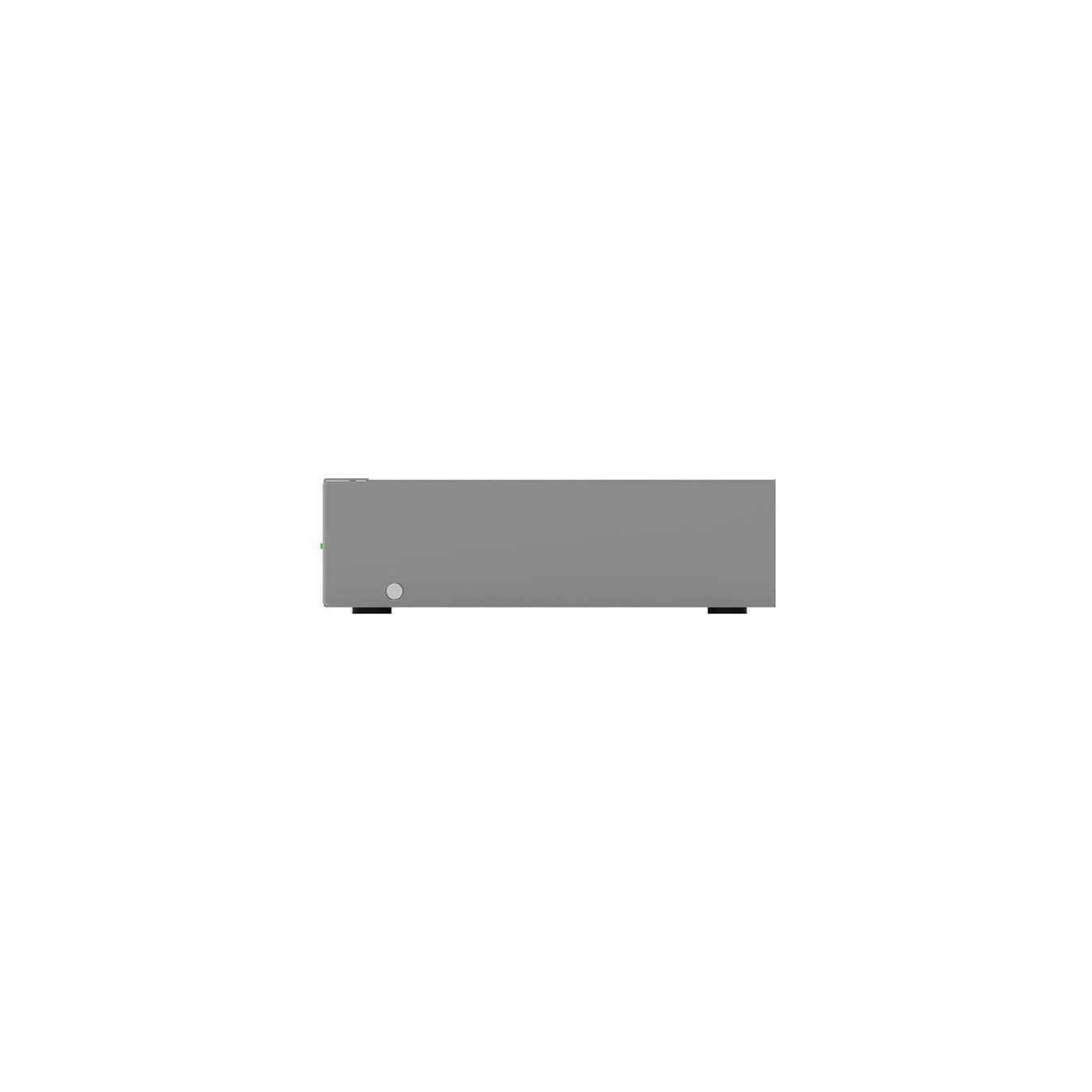

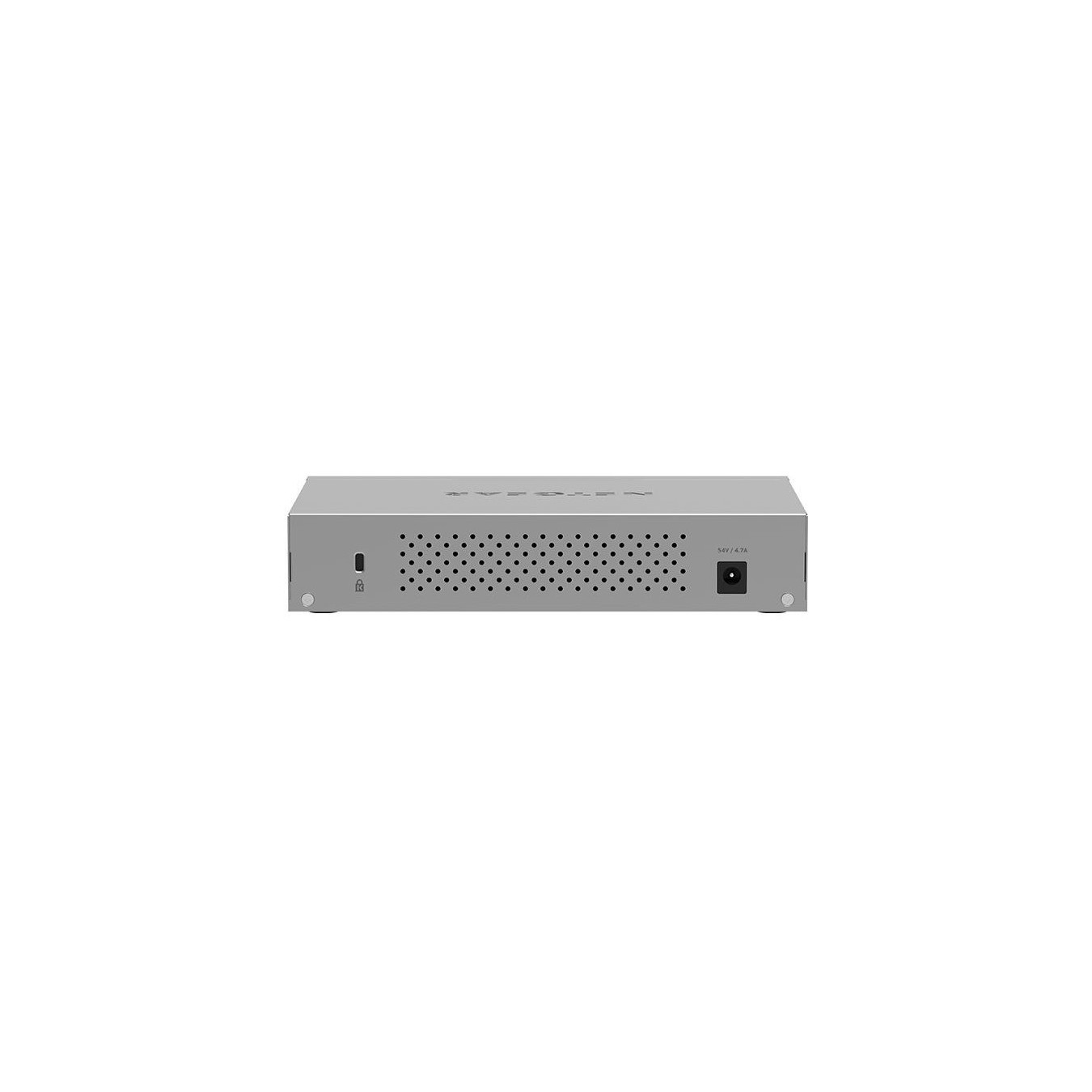

NETGEAR MS108UP-100EUS - 8-Port 2.5G PoE Unmanaged Switch, Wall-Mountable
Unmanaged 8x 2.5G RJ45 switch with PoE support, 40 Gbit/s switching capacity, 16K MAC table, 54V DC input; compact, wall-mountable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 8 |
| Network Switches - Port Speed | Multi-Gig (2.5G) |
NETGEAR MS108UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500). Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries. Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bt..... DC input voltage: 54 V. Power over Ethernet (PoE). Wall mountable
| Switch type | Unmanaged |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Networking standards | IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bt. IEEE 802.3u. IEEE 802.3x |
| Ethernet LAN data rates | 100.1000.2500 Mbit/s |
| Number of VLANs | 64 |
| Switching capacity | 40 Gbit/s |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 3.593 µs |
| Jumbo frames | 12000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 1.5 MB |
| Housing material | Metal |
| LED indicators | Activity. Link. PoE. Power |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | CE. FCC part 15 Class B. ISED. VCCI. KC. CCC. BSMI. RCM |
| Mean time between failures (MTBF) | 373643.7 h |
| Power source | DC |
| DC input voltage | 54 V |
| Input current | 4.7 A |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 923.49 BTU/h |
| Width | 210 mm |
| Depth | 140 mm |
| Height | 40 mm |
| Weight | 900 g |
| Certification | CB. CSA. CCC. BSMI. RCM |
| Harmonized System (HS) code | 85176990 |
