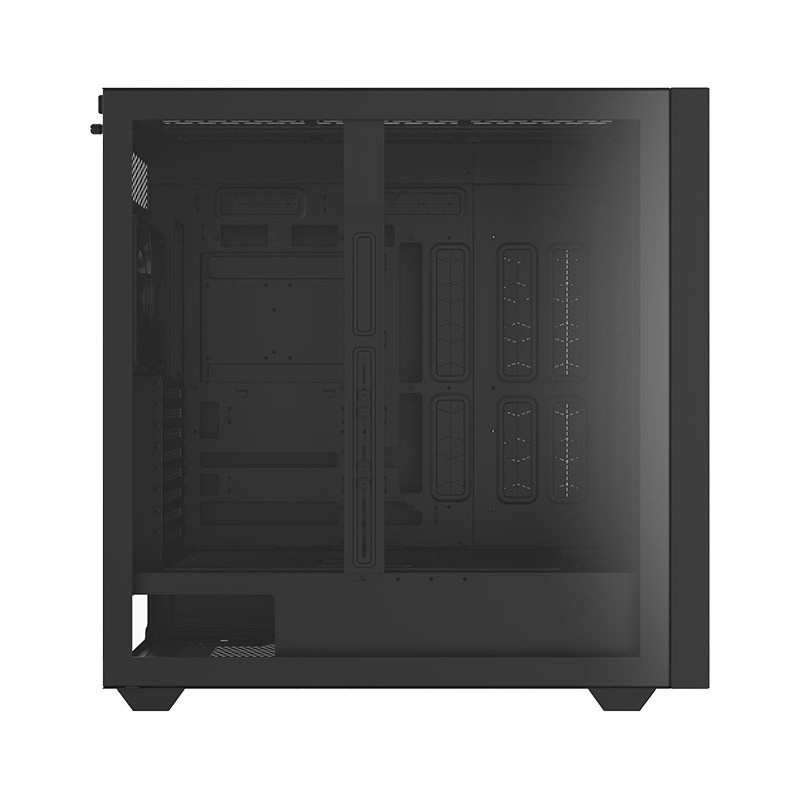

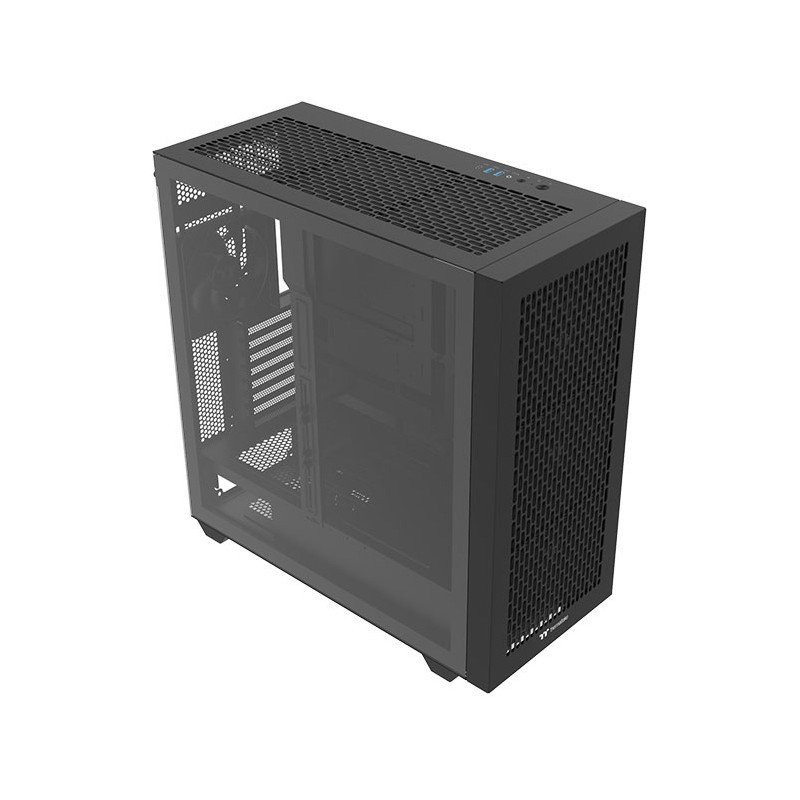

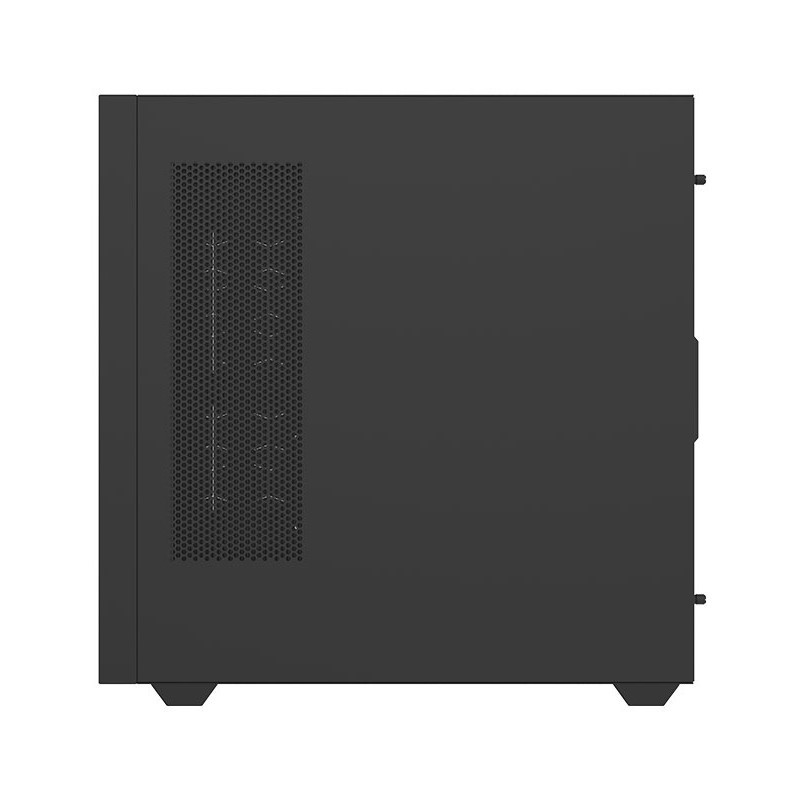

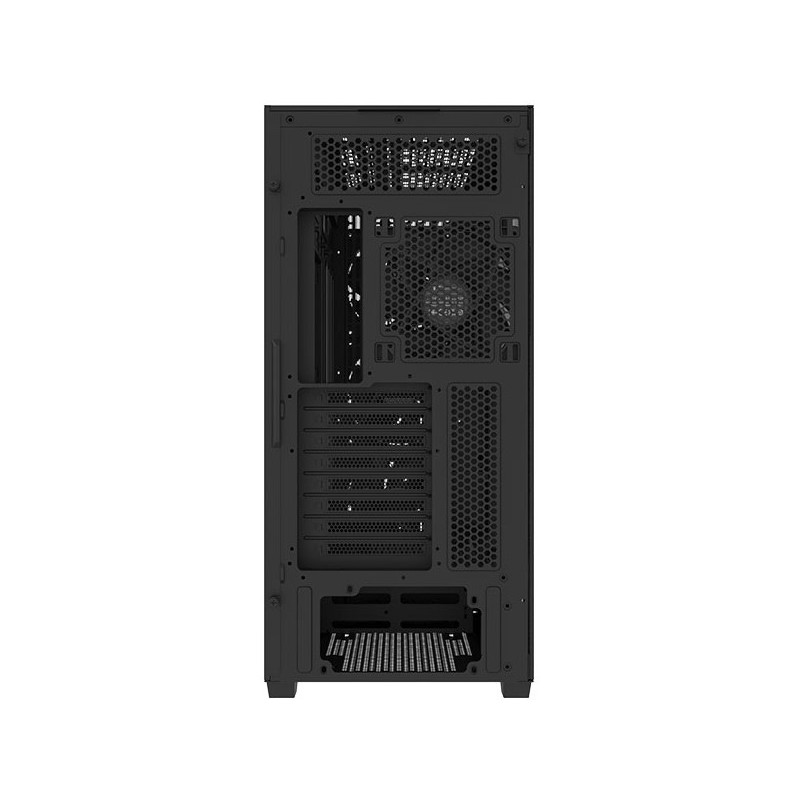

Thermaltake AX500 - Full-Tower PC Case Black - E-ATX/ATX/mATX/Mini-ITX, 4x140mm Fans, Tempered Glass
Full-tower Thermaltake AX500 case in black. Supports E-ATX/ATX/mATX/Mini-ITX/SSI CEB/EEB, includes 4x140mm front fans, tempered glass, max GPU 460mm, CPU cooler 185mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PC Cases - Type | Full Tower |
|---|---|
| PC Cases - Max GPU Length | greater than380 mm |
| PC Cases - CPU Cooler Clearance | greater than170 mm |
| PC Cases - Included Fans | 4+ |
| PC Cases - Front I/O | 2xUSB-A + USB-C |
Thermaltake AX500. Form factor: Full Tower. Type: PC. Product colour: Black. Front fans installed: 4 x 140 mm. Front fans diameters supported: 120.140 mm. Side fans diameters supported: 120.140 mm. Supported HDD sizes: 2.5.3.5". Width: 550 mm. Depth: 248 mm. Height: 548 mm
| Material | SPCC. Steel. Tempered glass |
| Form factor | Full Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX. EATX. micro ATX. Mini-ITX. SSI CEB. SSI EEB |
| Number of 3.5" bays | 5 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 8 |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 46 cm |
| Maximum PSU length | 20 cm |
| Feature | Audio output |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Front fans installed | 4 x 140 mm |
| Number of front fans supported (max) | 4 |
| Front fans diameters supported | 120.140 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120.140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120.140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120.140 mm |
| Fan speed | 0 - 1500 RPM |
| Front radiator sizes supported | 120.140.240.280.360.420 mm |
| Rear radiator sizes supported | 120.140 mm |
| Top radiator sizes supported | 120.140.240.280.360.420 mm |
| Supported HDD sizes | 2.5.3.5" |
| Width | 550 mm |
| Depth | 248 mm |
| Height | 548 mm |
| Material thickness | 4 mm |
