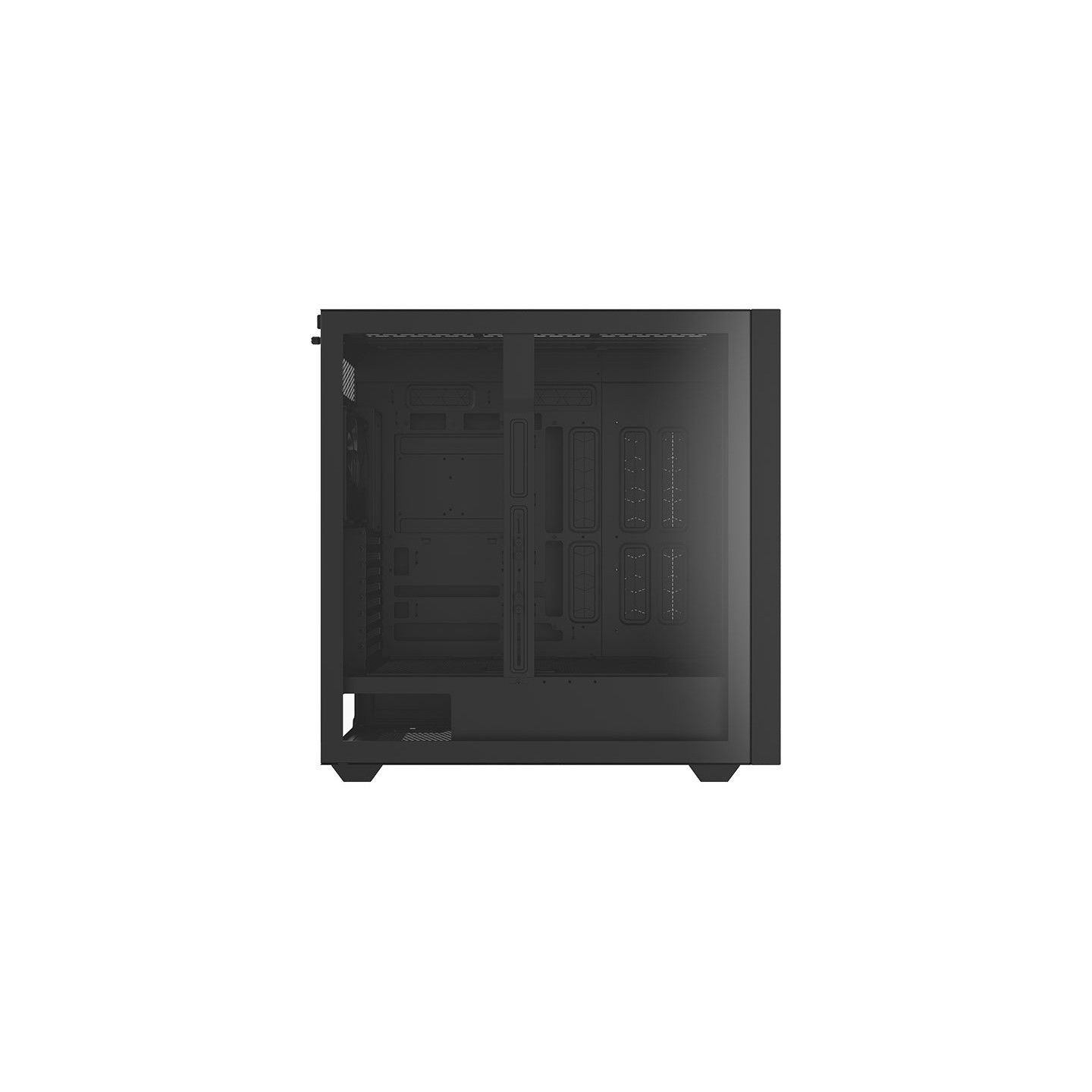

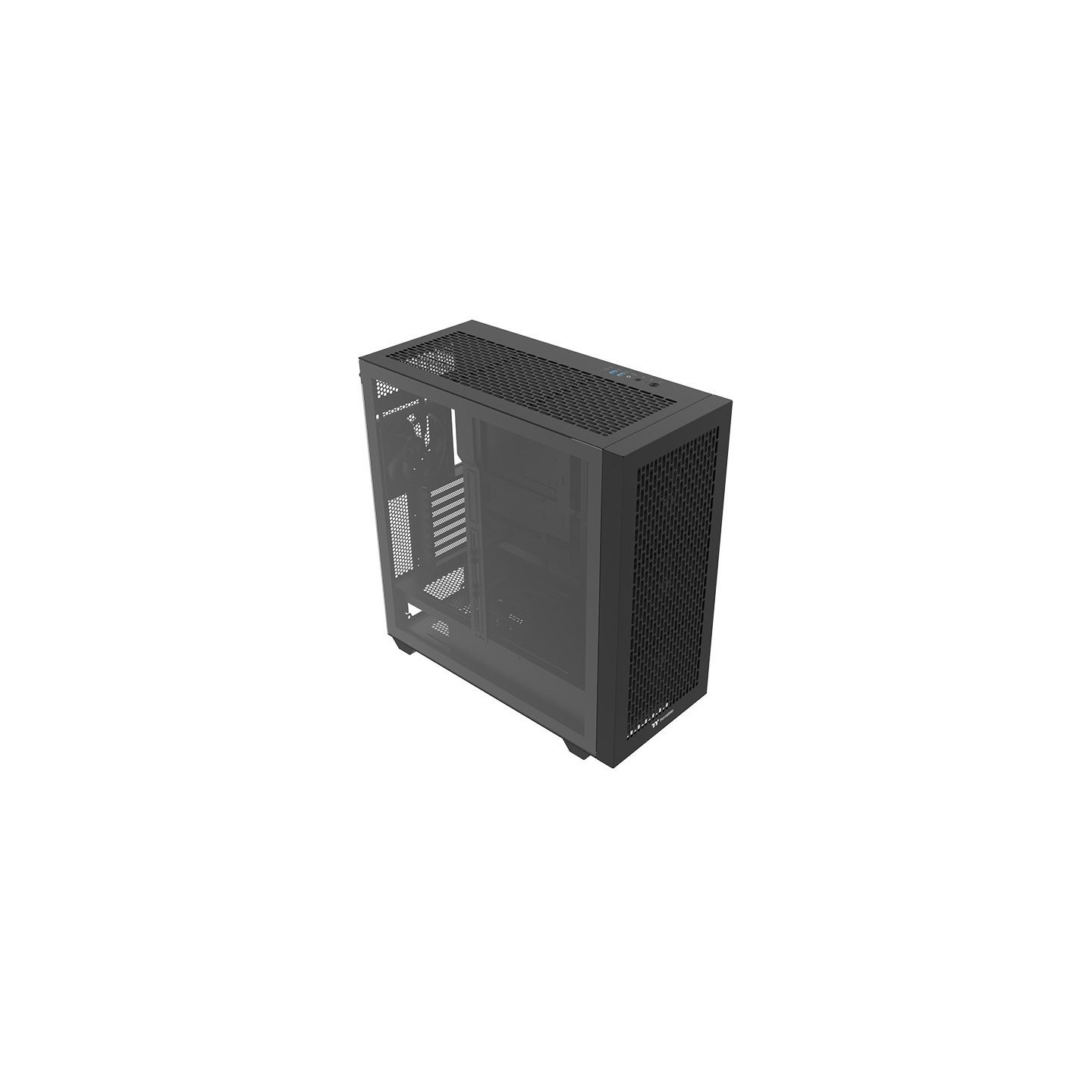

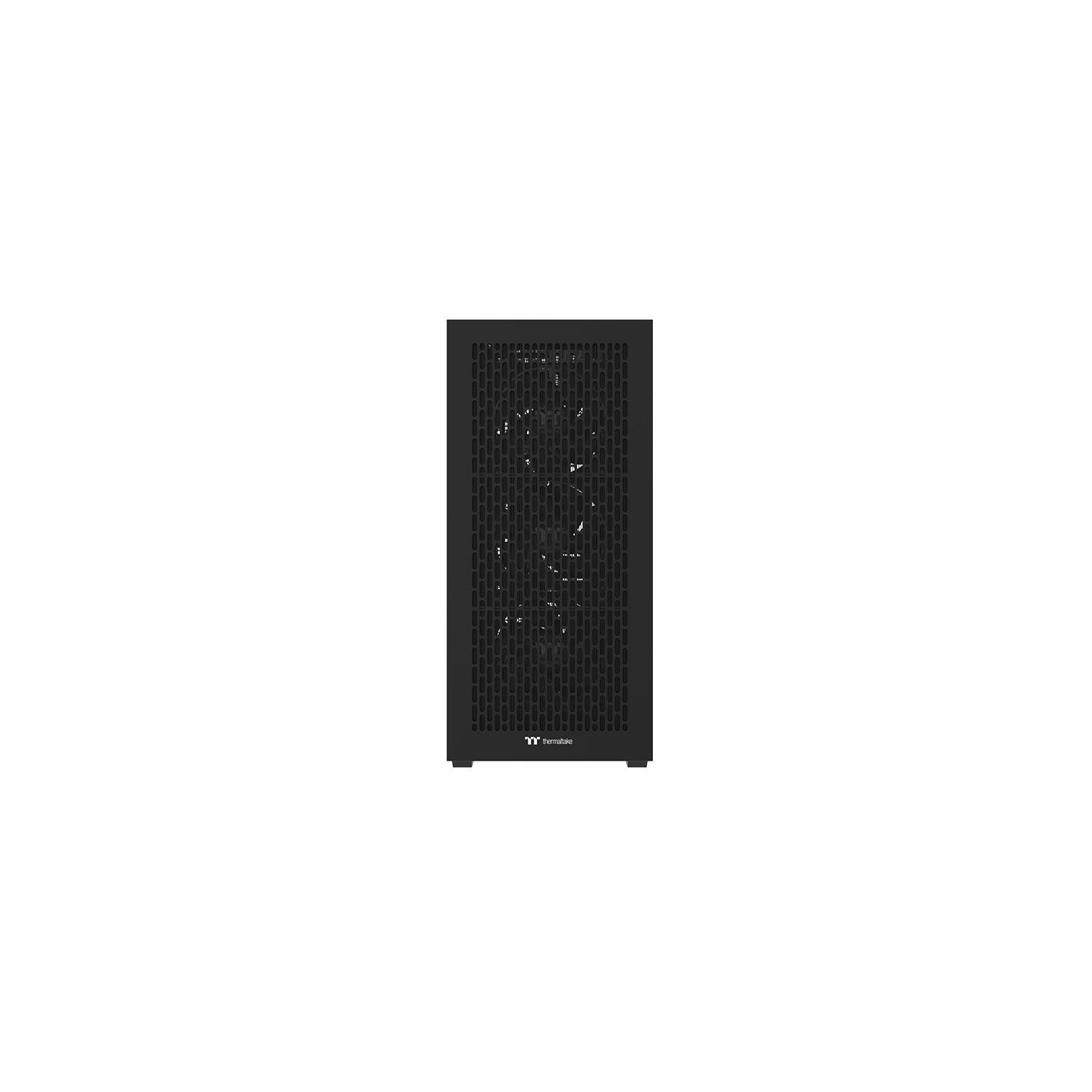

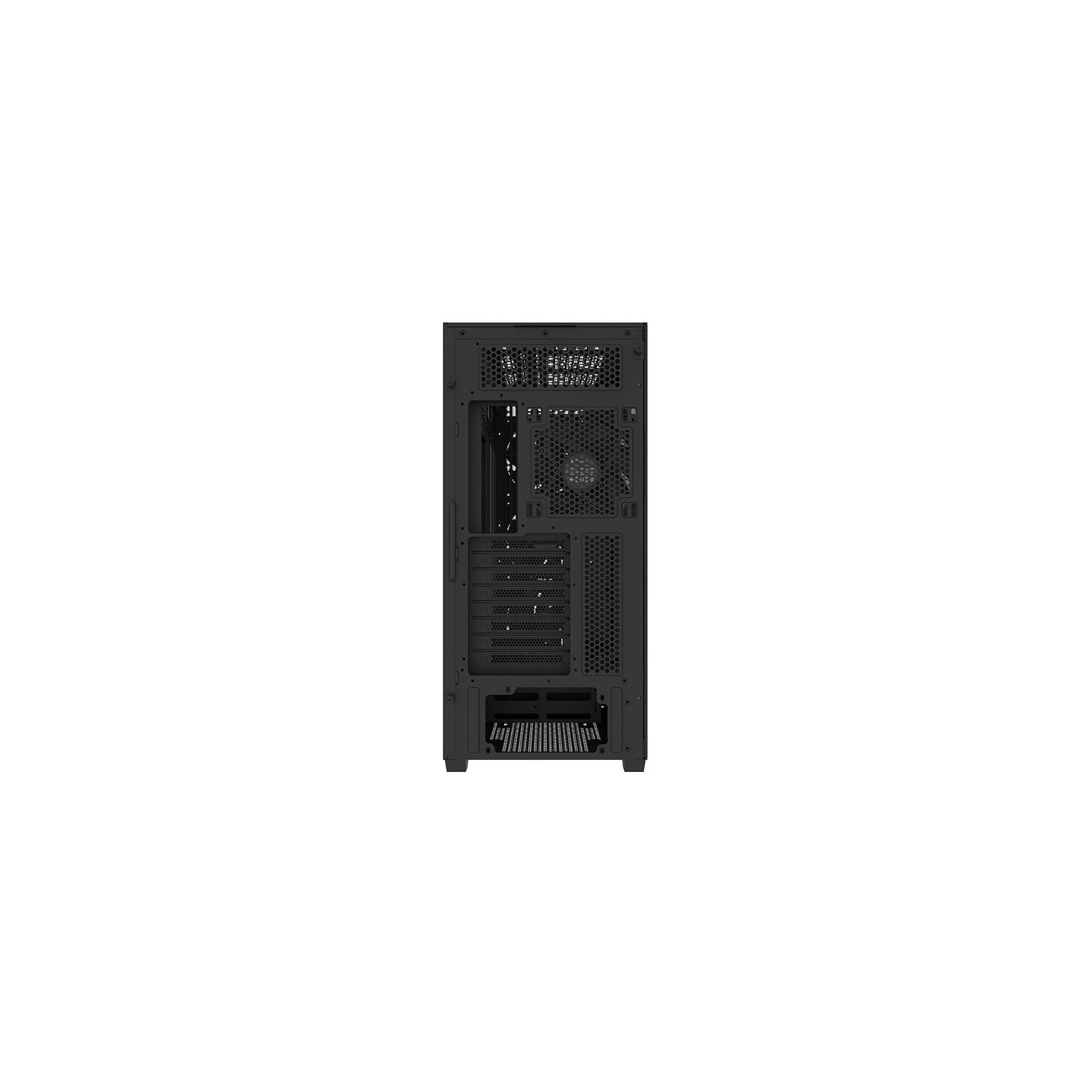

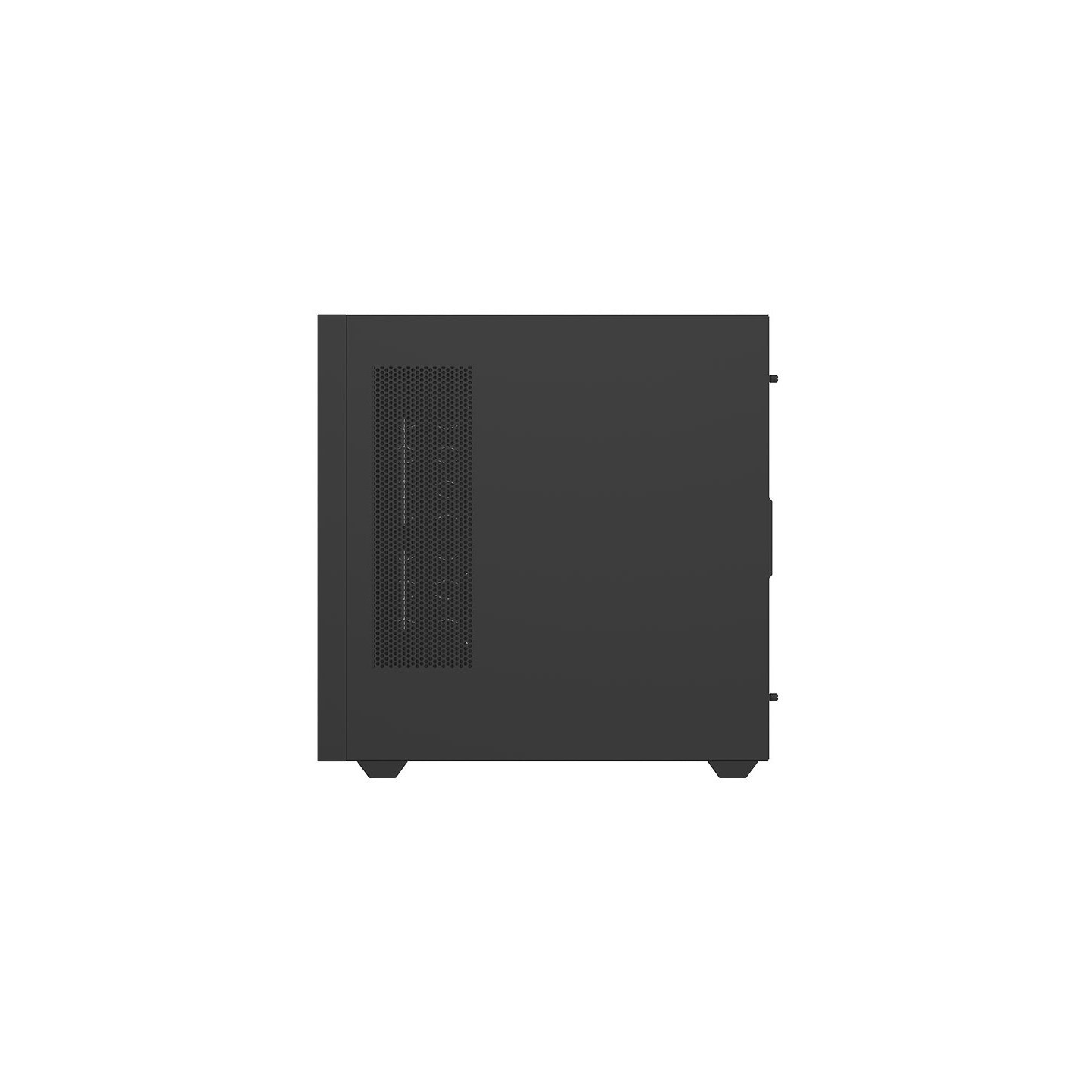

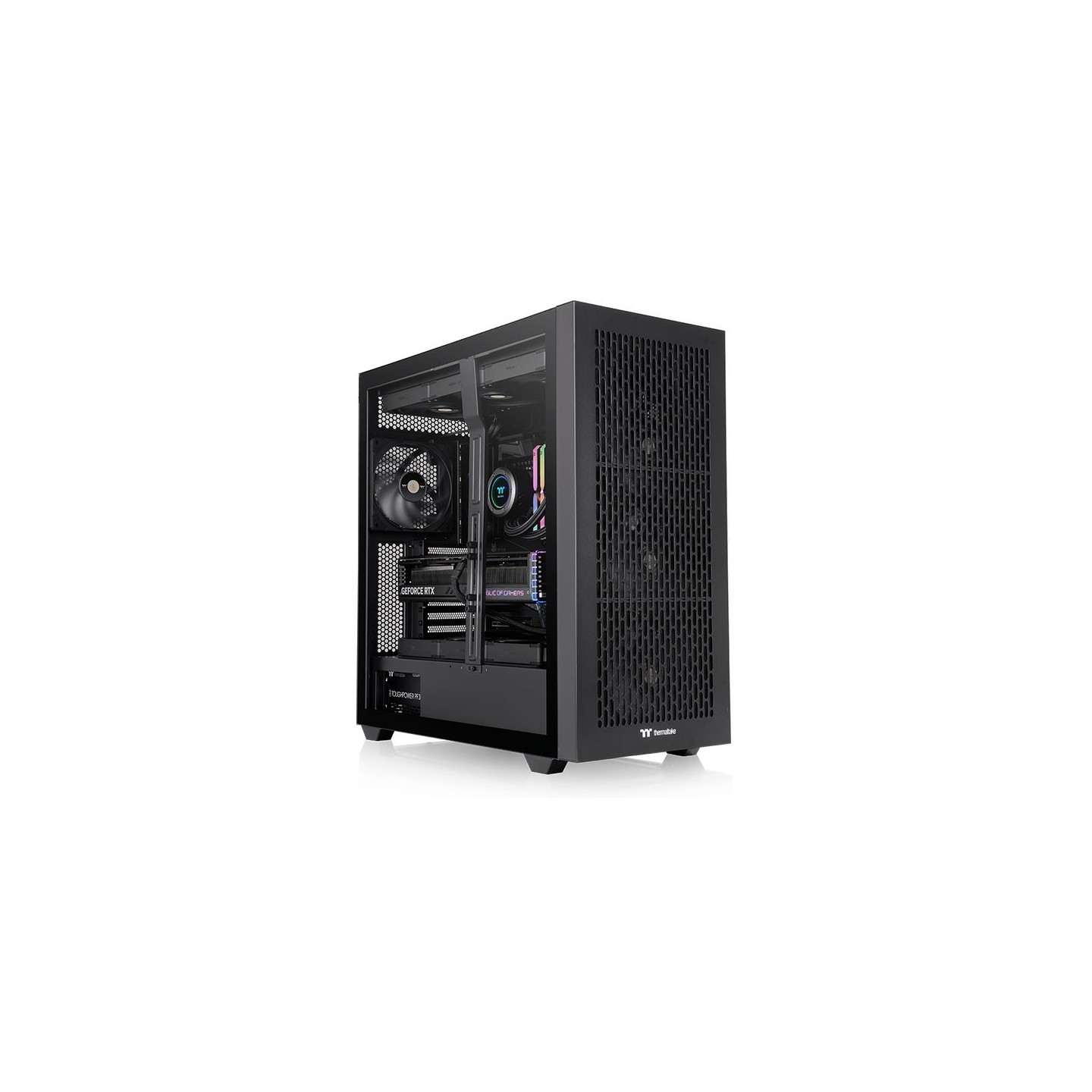

Thermaltake AX500 Full Tower PC Case - Black E-ATX/ATX/mATX/Mini-ITX (Boxed)
Full-tower Thermaltake AX500 case in black. Supports E-ATX/ATX/mATX/Mini-ITX/SSI-CEB/SSI-EEB, includes 4x140mm fans, tempered glass, max GPU 460mm, CPU cooler 185mm, dual 420mm radiators.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 4+ |
| PC Cases - Front I/O | Audio Jacks USB A USB C |
| PC Cases - Form Factor | Full Tower |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |
The Thermaltake AX500 is a premium full-tower PC case designed for high-performance workstations, gaming builds, and AI computing systems. Built with SPCC steel construction and featuring a tempered glass side panel, this case provides excellent visibility and durability. It comes pre-installed with four 140mm CT fans for optimal airflow and thermal management.
This case offers exceptional compatibility and expandability. It supports multiple motherboard form factors including E-ATX, ATX, mATX, Mini-ITX, SSI-CEB, and SSI-EEB, making it suitable for both consumer and server-grade builds. The case accommodates CPU coolers up to 185mm in height, graphics cards up to 460mm in length, and power supplies up to 200mm. Advanced cooling support includes dual 420mm radiators in the front and top positions, with capacity for up to 14x120mm or 9x140mm fans depending on motherboard type.
Storage flexibility is a key feature with support for 5x3.5" HDDs and 6x2.5" SSDs via two drive cages and one drive plate. The case includes 8 PCIe expansion slots for multi-GPU configurations and features a GPU brace with adjustable supports to prevent sagging. Front I/O connectivity includes 1x USB Type-C, 2x USB 3.0, and HD-Audio jack. Dimensions are 550mm (W) x 248mm (D) x 548mm (H).
- Supports E-ATX, ATX, mATX, Mini-ITX, SSI-CEB, and SSI-EEB motherboards
- Pre-installed with 4x140mm CT fans; supports up to 14x120mm or 9x140mm fans
- Dual 420mm radiator support in front and top; 185mm CPU cooler clearance
- Accommodates graphics cards up to 460mm with GPU brace included
- Storage for 5x3.5" HDDs and 6x2.5" SSDs with two drive cages
- 8 PCIe expansion slots for multi-GPU setups
- Tempered glass side panel for component visibility
- Front I/O: 1x USB Type-C, 2x USB 3.0, HD-Audio
| Form Factor | Full Tower |
| Type | PC |
| Product Colour | Black |
| Material | SPCC Steel, Tempered Glass |
| Material Thickness | 4 mm |
| Supported Motherboard Form Factors | E-ATX, ATX, mATX, Mini-ITX, SSI-CEB, SSI-EEB |
| Width | 550 mm |
| Depth | 248 mm |
| Height | 548 mm |
| Maximum CPU Cooler Height | 185 mm |
| Maximum Graphics Card Length | 460 mm |
| Maximum PSU Length | 200 mm |
| Front Fans Installed | 4 x 140 mm |
| Front Fans Diameters Supported | 120 mm, 140 mm |
| Number of Front Fans Supported (Max) | 4 |
| Side Fans Diameters Supported | 120 mm, 140 mm |
| Number of Side Fans Supported (Max) | 3 |
| Rear Fans Diameters Supported | 120 mm, 140 mm |
| Number of Rear Fans Supported (Max) | 1 |
| Top Fans Diameters Supported | 120 mm, 140 mm |
| Number of Top Fans Supported (Max) | 3 |
| Total Fan Support | Up to 14x120mm or 9x140mm (ATX); 11x120mm or 7x140mm (SSI) |
| Front Radiator Sizes Supported | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm |
| Top Radiator Sizes Supported | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm |
| Rear Radiator Sizes Supported | 120 mm, 140 mm |
| AIO Support | 360 mm, 420 mm |
| Number of 3.5 | 5 |
| Number of 2.5 | 6 |
| Supported HDD Sizes | 2.5 |
| Number of PCIe Expansion Slots | 8 |
| USB 3.0 Type-A Ports | 2 |
| USB 3.2 Gen 2 Type-C Ports | 1 |
| HD-Audio Jack | 1 |
| GPU Support Features | GPU Brace with 2 adjustable supports included; supports multi-GPU configurations |
| Storage Configuration | Two drive cages beneath PSU cover, one drive plate |
| Panel Type | Tempered Glass Side Panel |
