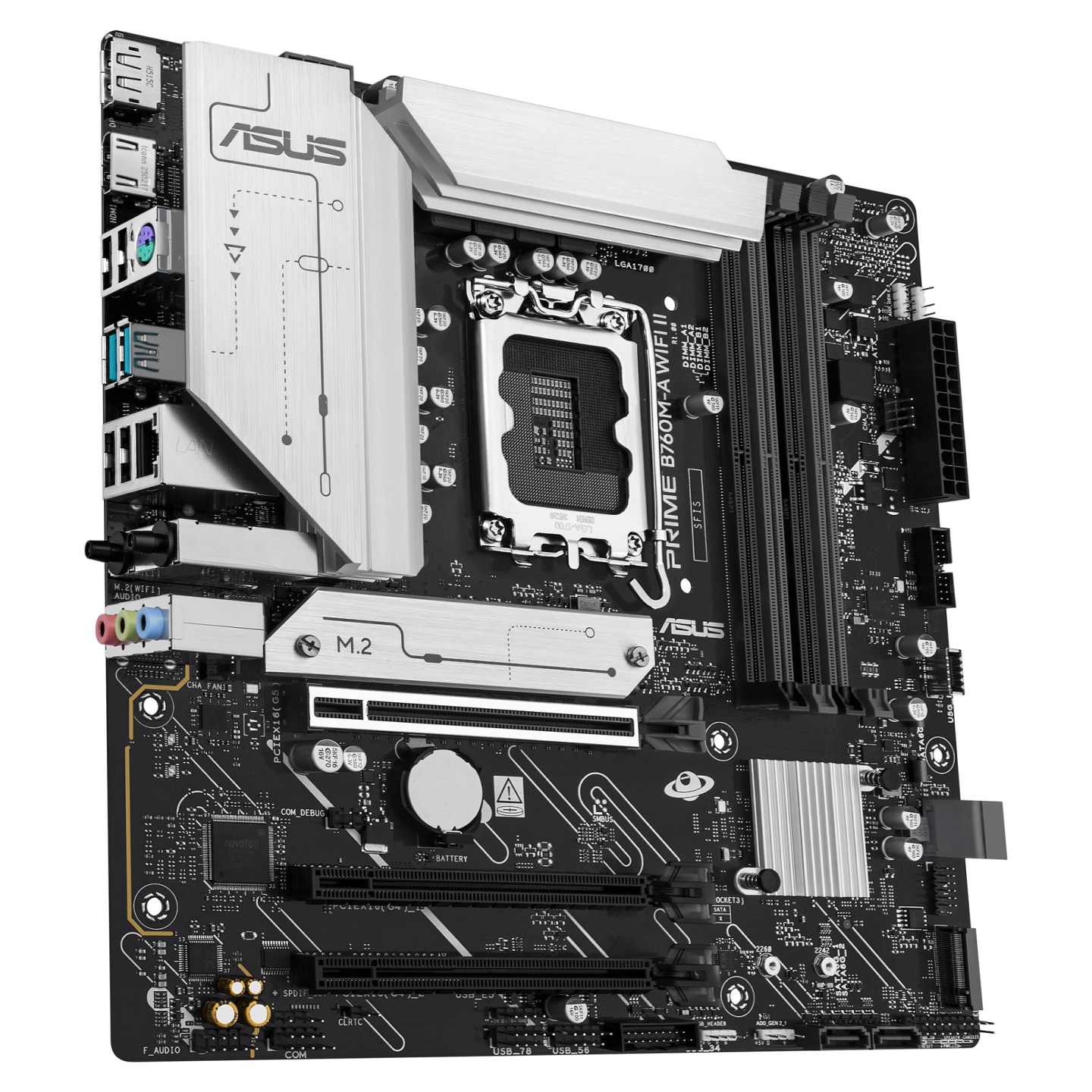

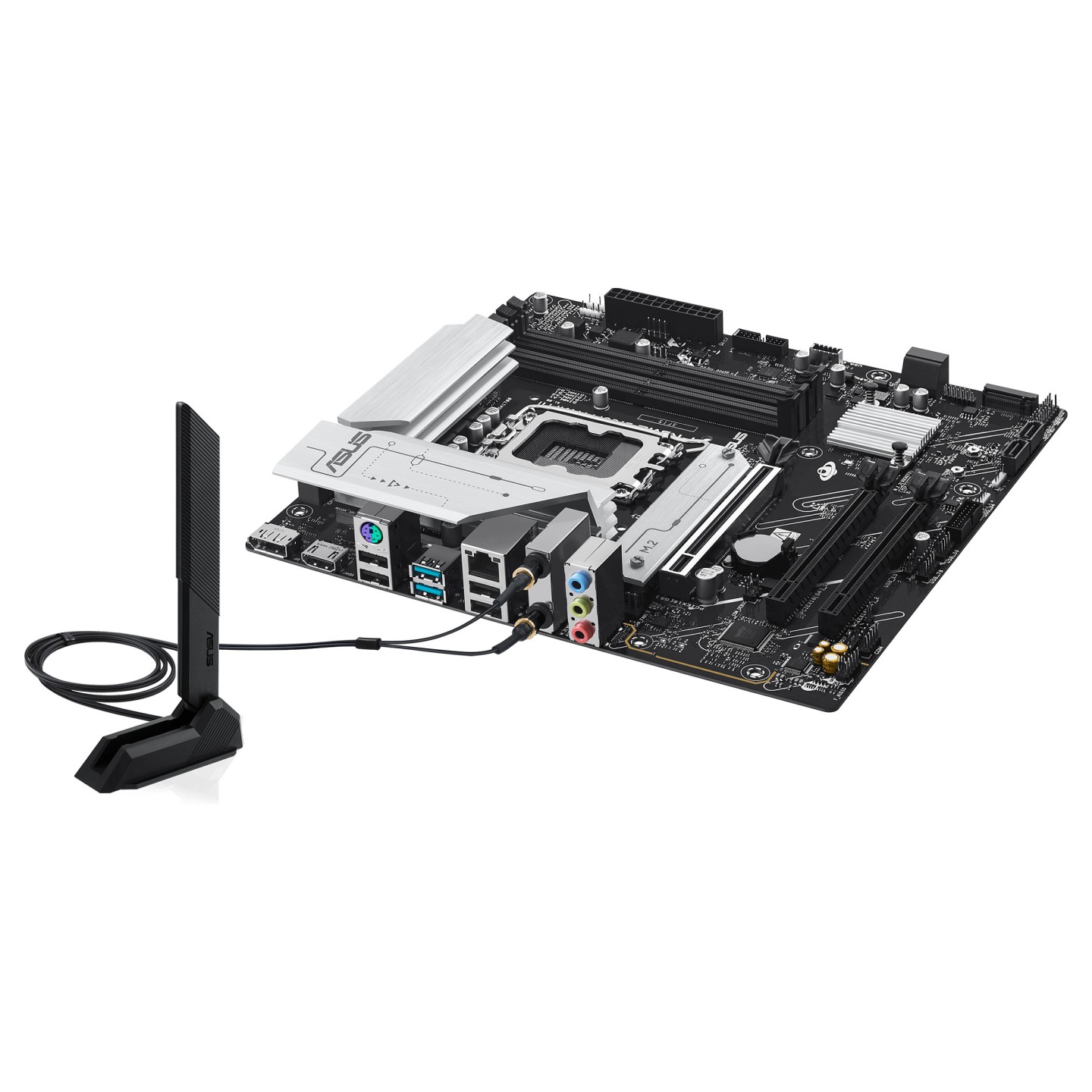

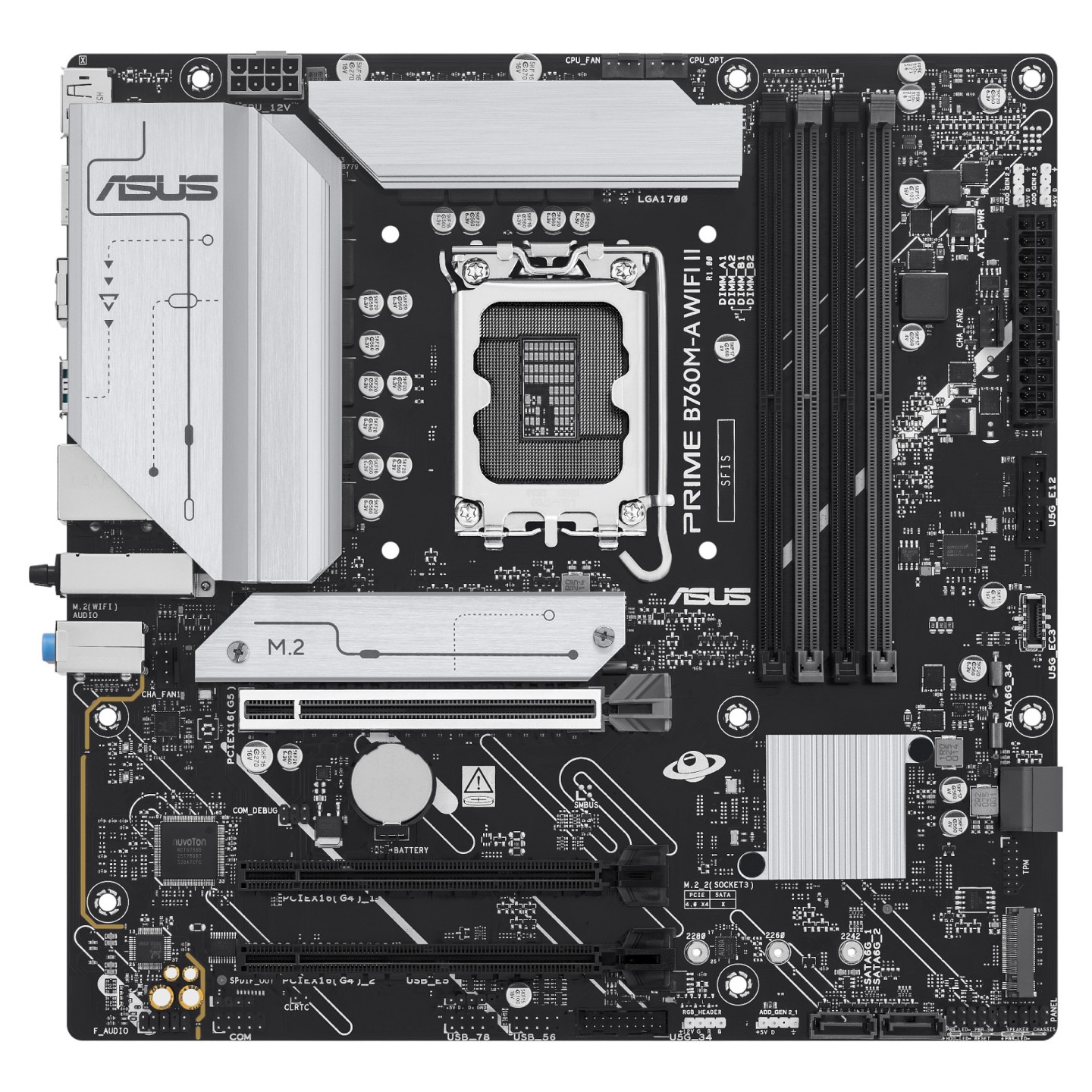

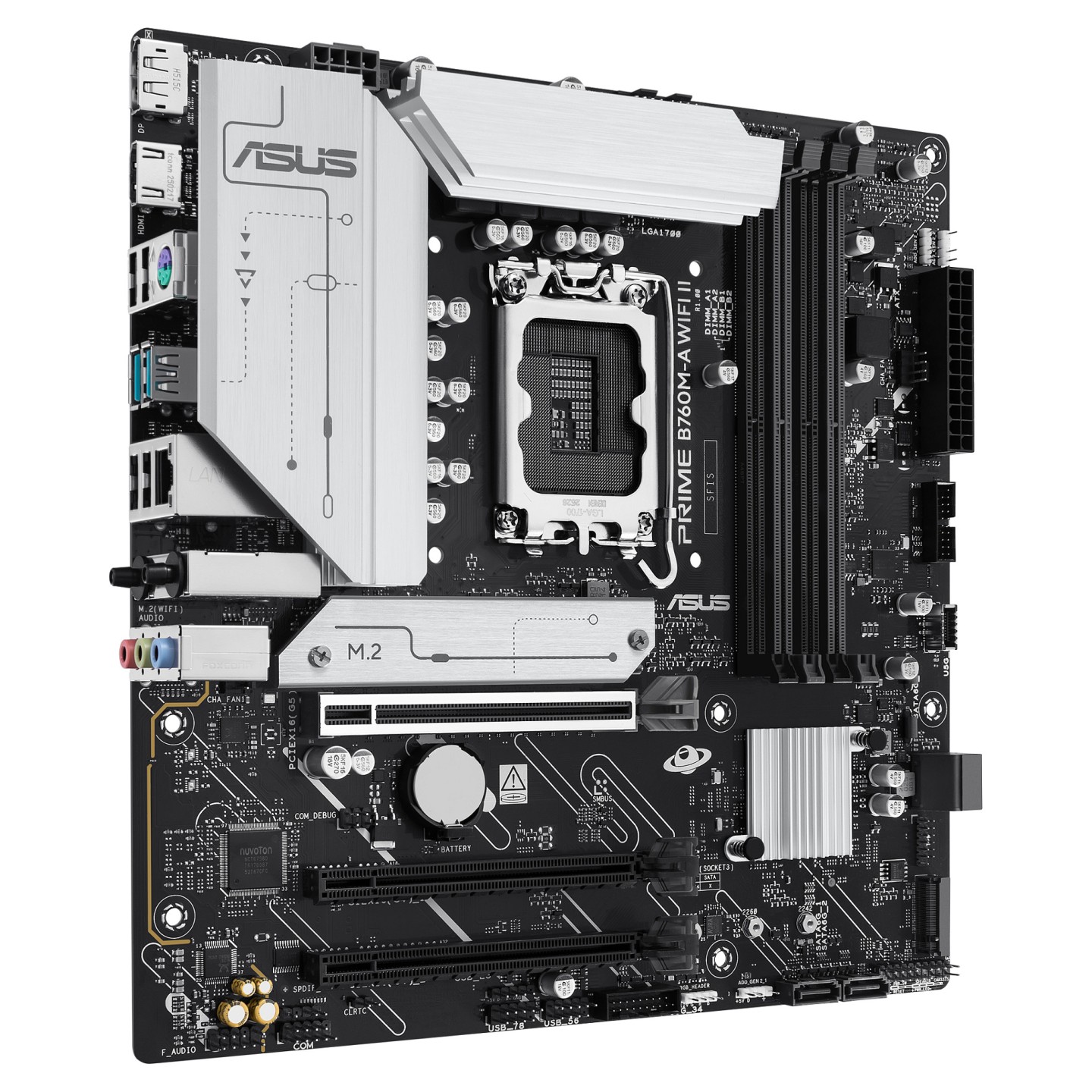

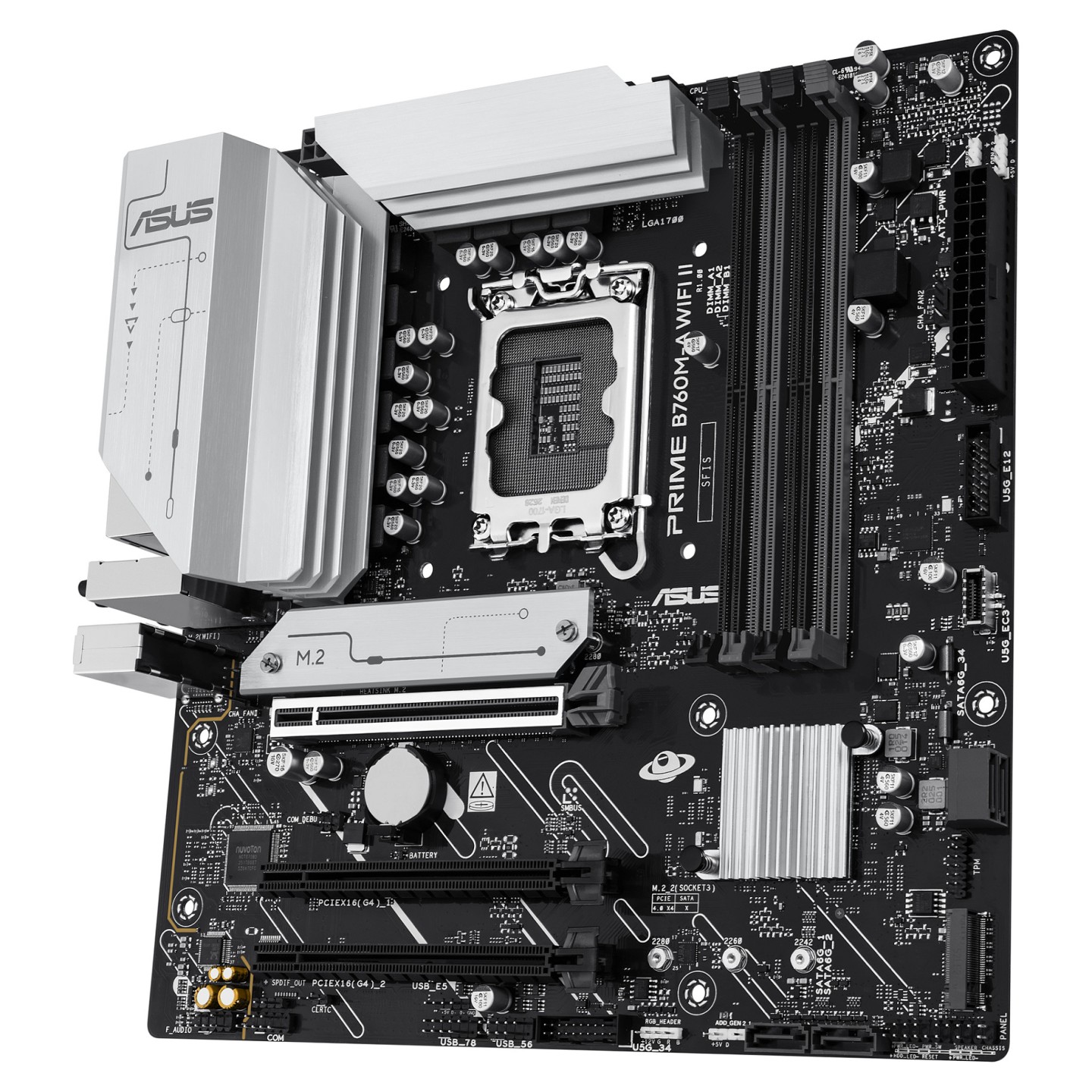

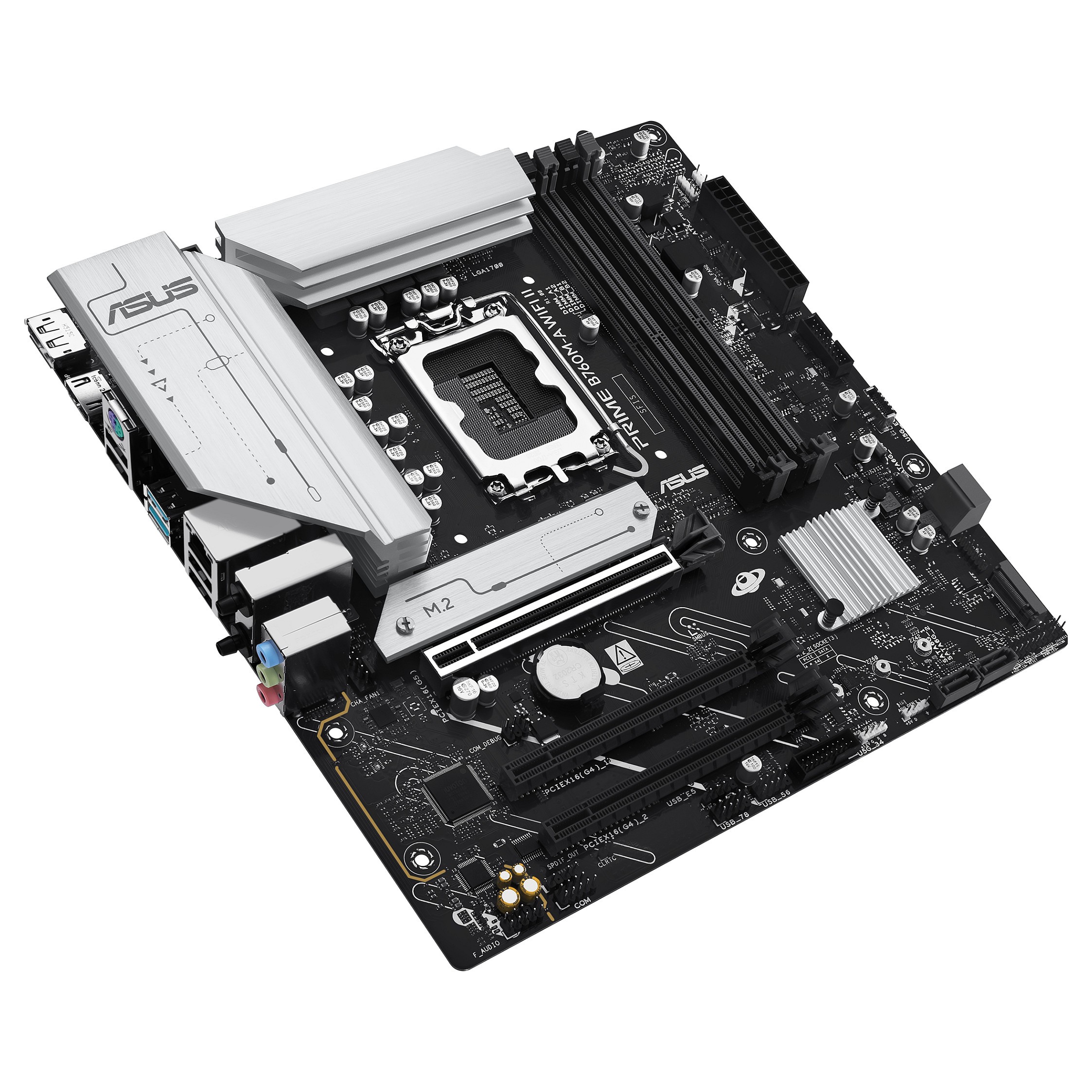

ASUS PRIME B760M-A WiFi II-mATX Mainboard Sockel 1700 HDMI DP
ASUS PRIME B760M-A WIFI II. Intel. LGA 1700. Intel® Celeron®. Intel Core i3 12th Gen. Intel Core i3 13th Gen. Intel Core i3 14th Gen. Intel.... LGA 1700. DDR5-SDRAM. 256 GB
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ASUS PRIME B760M-A WIFI II. Prozessorhersteller: Intel. Prozessorsockel: LGA 1700. Kompatible Prozessoren: Intel® Celeron®. Intel Core i3 12th Gen. Intel Core i3 13th Gen. Intel Core i3 14th Gen. Intel.... Unterstützte Arbeitsspeicher: DDR5-SDRAM. RAM-Speicher maximal: 256 GB. Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2. SATA III. Unterstützte Speicherlaufwerke: HDD & SSD. RAID Level: 0. 1. 5. 10. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet. Top WLAN-Standard: Wi-Fi 6E (802.11ax). WLAN-Standards: Wi-Fi 6E (802.11ax). Komponente für: PC. Motherboardformfaktor: micro ATX. Motherboard Chipsatz Familie: Intel
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 7200.7000.6800.6600.6400.6200.6000.5800.5600.5400.5200.5000.4800 MHz |
| Unterstützte Speichertaktrate (max.) | 7200 MHz |
| RAM-Speicher maximal | 256 GB |
| Feature | Schrauben enthalten |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2. SATA III |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 6 |
| RAID Level | 0. 1. 5. 10 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Anzahl USB 2.0 Schnittstellen | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 3 |
| SATA III Anschlüsse | 4 |
| Zahl der Chassisventilatorstecker | 2 |
| Zahl der COM Stecker | 1 |
| Anzahl USB 2.0 Anschlüsse | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 2 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl PS/2 Anschlüsse | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| WiFi-AP-Antennenbuchse | 1 |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| Top WLAN-Standard | Wi-Fi 6E (802.11ax) |
| WLAN-Standards | Wi-Fi 6E (802.11ax) |
| Bluetooth-Version | 5.4 |
| Motherboard Chipsatz | Intel B760 |
| Audio Kanäle | 7.1 Kanäle |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64. Windows 11 |
| PCI Express x16-Steckplätze (Gen 4.x) | 2 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 4.0 |
| 2. M.2 größte Schlüsselgröße | 2280 |
| 2. M.2 höchste PCI Express-Generation | 4.0 |
| 3. M.2 höchste PCI Express-Generation | 3.0 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 128 Mbit |
| Verpackungsbreite | 275 mm |
| Verpackungstiefe | 275 mm |
| Verpackungshöhe | 67.5 mm |
| Paketgewicht | 1.4 kg |
| Breite | 244 mm |
| Tiefe | 244 mm |
| Mitgelieferte Kabel | SATA |
