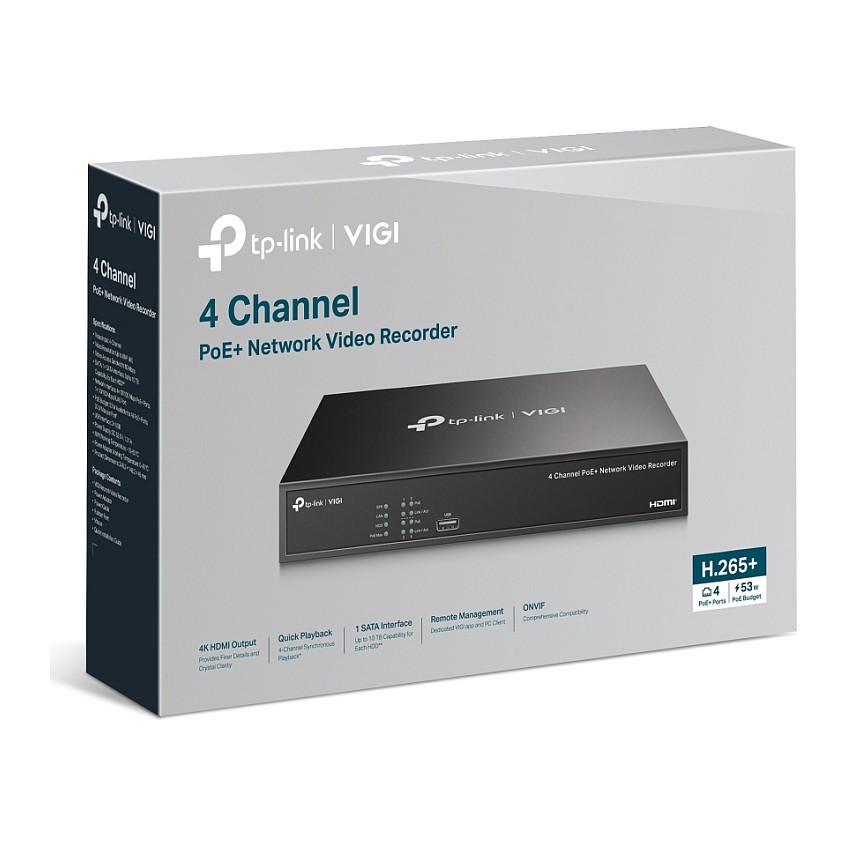

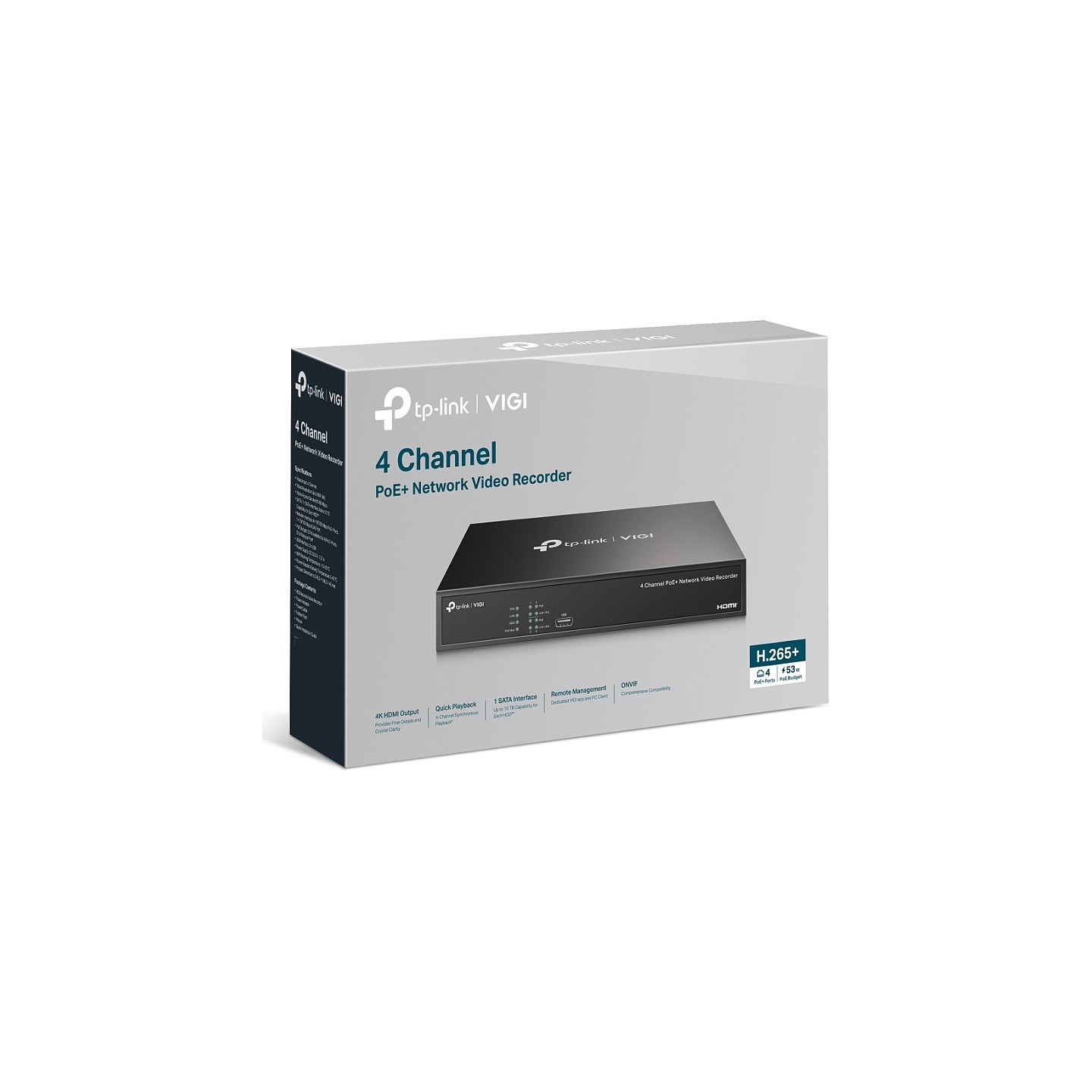

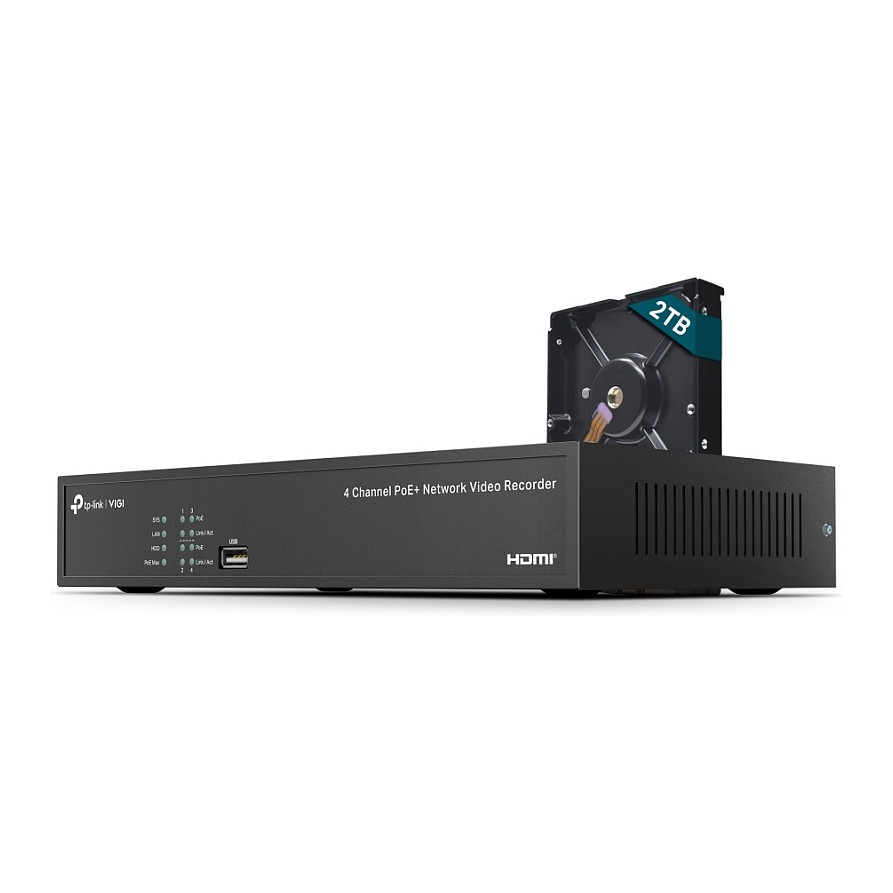

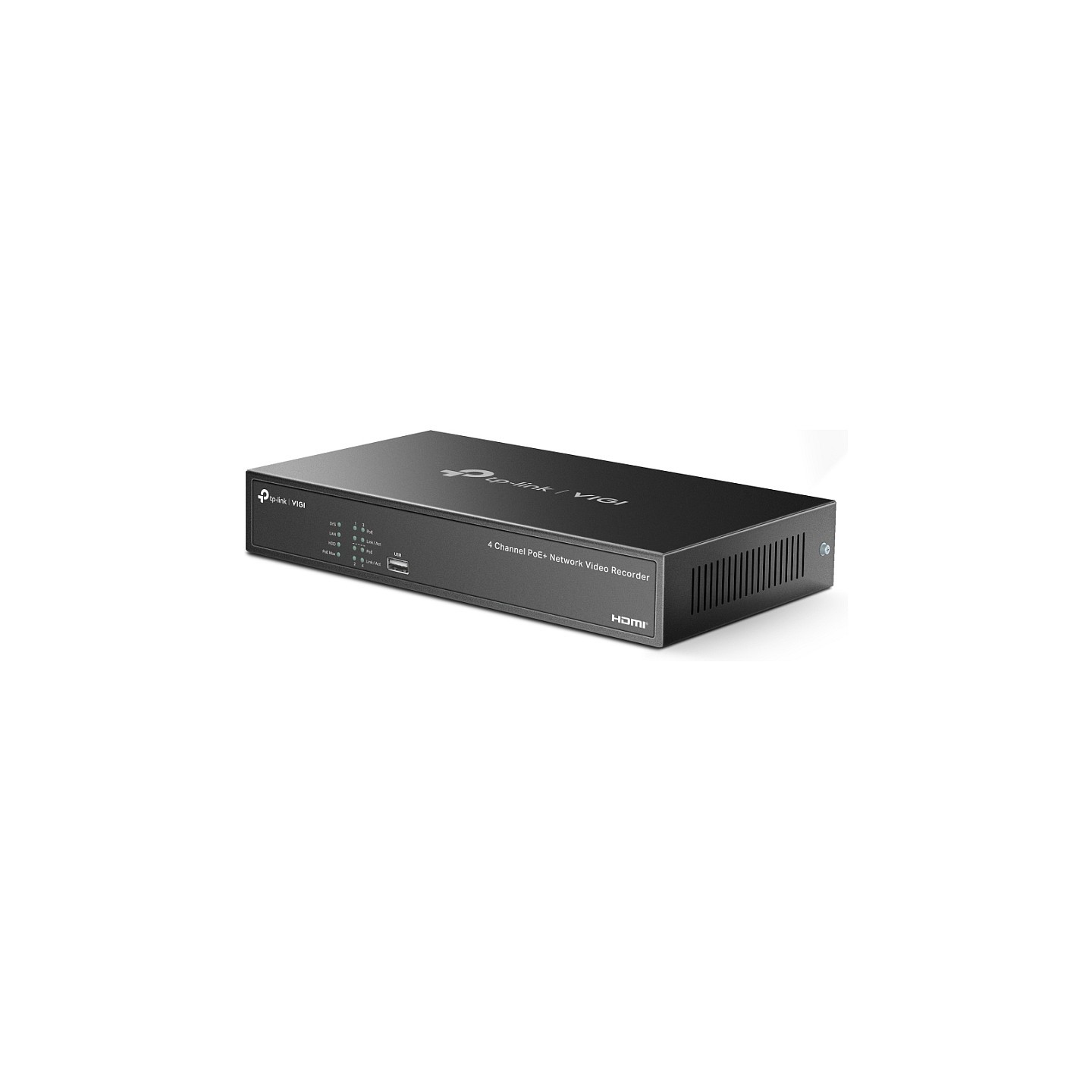

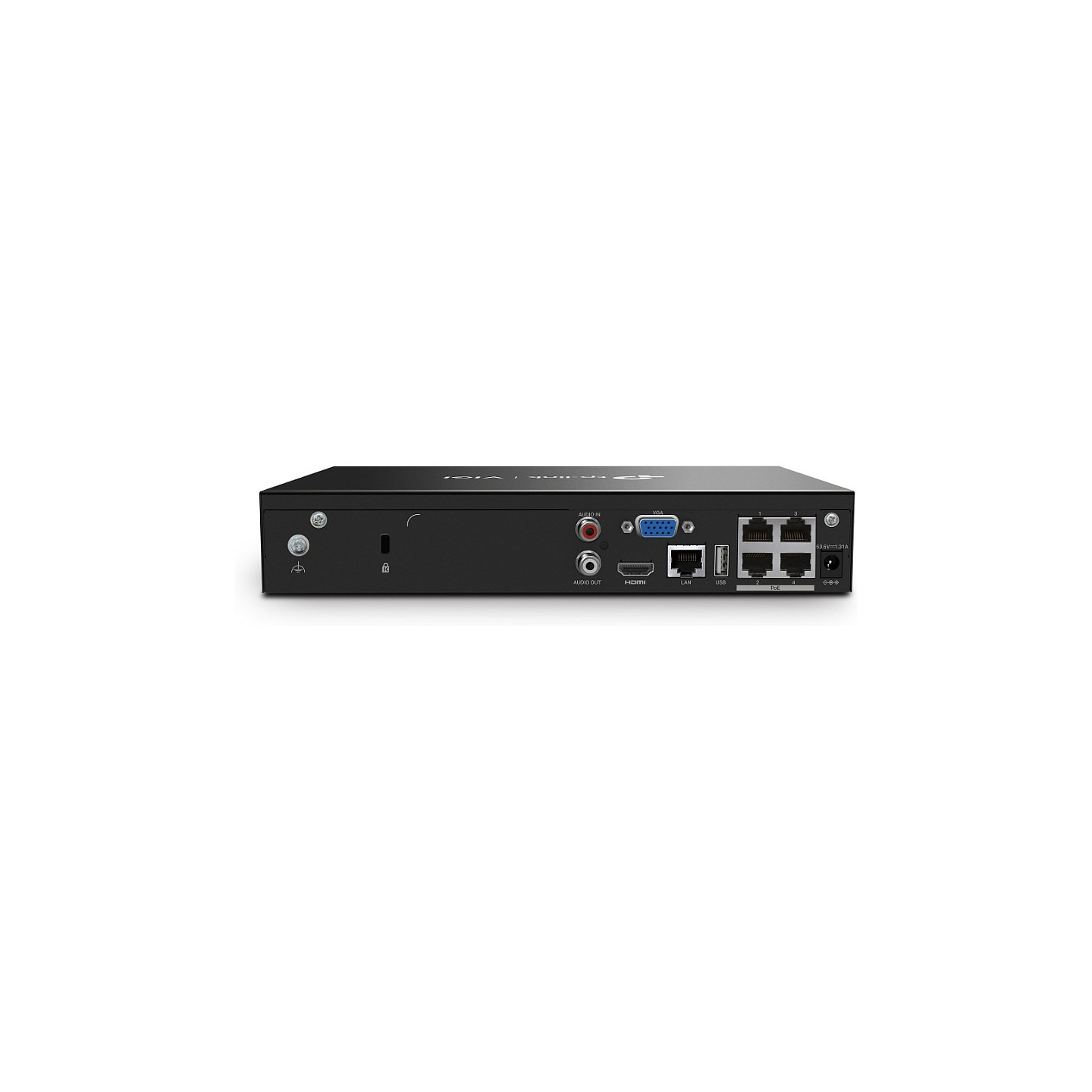

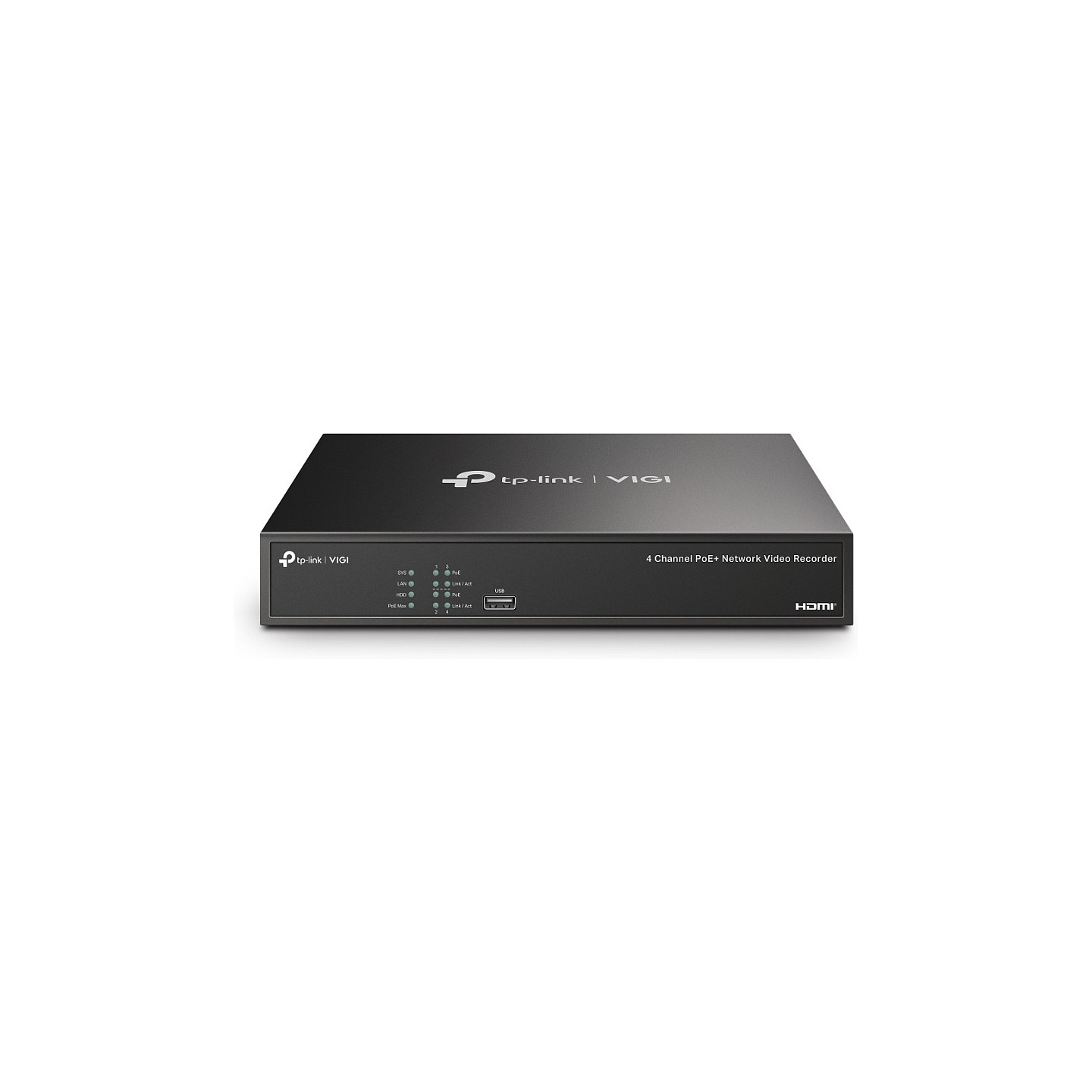

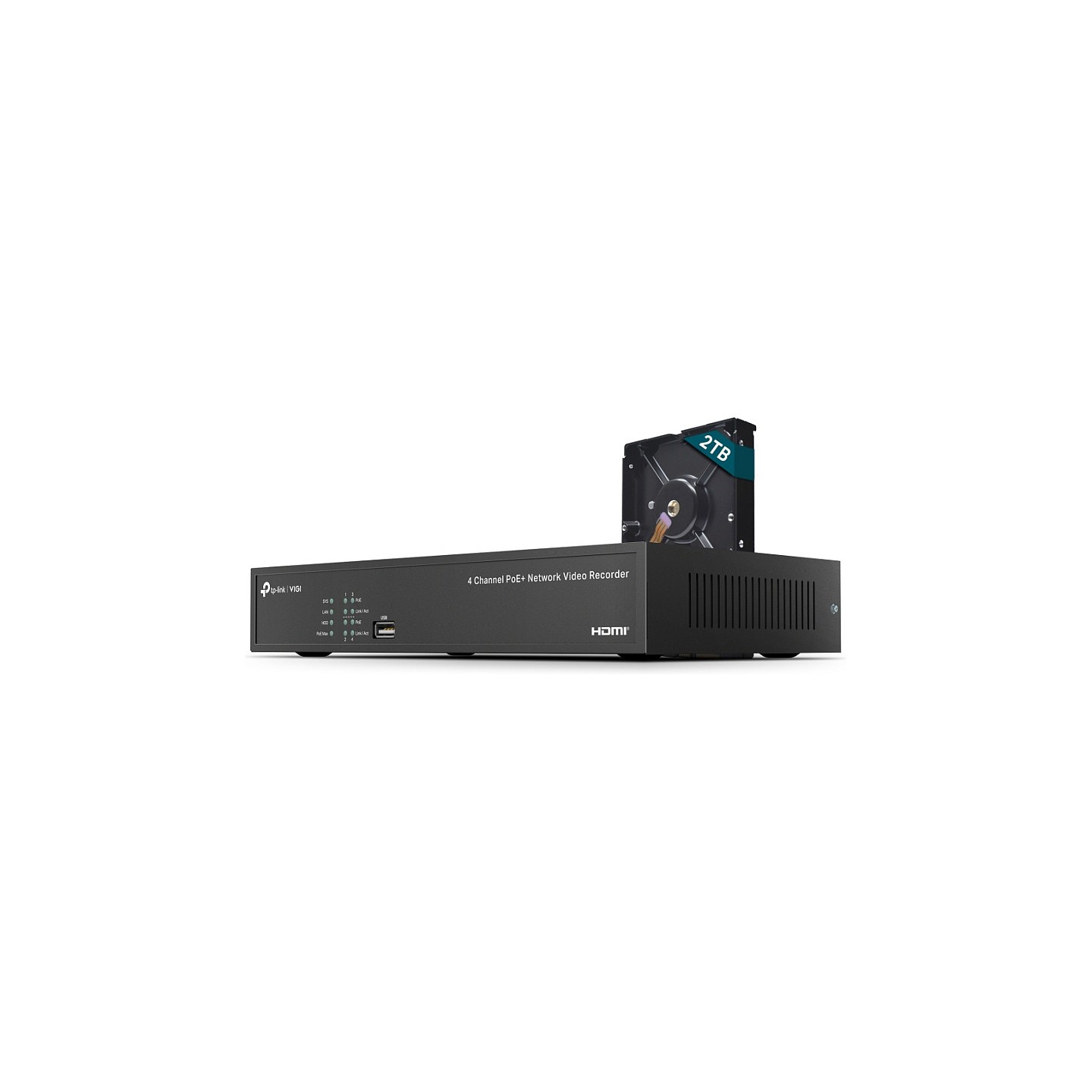

VIGI NVR1004H-4P-2TB VIGI 4 Channel PoE Video Recorder
TP-Link VIGI NVR1004H-4P-2TB. 4 Kanäle. 3840 x 2160 Pixel. 720p. 1080p. 2160p. 3840x2160.1920x1080. 1680x1050. 1440x900. 1280x1024. 1024x768. 1280x720. 1280x720@60fps. 1920x1080@60fps. 3840x2160@30fps. H.264. H.264+. H.265. H.265+
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link VIGI NVR1004H-4P-2TB. Video-Eingangskanäle: 4 Kanäle. Maximale Auflösung: 3840 x 2160 Pixel. Videoaufnahme-Modi: 720p. 1080p. 2160p. HDD Kapazität: 2 TB. Max. Speicherkapazität: 10 TB. HDD Schnittstelle: SATA. Ethernet LAN Datentransferraten: 10.100 Mbit/s. Unterstützte Netzwerkprotokolle: TCP/IP. DHCP. DNS. NTP. UPnP. Produktfarbe: Schwarz. Stromverbrauch (Standardbetrieb): 4.25 W. Ausgangsstrom: 1.31 A. Ausgangsspannung: 53.5 V
| Video-Eingangskanäle | 4 Kanäle |
| Videoaufnahme-Modi | 720p. 1080p. 2160p |
| Maximale Auflösung | 3840 x 2160 Pixel |
| Unterstütze Auflösung | 3840x2160.1920x1080. 1680x1050. 1440x900. 1280x1024. 1024x768. 1280x720 |
| Auflösung bei Capture Geschwindigkeit | 1280x720@60fps. 1920x1080@60fps. 3840x2160@30fps |
| Unterstützte Videoformate | H.264. H.264+. H.265. H.265+ |
| Eingangsbandbreite | 80 Mbit/s |
| Ausgangsbandbreite | 60 Mbit/s |
| Anzahl der installierten HDDs | 1 |
| HDD Kapazität | 2 TB |
| Maximale unterstützte Anzahl der HDD | 1 |
| Max. Speicherkapazität | 10 TB |
| HDD Schnittstelle | SATA |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Feature | LED-Anzeigen |
| Ethernet LAN Datentransferraten | 10.100 Mbit/s |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 4 |
| Anzahl HDMI-Anschlüsse | 1 |
| VGA (D-Sub)-Ausgangsanschlüsse | 1 |
| Anzahl USB 2.0 Anschlüsse | 2 |
| Audio-RCA-Eingänge | 1 |
| Audio-RCA-Ausgänge | 1 |
| Unterstützte Netzwerkprotokolle | TCP/IP. DHCP. DNS. NTP. UPnP |
| Produktfarbe | Schwarz |
| Stromverbrauch (Standardbetrieb) | 4.25 W |
| Ausgangsstrom | 1.31 A |
| Ausgangsspannung | 53.5 V |
| Gesamtleistung Power over Ethernet (PoE) | 53 W |
| Betriebstemperatur | -10 - 55 °C |
| Breite | 246.2 mm |
| Tiefe | 148.2 mm |
| Höhe | 45 mm |
