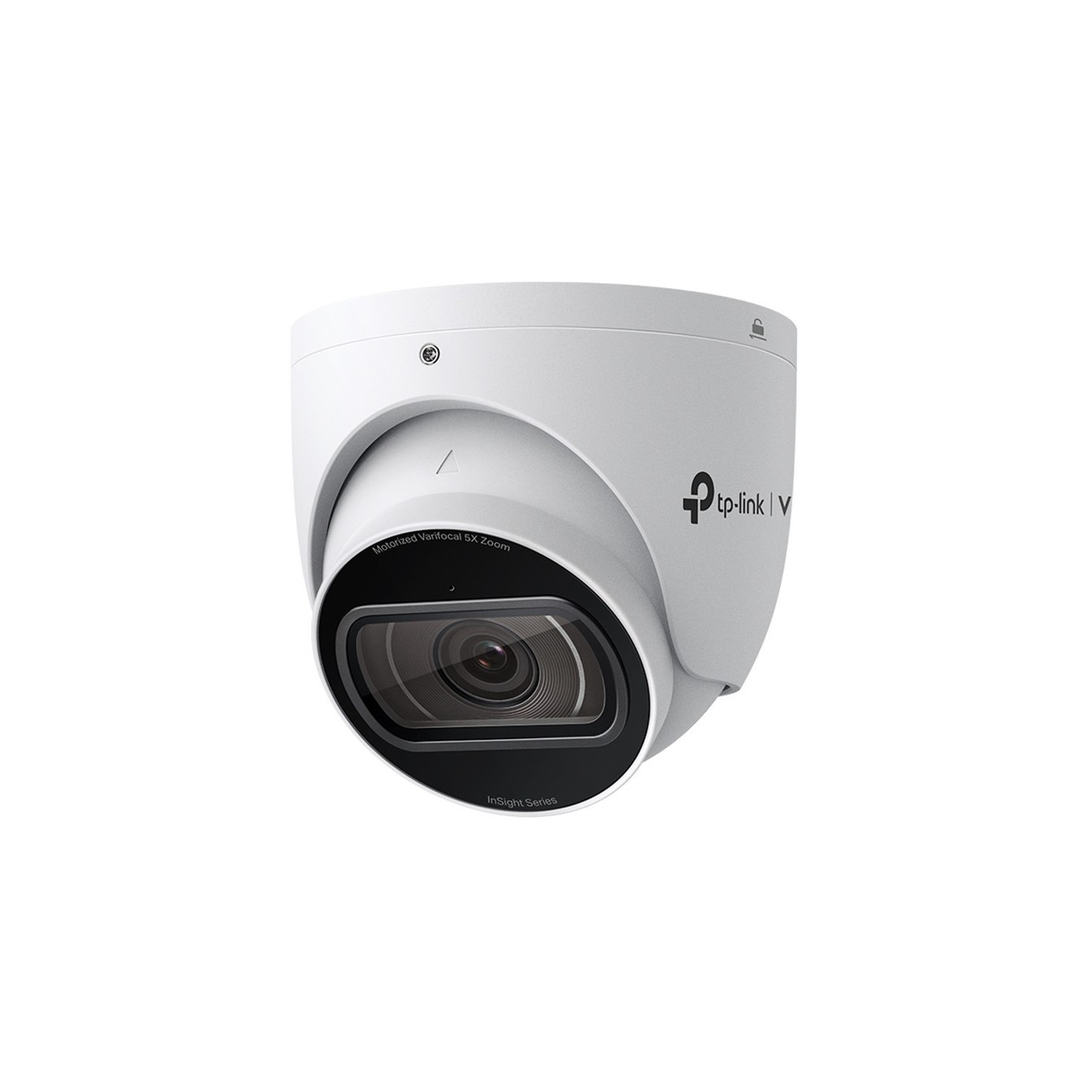

TP-Link Omada VIGI InSight S445ZI - 4MP Motorized Varifocal Turret Camera - White, IP67, Wired
4MP IP turret camera with 5x optical zoom (2.7–13.5mm), motorized varifocal lens, IR night vision (0 lx), IP67 weatherproof, ceiling mount, wired connection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| IP Cameras - Form Factor | Turret |
|---|---|
| IP Cameras - Resolution | 4 MP (2K) |
| IP Cameras - Weather Rating | IP67 |
TP-Link VIGI InSight S445ZI. Type: IP security camera. Placement supported: Outdoor. Connectivity technology: Wired. Mounting type: Ceiling. Product colour: White. Form factor: Turret. Angle of rotation: 360°. Lens viewing angle. horizontal: 29.6–102. Lens viewing angle. vertical: 16.8–53.8. Sensor type: CMOS. Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Optical zoom: 5x. Focal length range: 2.7 - 13.5 mm. Focus: Motorized
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Feature | Manual |
| Dynamic range | 120 dB |
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle. horizontal | 29.6–102 |
| Lens viewing angle. vertical | 16.8–53.8 |
| Lens viewing angle. diagonal | 34.1–122.8 |
| Tilt angle range | 0 - 77° |
| Pan range | 0 - 360° |
| Camera shutter speed | 1/3 to 1/10000 |
| Number of Privacy masking areas | 4 |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Sensor type | CMOS |
| Optical zoom | 5x |
| Number of lenses | 1 |
| Focal length range | 2.7 - 13.5 mm |
| Focus | Motorized |
| Maximum aperture number | 1.6 |
| Detect distance (wide) | 66 m |
| Detect distance (tele) | 207 m |
| Observe distance (wide) | 28 m |
| Observe distance (tele) | 86 m |
| Recognize distance (wide) | 13 m |
| Recognize distance (tele) | 41 m |
| Identify distance (wide) | 7 m |
| Identify distance (tele) | 21 m |
| Night vision distance | 60 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264. H.264+. H.265. H.265+ |
| Supported graphics resolutions | 1920 x 1080 (HD 1080). 2048 x 1280. 2304 x 1296. 2560 x 1440. 2688 x 1520 |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness. Contrast. Mirror. Saturation. Sharpness |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 6 Mbps. Sub-Stream: 512 Kbps to 1024 Kbps |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Networking standards | IEEE 802.3af. IEEE 802.3at |
| Supported network protocols | TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. DNS. RTSP. NTP. UPnP UDP. SSL/TLS. FTP/SFTP. RTP. IPv4. IPv6. ARP |
| Number of simultaneous live view channels | 6 channels |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Alert notification type | Push notification |
| Power source type | DC. PoE |
| Power consumption (max) | 10.8 W |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Height | 92.5 mm |
| Diameter | 11.2 cm |
| Weight | 710 g |
| Package weight | 960 g |
| Package type | Box |
| Number of cameras | 1 |
