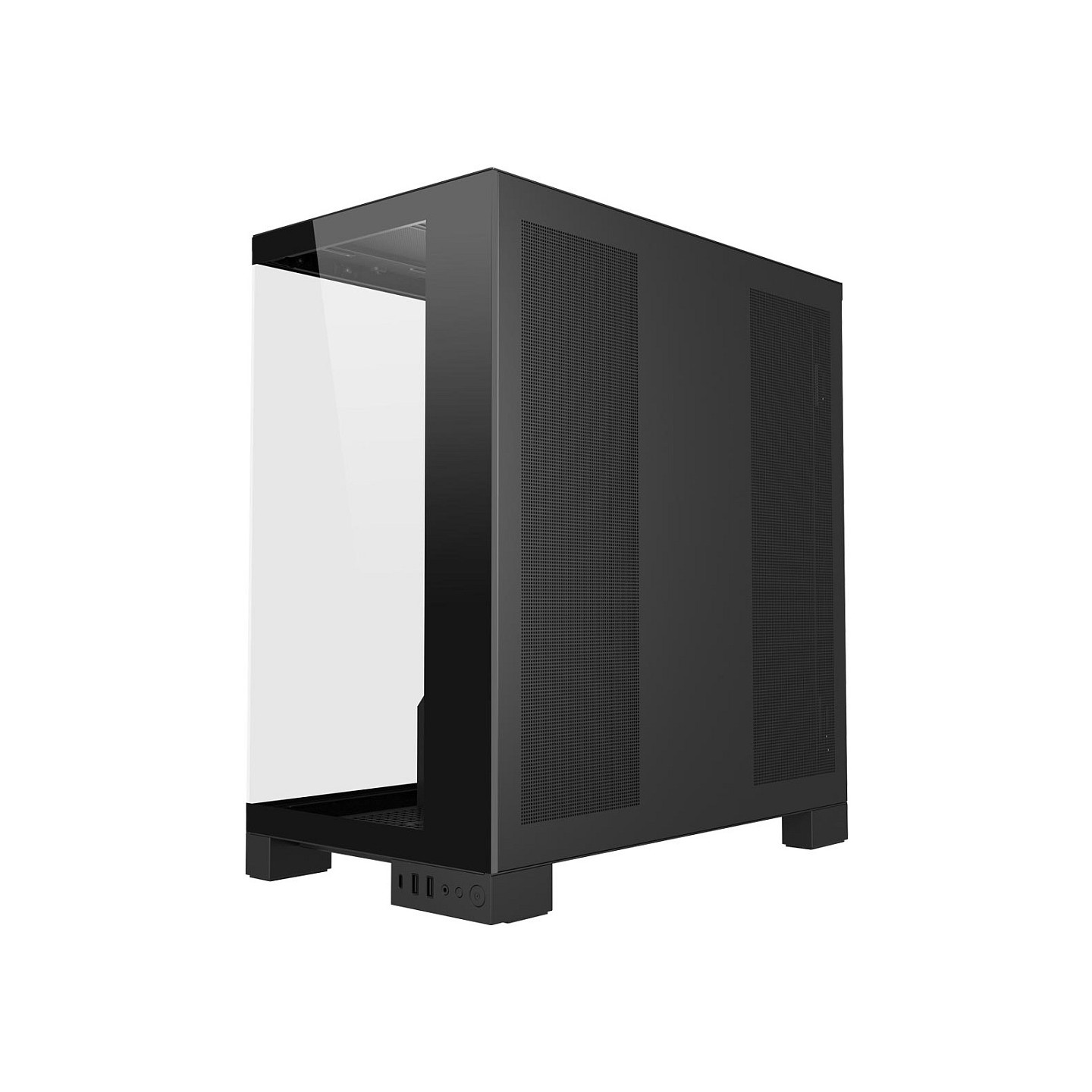

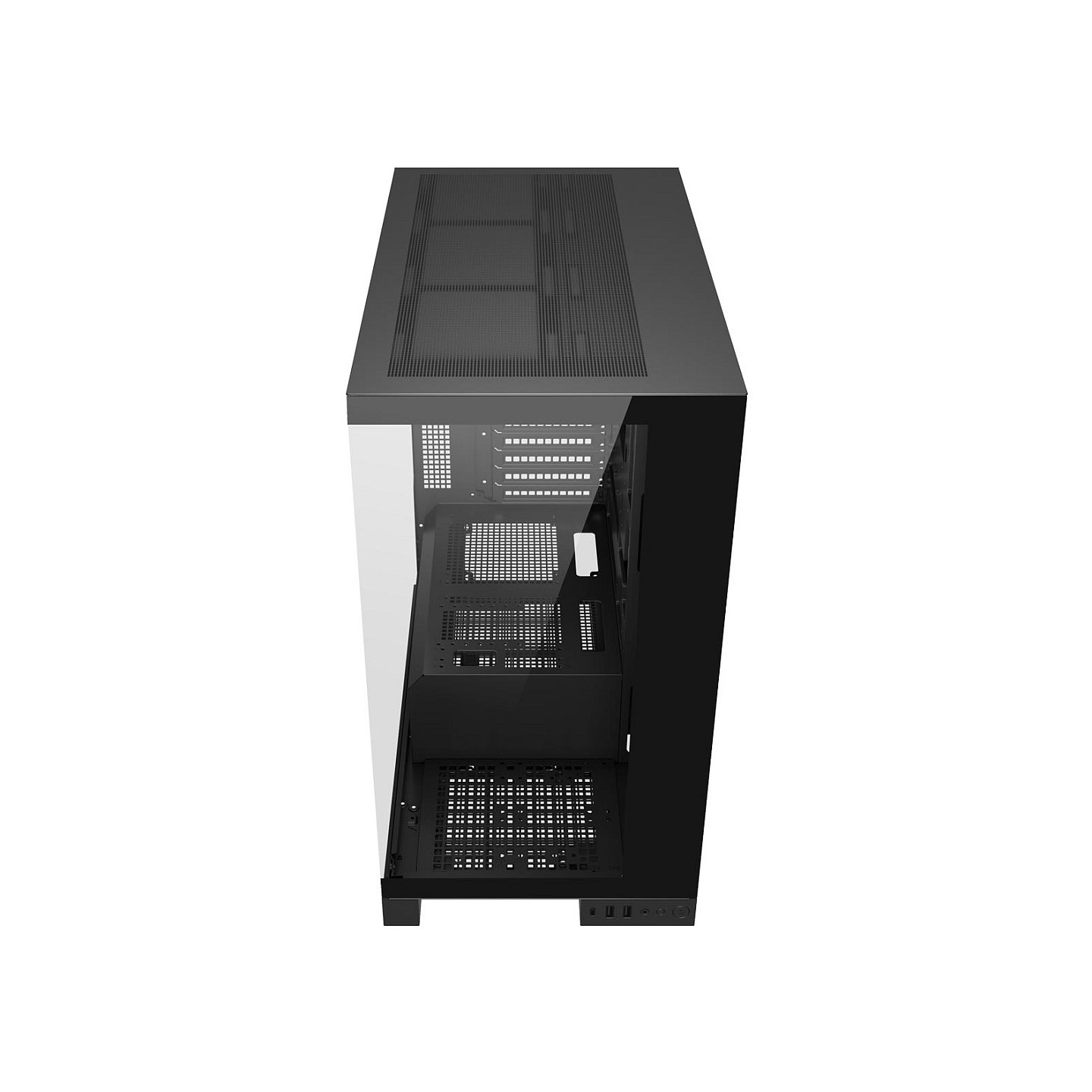

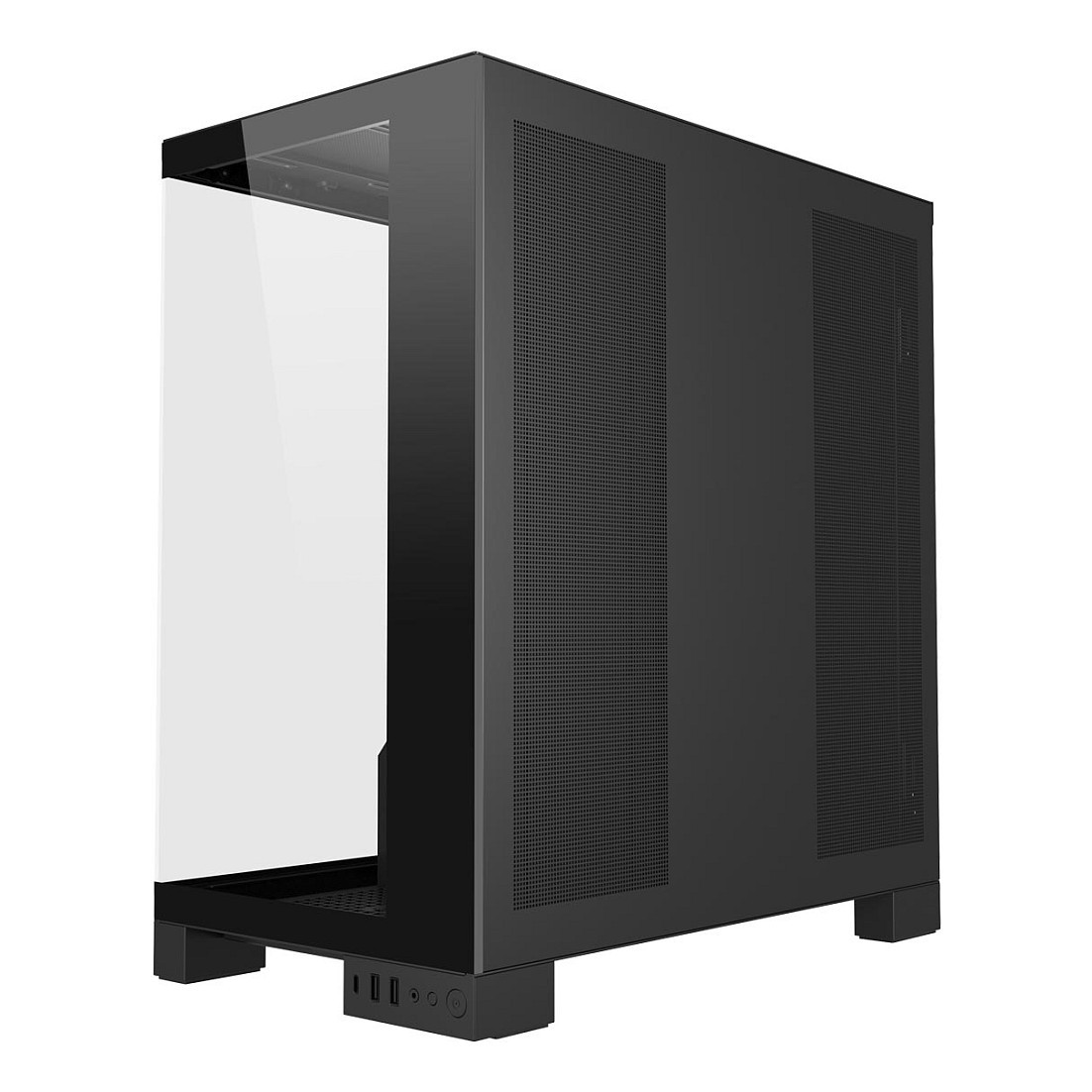

FSP M540-BA ARGB TG Mid Tower PC Case (Boxed)
FSP M540-BA ARGB TG Black: Mid Tower ATX/mATX/ITX PC case w/ dual tempered glass, 4 reverse ARGB fans (3x120mm side, 1x rear), BTF support. Max GPU 420mm, CPU cooler 180mm, 360mm radiator. Gaming-focused, 451x258x491mm.[178 chars]
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 360 mm |
| PC Cases - Included Fans | 4+ |
| PC Cases - Front I/O | Audio Jacks USB A USB C Gen2 |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |
The FSP M540-BA is a premium mid-tower gaming PC case designed for high-performance builds with back-connect (BTF) motherboard support. Featuring dual tempered glass panels for stunning 360-degree views, it showcases your components in style while ensuring durability and optimal airflow through mesh top and side panels.

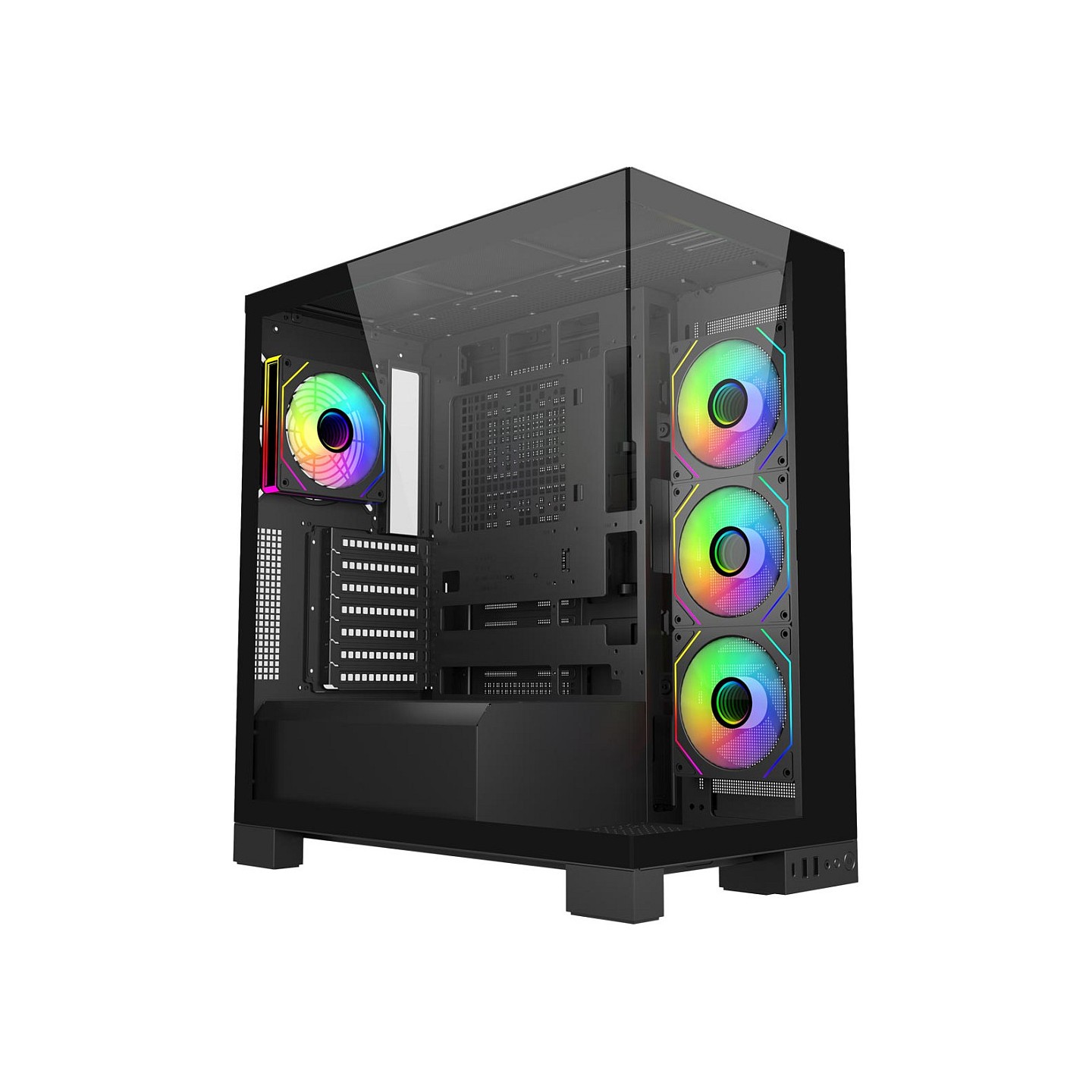

Equipped with 4 pre-installed reverse ARGB fans (three 120mm on the side intake and one 120mm rear exhaust), it delivers excellent out-of-the-box cooling. Supports up to 180mm CPU coolers, 420mm GPUs, 360mm radiators (top/side), and ample storage (3x 3.5" HDDs or up to 5x 2.5" SSDs). Dimensions: 451 x 258 x 491 mm, made from 0.8mm SPCC steel and glass.
- Motherboard: ATX, mATX, Mini-ITX (BTF compatible)
- Cooling: 360mm radiator support, max 10x 120mm fans
- Expansion: 7 slots, max PSU 250mm
- I/O: 2x USB 3.2 Gen2 Type-C (assumed)
- Color: Black
| Material | 0.8mm SPCC, Tempered Glass x2 |
| Formfaktor | Midi Tower |
| Type | PC |
| Produktfarbe | Black |
| Unterstützte Motherboards Formfaktoren | ATX, micro ATX, Mini-ITX (BTF) |
| Anzahl der 3.5 | 3 |
| Anzahl der 2.5 | 5 |
| Anzahl der Erweiterungsslots | 7 |
| Feature | ARGB Lighting |
| Geeignet für | Gaming |
| Farben der Beleuchtung | Multi |
| Beleuchtungsort | Fans (Reverse ARGB) |
| Max CPU Kühler-Höhe | 18 cm |
| Max Grafikkarten-Länge | 42 cm |
| Maximum PSU Länge | 25 cm |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 2 |
| Installierte Lüfter seitlich | 3x 120 mm Reverse ARGB |
| Anzahl unterstützter Seitenlüfter (max.) | 3 |
| Durchmesser unterstützte Seitenlüfter | 120/140 mm |
| Installierte Lüfter hinten | 1x 120 mm ARGB |
| Anzahl der unterstützten hinteren Lüfter (max.) | 1 |
| Durchmesser unterstützter Rückseitenlüfter | 120/140 mm |
| Anzahl der unterstützten oberen Lüfter (max.) | 3 |
| Unterstützte Lüfterdurchmesser (oben) | 120/140 mm |
| Anzahl unterstützter unterer Lüfter (max.) | 3 |
| Durchmesser unterstützte Unterlüfter | 120 mm |
| Unterstützte Größen der seitlichen Radiatoren | 360 mm |
| Unterstützte Radiatorgrößen oben | 360 mm |
| Unterstützte Hard-Disk Drive Größen | 3.5 |
| Breite | 258 mm |
| Tiefe | 451 mm |
| Höhe | 491 mm |
| Materialdicke | 0.8 mm |
| Included Fans | 4 Reverse ARGB (3 side + 1 rear) |
| Unboxed Weight | 5.5 kg |
