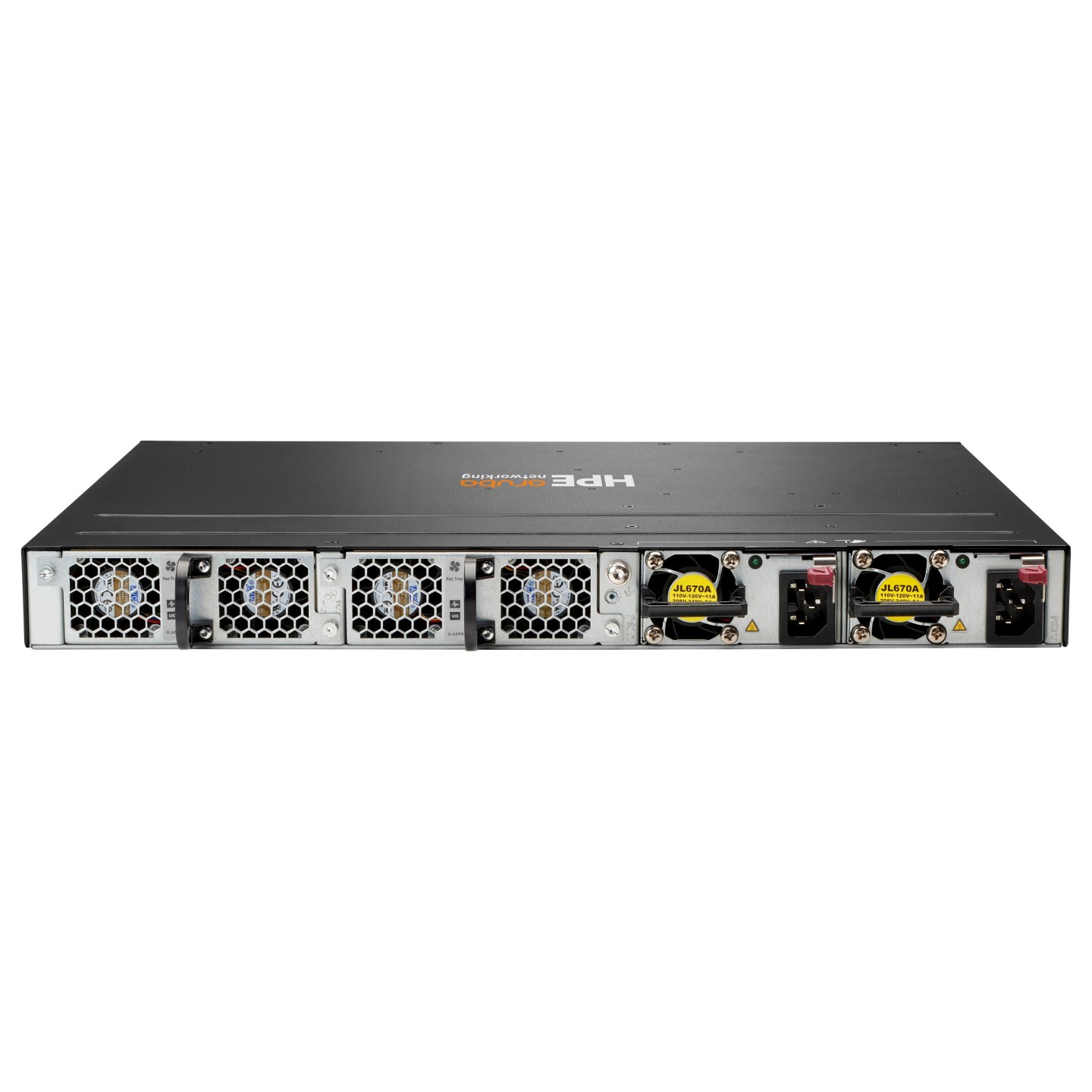

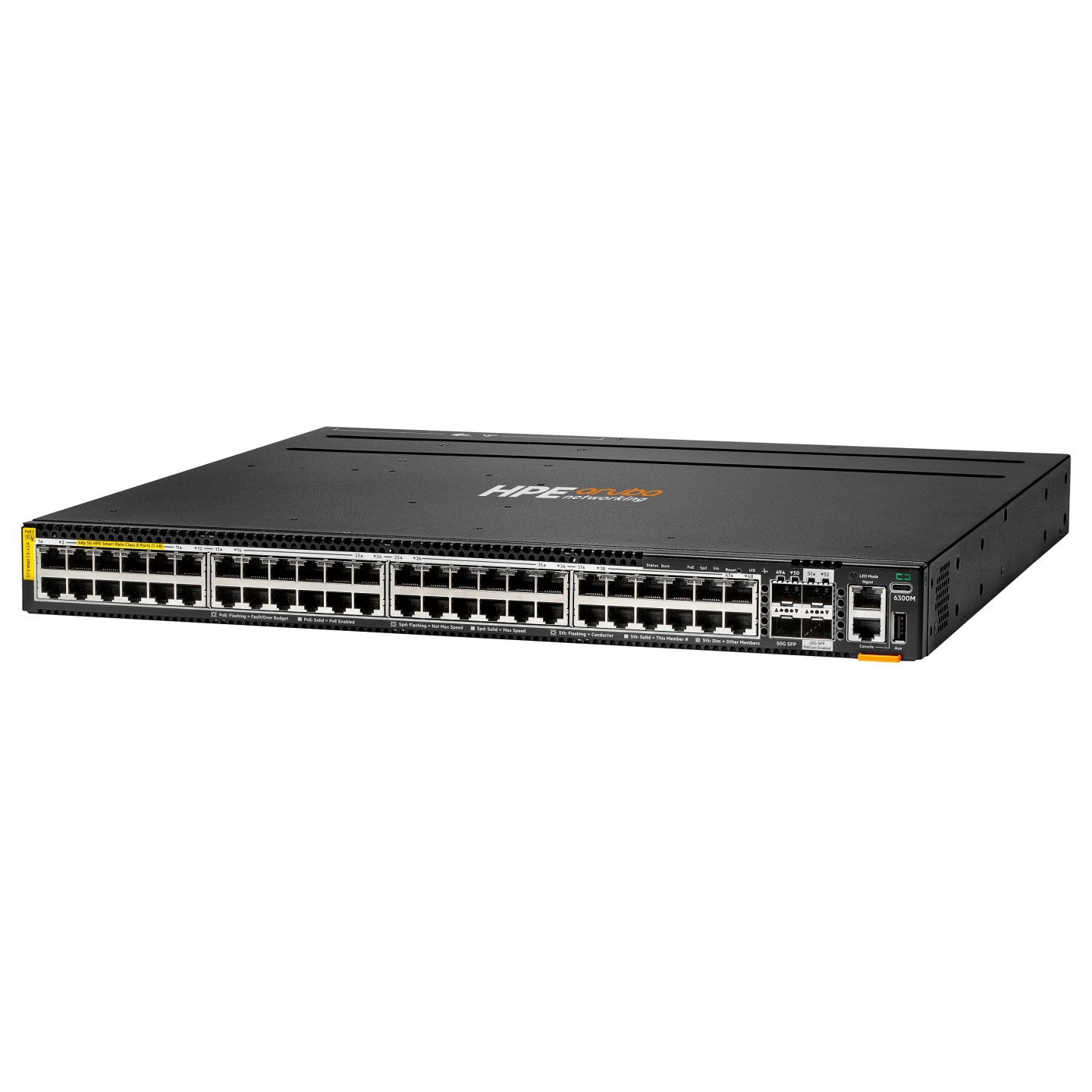

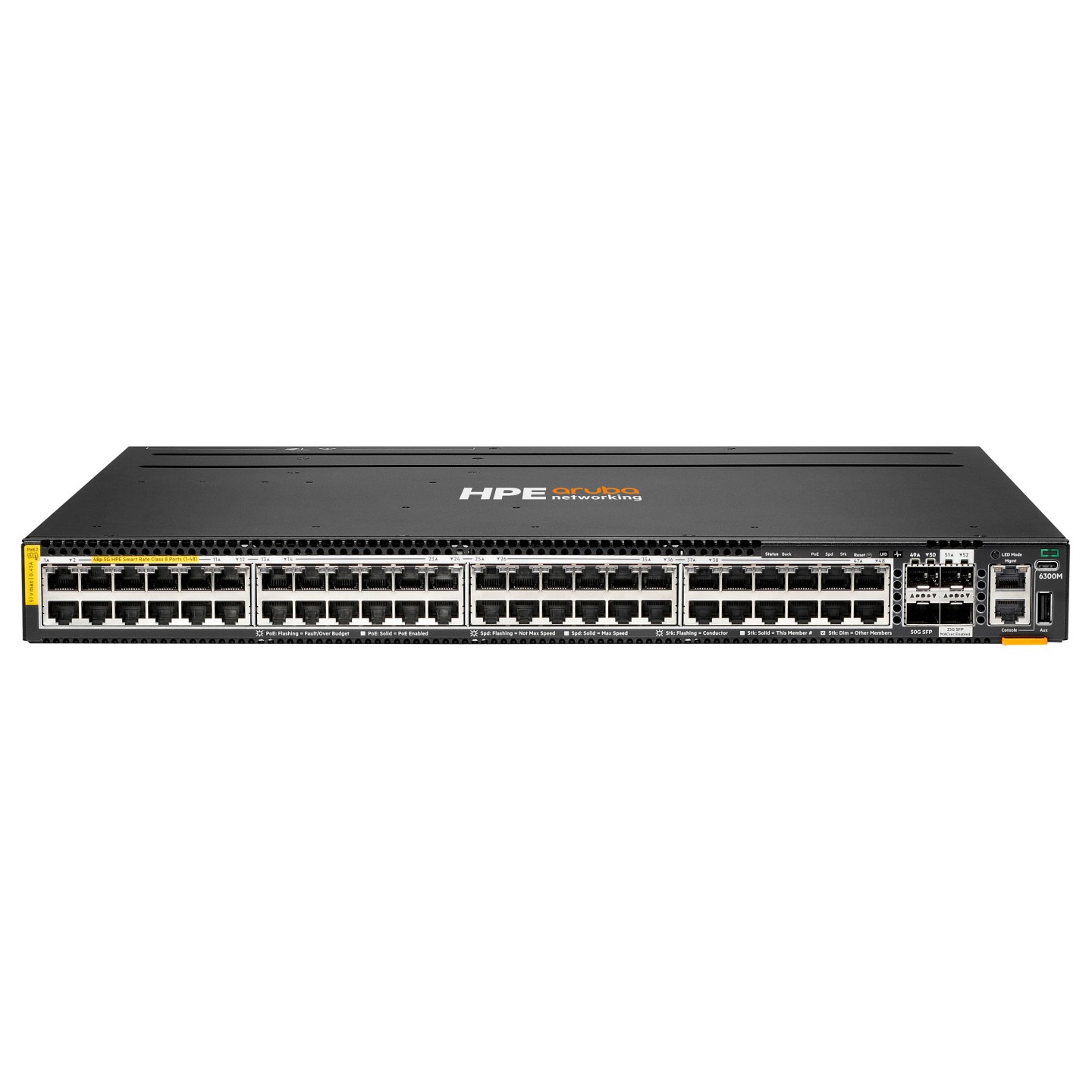

ARUBA 6300M 48SR5 CL8 POE STOCK
HPE Aruba Networking CX 6300M 48p Smart Rate 1G/2.5G/5G Class8 PoE 2p 50G 2p 25G Switch. Managed. 5G Ethernet (100/1000/5000). Power over Ethernet (PoE)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking CX 6300M 48p Smart Rate 1G/2.5G/5G Class8 PoE 2p 50G 2p 25G Switch. Switch-Typ: Managed. Basic Switching RJ-45 Ethernet Ports-Typ: 5G Ethernet (100/1000/5000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 48. Konsolen-Port: RJ-45/USB Type-C. Routing-/Switching-Kapazität: 880 Gbit/s. Netzstandard: IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt. Power over Ethernet (PoE)
| Switch-Typ | Managed |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 48 |
| Basic Switching RJ-45 Ethernet Ports-Typ | 5G Ethernet (100/1000/5000) |
| Menge SFP-Modul-Steckplätze | 8 |
| Konsolen-Port | RJ-45/USB Type-C |
| Netzstandard | IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt |
| Routing-/Switching-Kapazität | 880 Gbit/s |
| Durchgang | 654 Mpps |
| Wartezeit (1 Gbps) | 4.24 µs |
| Wartezeit (10 Gbps) | 1.5 µs |
| Datenpaket-Pufferspeicher | 16 MB |
| Feature | Power over Ethernet (PoE) |
| Physisches Stacking (Einheiten) | 10 |
| Prozessor | ARM Cortex-A72 |
| Prozessortaktfrequenz | 1800 MHz |
| Speichertyp | DDR4-SDRAM |
| Speicherkapazität | 8000 MB |
| Flash-Speicher | 32000 MB |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| Power over Ethernet (PoE) Leistung pro Anschluss | 90 W |
| Gesamtleistung Power over Ethernet (PoE) | 2880 W |
| Latenz | 1 Gbps: 4.24 μs 10 Gbps: 1.50 μs 25 Gbps: 2.91 μs 50 Gbps: 3.49 μs |
| Speicher und Prozessor | Quad Core Arm Cortex™ A72 @ 1.8GHz. 8 GB DDR4. 32 GB eMMC 16 MB Shared Packet Buffer Memory |
| Leistungsmanagementfunktionen - Beschreibung | Management flexibility with support for HPE Aruba Networking Central. easy-to-use Web GUI. CLI. and HPE Aruba Networking Switch Multi-Edit Software |
| Gewicht (imperial) | 6.71 kg (14.8 Pfund) |
| Abmessungen (B x T x H) (in Zoll) | 43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2") |
| Betriebstemperatur | 0 - 45 °C |
| Breite | 44 mm |
| Tiefe | 442 mm |
| Höhe | 385 mm |
| Gewicht | 6.71 kg |
