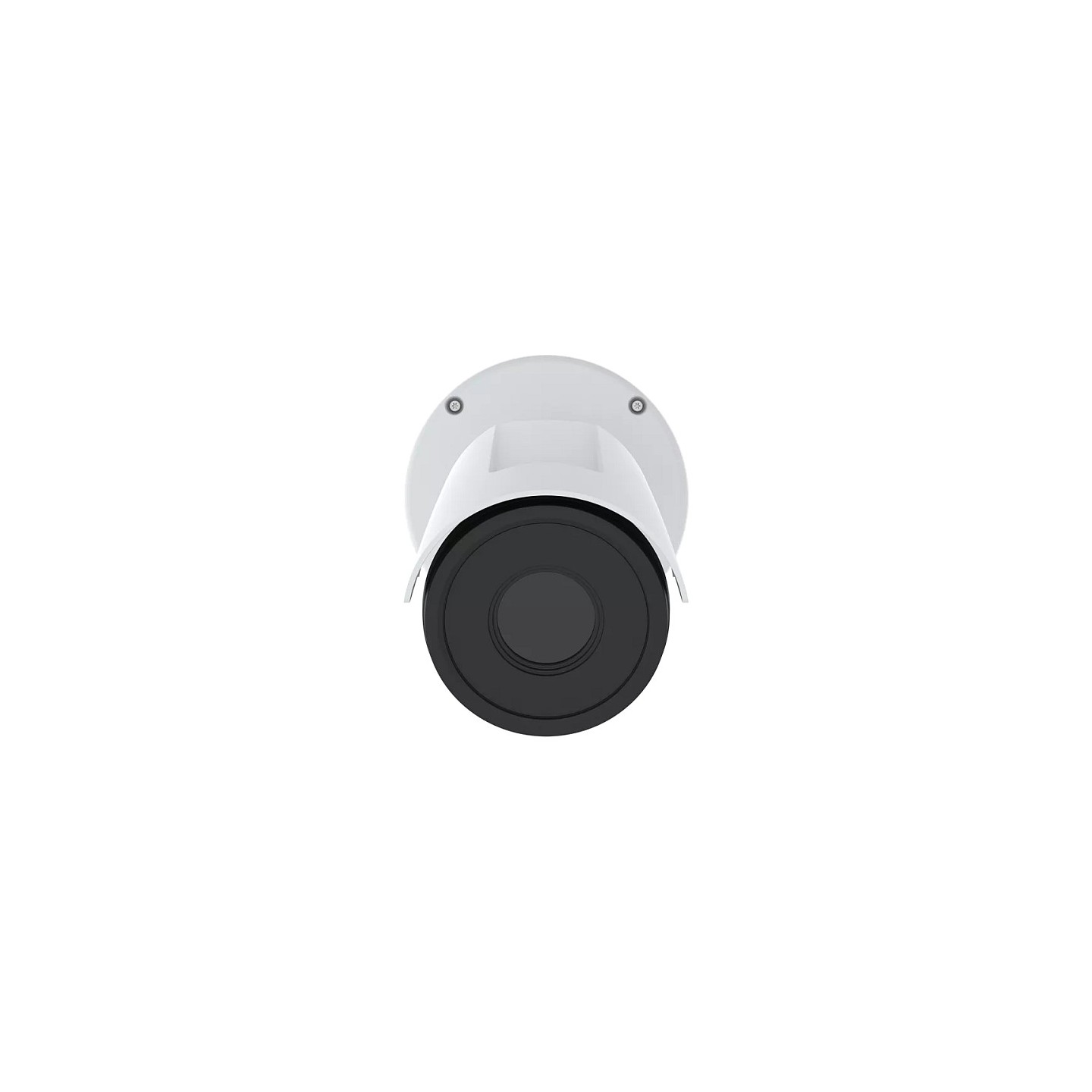

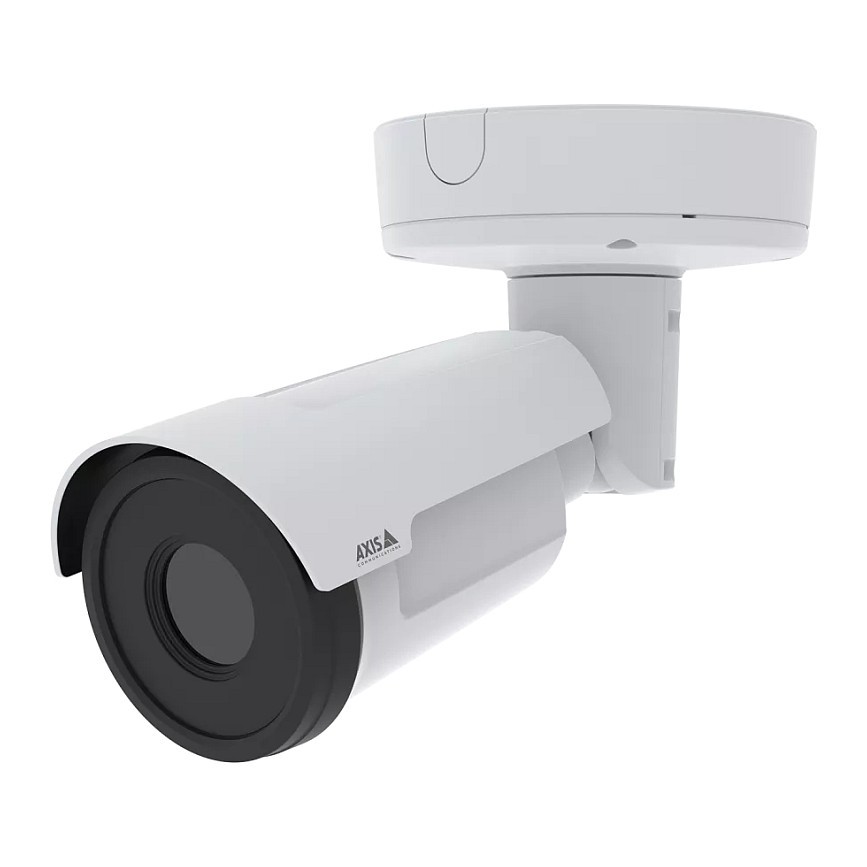

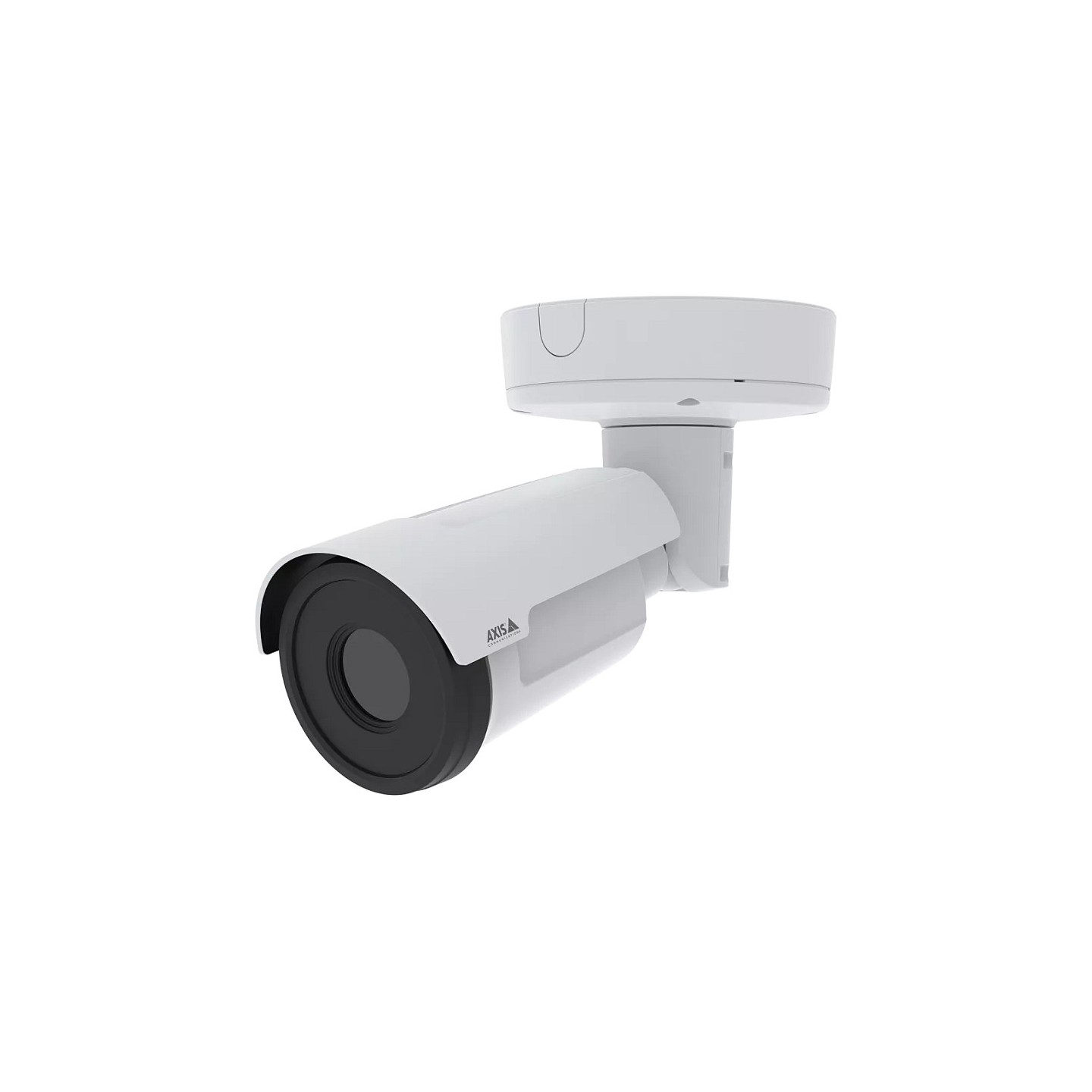

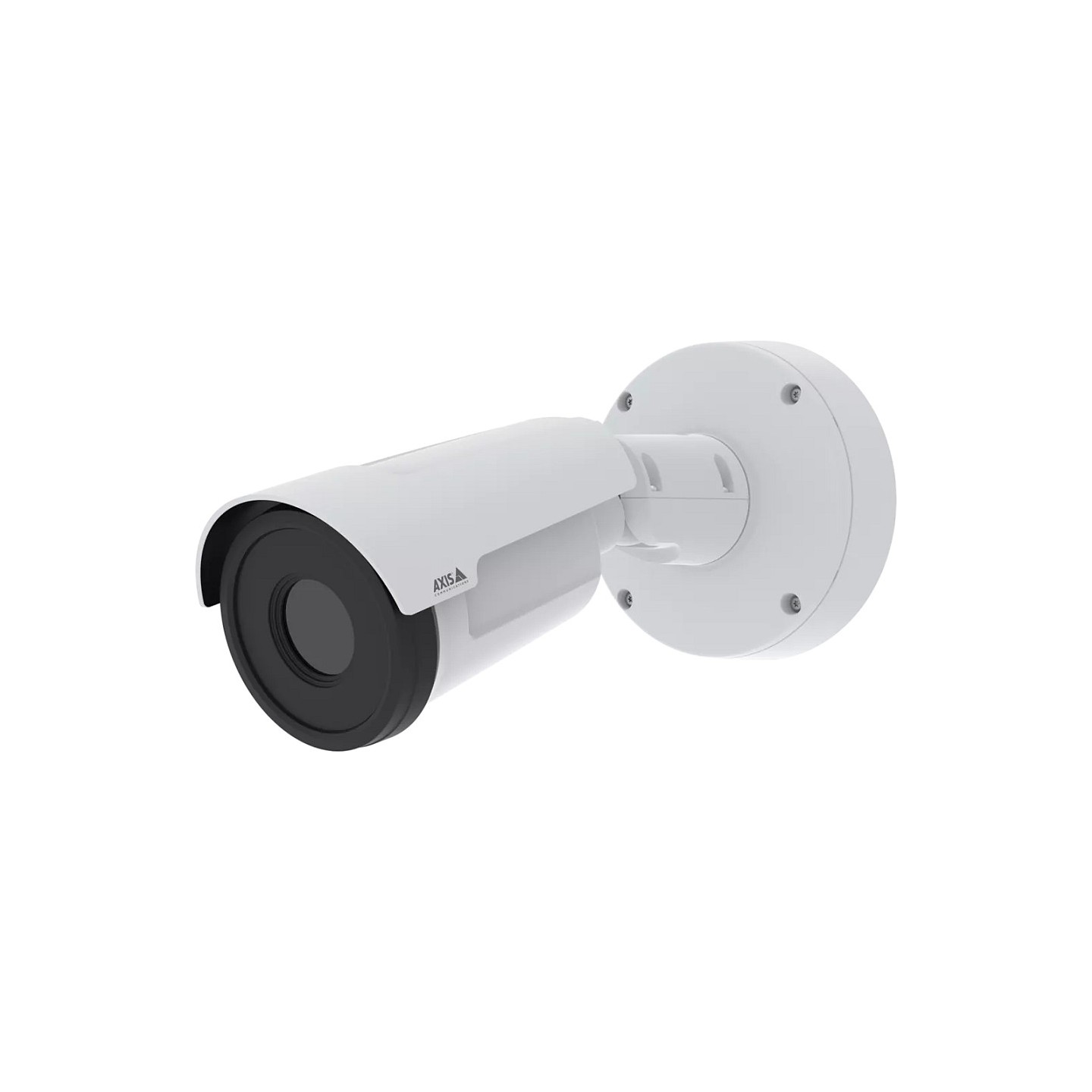

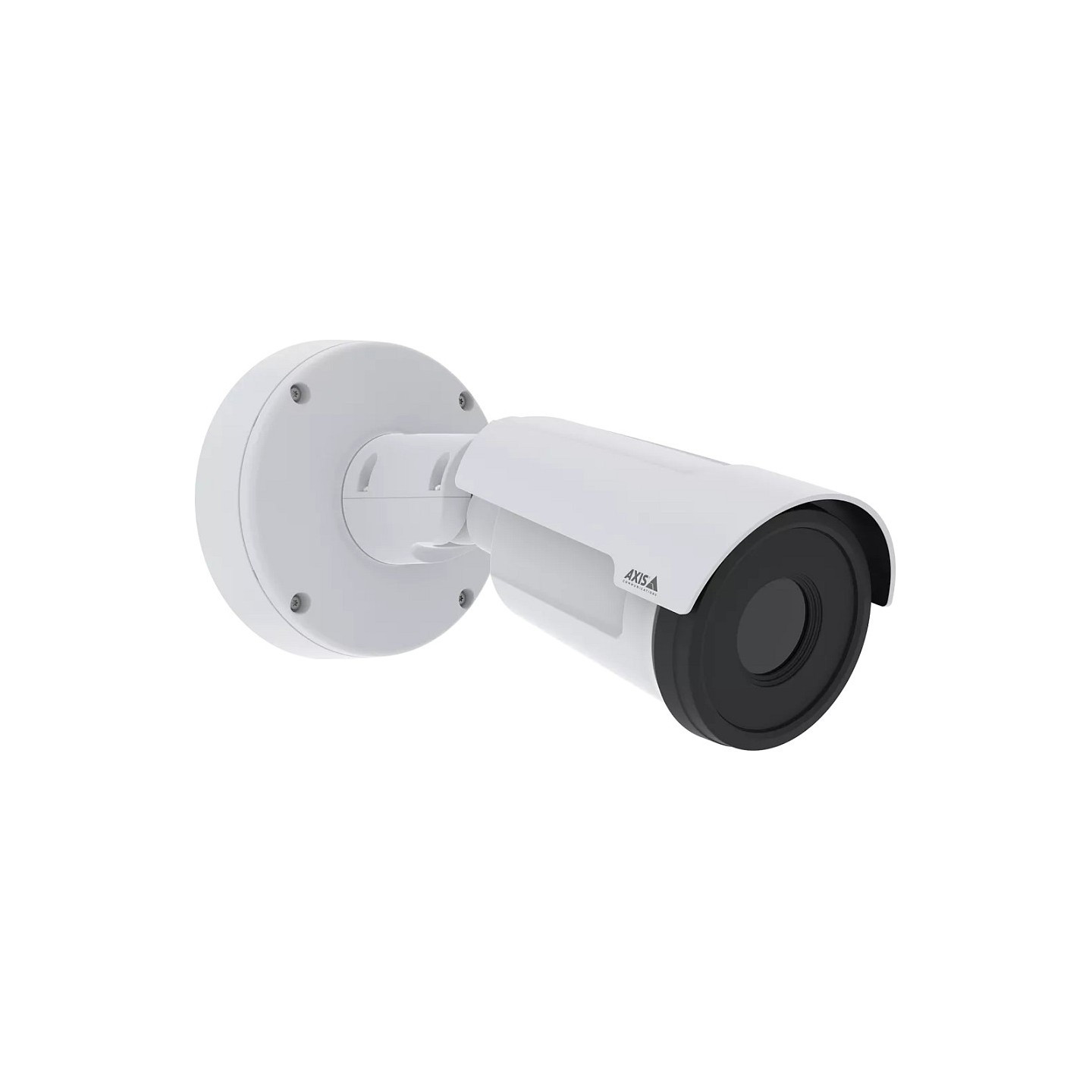

AXIS Q1972-E 19 MM 30 FPS
Axis Q1972-E. IP-Sicherheitskamera. Draußen. Kabelgebunden. 20 mK. CSA. UL/cUL. CE. KC. TAA. CISPR 35. CISPR 32 Class A. EN 55035. EN 55032 Class A. EN 50121-4. EN.... Wand
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis Q1972-E. Typ: IP-Sicherheitskamera. Unterstützte Positionierung: Draußen. Übertragungstechnik: Kabelgebunden. Befestigungstyp: Wand. Produktfarbe: Schwarz. Weiß. Formfaktor: Patrone (Form). Betrachtungswinkel (horizontal): 31°. Pixelgröße Kamera: 17 µm. Sensor-Typ: Mikrobolometer. Effektive Sensorauflösung (thermisches Modul): 640 x 480 Pixel. Objektivdurchmesser: 1.9 cm. Naheinstellgrenze: 8.5 m. Infrarot-Spektralband: 8 - 14 µm
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Draußen |
| Übertragungstechnik | Kabelgebunden |
| Feature | Betriebsanleitung |
| Thermische Empfindlichkeit (NETD) | 20 mK |
| Formfaktor | Patrone (Form) |
| Befestigungstyp | Wand |
| Produktfarbe | Schwarz. Weiß |
| Gehäusematerial | Aluminium. Polycarbonat (PC) |
| Internationale Schutzart (IP-Code) | IP66. IP67 |
| IK-Kodex | IK10 |
| Betrachtungswinkel (horizontal) | 31° |
| Pixelgröße Kamera | 17 µm |
| Anzahl der Sensoren | 1 |
| Effektive Sensorauflösung (thermisches Modul) | 640 x 480 Pixel |
| Sensor-Typ | Mikrobolometer |
| Anzahl der Linsen | 1 |
| Objektivdurchmesser | 1.9 cm |
| Maximale Blendenzahl | 1 |
| Naheinstellgrenze | 8.5 m |
| Infrarot-Spektralband | 8 - 14 µm |
| Maximale Auflösung | 640 x 480 Pixel |
| Videokompressionsformate | AVC. H.264. H.265. HEVC. M-JPEG. MPEG4 |
| Bis zu 30 Frames pro Sekunde | 30 fps |
| Verstärkungssteuerungstyp | Auto |
| Bildqualitätsanpassung | Helligkeit. Kontrast. Schärfe |
| Bitratenkontrolle | Variable Bitrate (VBR) |
| Unterstützte Audioformate | AAC-LC. ADPCM. G.711. G.726. LPCM. OPUS. PCM |
| Abtastraten | 8 - 48 kHz |
| Ethernet Schnittstellen Typ | Schnelles Ethernet. Gigabit Ethernet |
| Netzstandard | IEEE 802.1AE. IEEE 802.1x. IEEE 802.3af. IEEE 802.3at |
| Streaming-Verfahren | Multicasting |
| Kompatible Speicherkarten | MicroSD (TransFlash). MicroSDHC. MicroSDXC |
| Flash-Speicher | 8192 MB |
| RAM-Kapazität | 2048 MB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| RS-422-Anschlüsse | 1 |
| RS-485-Anschlüsse | 1 |
| Unterstützte Sicherheitsalgorithmen | 256-bit AES-XTS. EAP-TLS. FIPS 140-2. MSCHAPv2. PEAP |
| Warnbenachrichtigungstyp | |
| Energiequelle | Gleichstrom. PoE |
| Stromverbrauch (Standardbetrieb) | 5 W |
| Stromverbrauch (max.) | 12.95 W |
| Stromverbrauch (Power over Ethernet (PoE)) | 12.95 W |
| Betriebstemperatur | -40 - 60 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 100% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 132 mm |
| Tiefe | 264 mm |
| Höhe | 132 mm |
| Gewicht | 1.4 kg |
| Konformitätsbescheinigungen | REACH. RoHS |
| Anzahl der Kameras | 1 |
| Enthält nicht | CFR. PVC/BFR |
