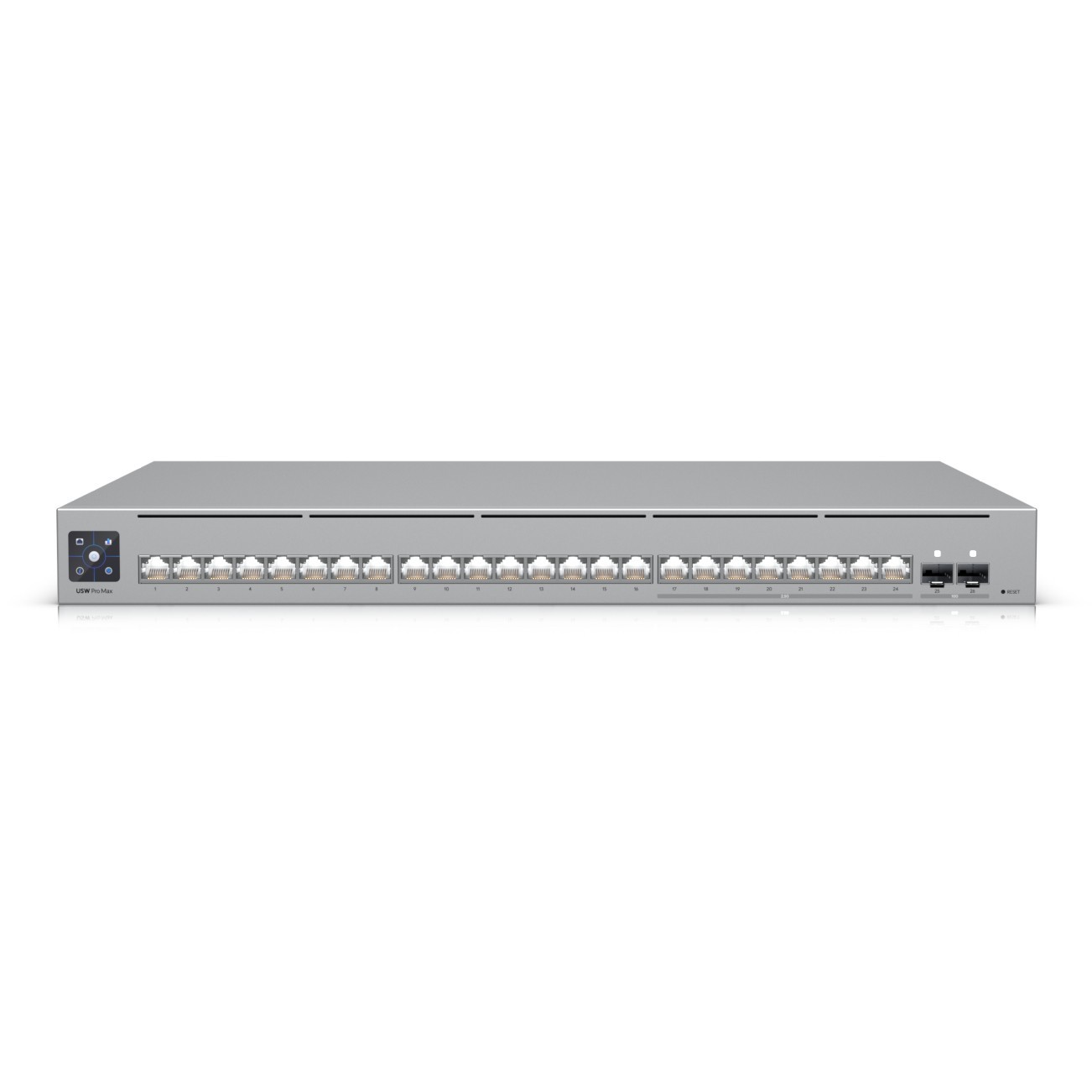

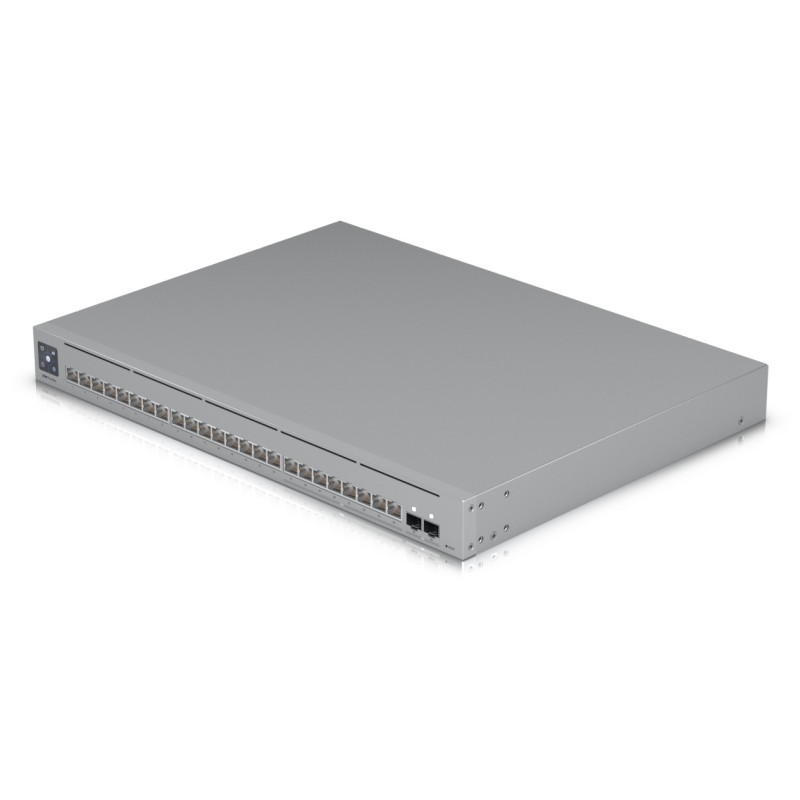

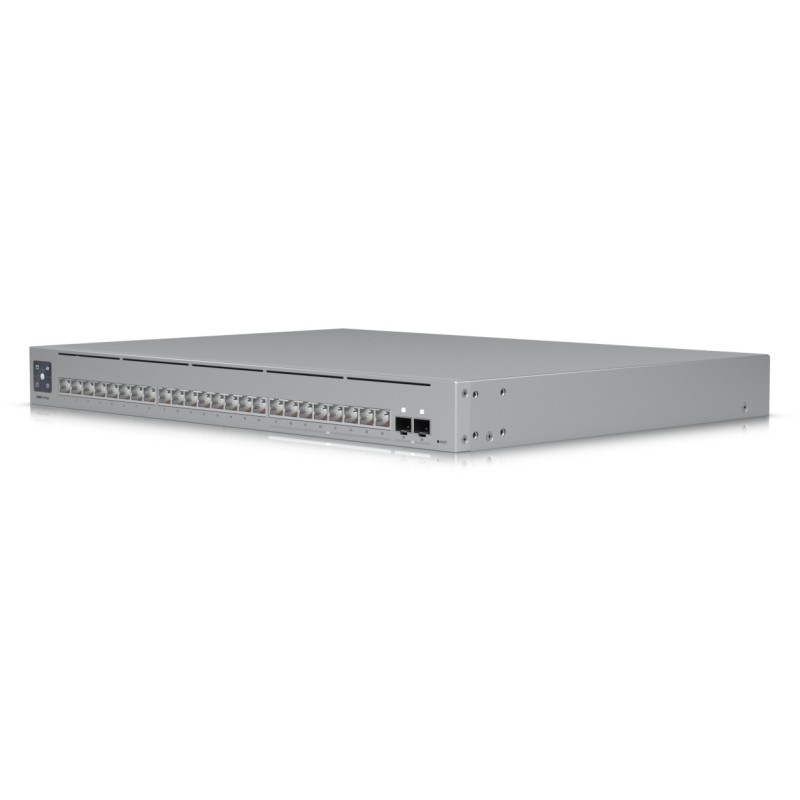

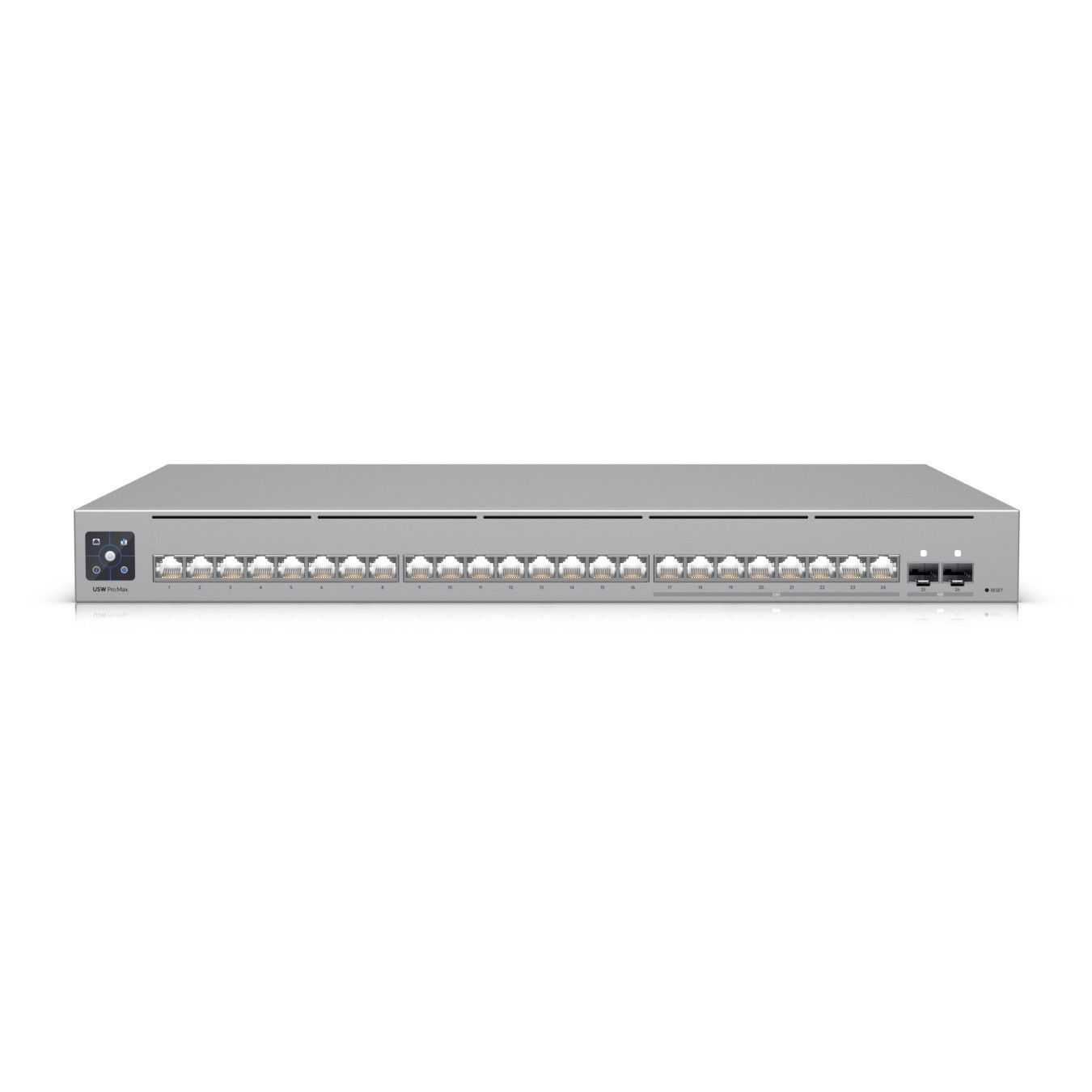

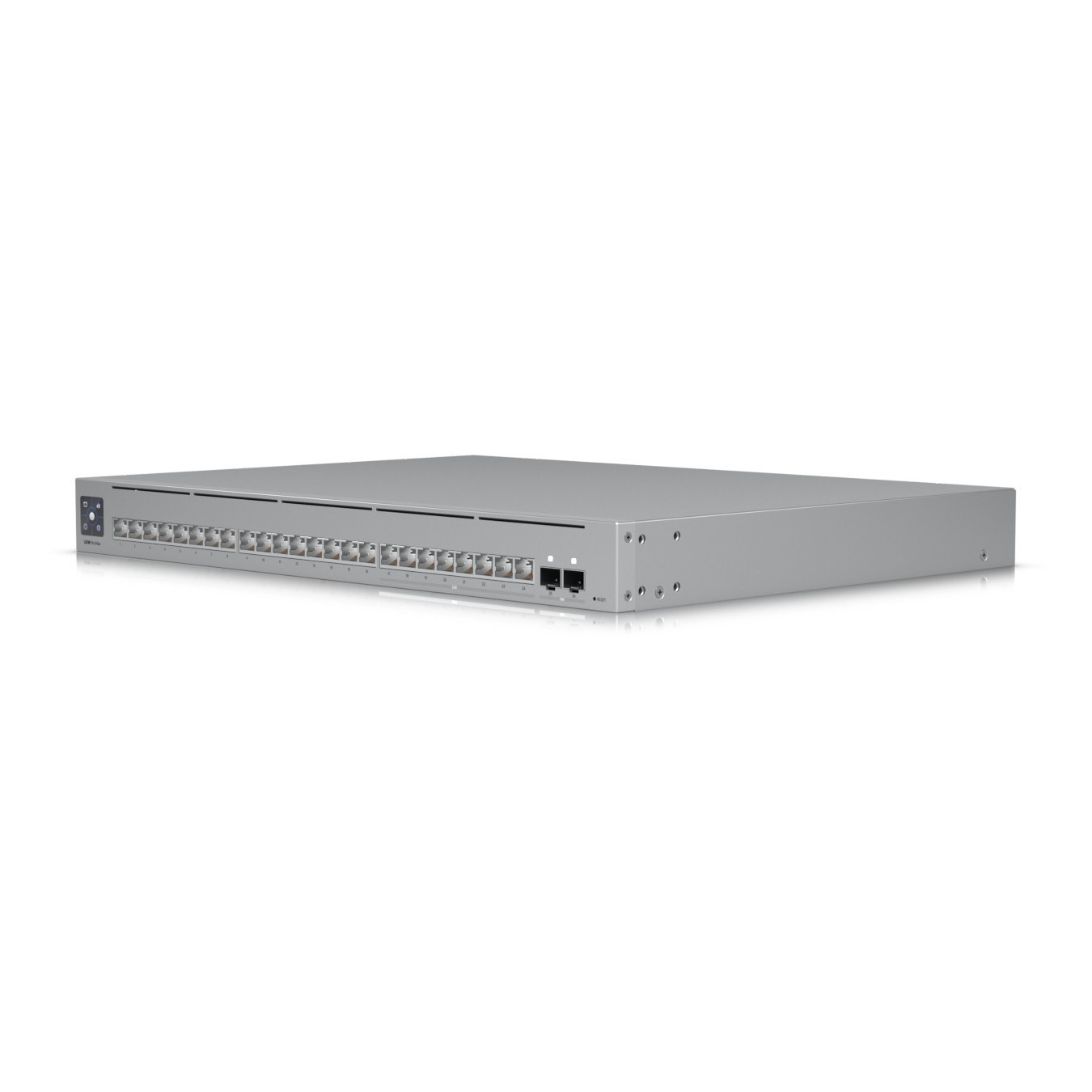

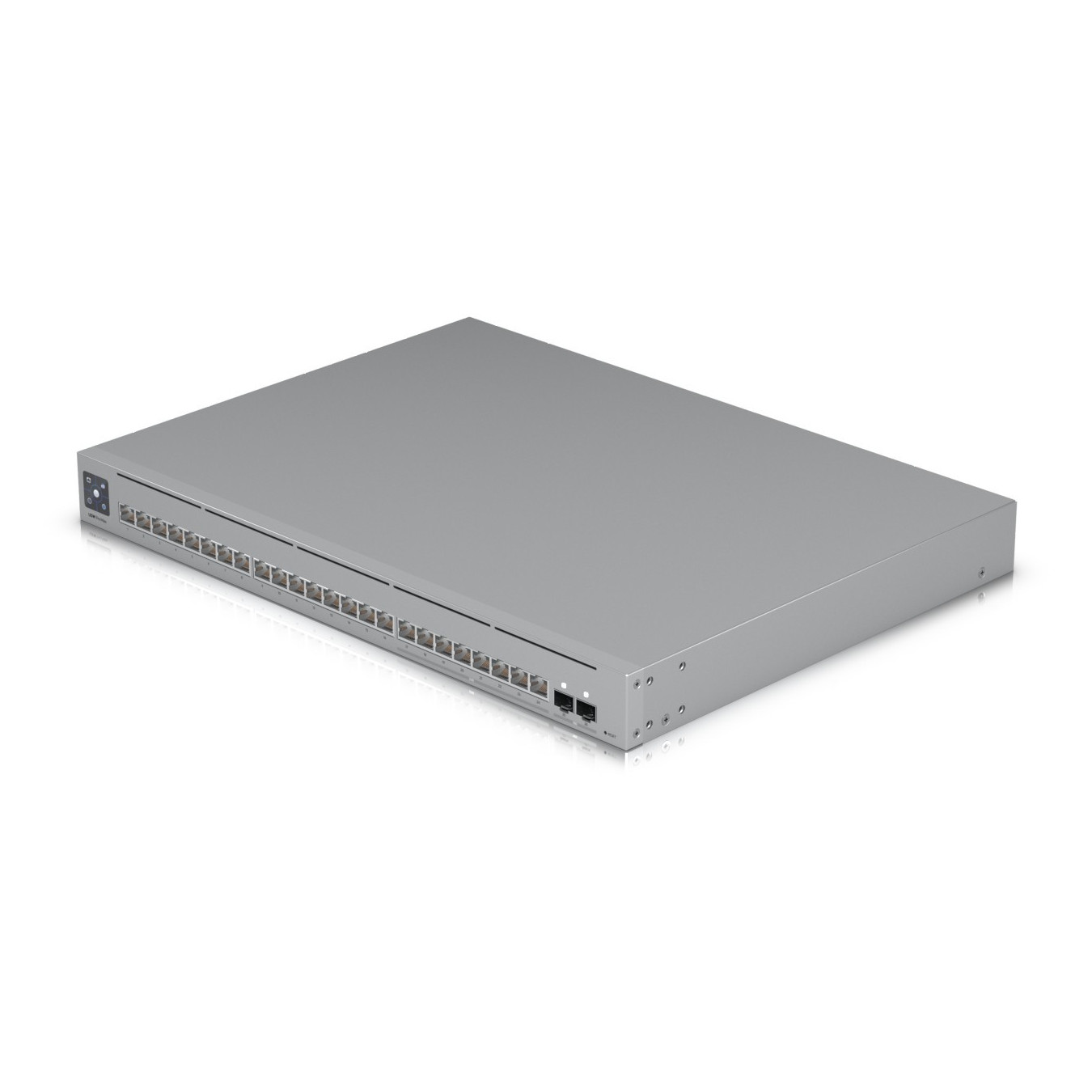

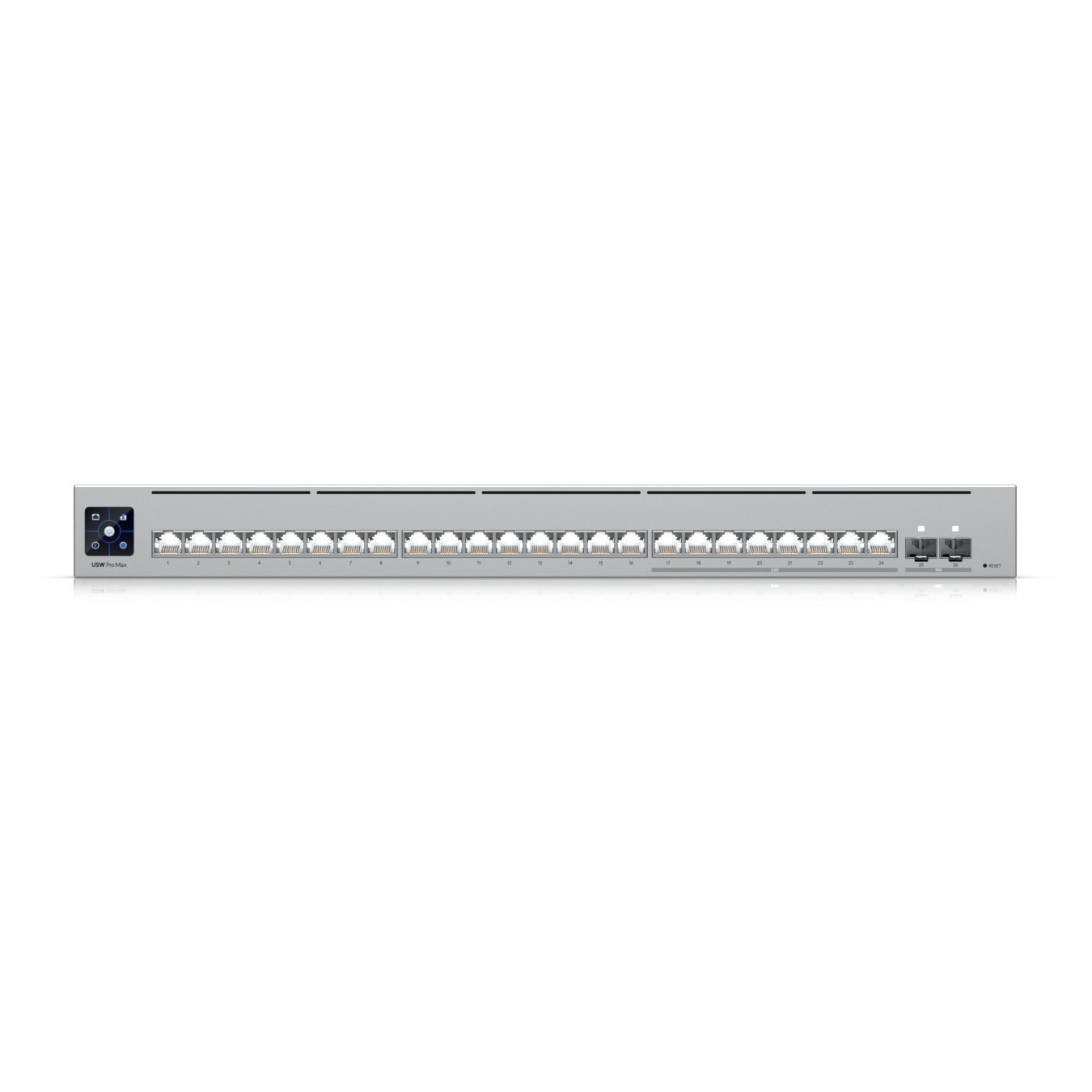

Ubiquiti UniFi USW-Pro-Max-24 - 24-Port L3 Multi-Gig Switch (Grey) - 2.5G RJ45, 2x SFP+, 1U Rack
USW-Pro-Max-24: 24-port L3 managed UniFi switch with 2.5G multi-gig RJ45 ports, 2 SFP+ slots, 1U rackmount, AC/DC power, 112 Gbps switching capacity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Multi-Gig (2.5G) |
| Network Switches - Rackmount | Yes |
Ubiquiti Pro Max 24. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500). Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 112 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Rack mounting. Form factor: 1U
| Switch layer | L3 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 2 |
| Power connector | AC/DC |
| Networking standards | IEEE 802.1x |

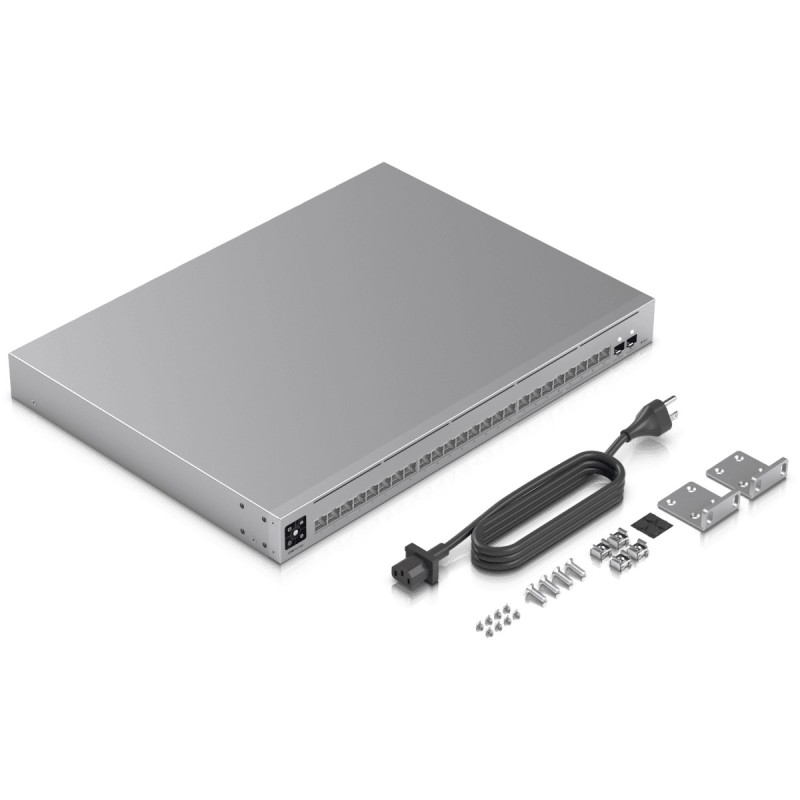

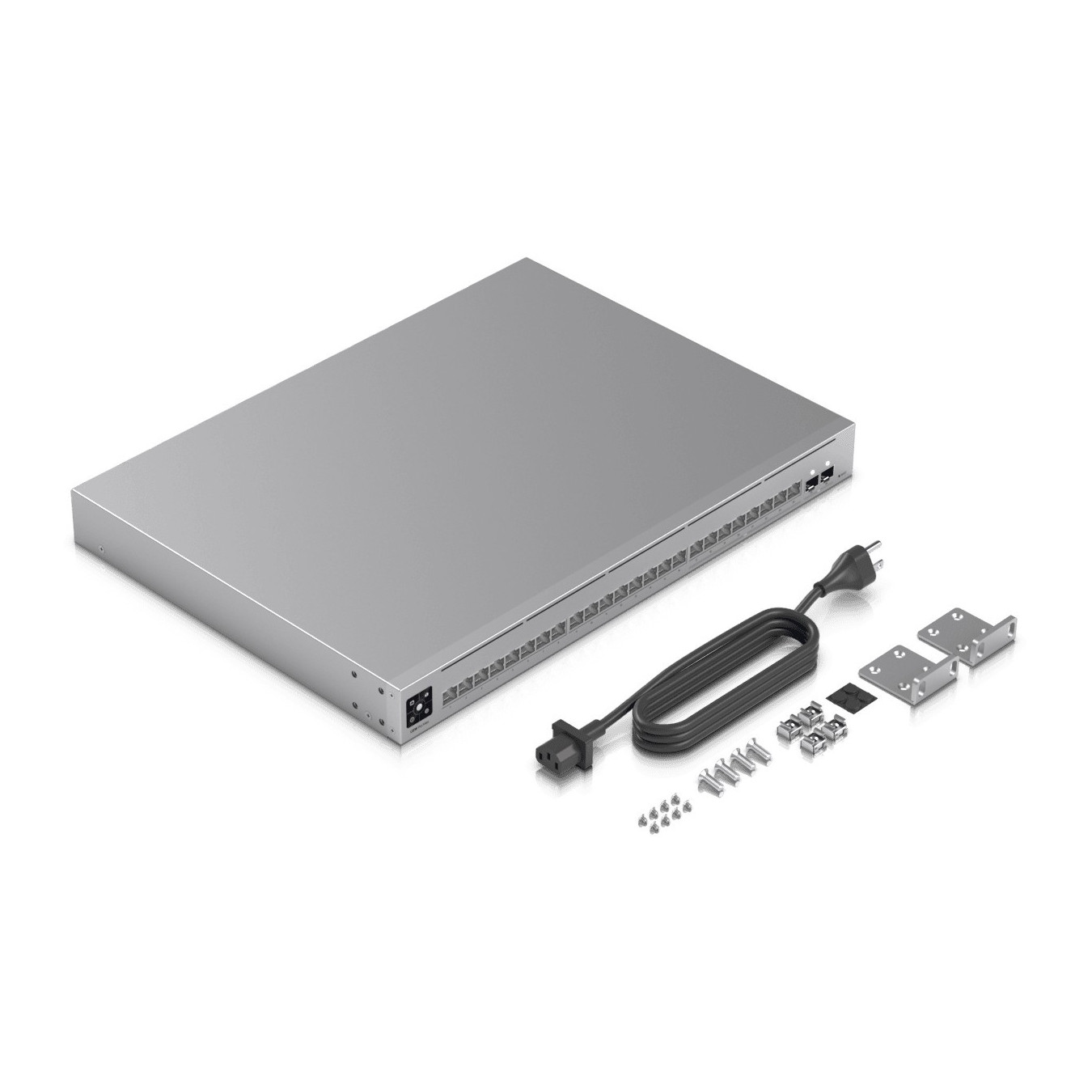

| Feature | Rack mount kit |
| Virtual LAN features | Voice VLAN |
| Switching capacity | 112 Gbit/s |
| Throughput | 56 Gbit/s |
| DHCP features | DHCP relay. DHCP snooping |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| LED indicators | Link. Network. Speed. Status |
| Display type | LCM |
| Power source | AC/DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 50 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 4.3 kg |
| Cables included | Power |
| Sustainability certificates | CE. Federal Communications Commission (FCC) |
| Compliance certificates | CE. Federal Communications Commission (FCC). Industry Canada (IC) |
