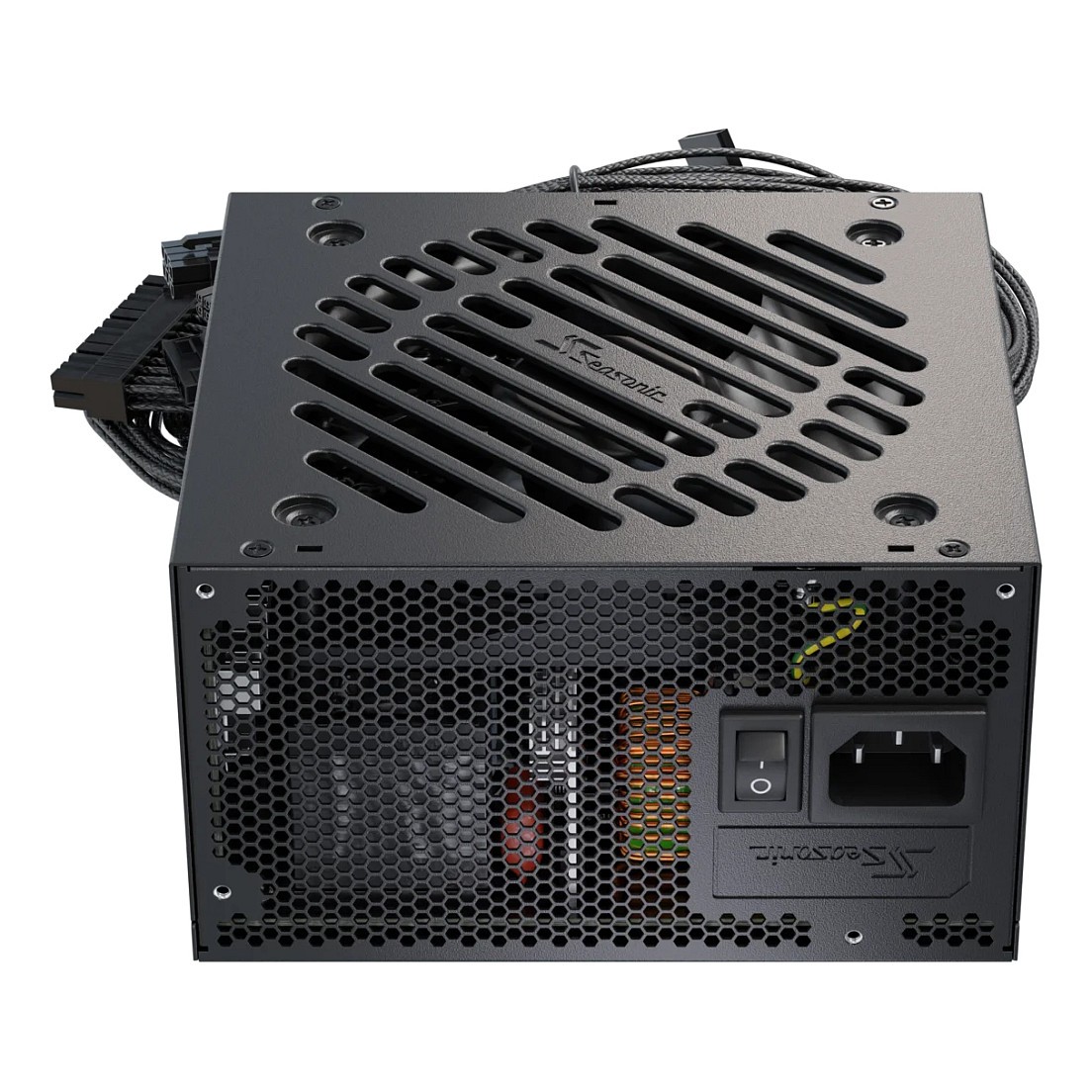

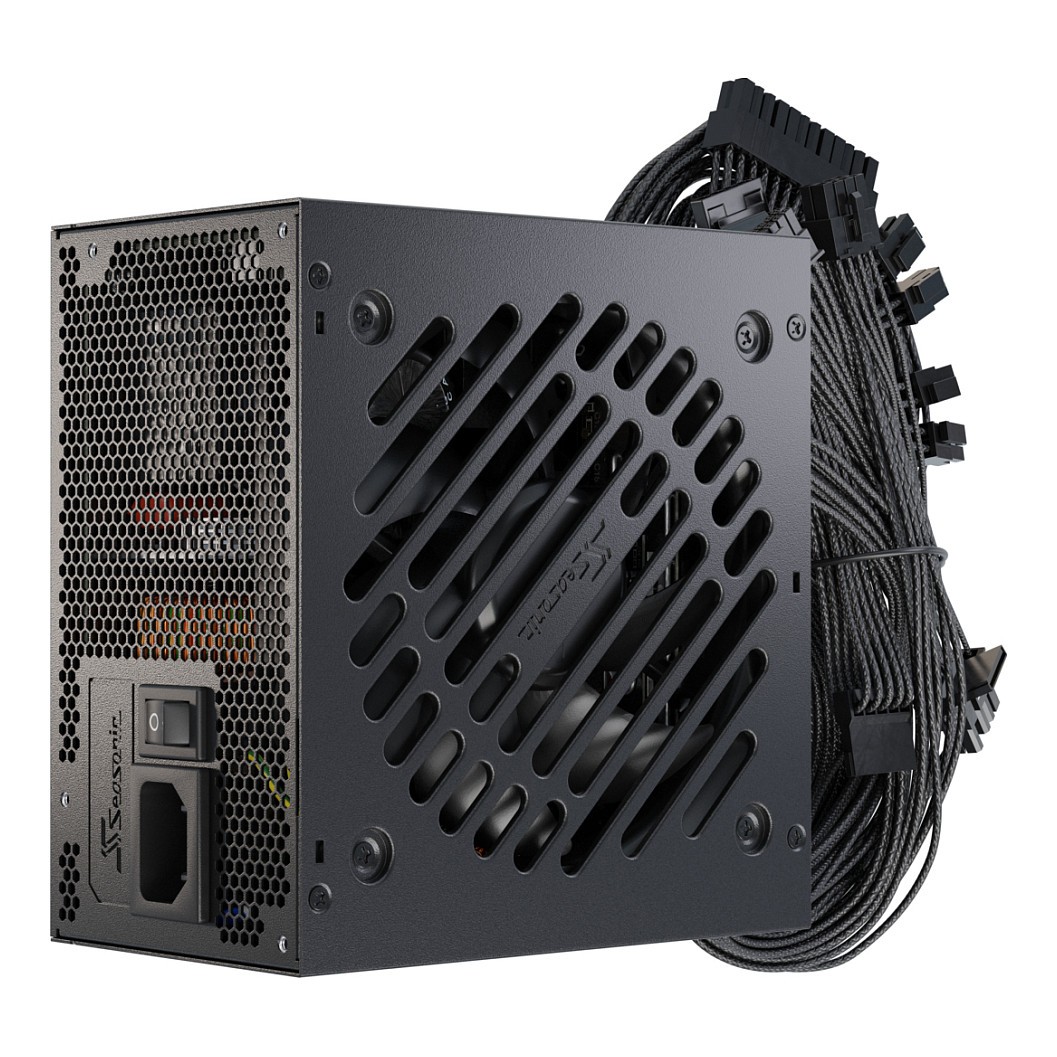

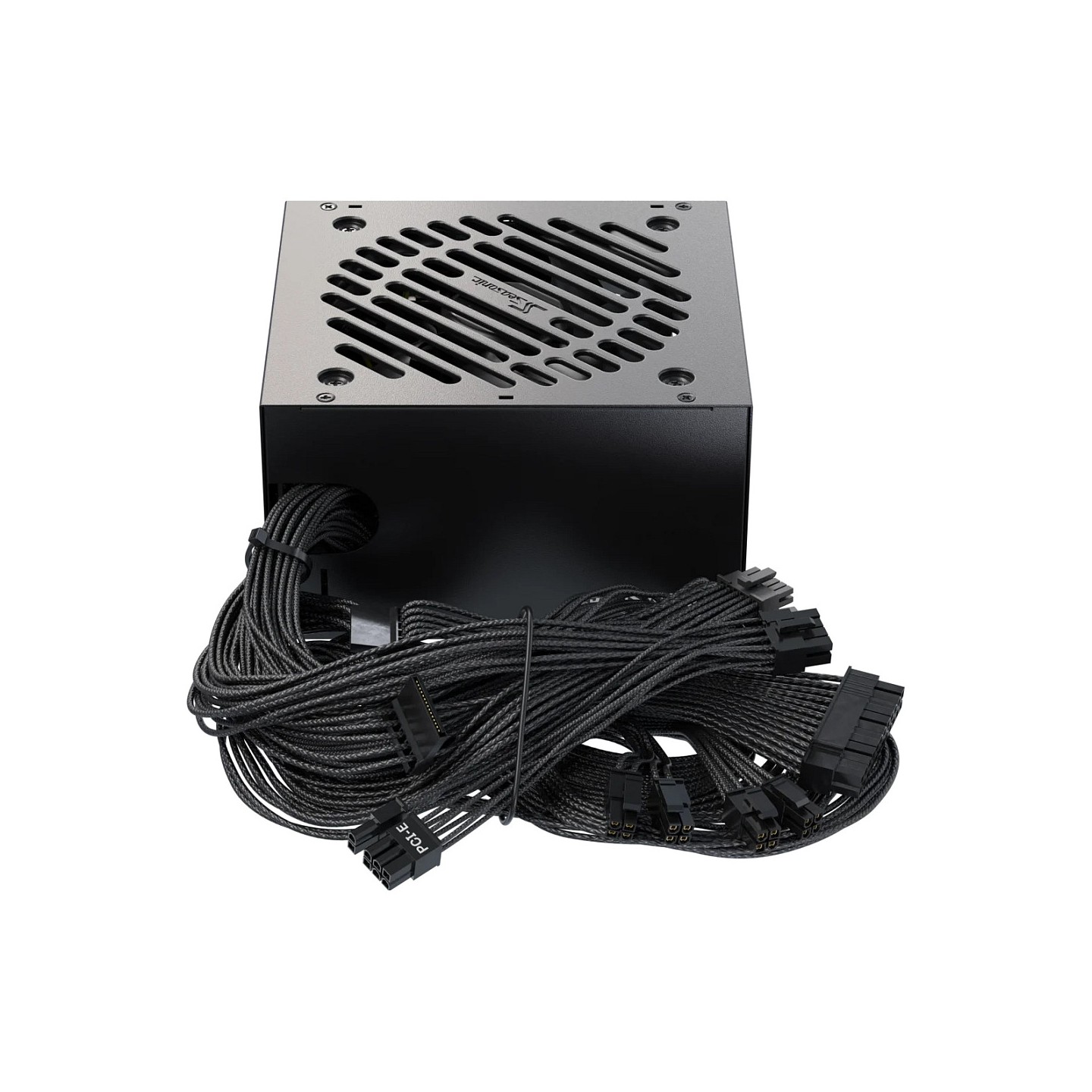

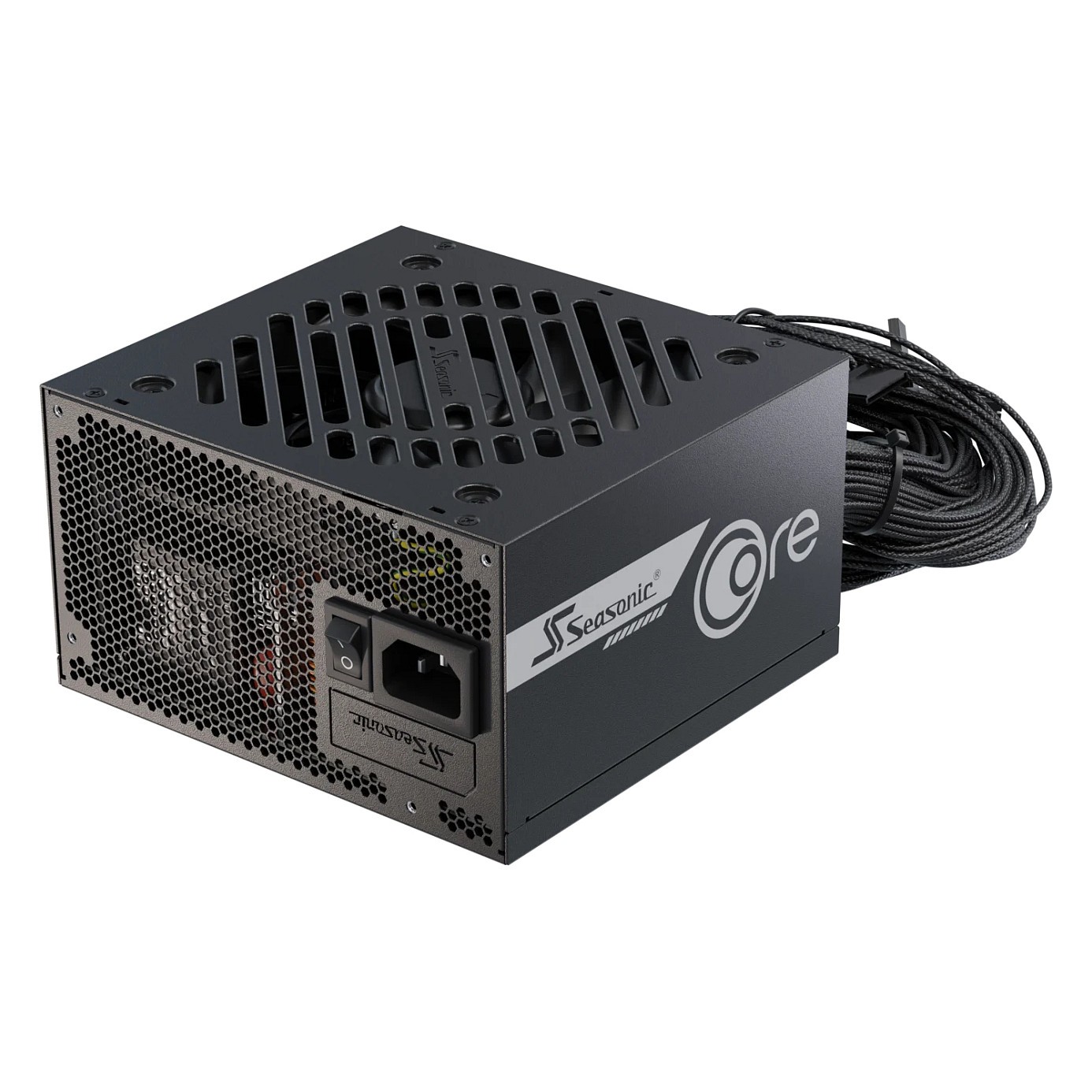

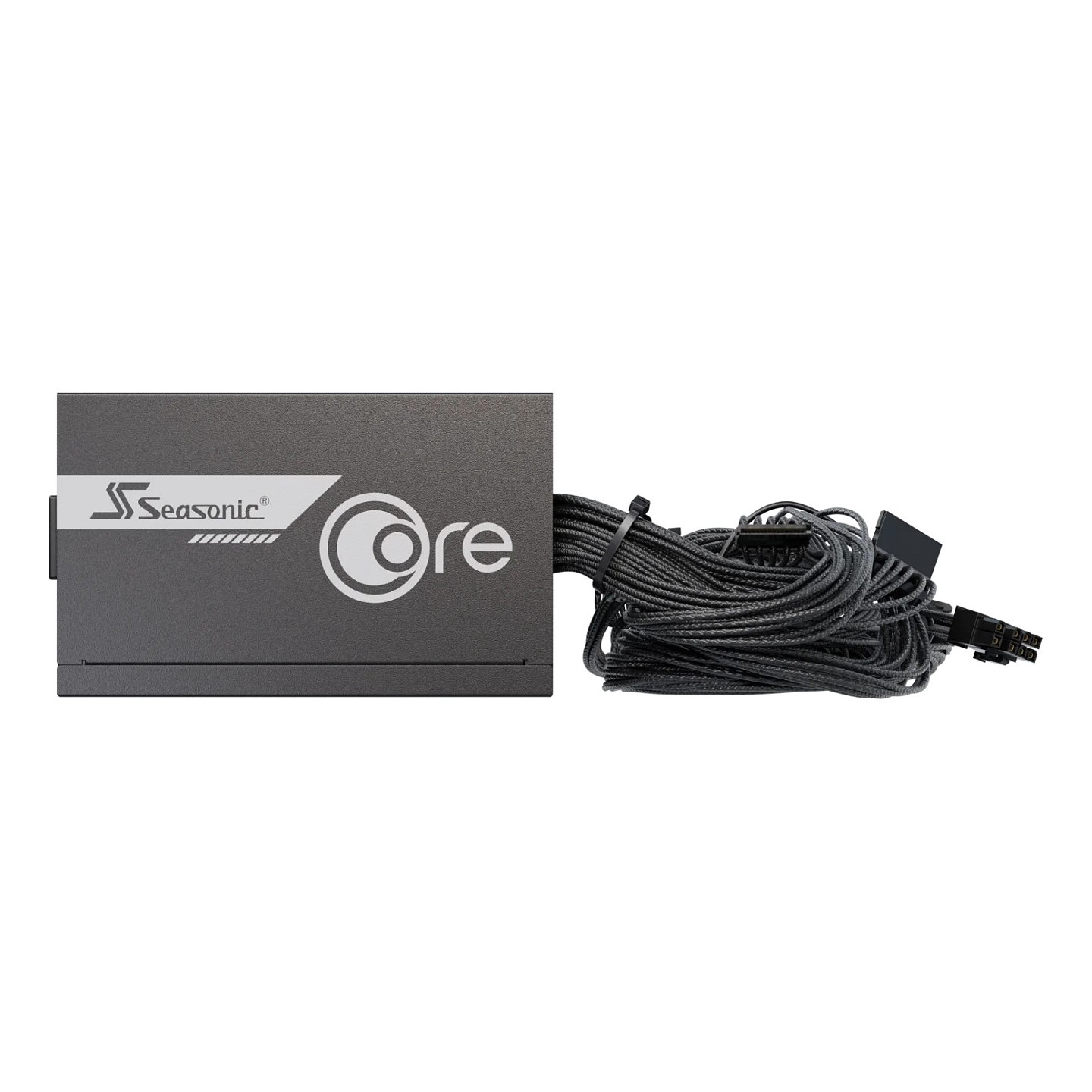

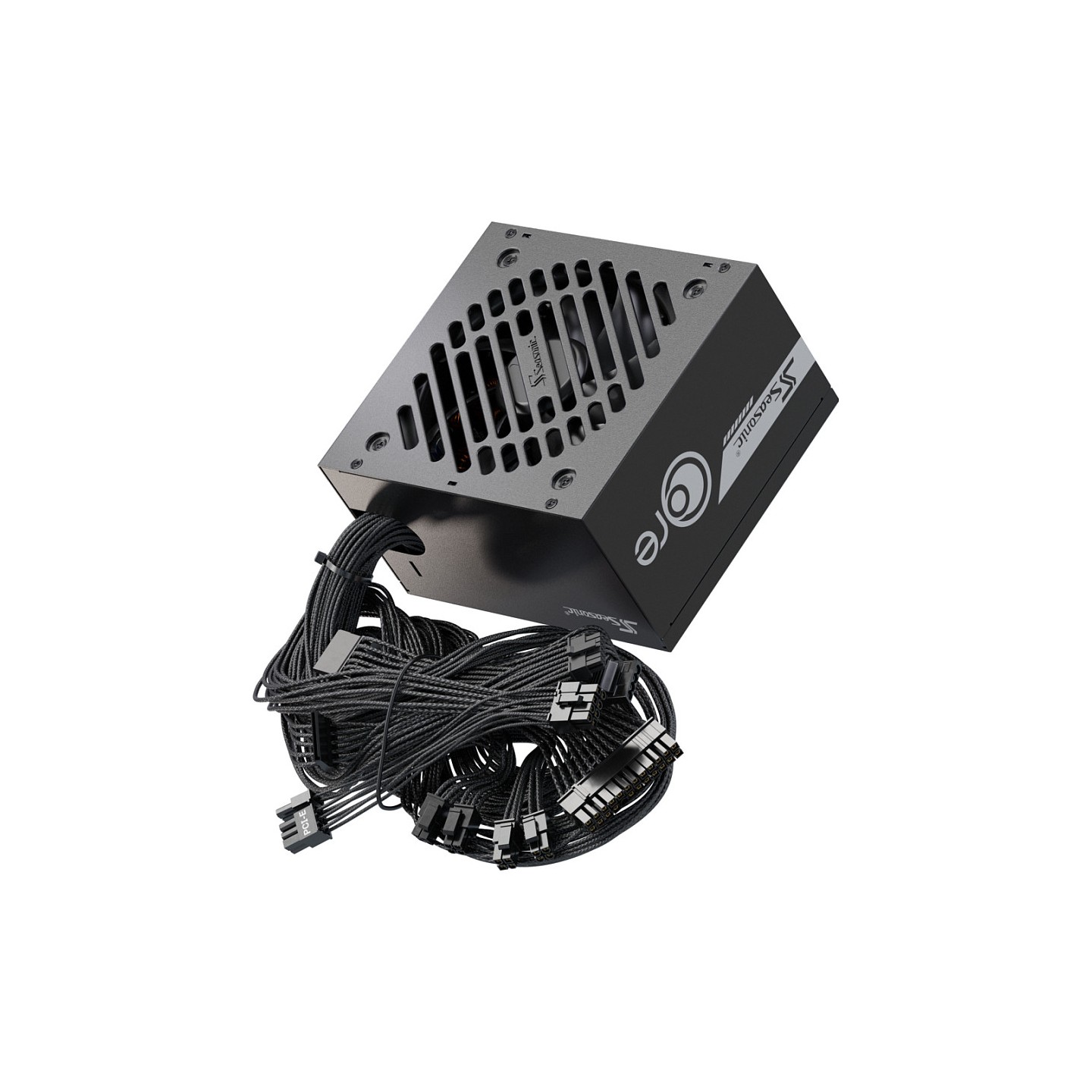

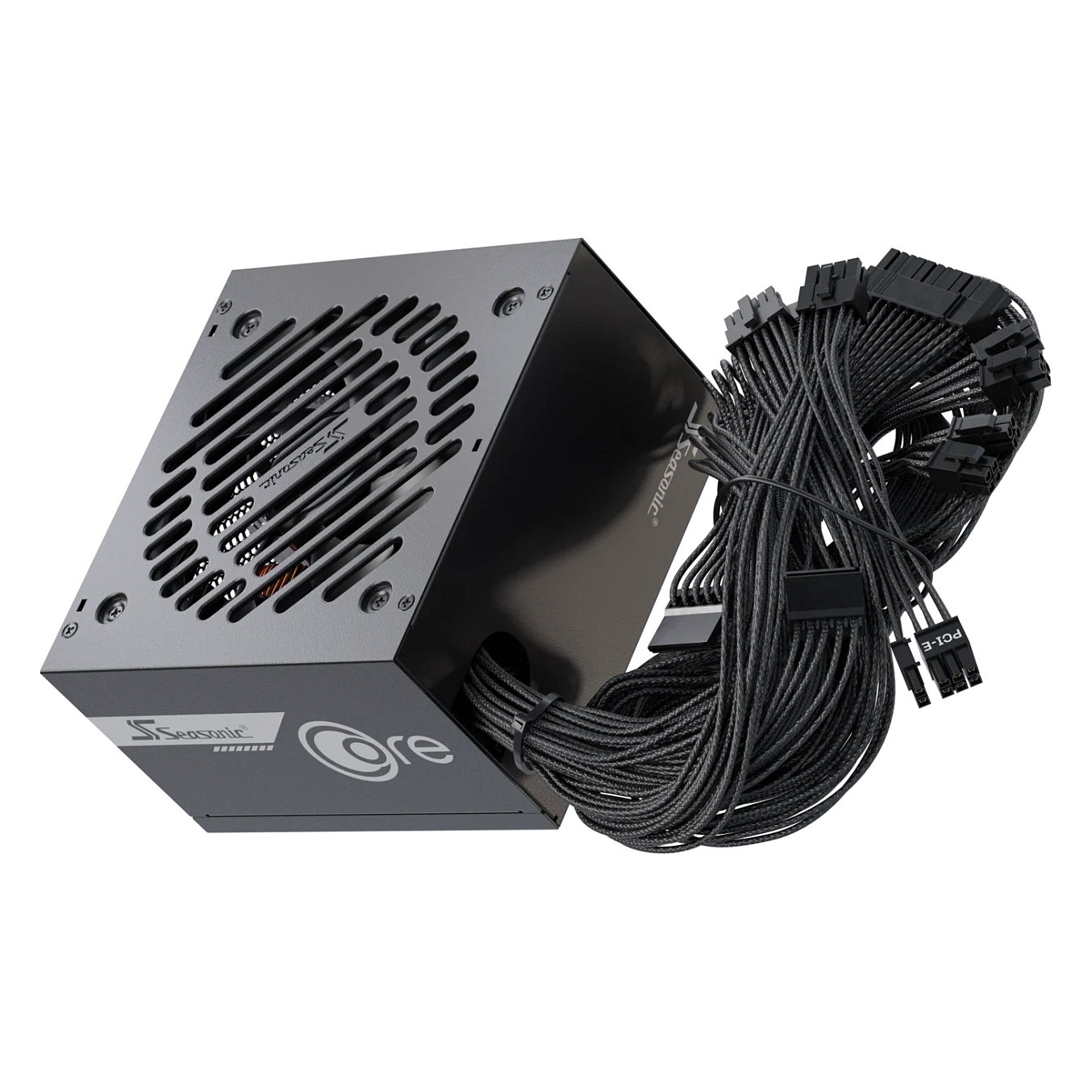

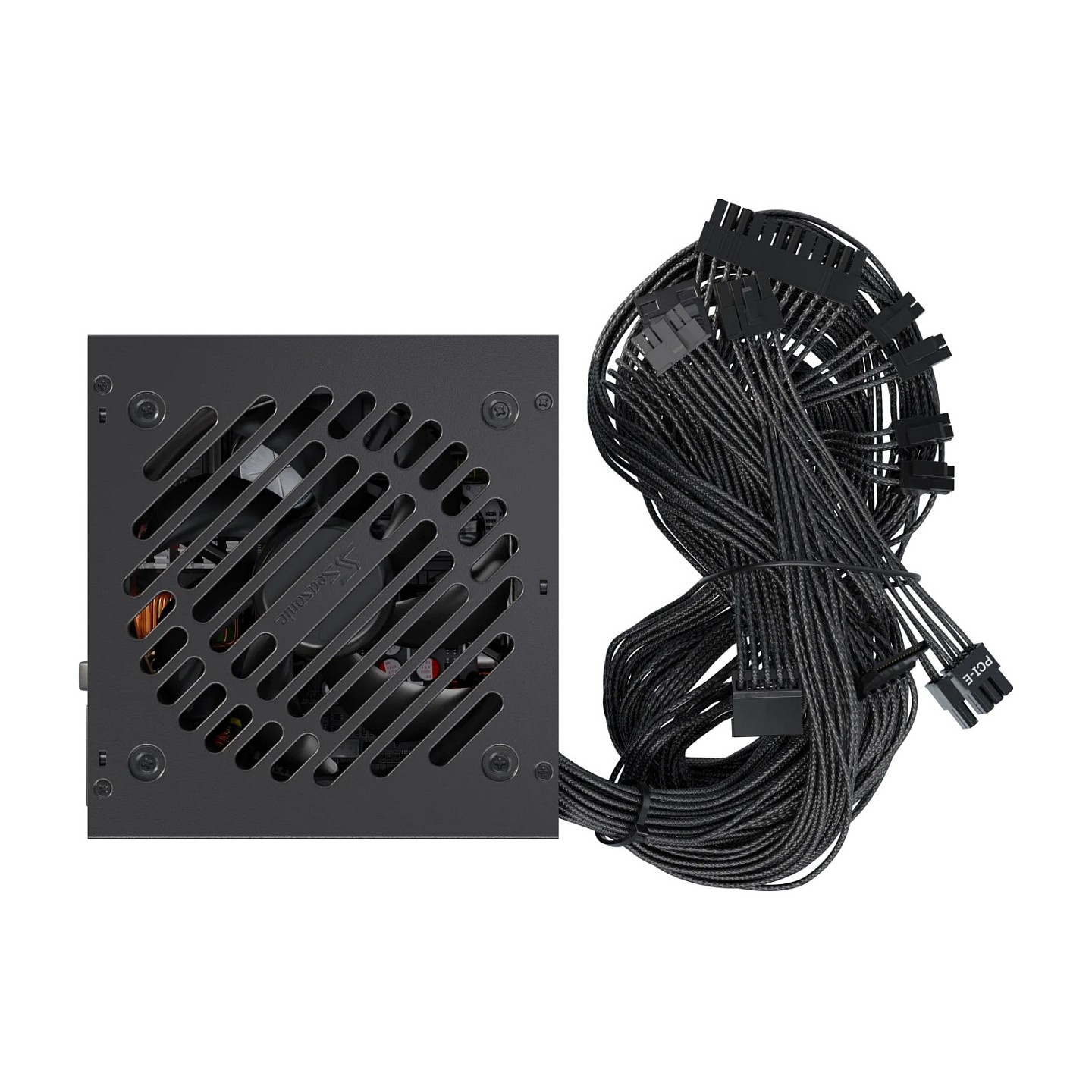

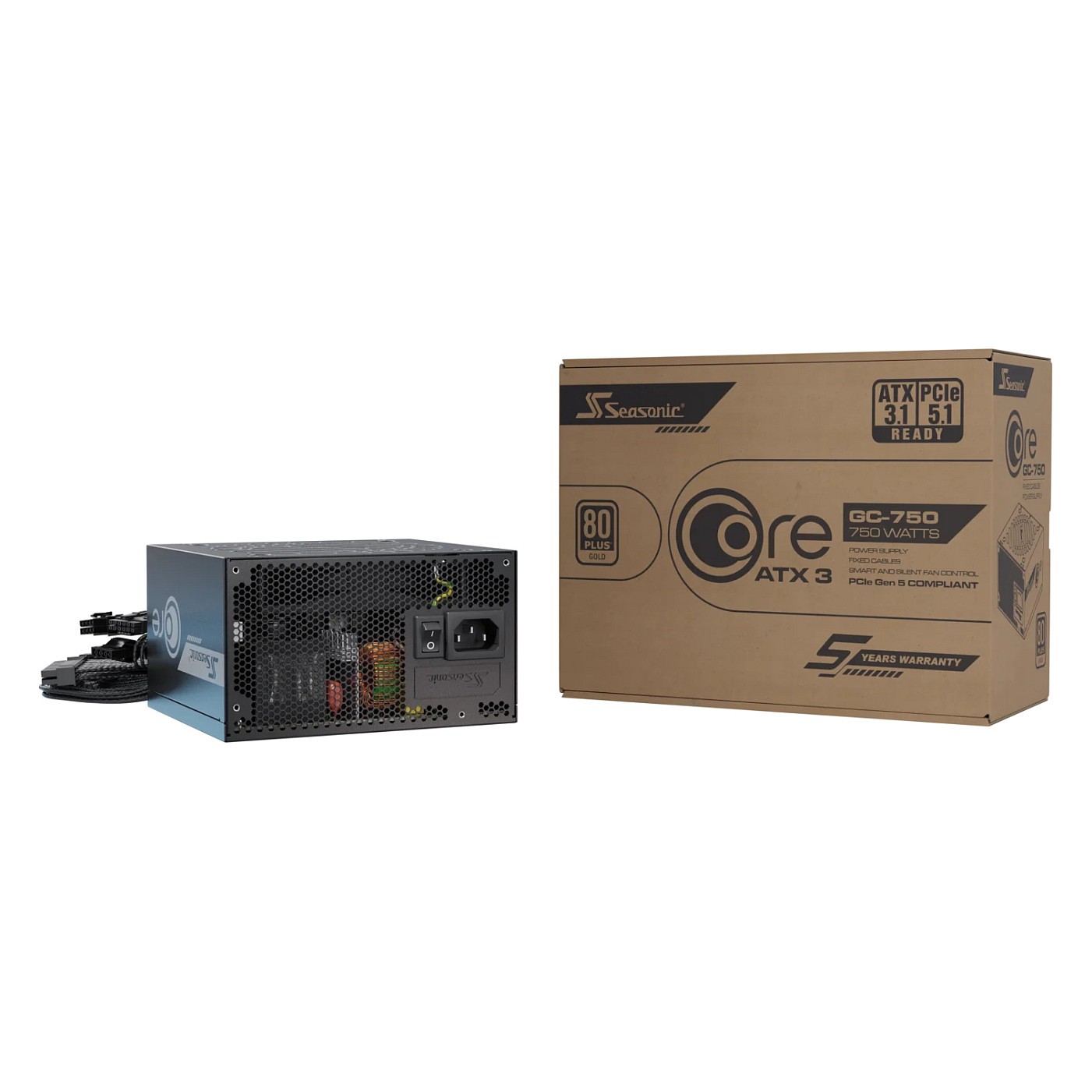

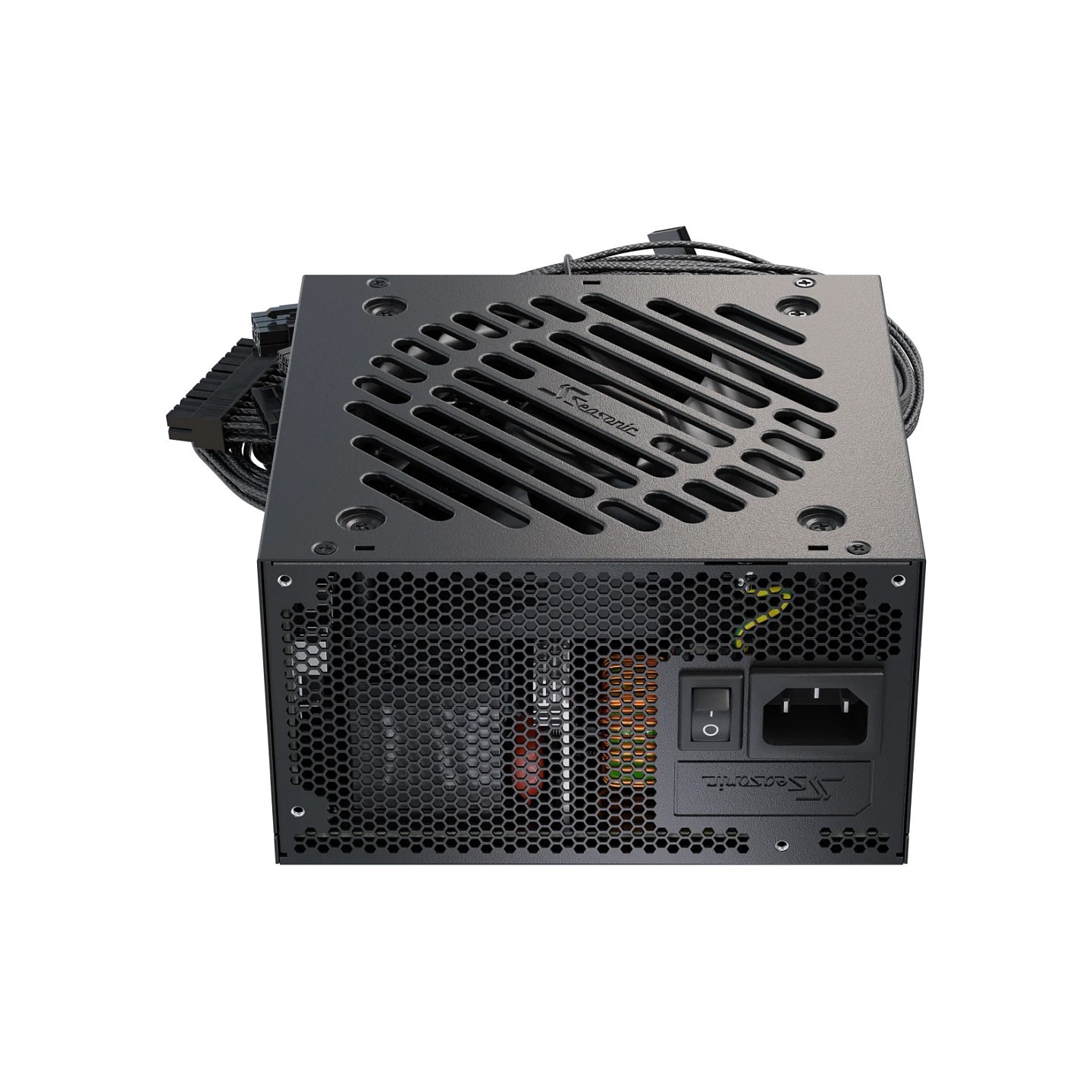

Seasonic Core GC-750 750W ATX 3.1 80+ Gold (Boxed)
Seasonic CORE GC-750 ATX 3.1 750W 80+ Gold PSU. Full modular, 140mm depth, 120mm HDB fan, PCIe 5.1 ready w/ 2x 6+2pin. OptiSink tech, protections: OCP/OVP/OPP/OTP/SCP/UVP. For modern PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |

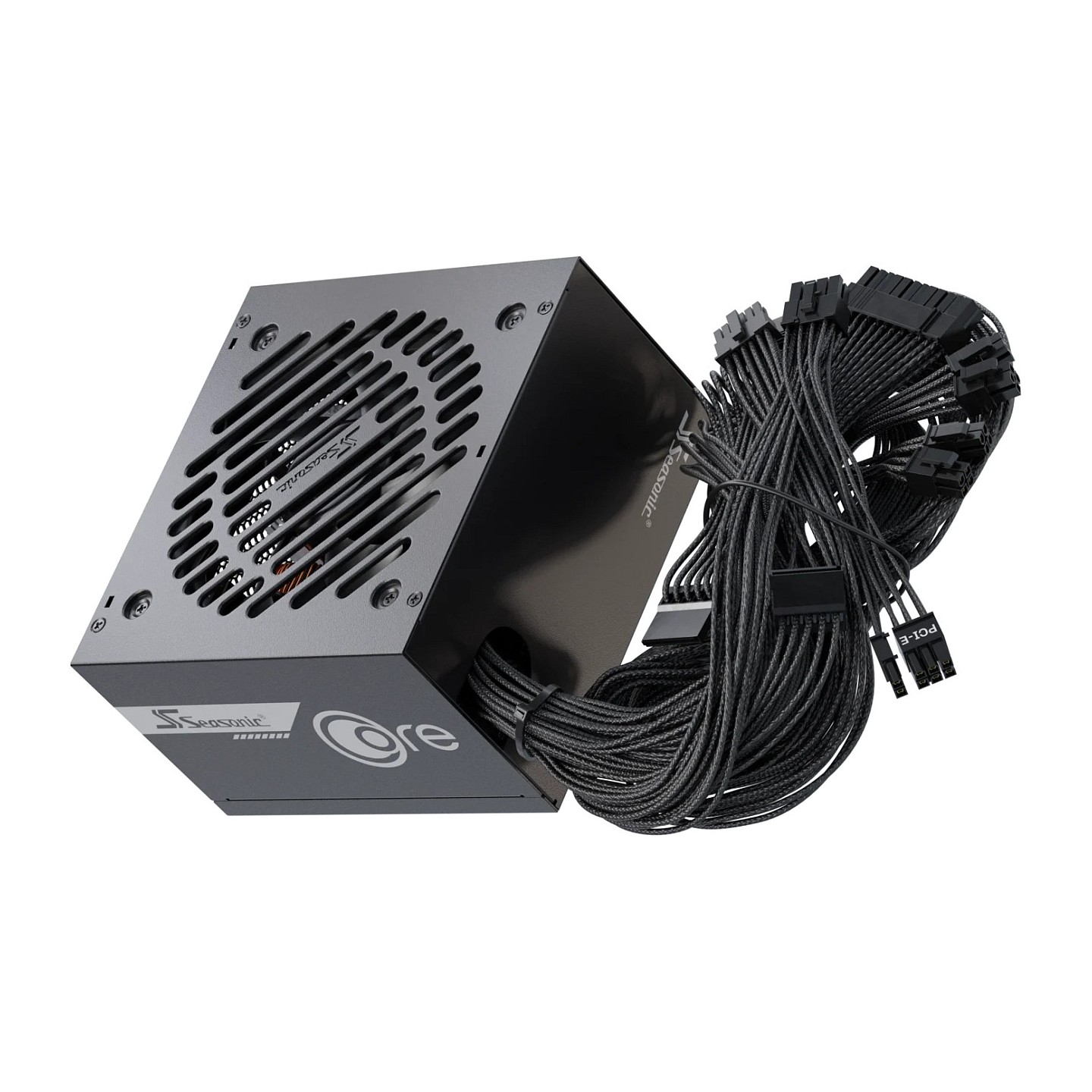

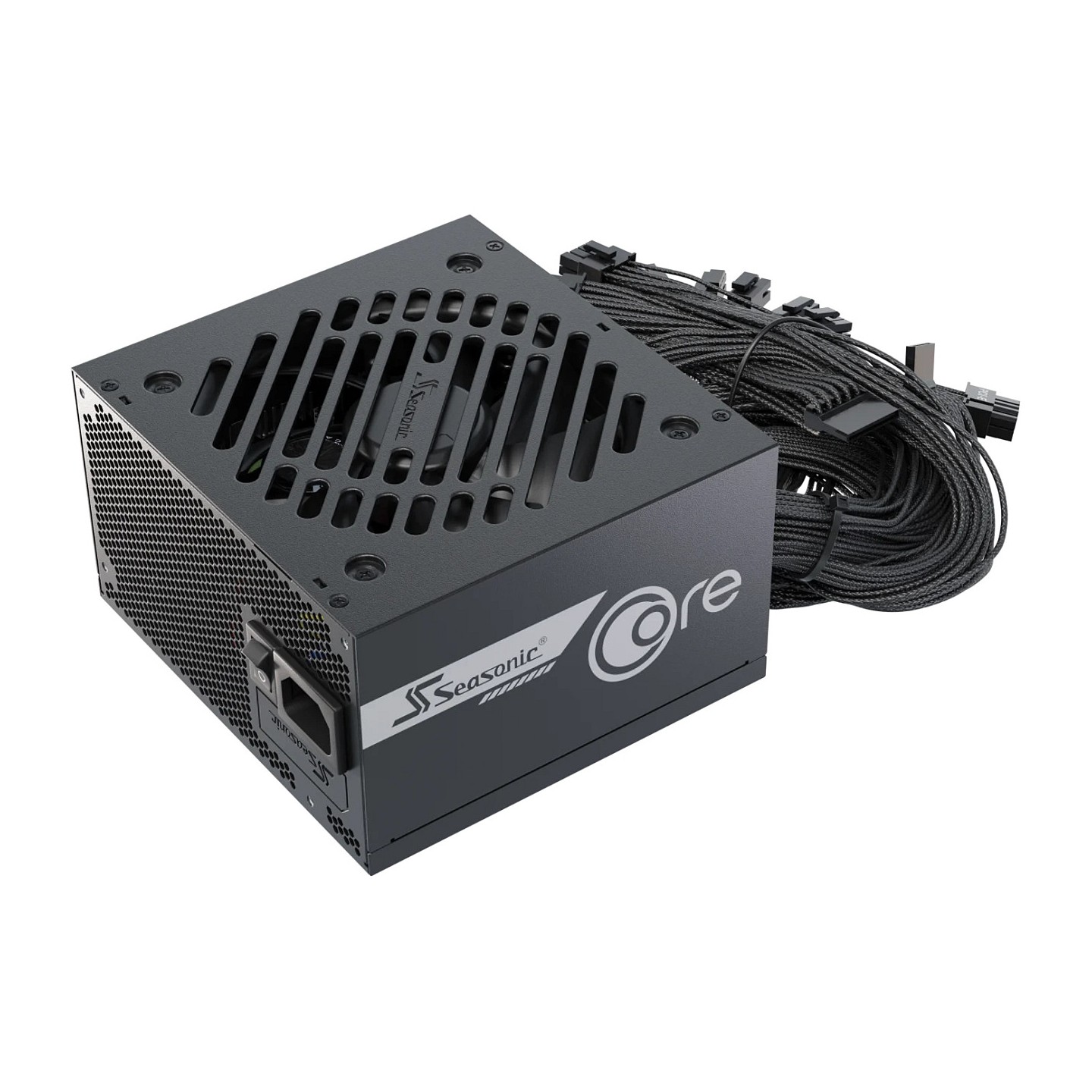

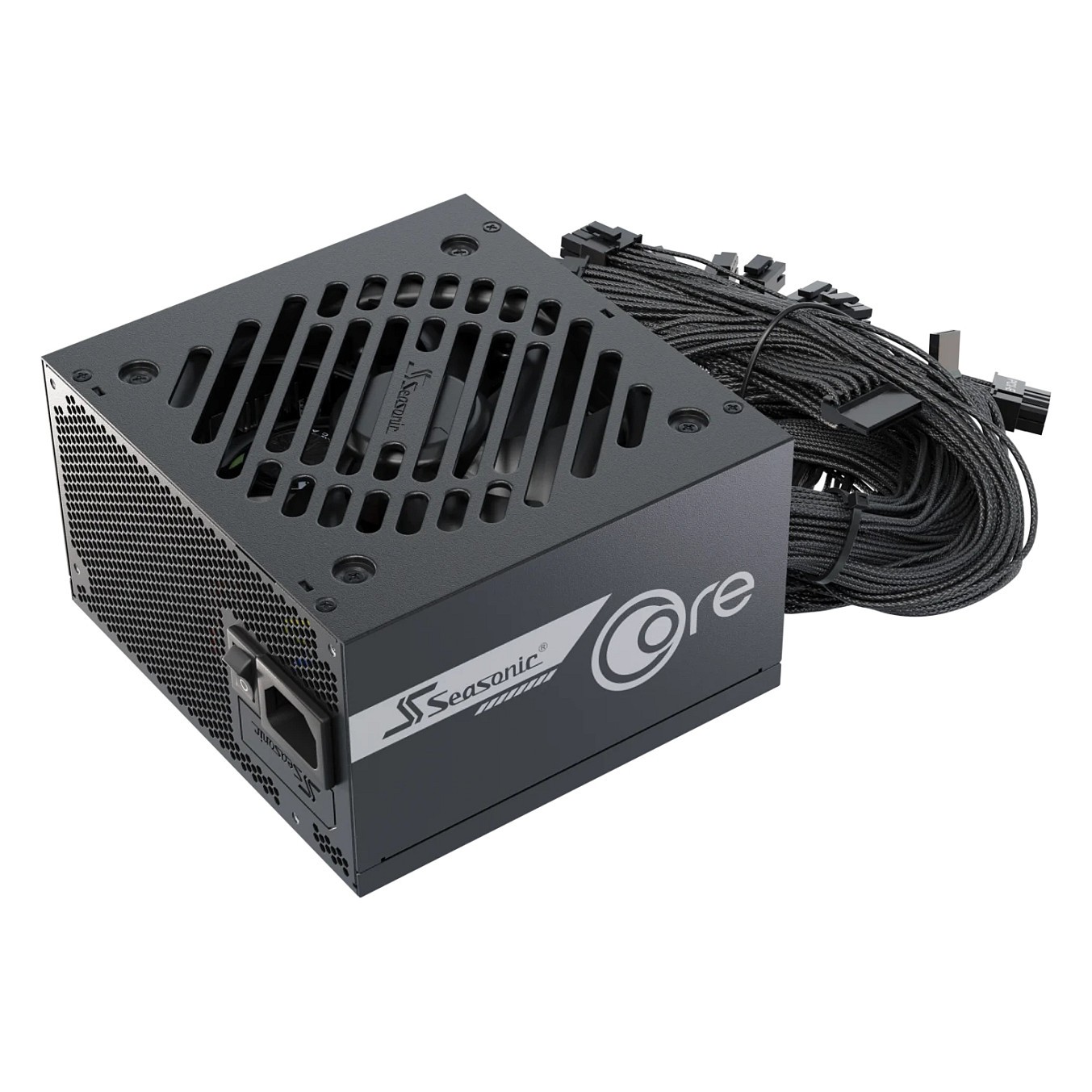

The Seasonic CORE GC-750 is a high-efficiency 750W ATX 3.1 power supply unit certified 80 PLUS Gold, delivering up to 90%+ efficiency at typical loads. Compliant with PCIe 5.1 standards, it features the innovative OptiSink design for superior thermal performance and compact 140mm depth, ideal for space-constrained builds.

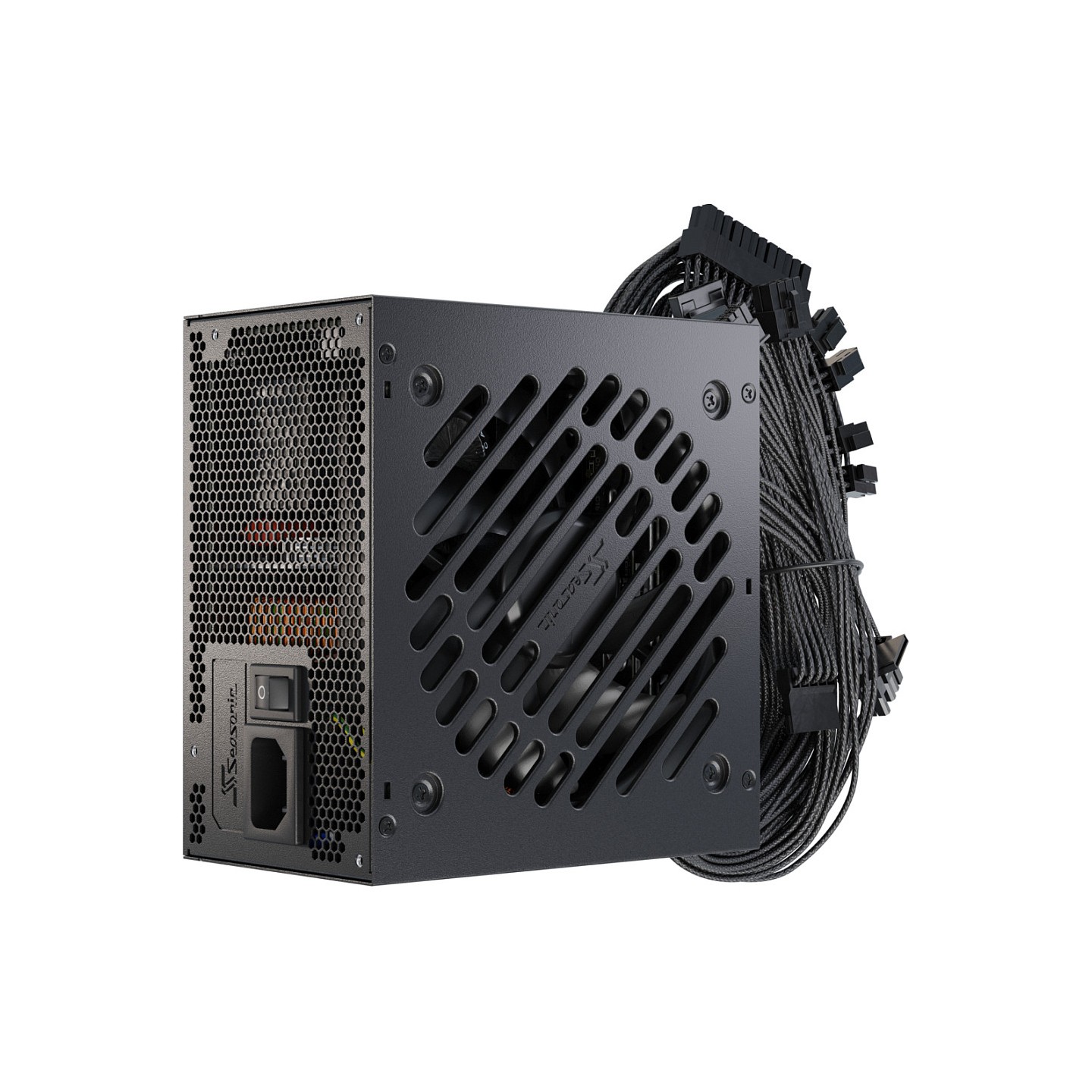

Equipped with a 120mm Hydro Dynamic Bearing (HDB) fan for quiet active cooling, full modular cabling for clean cable management, and comprehensive protections including over-current (OCP), over-power (OPP), over-temperature (OTP), short-circuit (SCP), over-voltage (OVP), and under-voltage (UVP). Supports modern GPUs with 2x PCIe 6+2 pin connectors and 1x EPS 4+4pin for CPUs.
- ATX 3.1 / PCIe 5.1 compliant - Future-proof for next-gen hardware
- 80 PLUS Gold - Energy efficient, low heat output

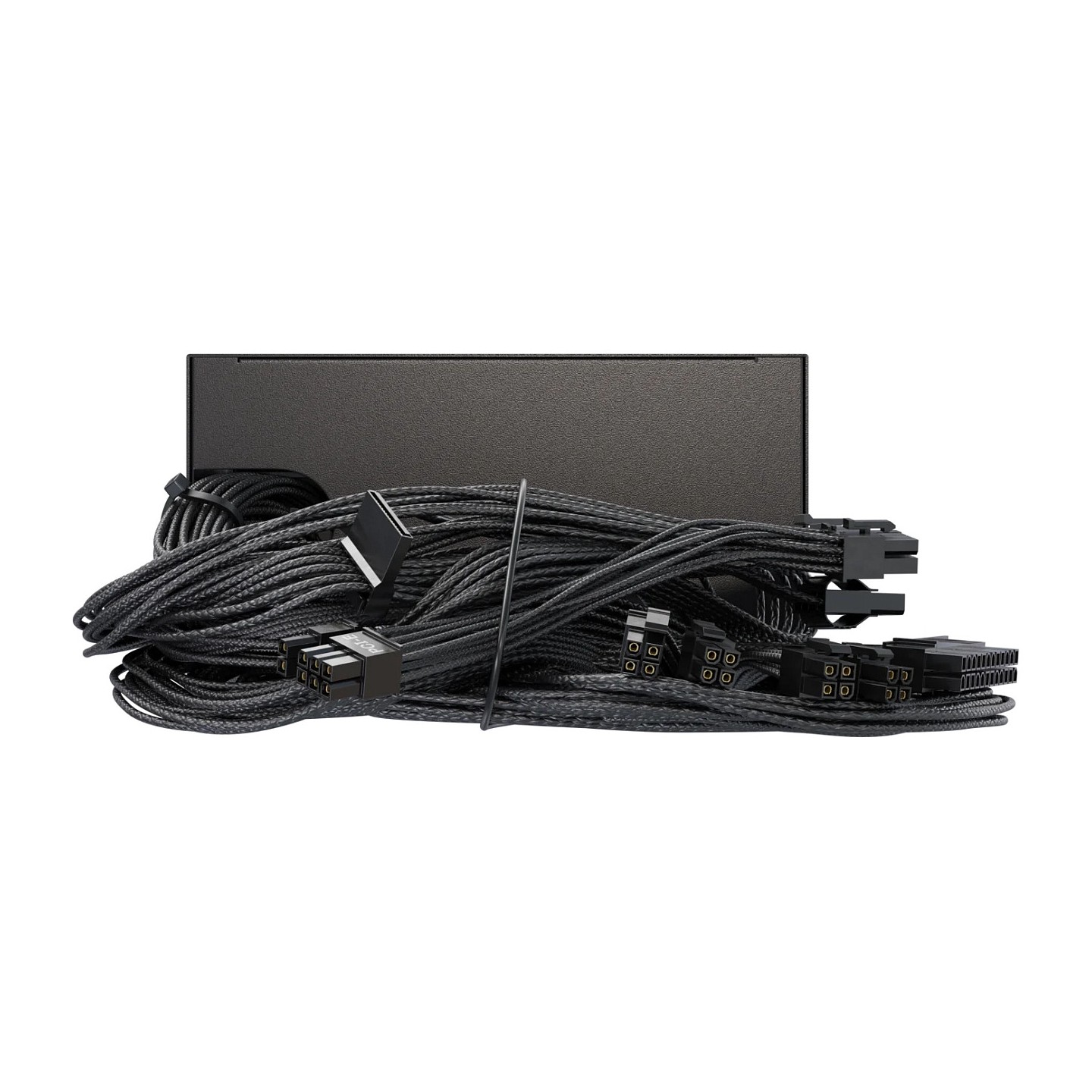

- Full modular black cables - Easy installation
- Compact 150x140x86mm - Fits most cases
- 7-year warranty (typical for series)
| Gesamtleistung | 750 W |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Eingangsstrom | 10 - 5 A |
| Kombinierter Strom (+3.3V) | 100 W |
| Kombinierter Strom (+12V) | 744 W |
| Kombinierter Strom (+5V) | 100 W |
| Kombinierter Strom (-12V) | 3.6 W |
| Kombinierter Strom (+5Vsb) | 12.5 W |
| Max. Ausgangsstrom (+3.3V) | 20 A |
| Max. Ausgangsstrom (+12V) | 62 A |
| Max Ausgangsstrom (+5V) | 20 A |
| Max. Ausgangsstrom (-12V) | 0.3 A |
| Max. Ausgangsstrom (+5Vsb) | 2.5 A |
| Energieschutzeigenschaften | Überstrom. Überlastung. Unterspannung. Überspannung. Kurzschluß. Überhitzung. OCP. OPP. OTP. SCP. OVP. UVP |
| Manufacturer Part Number | SRP-CGX751-A5A32SF |
| Kabeltyp | Full Modular |
| 80 Plus Zertifizierung | 80 PLUS Gold |
| Zweck | PC |
| Stromversorgungseinheit (PSU) Formfaktor | ATX |
| ATX-Version | 3.1 |
| Lagertyp | Hydro Dynamic Bearing (HDB) |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 100000 h |
| Produktfarbe | Schwarz |
| Kühlung | Aktiv |
| Lüfterdurchmesser | 12 cm |
| Anzahl Lüfter | 1 Lüfter |
| Breite | 150 mm |
| Tiefe | 140 mm |
| Höhe | 86 mm |
| PCI Express Anschlüsse | 2x 6+2 pin |
| EPS CPU Anschlüsse | 1x 4+4 pin |
| OptiSink Design | Yes |
