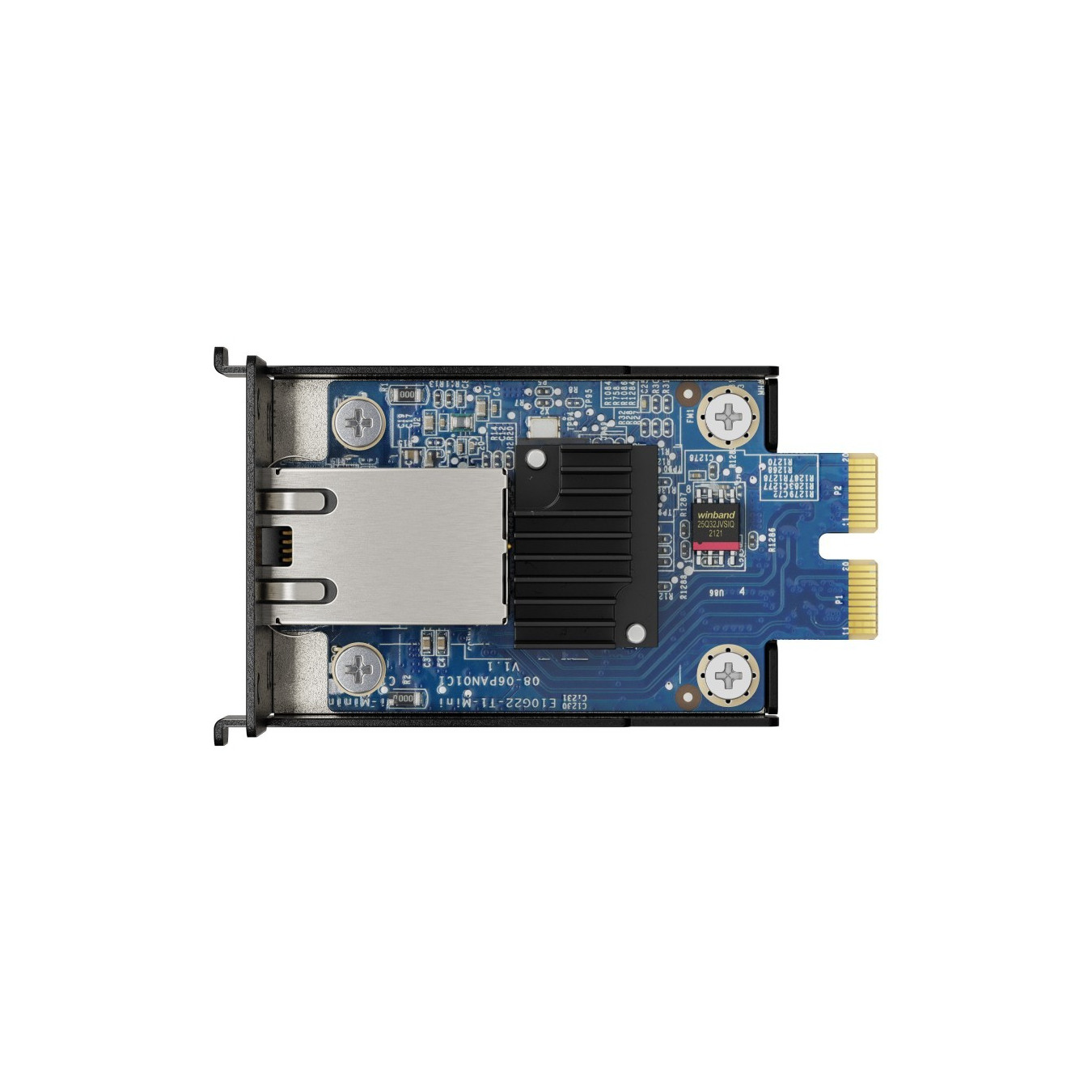

Synology E10G22-T1-Mini - 10GbE PCIe 3.0 x2 Network Adapter - Blue, 1x RJ45
Internal Synology PCIe network card E10G22-T1-Mini: 10GbE (10GBase-T) with fallbacks to 5/2.5/1/100 Mbps, PCIe 3.0 x2, 1x RJ45, for NAS and servers.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PCIe Network Cards - Port Speed | 10GbE |
|---|---|
| PCIe Network Cards - Ports | 1xRJ45 |
| PCIe Network Cards - PCIe Version | 3.0 |
Synology E10G22-T1-Mini. Internal. Connectivity technology: Wired. Host interface: PCI Express. Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Blue
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3ab. IEEE 802.3an. IEEE 802.3bz. IEEE 802.3u. IEEE 802.3x |
| Feature | Internal |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 100.1000.2500.5000.10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Jumbo frames | 9000 |
| Component for | NAS/storage server |
| Product colour | Blue |
| Compatible products | Synology RS422+. DS1522+ |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 45.4 mm |
| Depth | 75.7 mm |
| Height | 26.4 mm |
| Interface type | PCIe 3.0 x2 |
