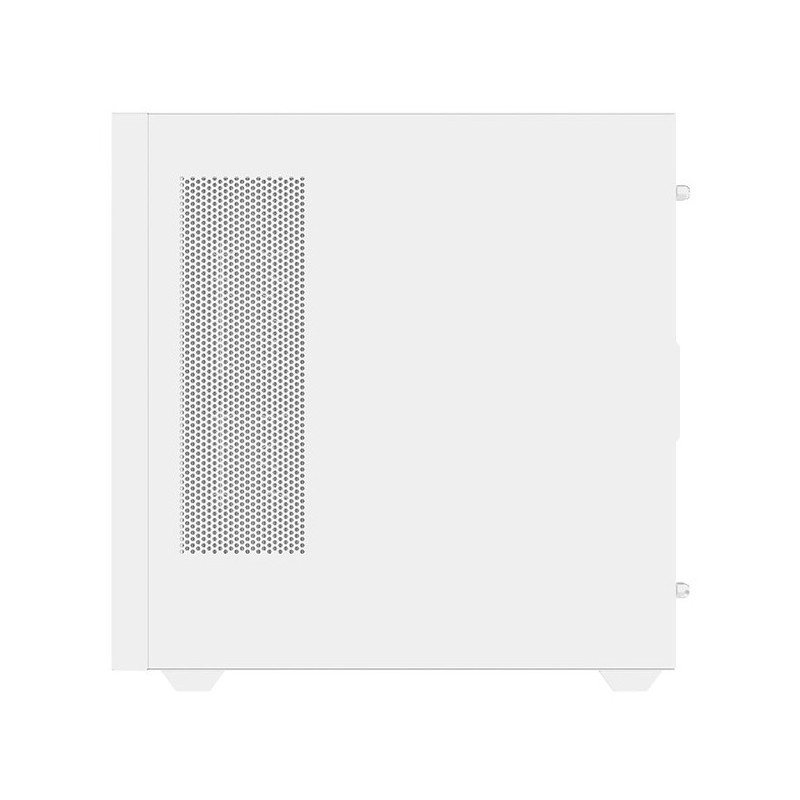

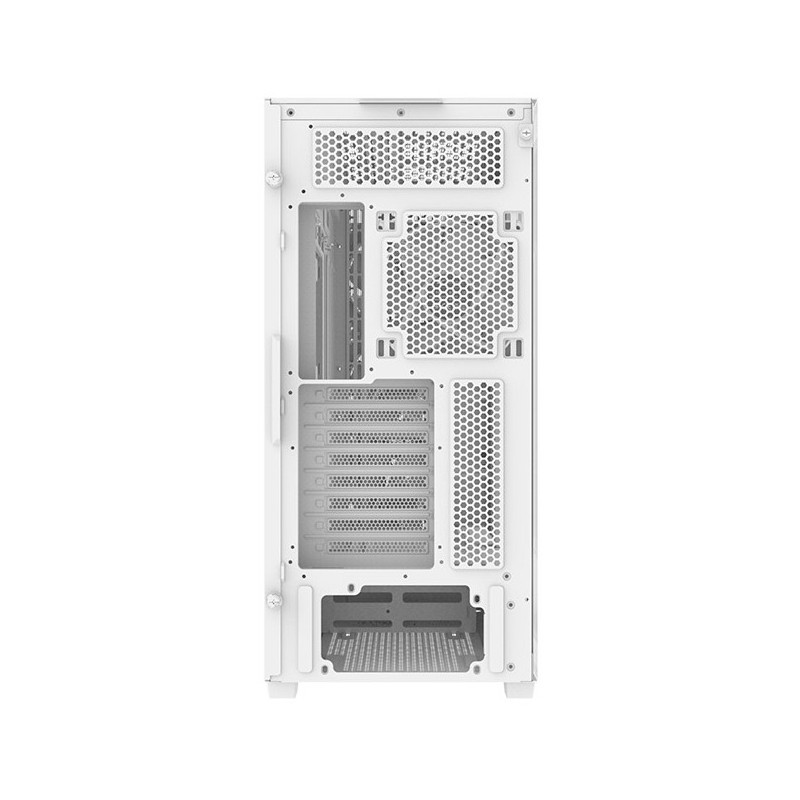

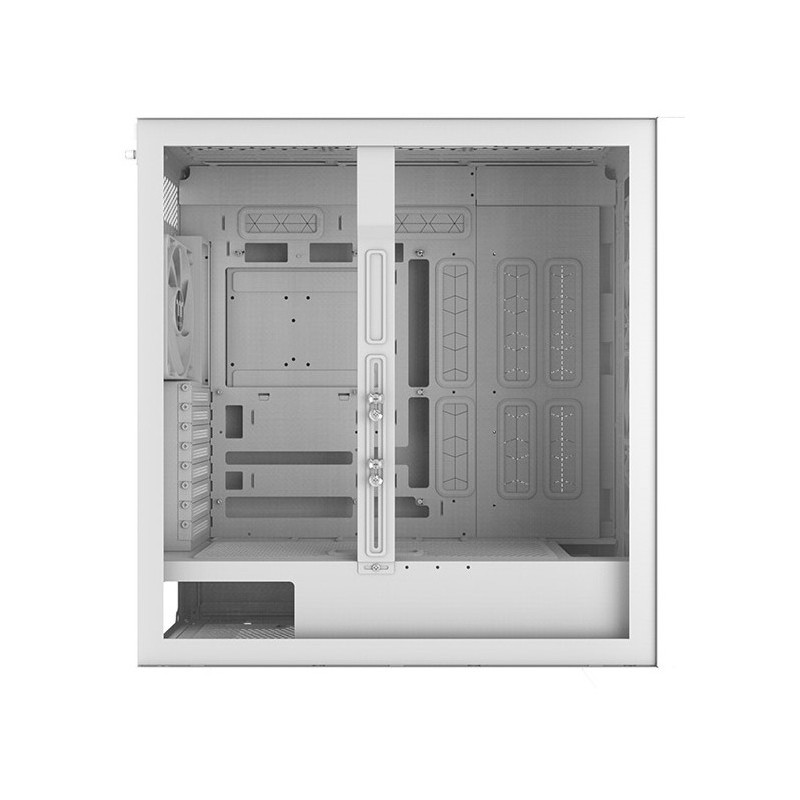

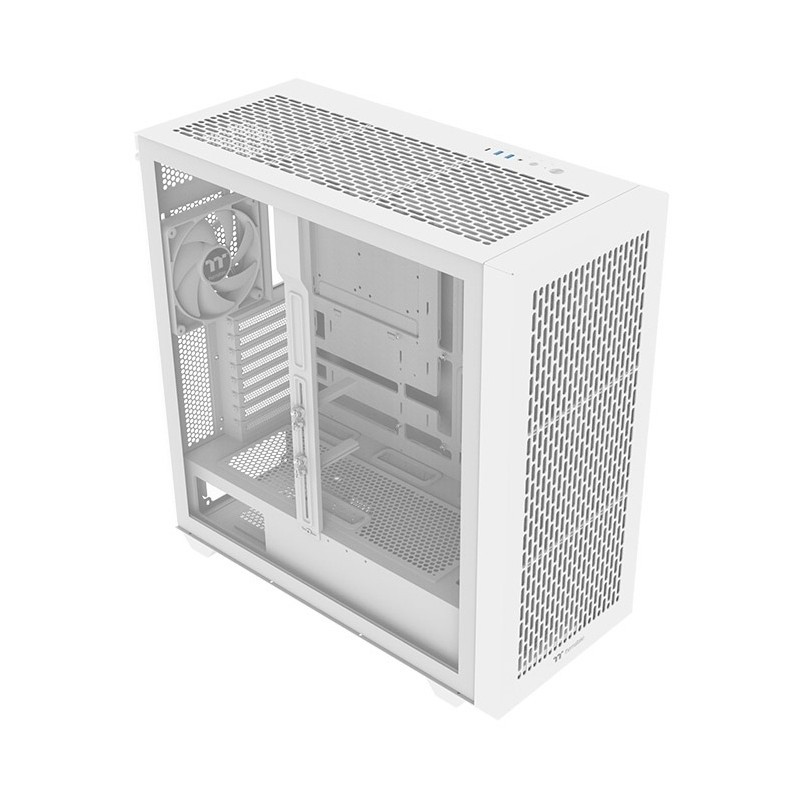

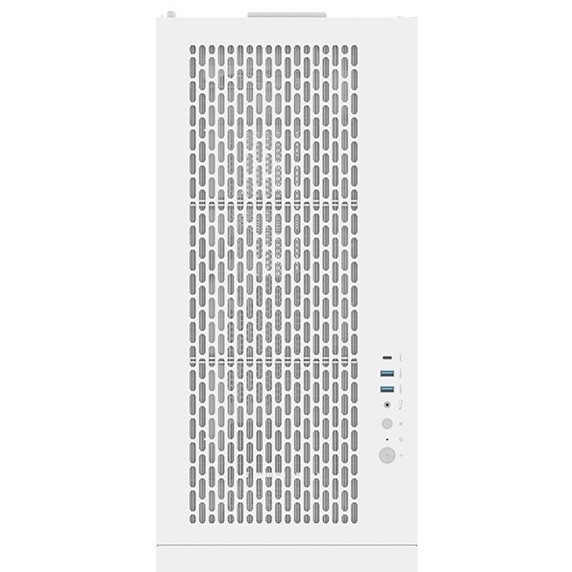

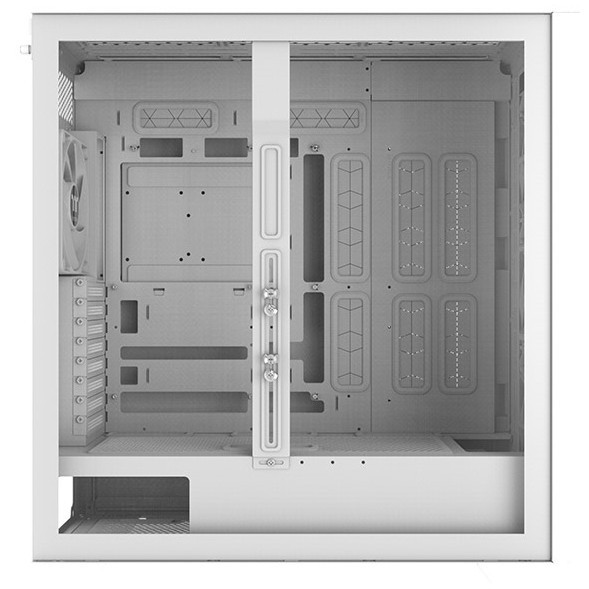

Thermaltake AX500 Full Tower PC Case - Snow White, Tempered Glass, SPCC Steel, E-ATX Compatible
Full-tower Thermaltake AX500 (Snow White) — E-ATX/ATX/micro-ATX/Mini-ITX support, includes 4x140mm front fans, 5x3.5in & 1x2.5in bays, 18.5cm CPU cooler clearance, 46cm GPU length.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PC Cases - Type | Full Tower |
|---|---|
| PC Cases - Motherboard Support | E-ATX |
| PC Cases - Max GPU Length | greater than380 mm |
| PC Cases - CPU Cooler Clearance | greater than170 mm |
| PC Cases - Included Fans | 4+ |
| PC Cases - Front I/O | 2xUSB-A + USB-C |
| PC Cases - GPU Orientation | Horizontal |
Thermaltake AX500. Form factor: Full Tower. Type: PC. Product colour: White. Front fans installed: 4 x 140 mm. Front fans diameters supported: 120.140 mm. Side fans diameters supported: 120.140 mm. Supported HDD sizes: 2.5.3.5". Width: 550 mm. Depth: 248 mm. Height: 548 mm
| Material | SPCC. Steel. Tempered glass |
| Form factor | Full Tower |
| Type | PC |
| Product colour | White |
| Supported motherboard form factors | ATX. EATX. micro ATX. Mini-ITX. SSI CEB. SSI EEB |
| Number of 3.5" bays | 5 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 8 |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 46 cm |
| Maximum PSU length | 20 cm |
| Feature | Audio output |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Front fans installed | 4 x 140 mm |
| Number of front fans supported (max) | 4 |
| Front fans diameters supported | 120.140 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120.140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120.140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120.140 mm |
| Fan speed | 0 - 1500 RPM |
| Front radiator sizes supported | 120.140.240.280.360.420 mm |
| Rear radiator sizes supported | 120.140 mm |
| Top radiator sizes supported | 120.140.240.280.360.420 mm |
| Supported HDD sizes | 2.5.3.5" |
| Width | 550 mm |
| Depth | 248 mm |
| Height | 548 mm |
| Material thickness | 4 mm |
