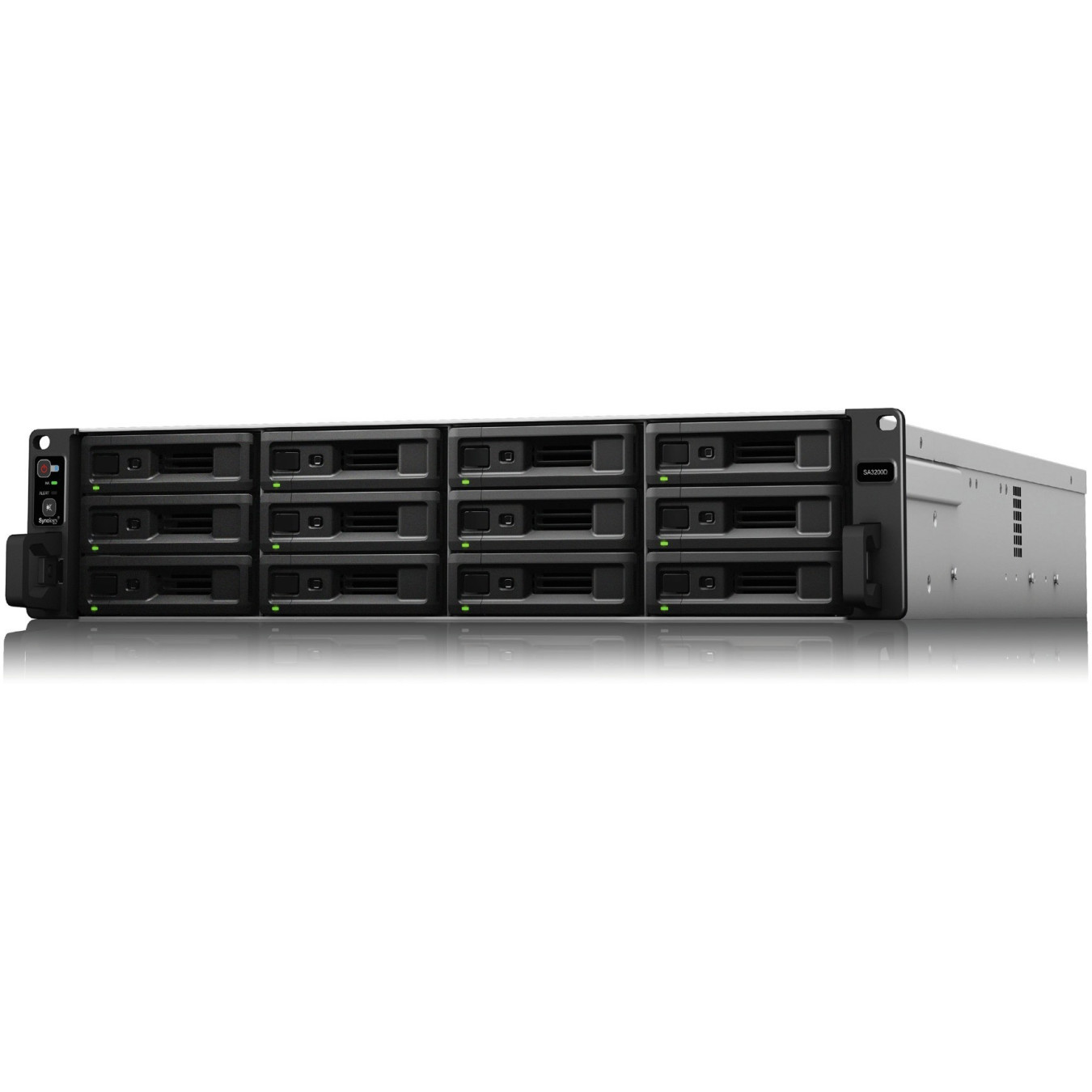

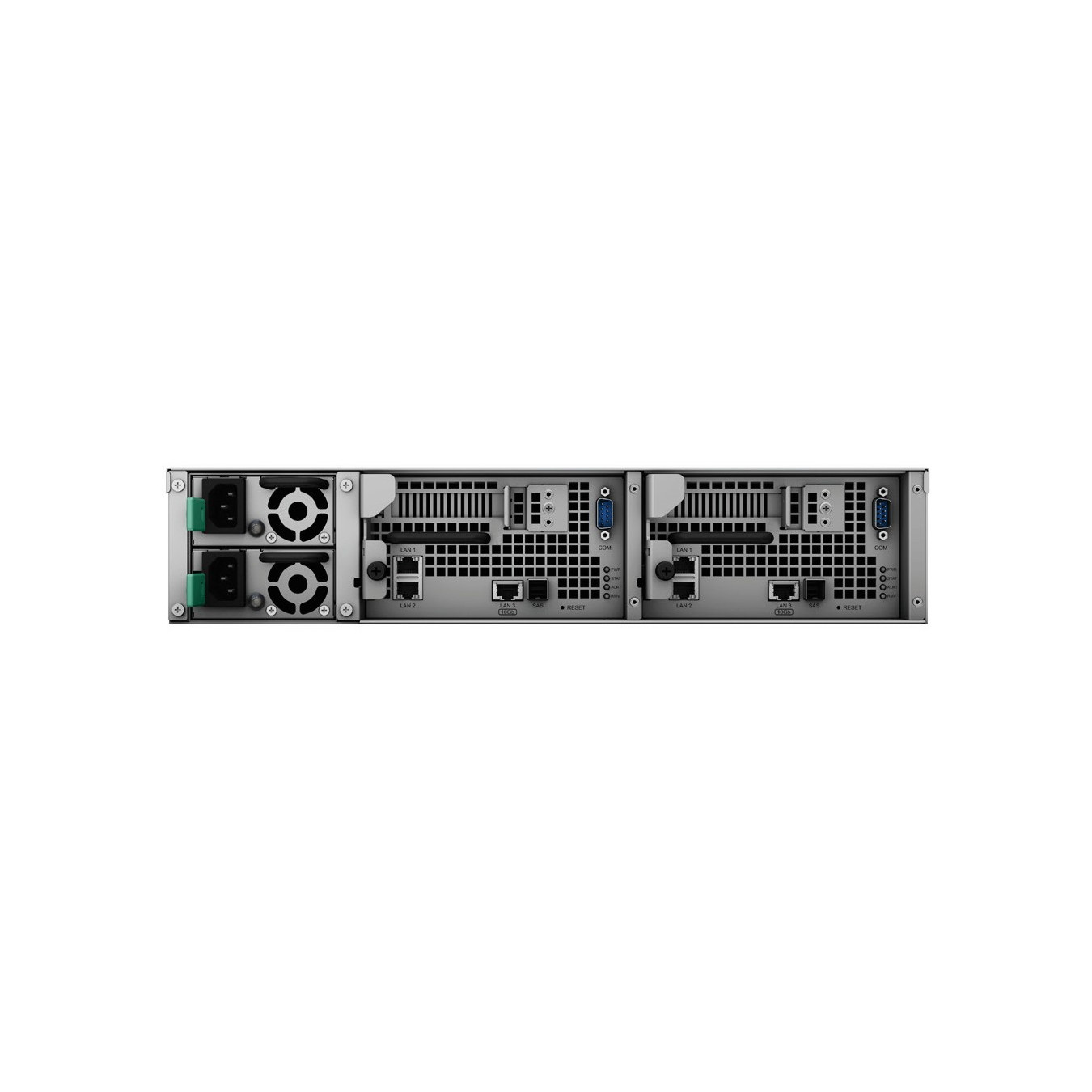

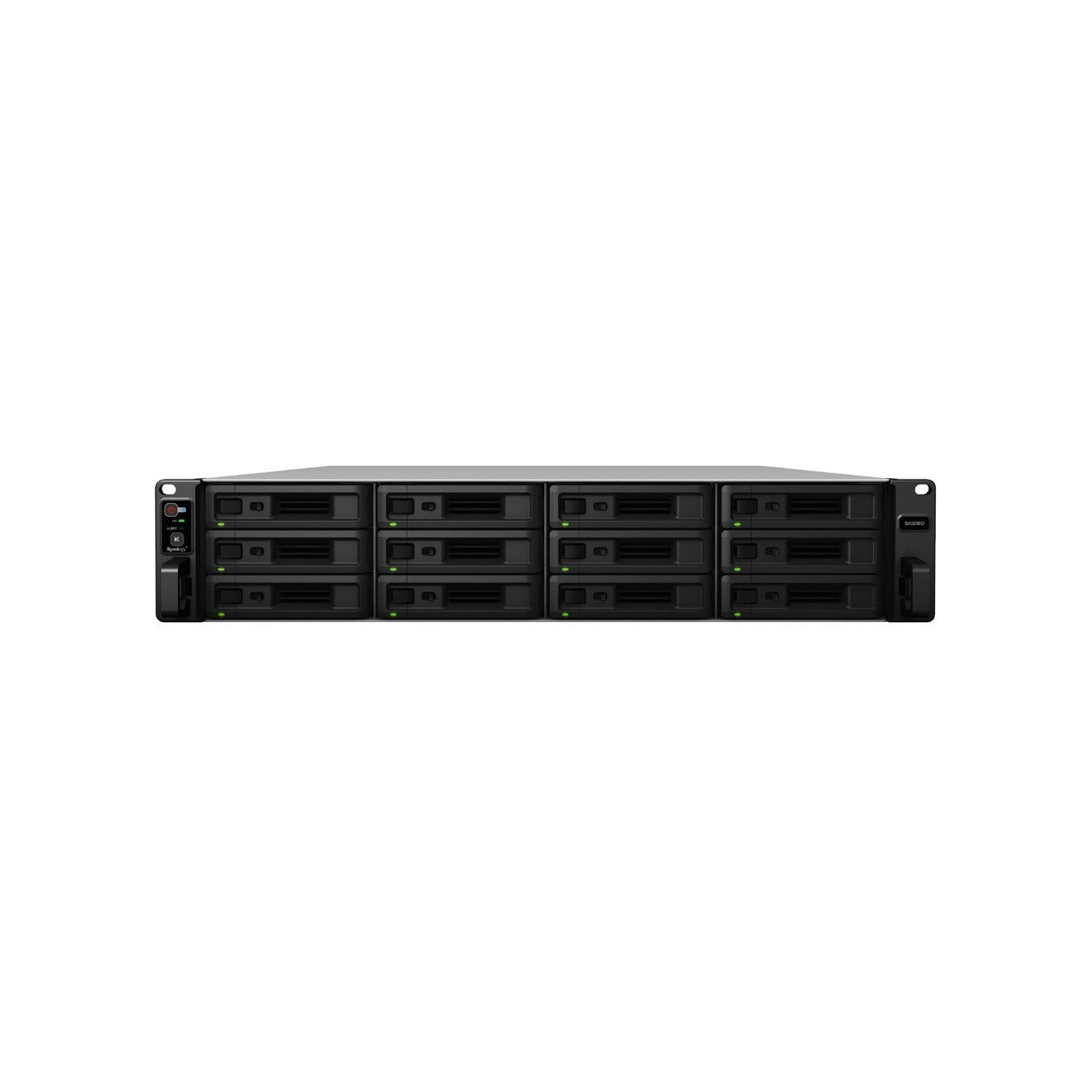

Synology RackStation SA3200D - 12-Bay Rack (2U) - Intel Xeon D-1521 2.4GHz, 8GB DDR4
Synology SA3200D 12-bay 2U NAS for SMBs — Intel Xeon D-1521 2.4GHz (2.7GHz boost), 8GB DDR4, supports 2.5"/3.5" HDD & SSD, RAID 0/1/5/6/10 and JBOD.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NAS (Network Attached Storage) - Bays | 12+ |
|---|---|
| NAS (Network Attached Storage) - Memory (Installed) | 8 GB |
Synology RackStation SA3200D. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon® D. Processor model: D-1521. Processor frequency: 2.4 GHz. Internal memory: 8 GB. Internal memory type: DDR4. Operating system installed: DiskStation Manager
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | UART |
| RAID levels | 0. 1. 5. 6. 10. JBOD |
| Supported file systems | BTRFS. Fat. HFS+. NTFS. exFAT. ext3. ext4 |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® D |
| Processor model | D-1521 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| CPU configuration (max) | 1 |
| PCI Express configurations | 1x16. 1x4. 1x8 |
| PCI Express slots version | 2.0. 3.0 |
| Processor code | SR2DF |
| Processor codename | Broadwell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon D-1500 |
| Processor socket | BGA 1667 |
| Scalability | 1S |
| Stepping | V2 |
| Thermal Design Power (TDP) | 45 W |
| On-board graphics card model | Not available |
| Maximum internal memory supported by processor | 128 GB |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Memory form factor | UDIMM |
| Ethernet LAN data rates | 10.100.1000.10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T |
| Supported network protocols | SMB. AFP. NFS. FTP. WebDAV. CalDAV. iSCSI. Telnet. SSH. SNMP. VPN (PPTP. OpenVPN™. L2TP |
| Ethernet LAN (RJ-45) ports | 3 |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black. Grey |
| Number of fans | 2 fan(s) |
| Fan diameter | 6 cm |
| Fan diameter 2 | 6 cm |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup features | Cloud. iSCSI LUN |
| Number of users | 16000 user(s) |
| Security algorithms | AES |
| Browser supported | Chrome. Firefox. Edge. Internet Explorer. Safari. Chrome |
| Operating system installed | DiskStation Manager |
| Power supply location | Built-in |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 430.5 mm |
| Depth | 692 mm |
| Height | 88 mm |
| Weight | 19.7 kg |
| Cables included | AC |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® Turbo Boost Technology | 2.0 |
| Maximum number of PCI Express lanes | 32 |
| Memory types supported by processor | DDR3-SDRAM. DDR4-SDRAM |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 5000 m |
| Harmonized System (HS) code | 84714100 |
| Compliance certificates | RoHS |
| Processor ARK ID | 91202 |
