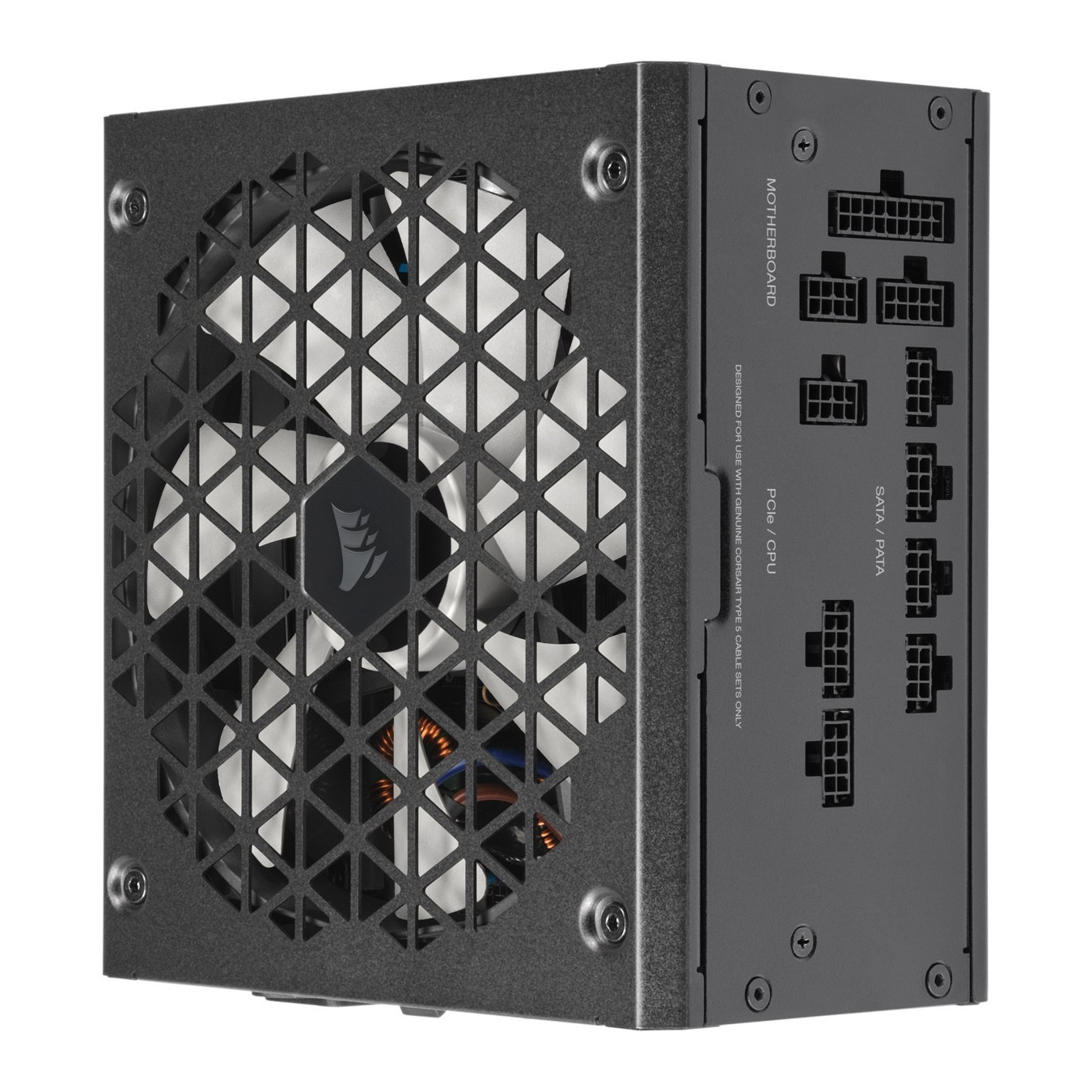

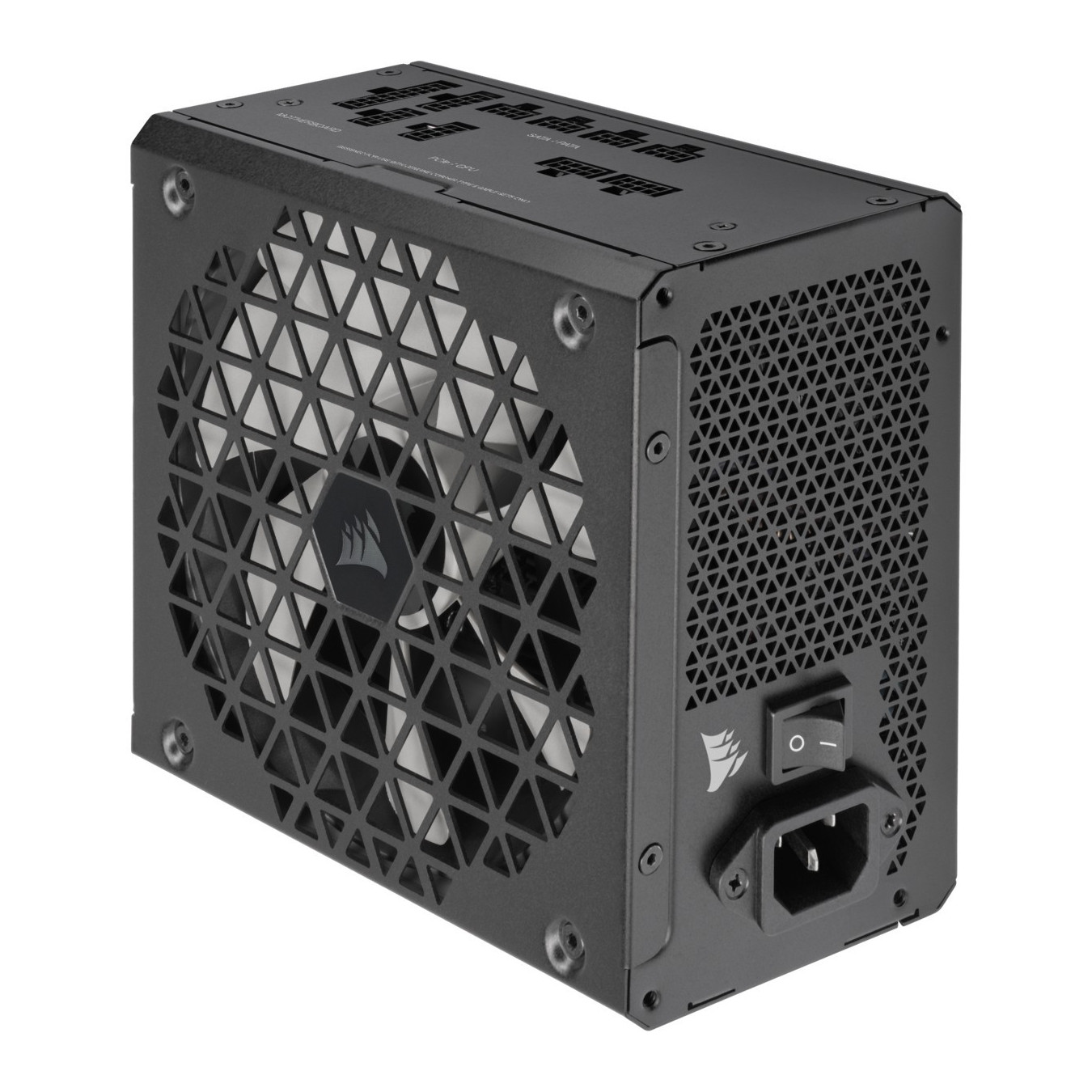

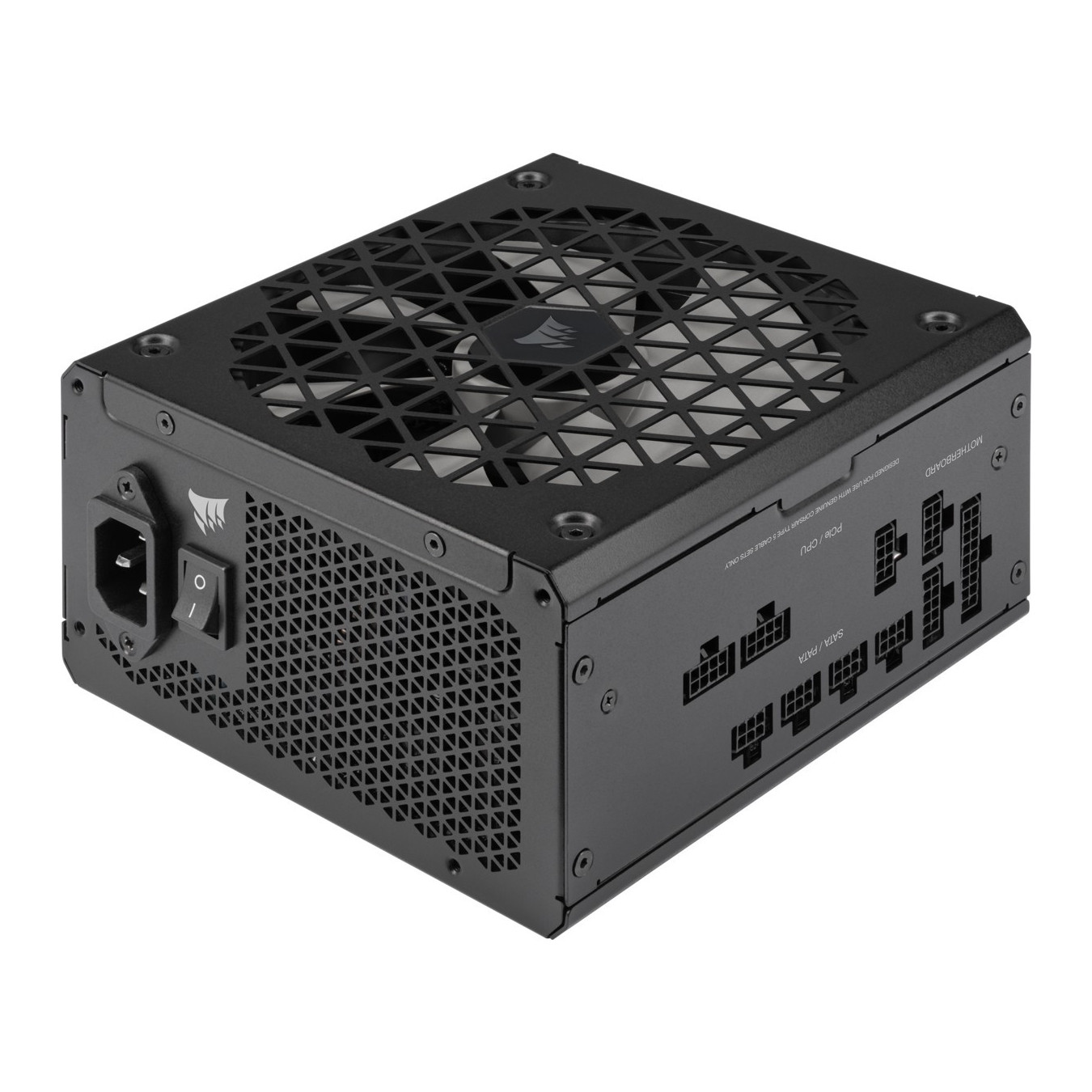

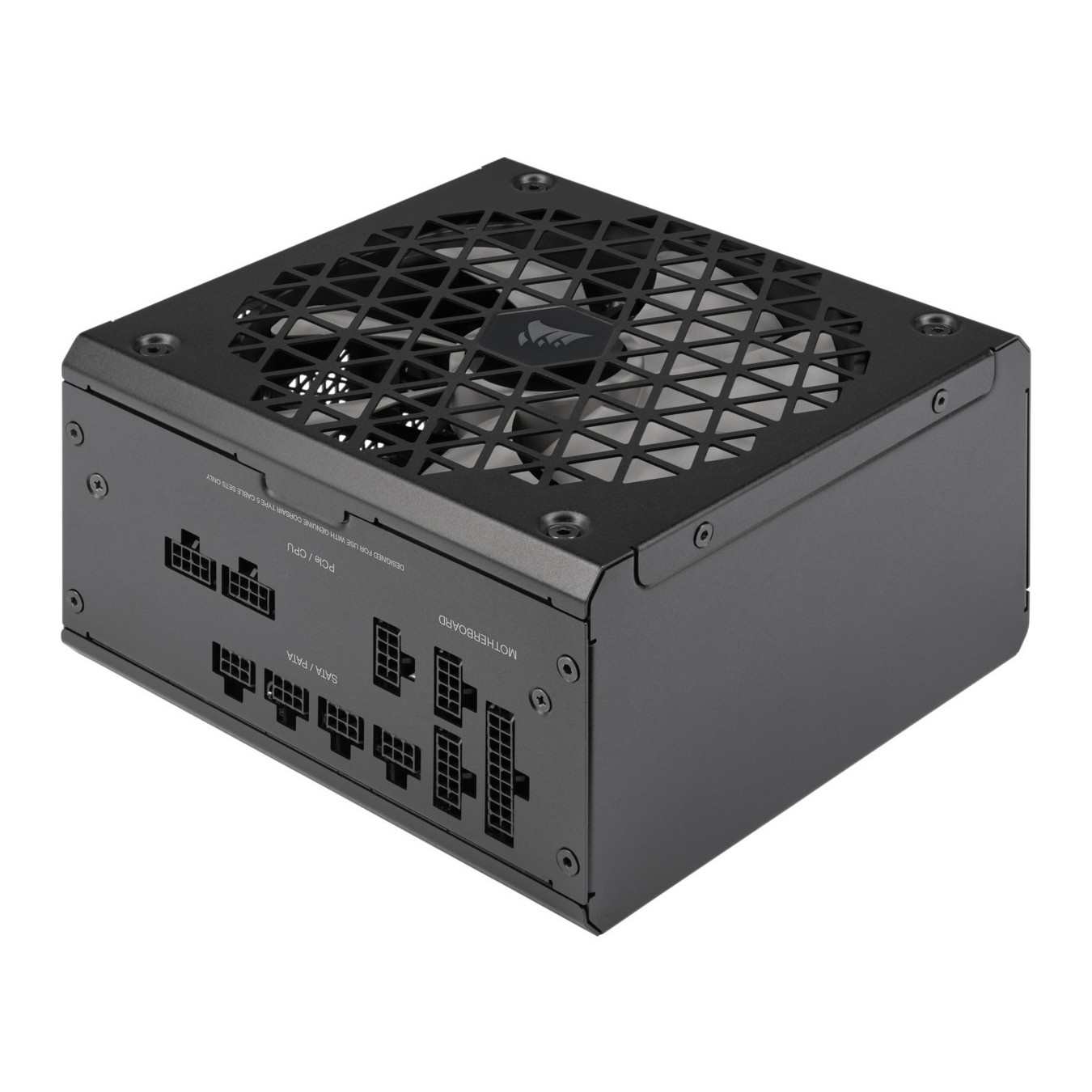

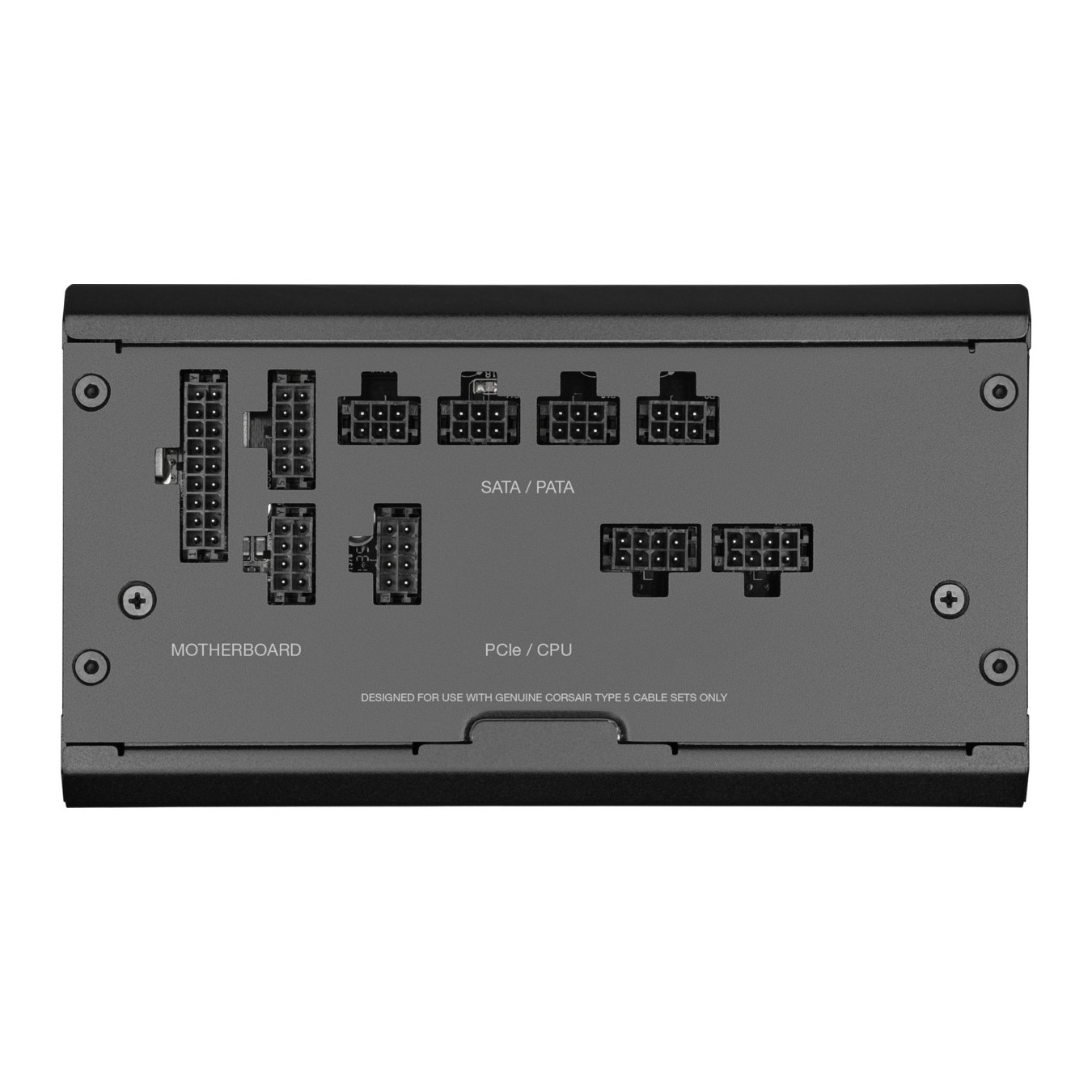

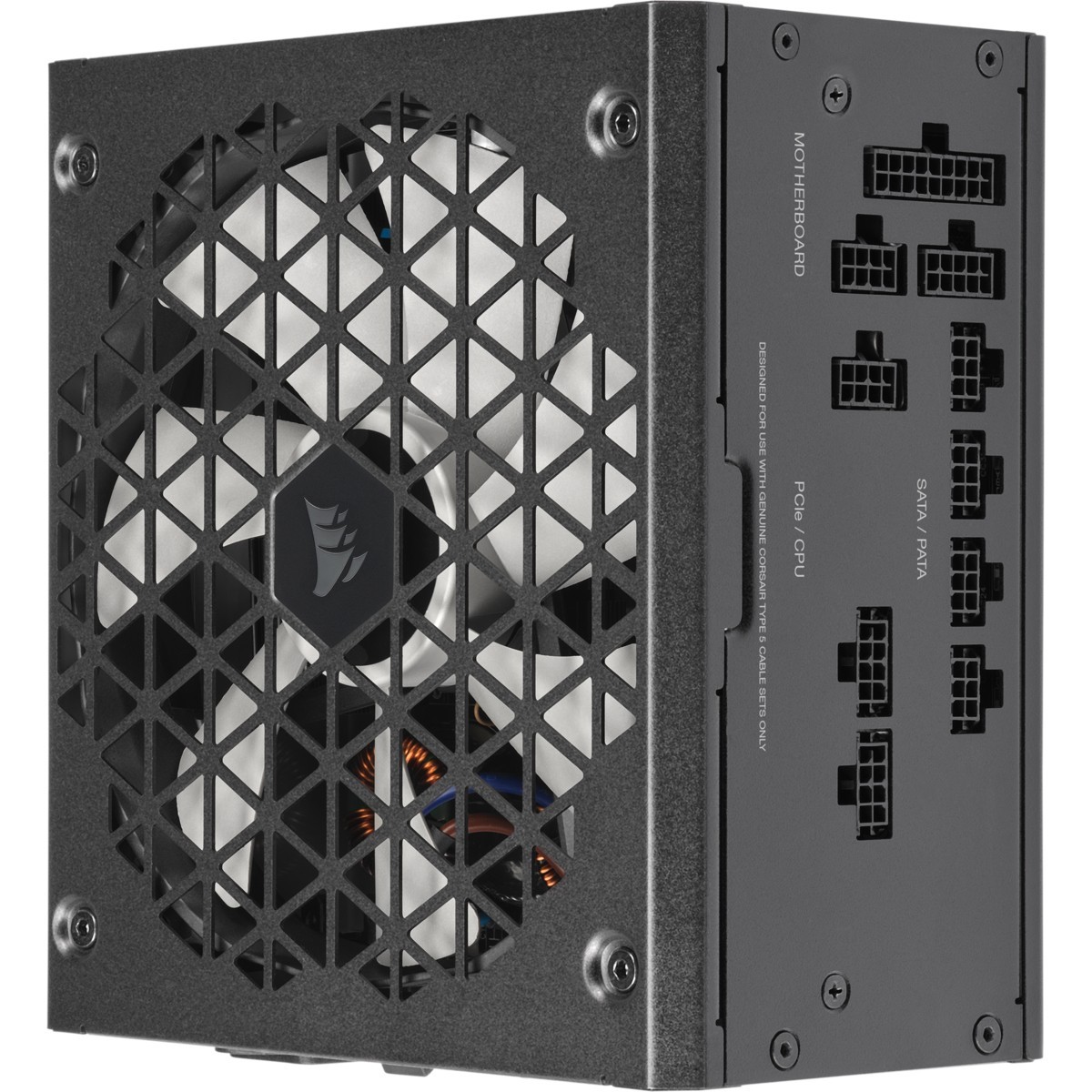

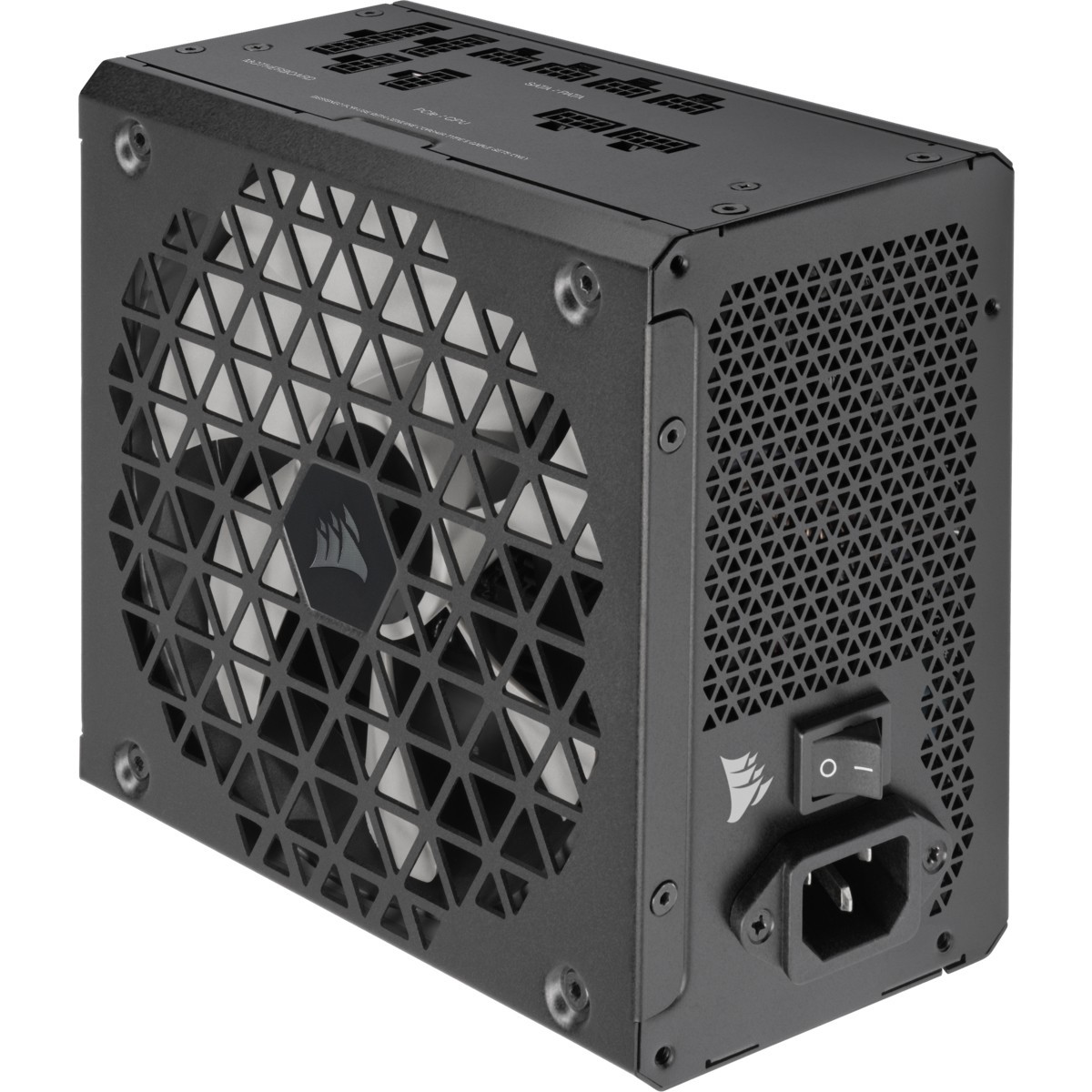

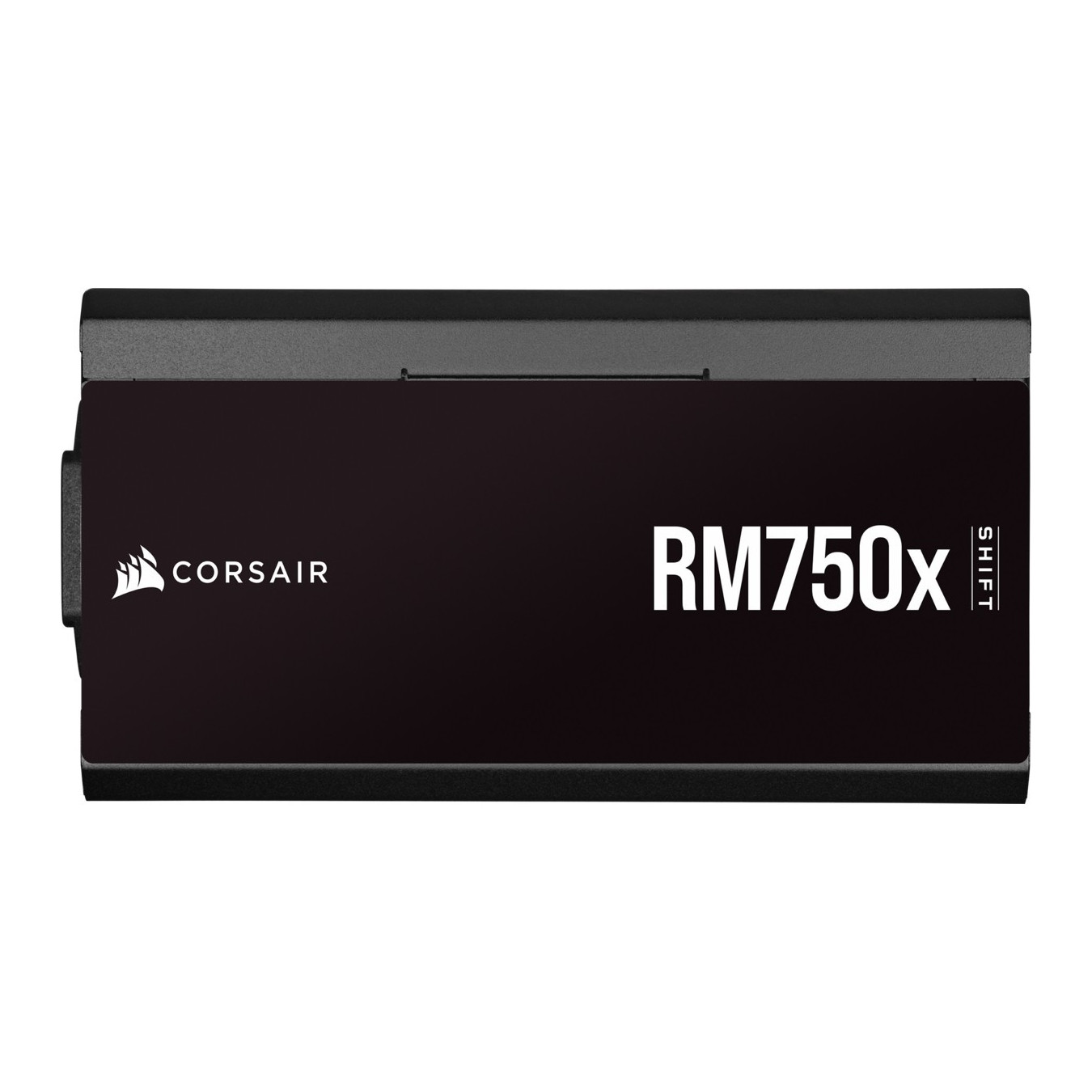

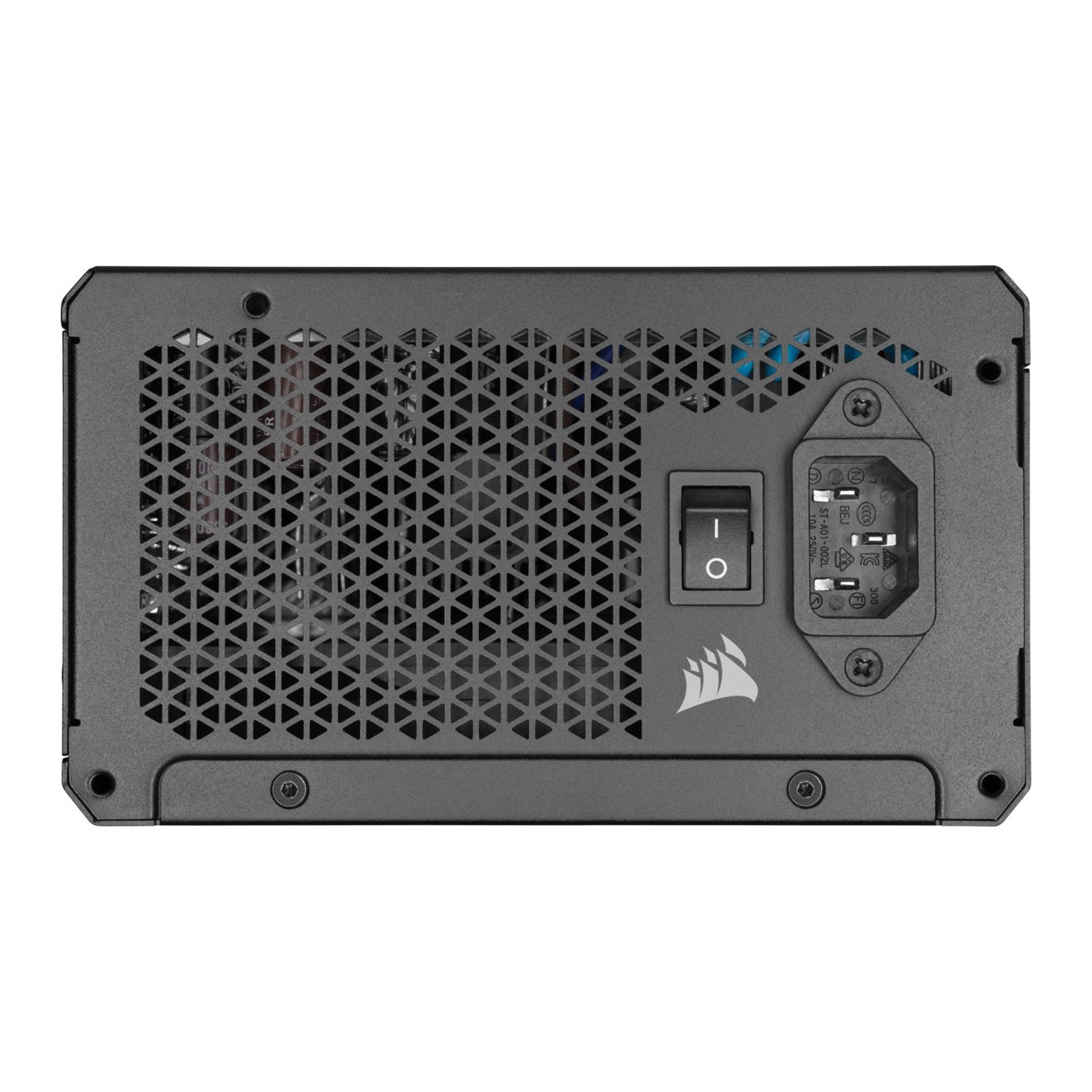

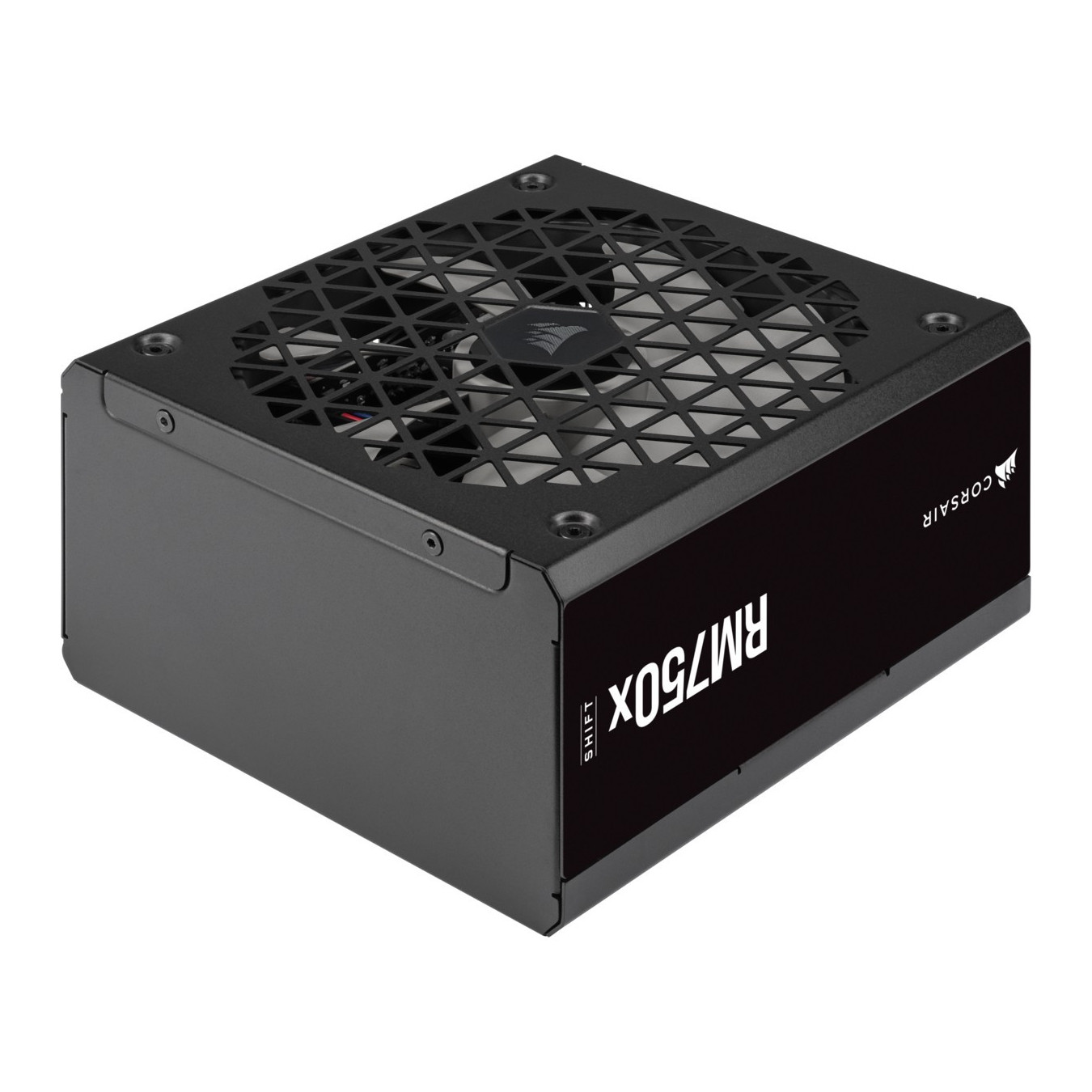

Corsair RM750x SHIFT - 750W 80 PLUS Gold ATX PSU, Black, 140mm Fan, Fully Modular
750W ATX power supply, 80 PLUS Gold efficiency, 140mm active fan, fully modular cables, 100-240V input, multi-protection (OCP/OVP/OPP/OTP/SCP).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Fully modular |
|---|
Corsair RMx Shift Series RM750x SHIFT. Total power: 750 W. AC input voltage: 100 - 240 V. AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Motherboard power cable length: 61 cm. SATA power cable length: 455.570.685.800 mm. Purpose: PC/Server. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 14 cm. Cables included: AC. DC
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 - 10 A |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 150 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 455.570.685.800 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 450.550.650.750 mm |
| Feature | Screws included |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 75 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Cables included | AC. DC |
| Compliance certificates | Low Voltage Directive (LVD). RoHS. UKCA |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.6 kg |
| EPS cable length | 65 cm |
