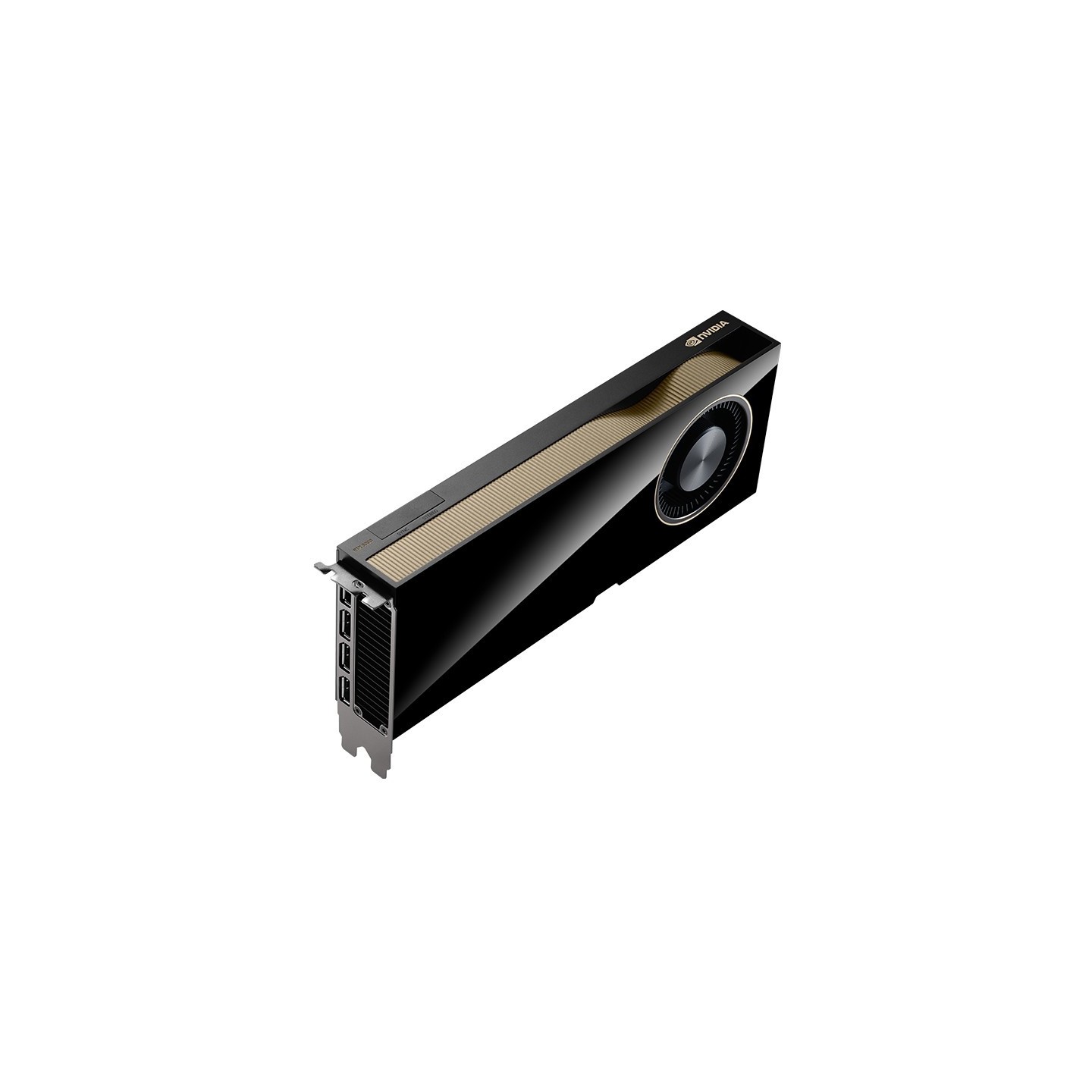

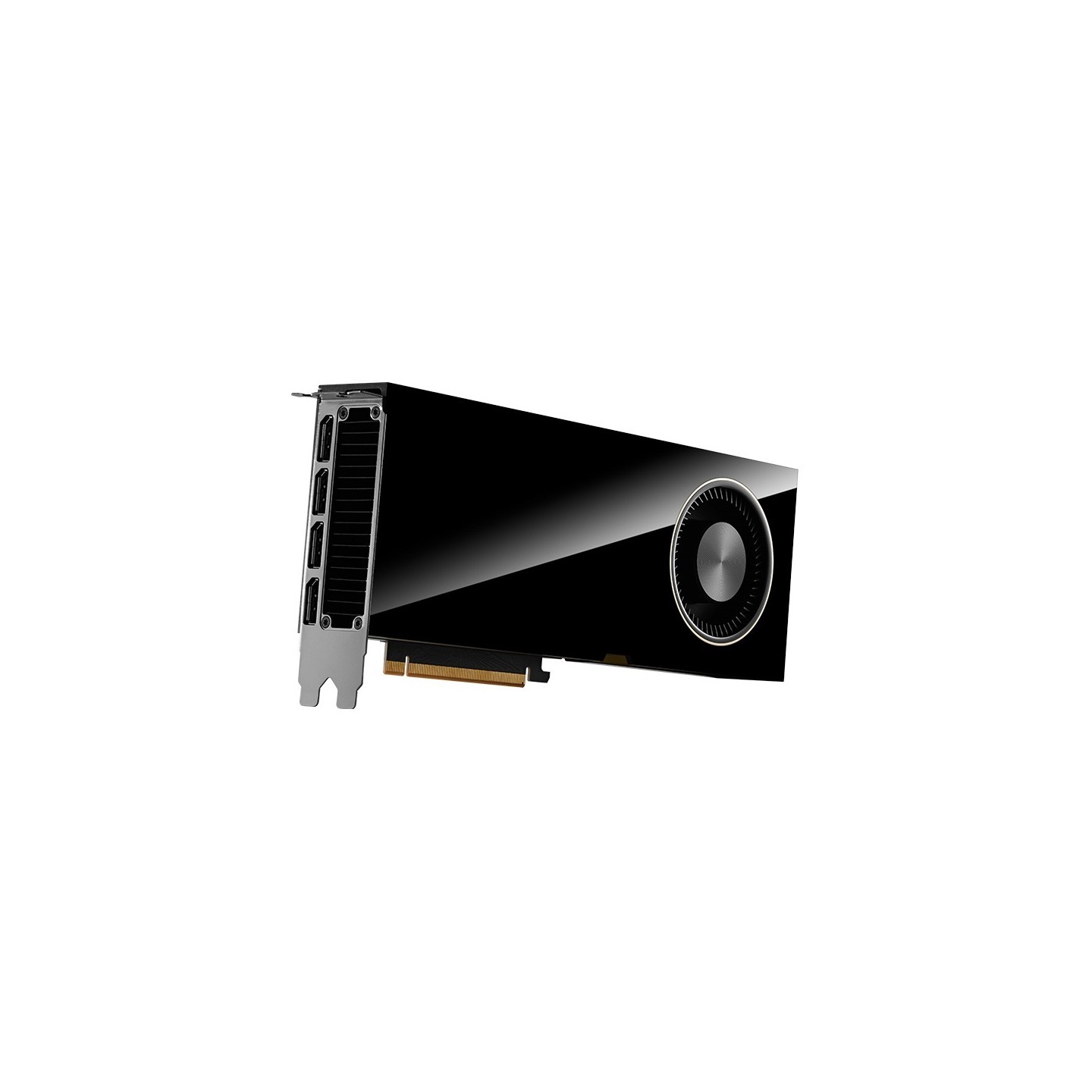

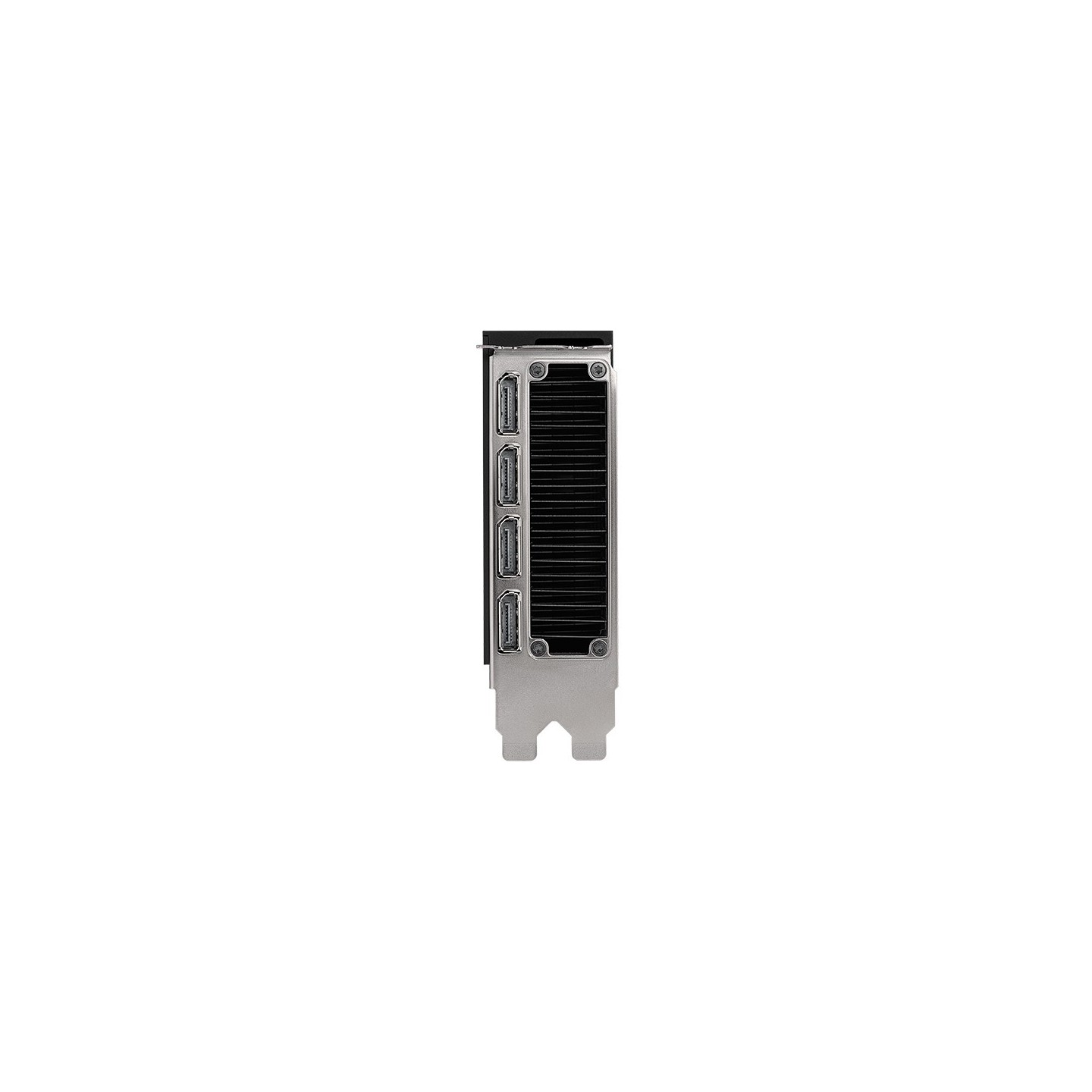

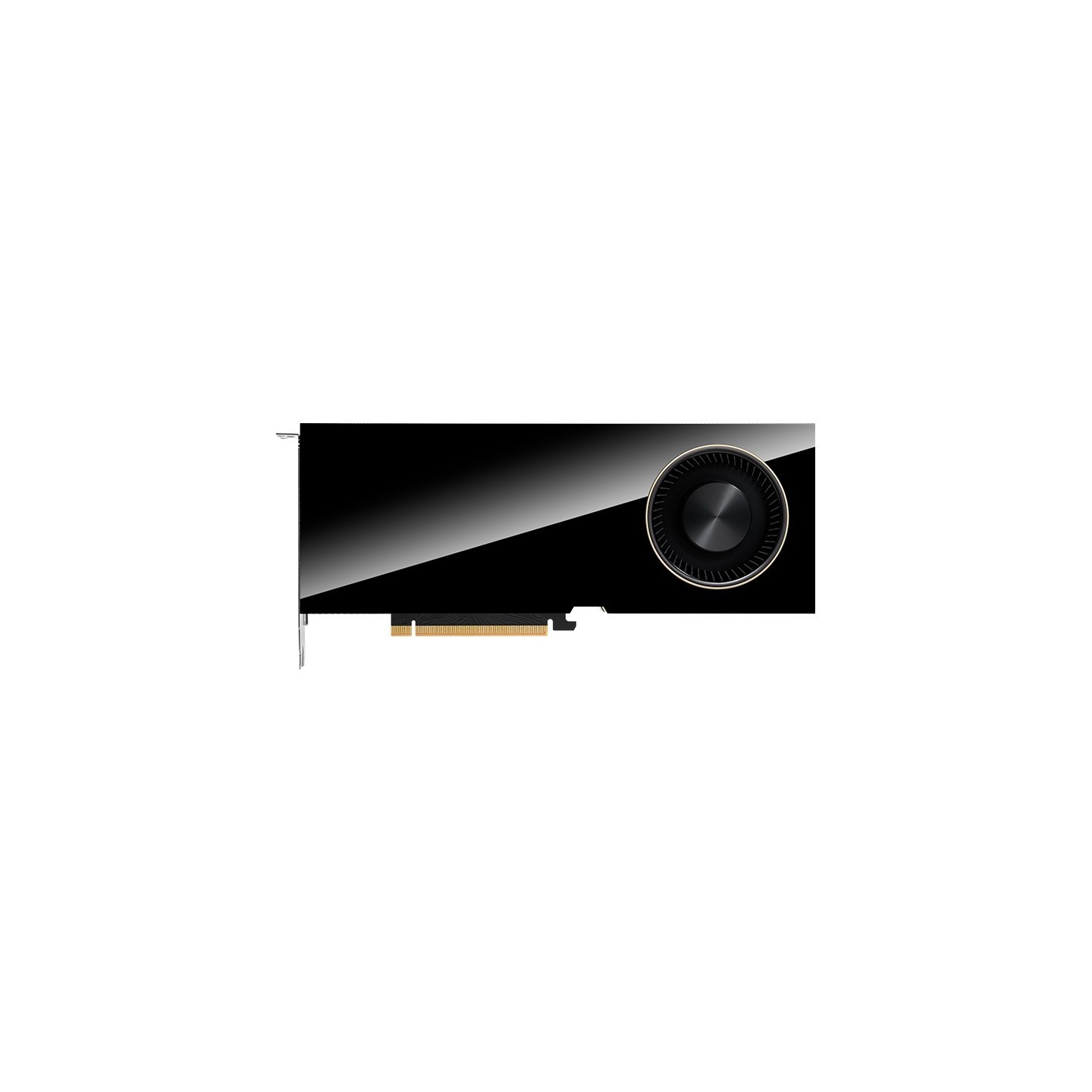

PNY Quadro RTX 6000 Ada 48GB GDDR6 PCIe 4.0 Single-Fan SFF VCNRTX6000ADA-PB (Boxed)
PNY NVIDIA RTX 6000 Ada: 48GB GDDR6 ECC, 18176 CUDA cores, PCIe 4.0 x16, single blower fan, 300W TDP, 4x DP 1.4a. Pro workstation GPU for AI/rendering/compute. VCNRTX6000ADA-PB SFF.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA Quadro NVIDIA RTX Professional |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Single Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 48 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 1.4 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Mid Length (261-280 mm) |
The PNY NVIDIA RTX 6000 Ada Generation is a high-end professional workstation GPU built on the Ada Lovelace architecture. Featuring 18,176 CUDA cores, 568 fourth-gen Tensor Cores, and 142 third-gen RT Cores, it delivers exceptional performance for AI inferencing, real-time ray tracing, rendering, and compute workloads. With 48GB GDDR6 ECC memory on a 384-bit bus (960 GB/s bandwidth), it handles massive datasets reliably.
This single-fan small form factor model (VCNRTX6000ADA-PB) uses PCIe 4.0 x16 interface, consumes 300W via 1x PCIe CEM5 16-pin connector, and supports 4x DisplayPort 1.4a outputs for multi-monitor setups up to 8K. The blower-style active cooling ensures thermal efficiency in compact professional systems. Ideal for engineers, designers, and data scientists requiring petaFLOP-scale Tensor performance (1457 TFLOPS).
- Key Features: NVIDIA Ada Lovelace | 91.1 TFLOPS FP32 | RT 210.6 TFLOPS | 48GB ECC GDDR6 | vGPU support | AV1 encode/decode
- Dimensions: 266.7 x 111.8 mm | Weight: 1.18 kg | Dual-slot
- Compatibility: Windows/Linux | DirectX 12 | OpenGL 4.6 | Quadro Sync II
| Graphics processor family | NVIDIA |
| Graphics processor | RTX 6000 Ada |
| Architecture | NVIDIA Ada Lovelace |
| Lithography | 4 nm |
| CUDA cores | 18176 |
| Tensor Cores | 568 |
| RT Cores | 142 |
| Single-Precision Performance | 91.1 TFLOPS |
| RT Core Performance | 210.6 TFLOPS |
| Tensor Performance | 1457.0 TFLOPS |
| Discrete graphics card memory | 48 GB |
| Graphics card memory type | GDDR6 with ECC |
| Memory bus | 384 bit |
| Memory Bandwidth | 960 GB/s |
| Interface type | PCI Express 4.0 x16 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4a |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Form factor | Half-Height/Half-Length (HH/HL) |
| Power consumption (max) | 300 W |
| Power connector | 1x PCIe CEM5 16-pin |
| Length | 266.7 mm |
| Height | 111.8 mm |
| Weight | 1.18 kg |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
