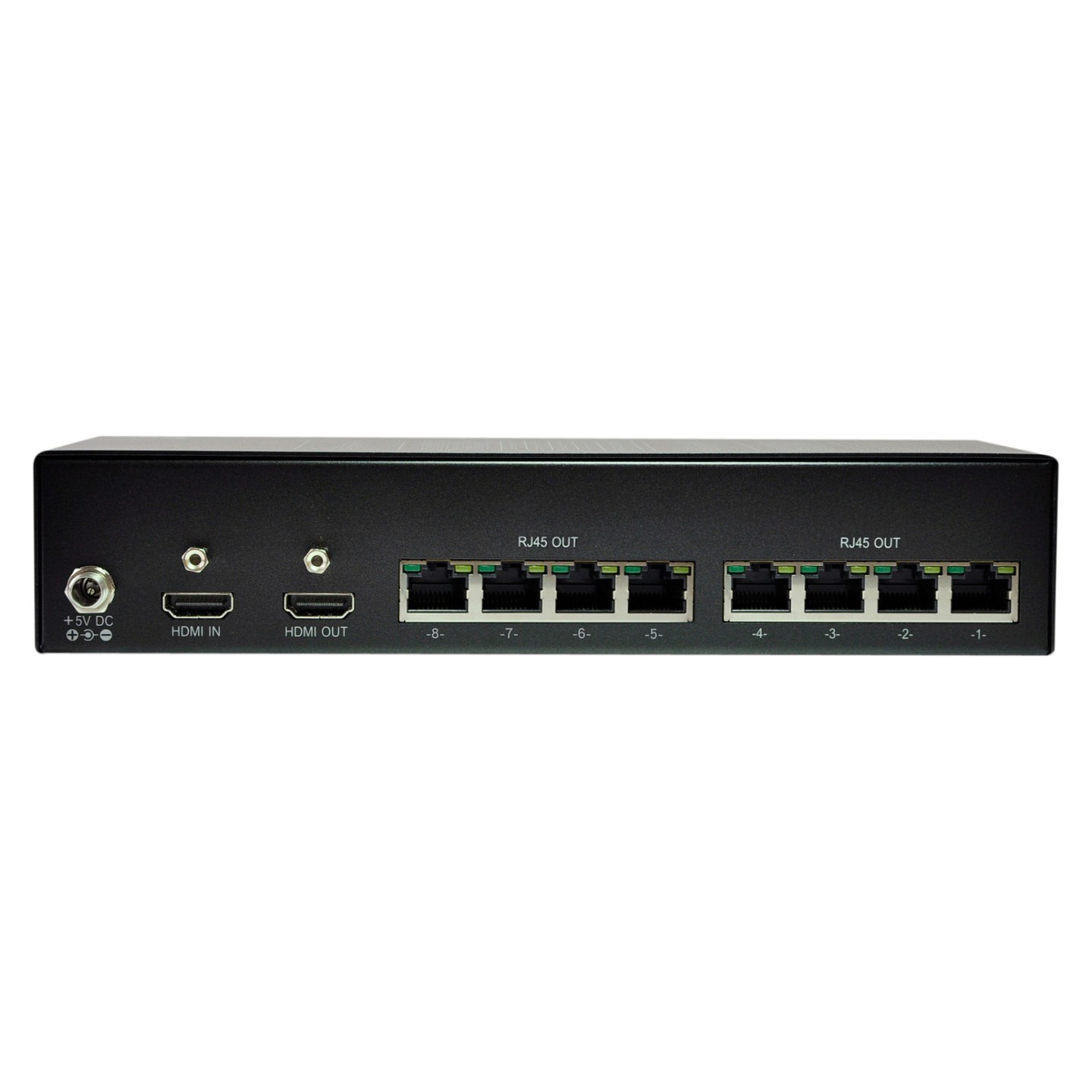

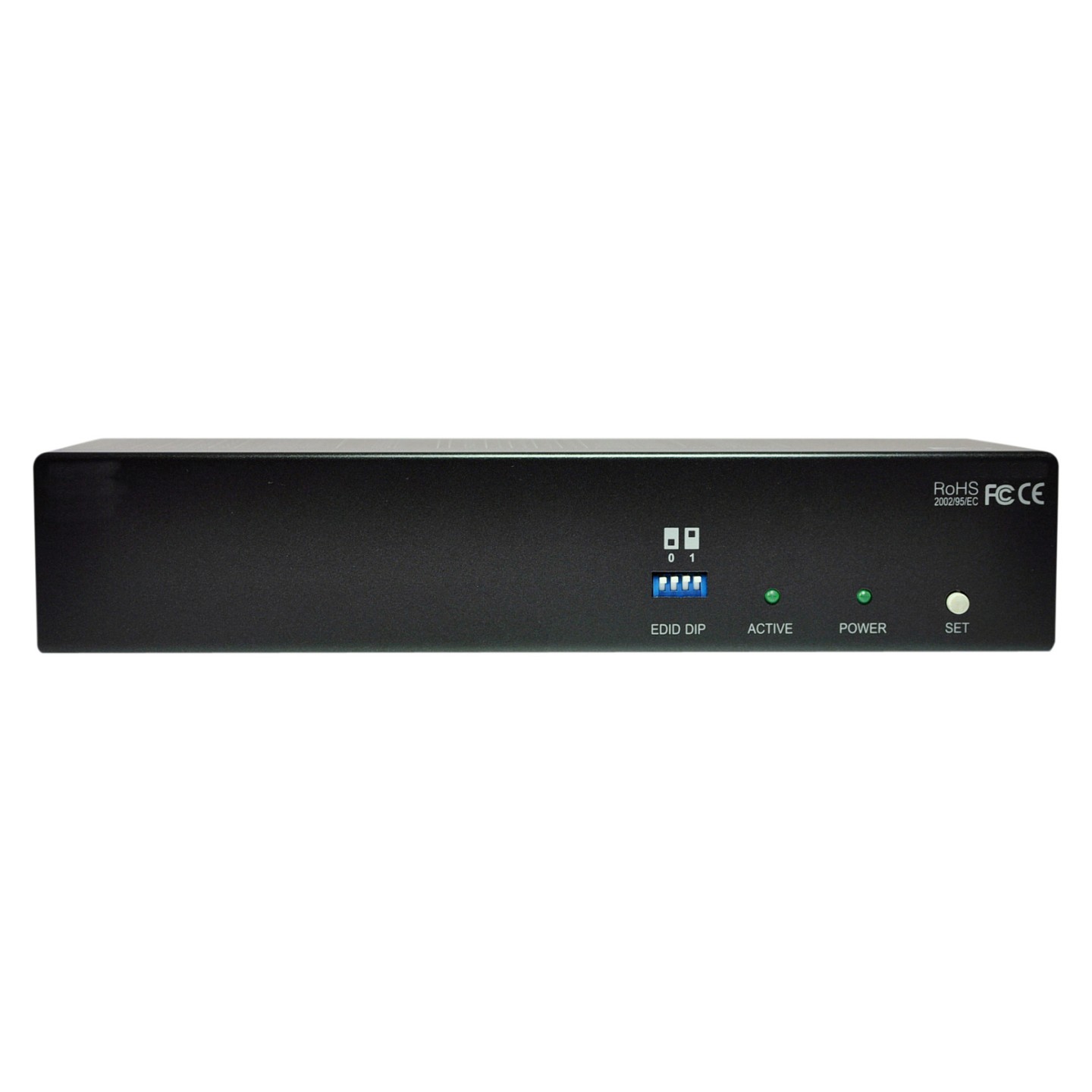

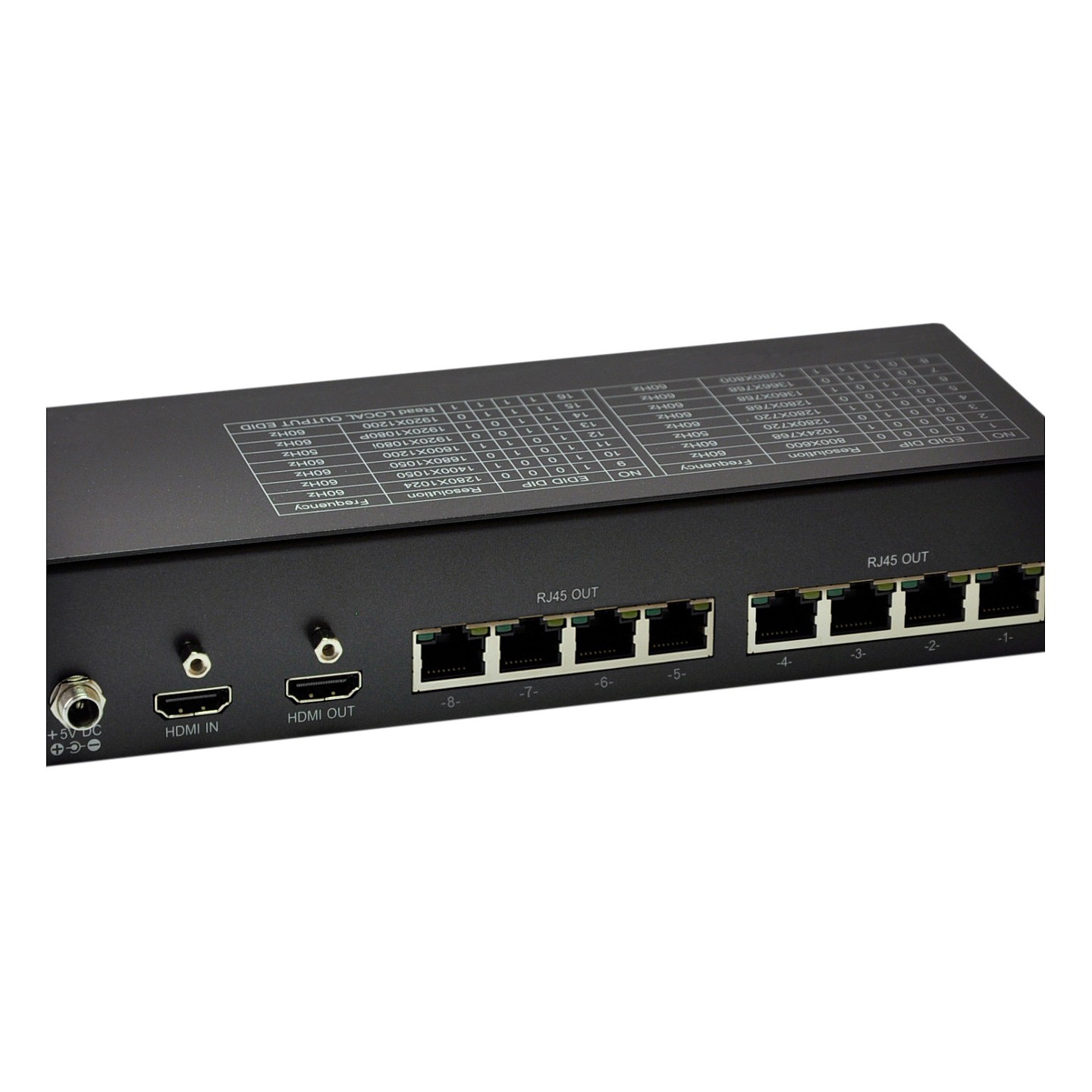

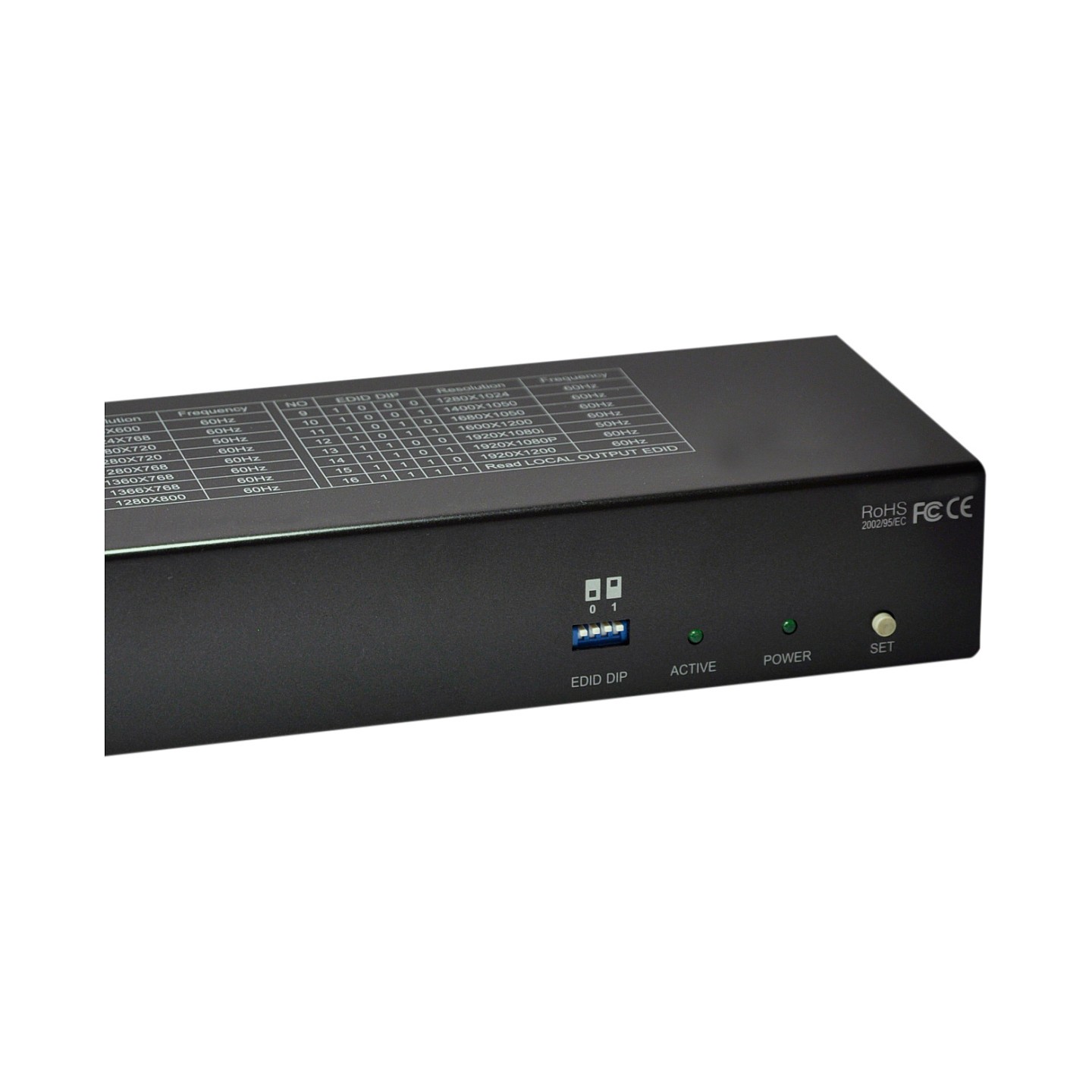

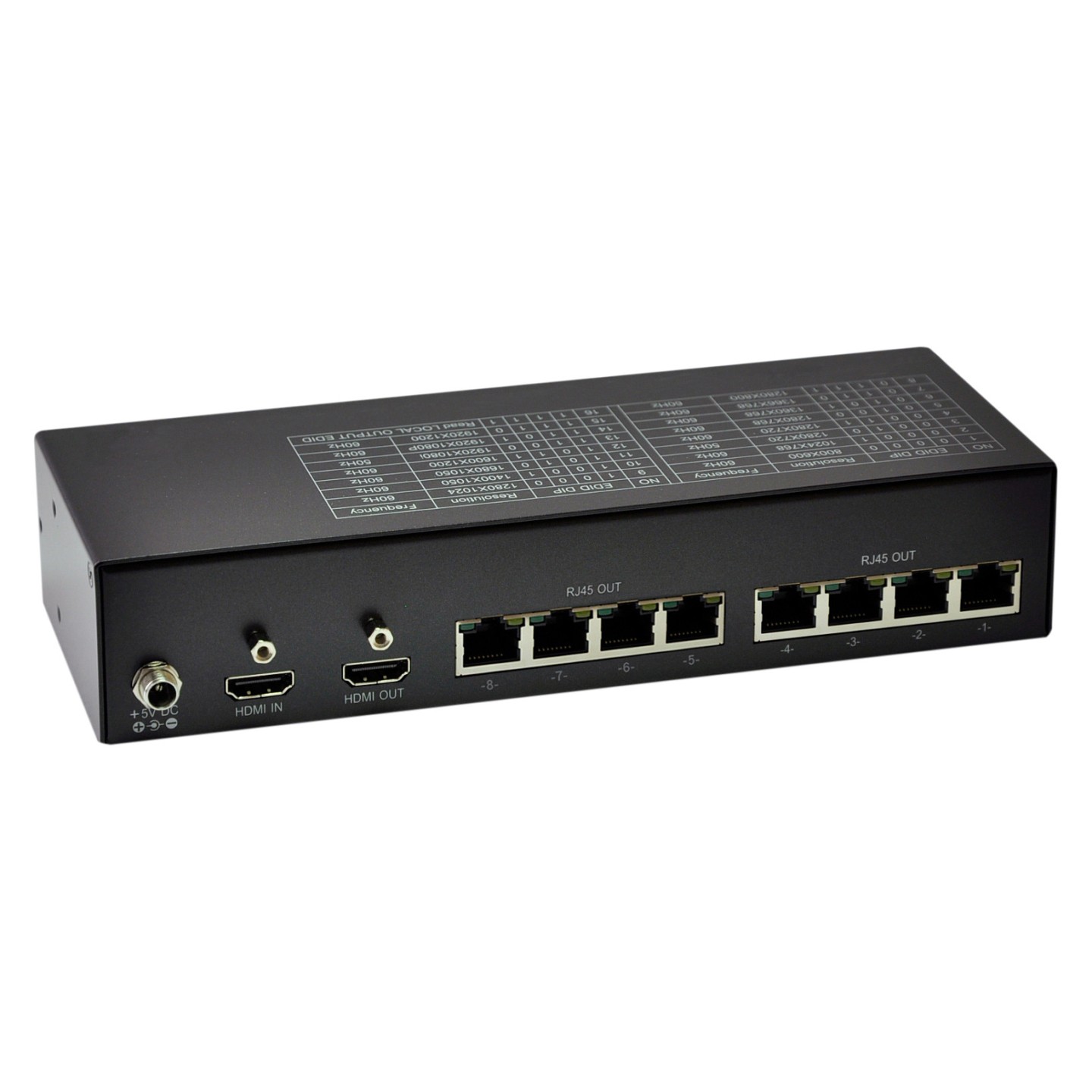

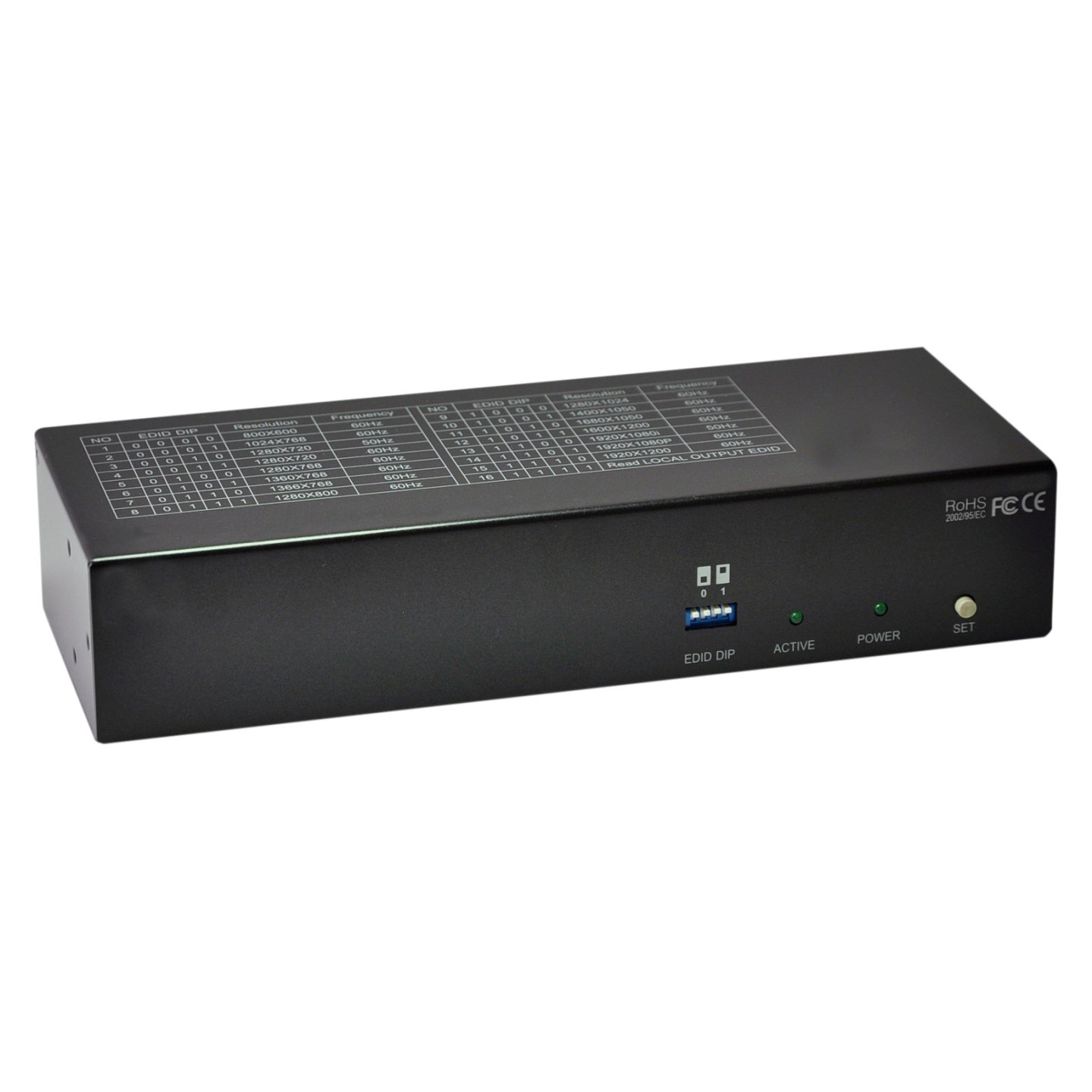

HDMI HVE-9118T over Cat.5 Transmitter 300m
LevelOne HVE-9118T. 1920 x 1200 Pixel. AV-Sender. 300 m. Schwarz
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne HVE-9118T. Typ: AV-Sender. Maximale Auflösung: 1920 x 1200 Pixel. unterstütze Kabeltypen: Cat5. AC Eingangsspannung: 5 V. Eingangsstrom: 2 A. Stromverbrauch (Sender) (max.): 900 mA. Breite: 90 mm. Tiefe: 220 mm. Höhe: 45 mm. Verpackungsabmessungen (BxTxH): 173 x 305 x 122 mm. Paketgewicht: 1.18 kg. Verpackungsart: Box. Mitgelieferte Kabel: AC
| Typ | AV-Sender |
| Maximale Auflösung | 1920 x 1200 Pixel |
| unterstütze Kabeltypen | Cat5 |
| Maximal mögliche Übertragungsstrecke | 300 m |
| Maximale Bildwiederholrate | 60 Hz |
| LED-Anzeigen | Aktivität. Leistung |
| Unterstützte Video-Modi | 1080p |
| Bandbreite | 340 MHz |
| Feature | Schnellstartübersicht |
| Produktfarbe | Schwarz |
| RJ-45-Ausgangsanschlüsse | 8 |
| HDMI-In | 1 |
| Anzahl der HDMI-Ausgänge | 1 |
| AC Eingangsspannung | 5 V |
| Eingangsstrom | 2 A |
| Stromverbrauch (Sender) (max.) | 900 mA |
| Betriebstemperatur | 0 - 48 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 80% |
| Breite | 90 mm |
| Tiefe | 220 mm |
| Höhe | 45 mm |
| Gewicht | 612 g |
| Transmitter-Abmessungen (BxTxH) | 220 x 83 x 44 mm |
| Gewicht Transmitter | 650 g |
| Verpackungsabmessungen (BxTxH) | 173 x 305 x 122 mm |
| Paketgewicht | 1.18 kg |
| Verpackungsart | Box |
| Mitgelieferte Kabel | AC |
| Ursprungsland | Taiwan |
| Breite des Versandkartons | 400 mm |
| Länge des Versandkartons | 330 mm |
| Höhe des Versandkartons | 630 mm |
| Gewicht Versandkarton | 13 kg |
| Anzahl Produkte pro Versandkarton | 10 Stück(e) |
