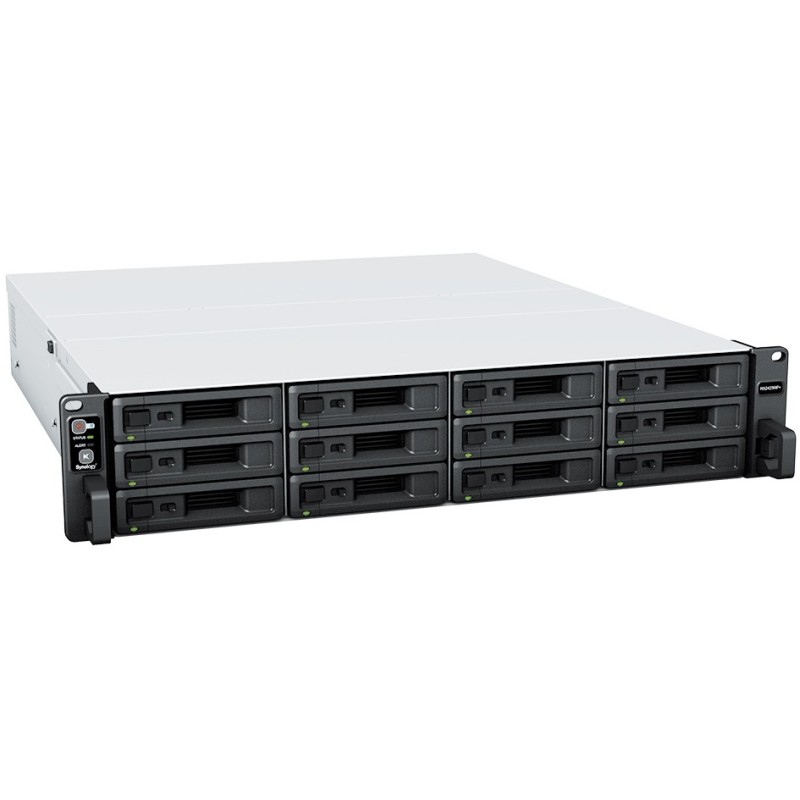

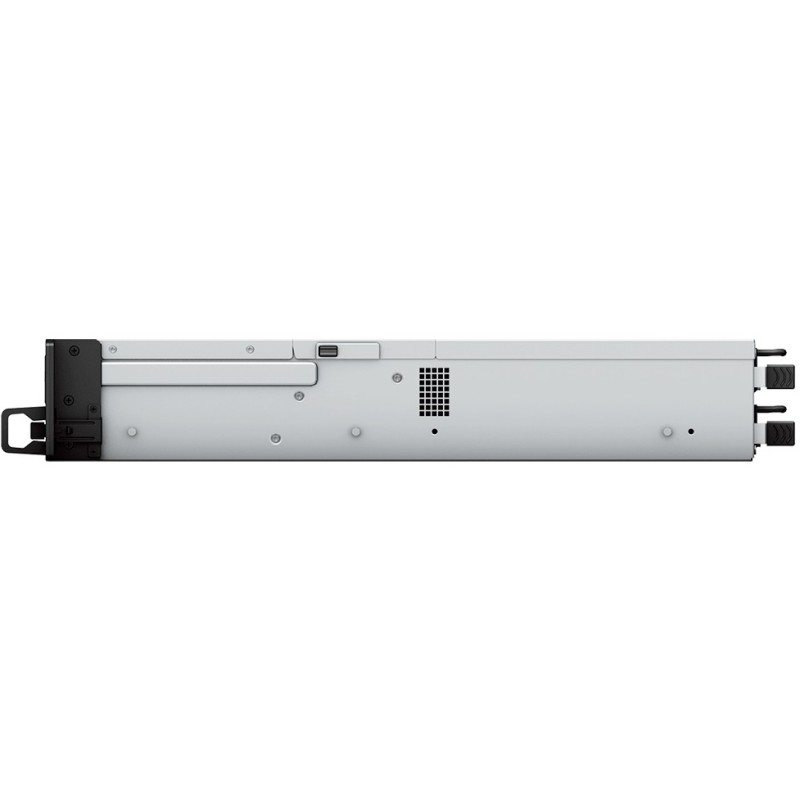

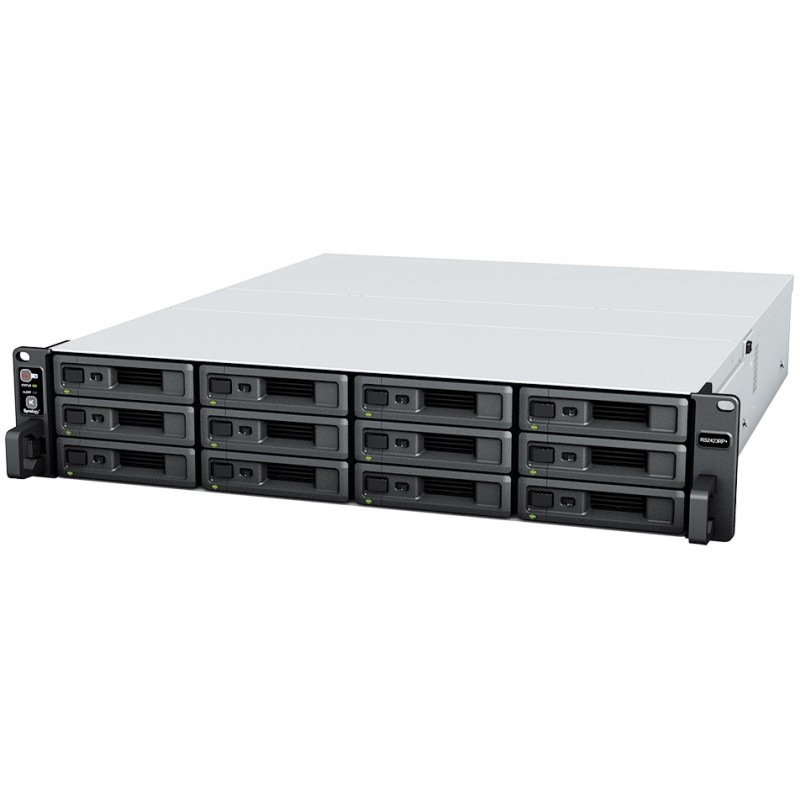

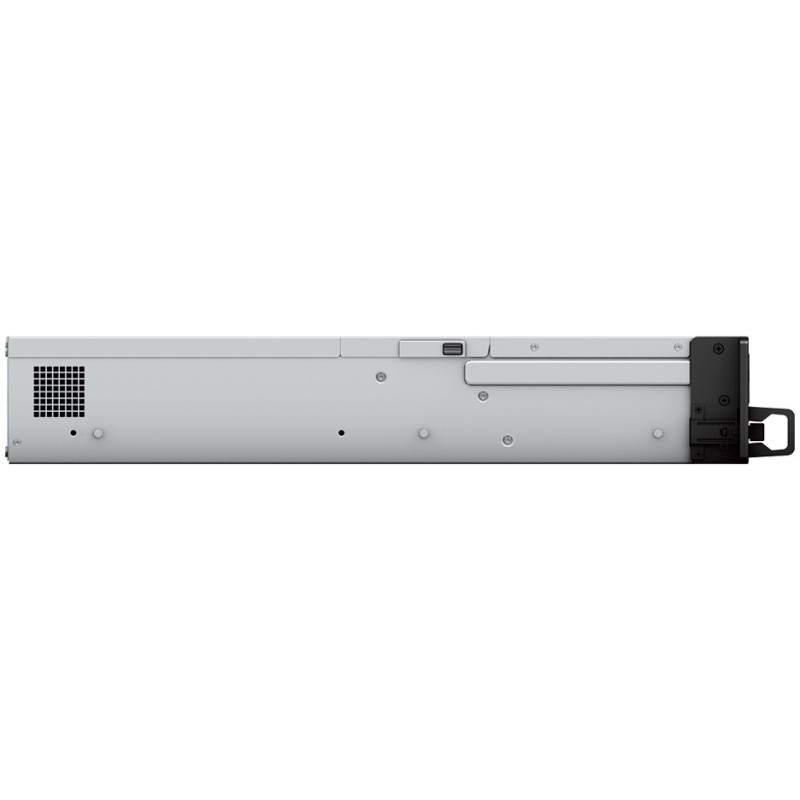

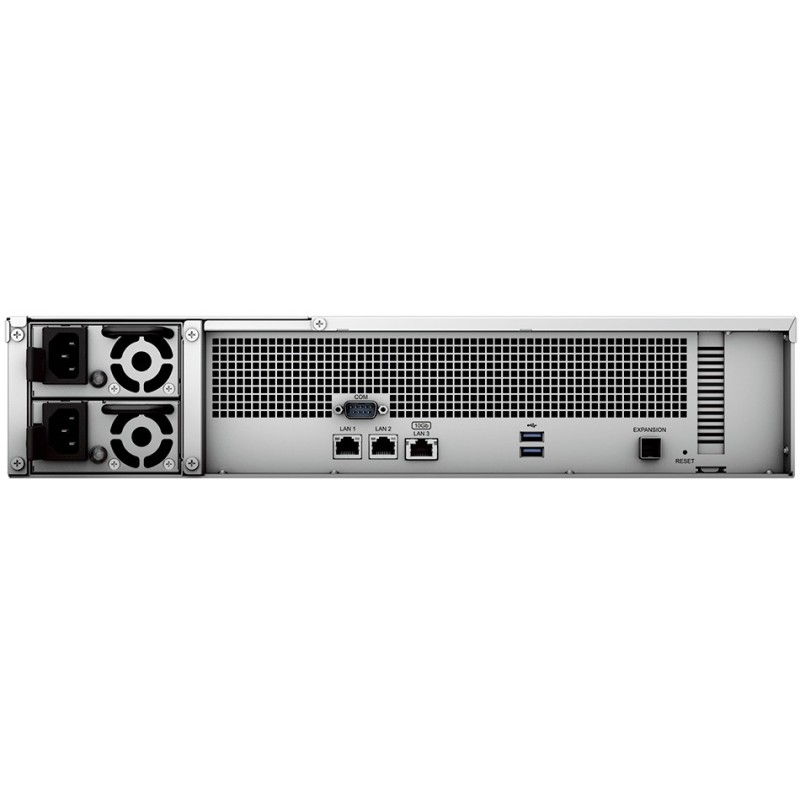

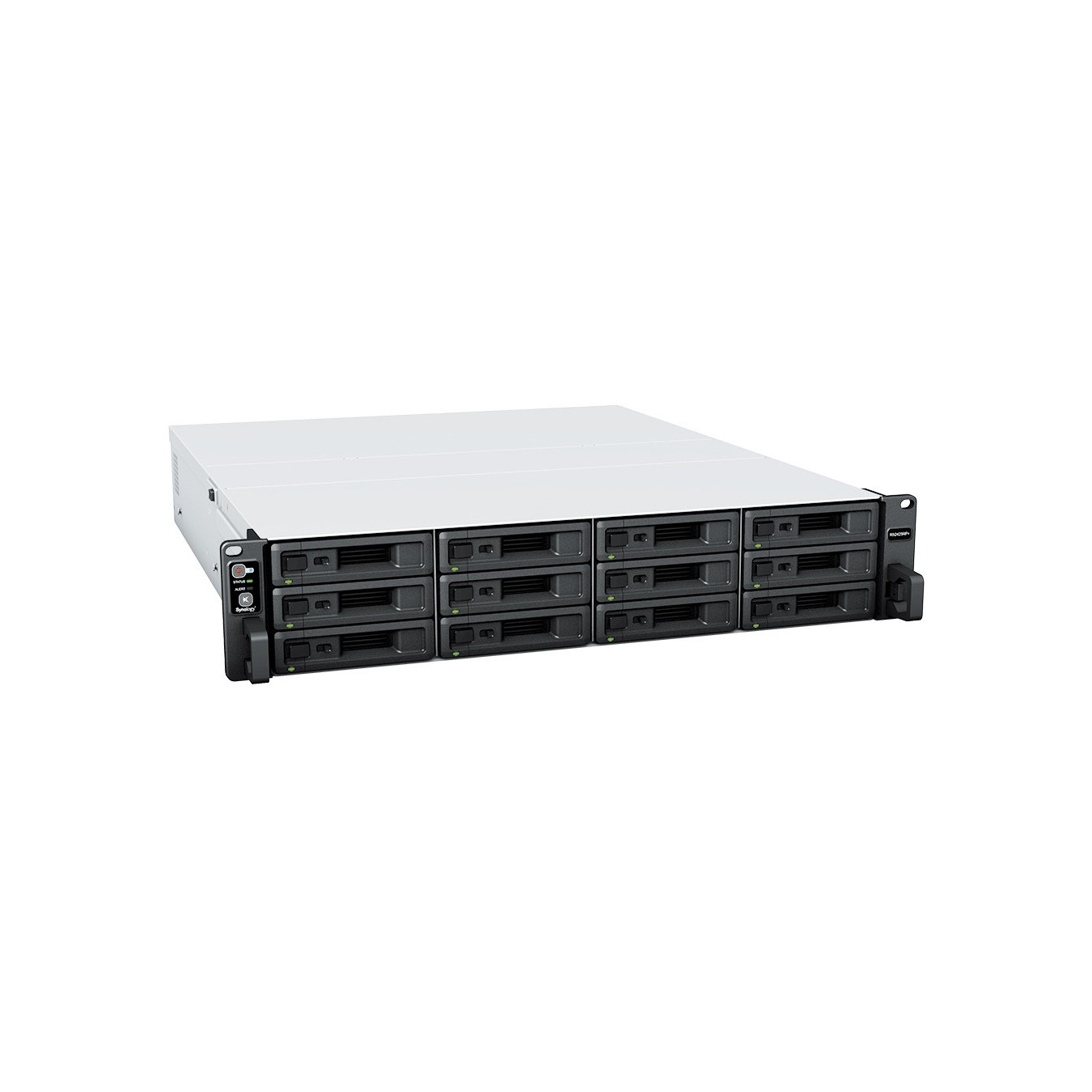

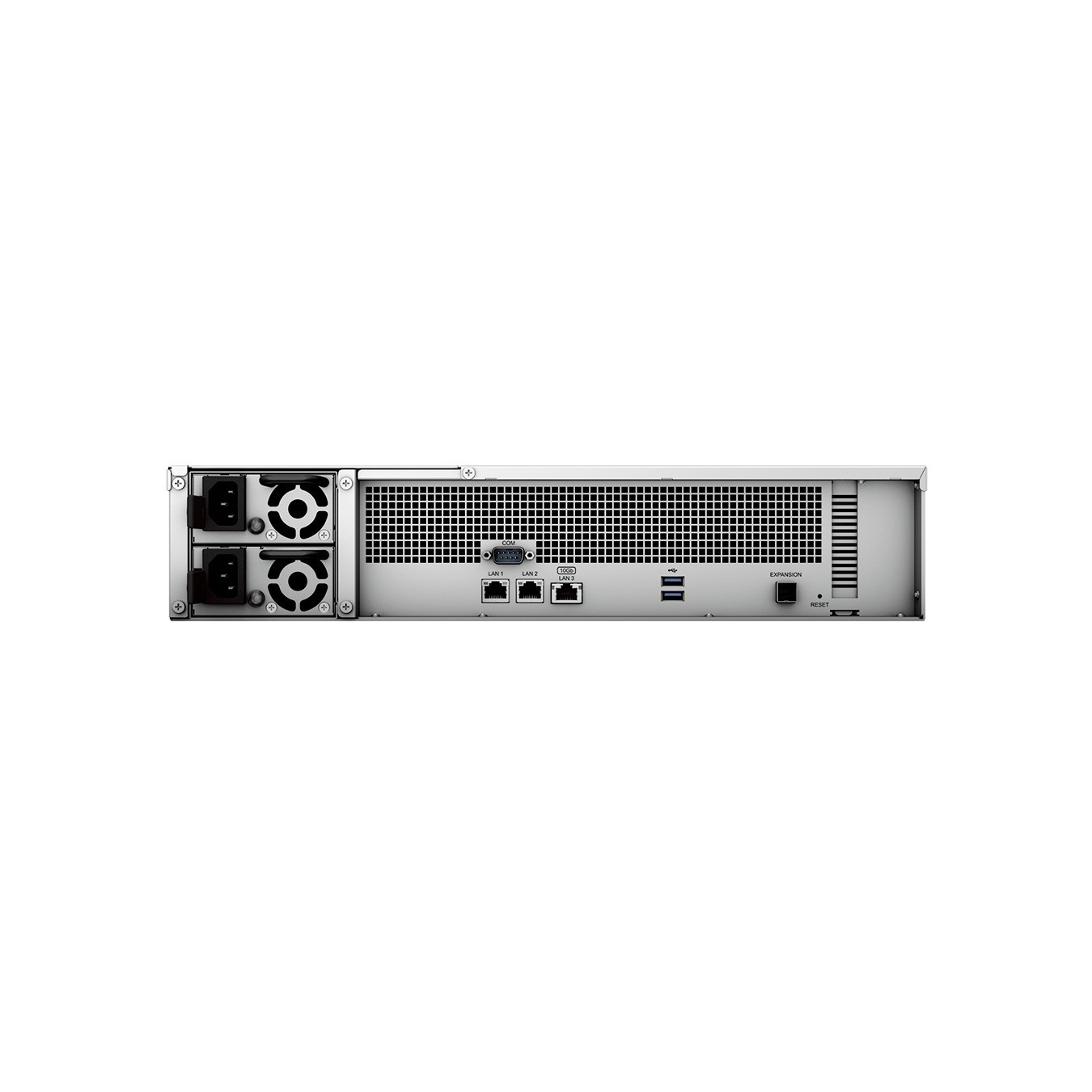

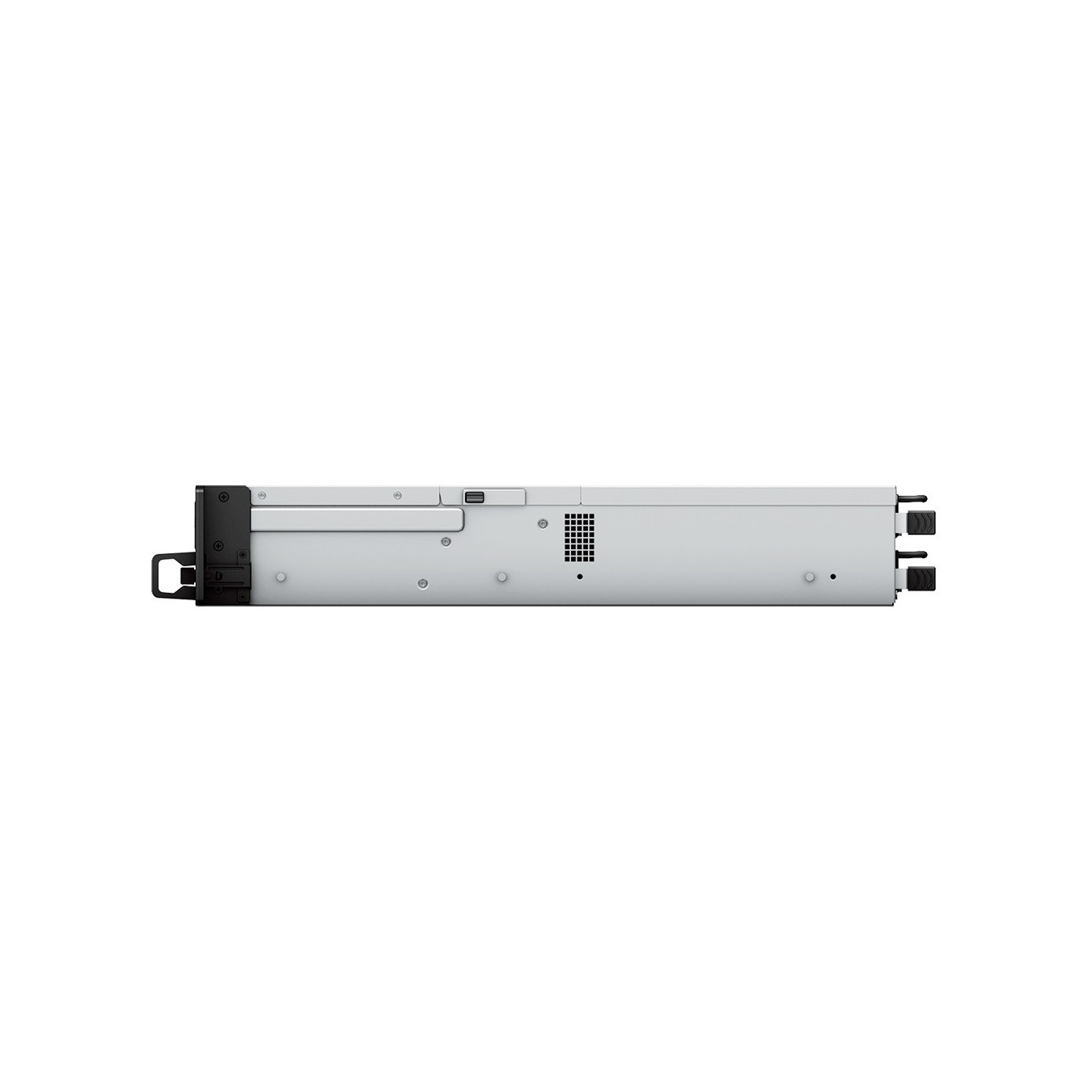

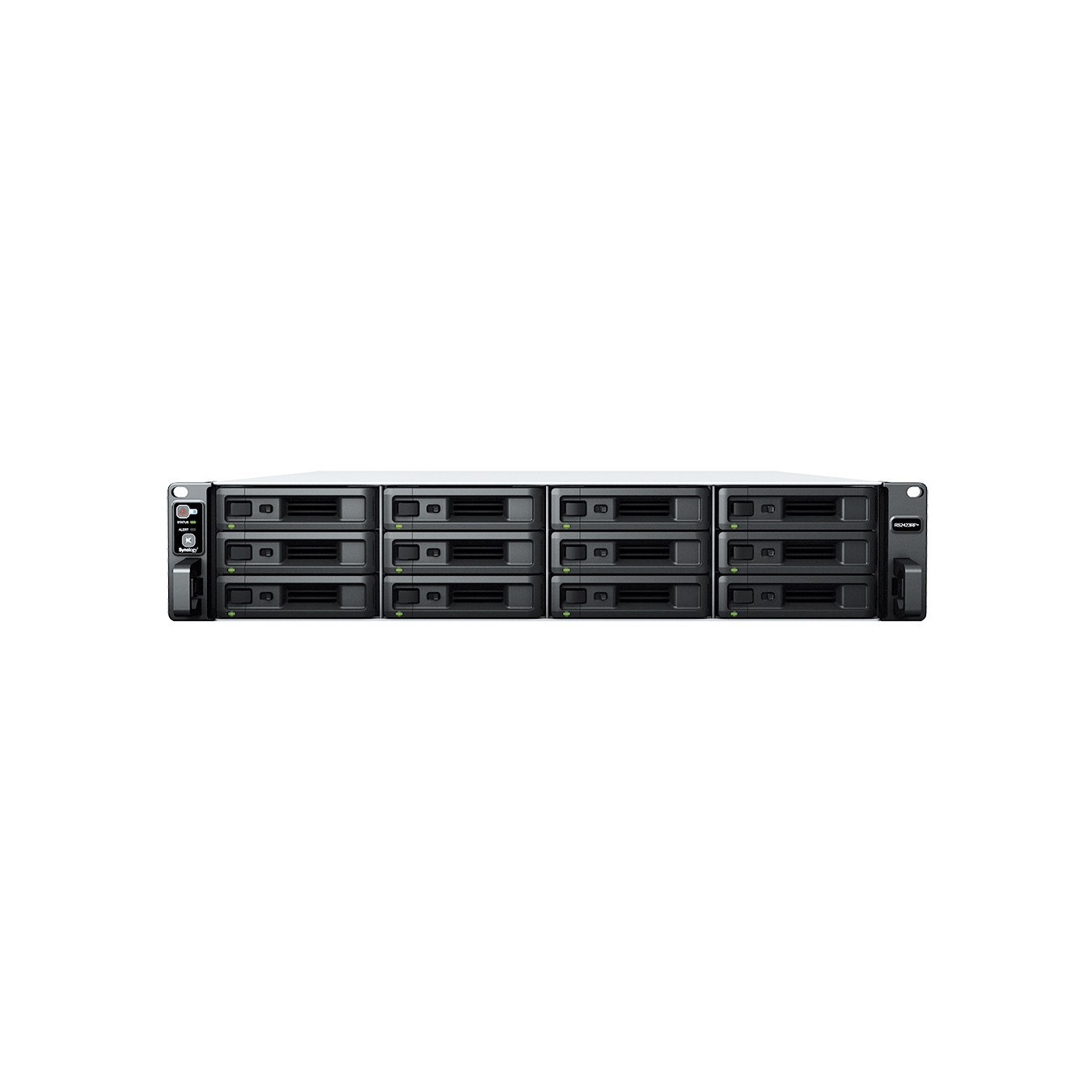

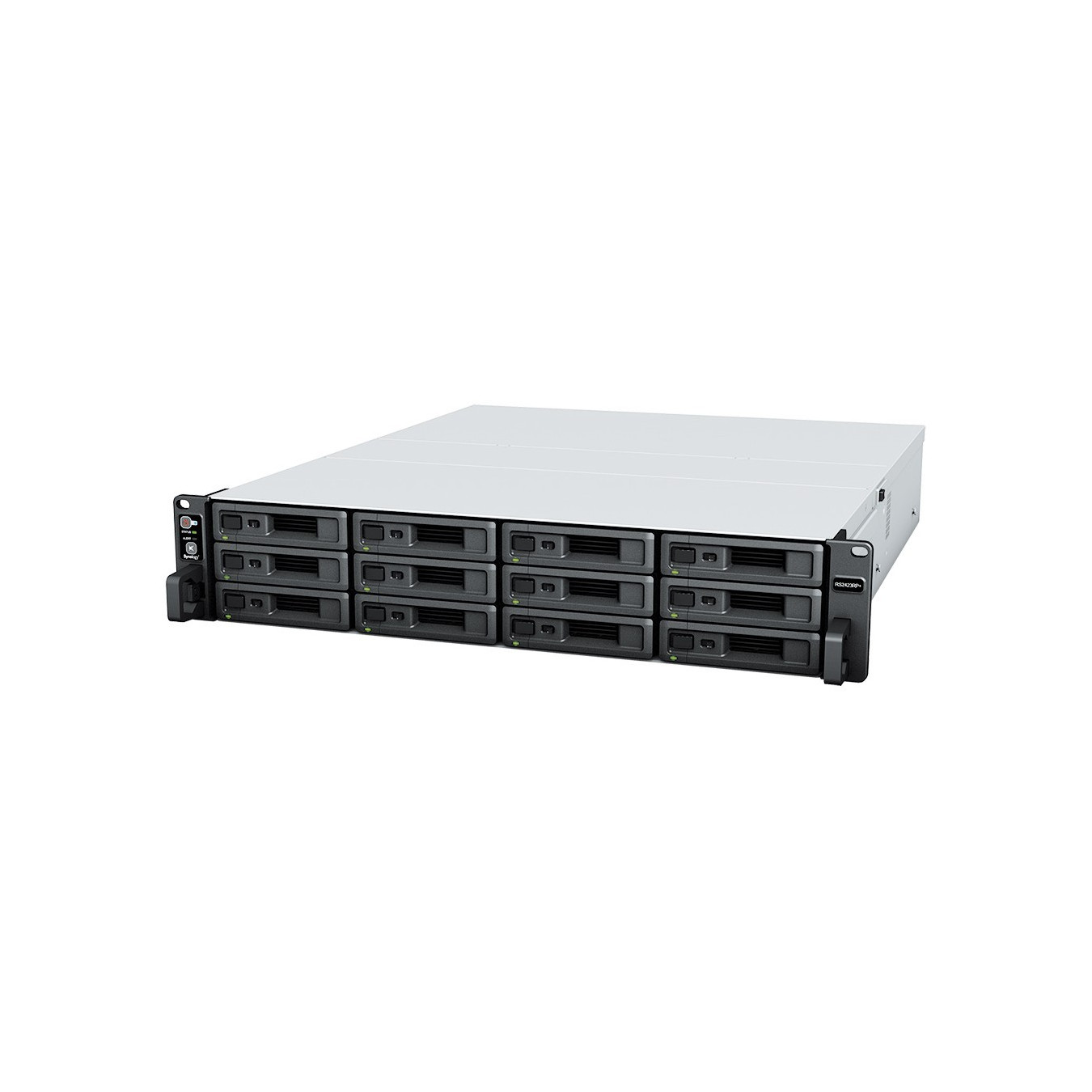

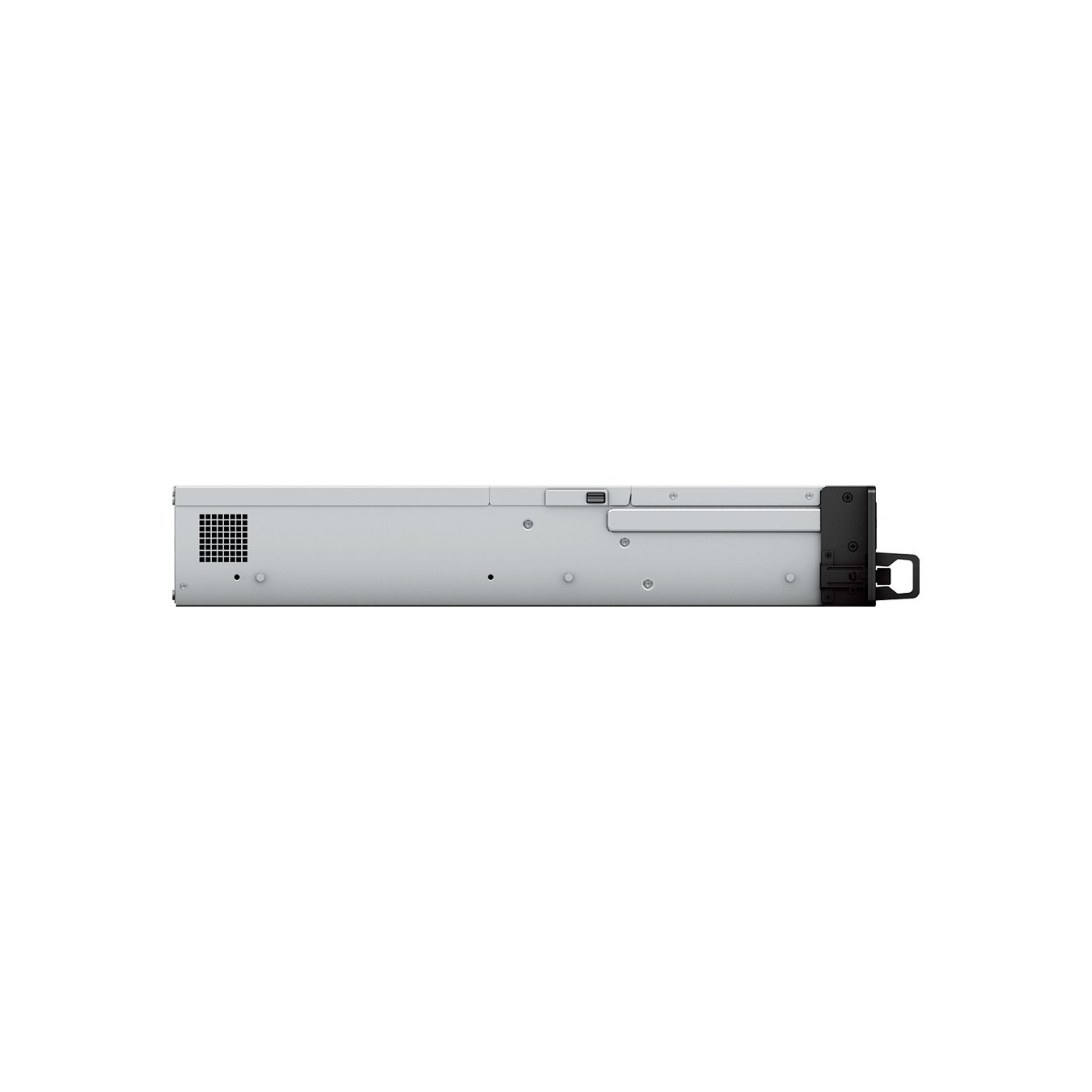

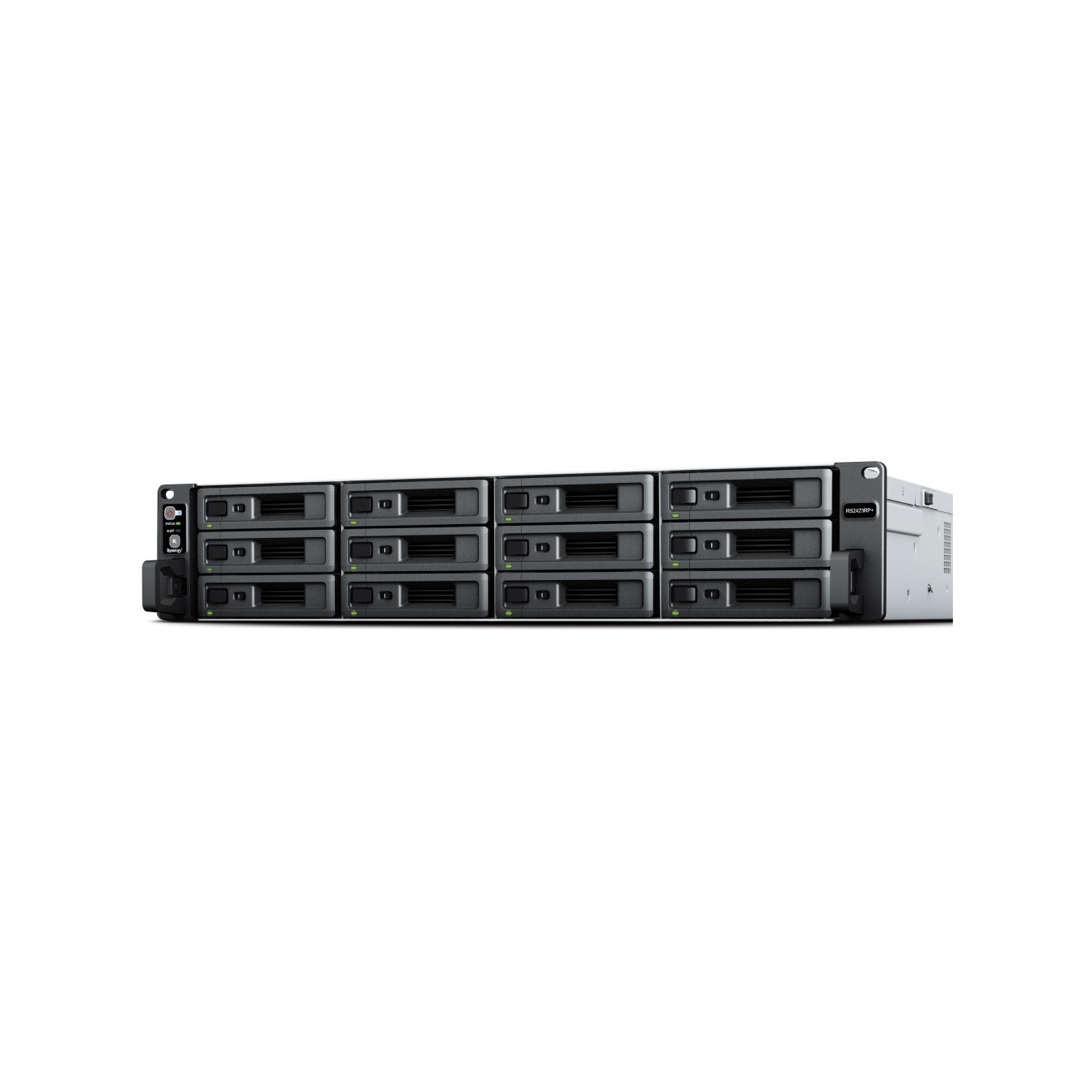

12-Bay Synology RackStation - RS2423+ - 2U Rack NAS, AMD Ryzen V1780B 3.35GHz (3.6GHz boost), 8GB DDR4
12-bay 2U RackStation RS2423+ with AMD Ryzen Embedded V1780B (3.35GHz, 3.6GHz boost), 8GB DDR4 (up to 32GB), supports 3.5"/2.5" HDD & SSD, RAID 0/1/5/6/10, DSM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - Bays | 12+ |
|---|---|
| NAS (Network Attached Storage) - Drive Type | 3.5inch HDD |
| NAS (Network Attached Storage) - Memory (Installed) | 8 GB |
| NAS (Network Attached Storage) - RAID Levels | RAID 5 |
Synology RackStation RS2423+. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Ryzen Embedded. Processor model: V1780B. Processor frequency: 3.35 GHz. Internal memory: 8 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | Sustainability compliance |
| RAID levels | 0. 1. 5. 6. 10. JBOD |
| Supported file systems | BTRFS. Fat. HFS+. NTFS. exFAT. ext3. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1780B |
| Processor frequency | 3.35 GHz |
| Processor boost frequency | 3.6 GHz |
| Processor cores | 4 |
| Number of processors supported | 1 |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | UDIMM |
| Ethernet LAN data rates | 10.100.1000.10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T. 10GBASE-T. 100BASE-TX. 1000BASE-T |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black. Grey |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup features | Cloud. iSCSI LUN |
| Noise level | 52.3 dB |
| Management protocols | SNMP |
| Security algorithms | AES |
| Browser supported | Google Chrome Firefox Microsoft Edge Safari |
| Operating system installed | DiskStation Manager |
| Operating system version | 7.1.1 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 119.95 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 482 mm |
| Depth | 562 mm |
| Height | 88 mm |
| Weight | 11.5 kg |
| Cables included | AC |
| Power cables quantity | 1 |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | CE. RoHS |
| Certification | FCCBSMIVCCIRCMUKCAEACCCCKCUL |
