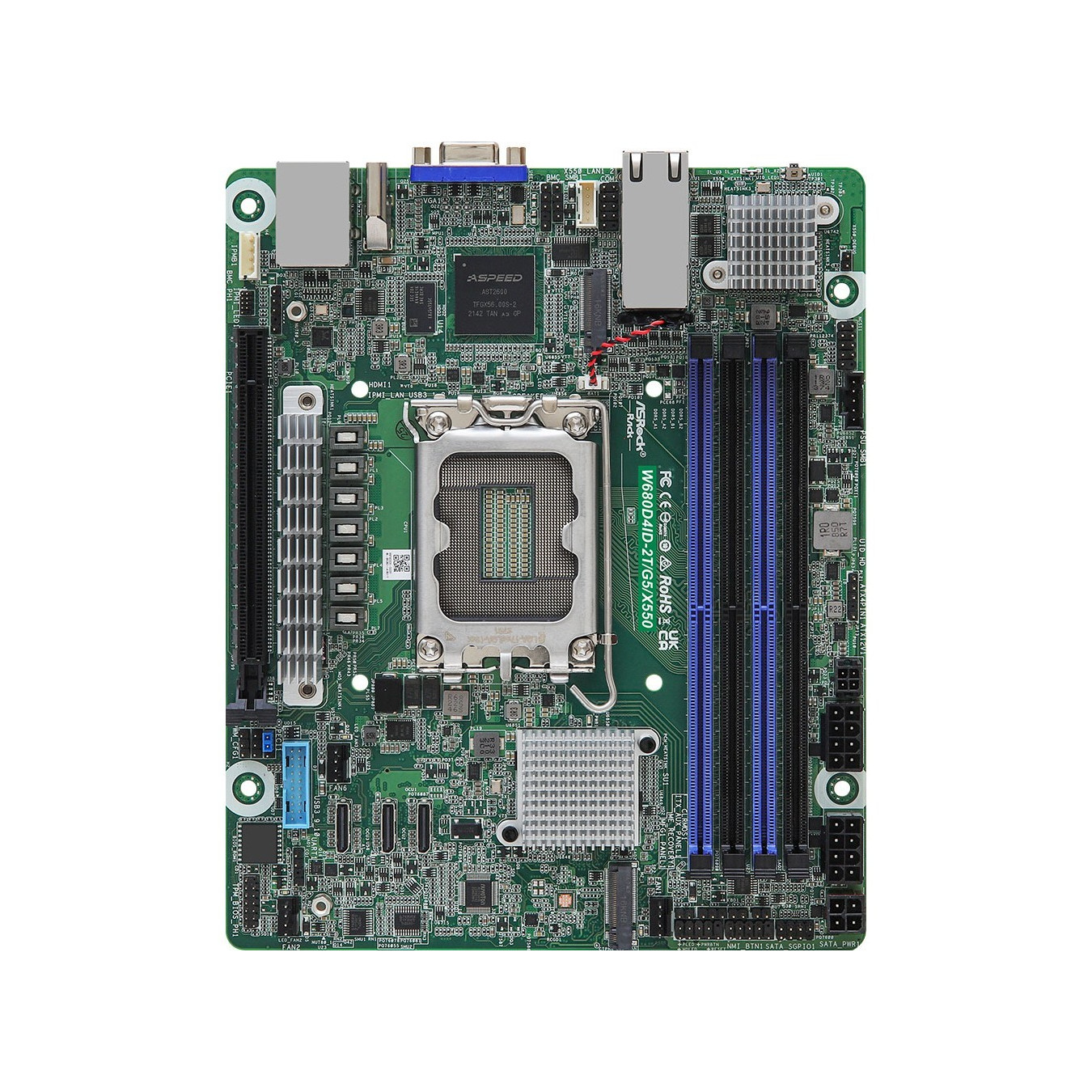

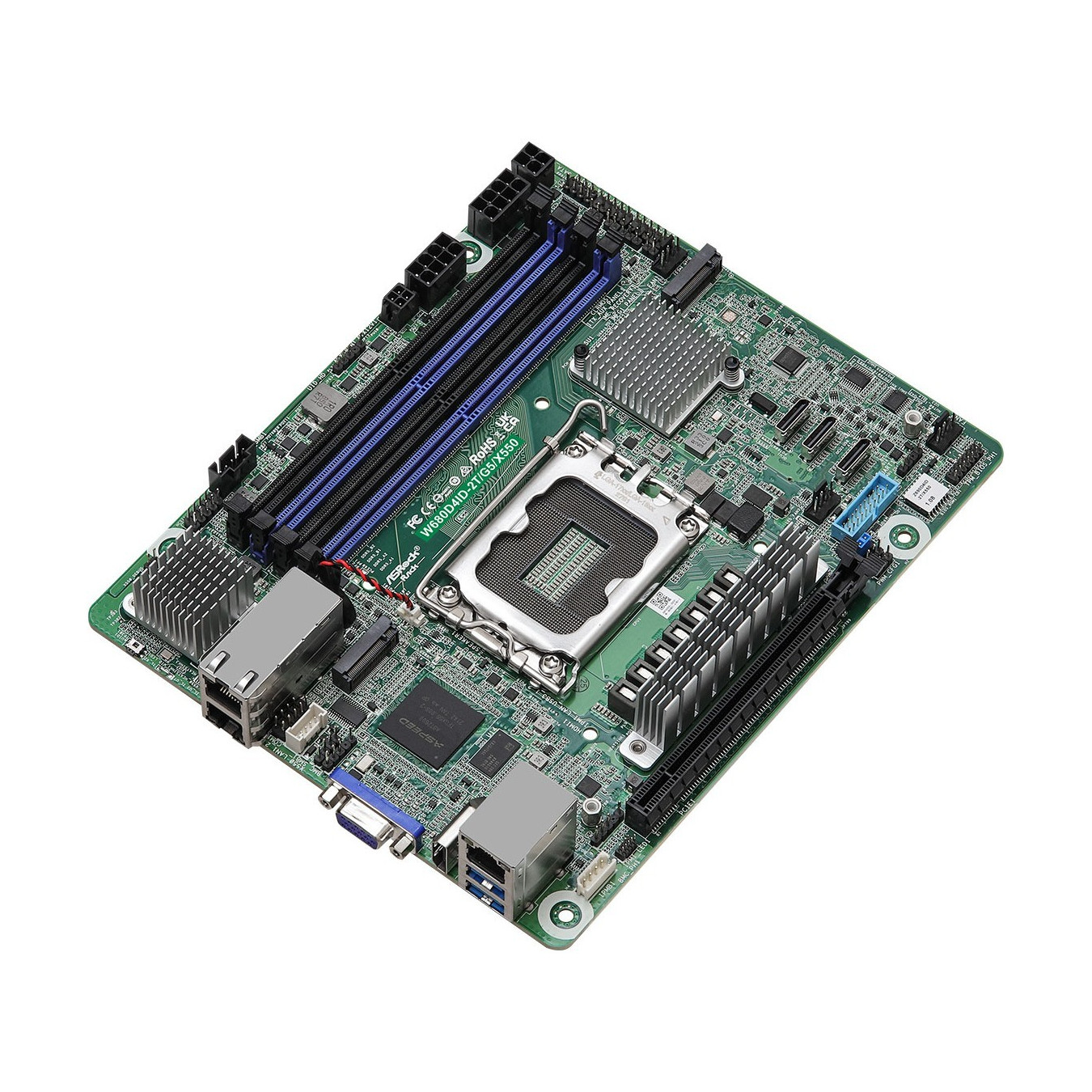

ASRock W680D4ID-2T/G5/X550 Mini-DTX Motherboard - LGA1700, DDR5, 48GB Max, PCIe 4.0, Dual 10GbE
ASRock W680D4ID-2T/G5/X550 Mini-DTX board for LGA1700 Intel Core i3–i9, DDR5 (up to 48GB), PCIe 4.0, M.2, SATA III, ASPEED AST2600, Dual 10GbE, RAID 0/1/5/10.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
Asrock W680D4ID-2T/G5/X550. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Supported memory types: DDR5-SDRAM. Maximum internal memory: 48 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. PCI Express 4.0. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 5. 10. Graphics card family: ASPEED. Graphics card: AST2600. Ethernet interface type: 10 Gigabit Ethernet. LAN controller: Intel® X550
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.1 V |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 48 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. PCI Express 4.0. SATA III |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 5. 10 |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 8 |

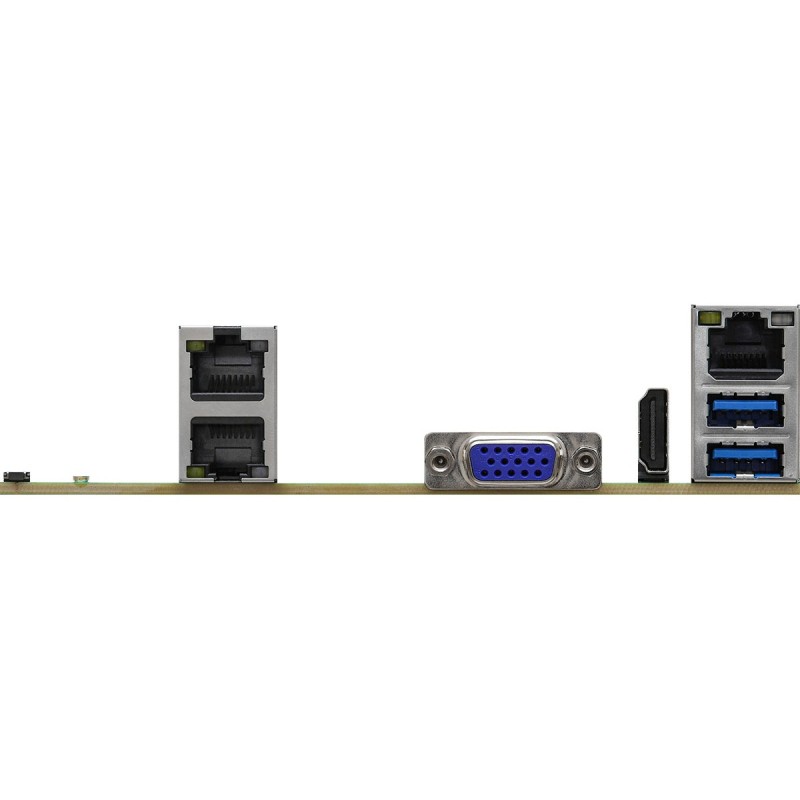

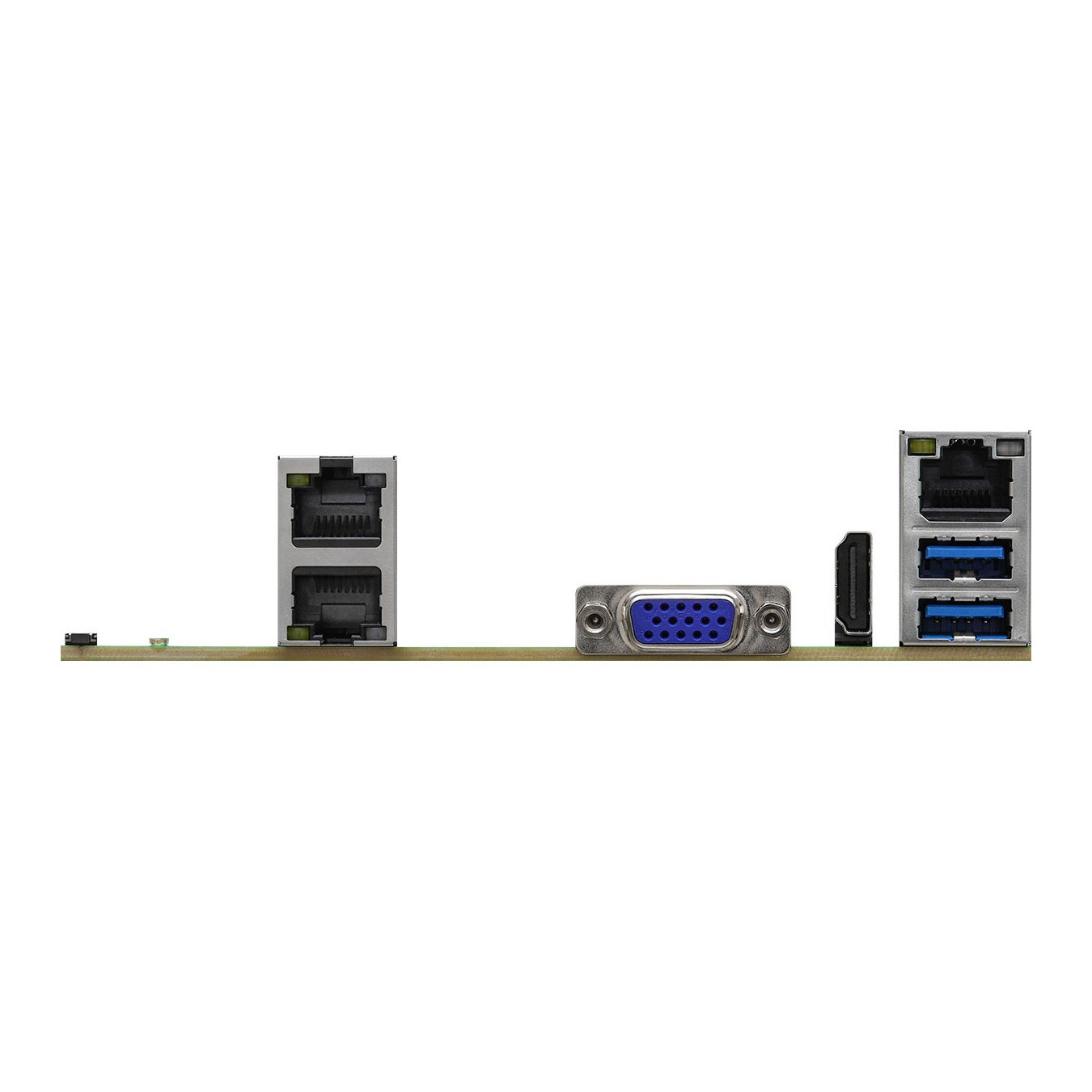

| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel® X550 |
| Motherboard chipset | Intel W680 |
| Component for | Server |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS type | AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.6 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Width | 170.2 mm |
| Depth | 208.3 mm |
