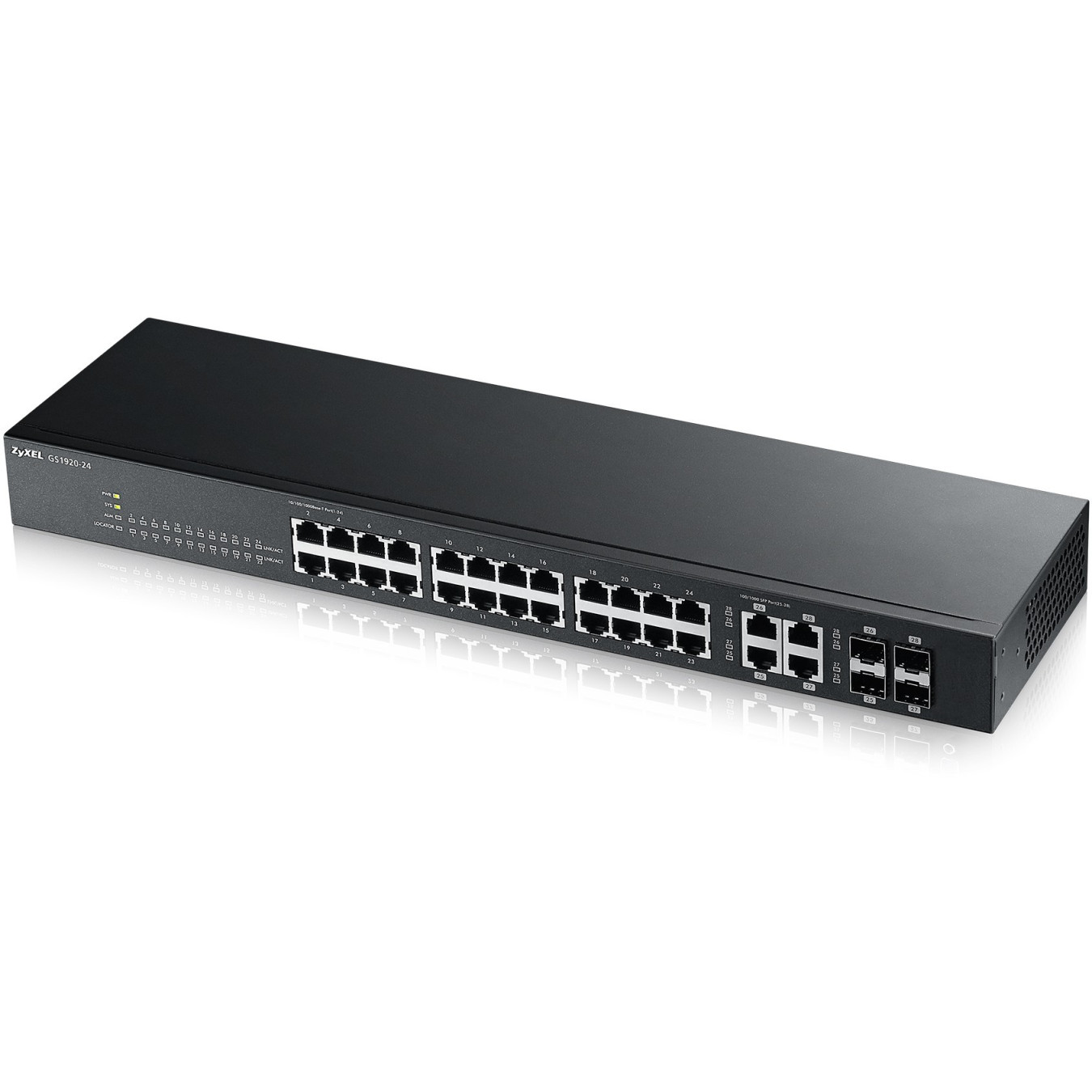

Zyxel GS1920-24V2 - 24x Gigabit + 4 SFP Managed Rackmount Switch
Managed 24-port Gigabit switch with 4 SFP combo ports, 56 Gbps switching capacity, 16K MAC table, advanced L2 features and DHCP support. Rackmountable 1U unit.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | Yes |
Zyxel GS1920-24V2. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE.... Rack mounting
| Switch type | Managed |
| Feature | Rack mount kit |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Fiber optic connector | SFP |
| Copper ethernet cabling technology | 100BASE-TX. 1000BASE-T |
| Virtual LAN features | Private VLAN. Voice VLAN. Protocol-based VLAN. MAC address-based VLAN. Port-based VLAN. IP subnet–based VLAN |
| Fiber ethernet cabling technology | 1000BASE-X |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 42 Mpps |
| MAC address table | 16000 entries |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP snooping. DHCP relay. DHCPv6 relay. DHCP client |
| Security algorithms | 802.1x RADIUS. SNMP. SNMPv3 |
| Authentication | Guest VLAN. Port-based authentication |
| Authentication type | IEEE 802.1x. RADIUS |
| Queue scheduling algorithms | SPQ. WFQ. Weighted Round Robin (WRR) |
| Product colour | Black |
| Safety | LVD. BSMI |
| Electromagnetic compatibility | FCC 15 A. CE A. BSMI EMC |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 911301 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 22.5 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 76.73 BTU/h |
| Width | 441 mm |
| Depth | 131 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
| Cables included | AC |
| Package width | 558 mm |
| Package depth | 214 mm |
| Package height | 79 mm |
| Package weight | 2.91 kg |
| Certification | RoHS |
| Harmonized System (HS) code | 85176990 |
