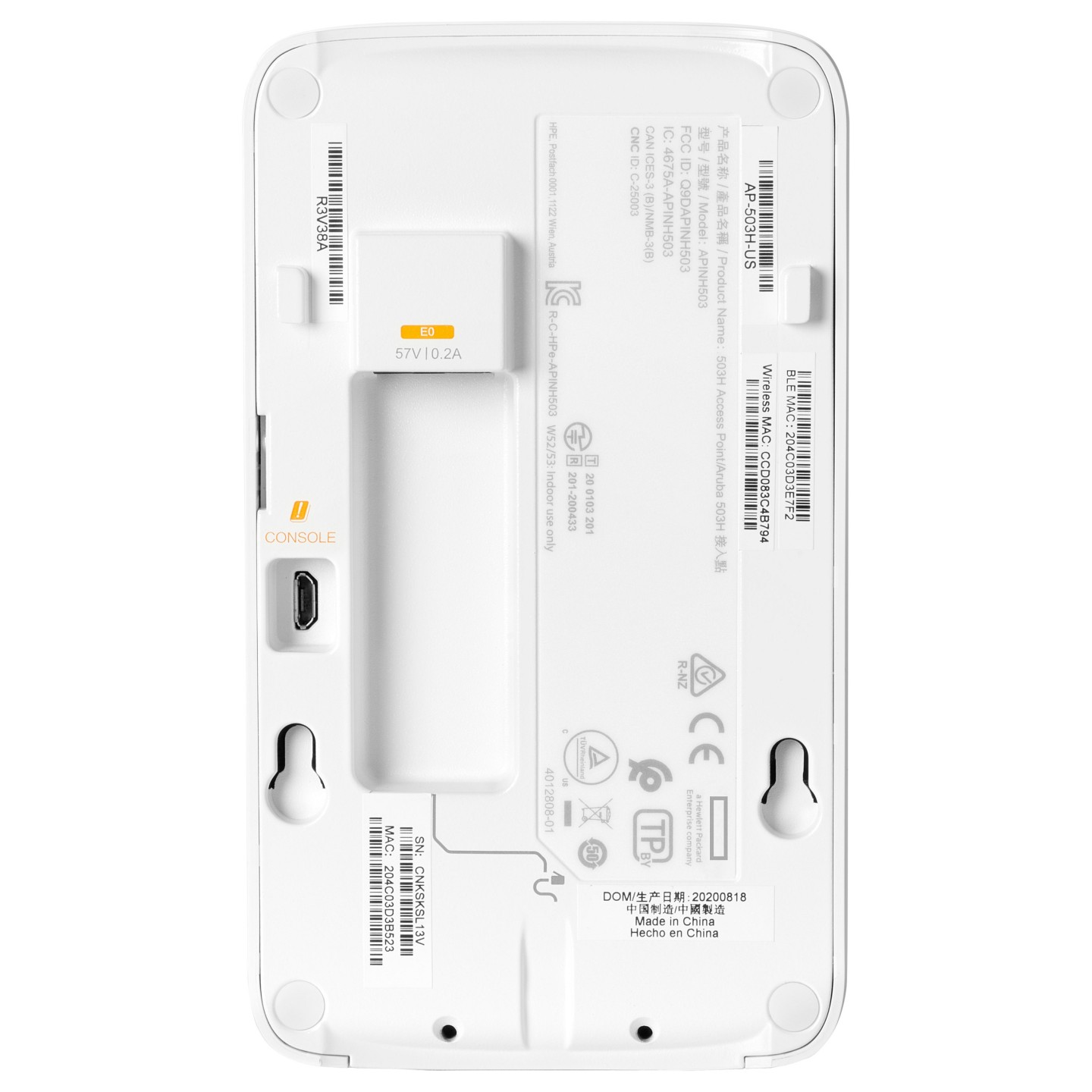

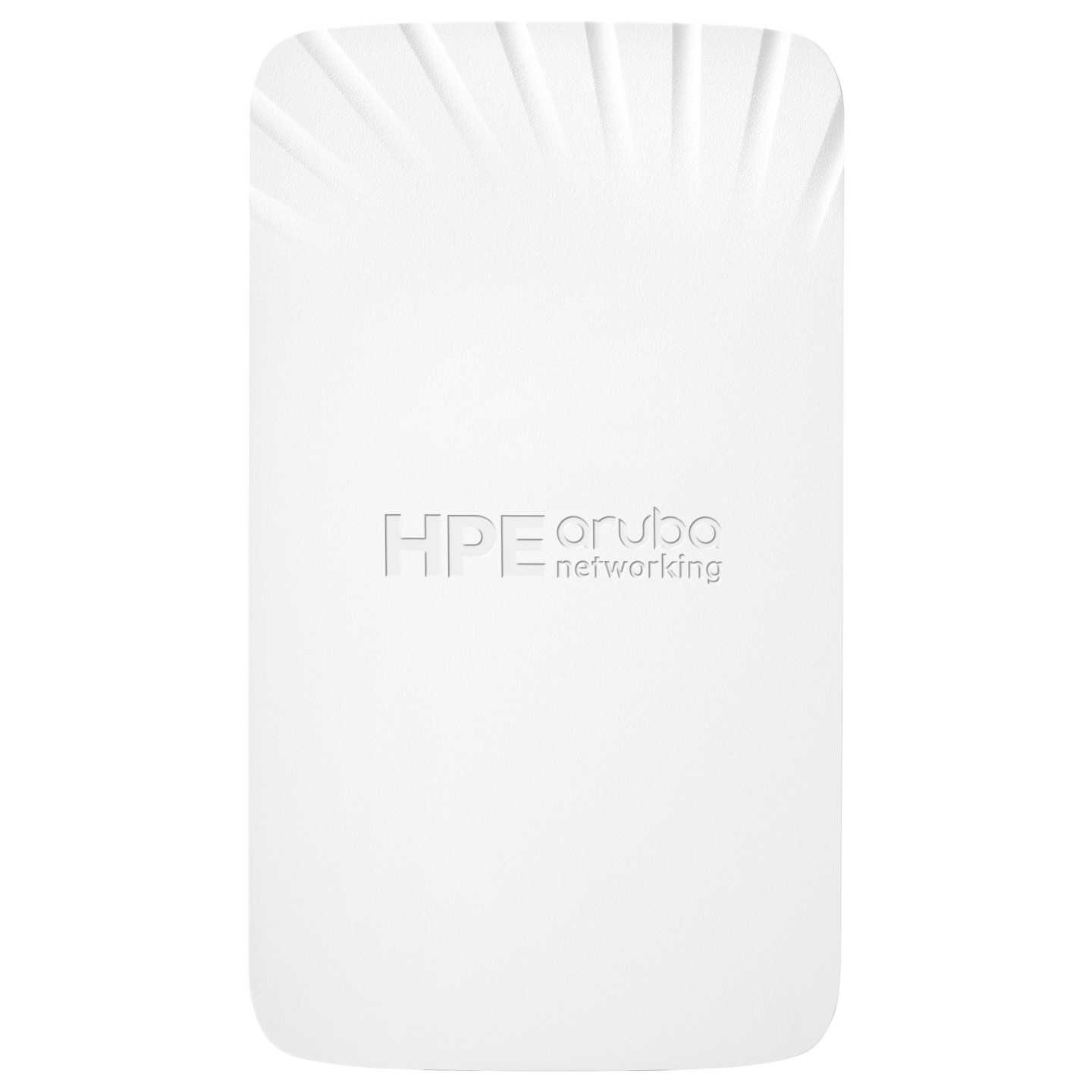

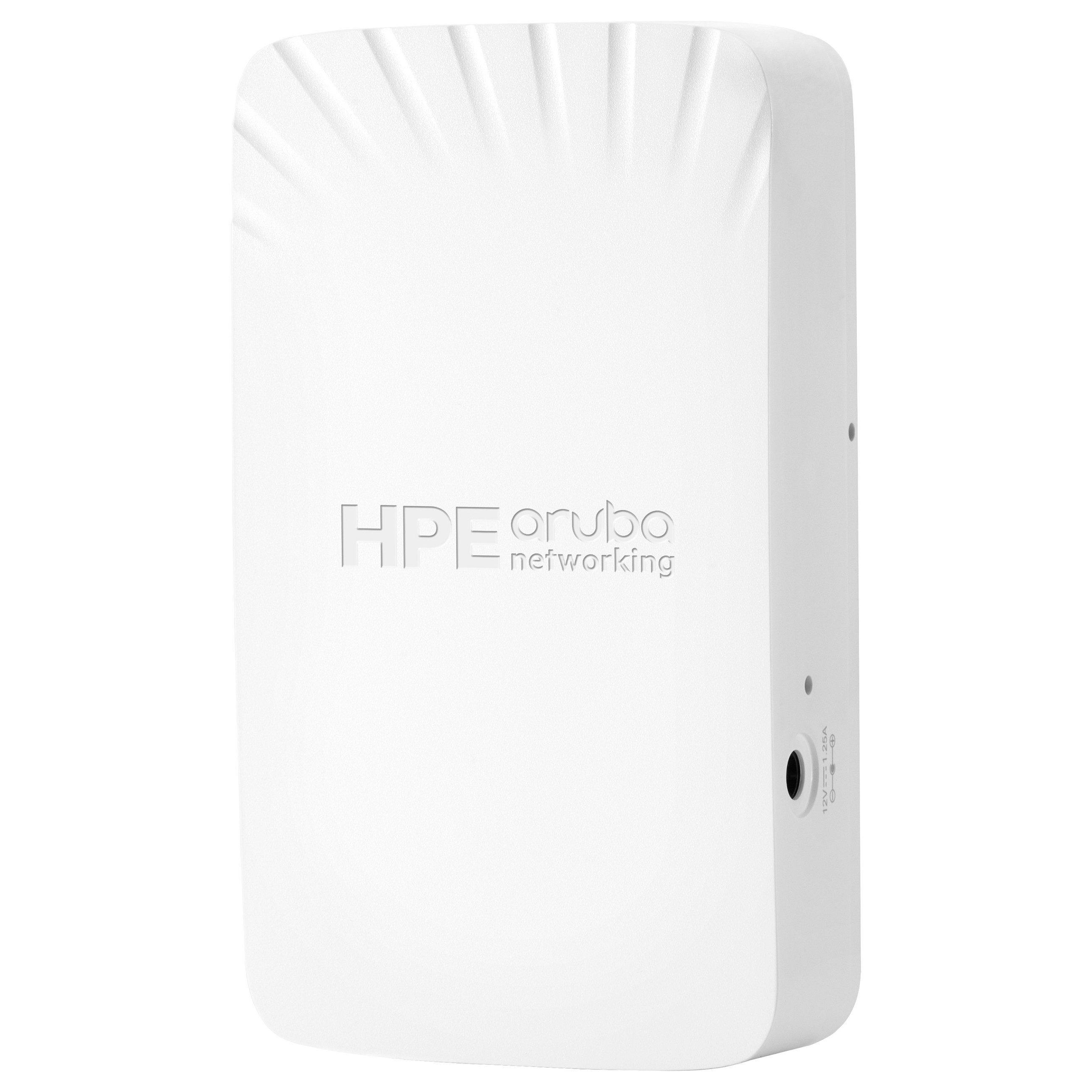

HPE Aruba AP-503H Access Point RW Dual Radio 2x2 802.11ax Unified Hospitality 1+2 Ethernet
HPE Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2x2 1+2 Ethernet Unified Hospitality AP. 2.4 GHz. 5 GHz. 1487 Mbit/s. WPA2. WPA3. 1000.5000 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2x2 1+2 Ethernet Unified Hospitality AP. 2.4 GHz. 5 GHz. Maximale Datenübertragungsrate: 1487 Mbit/s. Unterstützte Sicherheitsalgorithmen: WPA2. WPA3. Ethernet LAN Datentransferraten: 1000.5000 Mbit/s. Power over Ethernet (PoE). Produktfarbe: Weiß
| Feature | Power over Ethernet (PoE) |
| Maximale Datenübertragungsrate | 1487 Mbit/s |
| Maximale Datenübertragungsrate (2.4 GHz) | 287 Mbit/s |
| Maximale Datenübertragungsrate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN Datentransferraten | 1000.5000 Mbit/s |
| Frequenzband | 20/40 (2.4 GHz). 20/40/80 (5 GHz). maximum peak data rate 1.49 Gbps |
| Netzstandard | IEEE 802.11ax. IEEE 802.11mc |
| Bluetooth-Version | 5.0 |
| MIMO-Typ | Multi User MIMO |
| Spread-Spectrum Methode | DSSS. OFDM. OFDMA |
| Modulation | 16-QAM. 64-QAM. 256-QAM. 1024-QAM. BPSK. CCK. QPSK |
| Unterstützte Sicherheitsalgorithmen | WPA2. WPA3 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| USB-Stecker | Micro-USB B |
| Stromverbrauch (Standardbetrieb) | 10 W |
| Platzierung | Tisch. Wand |
| Produktfarbe | Weiß |
| Empfohlene Nutzung | Drinnen |
| Antennentyp | Intern |
| Antennenrichtungsart | Halbdirektional |
| Antennenfunktionen | Integrierte Antenne |
| Anzahl der Antennen | 2 |
| Antenne Zunahmeniveau (max) | 5.6 dBi |
| Konformitätsbescheinigungen | Eidgenössische Kommunikationskommission (FCC). ISED. CE. Elektromagnetische Verträglichkeit (EMV). Niederspannungsrichtlinie (LVD) |
| Breite | 86 mm |
| Tiefe | 47 mm |
| Höhe | 150 mm |
| Gewicht | 360 g |
| Weitere Anschlüsse | 1 x 10/100/1000BASE-T RJ-45 port. auto-sensing link speed and MDI/MDX 4 x 10/100/1000BASE-T (RJ-45) ports. auto-sensing link speed and MDI/MDX |
| Gewicht (imperial) | 0.363 kg (0.8 Pfund) |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 93% |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Luftfeuchtigkeit bei Lagerung | 5 - 93% |
| Warentarifnummer (HS) | 85176990 |
