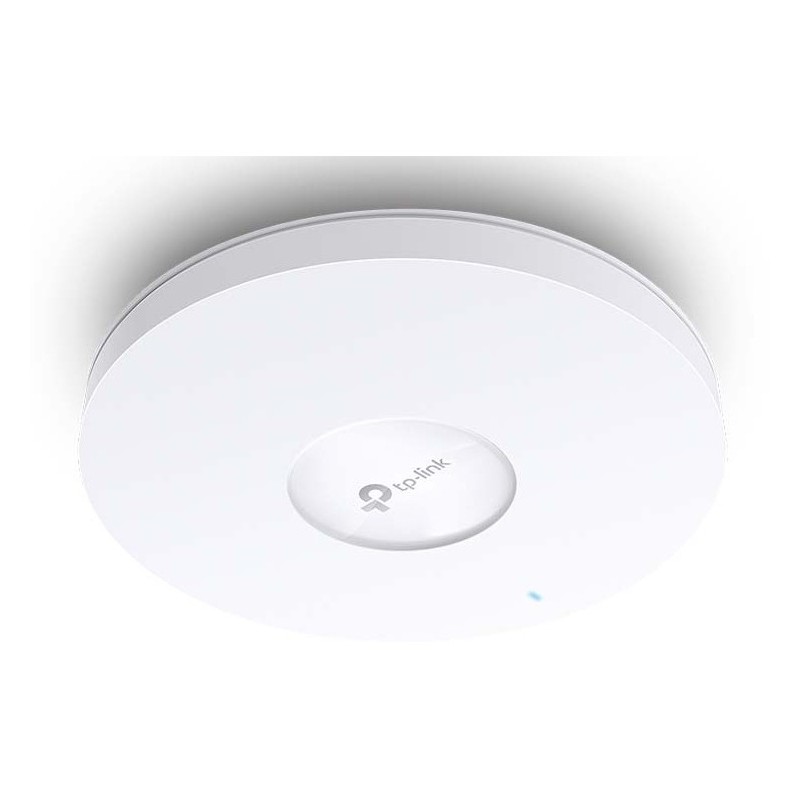

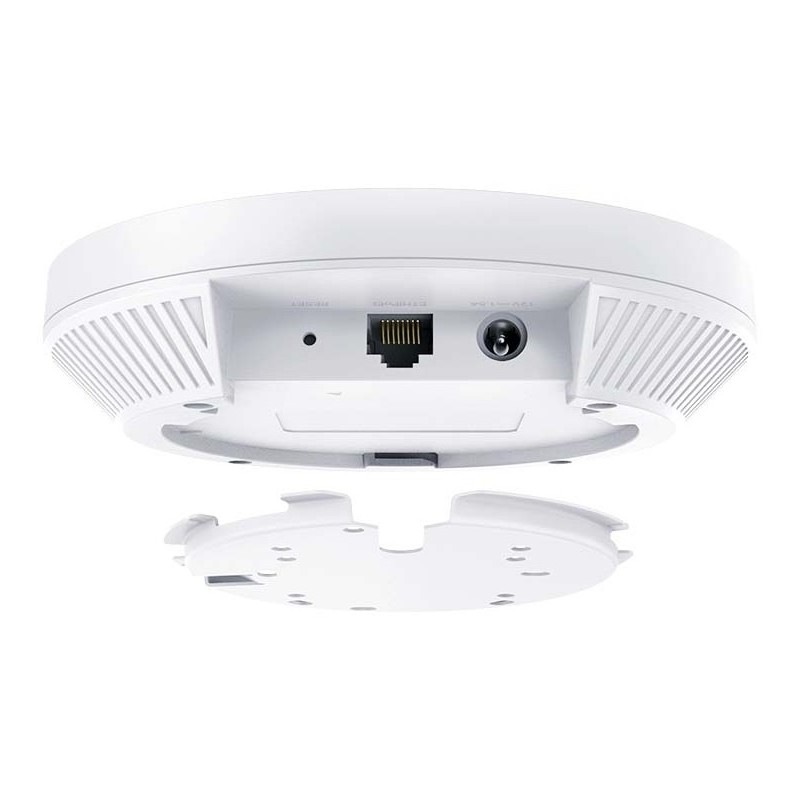

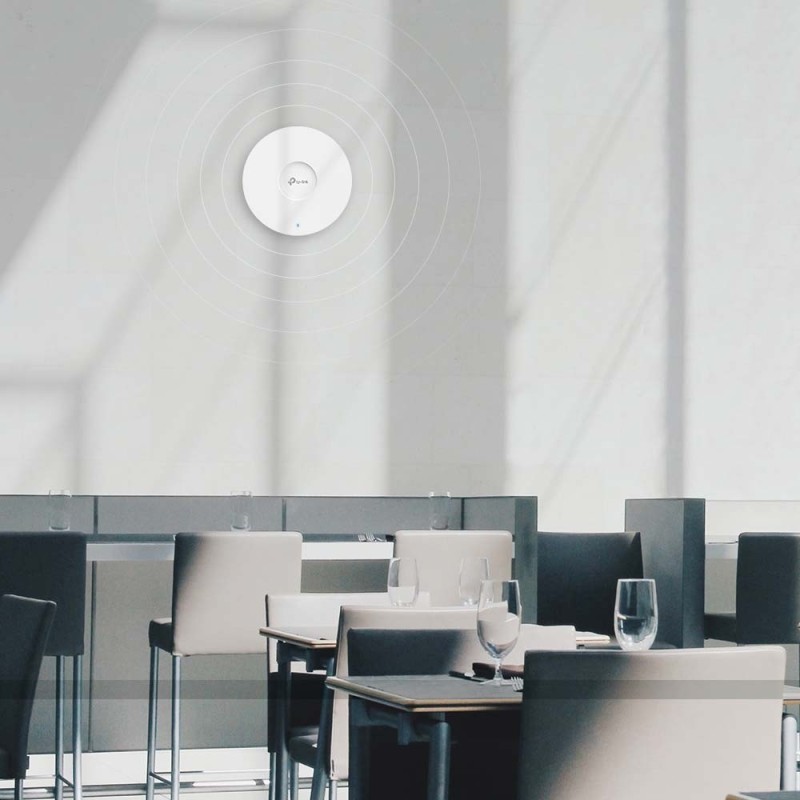

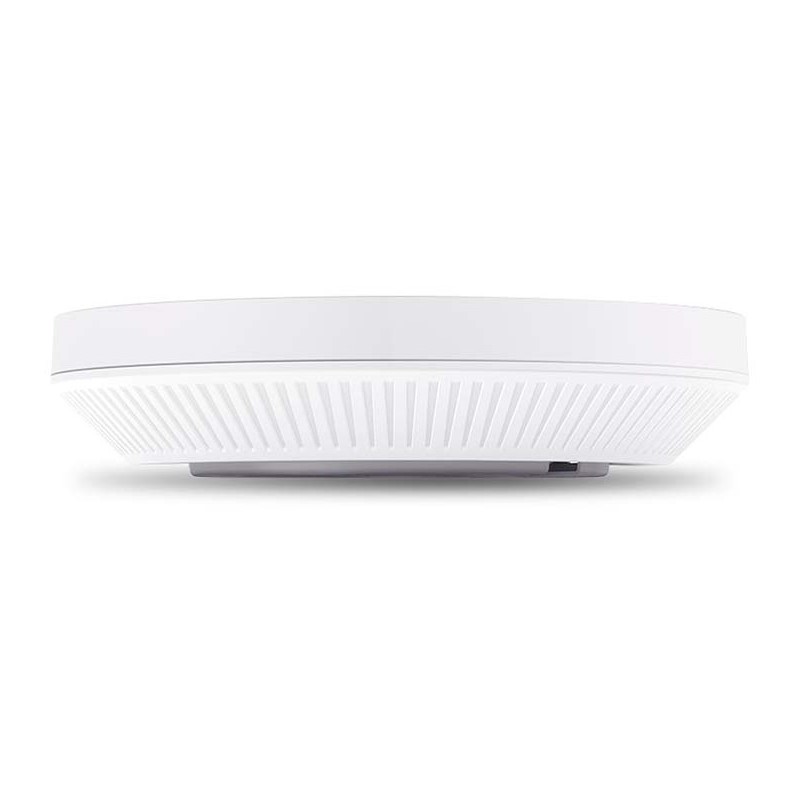

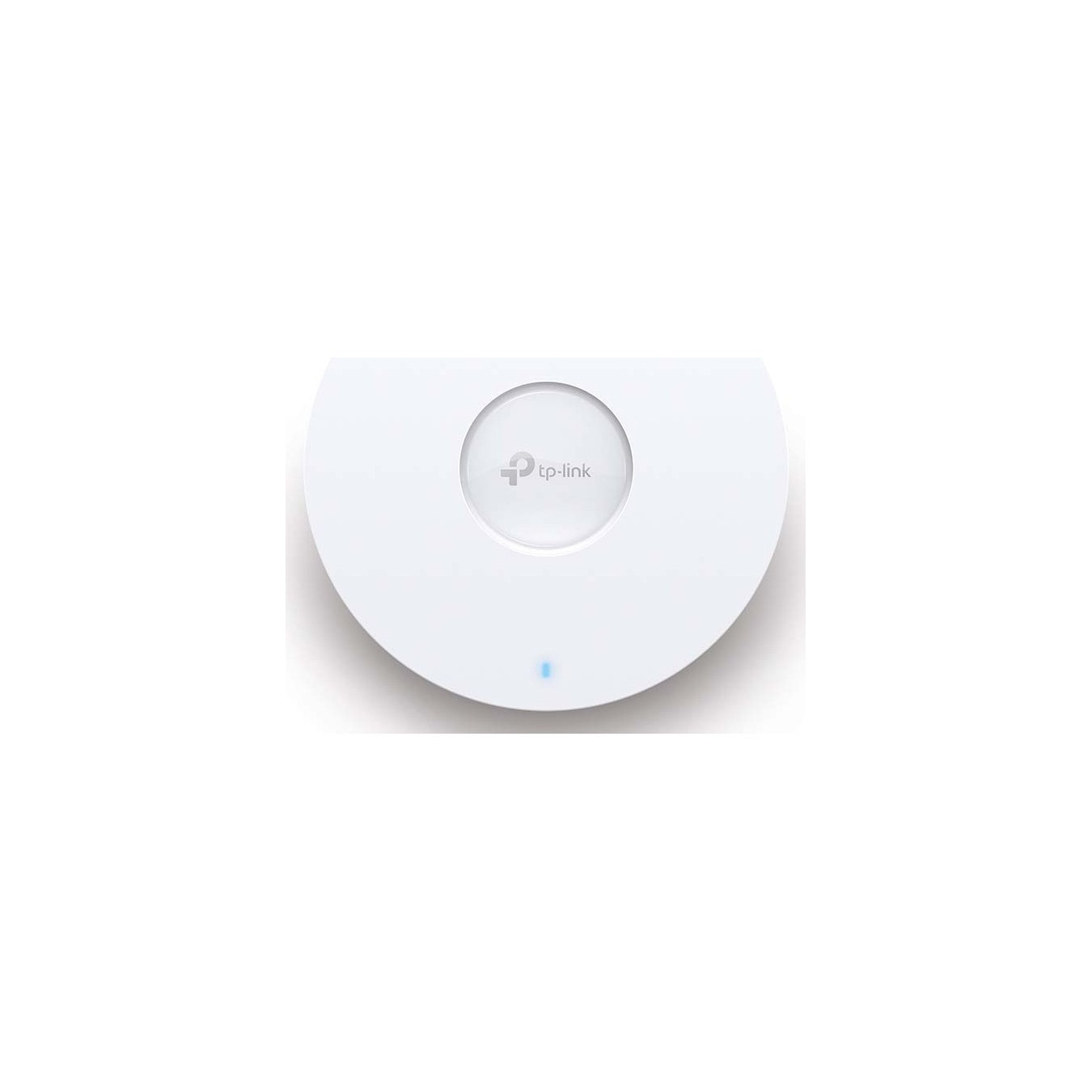

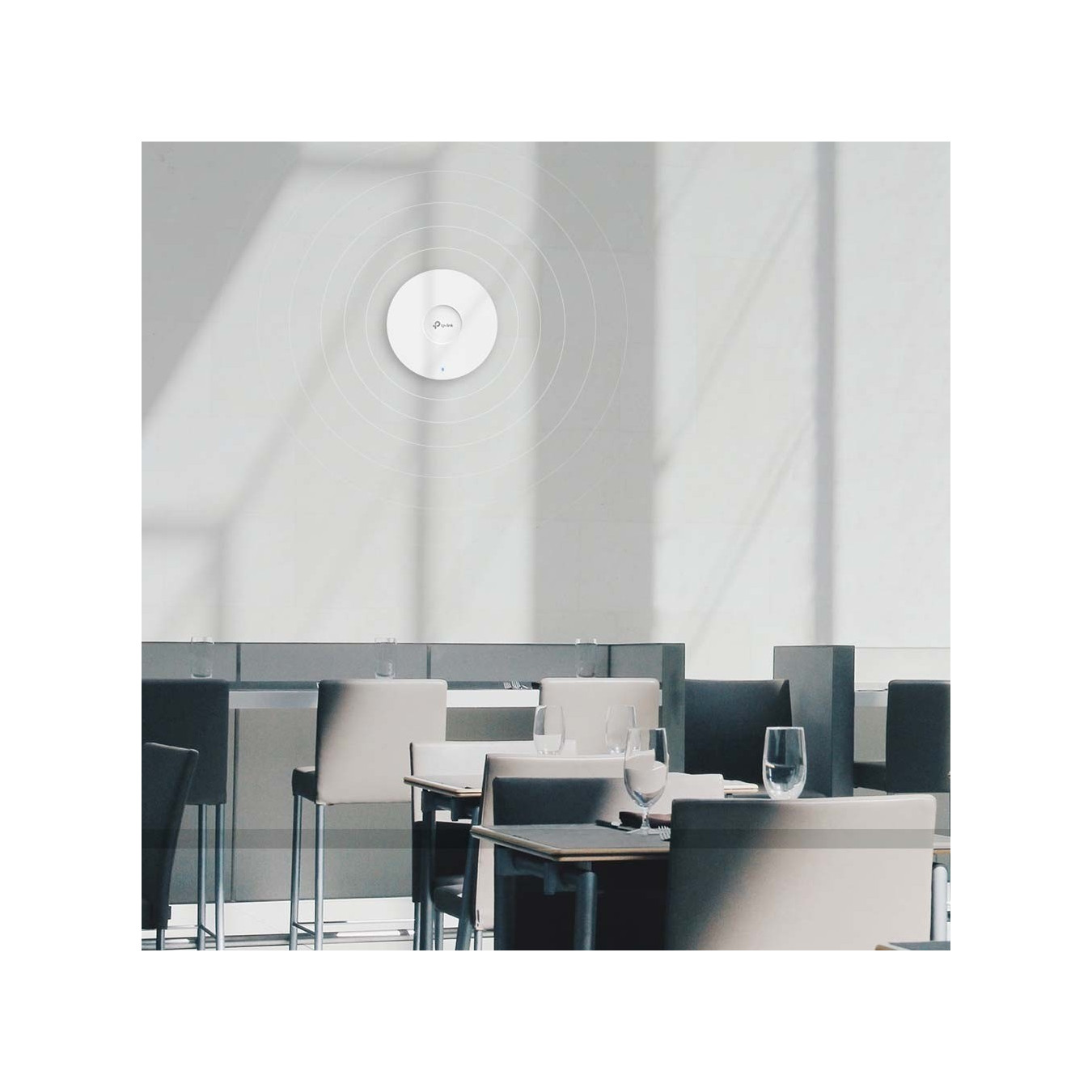

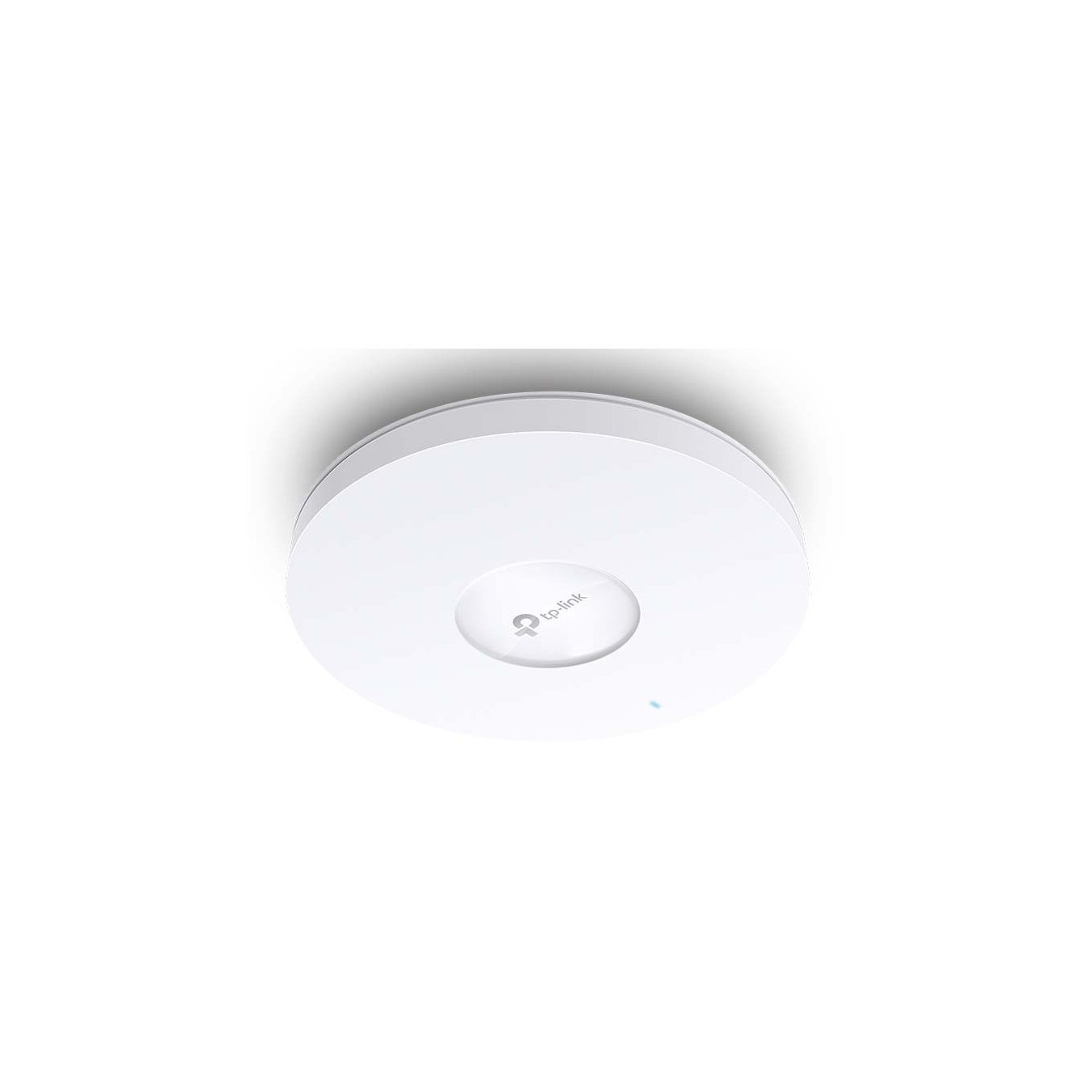

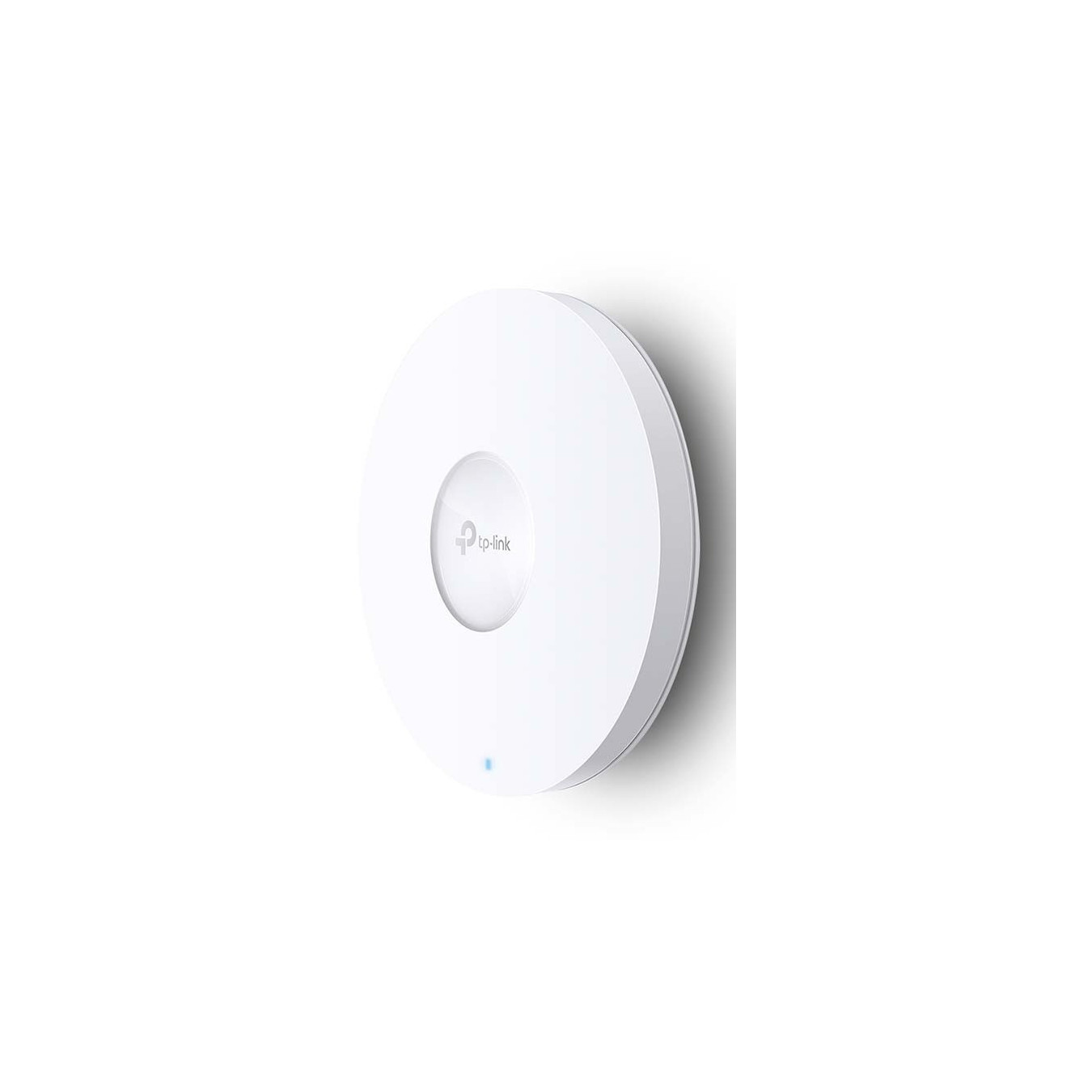

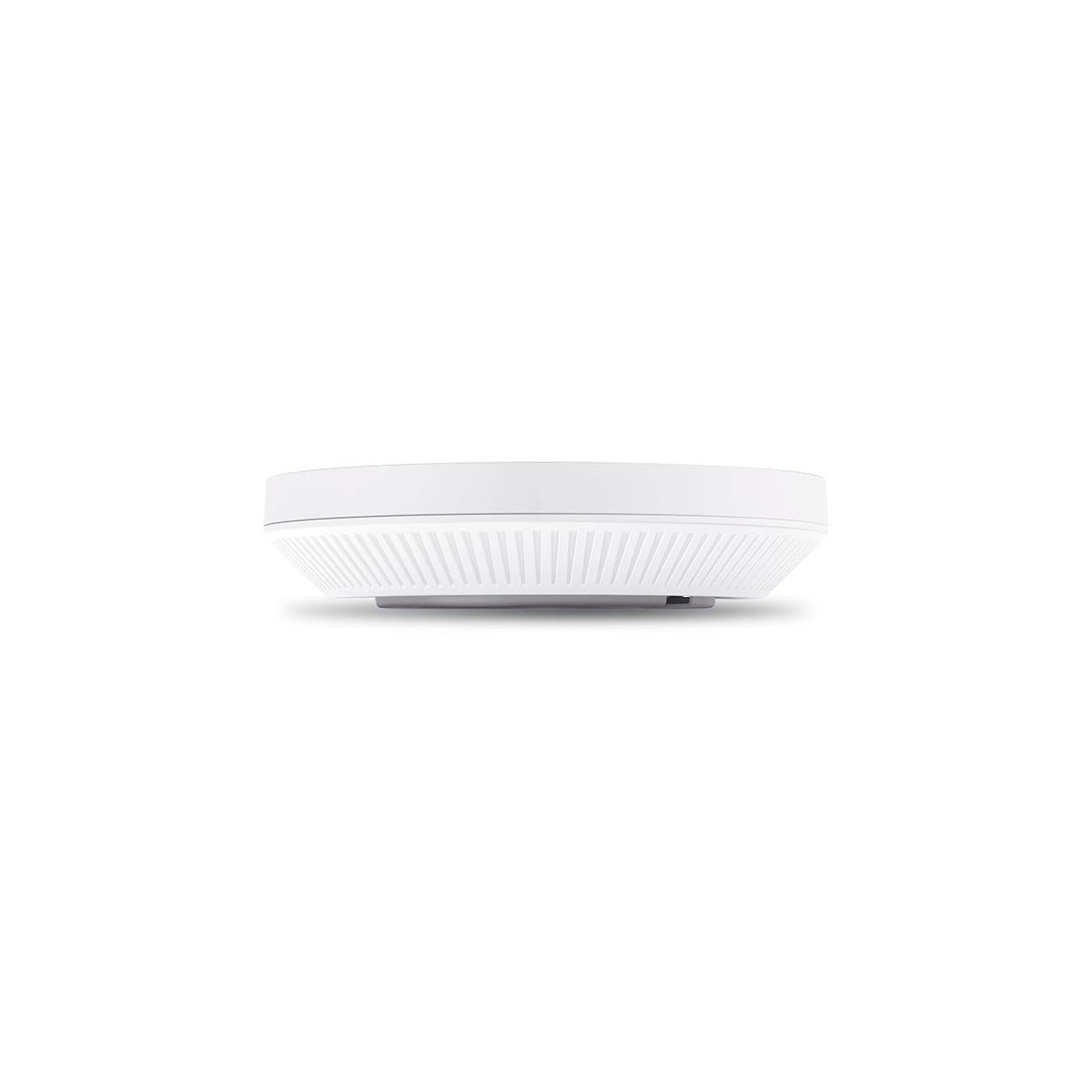

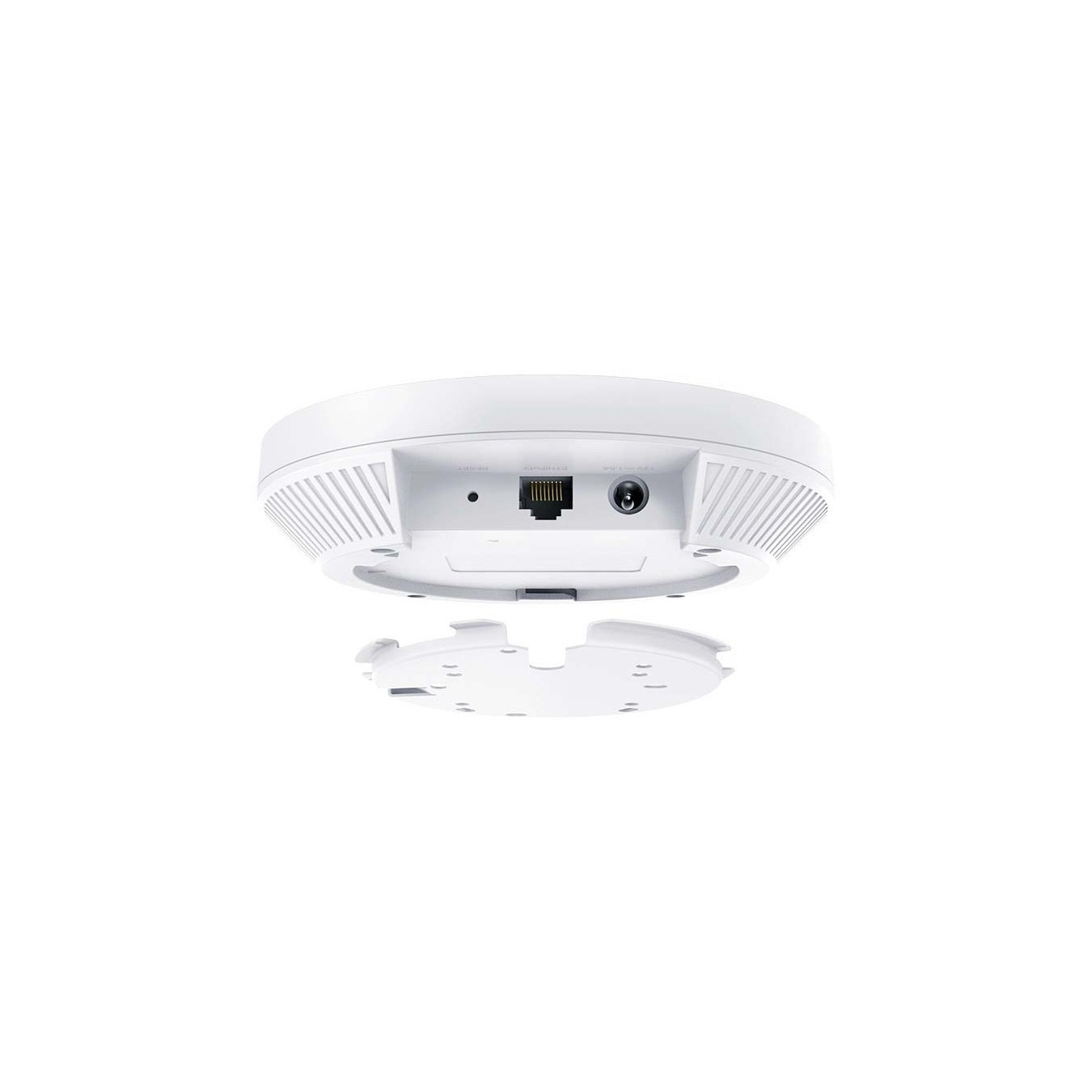

TP-Link Omada EAP613 (WL-AP) AX1800 Ceiling Wi-Fi 6 Access Point - 5-Pack - White, PoE, Omada Managed
TP-Link Omada EAP613 AX1800 dual-band Wi‑Fi 6 ceiling AP — 5-pack. Up to 1800 Mbps (574/1201), PoE support, WPA3, Omada controller management, HTTPS/SNMP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 6 |
| Access Points - Antennas | Internal |
| Access Points - Ethernet Port | 1x1GbE |
| Access Points - Management | Controller-based |
| Access Points - Mounting | Ceiling |
| Access Points - Outdoor Rating | None |
TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point. 5-pack. 2.4 GHz. 5 GHz. Maximum data transfer rate: 1800 Mbit/s. Security algorithms: HTTPS. SNMP. SNMPv2. SNMPv3. WPA. WPA2. WPA3. Power over Ethernet (PoE). Product colour: White
| Feature | Quick start guide |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Virtual LAN features | SSID-based VLAN assignment |
| Transmitting power (CE) | <20 dBm(2.4 GHz. EIRP)| <23 dBm(5 GHz band1/2. EIRP)| <25 dBm (5 GHz band3) |
| Transmitting power (FCC) | <25 dBm (2.4 GHz)| <25 dBm (5 GHz) |
| Security algorithms | HTTPS. SNMP. SNMPv2. SNMPv3. WPA. WPA2. WPA3 |
| Number of SSID supported | 16 |
| Management platform | Omada |
| Ethernet LAN (RJ-45) ports | 1 |
| Placement | Ceiling. Wall |
| Product colour | White |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Compatible operating systems | Microsoft Windows XP. Vista. Windows 7. Windows 8. Windows10. Windows11. Linux |
| Certification | CE. FCC. RoHS |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
| Quantity per pack | 5 pc(s) |
| Operating relative humidity (H-H) | 0 - 40% |
| Operating temperature (T-T) | 10 - 90 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
