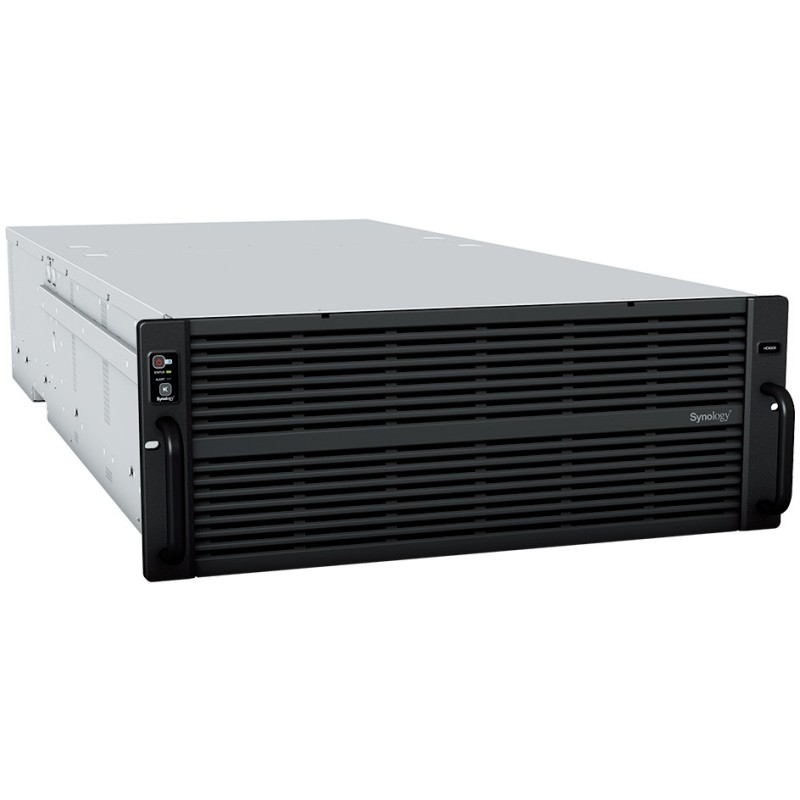

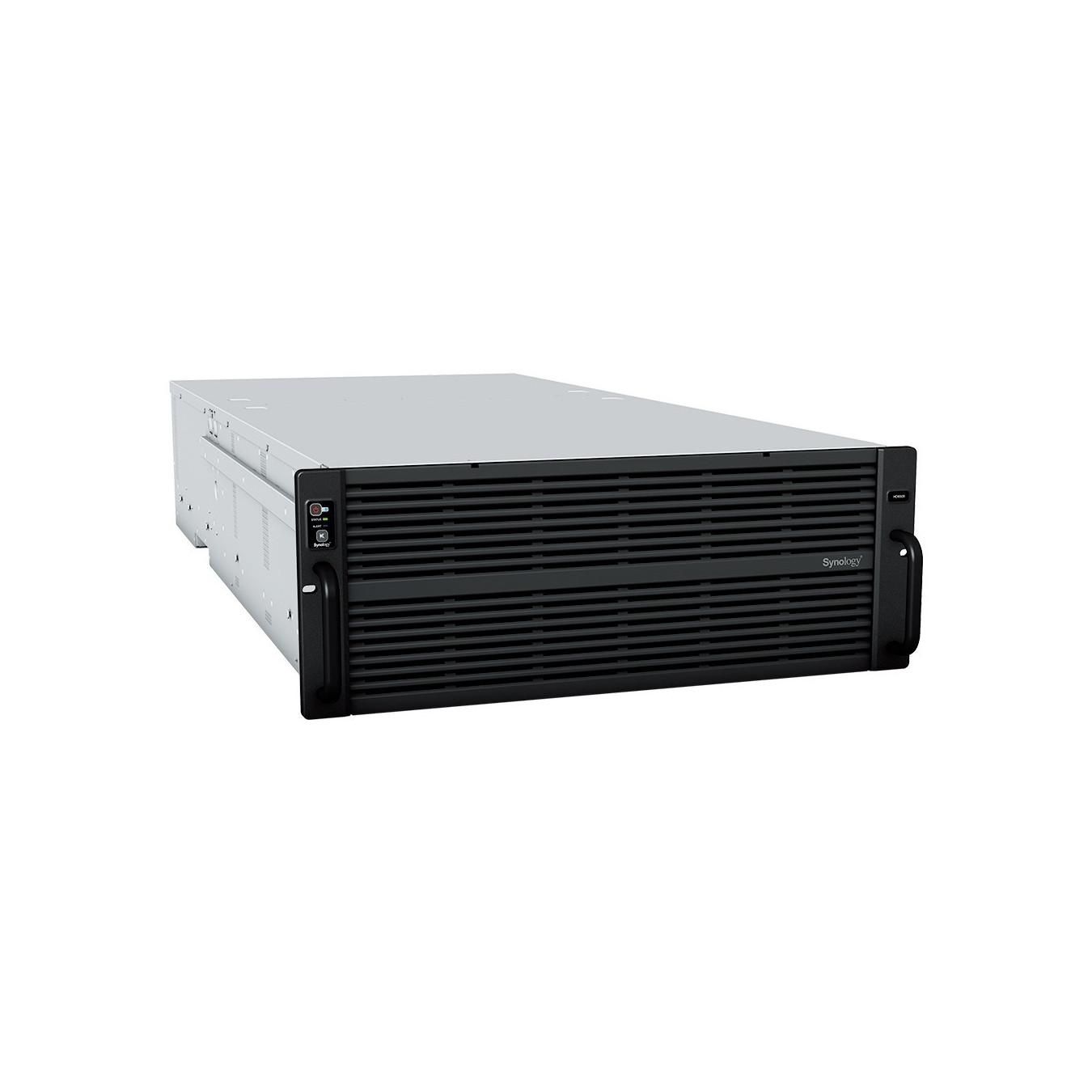

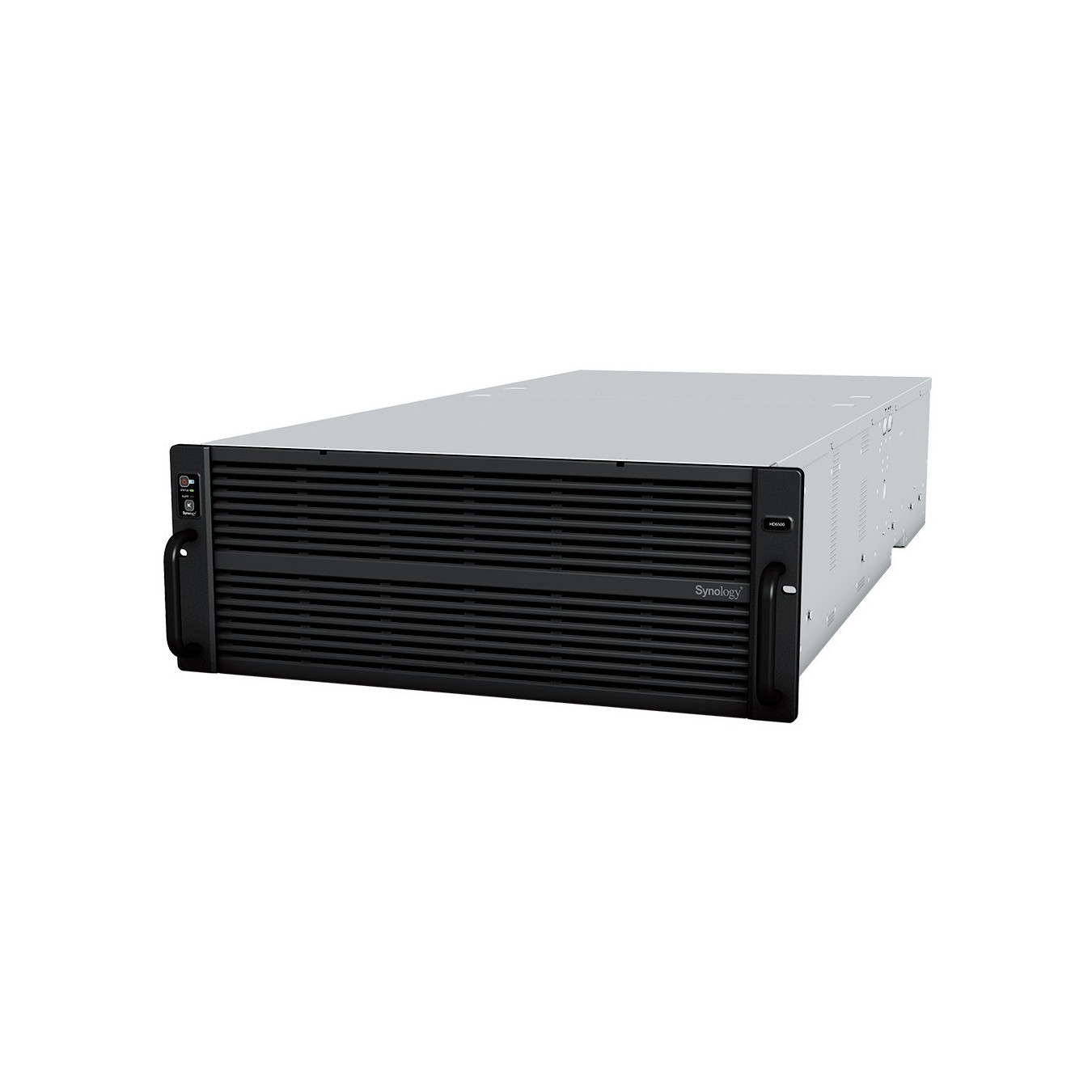

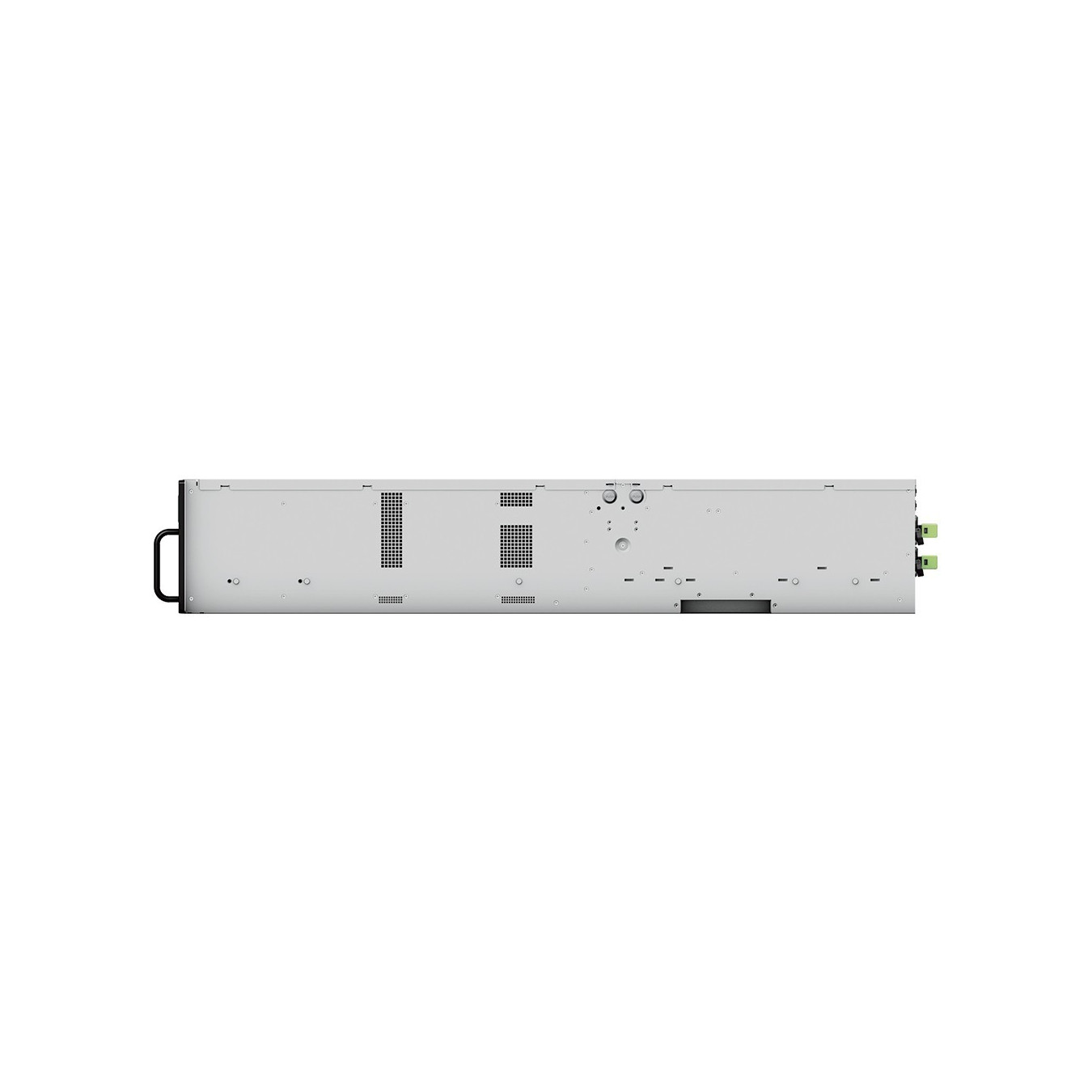

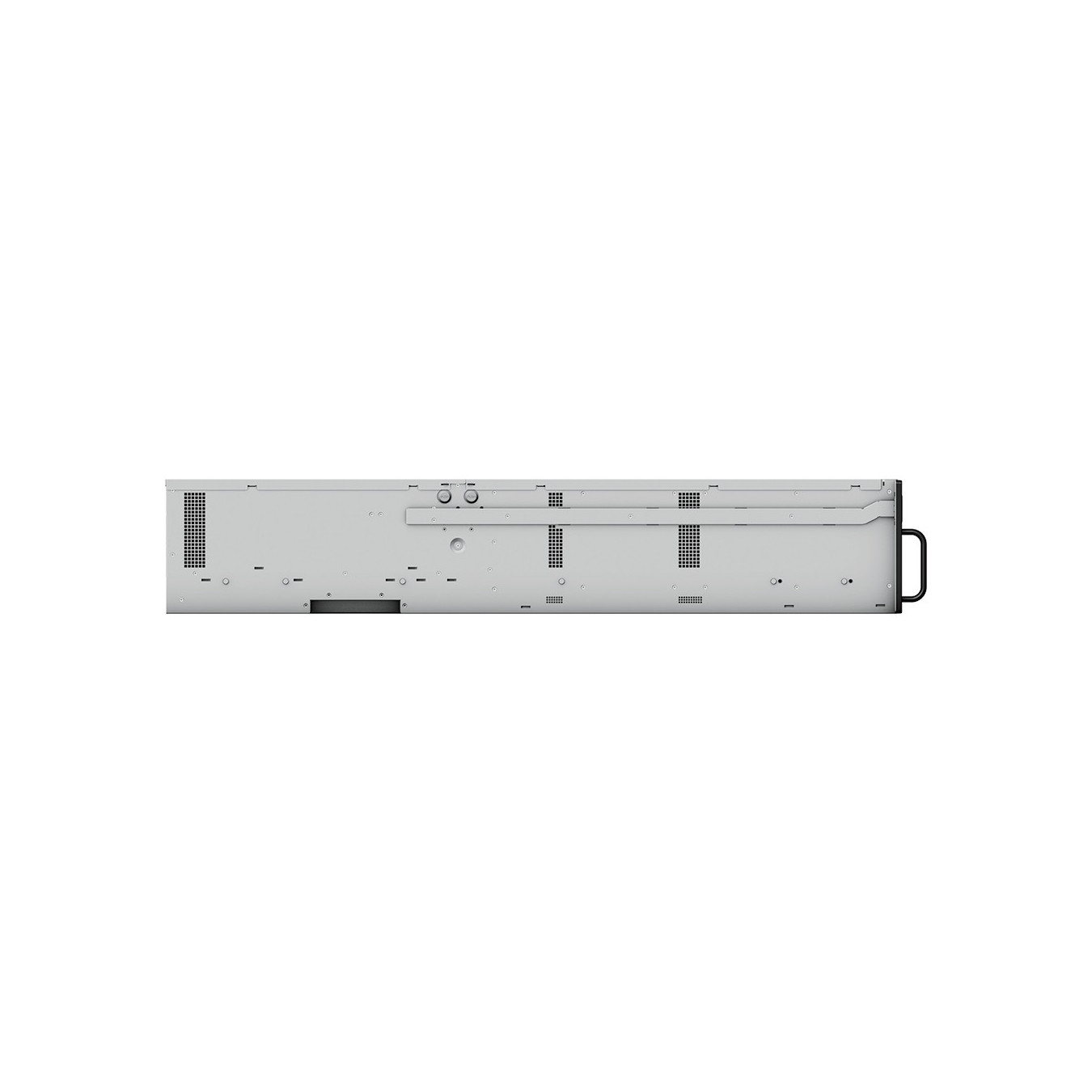

Synology HD6500 - 4210R Xeon Silver - 60-bay 4U Rack NAS, 64GB DDR4, 2.4/3.2GHz
Enterprise 4U Synology HD6500 storage server — 60 hot-swap 3.5-inch bays, Intel Xeon Silver 4210R (2.4/3.2GHz), 64GB DDR4, SAS support, HDD/SSD, RAID 0/1/5/6/10/JBOD.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - RAID Levels | JBOD |
|---|---|
| NAS (Network Attached Storage) - Hot-swap | Yes |
Synology HD6500. Type: Storage server. Chassis type: Rack (4U). Device class: Large Enterprise Business. Processor family: Intel Xeon Silver. Processor model: 4210R. Processor frequency: 2.4 GHz. Internal memory: 64 GB. Internal memory type: DDR4
| Storage drive interface | Serial Attached SCSI (SAS) |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| Storage drive sizes supported | 3.5" |
| Total installed system drives capacity | 960 GB |
| Number of system drives installed | 2 |
| Number of system drives supported | 2 |
| System drive type | SSD |
| System drive capacity | 480 GB |
| Feature | Intel VT-x with Extended Page Tables (EPT) |
| RAID levels | 0. 1. 5. 6. 10. JBOD |
| Supported file systems | BTRFS. FAT32. HFS+. NTFS. exFAT. ext3. ext4 |
| Number of storage drives supported | 60 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4210R |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 10 |
| Processor threads | 20 |
| Processor cache | 13.75 MB |
| Number of processors supported | 2 |
| Internal memory | 64 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 512 GB |
| Memory form factor | RDIMM |
| Ethernet LAN data rates | 1000.10000 Mbit/s |
| Supported network protocols | SMB. AFP. NFS. FTP. WebDAV. CalDAV. iSCSI. Telnet. SSH. SNMP. VPN (PPTP. OpenVPN. L2TP) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 5 |
| External mini-SAS ports | 2 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Chassis type | Rack (4U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| Type | Storage server |
| Device class | Large Enterprise Business |
| Backup features | Cloud. iSCSI LUN |
| Number of users | 16000 user(s) |
| Security algorithms | HTTPS. SSH. SSL/TLS |
| Power supply location | Built-in |
| Number of power supply units | 2 |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 438 mm |
| Depth | 985 mm |
| Height | 176 mm |
| Weight | 37.9 kg |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 5000 m |
