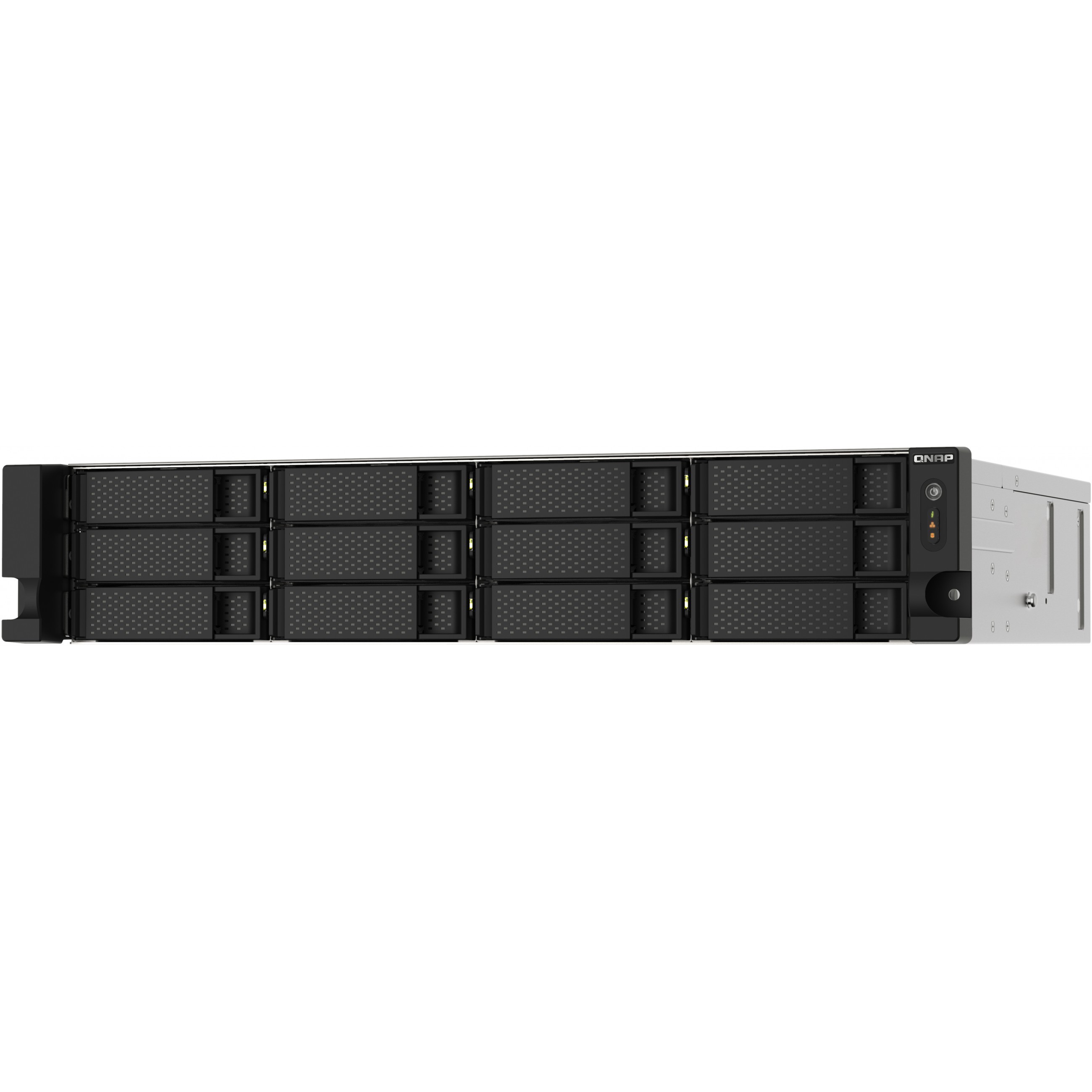

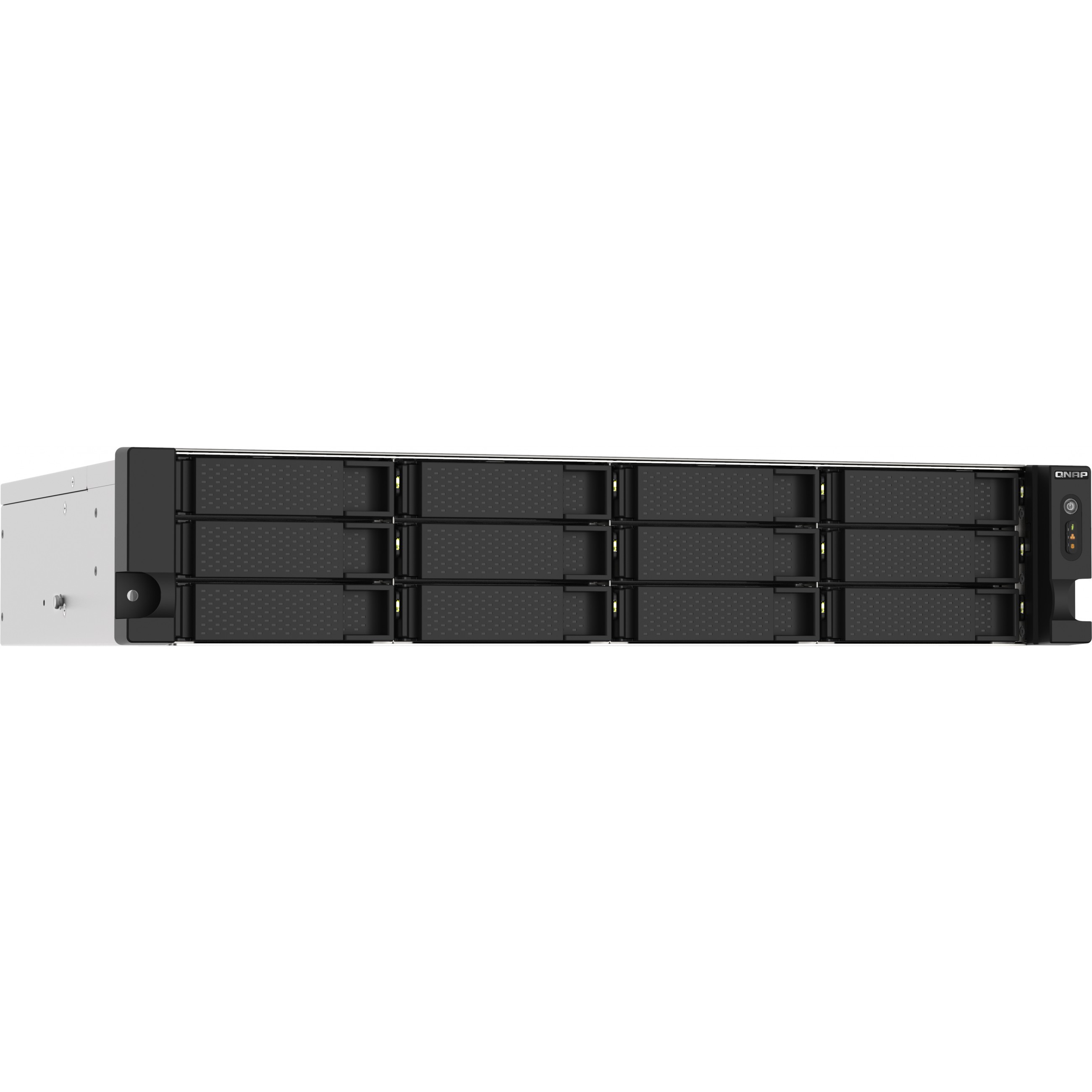

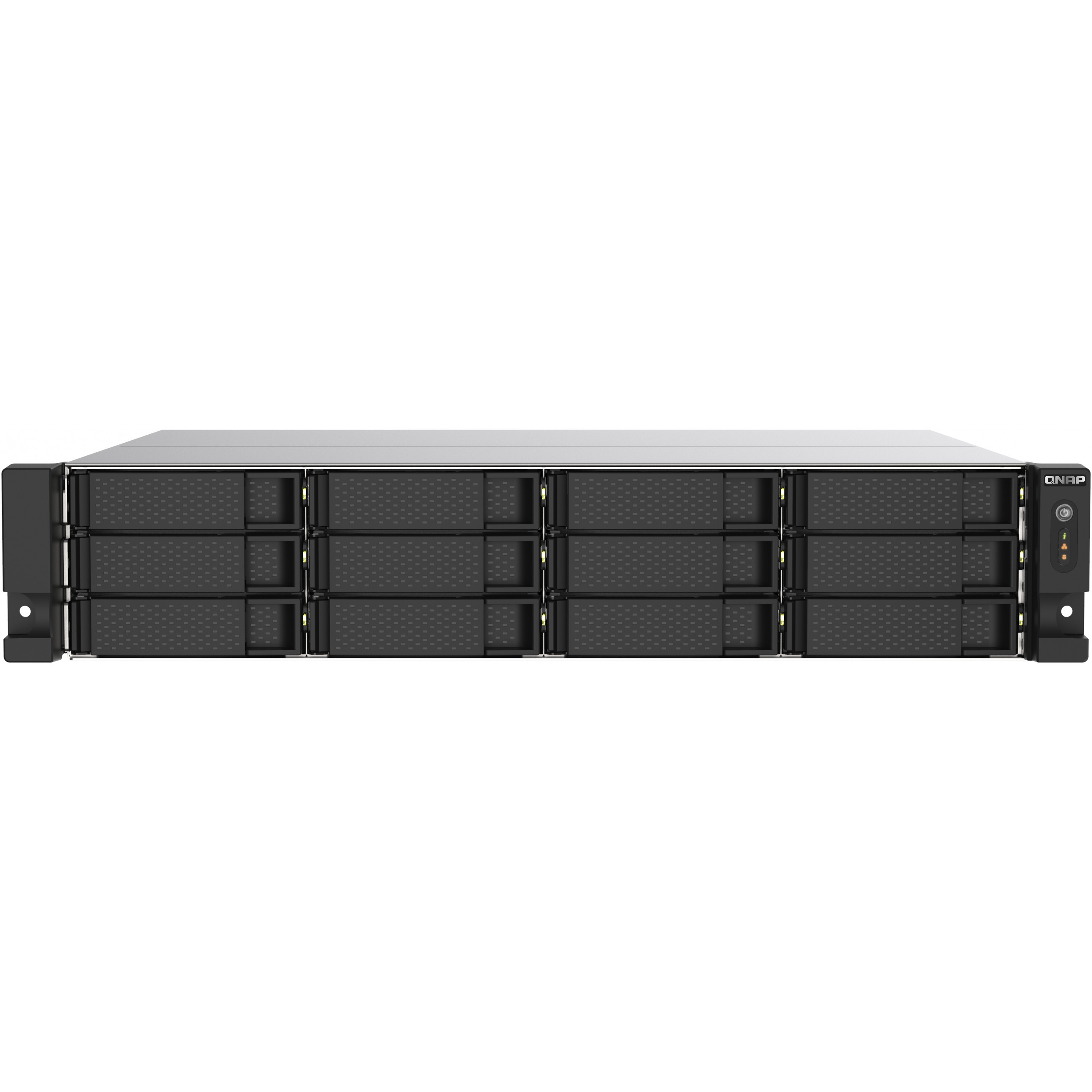

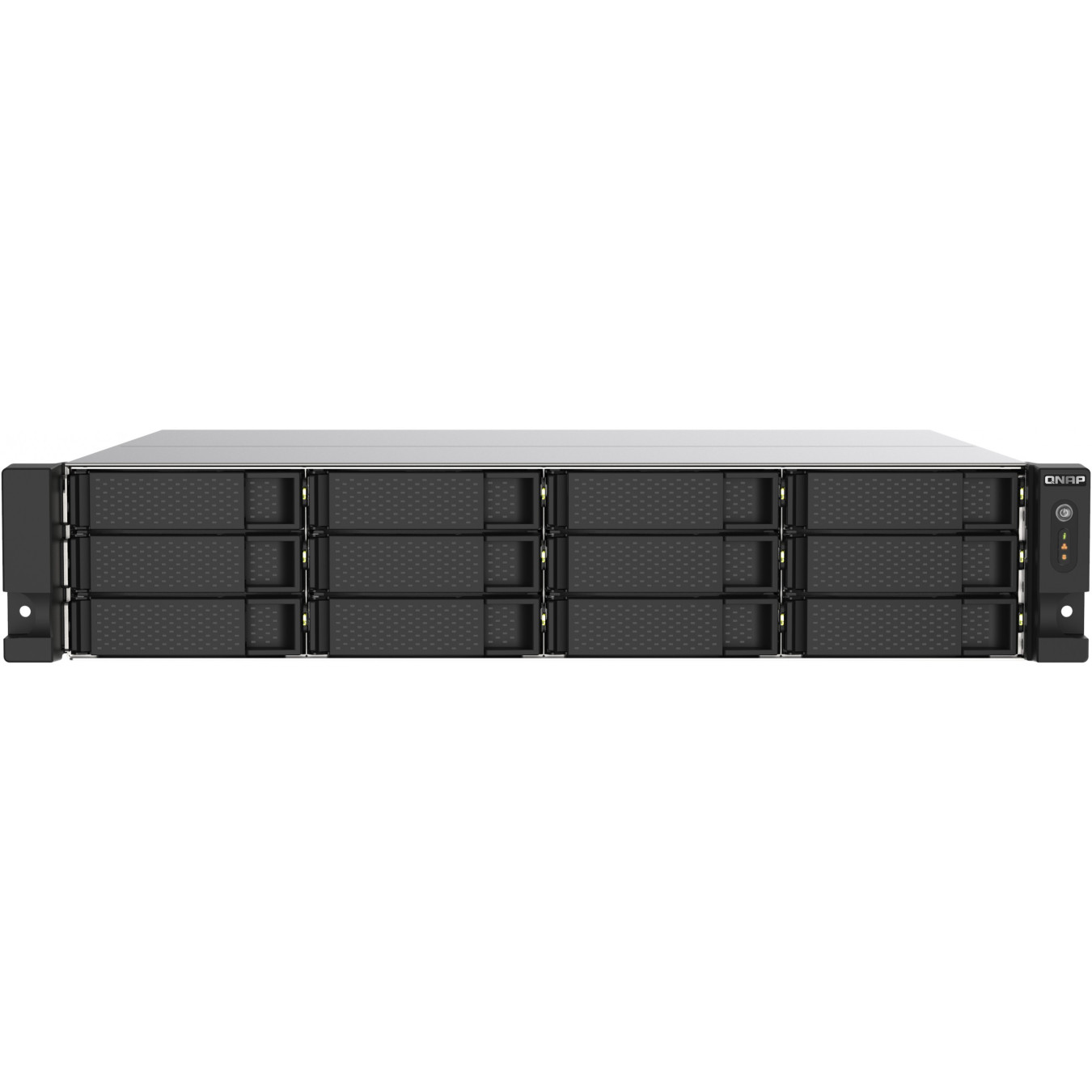

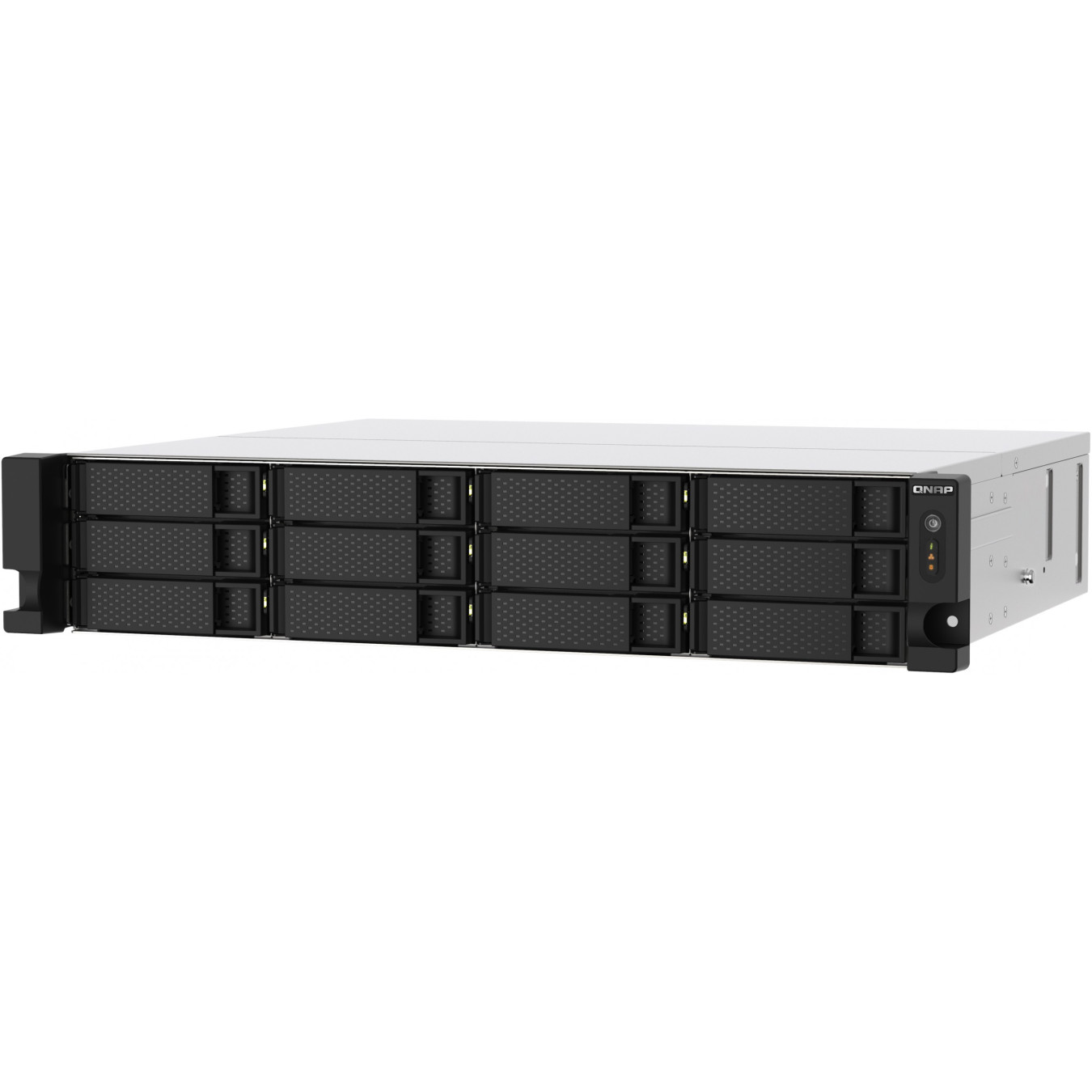

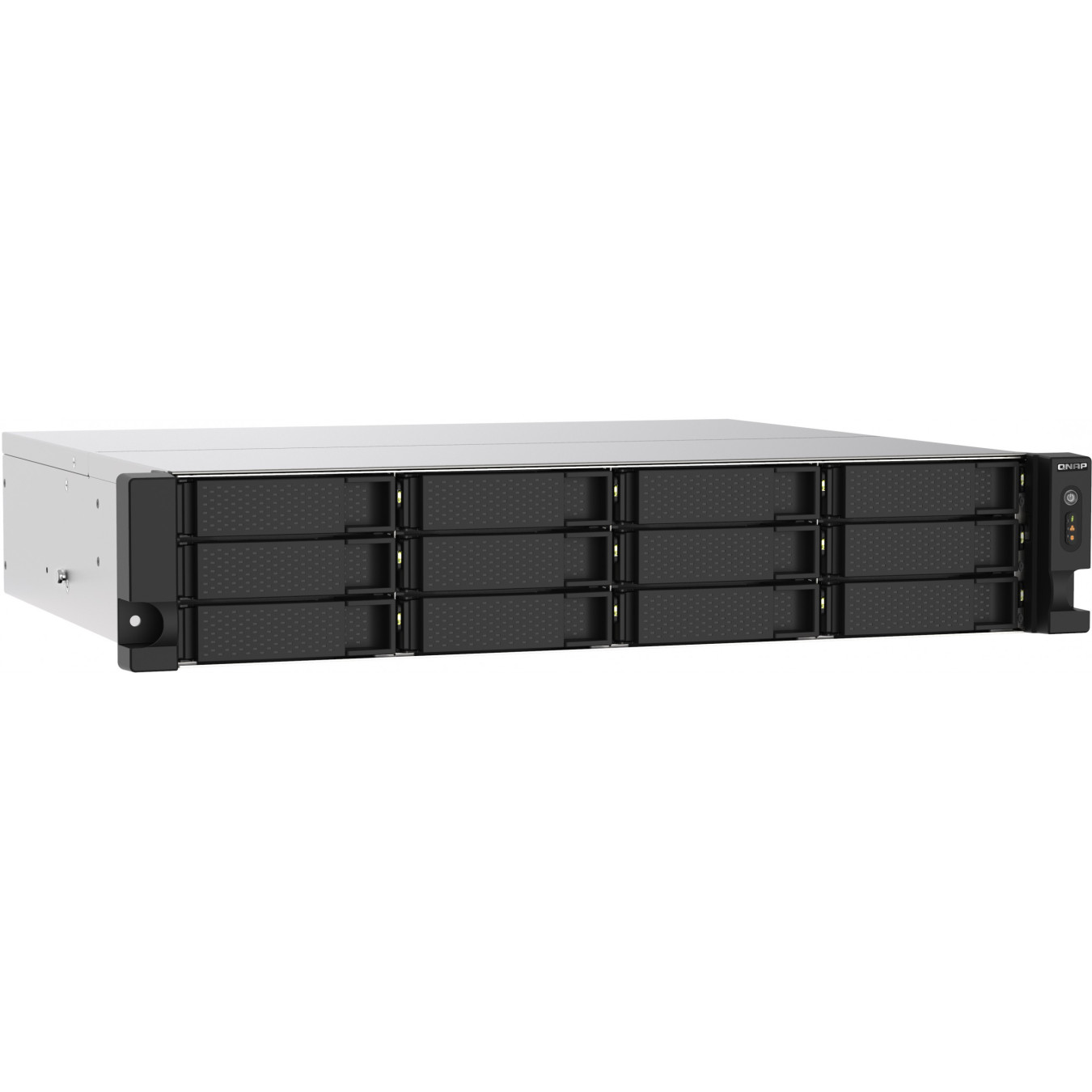

QNAP TS-1273AU-RP-8G - 12-Bay 2U Rack NAS, AMD Ryzen V1500B 2.2GHz, 8GB DDR4, Aluminium/Black
12-bay 2U rack NAS with AMD Ryzen V1500B 2.2GHz, 8GB DDR4 (up to 32GB), hot-swappable bays, hardware RAID (0/1/5/6/10/50/60/JBOD), dual 2.5GbE, USB-C ports, redundant PSUs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NAS (Network Attached Storage) - Bays | 12+ |
|---|---|
| NAS (Network Attached Storage) - Memory (Installed) | 8 GB |
| NAS (Network Attached Storage) - LAN | 2x2.5GbE |
| NAS (Network Attached Storage) - USB | USB 3.0 + USB-C |
| NAS (Network Attached Storage) - Hot-swap | Yes |
QNAP TS-1273AU-RP-8G. Type: NAS. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Ryzen Embedded. Processor model: V1500B. Processor frequency: 2.2 GHz. Internal memory: 8 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP QTS
| Storage drive capacity | 0 GB |
| Storage drive interface | Serial ATA II. Serial ATA III |
| Supported storage drive interfaces | Serial ATA II. Serial ATA III |
| Storage drive size | 2.5/3.5" |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | Linux operating systems supported |
| RAID levels | 0. 1. 5. 6. 10. 50. 60. JBOD |
| Supported file systems | FAT32. HFS+. NTFS. ext3. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| L2 cache | 2 MB |
| L3 cache | 4 MB |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | DIMM |
| Flash memory | 5000 MB |
| Ethernet LAN data rates | 100.1000.2500 Mbit/s |
| Supported network protocols | PPTP. L2TP/IPSec. OpenVPN. QBelt |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Aluminium. Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 8 cm |
| Fan diameter 2 | 8 cm |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup features | Cloud. iSCSI LUN |
| Security algorithms | 256-bit AES. FIPS 140-2. HTTPS. SNMPv2. SNMPv3. SSL/TLS |
| Browser supported | Apple Safari 7+. Google Chrome. Mozilla Firefox |
| Share folder | CIFS/SMB |
| Operating system installed | QNAP QTS |
| Operating system version | 5.0.0 |
| Windows operating systems supported | Windows 10. Windows 7. Windows 8 |
| Other operating systems supported | Solaris 10 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 300 W |
| Number of power supply units | 2 |
| Power consumption (typical) | 78.92 W |
| Power consumption (sleep) | 43.67 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 482 mm |
| Depth | 425 mm |
| Height | 89 mm |
| Weight | 9.69 kg |
| Package weight | 14.6 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Harmonized System (HS) code | 84714100 |
