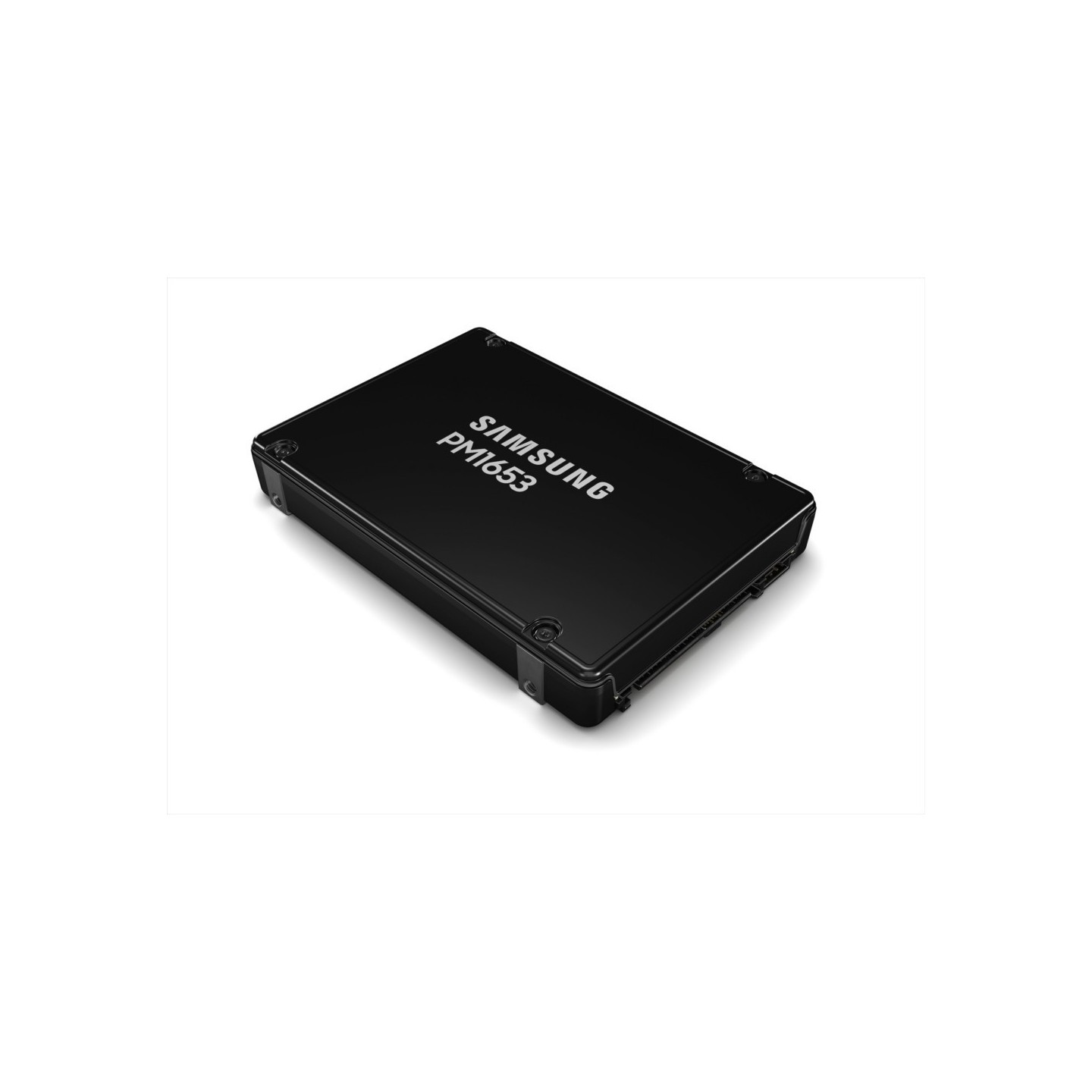

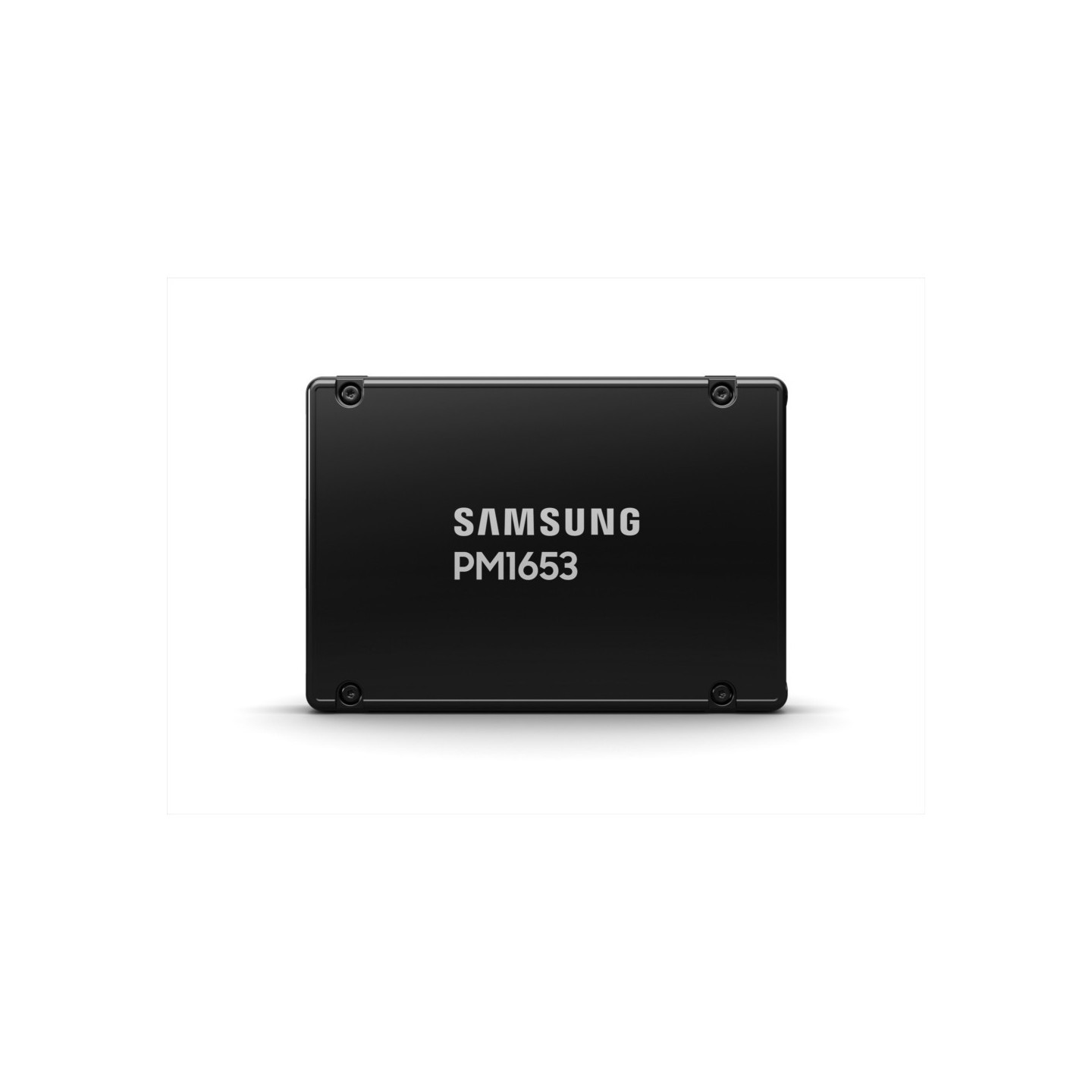

Samsung PM1653 7.68TB SAS 24G Enterprise SSD - MZILG7T6HBLA - 2.5" 15mm (Bulk)
7.68TB Enterprise 2.5" SSD, SAS-4 (24Gb/s) Interface. Features 128-layer V-NAND TLC, 4200 MB/s Read, 3700 MB/s Write, and 1 DWPD endurance. Dual-port support for mission-critical reliability.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 8TB |
| Storage (SSD & HDD) - RPM (HDD) | 7200 RPM |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | 3501 to 5000 MB s |
| Storage (SSD & HDD) - Interface | SAS 24Gb/s |
| Storage (SSD & HDD) - DRAM Cache (SSD) | Yes |
| Storage (SSD & HDD) - Cache (HDD) | 512MB |
| Storage (SSD & HDD) - Form Factor | 2.5 inch |
Next-Generation Enterprise Storage
The Samsung PM1653 7.68TB SAS SSD is the industry's first 24G SAS (SAS-4) drive, designed to meet the rigorous demands of modern enterprise servers and data centers. Built with Samsung's 6th-generation 128-layer V-NAND TLC technology, it delivers exceptional performance and density, doubling the throughput of previous 12G SAS generations while maintaining backward compatibility with existing infrastructure.
Performance & Reliability
Optimized for mixed workloads, the PM1653 achieves sequential read speeds of up to 4,200 MB/s and write speeds of 3,700 MB/s, with random read performance hitting 770,000 IOPS. It features a dual-port design that ensures continuous service availability; if one port fails, the other takes over instantly, providing the stability essential for mission-critical applications. With an endurance rating of 1 DWPD (Drive Writes Per Day) over 5 years, it is built for longevity and consistent data integrity.
Advanced Data Protection
This drive includes a suite of enterprise-grade features such as full power-loss protection, end-to-end data protection, and TCG Enterprise encryption support. Its 15mm 2.5-inch form factor allows for high-density storage configurations, making it an ideal solution for hyperscale environments handling AI, big data analysis, and high-frequency trading.
- Capacity: 7.68 TB
- Interface: SAS 24Gb/s (SAS-4)
- Form Factor: 2.5-inch (15mm Z-height)
- Speed: 4200 MB/s Read, 3700 MB/s Write
- NAND: 128-layer V-NAND TLC
- Endurance: 1 DWPD (5 Years)
- Reliability: 2.5 Million Hours MTBF, Dual-Port
| SSD capacity | 7.68 TB |
| SSD form factor | 2.5 |
| Interface | SAS |
| Memory type | V-NAND |
| Component for | Server/workstation |
| Data transfer rate | 24 Gbit/s |
| Read speed | 4200 MB/s |
| Write speed | 3700 MB/s |
| Random read (4KB) | 770000 IOPS |
| Random write (4KB) | 135000 IOPS |
| Drive writes per day (DWPD) | 1 |
