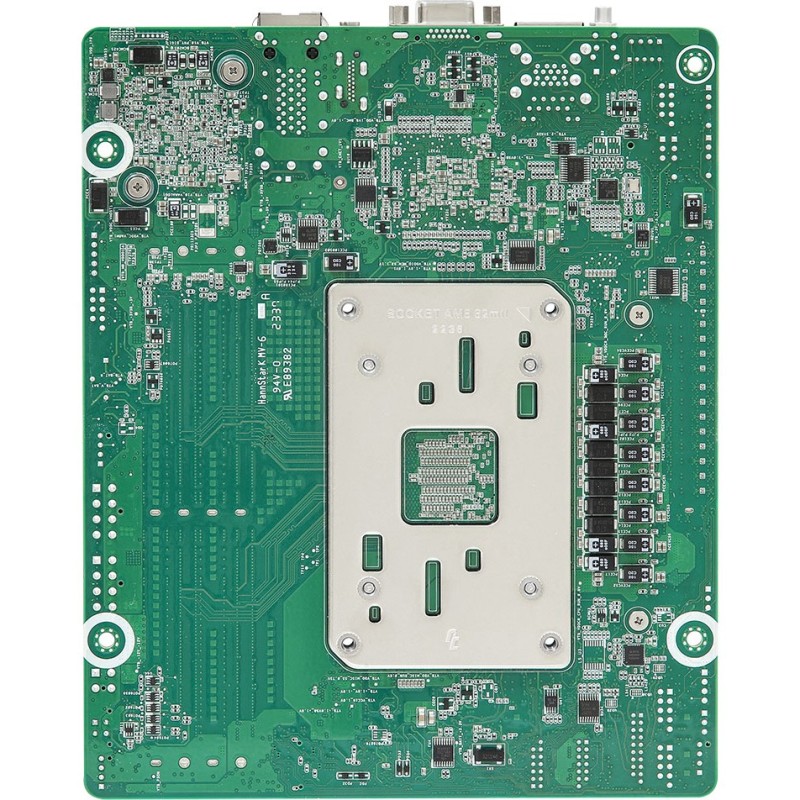

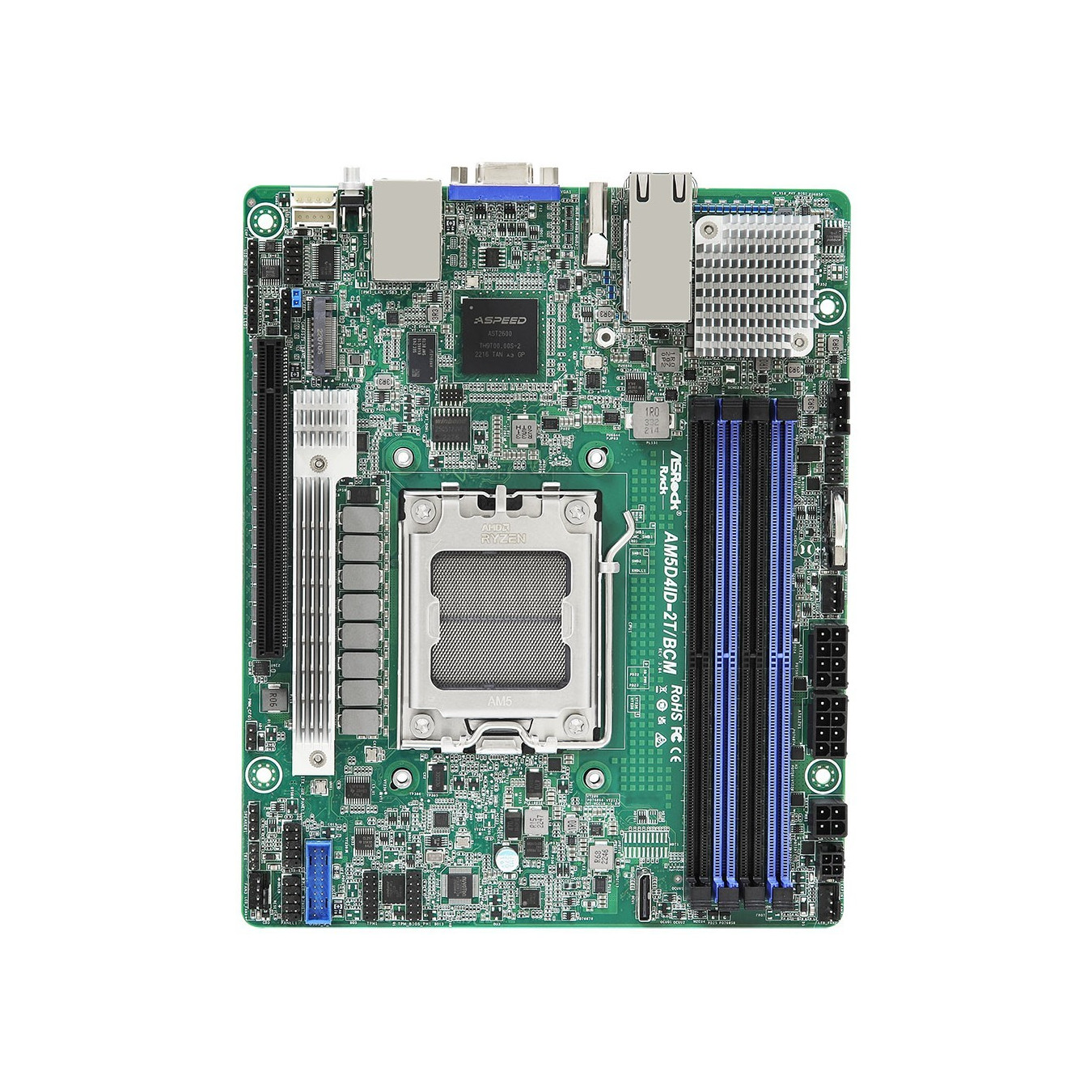

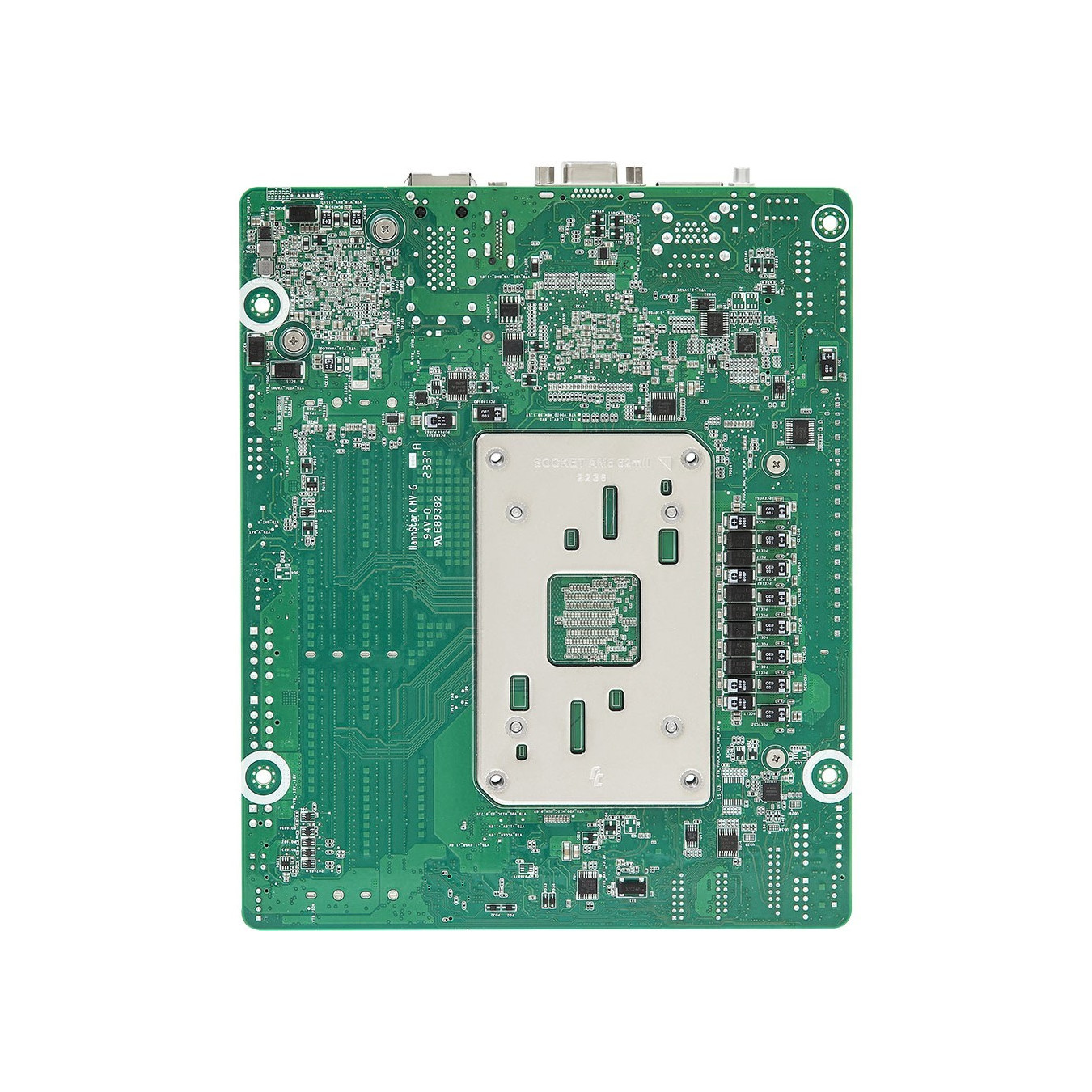

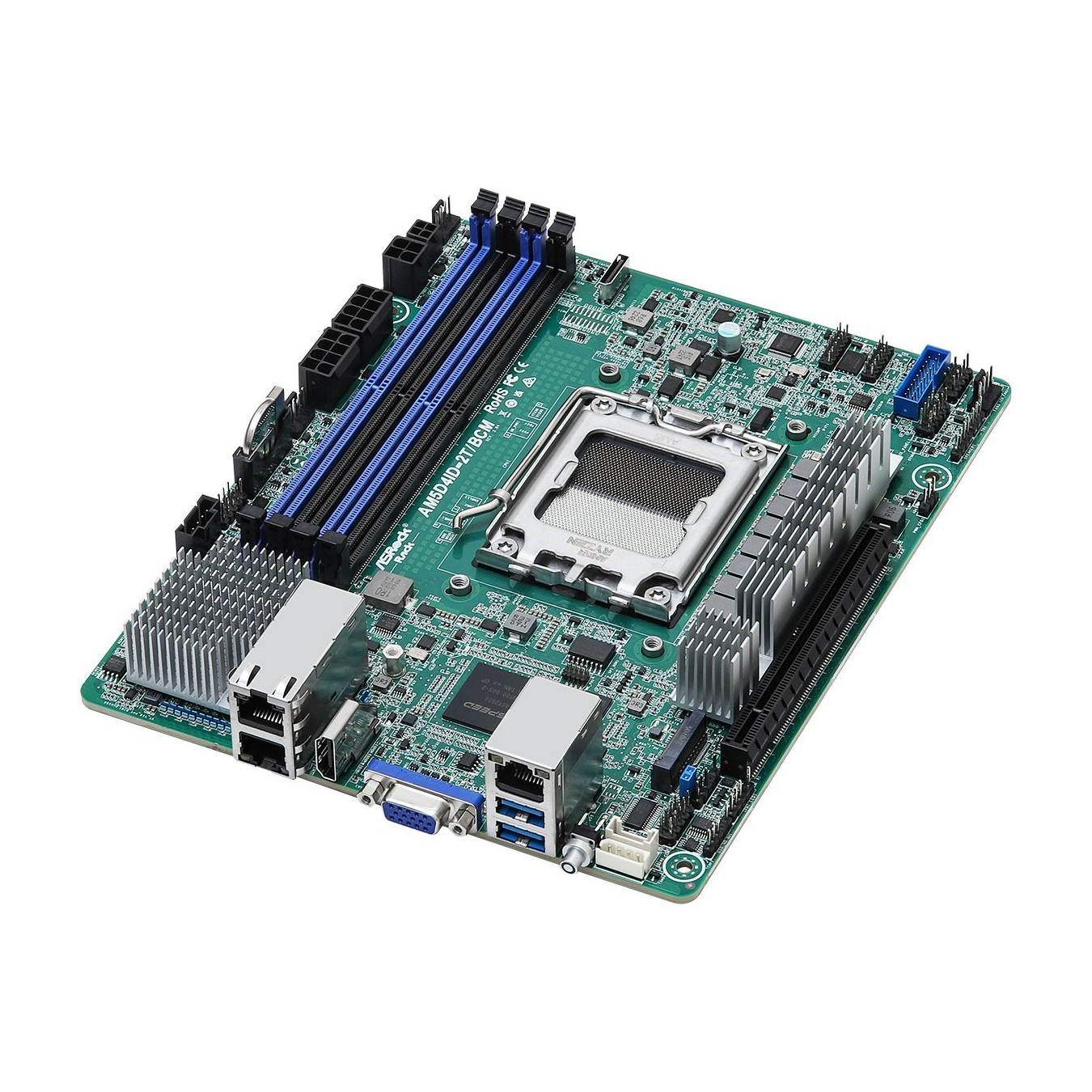

ASRock AM5D4ID-2T/BCM - Mini-ITX AM5 Motherboard, DDR5, 10Gb Ethernet, ASPEED AST2600
Mini-ITX AM5 motherboard supporting AMD EPYC 4004 & Ryzen 7000/8000/9000 series, DDR5 DIMMs (4), M.2 SSD support, ASPEED AST2600 graphics, Broadcom 10Gb LAN.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Form Factor | Mini-ITX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
Asrock AM5D4ID-2T/BCM. Processor manufacturer: AMD. Processor socket: Socket AM5. Compatible processor series: AMD EPYC 4004. AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM. Memory slots type: DIMM. Memory voltage: 1.1 V. Supported storage drive interfaces: M.2. Supported storage drive types: SSD. Graphics card family: ASPEED. Graphics card: AST2600. Ethernet interface type: 10 Gigabit Ethernet. LAN controller: Broadcom BCM57416
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD EPYC 4004. AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.1 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 3600.5200 MHz |
| Supported memory clock speed (max) | 5200 MHz |
| Supported storage drive types | SSD |
| Supported storage drive interfaces | M.2 |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |

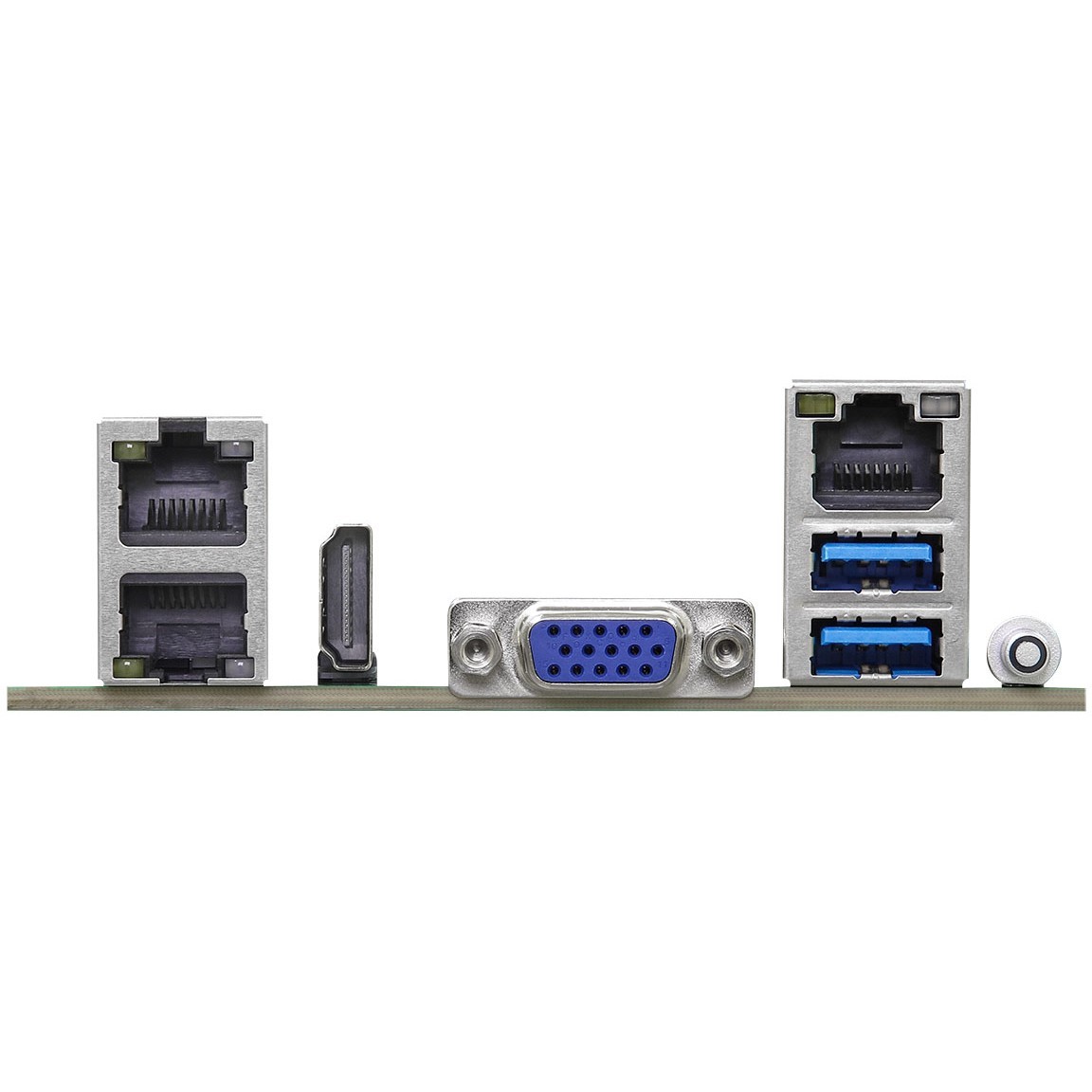

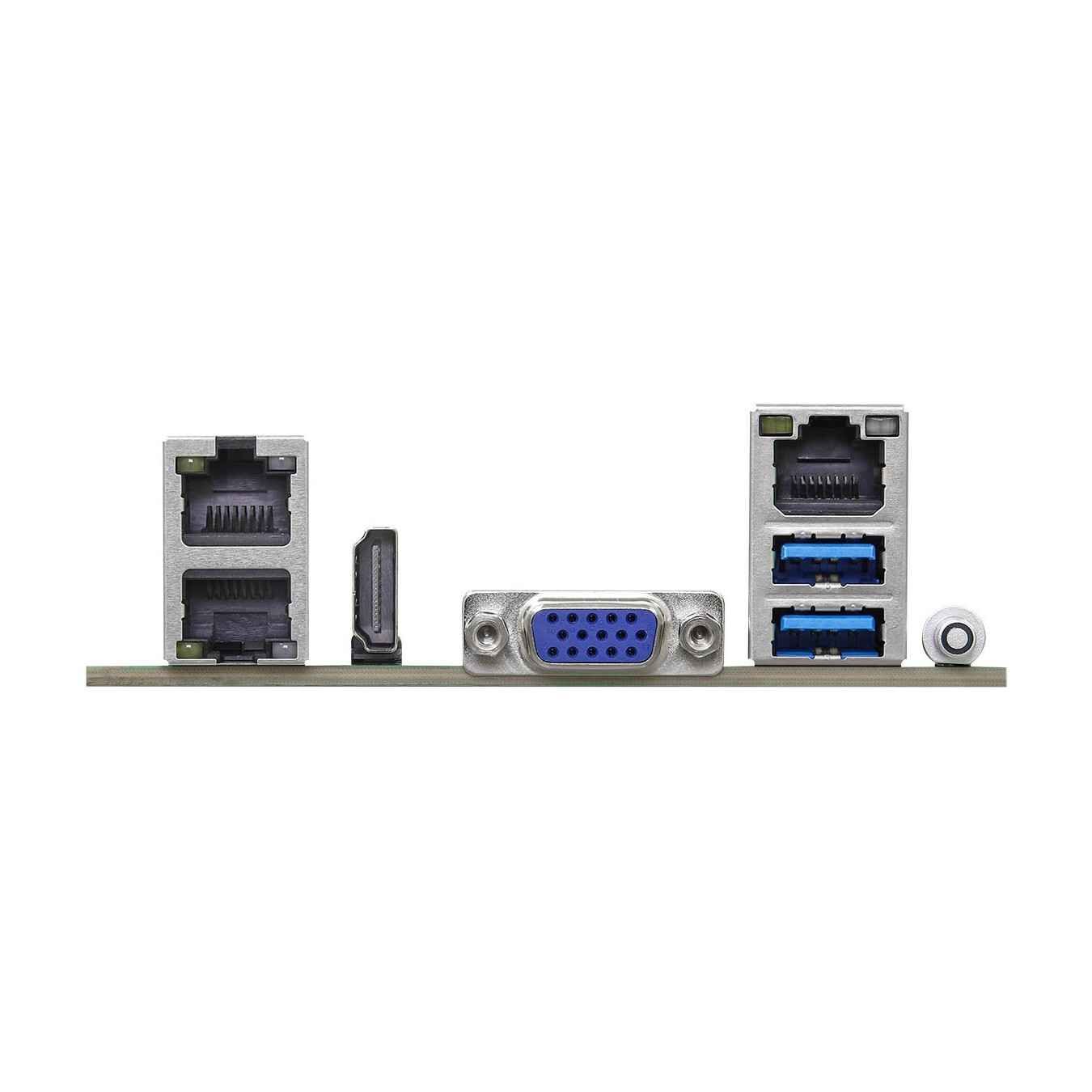

| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Feature | Ethernet LAN |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Broadcom BCM57416 |
| Motherboard chipset | KNOLL3 X300 |
| Component for | Server |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Linux operating systems supported | Ubuntu 22.04 |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.1 |
| System Management BIOS (SMBIOS) version | 2.3 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Width | 170.2 mm |
| Depth | 208.3 mm |
