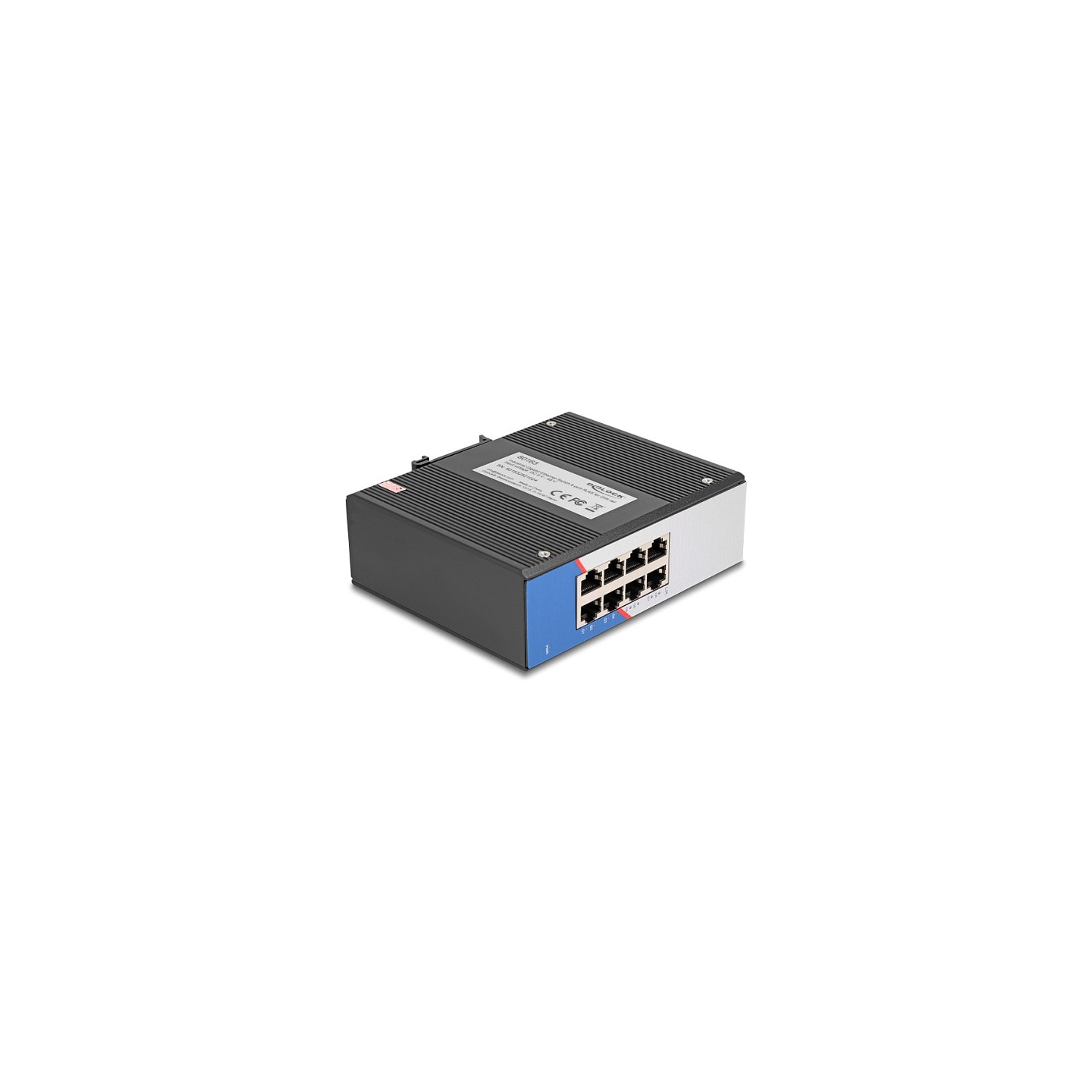

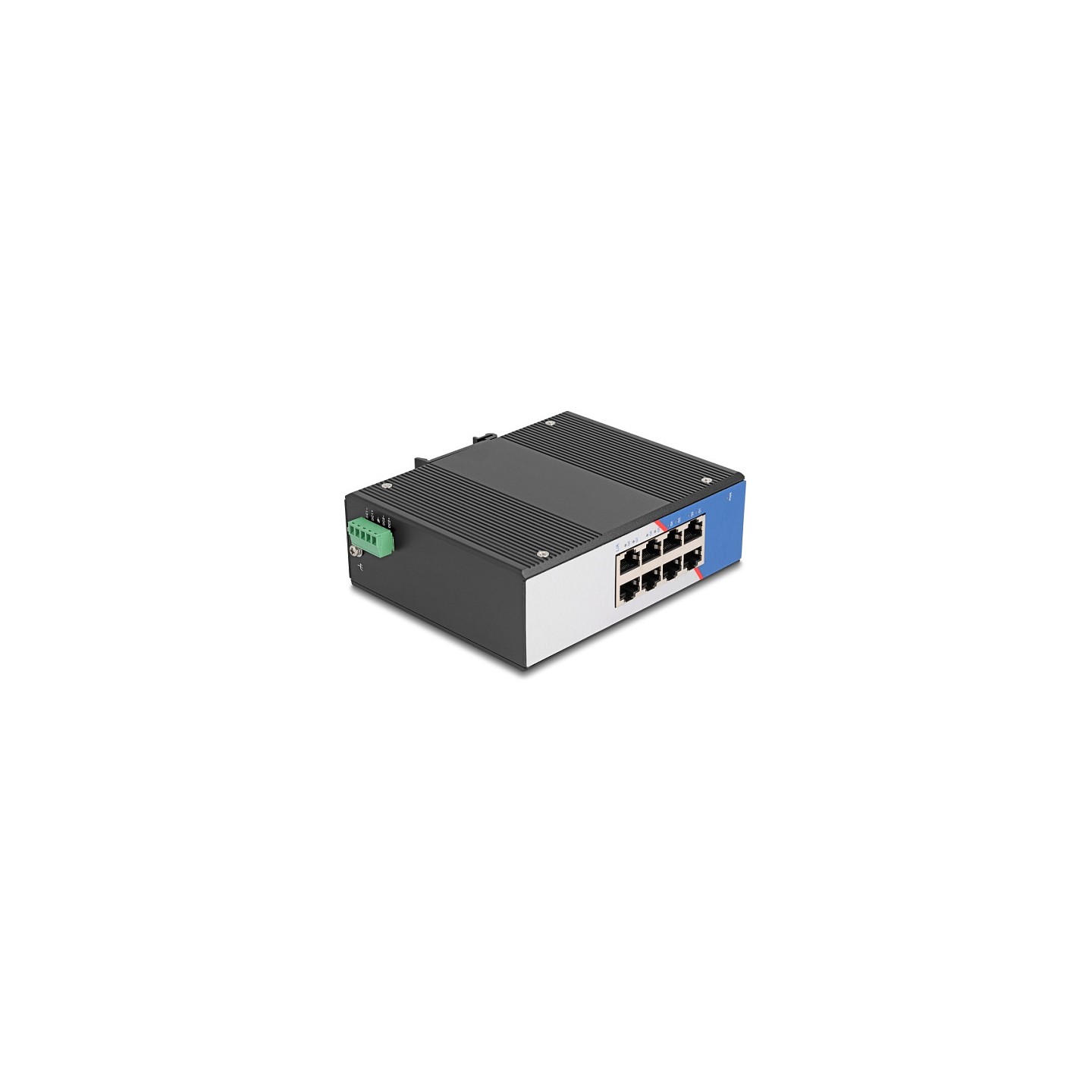

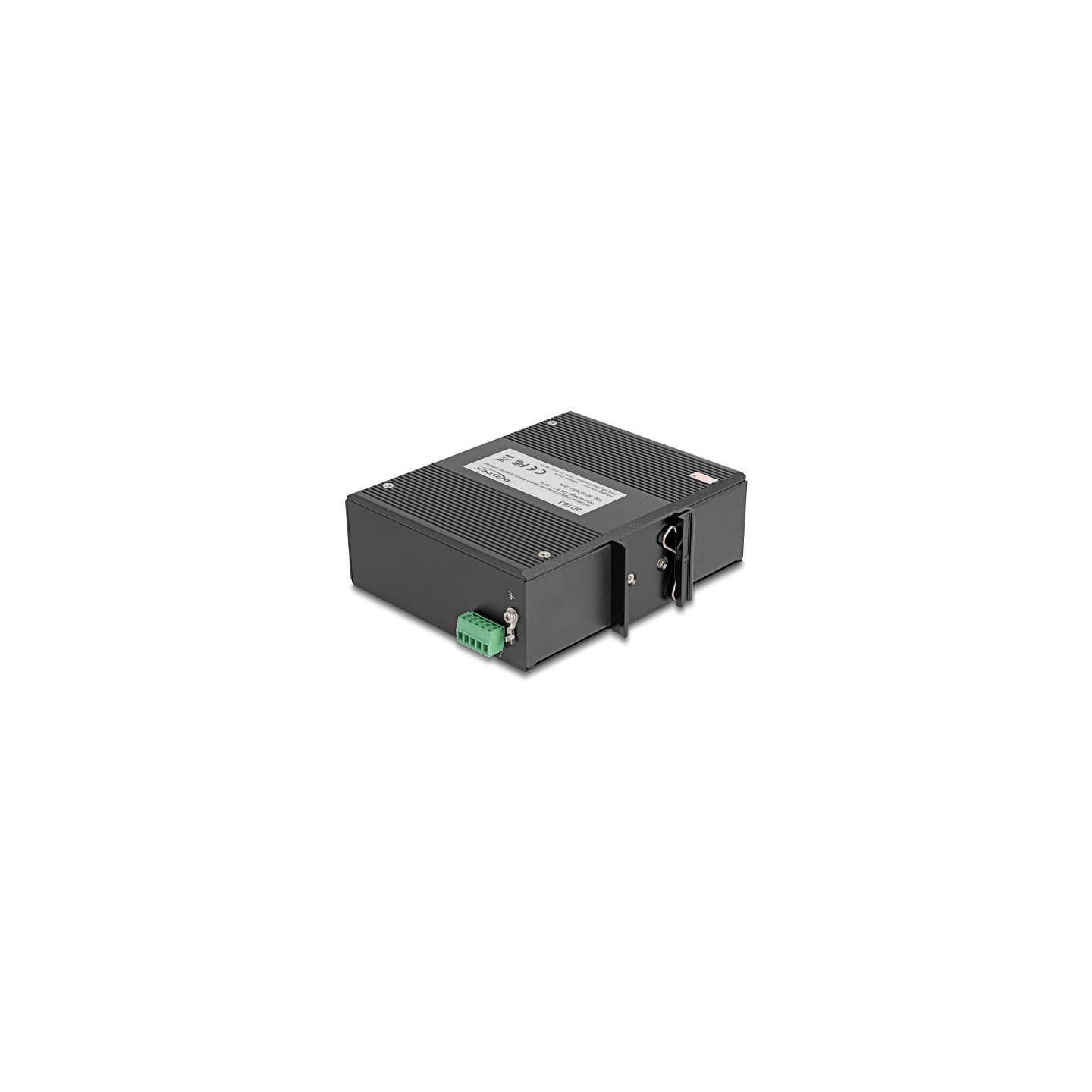

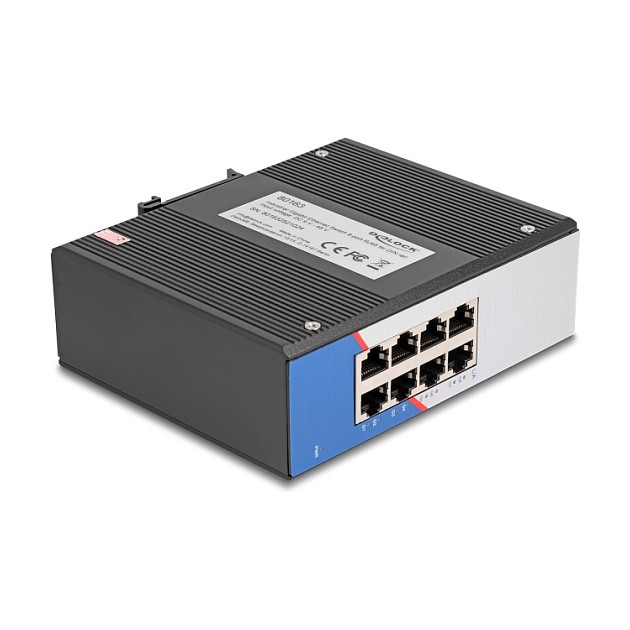

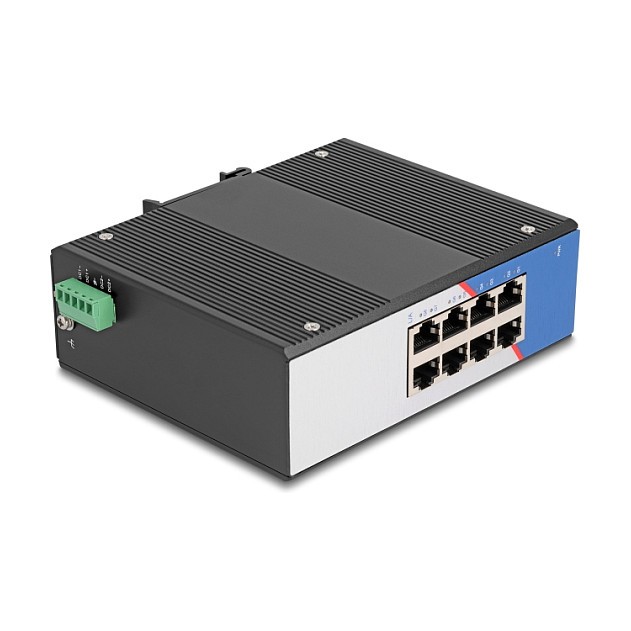

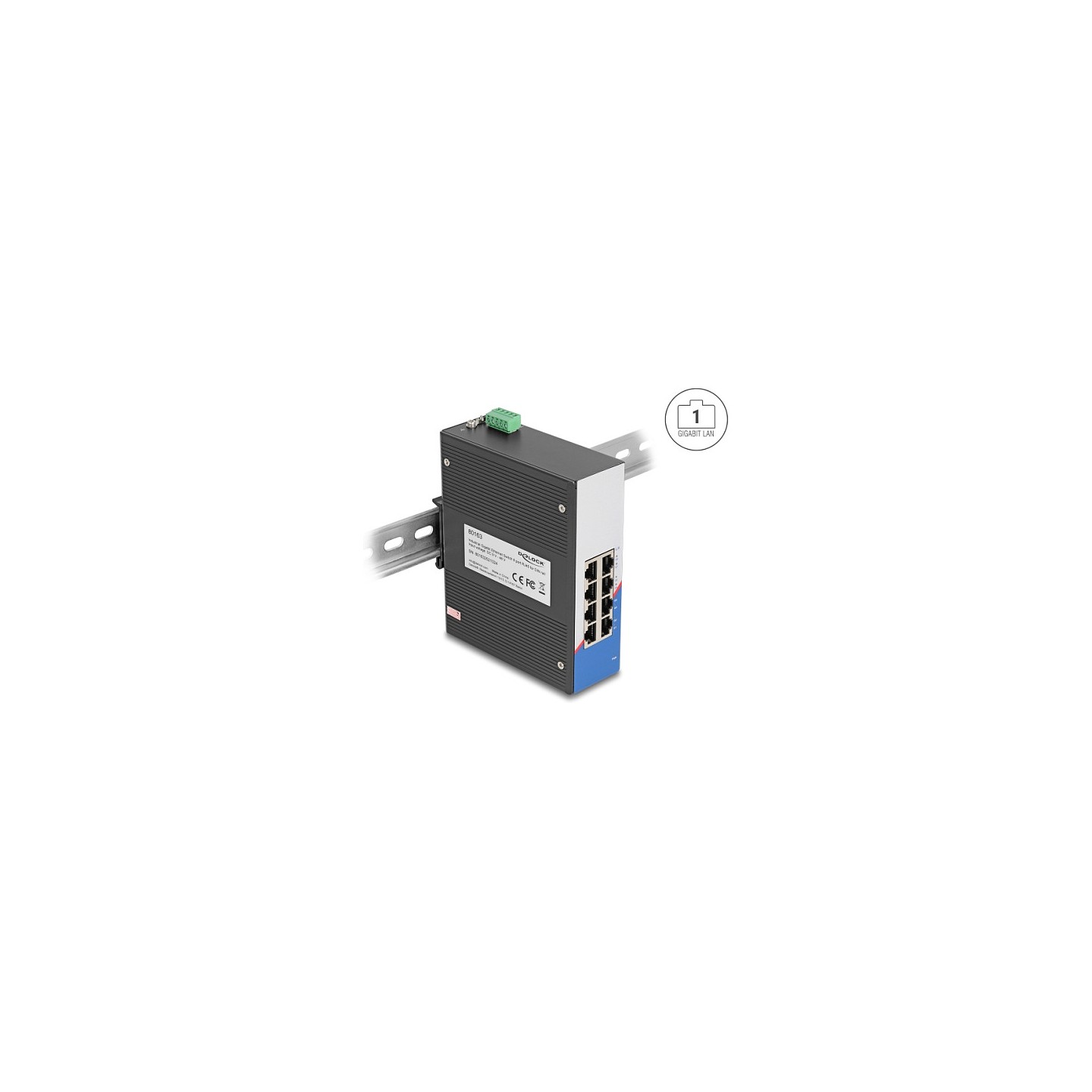

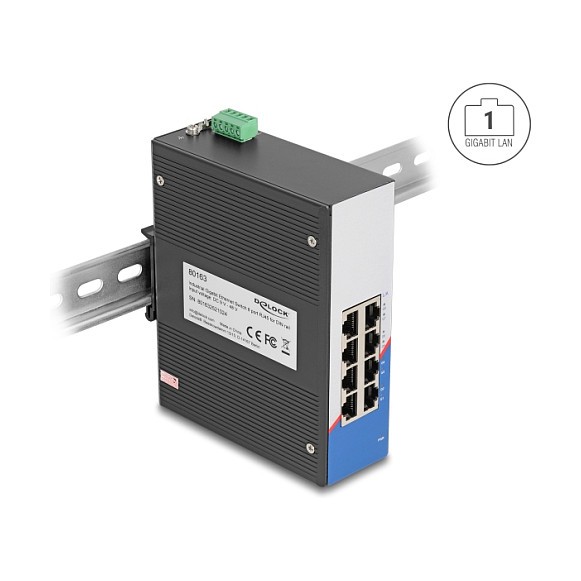

Industrie Gigabit Ethernet Switch 8 Port RJ45 für Hutschiene
DeLOCK 80163. Gigabit Ethernet (10/100/1000). DIN rail
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
DeLOCK 80163. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3z. Netzstecker: Terminal block (5-pin). Formfaktor: DIN rail
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 8 |
| Netzstecker | Terminal block (5-pin) |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3z |
| Kupfer Ethernet Verkabelungstechnologie | 1000BASE-T |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Formfaktor | DIN rail |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| LED-Anzeigen | Status |
| Internationale Schutzart (IP-Code) | IP40 |
| Feature | Betriebsanleitung |
| Energiequelle | Gleichstrom |
| Eingangsspannung | 9 - 48 V |
| Stromverbrauch (max.) | 4 W |
| Betriebstemperatur | -40 - 85 °C |
| Breite | 142 mm |
| Tiefe | 48 mm |
| Höhe | 116 mm |
| Verpackungsart | Box |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC) |
| Zertifizierung | IEC61000-4-2. IEC 61000-4-4. IEC 61000-4-5. IEC 60068-2-6. IEC 60068-2-27. IEC 60068-2-32 |
| Ursprungsland | China |
