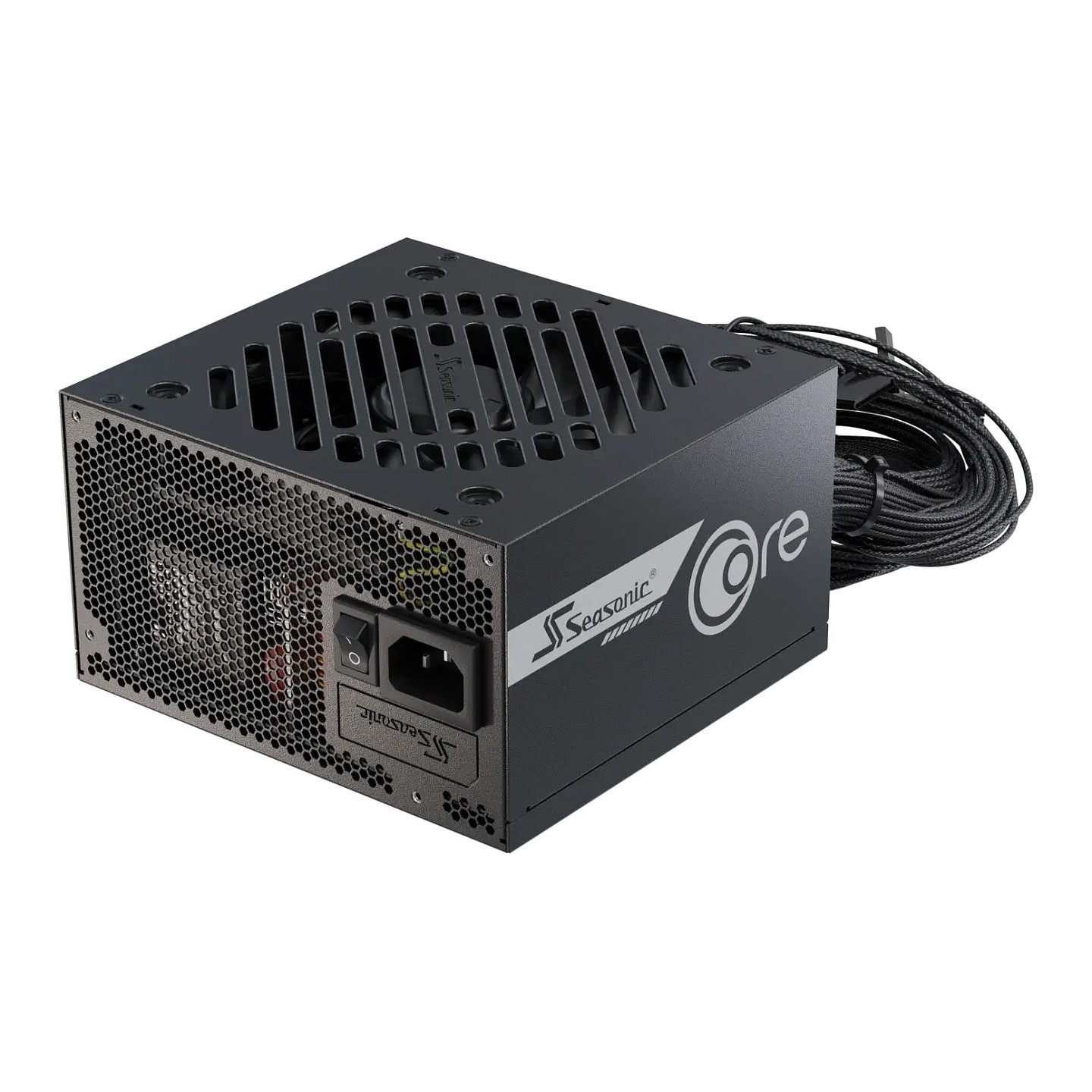

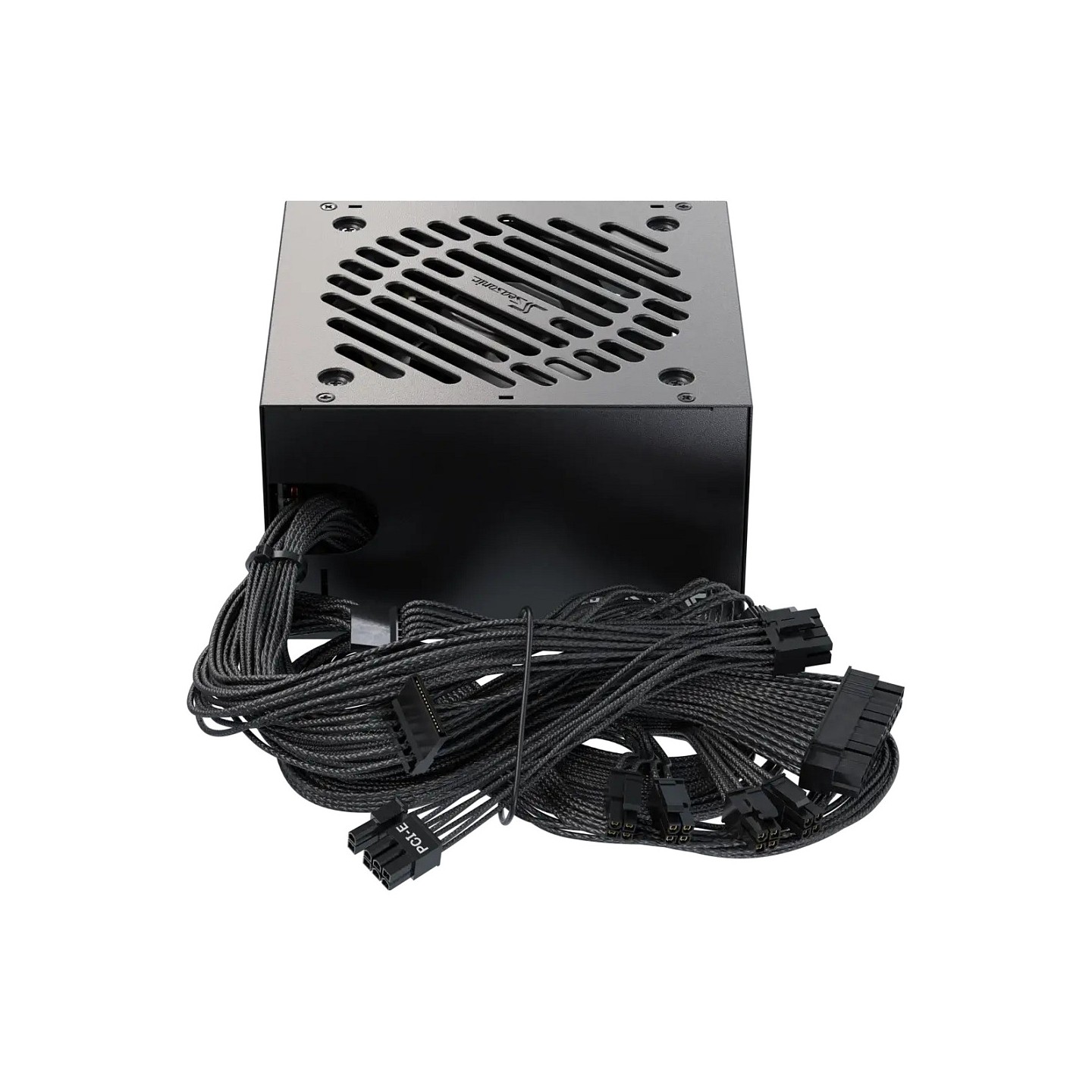

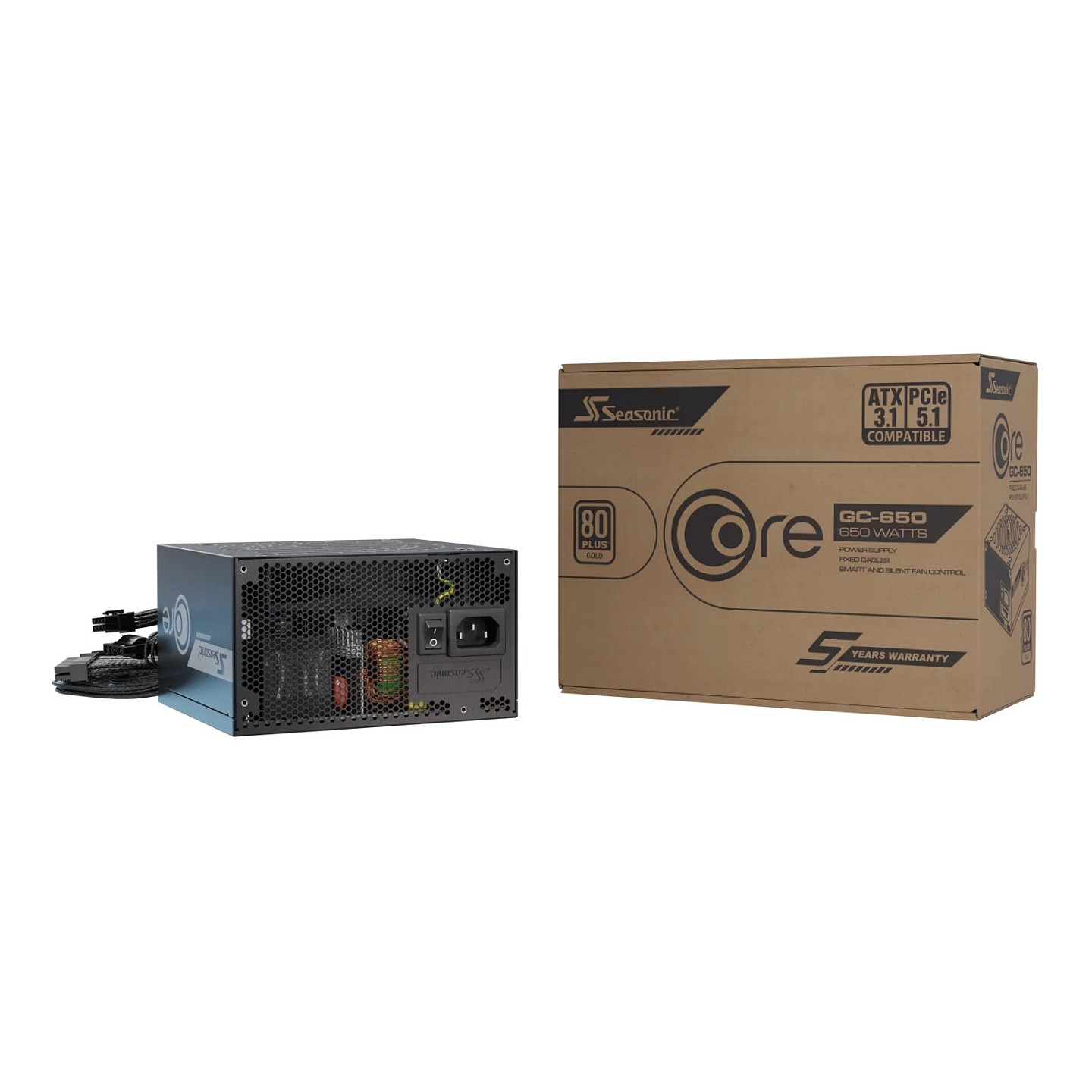

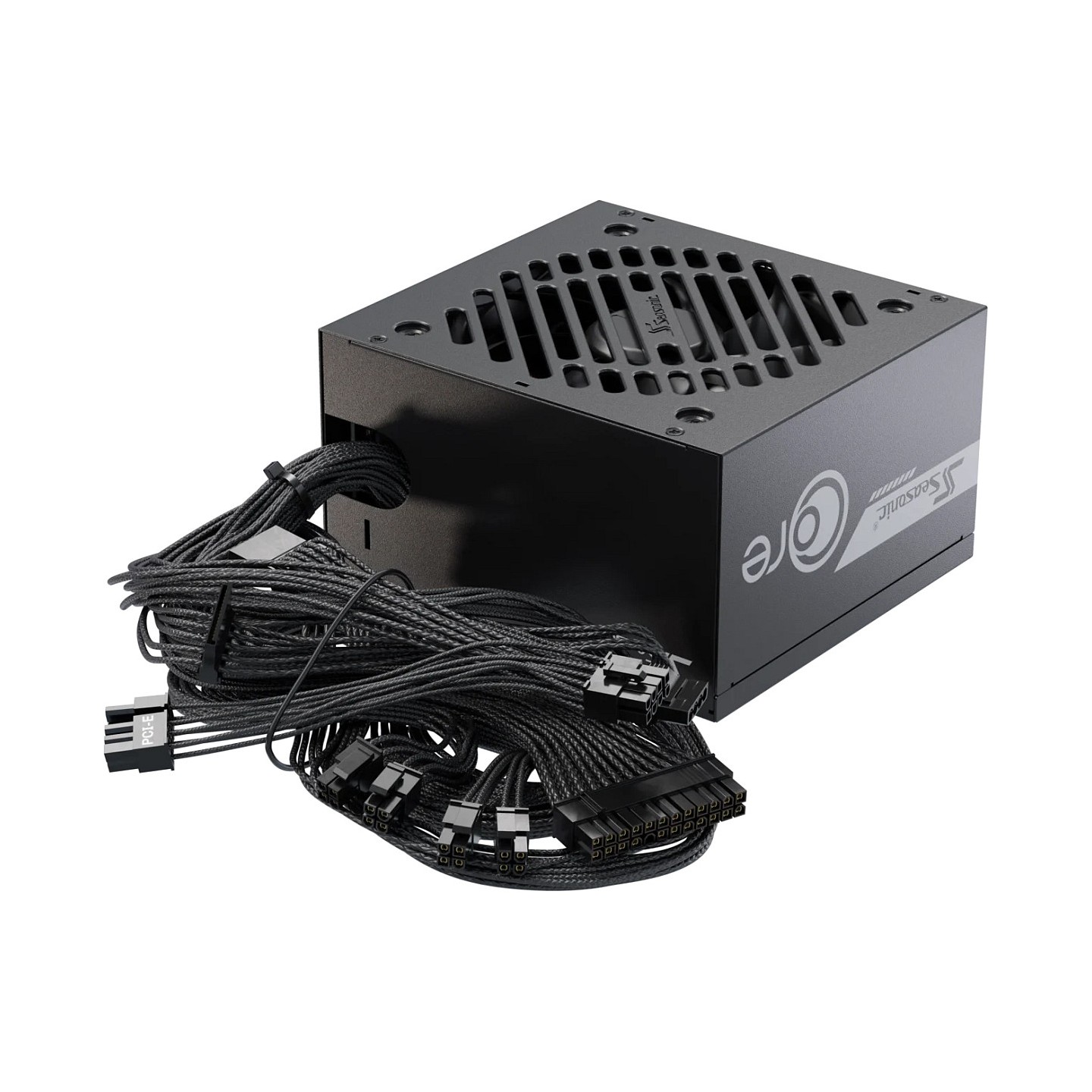

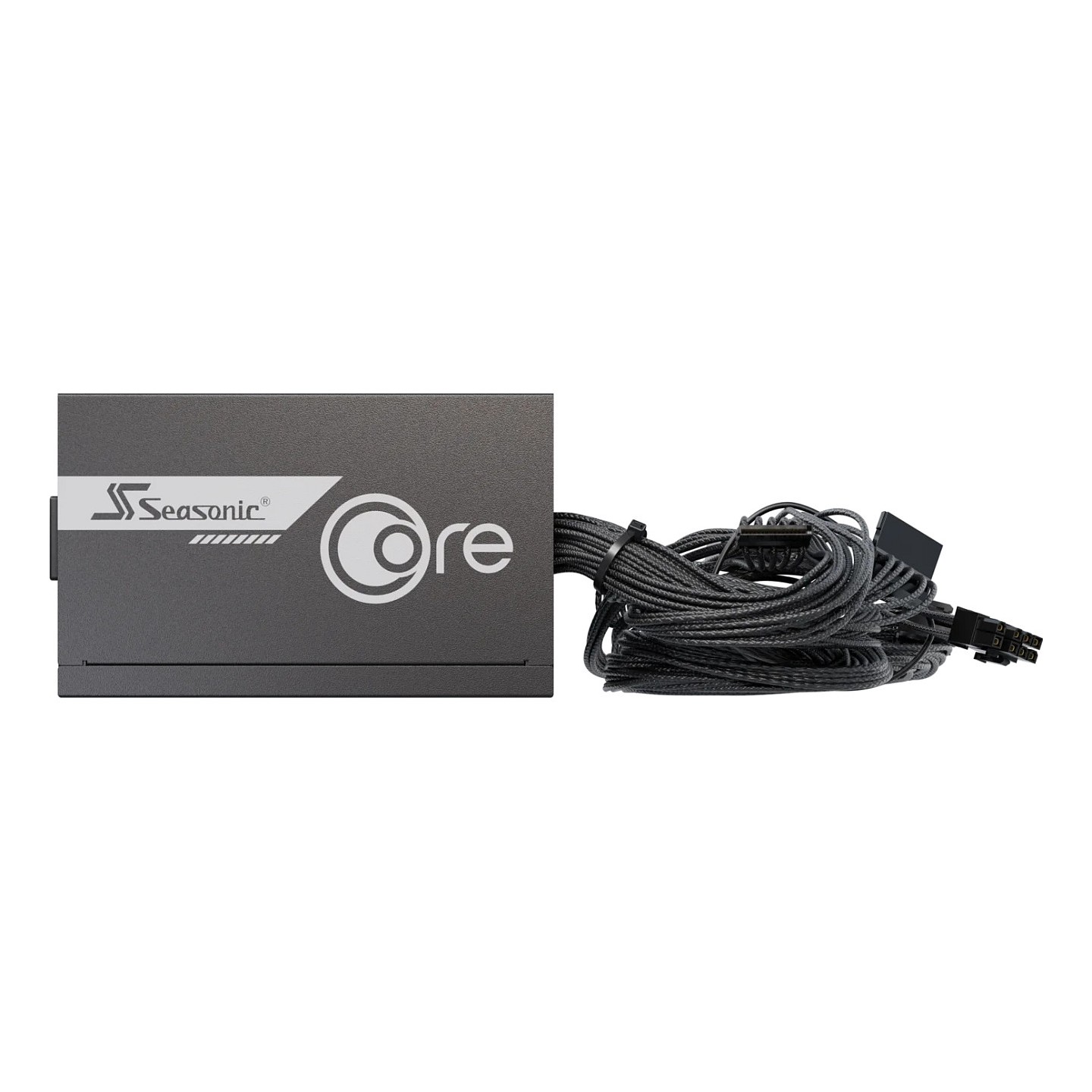

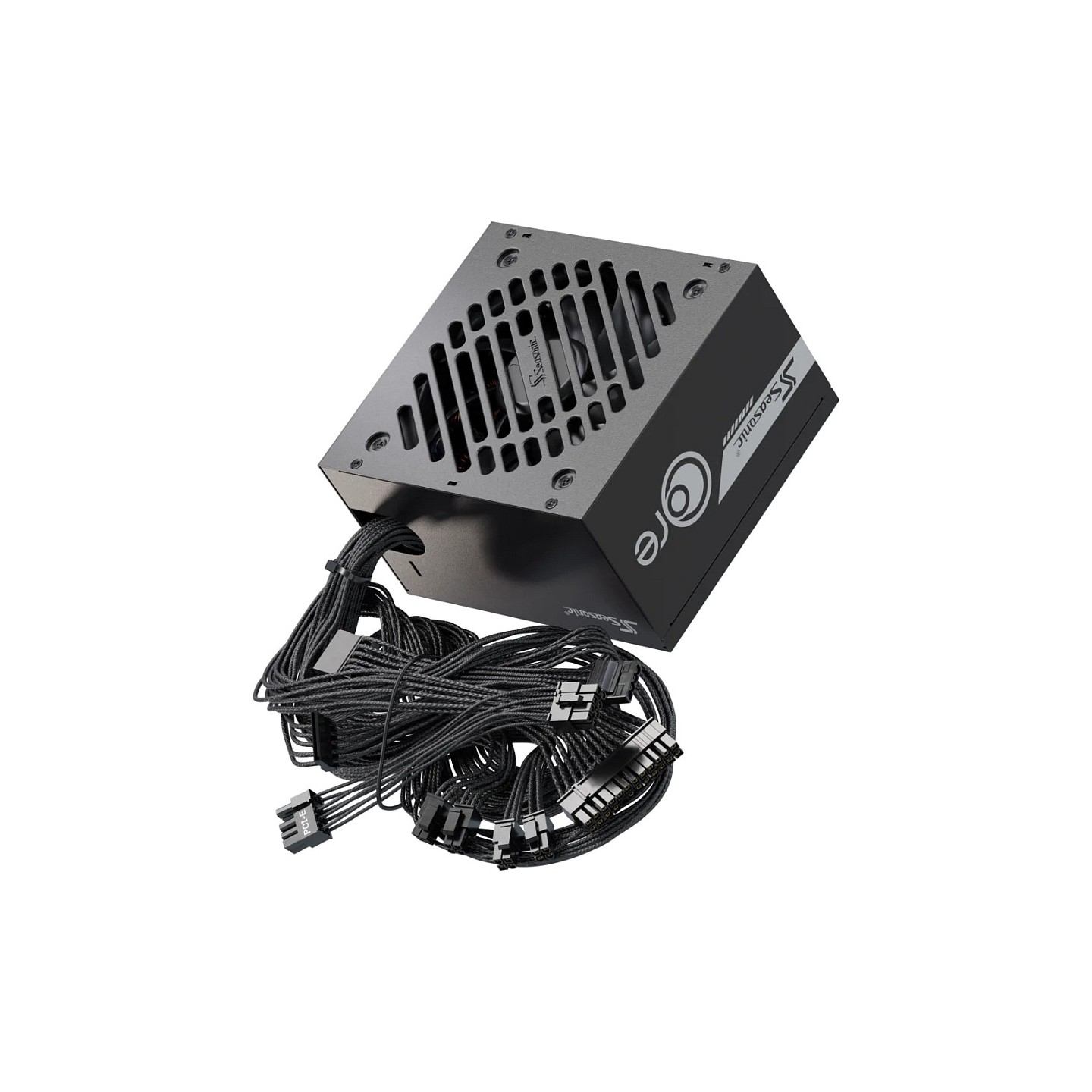

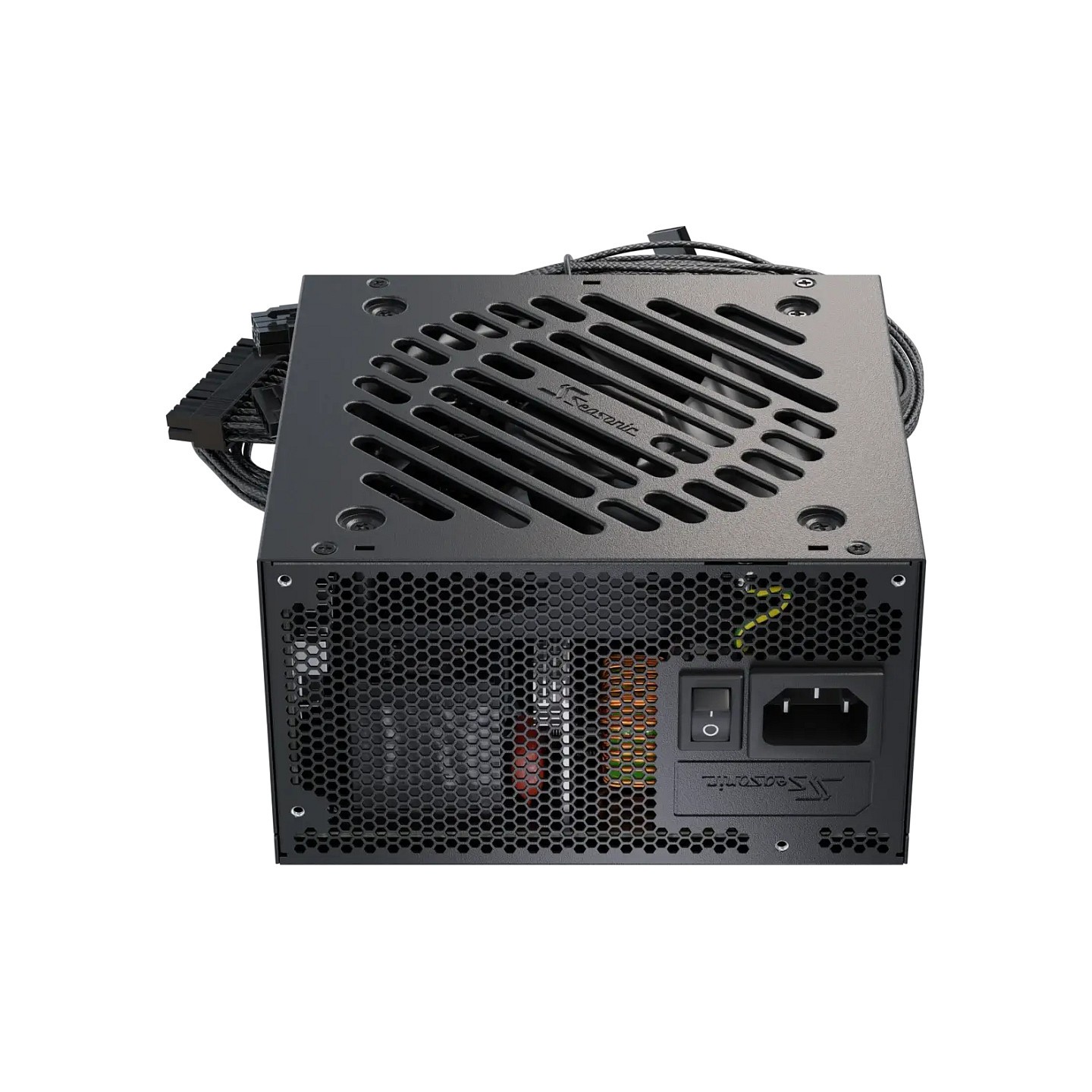

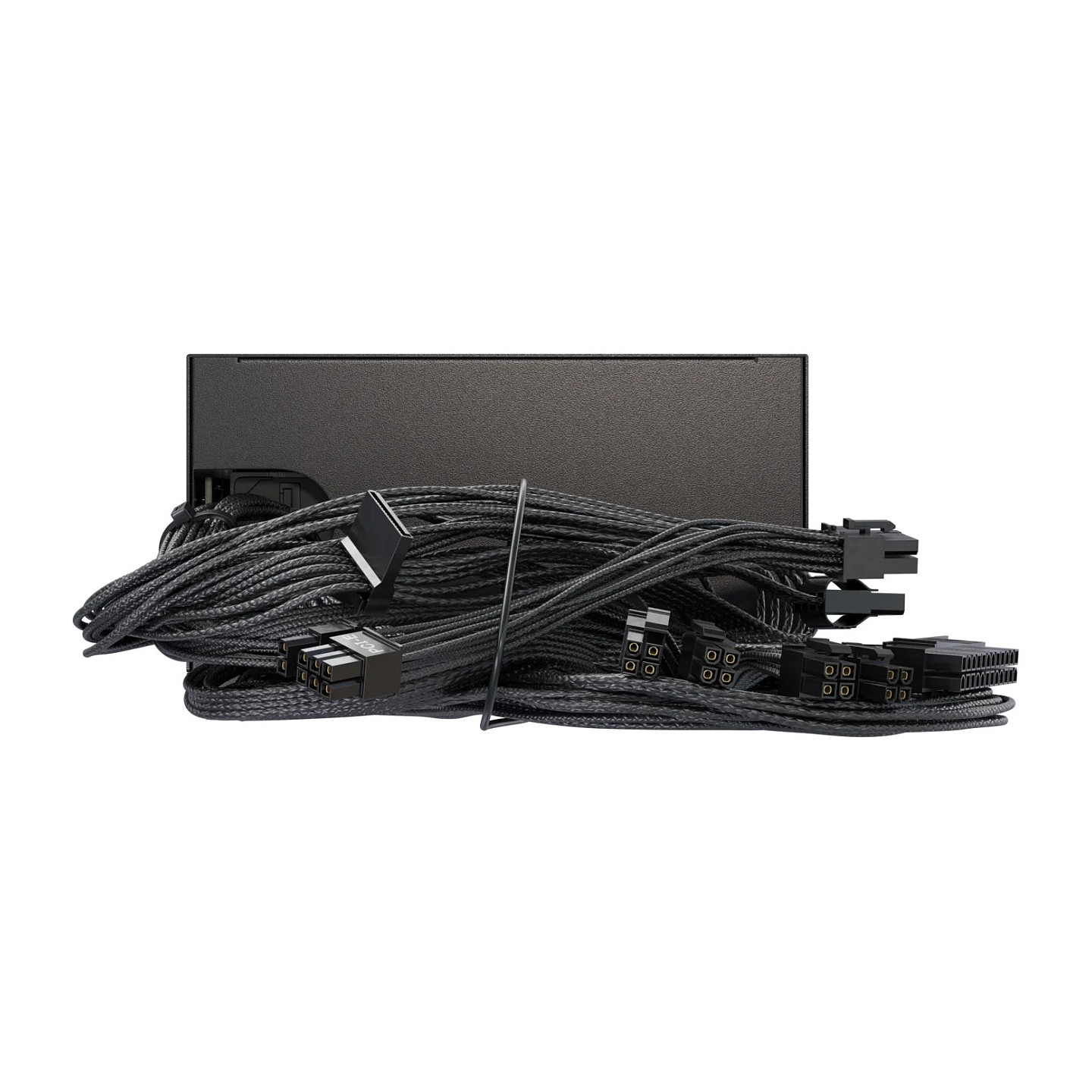

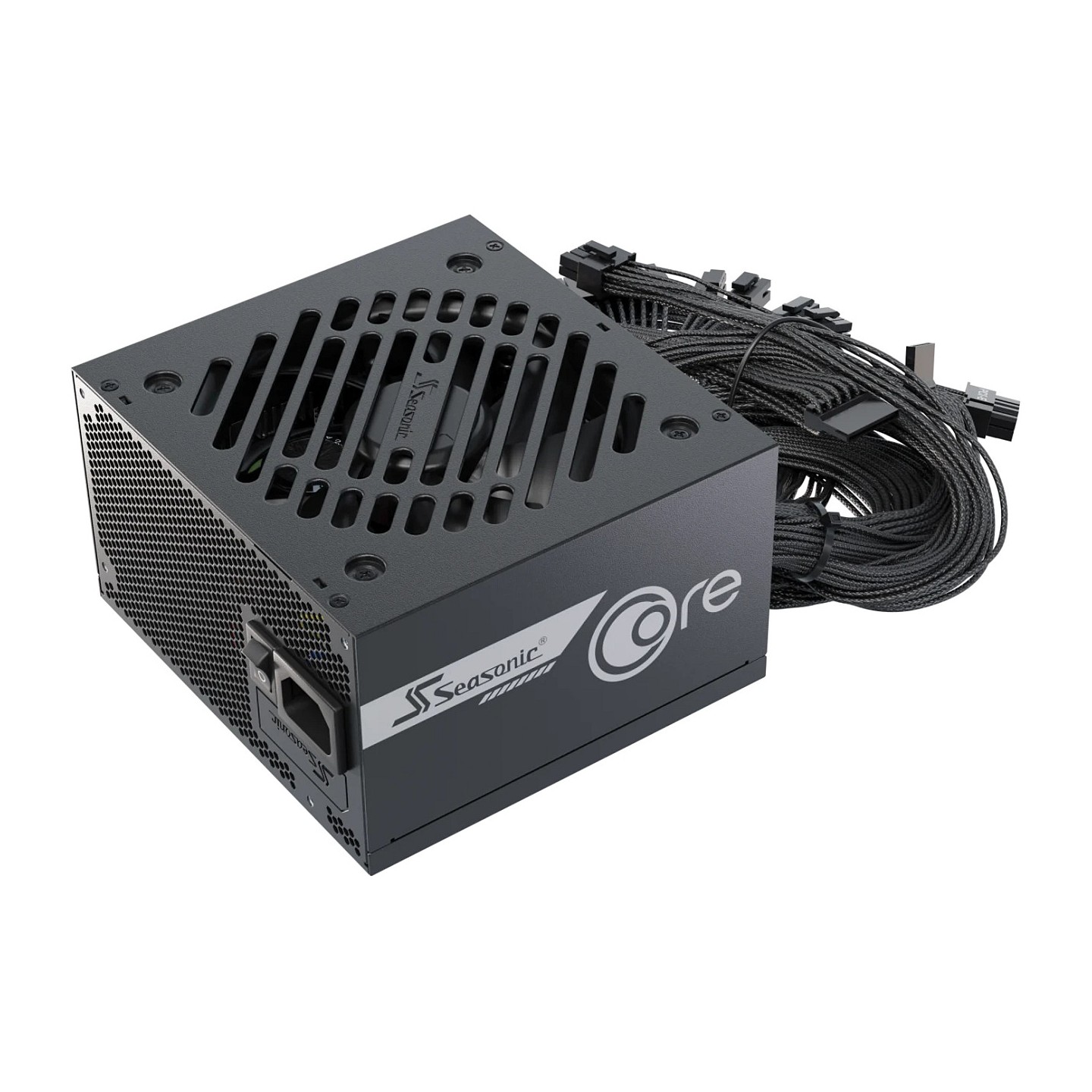

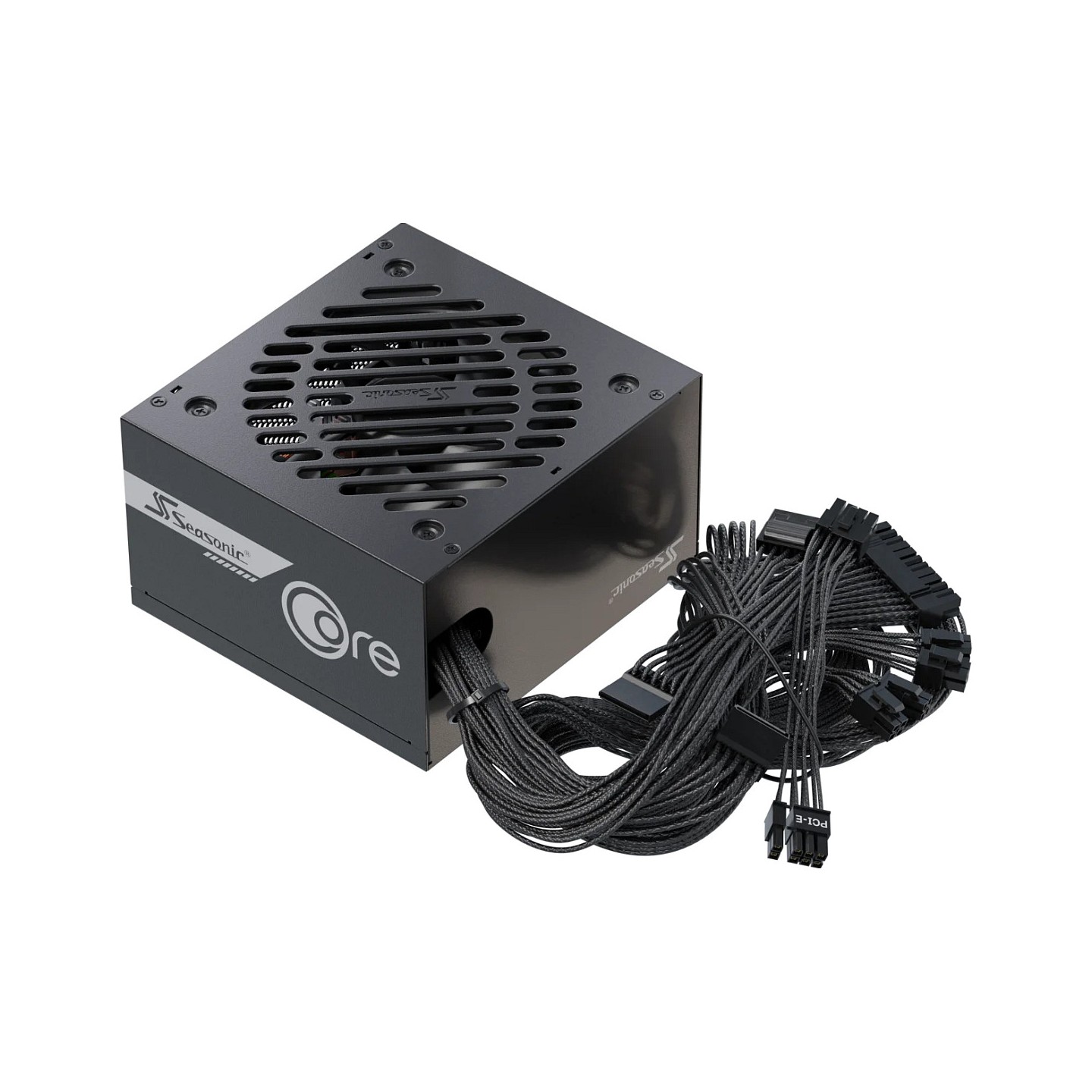

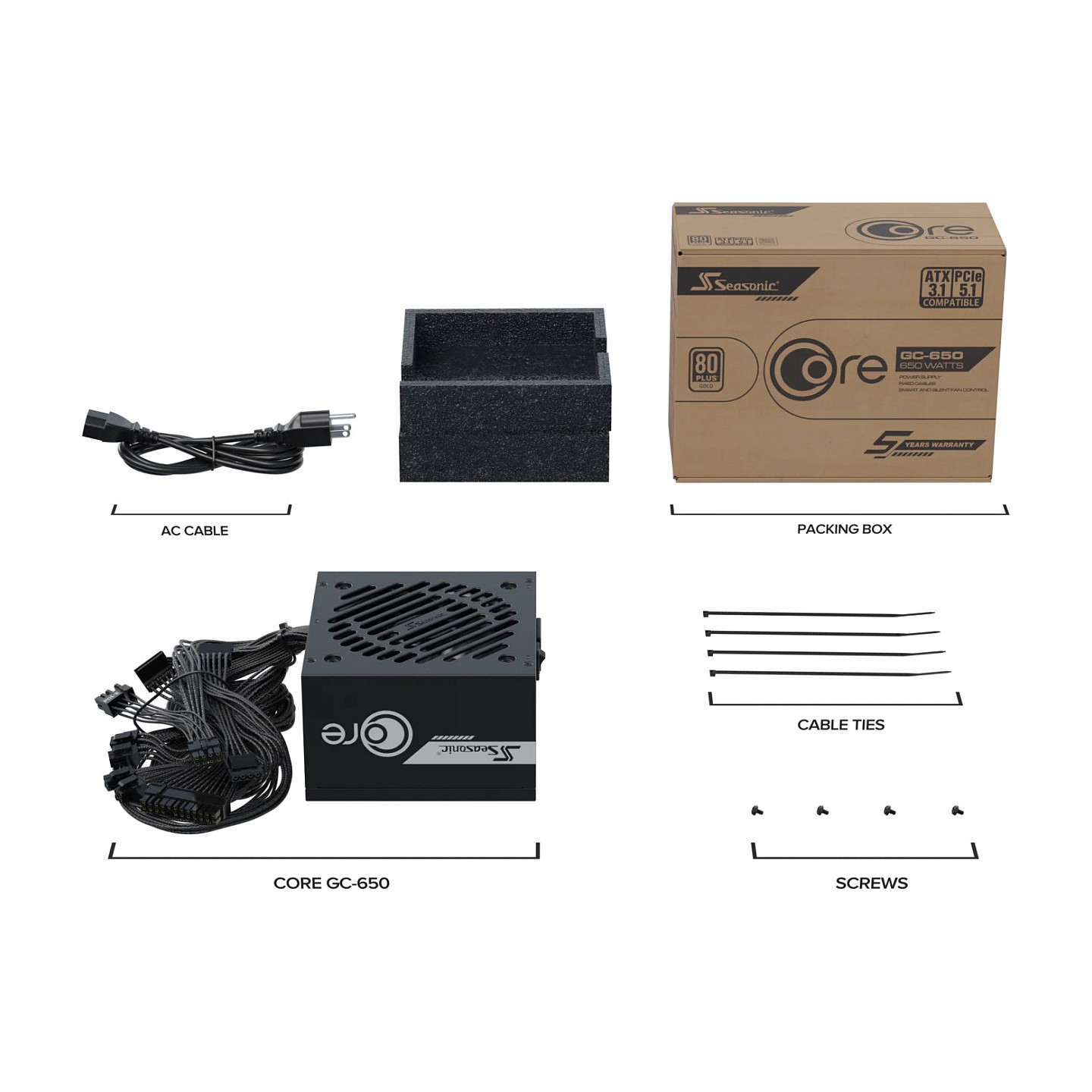

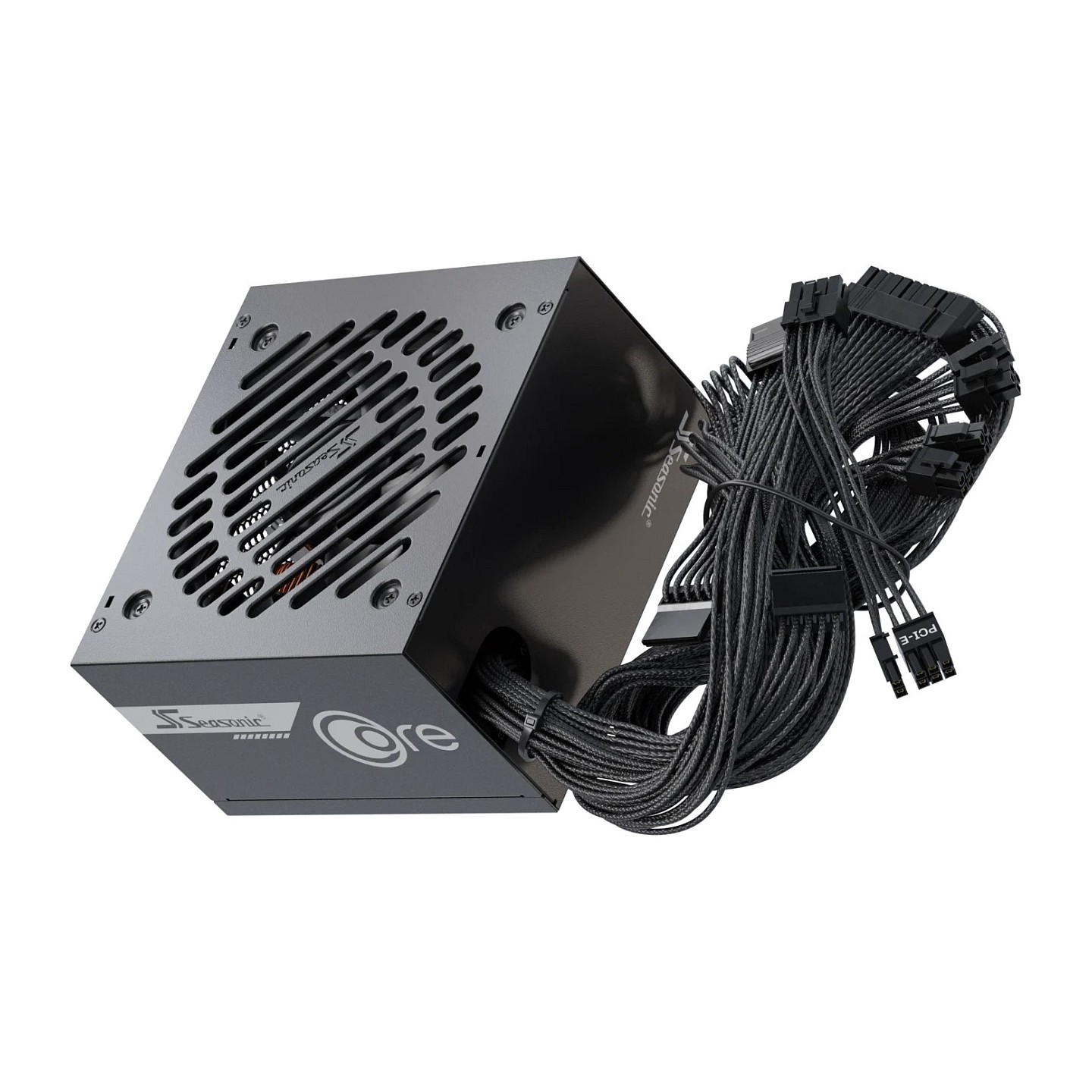

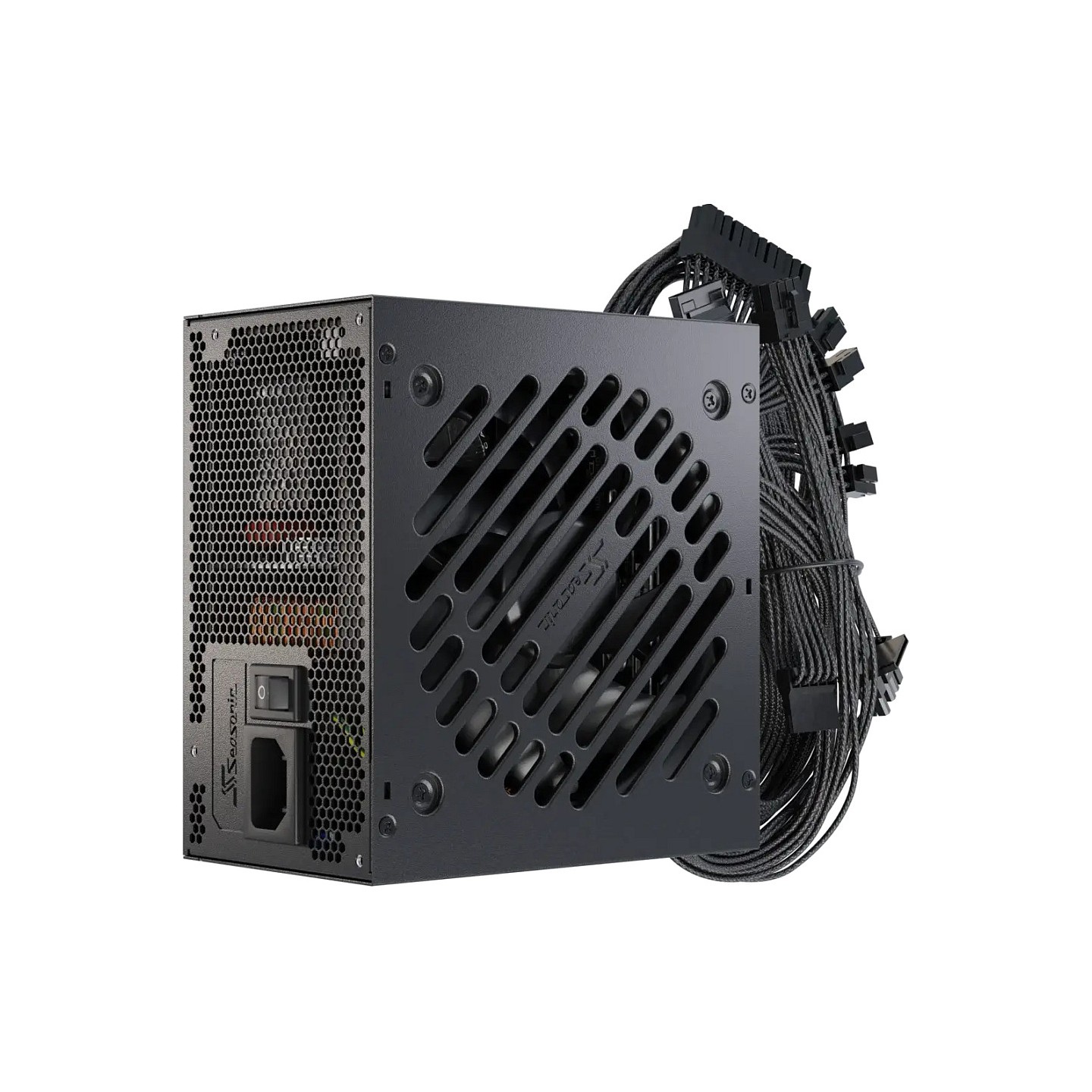

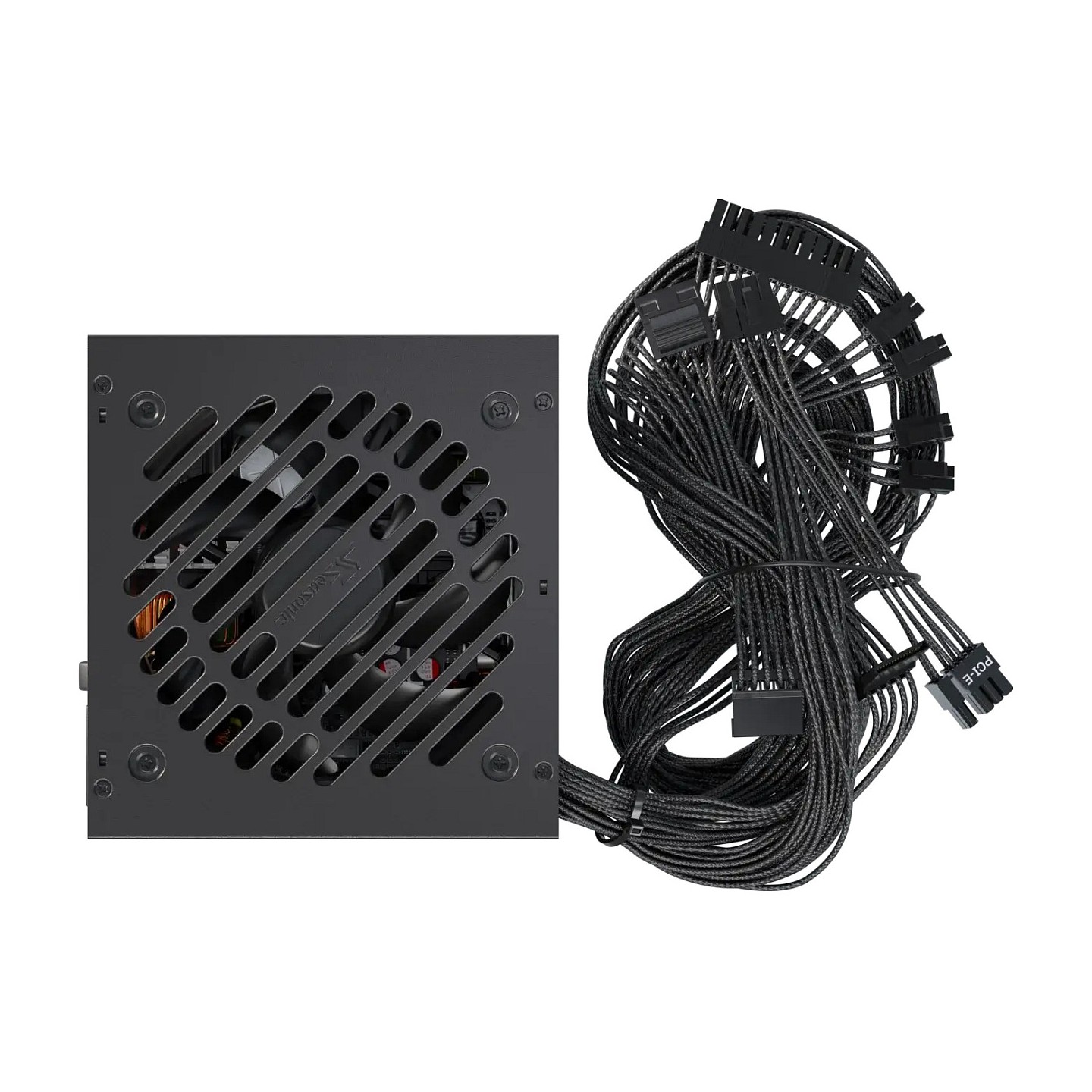

Seasonic CORE GC-650 ATX 3.1 650W 80+ Gold Power Supply (Boxed)
Seasonic CORE GC-650 is a 650W 80+ Gold certified ATX 3.1 power supply featuring a single 120mm fan, non-modular cable design, and dual 12V-2x6 PCIe connectors for modern graphics cards.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 12V-2x6 |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Seasonic CORE GC-650 is a reliable 650-watt power supply designed for everyday PC builders and gamers seeking dependable performance at an essential value. This unit delivers ATX 3.1 compliance and carries 80 Plus Gold certification, ensuring excellent energy efficiency with up to 90% efficiency at 50% load. The power supply features a single 120mm Hydro Dynamic Bearing (HDB) fan with smart and silent fan control technology.
Built with high-quality components including aluminum electrolytic capacitors and conductive polymer solid capacitors, the CORE GC-650 provides comprehensive protection against overcurrent, overload, undervoltage, overvoltage, short circuit, and overheating. The unit measures 150mm (W) x 140mm (D) x 86mm (H) and operates within a temperature range of 0-40°C. With a non-modular cable design, all power cables are permanently attached, simplifying installation while maintaining a compact form factor suitable for most ATX cases.
The power supply includes dual 12V-2x6 PCIe connectors for next-generation graphics cards, along with standard ATX connectors: one 24-pin motherboard connector, two 8-pin CPU/PCIe connectors, two SATA connectors, and one 4-pin Molex connector. The CORE GC-650 carries a 5-year warranty and meets multiple international compliance standards including RoHS, CE, CB, and UKCA.
- 650W continuous power output with 648W available on +12V rail
- 80 Plus Gold efficiency certification
- ATX 3.1 compliant with dual 12V-2x6 PCIe Gen 5 connectors
- Single 120mm HDB cooling fan with smart control
- Non-modular cable design for reliability
- Comprehensive protection: OCP, OLP, UVP, OVP, SCP, OTP
- Compact dimensions: 150 x 140 x 86mm
- 5-year manufacturer warranty
| Total Power Output | 650 W |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Input Current | 9 - 4.5 A |
| Combined Power +3.3V | 100 W |
| Combined Power +12V | 648 W |
| Combined Power +5V | 100 W |
| Combined Power -12V | 3.6 W |
| Combined Power +5Vsb | 12.5 W |
| Max Output Current +3.3V | 20 A |
| Max Output Current +12V | 54 A |
| Max Output Current +5V | 20 A |
| Max Output Current -12V | 0.3 A |
| Max Output Current +5Vsb | 2.5 A |
| Protection Features | Overcurrent, Overload, Undervoltage, Overvoltage, Short Circuit, Overheating |
| Motherboard Connector | 24-pin ATX |
| Motherboard Cable Length | 55 cm |
| SATA Power Connectors | 2 |
| SATA Cable Length | 600 mm |
| Molex 4-pin Connectors | 1 |
| Molex Cable Length | 600 mm |
| PCIe 8-pin Connectors | 2 |
| PCIe 12V-2x6 Connectors | 2 |
| PCIe Cable Length | 55 cm |
| CPU Power Cable Length | 60 cm |
| Cable Type | Non-modular |
| Efficiency Certification | 80 Plus Gold |
| Purpose | PC |
| Form Factor | ATX |
| ATX Version | 3.1 |
| Bearing Type | Ball Bearing |
| MTBF | 100000 h |
| Color | Black |
| Cooling | Active |
| Fan Diameter | 12 cm |
| Number of Fans | 1 |
| Operating Temperature | 0 - 40 °C |
| Relative Humidity in Operation | 15 - 65% |
| Compliance Certifications | RoHS, REACH, WEEE, CE, CB, CCC, cTUVus, BSMI, EAC, UKCA |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Packaging Type | Box |
| Sustainability Certifications | ENERGY STAR, ErP |
| Warranty | 5 years |
