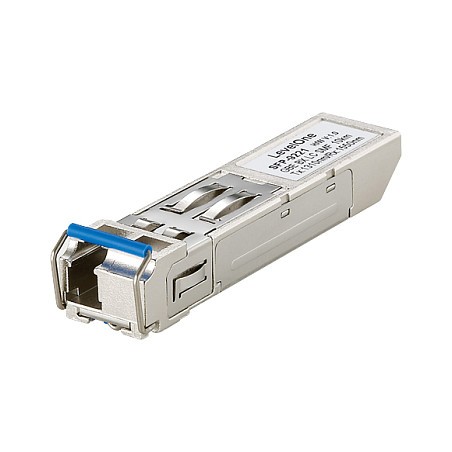

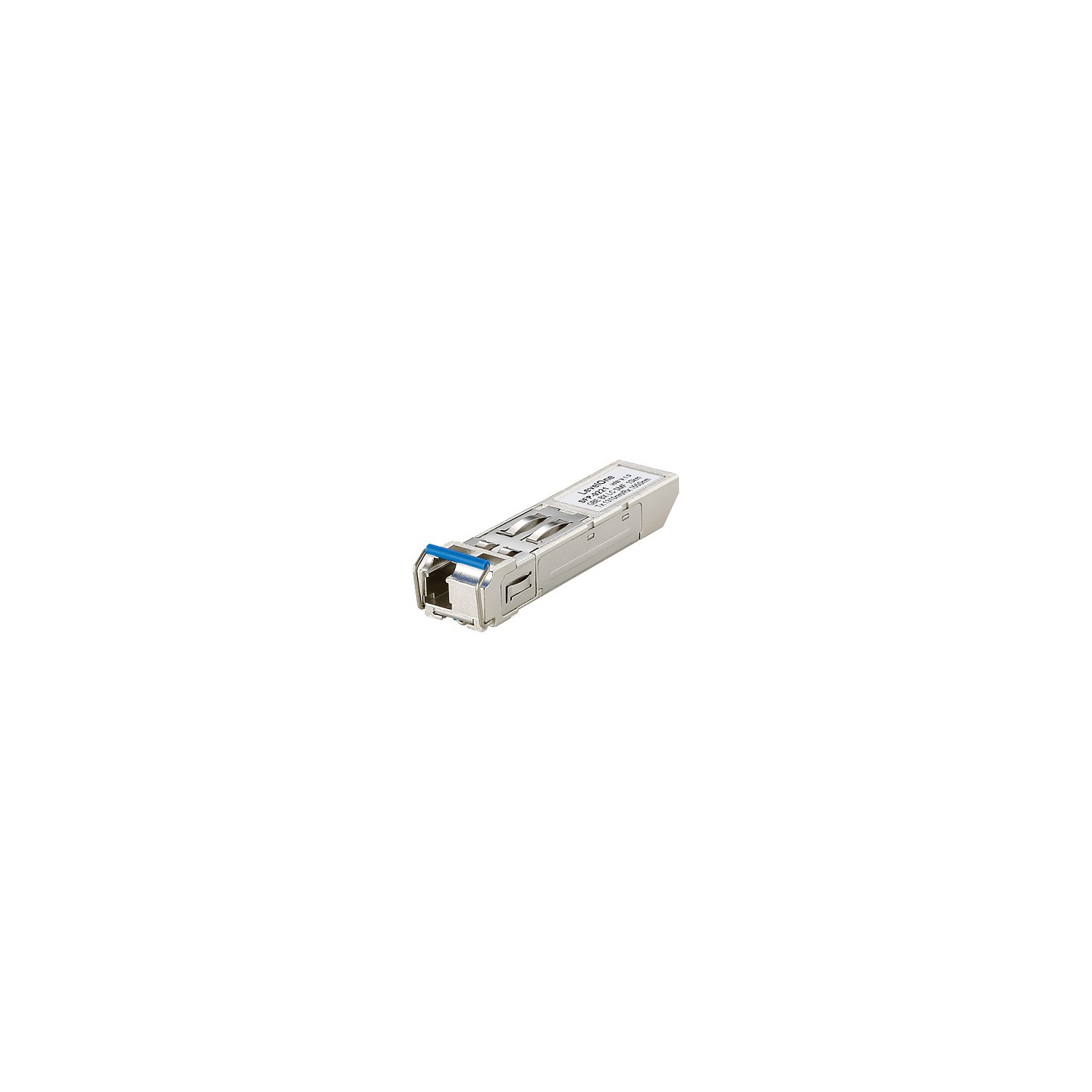

SFP Transceiver 1.25G Single-mode Simplex LC 10km
LevelOne 1.25G Single-Mode BIDI SFP Transceiver 10km. TX/RX mit 1310/1550nm. Faseroptik. 1250 Mbit/s. SFP. LC. 9/125 µm. 10000 m
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne 1.25G Single-Mode BIDI SFP Transceiver 10km. TX/RX mit 1310/1550nm. SFP Transceiver-Typ: Faseroptik. Maximale Datenübertragungsrate: 1250 Mbit/s. Schnittstelle: SFP. Eingangsspannung: 3.3 V. Maximale Spannung: 6 V. Stromstärke (maximal): 0.3 A. Konformitätsbescheinigungen: RoHS. Sicherheit: EN 60825-1. Zertifizierung: CE. FCC. Breite: 13.7 mm. Tiefe: 56.6 mm. Höhe: 8.95 mm. Menge pro Packung: 1 Stück(e)
| SFP Transceiver-Typ | Faseroptik |
| Maximale Datenübertragungsrate | 1250 Mbit/s |
| Schnittstelle | SFP |
| Feature | Hot-Swap |
| Optischer Kabelverbinder | LC |
| Unterstützte Faserkabeldurchmesser (Kern/Mantel) | 9/125 µm |
| Maximal mögliche Übertragungsstrecke | 10000 m |
| Tx-Leistung (min) | -9 dBmW |
| Tx-Leistung (max) | -3 dBmW |
| Netzstandard | IEEE 802.3z |
| Anzahl Faseranschlüsse | 1 |
| Eingangsspannung | 3.3 V |
| Maximale Spannung | 6 V |
| Stromstärke (maximal) | 0.3 A |
| Konformitätsbescheinigungen | RoHS |
| Sicherheit | EN 60825-1 |
| Zertifizierung | CE. FCC |
| Betriebstemperatur | 0 - 70 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 13.7 mm |
| Tiefe | 56.6 mm |
| Höhe | 8.95 mm |
| Gewicht | 20 g |
| Menge pro Packung | 1 Stück(e) |
| Verpackungsbreite | 76 mm |
| Verpackungstiefe | 50 mm |
| Verpackungshöhe | 130 mm |
| Paketgewicht | 60 g |
| Warentarifnummer (HS) | 85369010 |
