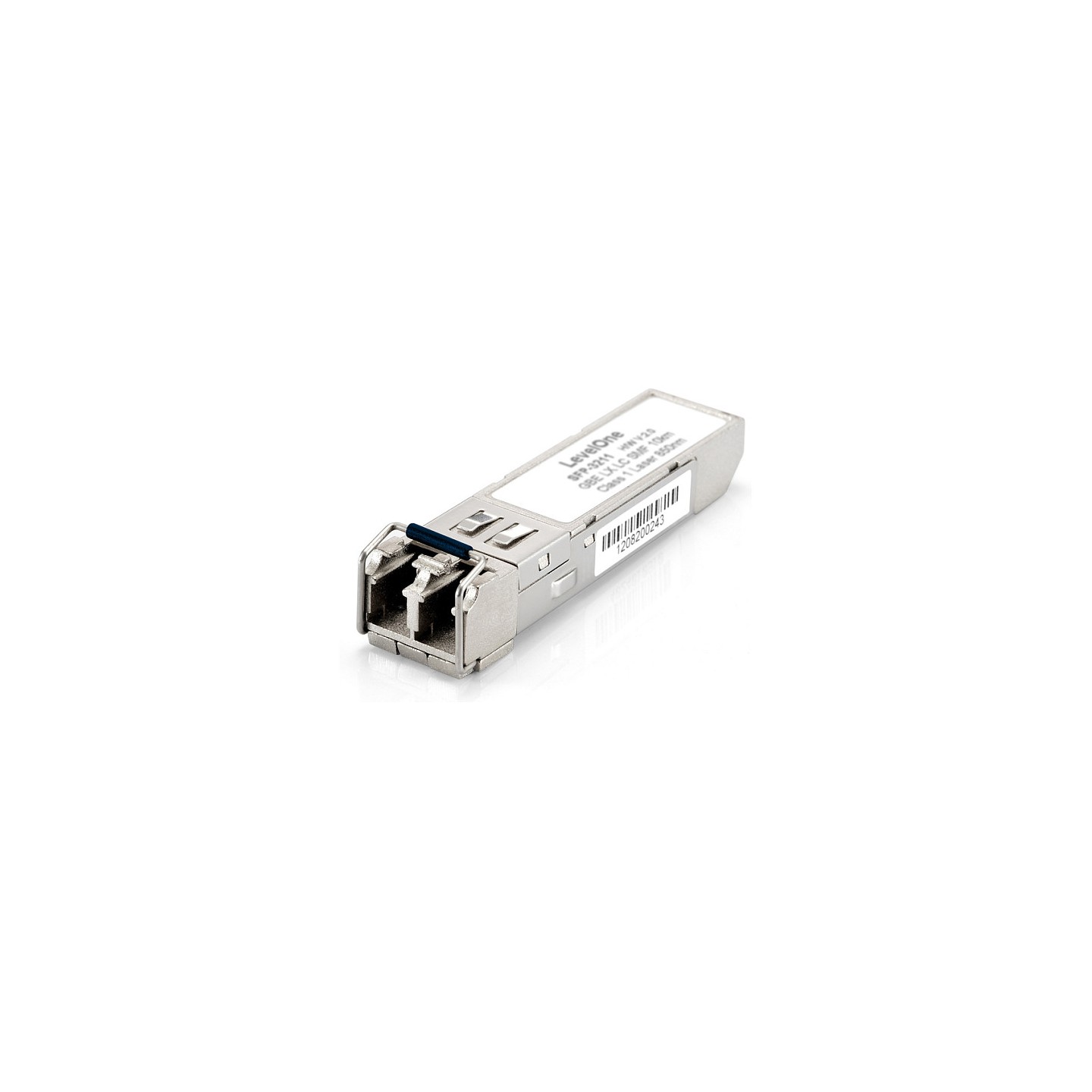

SFP Transceiver 1.25G Single-mode Duplex LC 20km
LevelOne 1.25G Single-Mode SFP Transceiver 10km. Faseroptik. 1250 Mbit/s. SFP. LC. 9/125 µm. 10000 m
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne 1.25G Single-Mode SFP Transceiver 10km. SFP Transceiver-Typ: Faseroptik. Maximale Datenübertragungsrate: 1250 Mbit/s. Schnittstelle: SFP. Eingangsspannung: 3.3 V. Maximale Spannung: 6 V. Stromstärke (maximal): 0.3 A. Konformitätsbescheinigungen: RoHS. Sicherheit: EN 60825-1. Zertifizierung: CE. FCC. Breite: 57 mm. Tiefe: 12 mm. Höhe: 13.7 mm. Verpackungsbreite: 106 mm. Verpackungstiefe: 20 mm. Verpackungshöhe: 65 mm
| SFP Transceiver-Typ | Faseroptik |
| Maximale Datenübertragungsrate | 1250 Mbit/s |
| Schnittstelle | SFP |
| Feature | Power over Ethernet (PoE) |
| Optischer Kabelverbinder | LC |
| Unterstützte Faserkabeldurchmesser (Kern/Mantel) | 9/125 µm |
| Maximal mögliche Übertragungsstrecke | 10000 m |
| Wellenlänge | 1310 nm |
| Tx-Leistung (min) | -9.5 dBmW |
| Tx-Leistung (max) | -3 dBmW |
| Netzstandard | IEEE 802.3z |
| Duplex-System | Voll |
| Anzahl Faseranschlüsse | 1 |
| Eingangsspannung | 3.3 V |
| Maximale Spannung | 6 V |
| Stromstärke (maximal) | 0.3 A |
| Konformitätsbescheinigungen | RoHS |
| Sicherheit | EN 60825-1 |
| Zertifizierung | CE. FCC |
| Betriebstemperatur | 0 - 70 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 57 mm |
| Tiefe | 12 mm |
| Höhe | 13.7 mm |
| Gewicht | 20 g |
| Verpackungsbreite | 106 mm |
| Verpackungstiefe | 20 mm |
| Verpackungshöhe | 65 mm |
| Paketgewicht | 35 g |
| Warentarifnummer (HS) | 85369010 |
