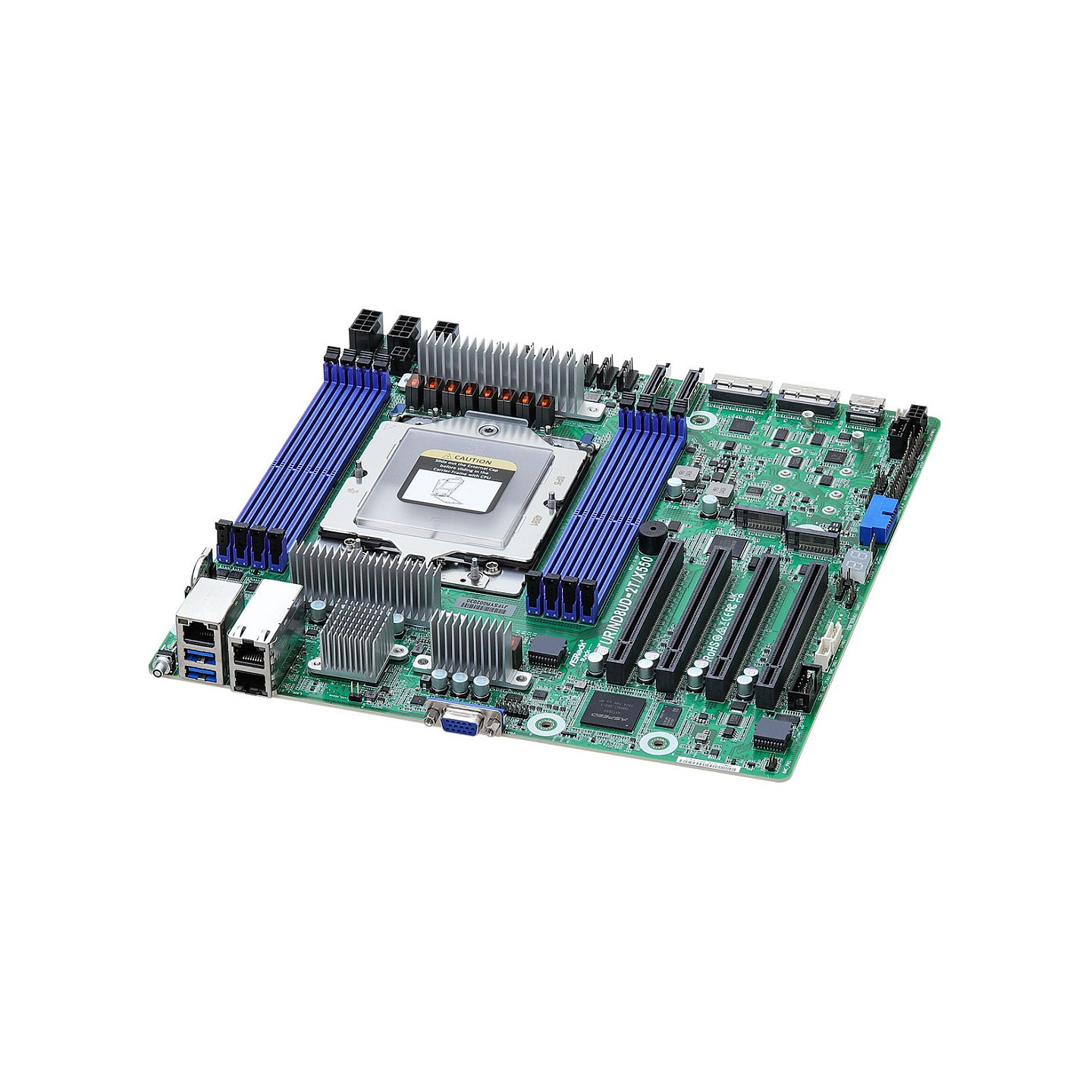

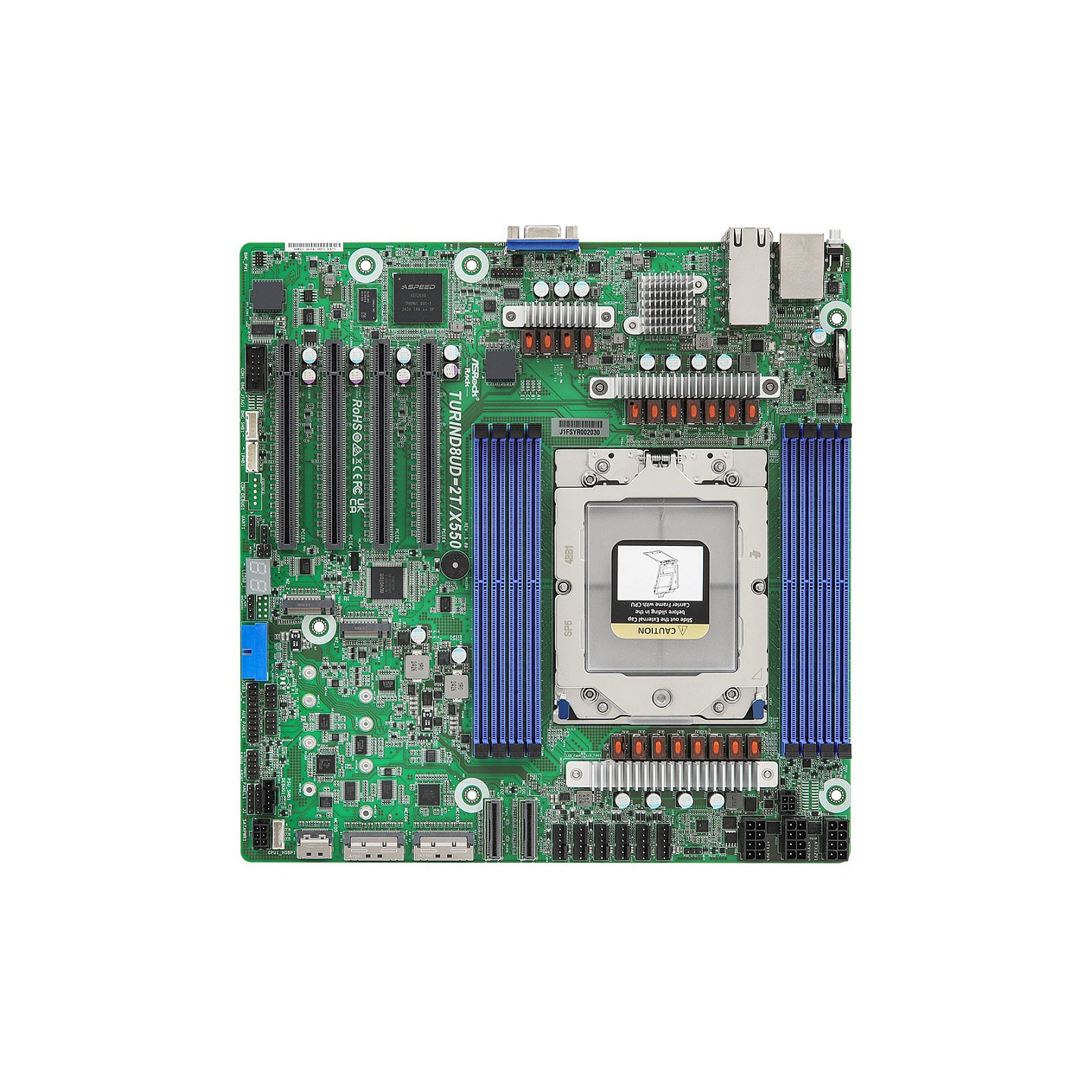

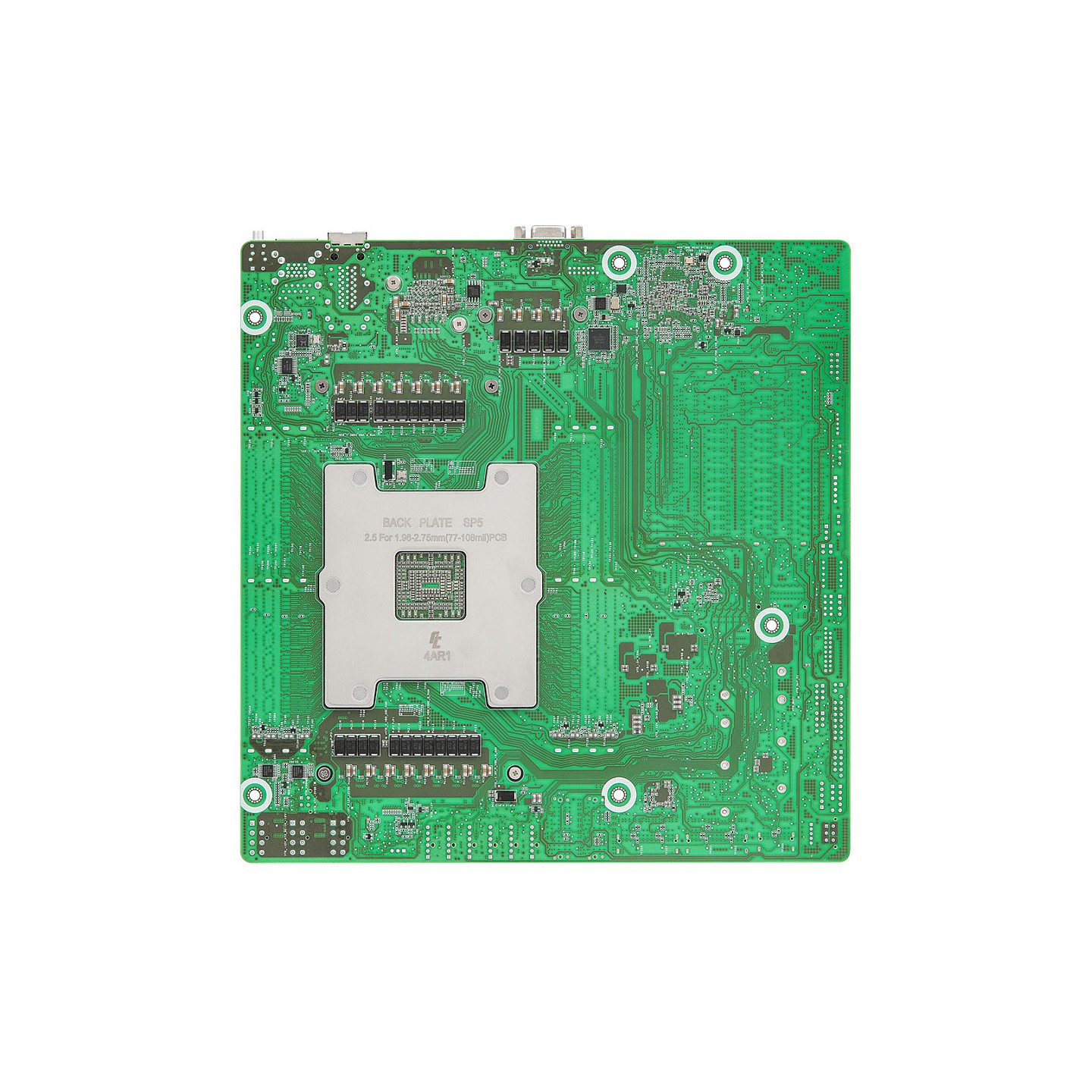

ASRock Mainboard TURIND8UD-2T X550 Deep Micro-ATX Sockel SP5 Single
Asrock TURIND8UD-2T/X550. AMD. Socket SP5. AMD EPYC 9004. 256 GB. DIMM. 1.1 V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Asrock TURIND8UD-2T/X550. Prozessorhersteller: AMD. Prozessorsockel: Socket SP5. Kompatible Prozessoren: AMD EPYC 9004. RAM-Speicher maximal: 256 GB. Arbeitsspeicher Typ: DIMM. Speicherspannung: 1.1 V. Unterstützte Speicherlaufwerk-Schnittstellen: PCI Express 5.0. SATA III. Grafikkarte-Familie: ASPEED. Grafikkarte: AST2600. Ethernet Schnittstellen Typ: 10 Gigabit Ethernet. LAN-Controller: Intel® X550-AT2
| Prozessorhersteller | AMD |
| Prozessorsockel | Socket SP5 |
| Kompatible Prozessoren | AMD EPYC 9004 |
| Anzahl der Speichersteckplätze | 8 |
| Arbeitsspeicher Typ | DIMM |
| Anzahl der Pins des Speichersteckplatzes | 288 |
| Speicherspannung | 1.1 V |
| Unterstützte Arbeitsspeichergeschwindigkeit | 6400 MHz |
| RAM-Speicher maximal | 256 GB |
| Unterstützte Speicherlaufwerk-Schnittstellen | PCI Express 5.0. SATA III |
| Feature | Ethernet/LAN |
| Grafikkarte-Familie | ASPEED |
| Grafikkarte | AST2600 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| SATA III Anschlüsse | 16 |
| Zahl der COM Stecker | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |

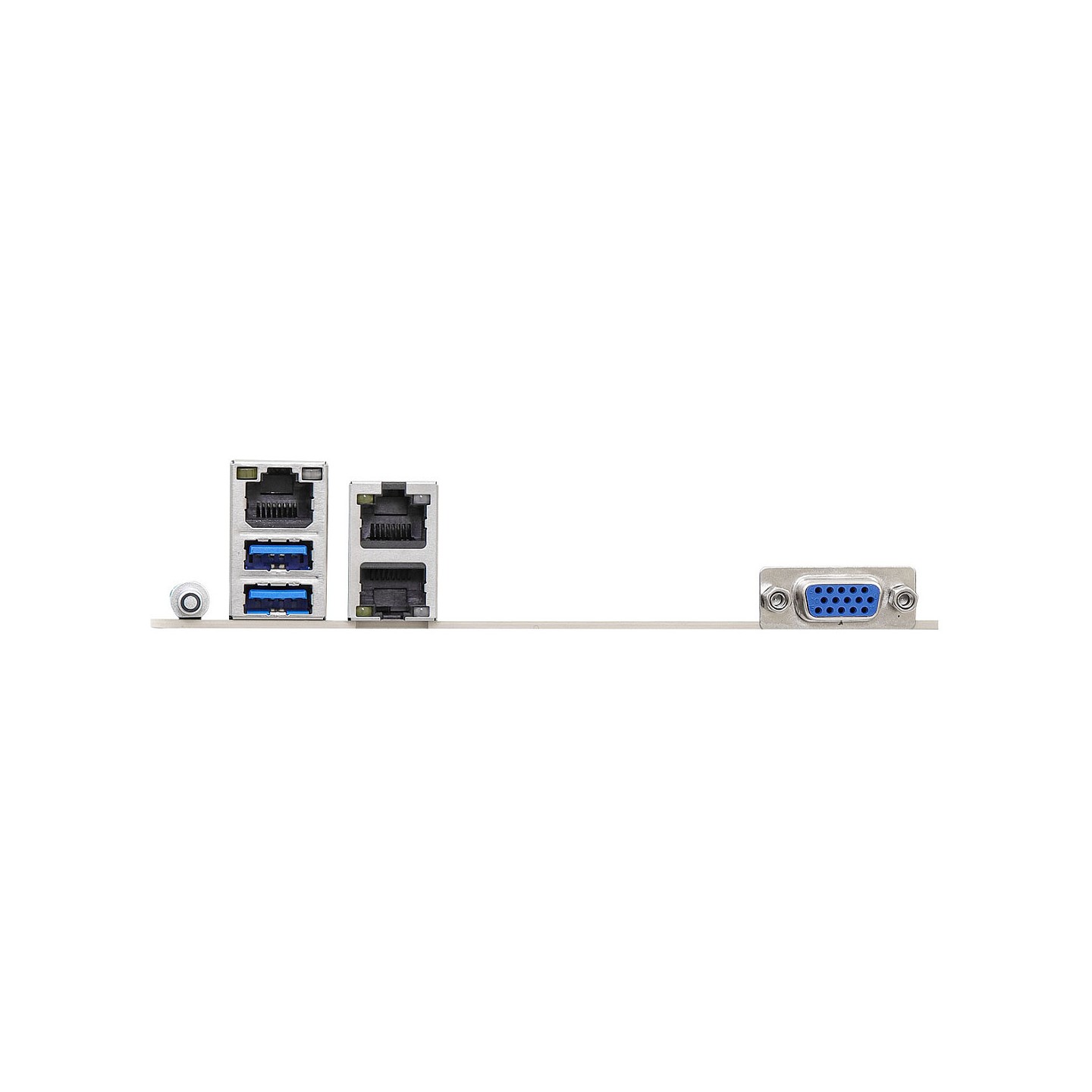

| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Ethernet Schnittstellen Typ | 10 Gigabit Ethernet |
| LAN-Controller | Intel® X550-AT2 |
| Motherboard Chipsatz | AMD SoC |
| Komponente für | Server |
| Motherboard Chipsatz Familie | AMD |
| PCI Express x16-Steckplätze (Gen 5.x) | 4 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 6.4 |
| Systemverwaltung BIOS (SMBIOS) Version | 3.5 |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Betriebstemperatur | 10 - 35 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 90% |
| Breite | 264.2 mm |
| Tiefe | 266.7 mm |
