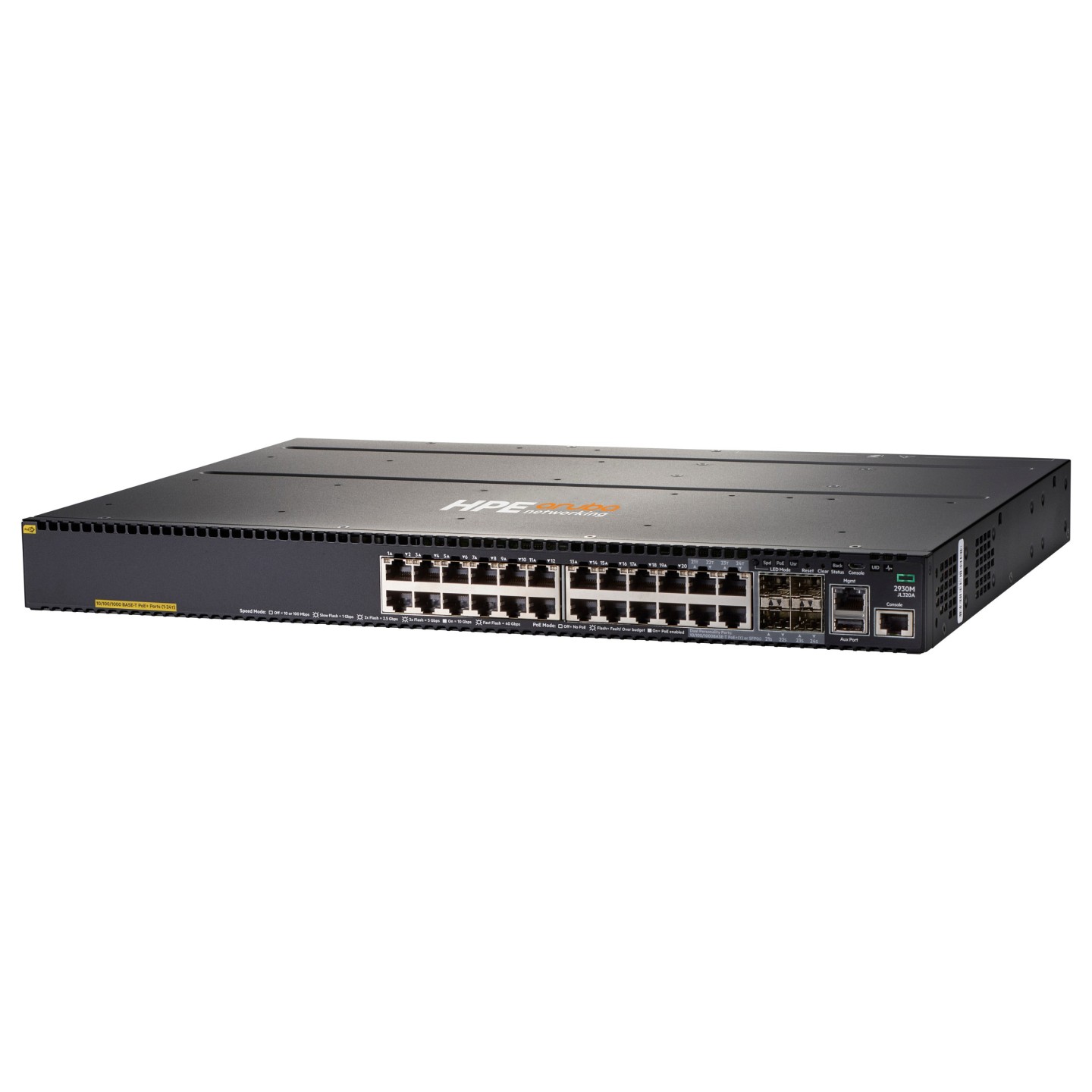

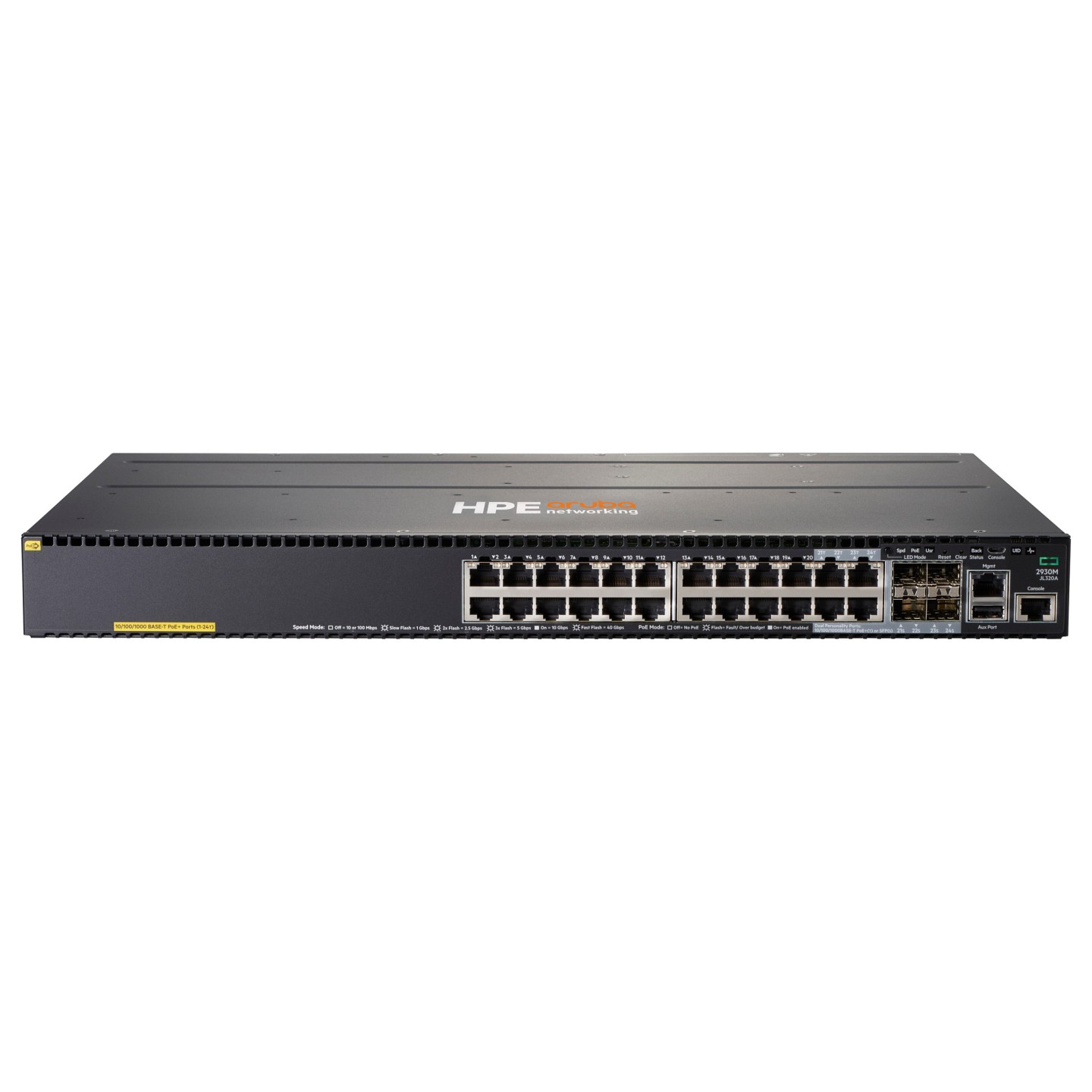

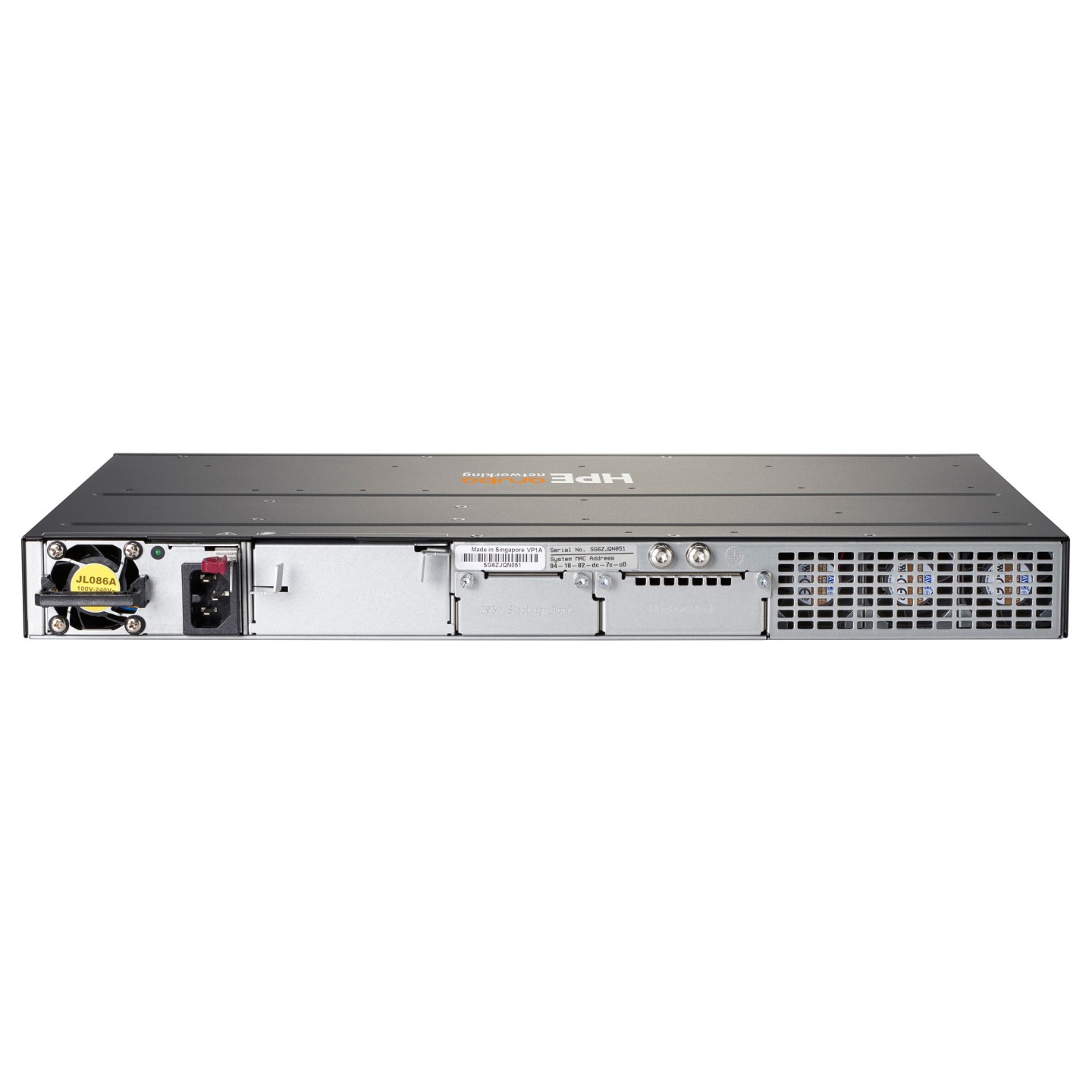

HPE Aruba 2930M 24G PoE+ with 1-slot Switch
HPE Aruba Networking 2930M 24G PoE+ 1-slot Switch. Managed. L3. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE). Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking 2930M 24G PoE+ 1-slot Switch. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 20. Vollduplex. MAC-Adressentabelle: 32768 Eintragungen. Routing-/Switching-Kapazität: 128 Gbit/s. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3at. IEEE 802.3u. Power over Ethernet (PoE). Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Power over Ethernet (PoE) |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 20 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Combo-SPF-Anschlüsse | 4 |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3at. IEEE 802.3u |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Routing-/Switching-Kapazität | 128 Gbit/s |
| Durchgang | 95.2 Mpps |
| MAC-Adressentabelle | 32768 Eintragungen |
| Wartezeit (10-100 Mbps) | 11.8 µs |
| Wartezeit (1 Gbps) | 3.1 µs |
| Wartezeit (10 Gbps) | 3.4 µs |
| Datenpaket-Pufferspeicher | 12.38 MB |
| DHCP-Funktionen | DHCP server |
| Authentifizierung | MAC-basierte Authentifizierung. Webbasierte Authentifizierung |
| Formfaktor | 1U |
| Produktfarbe | Grau |
| Prozessortaktfrequenz | 1016 MHz |
| Speichertyp | DDR3-SDRAM |
| Speicherkapazität | 1024 MB |
| AC Eingangsspannung | 200 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (Standardbetrieb) | 470 W |
| Leistungsaufnahme Hinweis | 2 power supplies are supported: JL086A PSU (each): 450W JL087A PSU (each): 840W |
| Gesamtleistung Power over Ethernet (PoE) | 720 W |
| Latenz | 1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs |
| Speicher und Prozessor | Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5 MB Ingress. 7.785 Egress 4 GB eMMC |
| Gewicht (imperial) | 4.5 kg (9.92 Pfund) |
| Abmessungen (B x T x H) (in Zoll) | 43.9 x 442.5 x 324.4 mm (1.73 x 17.4 x 12.8") |
| Betriebstemperatur | 0 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 15 - 95% |
| Wärmeableitung | 150 BTU/h |
| Breite | 43.9 mm |
| Tiefe | 442.5 mm |
| Höhe | 324.3 mm |
| Gewicht | 4.5 kg |
| Warentarifnummer (HS) | 85176990 |
