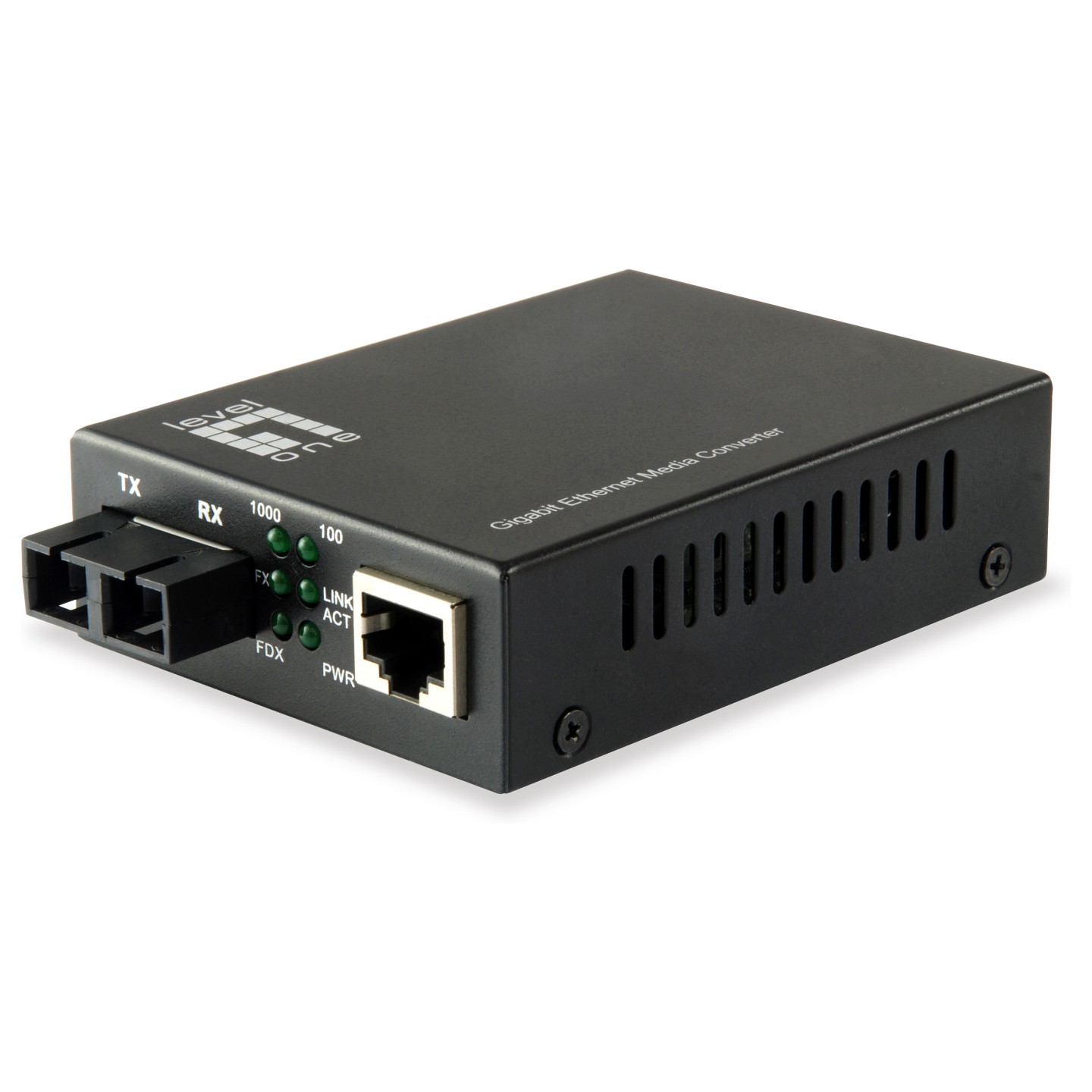

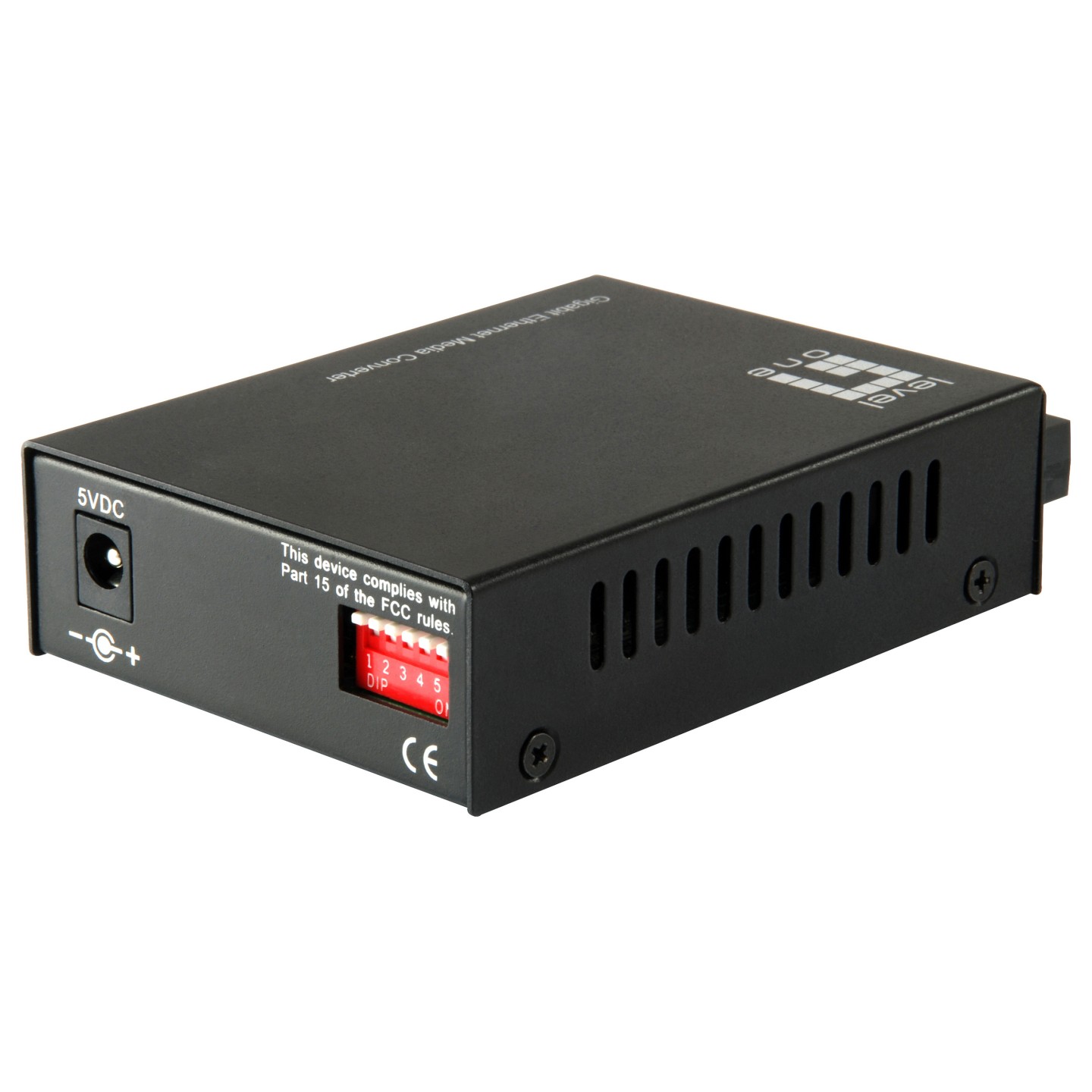

Konverter GVT-2002 10 100 1000T to 1000SX 20km
LevelOne GVT-2002. 1000 Mbit/s. 10Base-T. 100Base-TX. 1000Base-T. 1000Base-LX. 1000Base-SX. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Gigabit Ethernet. 10.100.1000 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne GVT-2002. Maximale Datenübertragungsrate: 1000 Mbit/s. Converter Eingangsschnittstelle: 10Base-T. 100Base-TX. 1000Base-T. Converter output Oberfläche: 1000Base-LX. 1000Base-SX. Maximal mögliche Übertragungsstrecke: 20000 m. Wellenlänge: 1310 nm. Kabel mode struktur: Einzelmodus. Produktfarbe: Schwarz. Optischer Kabelverbinder: SC. Übertragungstechnik: Kabelgebunden. Eingangsspannung: 5 V. Eingangsstrom: 2 A
| Maximale Datenübertragungsrate | 1000 Mbit/s |
| Converter Eingangsschnittstelle | 10Base-T. 100Base-TX. 1000Base-T |
| Converter output Oberfläche | 1000Base-LX. 1000Base-SX |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE‑LX. 1000BASE‑SX |
| Feature | Schnellinstallationsanleitung |
| Jumbo-Frames | 9000 |
| Duplex-System | Voll |
| unterstütze Kabeltypen | Cat5. Cat5e |
| Maximal mögliche Übertragungsstrecke | 20000 m |
| Wellenlänge | 1310 nm |
| Kabel mode struktur | Einzelmodus |
| Produktfarbe | Schwarz |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl Faseranschlüsse | 1 |
| Optischer Kabelverbinder | SC |
| Eingangsspannung | 5 V |
| Eingangsstrom | 2 A |
| Breite | 94 mm |
| Tiefe | 26 mm |
| Höhe | 71 mm |
| Gewicht | 200 g |
| Betriebstemperatur | -10 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Verpackungsbreite | 120 mm |
| Verpackungstiefe | 55 mm |
| Verpackungshöhe | 235 mm |
| Paketgewicht | 360 g |
| Verpackungsart | Box |
| Zertifizierung | CE. FCC |
| Ursprungsland | China |
| Warentarifnummer (HS) | 85176990 |
| Breite des Versandkartons | 360 mm |
| Länge des Versandkartons | 390 mm |
| Höhe des Versandkartons | 480 mm |
| Gewicht Versandkarton | 13 kg |
| Anzahl Produkte pro Versandkarton | 36 Stück(e) |
