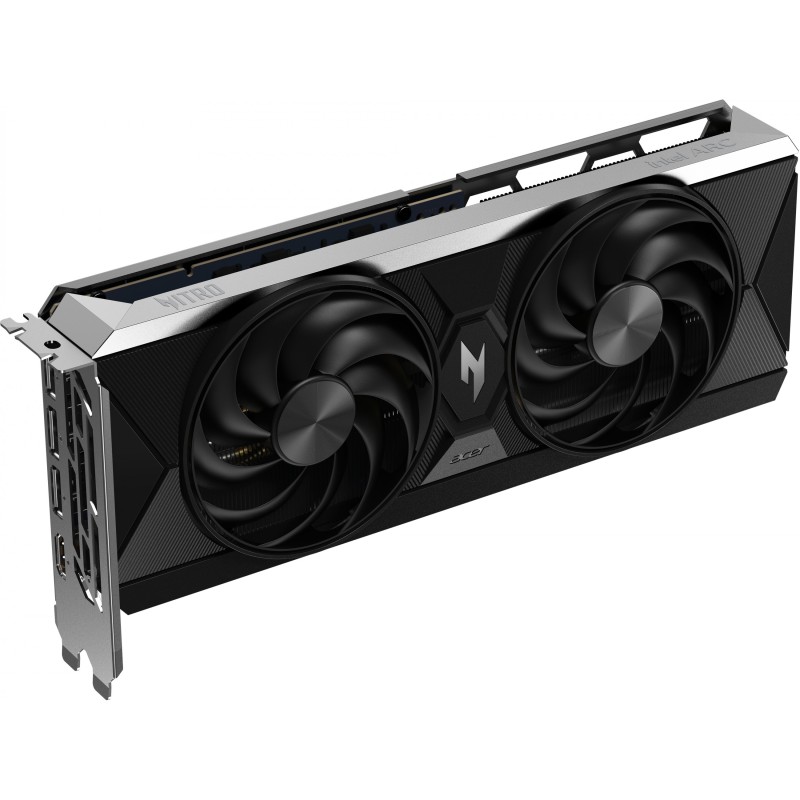

Acer Nitro Arc B570 OC - B570 - 10GB GDDR6, 2690 MHz, PCIe 4.0 x8, Dual-Fan
Acer Nitro Intel Arc B570 OC — 10 GB GDDR6 (160-bit), 2690 MHz, PCIe 4.0 x8, dual-fan open-air cooling, HDMI 2.1 + 3x DP 2.1, up to 7680×4320
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - VRAM Capacity | 10 GB |
|---|---|
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Card Length | 221-280 mm |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
Acer Nitro Intel® Arc™ B570 OC. Graphics processor family: Intel. Graphics processor: Arc B570. Processor frequency: 2690 MHz. Discrete graphics card memory: 10 GB. Graphics card memory type: GDDR6. Memory bus: 160 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0. OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active. Number of fans: 2 fan(s)
| Graphics processor family | Intel |
| Graphics processor | Arc B570 |
| Processor frequency | 2690 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Discrete graphics card memory | 10 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 160 bit |
| Data transfer rate | 19 Gbit/s |
| Memory bandwidth (max) | 380 GB/s |
| Interface type | PCI Express x8 4.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1 |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Feature | Linux operating systems supported |
| HDCP version | 2.3 |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Power supply | 600 W |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| Weight | 650 g |
| Length | 268 mm |
| Depth | 113 mm |
| Height | 40 mm |
| Package width | 370 mm |
| Package depth | 470 mm |
| Package height | 227 mm |
| Package weight | 920 g |
