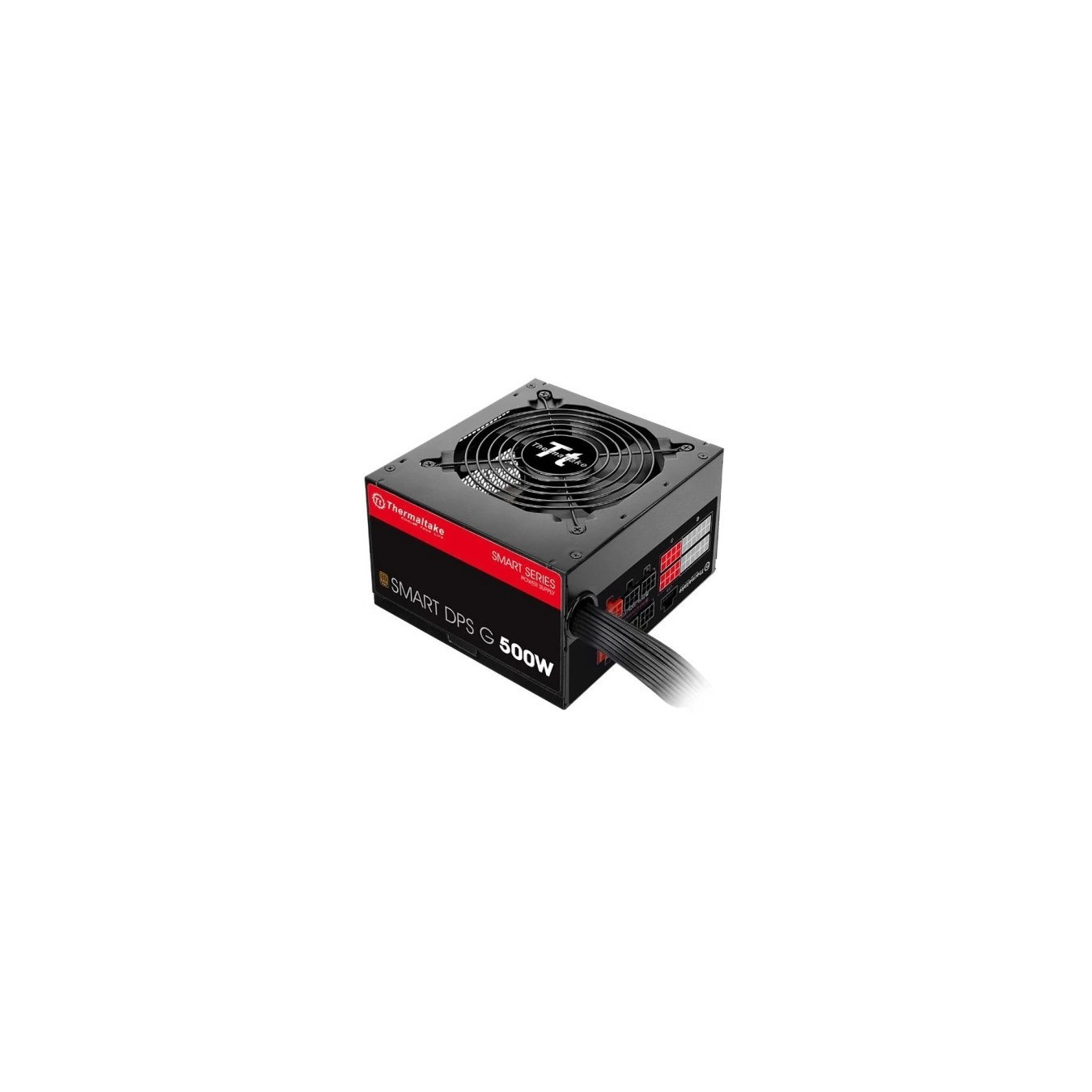

Thermaltake SMART DPS G 500W Digital PSU - 80 PLUS Bronze - Semi-Modular - Black
Thermaltake SMART DPS G 500W digital ATX power supply, 80 PLUS Bronze, semi-modular, 600W peak, 24-pin ATX, 120 mm fan, 100–240 VAC, active PFC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Semi-modular |
|---|
Thermaltake Smart DPS G. Total power: 500 W. AC input voltage: 100 - 240 V. Peak power: 600 W. Motherboard power connector: 24-pin ATX. Cabling type: Semi-Modular. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Bronze. Product colour: Black. Fan diameter: 12 cm. Number of fans: 1 fan(s). Certification: CE/FCC/UL/TUV/CB/EAC/BSMI
| Total power | 500 W |
| Peak power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 10 ms |
| Efficiency | 86% |
| Power Good signal delay range | 100 - 500 ms |

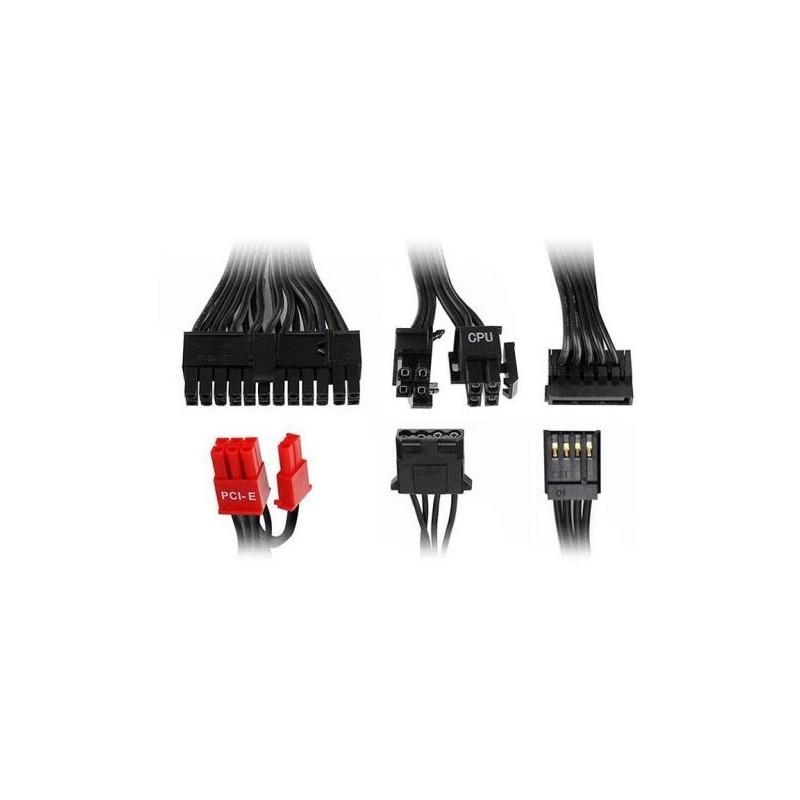

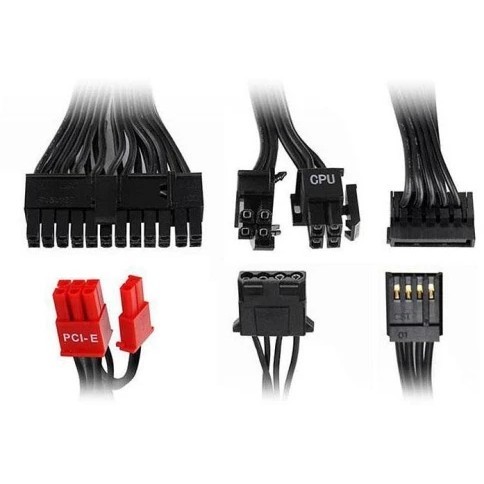

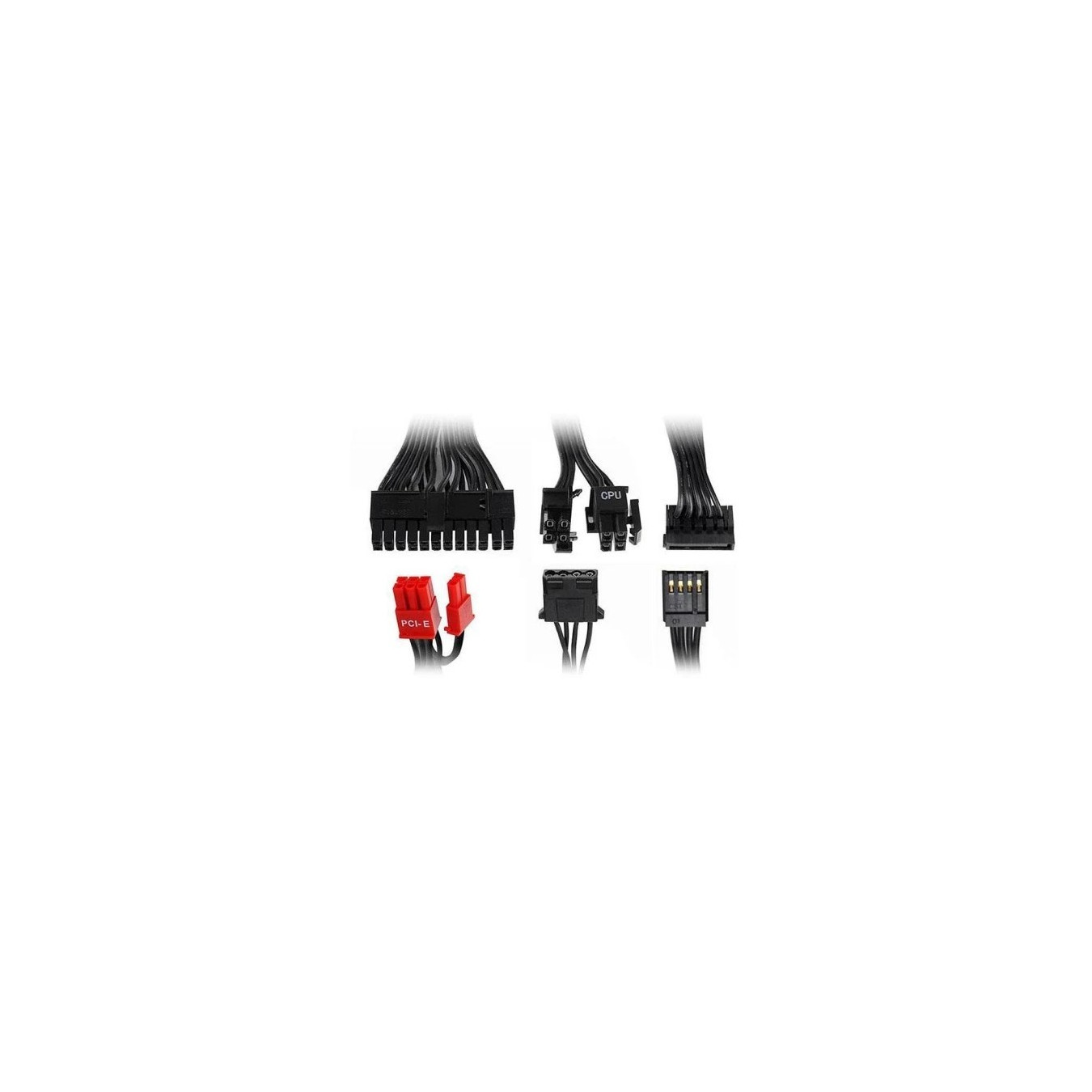

| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| Feature | Power management |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| EPS version | 2.92 |
| Mean time between failures (MTBF) | 120000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certification | CE/FCC/UL/TUV/CB/EAC/BSMI |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
