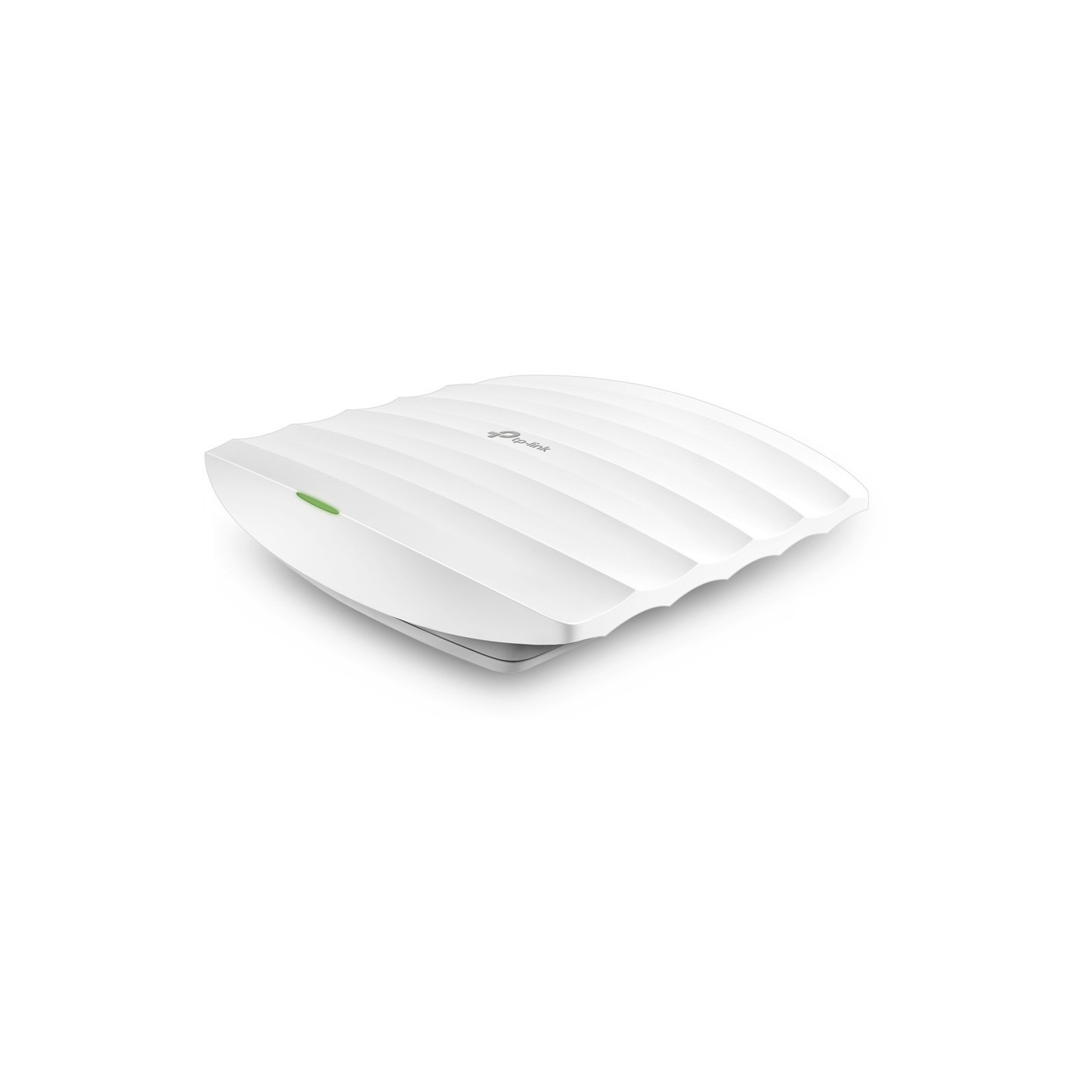

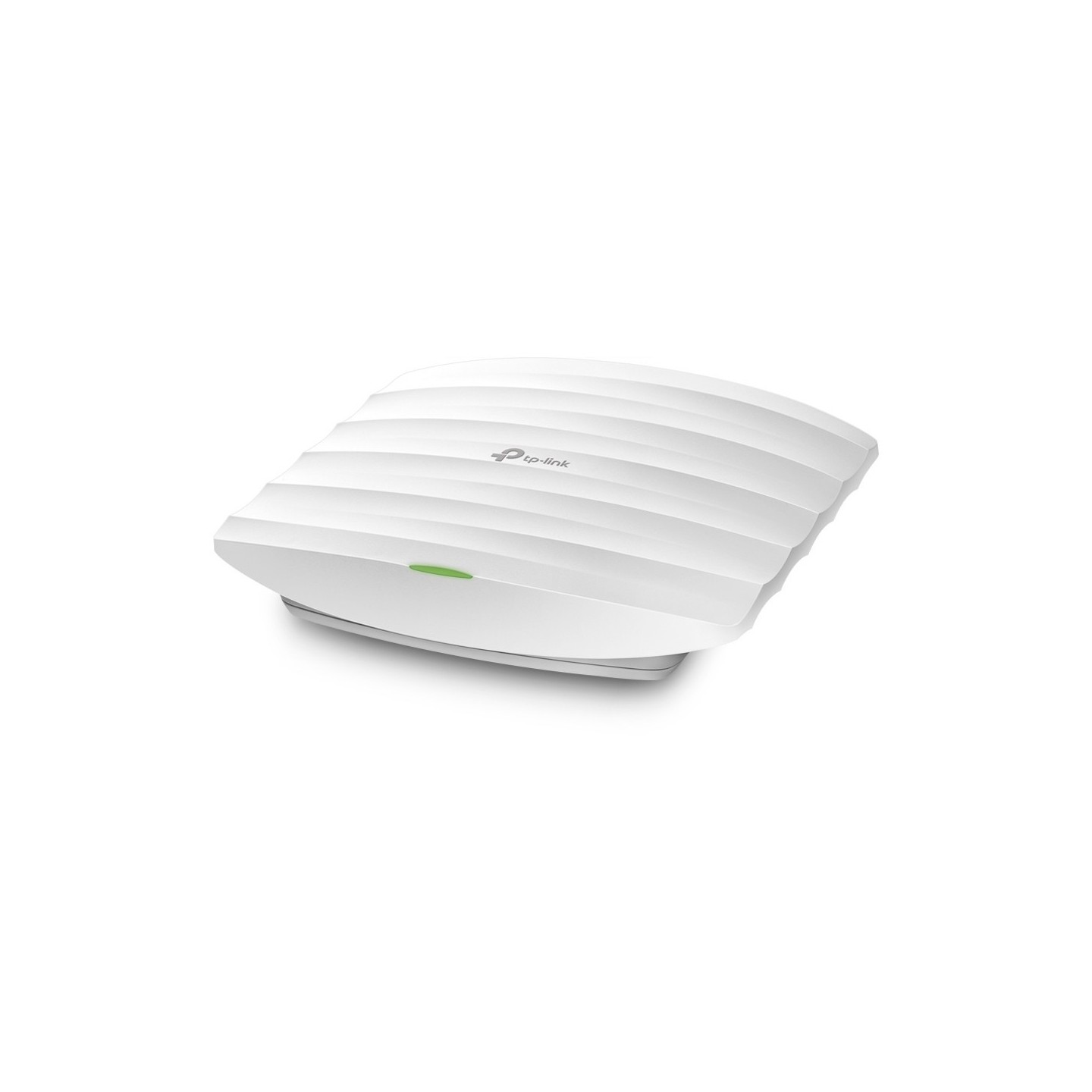

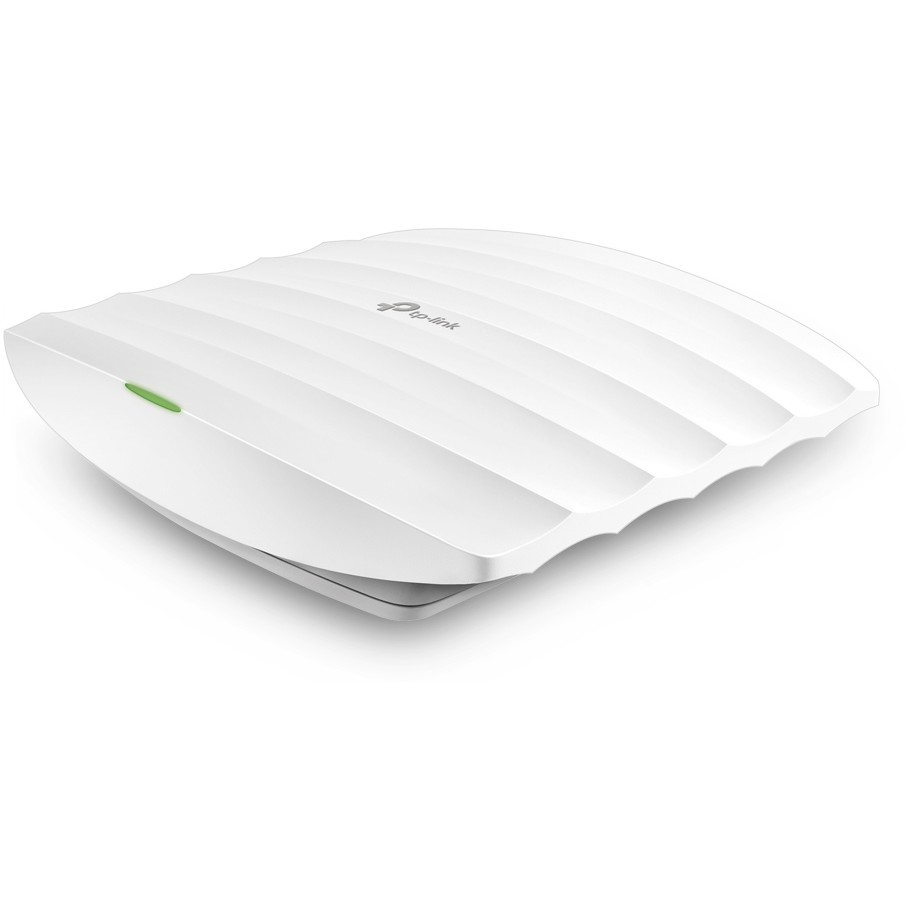

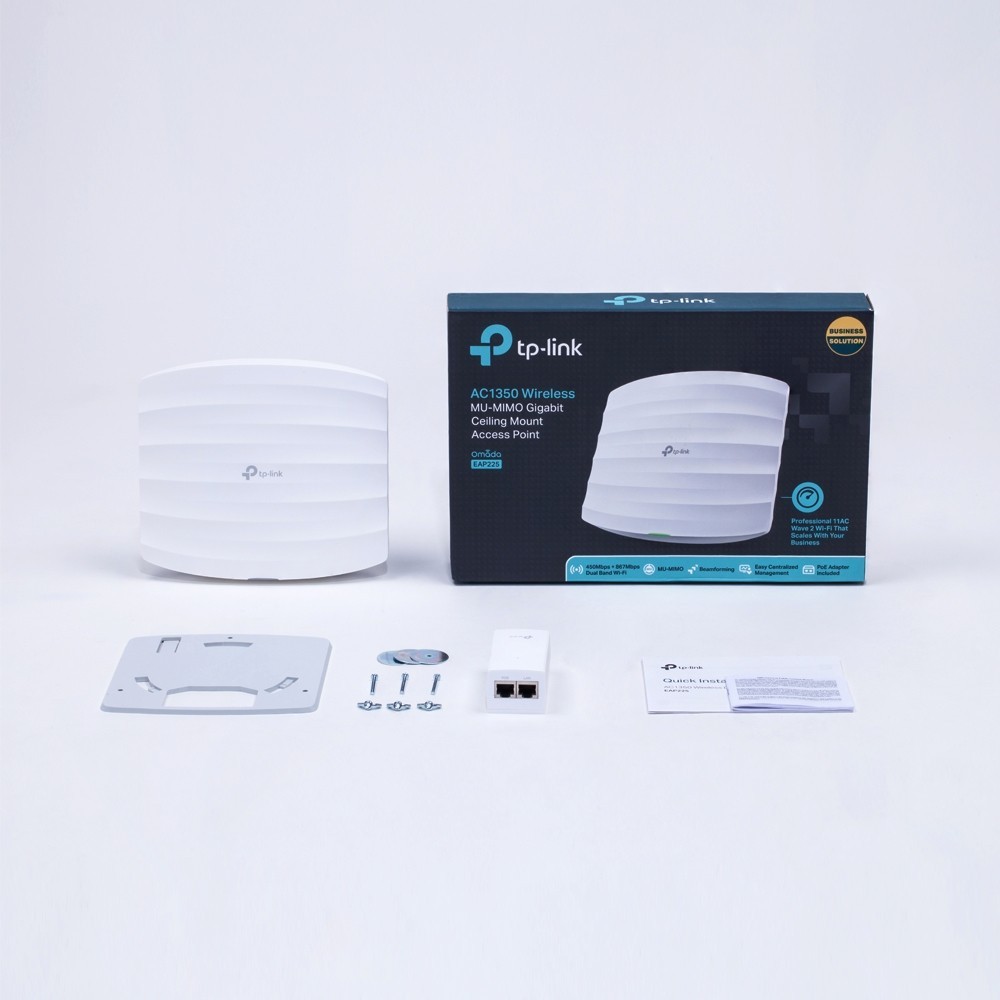

TP-Link Omada EAP225 - AC1350 Dual-Band Wi-Fi 5 Access Point - White, PoE
Indoor dual-band AC1350 (450+867 Mbps) access point with PoE, 1× Gigabit Ethernet, Omada controller support, WPA/WPA2 security and up to 16 SSIDs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Access Points - Ethernet Port | 1x1GbE |
| Access Points - Management | Controller-based |
| Access Points - Mounting | Ceiling |
| Access Points - Outdoor Rating | None |
TP-Link Omada EAP225. 2.4 GHz. 5 GHz. Maximum data transfer rate: 1350 Mbit/s. Security algorithms: 64-bit WEP. 128-bit WEP. 152-bit WEP. SSID. WPA. WPA-PSK. WPA2. WPA2-PSK. Ethernet LAN data rates: 10.100.1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | Sustainability compliance |
| Maximum data transfer rate | 1350 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO type | Multi User MIMO |
| Virtual LAN features | VLAN mapping |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 24 dBm |
| Security algorithms | 64-bit WEP. 128-bit WEP. 152-bit WEP. SSID. WPA. WPA-PSK. WPA2. WPA2-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |

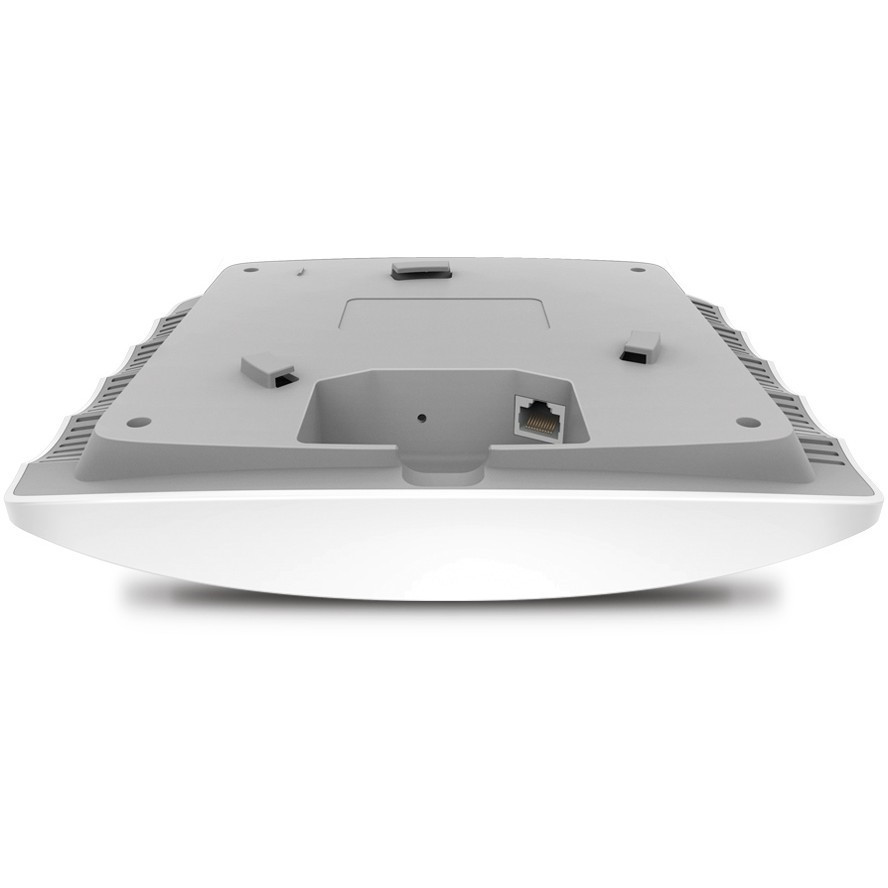

| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 10.15 W |

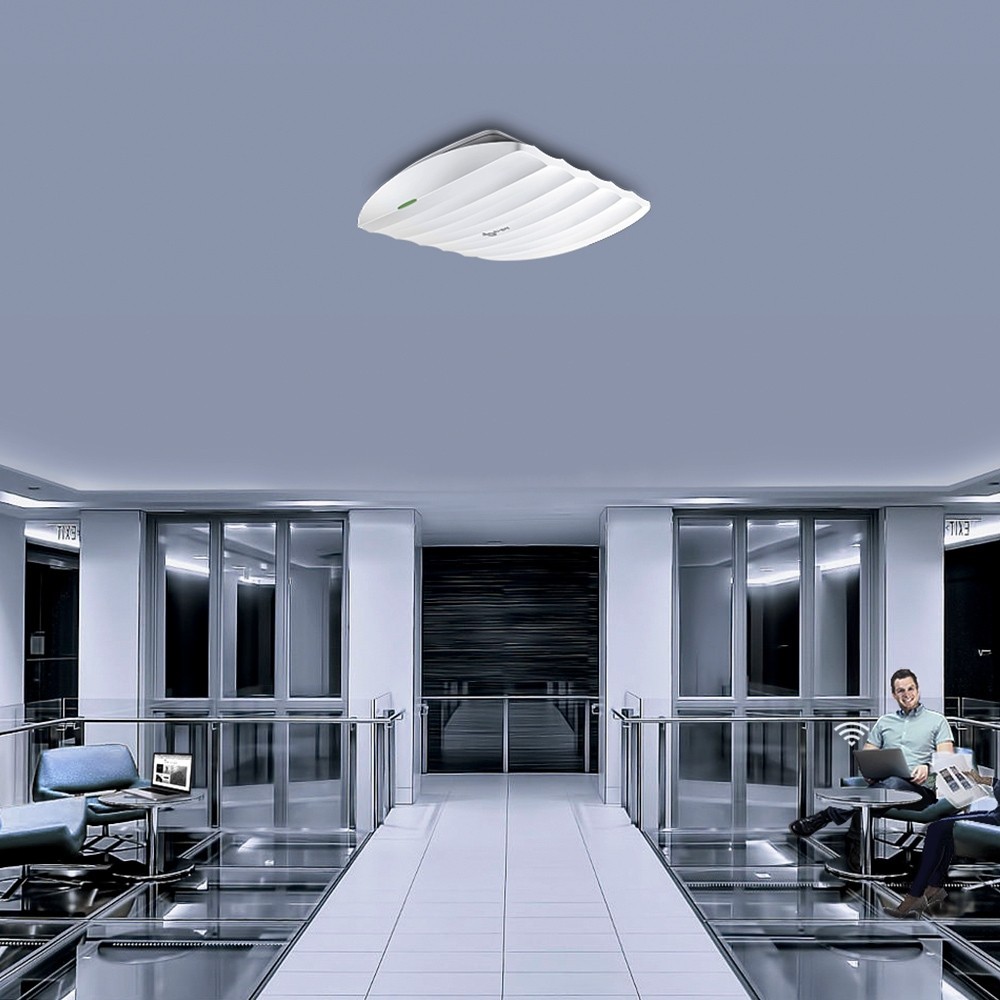

| Placement | Ceiling. Wall |
| Product colour | White |
| Cable lock slot type | Kensington |
| LED indicators | Power. WLAN |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 5 |
| Antenna gain level (max) | 5 dBi |
| Compatible operating systems | Microsoft Windows XP. Vista. Windows 7. Windows 8. Windows10. Linux |
| Compliance certificates | CE. Federal Communications Commission (FCC). RoHS |
| Width | 205.5 mm |
| Depth | 181.5 mm |
| Height | 37.1 mm |
| Package width | 228 mm |
| Package depth | 340 mm |
| Package height | 65 mm |
| Package weight | 910 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Harmonized System (HS) code | 85176990 |
