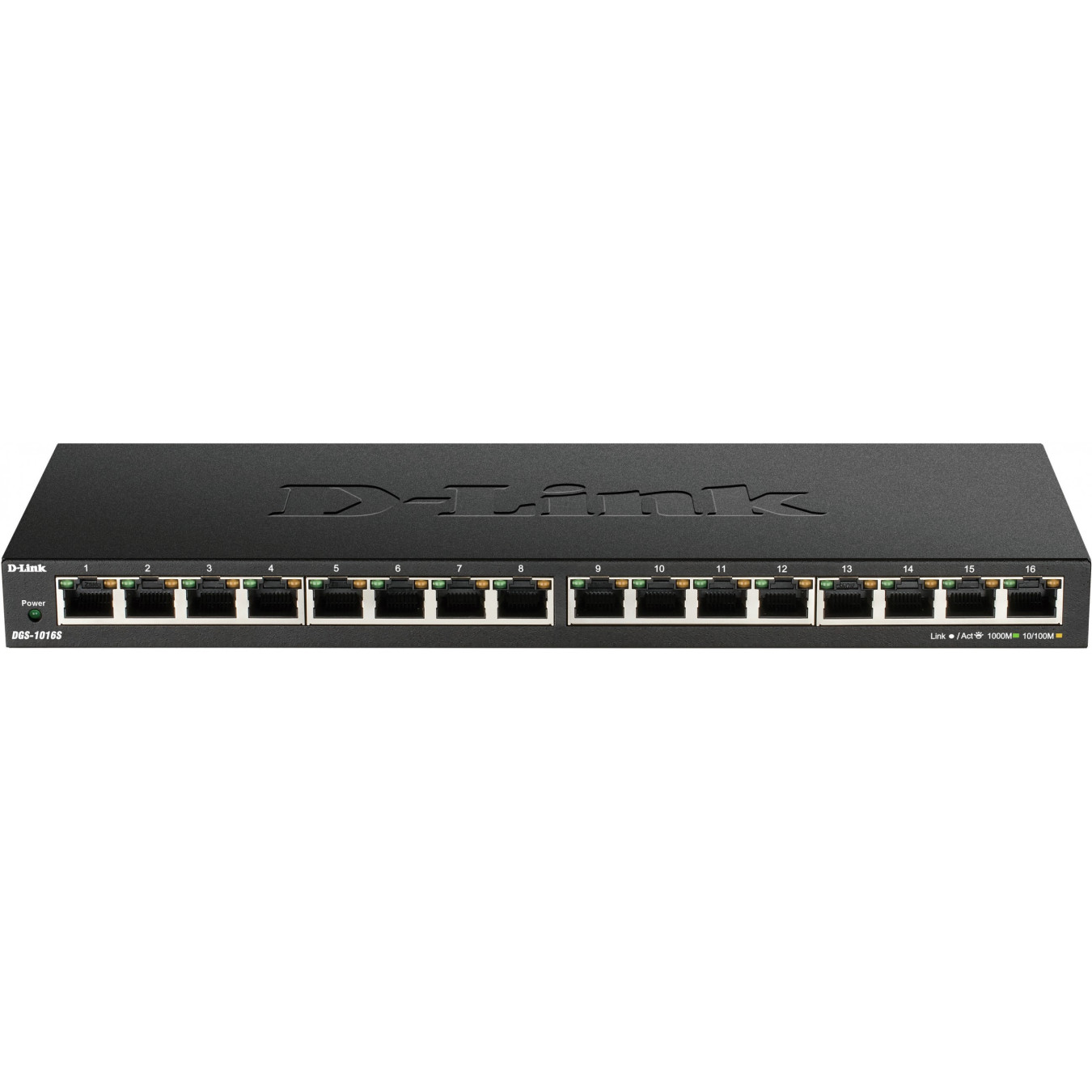

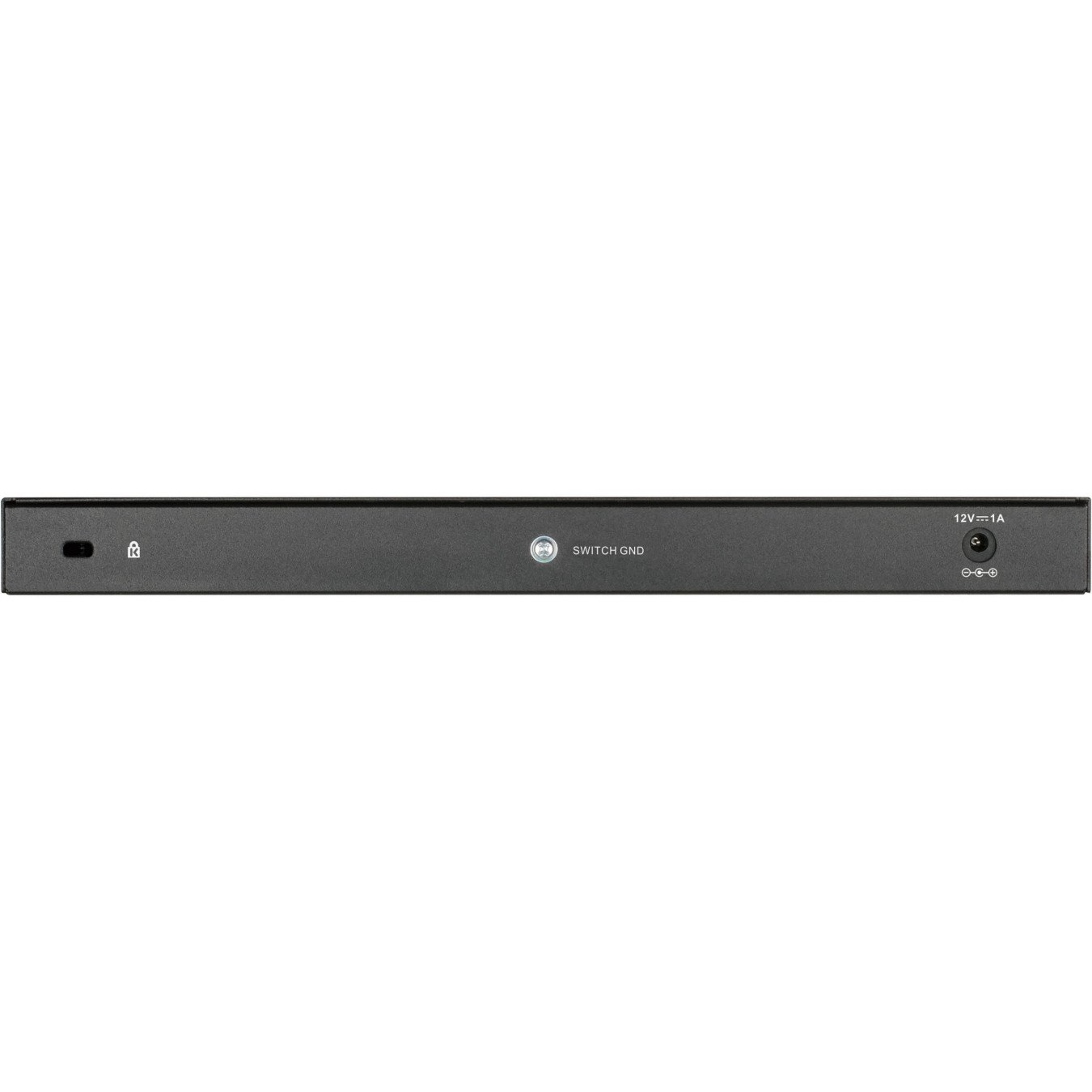

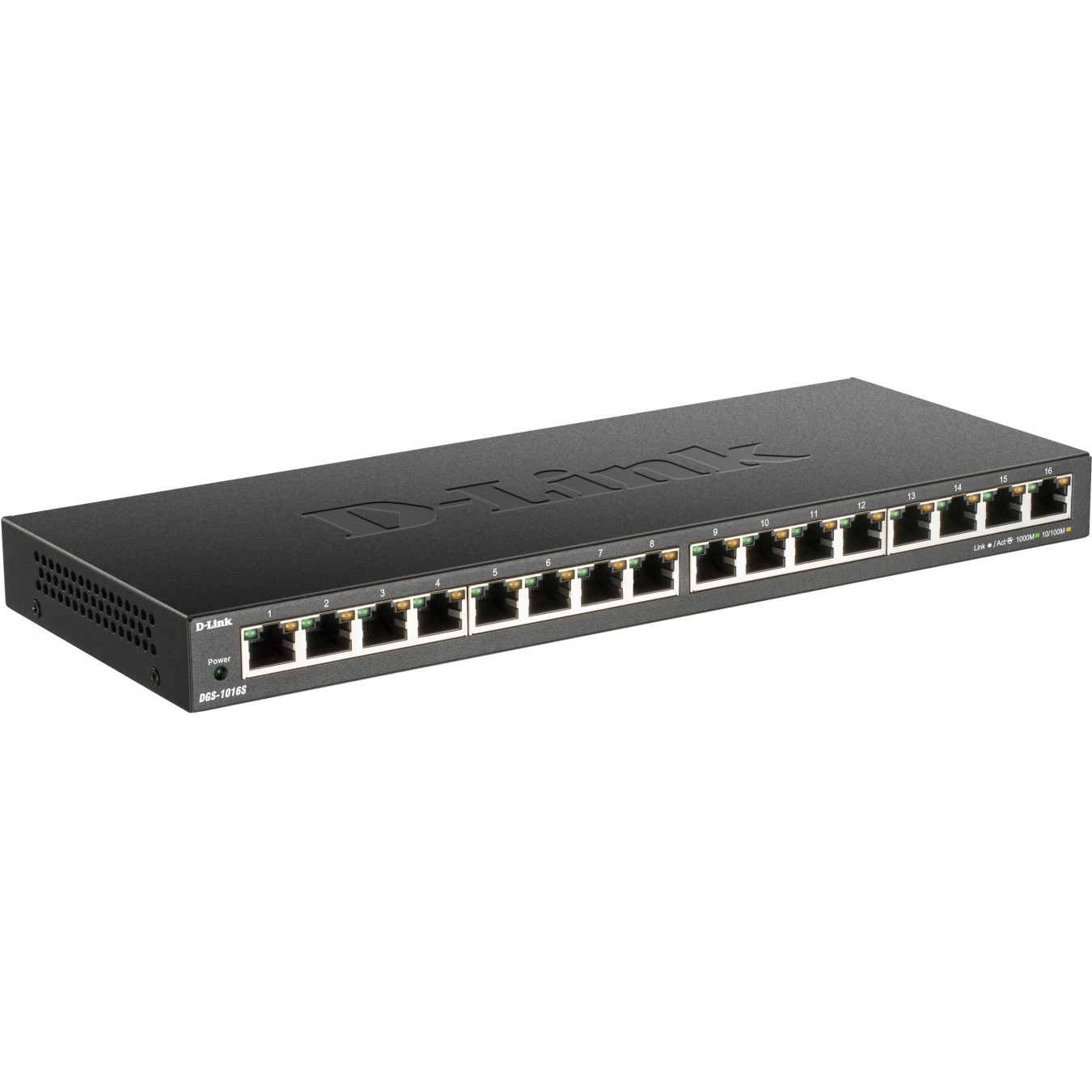

D-Link DGS-1016S - 16-Port Gigabit Unmanaged Switch, Fanless, Black
16-port unmanaged Gigabit switch (10/100/1000) with fanless design, 32 Gbps switching capacity, 8K MAC table, 12V DC input and low power consumption (~8.9W).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 16 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | No |
| Network Switches - Fanless | Yes |
D-Link DGS-1016S. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries. Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3az. IEEE 802.3x. DC input voltage: 12 V
| Switch type | Unmanaged |
| Feature | Fanless |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p. IEEE 802.3az. IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.512 MB |
| Product colour | Black |
| LED indicators | Activity. Link. Power. Speed |
| Mean time between failures (MTBF) | 564658 h |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 8.89 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 30.32 BTU/h |
| Width | 280 mm |
| Depth | 110 mm |
| Height | 25 mm |
| Weight | 770 g |
| Certification | CE. FCC. ICES 003. RCM |
